CLTI- & CLXI-1DELV4
Functional Summary
The Crestron 1-Feed, 4-Dimmer Electronic Low Voltage
Terminal Block and Module (CLTI-1DELV4 and
CLXI-1DELV4, respectively), are considered a single
entity and must be used together. They ship separately to
permit termination of the field wiring to the
CLTI-1DELV4 prior to installation of the
CLXI-1DELV4, as described in this guide. They can be
mounted in any Crestron Automation Enclosure (CAENSeries Enclosures). The terminal block is designed to
terminate the circuit feed (HOT and NEUTRAL) and
distribute the controlled circuit (LOAD) to the fixture(s).
The module connects to the terminal block and performs
dimming control of four electronic low-voltage or
incandescent loads. The maximum load is 10 amps for
any controlled circuit, limited to 13 amps total per
module. The unit requires 230VAC 50 Hz, 1 phase input
voltage. An oversize heat sink dissipates heat efficiently.
There are LEDs on the module to indicate communication
to a Cresnet
output power to the load.
network, input power to the module, and
Terminal Block & Module Locations (Single-wide Enclosure)
GROUNDING
TERMINAL
BLOCK
TERMINAL
BLOCK
MODULE
NOTE: When connecting to an Arc Fault Breaker,
the load should not exceed 1000 watts.
Installation
Terminal block and module must be mounted into a
Crestron Automation Enclosure by a licensed electrician,
in accordance with all national and local codes.
CAUTION: This equipment is for indoor use only
and needs to be air-cooled. Mount in a wellventilated area. The ambient temperature must be
0°C to 40°C (32°F to 104°F). The relative humidity
must be 0% to 90% (non-condensing).
Terminal blocks are installed along the left side of singlewide enclosures and along the outside edges (left and
right sides) of double-wide enclosures. Modules are
installed along the right side of single-wide enclosures
and side-by-side in the center of double-wide enclosures.
When installing modules and terminal blocks in a doublewide enclosure, be sure to invert units on the right side so
that they can be properly wired. Refer to the illustrations
shown below when considering the location of terminal
blocks and modules within an enclosure.
Terminal Block & Module Locations (Double-wide Enclosure)
TERMINAL BLOCK
(LEFT)
MODULE
TERMINAL BLOCK
(RIGHT)
NOTE: Modules and terminal blocks must be
installed into the lowest available spaces and
GROUNDING TERMINAL BLOCKS
continue toward the top of the enclosure.
Crestron Electronics, Inc. Installation Guide – DOC. 6405
15 Volvo Drive Rockleigh, NJ 07647 (2013815)
Tel: 888.CRESTRON 11.05
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Terminal Block & Module Crestron CLTI- & CLXI-1DELV4
Terminal Block Installation and Field Wiring
1. Use the two supplied self-tapping pan Phillips
screws (8B x ¼-inch (6 mm) length) to secure
the terminal block and the appropriate (left or
right) wiring label to the Crestron Automation
Enclosure. The wiring label lies beneath the
terminal block as shown in the two wiring
diagrams on this page.
NOTE: Both left and right wiring labels are
provided. The left-side labels are common for both
single and double-wide enclosures. The right-side
labels are only used in double-wide enclosures since
the modules and terminal blocks along the right side
must be inverted when mounting.
CAUTION: A bypass jumper is installed on the
terminal block to allow testing of circuits and to
protect the module during installation. When properly
secured by five screws, the bypass jumper on the
brown and red sections of the terminal block short the
hot to dim so that all circuits receive power. Do not
remove the bypass jumper until all feed and load
wiring has been completed, the circuit has been tested
for electrical faults, and the module has been
installed. Refer to “Module Installation” on next
page. A jumper is also installed on the blue sections
of the terminal block and ties all neutrals together.
This jumper should never be removed.

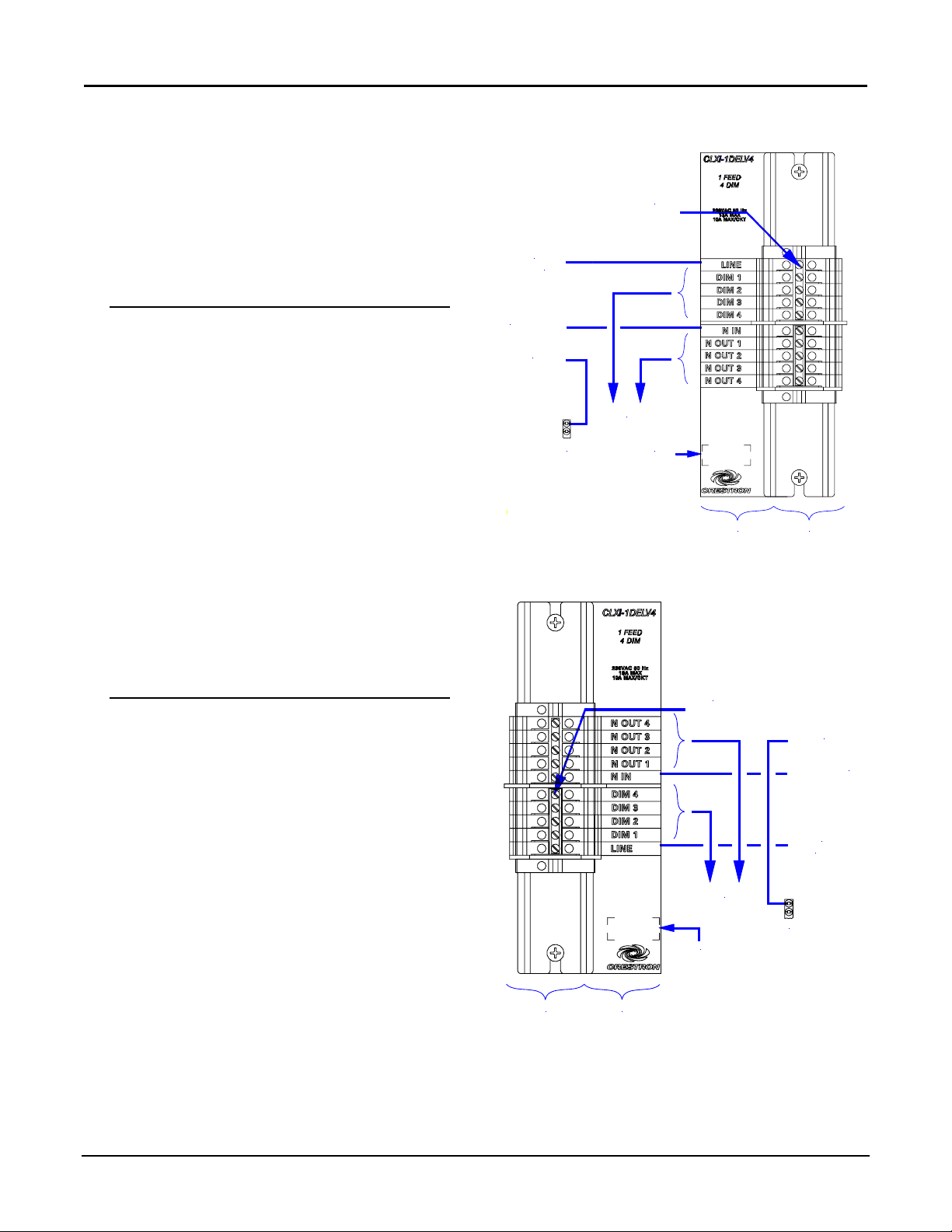

Wiring Diagram of the Terminal Block to the Feed and
Load(s) (Single-wide and Left Side Double-wide Enclosures)
BYPASS
JUMPER
HOT
(FROM 10 OR 16 AMP
CIRCUIT BREAKER)
NEUTRAL
GND
TO
LOAD(S)
GROUNDING
TERMINAL
BLOCK
AREA FOR
MODULE
LOCATION
LABEL
LEFT SIDE
WIRING LABEL
TERMINAL
BLOCK
Wiring Diagram of the Terminal Block to the Feed and
Load(s) (Right Side Double-wide Enclosures)
NOTE: Use copper conductors only – rated 75°C
2. With the circuit breaker turned off, connect the
circuit feed (HOT and NEUTRAL) and
controlled circuit (LOAD) wires to the terminal
block per the markings provided on the wiring
label (as shown in the diagrams on this page).
Terminal blocks accept one 2.5 - 6.0 mm
2
wire.
Wires should be stripped to 12 mm. Tighten
terminal blocks to 1 Nm. Do not over tighten.
3. Grounding terminal blocks are available in the
cabinet for termination of ground wires. Tighten
to 4 Nm (2.5 - 6.0 mm
2
), 4.5 Nm (10.0 mm2), or
5.1 Nm (16 – 25 mm2).
4. Test the circuit for electrical faults by turning on
the circuit breaker and checking that the breaker
does not trip and that power is delivered to the
loads.
TERMINAL
RIGHT SIDE
BYPASS
JUMPER
LOAD(S)
AREA FOR
MODULE
LOCATION
LABEL
TO
GND
NEUTRAL
HOT
(FROM 10
OR 16 AMP
CIRCUIT
BREAKER)
GROUNDING
TERMINAL
BLOCK
2 • Terminal Block & Module: CLTI- & CLXI-1DELV4 Installation Guide – DOC. 6405
Crestron CLTI- & CLXI-1DELV4 Terminal Block & Module
Module Installation
CAUTION: Module contains electrostatic sensitive
devices (ESDs); unit must be handled from metal
chassis – do not touch PC board or components.
NOTE: Modules are to be installed after enclosure
has been completely wired. Refer to the terminal
block installation procedure on page 2 for details.
1. Use the four supplied self-tapping pan Phillips
screws (8B x ¼-inch (6 mm) length) to secure
the module to the enclosure.
2. As shown in the wiring diagrams (next column),
connect the wires from the module to the
terminal block. Each wire exits the module
directly in line with, and is the same color as, the
terminal to which it should be connected. Wires
are pre-stripped to 12 mm. Tighten to 1 Nm. Do
not over tighten.
3. If the module is being installed above another
module within the enclosure, attach the supplied
module interconnect cable between the two
modules. The illustration below depicts the area
within a double-wide enclosure where the
corners of four modules meet.
NOTE: One wire on the module interconnect cable
may be a different color from the rest. The color has
no bearing on its orientation during installation.
Use Module Interconnect Cable to Wire Module to Module
MODULE
INTERCONNECT
CABLE ATTACHED
CONNECTION
NOT
MADE
NOTE: Before the five-position bypass jumper,
shown in the illustration, is removed, the Crestron
Professional Automation Computer (PAC2), which
provides control to the system, should be properly
connected and contain a valid program to provide
control of the module.
Wiring Diagram of the Terminal Block to the Module
(Single-wide and Left Side Double-wide Enclosures)
BROWN
RED
BLUE
ENLARGEMENT DETAIL:
BYPASS JUMPER ON BROWN AND
RED SECTION OF TERMINAL
BLOCK HAS BEEN REMOVED
AFTER LOOSENING ALL SCREWS.
JUMPER ON BLUE SECTION
REMAINS INSTALLED.
BYPASS JUMPER REMOVED
JUMPER INSTALLED
Wiring Diagram of the Terminal Block to the Module
(Right Side Double-wide Enclosures)
BLUE
RED
BROWN
4. Turn on the circuit breaker and verify that the
green PWR LED on the module lights, the
breaker does not trip, and power is delivered to
the loads.
5. Turn off the circuit breaker and remove the fiveposition bypass jumper on the brown and red
section of the terminal block. The jumper on the
blue section of the terminal block remains
installed. Refer to the figures in the next column
ENLARGEMENT DETAIL:
JUMPER ON BROWN AND
RED SECTION OF TERMINAL
BLOCK HAS BEEN REMOVED
AFTER LOOSENING ALL SCREWS.
JUMPER ON BLUE
SECTION REMAINS
INSTALLED.
JUMPER INSTALLED
for a close-up of the jumpers.
BYPASS JUMPER REMOVED
Installation Guide – DOC. 6405 Terminal Block & Module: CLTI- & CLXI-1DELV4 • 3
Terminal Block & Module Crestron CLTI- & CLXI-1DELV4
6. If the program is not running yet, loads can be
tested by using Local Mode.
Use Local Mode to verify that each load is connected to
the proper output on the modules.
1. Press the SETUP button momentarily (less than
three seconds) to enter Local Mode.
The SETUP LED and output LED 1 illuminate
and power is applied to the devices connected to
output 1.
2. Press the SETUP button again to turn off output
1 and turn on output 2.
3. Press the SETUP button again for each output.
4. After turning on the last output, press the
SETUP button again to turn on all outputs.
5. Press the SETUP button once more to turn off
all outputs and LEDs and exit Local Mode.
Further Inquiries
If you cannot locate specific information or have
questions after reviewing this guide, please take
advantage of Crestron's award winning customer service
team by calling the Crestron corporate headquarters at
1-888-CRESTRON [1-888-273-7876]. For assistance in
your local time zone, refer to the Crestron website
(
www.crestron.com
offices.
You can also log onto the online help section of the
Crestron website to ask questions about Crestron
products. First-time users will need to establish a user
account to fully benefit from all available features.
) for a listing of Crestron worldwide
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or
service without prior authorization from CRESTRON. To
obtain warranty service for CRESTRON products, contact
the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature
of the problem, name and phone number of contact person,
RMA number, and return address.
2. Products may be returned for credit, exchange, or service
with a CRESTRON Return Merchandise Authorization
(RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J., or
its authorized subsidiaries, with RMA number clearly marked
on the outside of all cartons. Shipments arriving freight
collect or without an RMA number shall be subject to refusal.
CRESTRON reserves the right in its sole and absolute
discretion to charge a 15% restocking fee, plus shipping
costs, on any products returned with an RMA.
3. Return freight charges following repair of items under
warranty shall be paid by CRESTRON, shipping by standard
ground carrier. In the event repairs are found to be nonwarranty, return freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from
manufacturing defects in materials and workmanship under normal use
for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other
moving or rotating mechanical parts, pan/tilt heads and power supplies
are covered for a period of one (1) year; touchscreen display and overlay
components are covered for 90 days; batteries and incandescent lamps
are not covered.
This warranty extends to products purchased directly from CRESTRON
or an authorized CRESTRON dealer. Purchasers should inquire of the
dealer regarding the nature and extent of the dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the
product has been used in any application other than that for which it was
intended, or if it has been subjected to misuse, accidental damage,
modification, or improper installation procedures. Furthermore, this
warranty does not cover any product that has had the serial number
altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the original
purchaser. In no event shall CRESTRON be liable for incidental or
consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is
not liable for any claim made by a third party or made by the purchaser
for a third party.
CRESTRON shall, at its option, repair or replace any product found
defective, without charge for parts or labor. Repaired or replaced
equipment and parts supplied under this warranty shall be covered only
by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no
other warranties, expressed or implied, nor authorizes any other party to
offer any warranty, including any implied warranties of merchantability
or fitness for a particular purpose. Any implied warranties that may be
imposed by law are limited to the terms of this limited warranty. This
warranty statement supercedes all previous warranties.
Trademark Information
All brand names, product names, and trademarks are the sole property of their respective
owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP
and WindowsNT/2000 are trademarks of Microsoft Corporation.
4 • Terminal Block & Module: CLTI- & CLXI-1DELV4 Installation Guide – DOC. 6405
Loading...
