Page 1
C2N-
V
Q
E
4

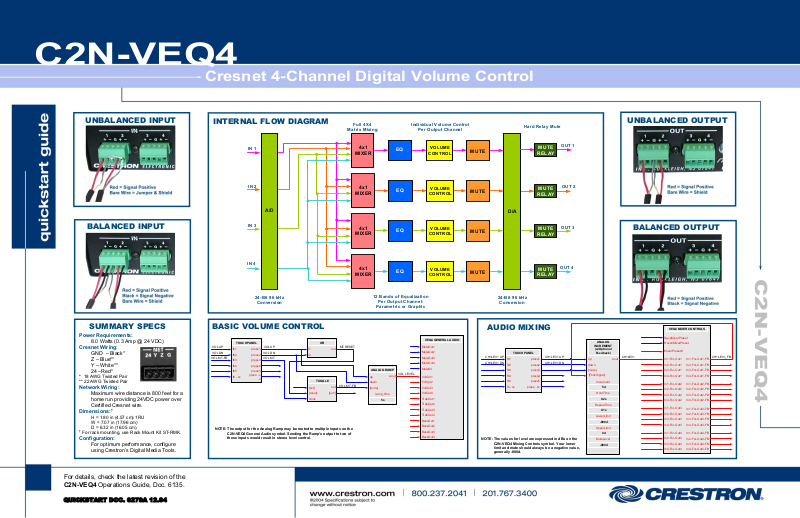

Cresnet 4-Channel Digital Volume Control
UNBALANCED INPUT
BALANCED INPUT
INTERNAL FLOW DIAGRAM
IN 1
IN 2
A/D
IN 3
IN 4
24-Bit 96 kHz
Conversion
Full 4X4
Matrix Mixing
4x1
MIXER
4x1
MIXER
4x1
MIXER
4x1
MIXER
Individual Volume Control
Per Output Channel
EQ
EQ
EQ
EQ
12 Bands of Equalization
Per Output Channel:
Parametric or Graphic
VOLUME
CONTROL
VOLUME
CONTROL
VOLUME
CONTROL
VOLUME
CONTROL
MUTE
MUTE
MUTE
MUTE
D/A
24-Bit 96 kHz
Conversion
Hard Relay Mute
MUTE
RELAY
MUTE
RELAY
MUTE
RELAY
MUTE
RELAY
OUT 1
OUT 2
OUT 3
OUT 4
UNBALANCED OUTPUT
BALANCED OUTPUT
C2N-VEQ4
SUMMARY SPECS
Power Requirements:
8.0 Watts (0.3 Amp @ 24 VDC)
Cresnet Wiring:
GND – Black*
Z – Blue**
Y – White**
24 –Red*
* 18 AWG Twisted Pair
** 22 AWG Twisted Pair
Network Wiring:
Maximum wire distance is 800 feet for a
home run providing 24VDC power over
Certified Cresnet wire.
Dimensions:
H = 1.80 in (4.57 cm) 1RU
W = 7.07 in (17.96 cm)
D = 6.32 in (16.05 cm).
†
For rack mounting, use Rack Mount Kit ST-RMK.
†
Configuration:
For optimum performance, configure
using Crestron’s Digital Media Tools.
For details, check the latest revision of the
C2N-VEQ4 Operations Guide, Doc. 6135.
QUICKSTART DOC. 6279A 12.04
BASIC VOLUME CONTROL
i1
i2
[set]
[reset]
clock
OR
TOGGLE
[out*]
out
out
MT RESET
VOL MT-FB
VOL UP
VOL DN
VOL MT-FB
NOTE: The output for the Analog Ramp may be routed to multiple inputs on the
C2N-VEQ4 General Audio symbol. Sending the Ramp’s output to two of
these inputs would result in stereo level control.
TOUCHPANEL
fb1
fb2
fb3
fb4
fb5
fb...xx
press1
press2
press3
press4
press5
press...x
VOL UP
VOL DN
VOL MT
x
ANALOG RAMP
up
down
[mute]
ramp_time
5s
aout
VOL LEVEL
VEQ4 GENERAL AUDIO
MuteOut1
MuteOut2
MuteOut3
MuteOut4
MuteAll
VolOut1
VolOut2
VolOut3
VolOut4
TrebOut1
TrebOut2
TrebOut3
TrebOut4
BassOut1
BassOut2
BassOut3
BassOut4
CH1LEV1 UP
CH1LEV1 DN
NOTE: The values for leve l are expressed in dBu on t he
C2N-VEQ4 Mixing Controls symbol. Your lower
limit and mute should always be a negative value,
generally -800d.
TOUCHPANEL
fb1
fb2
fb3
fb4
fb5
fb...xx
press1
press2
press3
press4
press5
press...xx
CH1LEV1 UP
CH1LEV1 DN
ANALOG
INCREMENT
(w/Optional
Feedback)
up
down
[mute]
[FbckSignal]
Increment
HoldTime
RepeatTime
LowerLimit
UpperLimit
MuteLevel
5d
0.2s
0.1s
-800d
0d
-800d
aout
CH1LEV1
VEQ4 MIXER CONTROLS
SaveMixerPreset
RecallMixerPreset
MixerPreset#
In1-For-Out1
In2-For-Out1
In3-For-Out1
In4-For-Out1
In1-For-Out2
In2-For-Out2
In3-For-Out2
In4-For-Out2
In1-For-Out3
In2-For-Out3
In3-For-Out3
In4-For-Out3
In1-For-Out4
In2-For-Out4
In3-For-Out4
In4-For-Out4
In1-For-Out1-FB
In2-For-Out1-FB
In3-For-Out1-FB
In4-For-Out1-FB
In1-For-Out2-FB
In2-For-Out2-FB
In3-For-Out2-FB
In4-For-Out2-FB
In1-For-Out3-FB
In2-For-Out3-FB
In3-For-Out3-FB
In4-For-Out3-FB
In4-For-Out3-FB
In1-For-Out4-FB
In2-For-Out4-FB
In3-For-Out4-FB
In4-For-Out4-FB
CH1LEV1_FB
