Crestron C2N-FT-TPS4 User Manual

Crestron C2N-FT-TPS4/TPS4-U FlipTop Touchpanel Control Center Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2005 Crestron Electronics, Inc.
Crestron C2N-FT-TPS4/TPS4-U FlipTop Control Center
Contents
FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U 1
Introduction..........................................................................................................1
Features and Functions...........................................................................1
Specifications.........................................................................................2
Physical Description...............................................................................3
Industry Compliance..............................................................................7
Setup.....................................................................................................................8
Network Wiring .....................................................................................8

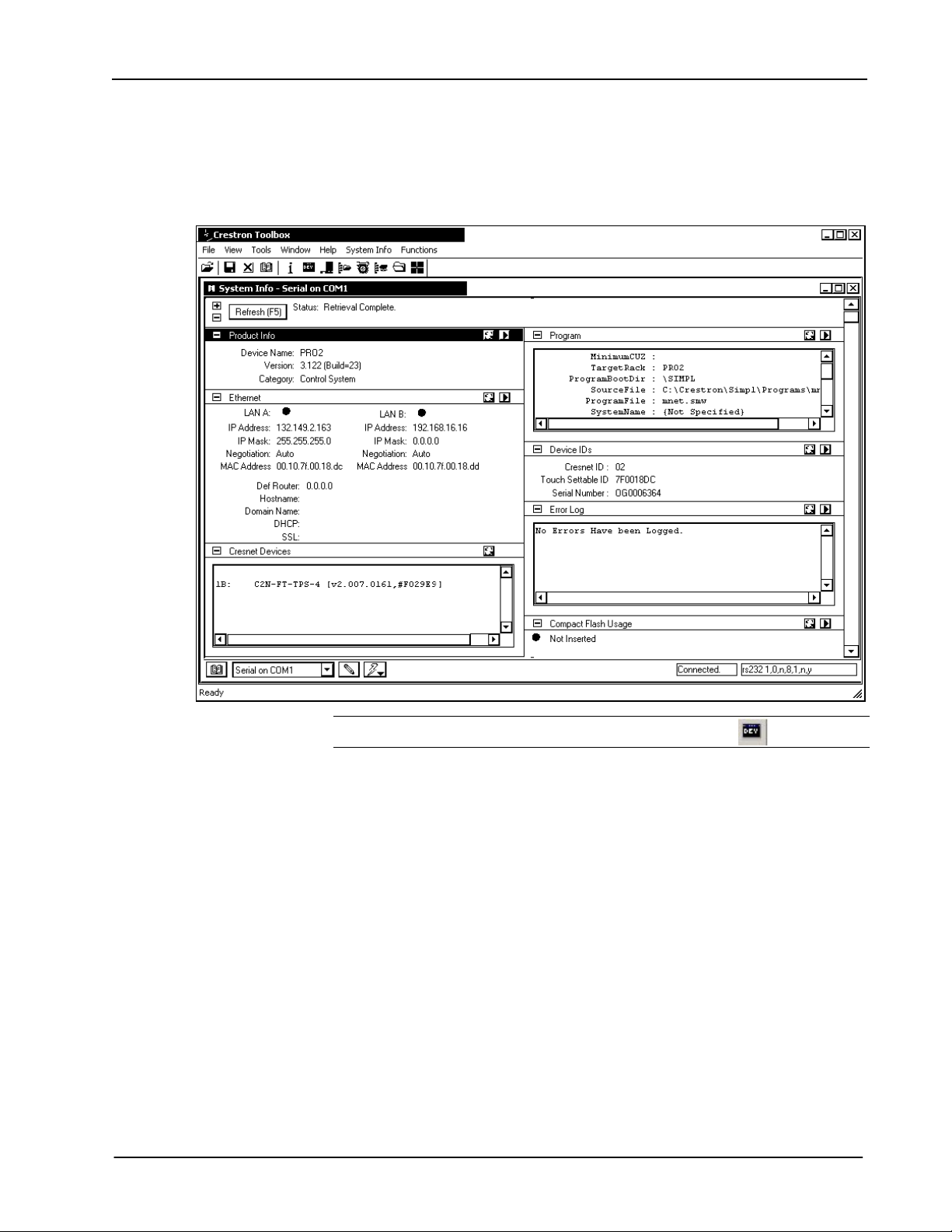

Crestron Toolbox ...................................................................................9
Identity Code..........................................................................................9

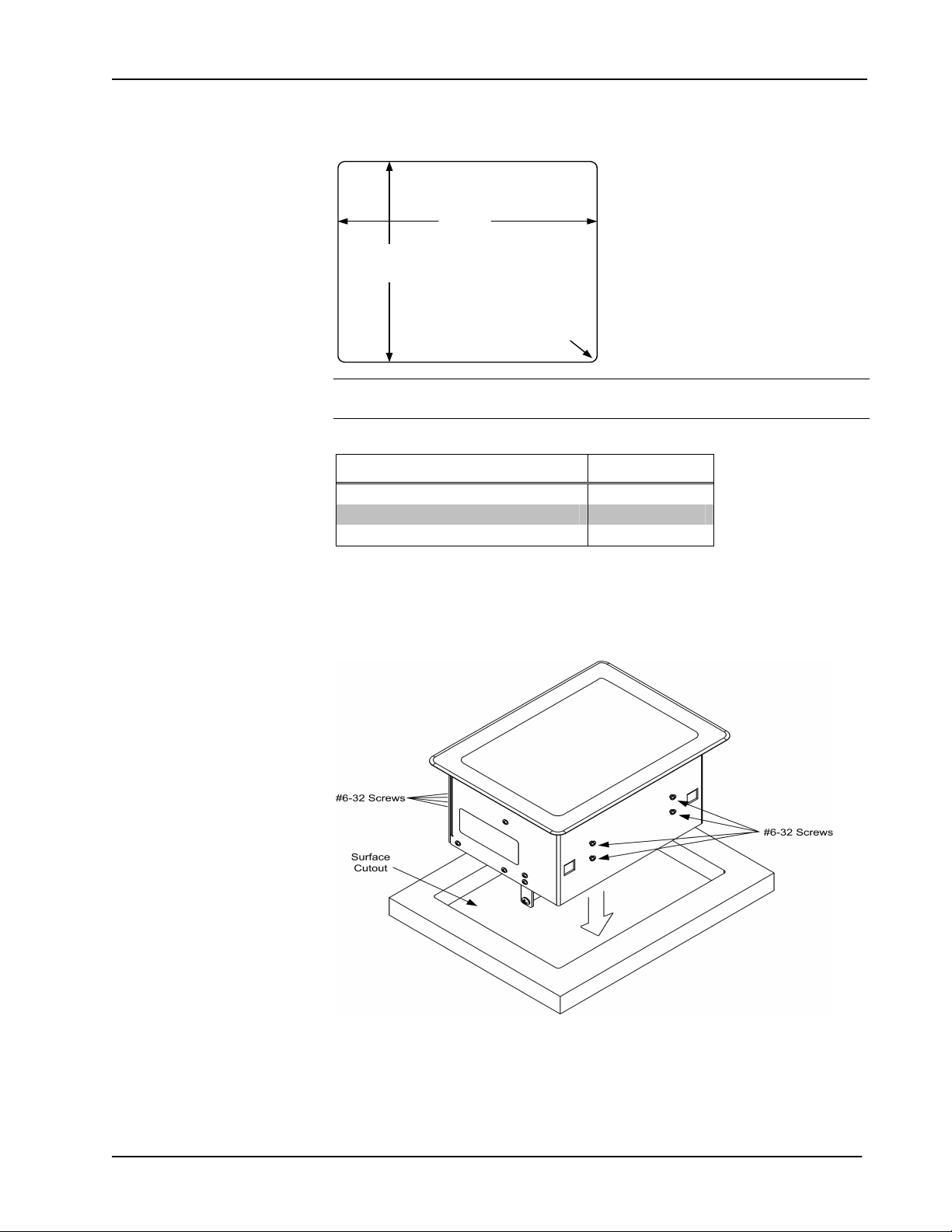

Installation............................................................................................11
Hardware Hookup................................................................................14

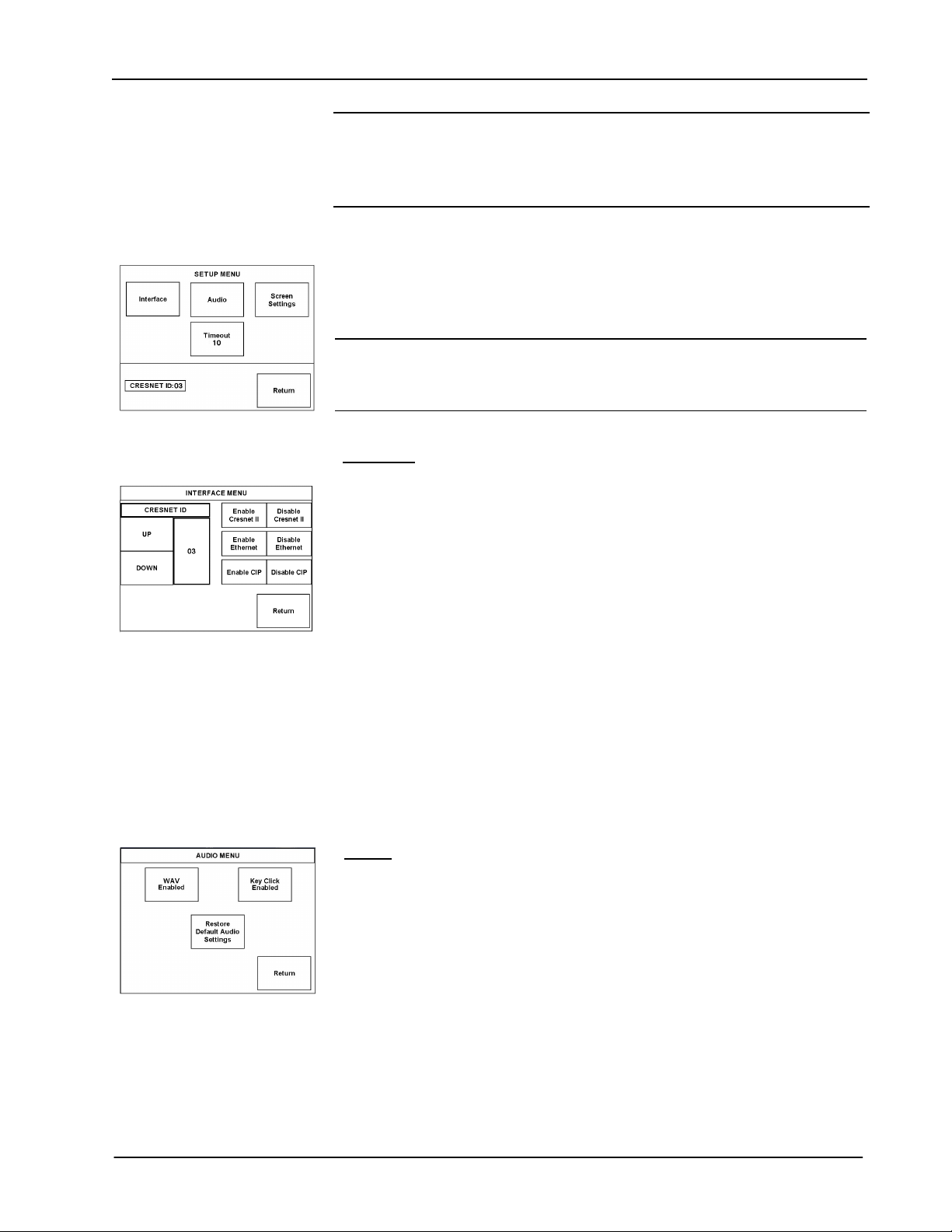

Configuring the Touchpanel.................................................................15
Programming Software.......................................................................................17
Earliest Version Software Requirements for the PC............................18
Programming with SystemBuilder.......................................................19
Programming with SIMPL Windows...................................................19
Example Program.................................................................................21
Programming with VT Pro-e................................................................21
Uploading and Upgrading ..................................................................................22
Communication Settings......................................................................22
Uploading a SIMPL Windows Program ..............................................24
Firmware Upgrade ...............................................................................26
Problem Solving.................................................................................................28
Further Inquiries...................................................................................28
Future Updates.....................................................................................28
Software License Agreement..............................................................................29
Return and Warranty Policies.............................................................................31
Merchandise Returns / Repair Service.................................................31
CRESTRON Limited Warranty...........................................................31
Operations & Installation Guide – DOC. 6398 Contents i
Crestron C2N-FT-TPS4/TPS4-U FlipTop Control Center
FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U

Introduction

Features and Functions
The C2N-FT-TPS4 and C2N-FT-TPS4-U FlipTop Touchpanel control centers (TPS4) comprise a touchpanel housed in a flip top mechanical enclosure. The only difference between the units is that the TPS4-U (universal) does not contain an AC power outlet. All references to TPS4 apply to both units unless specified otherwise. The TPS4 touchpanel is a compact Crestron 3.6-inch touchpanel that provides user interface to a Crestron® remote control system (Cresnet® system).
Functional Summary
Stylish FlipTop housing
Integrated 3.6 in (9.15 cm) active matrix color display
16-bit Isys graphics
320x240 screen resolution
Synapse image rendering algorithm
10 translucent white backlit pushbuttons*
WAV file audio feedback
Easy pull-out universal cable management
AC power outlet (C2N-FT-TPS4 only)
Cresnet and Ethernet communications
8 MB of flash (approx. 7MB for user display lists)
16 MB of DRAM (Dynamic RAM) for panel firmware
* As an option, a custom-engraved bezel can be designed and obtained by using the Crestron Engraver software. Version 2.4 and Crestron Database 17.4 or later are available from the Crestron website (www.crestron.com).
The bright, 3.6" active-matrix color touchscreen provides a fully customizable user interface for control of AV, lighting, screens, volume and more. With 16-bit Isys
Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U 1
FlipTop Touchpanel Control Center Crestron C2N-FT-TPS4/TPS4-U
graphics, the TPS4 produces astounding 3D graphics, dynamic text, and full-motion animations complete with WAV file audio feedback. Ten programmable pushbuttons are also included featuring translucent buttons with white LED backlighting and an engravable faceplate.
The units support both Cresnet and Ethernet protocols for communication with oth er devices as well as uploading programs and firmware.
An AC power passthrough is provided with the C2N-FT-TPS4 unit only. Both units provide for extensive connectivity through an easy pull-out cable storage mechanism. Eight grommeted holes are provided in the bottom plate, allowing for smooth pass-thru of virtually any type of AV, communication, control, or data cable (cables not included). When not in use, the user end of each cable stows neatly within the FlipTop compartment while excess cable simply drops out-of-sight below the box.
To prevent any inadvertent screen presses, the TPS4 disengages the touchpanel whenever the lid is not fully opened. The TPS4 mounts flush to any tabletop, concealing all cables and connectors, providing a clean professional appearance to any conference room or classroom.
The TPS4 is available in four different models.
Models
MODEL NUMBER COLOR
C2N-FT-TPS4-B/C2N-FT-TPS4-U-B Black C2N-FT-TPS4/C2N-FT-TPS4-U-BALUM Brushed Aluminum
For simplicity within this guide, the TPS4-U designation and the color suffix are omitted and C2N-FT-TPS4 is used except where noted.
NOTE: The TPS4 is compatible with 2-Series control systems only.

Specifications

Specifications for the TPS4 are given in the following table.
C2N-FT-TPS4/TPS4-U Specifications
SPECIFICATION DETAILS
Cresnet Power Usage 5 Watts (0.21 Amp @ 24 VDC) Default Network ID 03 Firmware tps4_qm-ftcc-tps-tps4_c2n-ft-tps4_2.007.0161.csf or later 2-Series Control System
Update Files Connectors LAN (1) 8-Wire RJ-45 with 2 LED indicators Cresnet (2) 4-pin terminal blocks Ground (1) Ground Terminal Touchpanel Display
Display Type Size Resolution Colors Illumination Contrast ratio Viewing angle Touchscreen
1,2
Continued on next page
Version 3.137.CUZ or later
Active matrix color LCD
3.6 in (9.1 cm) 320 x 240 pixels maximum 64,000 (16 bits) LED 300 cd/m² 300:1 typical ±80° typical horizontal, +80°/-50° typical vertical Resistive membrane
2 FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U Operations & Installation Guide - DOC. 6398
Crestron C2N-FT-TPS4/TPS4-U FlipTop Touchpanel Control Center
C2N-FT-TPS4/TPS4-U Specifications (continued)
SPECIFICATION DETAILS
Touchpanel Processor CPU Processing Speed
Touchpanel Memory 8MB internal flash; 16MB DRAM Touchpanel Ethernet
Support Operating Temperature and
Humidity
Dimensions and Weight Width: 7.67 in (19.49 cm)
1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following
these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the website are for Authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).
32-bit Freescale Coldfire Microprocessor 96 MIPS
10/100Base-T Full duplex, Link and Activity LEDs 41º to 104º F (5º to 40º C)
10 to 90% relative humidity (non-condensing)
Height: 5.67 in (14.40 cm) Depth: 6.55 in (16.64 cm) Weight: 4.05 lbs (1.84 kg)

Physical Description

Refer to the physical views shown below and on subsequent pages. NOTE: The AC outlet and line cord shown in the views that follow only appear on
the C2N-FT-TPS4.

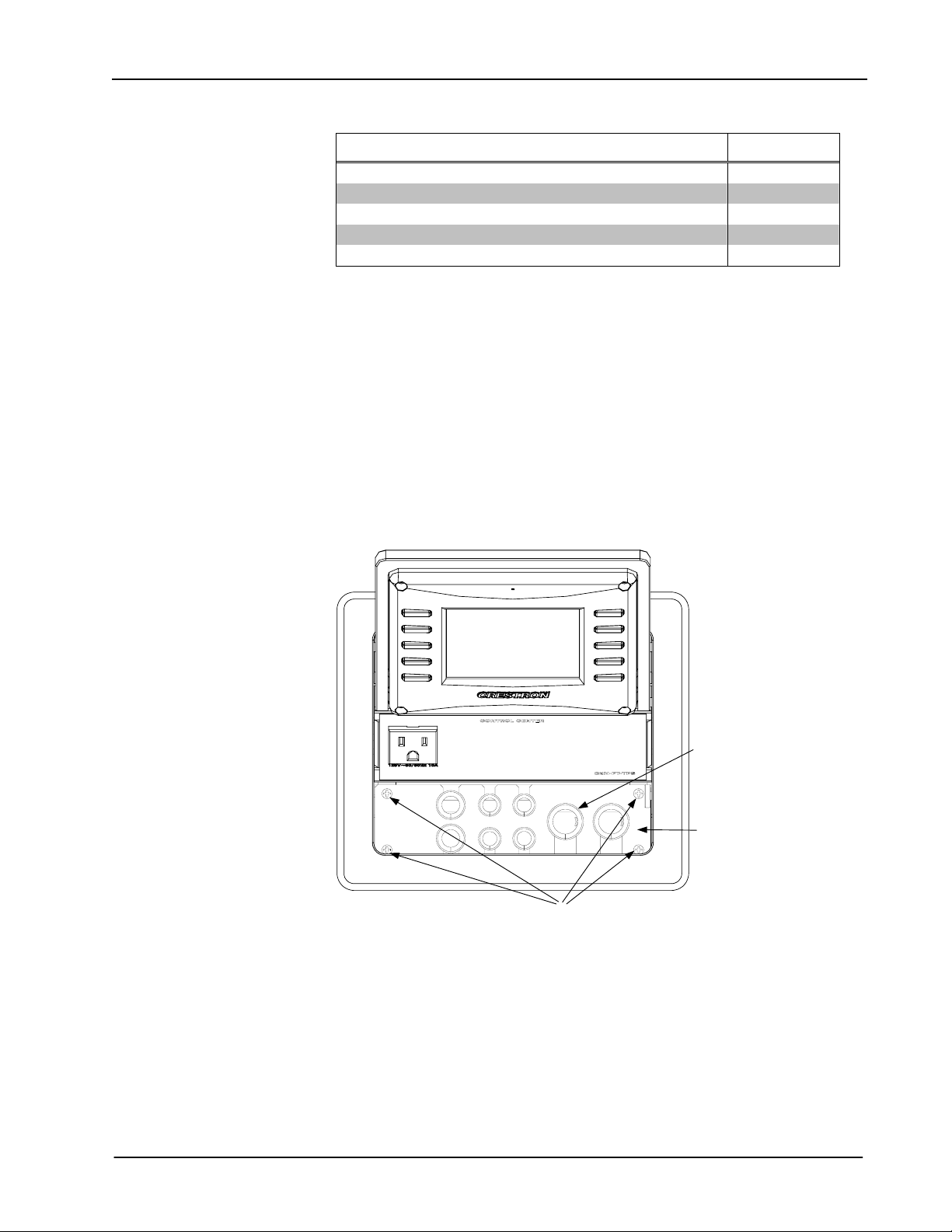

TPS4 Open View
Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control center: C2N-FT-TPS4/TPS4-U 3
FlipTop Touchpanel Control Center Crestron C2N-FT-TPS4/TPS4-U
TPS4 Physical Dimensions – Top View
7.67 in
(19.49 cm)
6.00 in
(15.24 cm)
CONTROL CENTER
CONTROL CENTERCONTROL CENTERCONTROL CENTERCONTROL CENTER
6.55 in
(16.64 cm)
4 FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U Operations & Installation Guide - DOC. 6398
Crestron C2N-FT-TPS4/TPS4-U FlipTop Touchpanel Control Center
TPS-4 Physical Dimensions - Front View
6.28 in
(15.96 cm)
7.17 in
(18.22 cm)
TPS4 Bottom View
LAN
Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control center: C2N-FT-TPS4/TPS4-U 5
FlipTop Touchpanel Control Center Crestron C2N-FT-TPS4/TPS4-U
TPS4 Physical Dimensions - Back View
2.75 in
(6.99 cm)
0.09 in
(0.23 cm)
4.66 in
(11.84 cm)
5.67 in
(14.40 cm)
TPS4 Physical Dimensions - Side View
5.51 in
(14.0 cm)
6.05 in
(15.37 cm)
6 FlipTop Touchpanel Control Center: C2N-FT-TPS4/TPS4-U Operations & Installation Guide - DOC. 6398
Crestron C2N-FT-TPS4/TPS4-U FlipTop Touchpanel Control Center

Controls and Ports (Top)

Buttons
125V – 50/60Hz 10A
24 Y Z G
Green
LED
8
NET
24 Y Z G
The TPS-4 touchpanel has 10 hard buttons; five on each side of the display. The buttons are backlit with white LEDs; brightness is program adjustable. The buttons can be programmed to automate frequently used functions.
AC Outlet (C2N-FT-TPS4 Only)
The 3-prong grounded AC outlet is rated 125 VAC @ 10 Amps, 50 – 60 Hz.

Ports (Underside)

NET
These two 4-pin terminal block connectors are for connection to the Cresnet network. One connector is used to connect to the Cresnet network while the second connector can be used to connect another Cresnet device. Cresnet power to the TPS4 is supplied through either of these connectors. For more information, refer to “Network Wiring” on page 8.
LAN
Yellow
LED
1
An 8-wire RJ-45 connector with two LED indicators (green LED indicates link status, yellow LED indicates Ethernet activity). This connector provides an Ethernet 10baseT /100baseTX, full duplex, TCP/IP, UDP/IP, CIP, DHCP, IEEE
802.3U compliant network connection for the TPS4 touchpanel.
LAN Connector Pinout
PIN SIGNALS PIN SIGNALS
1 TX + 5 N/C 2 TX - 6 RC ­3 RC+ 7 N/C 4 N/C 8 N/C
AC Power (C2N-FT-TPS4 Only)
Connect the six-foot (183 cm) grounded AC line cord to supply AC power to the outlet on the topside of the TPS4.

Industry Compliance

As of the date of manufacture, the TPS4 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Operations & Installation Guide – DOC. 6398 FlipTop Touchpanel Control center: C2N-FT-TPS4/TPS4-U 7
