Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Regulatory Compliance

As of the date of manufacture, the TPMC-12L has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

All brand names, product names and trademarks are the property of their respective owners.

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Contents

Isys™ 12” Wall Mount Touchpanel: TPMC-12L 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................ 1

Specifications ..............................................................................................................4

Physical Description.................................................................................................... 7

Setup ........................................................................................................................................ 13

Network Wiring......................................................................................................... 13

CAT5 Wiring............................................................................................................. 13

QuickMedia Wiring................................................................................................... 13

Identity Code ............................................................................................................. 15

Configuring the Touchpanel...................................................................................... 15

Mounting Options......................................................................................................39

Hardware Hookup .....................................................................................................41

Recommended Cleaning............................................................................................ 43

Programming Software............................................................................................................44

Earliest Version Software Requirements for the PC .................................................44

Programming with Crestron SystemBuilder.............................................................. 44

Programming with SIMPL Windows........................................................................ 44

Programming with VisionTools ................................................................................ 47

Embedded Applications.............................................................................................51

Defaults for Embedded Windows Applications ........................................................ 52

Programming Embedded Windows Applications......................................................53

Example Program...................................................................................................... 54

Uploading and Upgrading........................................................................................................ 55

Establishing Communication.....................................................................................55

Programs, Projects and Firmware.............................................................................. 56

Program Checks ........................................................................................................56

Restore....................................................................................................................... 56

Operation .................................................................................................................................57

MediaMarker............................................................................................................. 57

Security Infrastructure............................................................................................... 57

Problem Solving ......................................................................................................................59

Troubleshooting......................................................................................................... 59

Check Network Wiring..............................................................................................60

Reference Documents................................................................................................61

Further Inquiries........................................................................................................62

Future Updates ..........................................................................................................62

Software License Agreement................................................................................................... 63

Return and Warranty Policies.................................................................................................. 65

Merchandise Returns / Repair Service ......................................................................65

CRESTRON Limited Warranty.................................................................................65

Microsoft® Windows XP® Embedded End User License Agreement .....................................66

Operations Guide – DOC. 6686B Contents • i

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Isys™ 12” Wall Mount Touchpanel: TPMC-12L

Introduction

The Crestron® TPMC-12L delivers a stylish and powerful touchpanel control

solution, featuring blazingly fast performance and native capabilities for browsing

the Internet, streaming multimedia, intercom and more. A brilliant 12” active matrix

SVGA display, 24-bit color depth and 8-bit alpha channel transparency combine to

produce stunning 3D graphics using DNav dynamic menu objects, dynamic graphics

and text, animations, multimode objects, full motion or streaming video, all with

astonishing speed.

Features and Functions

• 12” active matrix touchscreen display

• 24-bit touchpanel graphics | 800 x 600 resolution

• DNav dynamic menu objects

• Full motion video with gamma correction

• Interactive annotation capability

• Windows

• Onboard PC applications for Web browsing, streaming media,

conferencing, VoIP and remote computer access

• Multi-format streaming video and audio

• Direct panel-to-panel intercom over IP

• WAV file audio feedback

• Built-in amplified speaker system and microphone

• QuickMedia

• High speed Ethernet and Cresnet

• Rear panel USB ports and memory card slot

• Backlit “hard key” push buttons

• Wall, lectern and rack mounting options

• Available in black or white

XP Embedded operating system

* and Crestron Home® CAT5 connectivity

communications

* QuickMedia implementation in this product supports standard definition video only; does not support

HDTV or high resolution RGB.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 1

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Touchpanel Control

Crestron touchpanels offer an ideal user interface for multimedia presentation, home

automation and much more, providing a wide open canvas for the creation of custom

control screens tailored to the needs of the end user. Touchpanels do away with piles

of remote controls, cryptic control panels and cluttered wall switches, simultaneously

expanding and simplifying control over a broad range of complex devices and

systems.

Embedded PC

The power of Isys i/O is in its embedded PC engine, combining rock solid

touchpanel performance with built-in Windows Media® Player and RealPlayer®,

Internet Explorer, Adobe

PowerPoint® document viewers. While simultaneously controlling your home,

boardroom or lecture hall, the TPMC-12L provides everything needed for enjoying

online music and movies, viewing Web pages and accessing most types of digital

media without necessitating a separate computer.

VNC Viewer support delivers enhanced cross-platform interaction with remote

computers over the network or Internet, allowing access and control of desktop

applications with live presentation capability.

Built on the Windows

powerful and secure platform for touchpanel control with integrated PC capabilities.

Programmatic control erases the lines between control system and PC, allowing

programmers to customize each application’s behavior within the touchpanel

environment to create a truly powerful and user-friendly interface.

Acrobat® Reader and Microsoft® Word, Excel and

XP Embedded operating system, the TPMC-12L delivers a

Integrated Video

For presentation preview, surveillance or pure entertainment, the TPMC-12L

provides multiple ways to view video signals from security cameras, movies and

other sources right on the touchscreen. Video images can be displayed full screen as

well as in a fully scalable window. High quality, full motion video is supported via a

direct wire connection from an external AV source. Streaming video is also

supported in a variety of formats over the LAN connection, enabling access to

everything from online streaming videos to personal media servers to live Web

cameras and servers like the Crestron CEN-NVS100 (sold separately).

Interactive Annotation

Built-in annotation capability allows presenters to write or draw over video images

right on the touchscreen using a finger or stylus. Remote annotation capability allows

multiple touchpanel users to draw over the same image, supporting interactive

annotation between several participants in a courtroom, classroom or similar

environment.

High Quality Audio

Built-in amplified speakers provide clear audio for external AV sources, streaming

media and internal PC applications and enable two-way intercom and VoIP

communications in combination with the integrated microphone. New Crestron IP

intercom capability facilitates direct panel-to-panel intercom and monitoring right

over the LAN without requiring additional AV wiring. Customized WAV files can

be loaded on the touchpanel to add dimension to the touchscreen graphics with

personalized sounds, button feedback and voice prompts.

2 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Crestron Home® CAT5 AV

Connecting audio and video sources to the TPMC-12L is facilitated using

inexpensive CAT5 wire, enabling direct connection to Crestron’s popular CAT5

balanced audio and video distribution switchers. A single video input port accepts

signals from composite, S-video and standard definition component sources over

wiring distances of up to 750 feet (229 meters). A bidirectional audio port receives

stereo program audio and intercom signals and outputs audio from the internal PC

and microphone. To facilitate the connection of conventional video and audio

devices, an external interface module (TPMC-CH-IMC) is included.

QuickMedia®*

The TPMC-12L is also equipped with a single QuickMedia input port. Through

QuickMedia (QM), the TPMC-12L interfaces directly with Crestron’s QM-based

MediaManager products using a single CAT5e type cable. Over wiring distances of

up to 450 feet (137 meters), the QM input port accepts video signals from composite,

S-video and standard definition component sources along with discrete audio signals

from one stereo program source and up to two microphones.

High Speed Connectivity

Both Cresnet® and high speed Ethernet are standard on the TPMC-12L, providing for

easy network integration and seamless communications with Crestron control

systems, media servers and computers. Two USB 2.0 ports are also included on the

rear panel to support a mouse and keyboard and external storage devices.

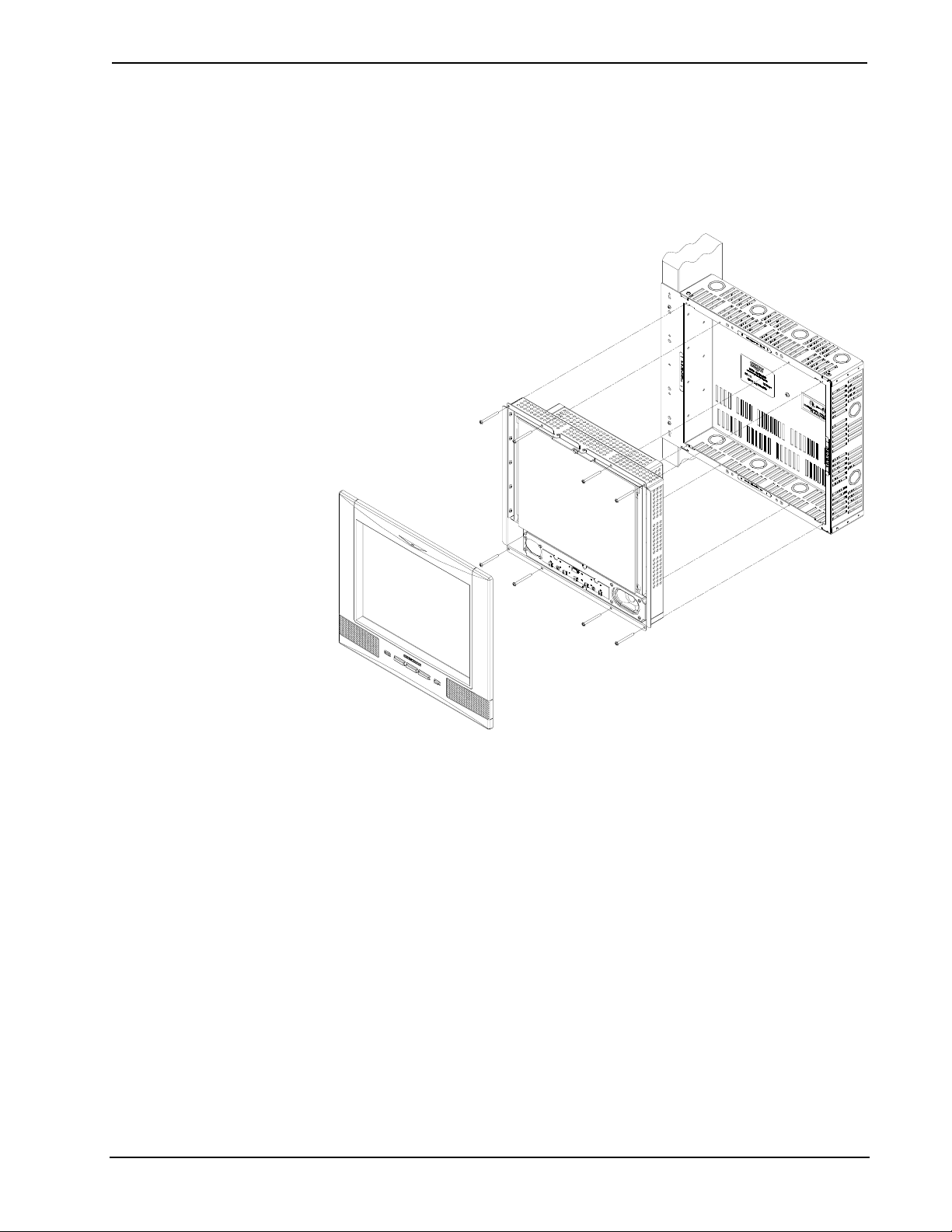

Versatile Flush Mount Design

The TPMC-12L is designed for easy flush mount installation in a wall, lectern or

similar flat surface. A variety of mounting accessories is offered including optional

back box and 19” rack mount kit. Four backlit push buttons are also provided,

allowing for quick access to commonly used functions.

* QuickMedia implementation in this product supports standard definition video only; does not support

HDTV or high resolution RGB.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 3

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Specifications

Specifications for the TPMC-12L are listed in the following table.

TPMC-12L Specifications

SPECIFICATION DETAILS

Touchscreen Display

Display Type TFT active matrix color LCD

Size 12 inch (30.5 cm) diagonal

Aspect Ratio

Resolution

Brightness

Contrast

Color Depth 18-bit, 256k colors

Illumination Backlit fluorescent

Viewing Angle

Touchscreen Resistive membrane

Memory

SRDAM 512 MB

Flash 2 GB

Memory Card

Maximum Project Size 120 MB using external flash

Operating System Microsoft® Windows® XP Embedded

Graphic Engine

Embedded Software Applications

Ethernet

4:3 SVGA

800 x 600 pixels

400 nits

600:1

±80º horizontal, +80º/-60º vertical

Expandable up to 4 GB using MMC compatible card (not included)

24 bit non-palette graphics + 8 bit alpha channel translucency, 16.7 million colors, multi-mode objects, DNav dynamic menu objects, dynamic graphics1, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing, remote annotation.

Microsoft Internet Explorer w/Macromedia

Flash

plug-in, Windows Media® Player,

RealPlayer Crestron IP Intercom, NetMeeting Desktop, VNC Viewer

, Crestron MJPEG Viewer,

, Java™ Runtime,

, Remote

Crestron MediaMarker™ Notebook, Crestron Keyboard, Adobe® Acrobat® Reader, WordPad, MS Word Viewer 2007, Excel® Viewer 2007, PowerPoint® Viewer

2007.

10BASE-T/100BASE-TX/1000BASE-T, auto-switching, auto-negotiating, autodiscovery, full/half duplex TCP/IP, UDP/IP, CIP, DHCP

Unit ships with DHCP enabled

(Continued on following page)

4 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

TPMC-12L Specifications (Continued)

SPECIFICATION DETAILS

Video

Signal Types

Formats NTSC 480i or PAL 576i

Color Depth 24-bit, 16.7M colors

Features

Streaming/File Formats

Audio

Hardware Features

Streaming/File formats

Audio Feedback (WAV)

D-A Conversion (QM only) 24-bit, 48 kHz

Amplification Mono, 5 Watts x 2

Power Requirements

Cresnet Power Usage 37 Watts (1.54 Amps @ 24 Volts DC)

Default Net ID4 03

Minimum 2-Series Control System Update File

Environmental

Temperature 41° to 113° F (5° to 45° C)

Humidity 10% to 90% RH (non-condensing)

Heat Dissipation 126 BTU/Hr

Enclosure

Construction

Front Bezel

Dimensions

Height 11.80 in (300 mm)

Width 13.61 in (346 mm)

Depth 3.81 in (97 mm)

Weight 8.5 lbs (3.9 kg)

Available Models

TPMC-12LB

TPMC-12LW

5, 6

Auto-detecting composite, S-video or component

Single window scalable to full screen, input switching between QM and VIDEO inputs, gamma correction, line doubling

MPEG4 and MJPEG via Crestron MJPEG Viewer, plus all formats supported by the embedded media player applications

Built-in microphone and amplified speakers, internal volume control and audio mixer

All formats supported by the embedded media player application2

8 and 16-bit PCM, mono and stereo, 8 - 44.1 kHz sampling rates

Version 4.001.1012 or later

Metal, flush mountable, 8U 19” rack mountable (all mounting kits sold separately)

Injection molded plastic; black w/silver or white w/gray accent

Isys i/O 12” Wall Mount Touchpanel Media Center, Black

Isys i/O 12” Wall Mount Touchpanel Media Center, White

(Continued on following page)

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 5

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

TPMC-12L Specifications (Continued)

SPECIFICATION DETAILS

Included Accessories

TPMC-CH-IMC

Available Accessories

BB-12L Pre-Construction Wall Mount Back Box

CEN-NVS100 Network Video Streamer

CresCAT®D Crestron Home® CAT5 Balanced AV Cable

CresCAT-IM iMedia cable

CresCAT-QM QuickMedia Cable

MMK-12L Mud Ring

PMK-12L Pre-Construction Wall Mount Kit

QM-TX QuickMedia Transmitter

RMK-12L Rack Mount Kit

TMK-12L Trim Ring

TPMC-CH-IMW CAT5 Balanced AV Interface Wall Plate

TPS/TPMC-CBL-T Triamese Interface Cables

WMKM-12L

WMKT-12L

1. By design, the panel will not load dynamic graphics if they are located on a password protected FTP or HTTP server.

2. Contact Crestron for a current list of compatible devices and embedded applications. To ensure reliable performance, new device drivers and applications are available only from Crestron through firmware updates.

3. The supported VNC viewer is UltraVNC version 1.0.2. Other VNC viewers may work but are not guaranteed.

4. Refer to “Identity Code” on page 15 for details.

5. The latest software versions can be obtained from the Crestron Web site. Refer to the NOTE following these footnotes.

6. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.

CAT5 Balanced AV Interface Module + 15 ft triamese cable

Refer to the latest revision of the TPMC-CH-IMC Operations Guide (Doc.

6345) for more information

Post-Construction Wall Mount Kit with Mud Ring

Lectern or Post-Construction Wall Mount Kit with Trim Ring

NOTE: Crestron software and any files on the Web site are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).

6 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Physical Description

This section provides information on the connections, controls and indicators available on your TPMC-12L.

TPMC-12L Physical View

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 7

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

TPMC-12L Overall Dimensions (Front, Side and Bottom Views)

13.61 in

(346 mm)

12.70 in

(323 mm)

11.80 in

(300 mm)

10.79 in

(275 mm)

0.61 in

(16 mm)

2.09 in

(54 mm)

3.81 in

(97 mm)

8 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

TPMC-12L Overall Dimensions (Rear View)

11.08 in

(282 mm)

TPMC-12L Connectors

0.71 in

(18 mm)

3.00 in

(76 mm)

9.21 in

(234 mm)

12.20 in

(310 mm)

4 5 6 7

0.36 in

(10 mm)

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 9

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Connectors, Controls & Indicators

CONNECTORS

CONTROLS &

INDICATORS

DESCRIPTION

NET

(1) 4-pin 3.5 mm detachable terminal block

Connects to Cresnet control network or TPMC-CH-IMC interface module (included) via 15 foot (4.6 meter) “triamese” cable provided

24: Power (24 Volts DC) Y: Data Z: Data G: Ground

GROUND

(1) 6-32 screw, chassis ground lug

USB

1 2 3 4

(2) USB Type A female

USB 2.0 ports for USB keyboard, mouse and storage devices

4 MEMORY EXPANSION (1) MMC compatible card slot

Accepts Multimedia Memory Cards (MMC) up to 4 GB for memory expansion2

YELLOW/

GREEN

LED

LAN

GREEN

LED

(1) 8-wire RJ-45 with two LED indicators

10BASE-T/100BASE-TX/1000BASE-T Ethernet port

Left yellow LED indicates 10 Mbps link status

Left green LED indicates 100 Mbps link status

PIN 8

PIN 1

Right green LED indicates 1000 Mbps link status

For all LEDs, blinking = active, on = no activity, off = no link

PIN SIGNAL PIN SIGNAL

1 A + 5 C 2 A - 6 B 3 B + 7 D + 4 C + 8 D -

(Continued on following page)

10 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Connectors, Controls & Indicators (Continued)

3, 4

5, 6

5, 7

(1) 8-wire RJ-45 female, QuickMedia input

DESCRIPTION

port

Signal types: Auto-detecting component (YP

), S-video (Y/C) or composite video

bPr

with stereo program audio and (2) mic channels

Video formats: NTSC 480i or PAL 576i; Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable

Maximum cable length: 450 feet (137 meters) (aggregate distance from QM origination)

(1) 8-wire RJ-45 female, CAT5 balanced video input port

Signal types: Auto-detecting component (YPbPr), S-video (Y/C) or composite

Video formats: NTSC 480i or PAL 576i; Input impedance: 100 Ω balanced

Connects to any Crestron CAT5 balanced video source via CresCAT-D cable or TPMC-CH-IMC interface module (included) via 15 foot (4.6 meter) “triamese” cable provided

Maximum cable length: 500 feet (152 meters) for component, 750 feet (229 meters) for composite/S-video

(1) 8-wire RJ-45 female, bidirectional CAT5 balanced audio port

Signal type: receives (1) balanced stereo audio signal and transmits (1) balanced stereo audio signal from internal microphone

Maximum input level: 4 V

Maximum output level: 2 V

rms

Input/output impedance: 600 Ω

Connects to any other Crestron CAT5 balanced audio port via CresCAT-D cable or TPMC-CH-IMC interface module (included) via 15 foot (4.6 meter) “triamese” cable provided

Maximum cable length: 1000 feet (305 meters)

(1) Backlit hard reset button, reboots the touchpanel

CONNECTORS

CONTROLS &

INDICATORS

9 BUTTONS8 (4) Backlit “hard key” buttons, programmable

1. An interface connector for the NET port is provided with the unit.

3. QuickMedia implementation in this product supports standard definition video only; does not support HDTV or high resolution RGB.

QM IN

VIDEO IN

AUDIO I/O

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 11

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

4. The eight-pin RJ-45 QuickMedia transport port accepts CAT5E/CAT6 carrying audio, video and microphone signals. The QM input port conforms to the 568B wiring standard. Refer to the following table for connector pinouts.

RJ-45 PIN NUMBER

1 WHITE/ORANGE - CHROMINANCE (- Pr)

2 ORANGE + CHROMINANCE (+ Pr)

3 WHITE/GREEN - LUMINANCE (- Y)

4 BLUE + DIGITAL AUDIO

5 WHITE/BLUE - DIGITAL AUDIO

6 GREEN + LUMINANCE (+ Y)

7 WHITE/BROWN - COMPOSITE (- Pb)

8 BROWN + COMPOSITE (+ Pb)

WIRE COLORS

(EIA 568B)

5. Use only the TPMC-CH-IMC Interface Module when connecting this port. Use of other “IMC” products could damage the panel.

6. This eight-pin RJ-45 port provides connectivity to the CNX-PVID or the TPMC-CH-IMC Interface Module. This port provides component, composite or S-video balanced input to the touchpanel over CAT5 wiring. Refer to the following table for connector pinouts.

1 WHITE/ORANGE + Composite + Luminance + Y

2 ORANGE - Composite - Luminance - Y

3 WHITE/GREEN N/A + Chrominance + Pb

4 BLUE N/A N/A + Pr

5 WHITE/BLUE N/A N/A - Pr

6 GREEN N/A - Chrominance - Pb

7 WHITE/BROWN N/A N/A N/A

8 BROWN N/A N/A N/A

WIRE COLORS

(568B)

COMPOSITE S-VIDEO COMPONENT

7. This eight-pin RJ-45 port provides connectivity to the CNX-BIPAD or the TPMC-CH-IMC Interface Module. This port uses CAT5 wiring and provides audio input to the touchpanel and output from the touchpanel’s built-in microphone. Refer to the following table for connector pinouts.

PIN WIRE COLORS (568B) AUDIO I/O

1 WHITE/ORANGE + Mic Left Out

2 ORANGE - Mic Left Out

3 WHITE/GREEN + Mic Right Out

4 BLUE + Audio Left In

5 WHITE/BLUE - Audio Left In

6 GREEN - Mic Right Out

7 WHITE/BROWN + Audio Right In

8 BROWN - Audio Right In

8. Refer to “Push Button Programming” on page 50 for details.

QM ASSIGNMENT:

COMPOSITE, S-VIDEO,

COMPONENT AND AUDIO

12 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Setup

Network Wiring

When wiring the Cresnet network, consider the following:

• Use Crestron Certified Wire.

• Use Crestron power supplies for Crestron equipment.

• Provide sufficient power to the system.

CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (www.crestron.com/calculators

For larger networks, use a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality.

For more details, refer to “Check Network Wiring” which starts on page 60.

The TPMC-12L can also use high-speed Ethernet for communications between the device and a control system, computer, media server and other IP-based devices.

For information on connecting Ethernet devices in a Crestron system, refer to the latest version of the Crestron e-Control available from the Crestron Web site (www.crestron.com/manuals).



Reference Guide (Doc. 6052), which is

CAT5 Wiring

Category 5 (CAT5) wiring is a twisted pair cable designed for Ethernet networks. These networks operate at speeds of up to 100 Megabits per second (Mbps) using the 100BASE-T standard. Crestron takes advantage of this specification for a variety of audio and video applications.

When using a Crestron wiring solution, the CresCAT-IM (or D) wire can carry audio and video signals up to 500 feet (152 meters) (observe distance limitations based upon power consumption for the device in use).

For more information, refer to the latest version of the Crestron CAT5 Wiring Reference Guide (Doc. 6137), which is available from the Crestron Web site.

QuickMedia Wiring

The Crestron QuickMedia (QM) cable (sold under the name “CresCAT-QM”) contains one CAT5E cable and one Cresnet cable in Siamese jackets. Installation of any QM device is as simple as installing CresCAT-QM wires from the output of one device to the input of another. Installations are flexible, affordable and fast. For more information, refer to the latest revision of the Crestron MediaManager Applications Guide (Doc. 6244), which is available from the Crestron Web site.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 13

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

CresCAT-QM Cable

CresCAT-QM

Cable

NOTE: Do not untwist the two wires in a single pair for more than 1/3-1/2” (8-12 mm) when making a connection. The twists are critical to canceling out interference between the wires.

The aggregate cable length of a signal path originating at a QM transmitter and terminating at a TPMC-12L must not exceed 450 feet (137 meters). Video signals may experience a loss of quality over very long lengths of cable. This phenomenon is due to the added resistance and capacitance of longer cable lengths and is not peculiar to either Crestron and/or QuickMedia systems. To ensure sufficient bandwidth, the maximum aggregate cable length should not exceed 450 feet. The use of lower-resolution signals may allow increased cable length but must be tested by the installer with the sources to be used. The QM pin assignment is based on the EIA/TIA 568B RJ-45 Jack standard.

NOTE: When transmitting S-video, luminance uses the green video pathway and chrominance uses the red video pathway. When transmitting composite video, the signal is carried on the blue video pathway.

NOTE: When using CresCAT-QM wiring, four additional wires are included for making Cresnet connections.

When connecting multiple QM devices, the route between a QM origination point (transmitter) and a QM endpoint (receiver) cannot have more than two midpoints (e.g. QM-MD7x2 or other QM switchers). Refer to the following diagram when configuring a QM network.

NOTE: The aggregate length from transmitter to receiver cannot have a delay skew of more than 22 ns.

14 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

QM Network Topology

Origination Points Endpoints

Midpoints

Net ID

QM-TX

QM-FTDC

QM-WMC

QM-MD7x2QM-MD7x2

TPMC-12L

Identity Code

The Net ID of the TPMC-12L has been factory set to 03. The Net IDs of multiple TPMC-12L devices in the same system must be unique. The Net ID is set using the internal setup menu (refer to “Cresnet” which starts on page 20). Net ID may also be set from a personal computer (PC) via Crestron Toolbox™ (refer to “Establishing Communication” on page 55).

When setting the Net ID, consider the following:

• The Net ID of each unit must match an ID code specified in the SIMPL™ Windows program.

• Each network device must have a unique Net ID.

For more details, refer to the Crestron Toolbox help file.

IP ID

The IP ID is set within the TPMC-12L’s table using Crestron Toolbox. For information on setting an IP table, refer to the Crestron Toolbox help file. The IP IDs of multiple TPMC-12L devices in the same system must be unique.

When setting the IP ID, consider the following:

• The IP ID of each unit must match an IP ID specified in the SIMPL Windows program.

• Each device using IP to communicate with a control system must have a unique IP ID.

Configuring the Touchpanel

NOTE: The only connection required to configure the touchpanel is power (supplied via Cresnet). Refer to “Hardware Hookup” which starts on page 41 for details.

NOTE: When booting the TPMC-12L, the only USB devices supported are a keyboard or mouse. Having a USB drive or hub connected will interfere with proper booting of the touchpanel.

The TPMC-12L is configured from the setup menu.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 15

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

NOTE: If no project has been loaded or if an invalid project has been loaded, the touchpanel defaults to the setup menu screen.

If a project is running, the setup menu can be accessed using one of two methods: USB keyboard or Crestron Toolbox.

Via USB Keyboard

1. Attach a USB keyboard (refer to “Hardware Hookup” which starts on page 41 for details).

2. Open the “Validate User Account Info” window (shown on the following page) by pressing Ctrl+Alt+Shift on the keyboard.

“Validate User Account Info” Window

3. Enter the user account tpmcadmin, and the password tpmcadmin and touch Validate.

NOTE: The password is case sensitive. After logging in, the password can be

changed from the “Security” window. Refer to “Security” which starts on page 18 for more information.

Via Crestron Toolbox

4. When the “Crestron Debug Output” window appears (shown in the following diagram), select Project | Enter Setup Mode to enter the setup menu (refer to “Setup Menu Details” on page 18).

“Crestron Debug Output” Window

1. Establish communication with the touchpanel (refer to “Establishing Communication” on page 55 for details).

2. From the Network Device Tree, right-click on the device, then select Functions | Setup Mode….

16 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

“Setup/Calibrate” Window

3. Select Enter Setup Mode. The setup menu will be displayed as shown in the illustration below.

NOTE: Select Exit Setup Mode to exit the setup menu.

TPMC-12L Setup Menu

NOTE: Another way to enter the setup menu (after a project has been loaded) is to touch the screen during boot up when you see the “Preparing to Load Project” message. Maintain touch until after the countdown, when the message will change to “Loading Setup Screen”.

The setup menu provides access to all basic functions and parameters. It is divided into a top row of setup buttons and Ethernet, Standby, Hard Button Backlight, Misc. Controls, Screen Brightness, Hard Button Feedback, and Ethernet Status sections. There are also buttons for Save & Reboot, Shut Down and Exit.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 17

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

NOTE: To allow the touchpanel to upload projects, standby is disabled until approximately five minutes after the project is loaded.

To exit the setup menu and return to the program, touch Exit, located at the bottom of the setup menu. To save any changes and reboot the touchpanel, touch Save & Reboot, located at the bottom of the setup menu. Use the Shut Down button to turn off the touchpanel.

Setup Menu Details

The setup menu allows configuration of the touchpanel’s settings for security, Cresnet ID, touch screen calibration, display, runtime project, video, audio, annotation, embedded applications, diagnostics and hard button programming. The setup menu also has a button that will toggle the on-screen keyboard on and off.

NOTE: When in Annotation mode, the setup menu will still be available but all setup windows will be disabled (i.e. you will not be able to bring up any setup window via a digital join). For more information about Annotation mode, refer to “About Annotation Mode” in the Crestron VisionTools

(VT Pro-e®) Help file.

Security

The Security button opens the “Security Setup” window, which allows the user to change the username and password of the system account, setup and close network connections, setup a proxy server, close network connections and clear Internet browser temporary files, history and cookies.

NOTE: To use the on-screen keyboard for security settings, touch Keyboard on the startup menu before touching Security.

“Security Setup” Window

Touch Setup Connections… to open the “Network Connections” window. This window is used to map to a network drive. A mapped network drive permits easy access to embedded application files (Word, Excel, PowerPoint, MediaMarker, etc.)

18 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

and provides a location to save files. To further customize the installation, network drives containing compiled touchpanel project files can also be mapped.

“Network Connections” Window

To add a new network connection, touch Add….

“Configure Network Connection” Window

To add a network drive, perform the following procedure:

1. Touch shareable folder name does not appear on the list, it can be entered manually in the Remote Name field, using the following format:

\\Remote host name\Shareable folder name

2. Map this connection by selecting a drive letter from the Map Drive Letter drop box.

3. Enter a user name and password.

4. Touch the Remember and reconnect on startup checkbox if so desired.

5. Touch OK to enable the new network connection and return to the “Network Connections” window.

Once all changes to network connections have been completed, touch OK to return to the “Security Setup” window.

Touch Setup Proxy… to open the “Setup Proxy” window. This window is used to point to a proxy server for Internet access. A proxy server acts as an intermediary between your internal network (intranet) and the Internet, retrieving files from remove Web servers.

to browse for the new network connection. If the remote

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 19

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

“Setup Proxy” Window

To setup a proxy server, select Use Proxy Server.

1. Enter the IP address or name of the proxy server.

2. If desired, specify addresses that should not use the proxy server (i.e. intranet addresses).

Touch OK to enable the proxy server connection and return to the “Security Setup” window. Then touch Close to return to the setup menu.

Cresnet

The Cresnet button opens the “Cresnet Setup” window, which allows you to enable or disable Cresnet and permits changing the Cresnet ID.

“Cresnet Setup” Window

Select Enable for normal Cresnet communication mode and Disable when the touchpanel is connected to a control system via Ethernet. Communication mode is factory set to Enable.

The Cresnet network identity number (Cresnet ID) is displayed in the “Cresnet Setup” window. Cresnet ID is a two-digit hexadecimal number. The hexadecimal number can range from 03 to FE and must correspond to the Net ID set in the SIMPL Windows program of the Cresnet system. Matching IDs between touchpanel and SIMPL Windows program is required if data is to be successfully transferred. The Net ID for the TPMC-12L is factory set to 03. No two devices in the same system can have the same Net ID.

20 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Two buttons below the hexadecimal display, Down and Up, decrease and increase the Cresnet ID by one, respectively.

Select OK to accept the changes and return to the setup menu.

Touch Screen

The Touch Screen button opens the “Touch Screen Settings” window, which provides access to touch screen calibration when you touch Calibrate Touch Screen….

“Touch Screen Settings” Window

To view the mouse cursor on the touchpanel, select On in the Mouse Cursor section of the window. The mouse cursor will only be displayed if a mouse is connected to the touchpanel.

When Calibrate Touch Screen… is touched, the calibration screen will be displayed. Touch the screen to begin the calibration process. If the screen is not touched within sixty seconds, the calibration sequence will stop and the screen will return to the “Touch Screen Settings” window.

If the screen is touched before the sixty second timeout, the screen instructs you to touch the center of each target as it appears. There will be a series of crosshairs on the panel, starting near the upper left corner. Touch the center of the first crosshair to initiate calibration. As each new crosshair is touched, the next will appear. After the upper left, crosshairs will appear in the upper center, upper right, middle left, screen center, middle right, lower left, lower center and finally lower right. Touch the center of the crosshair in the lower right of the screen to conclude calibration and return to the “Touch Screen Settings” window. Touch OK to accept the changes and return to the setup menu.

NOTE: When touching the screen during calibration, be as accurate as possible. Use the tip of a capped pen or the eraser end of a pencil. To cancel calibration and return to the “Touch Screen Settings” window without saving calibration data, create a calibration error by touching the screen in the same spot for each calibration point.

NOTE: The touchpanel’s calibration routine can also be accessed through Crestron Toolbox if the touchpanel is connected to a control system via Cresnet and/or TCP/IP by selecting the device from the Network Device Tree and right-clicking the

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 21

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

device to select Functions | Setup Mode…. Select Enter Calibration Mode to begin calibration.

When Touch Screen Test is touched, the test screen will be displayed (refer to illustration below). This screen allows the user to test the touch screen response at 17 points on the screen. Each button on the screen will light when touched. Touch Return to exit the test screen.

Touch Screen Test Window

22 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Display Output

Touching Display Output shows the display resolution of the touchpanel and provides test charts for adjusting skew, peak and boost settings on a remote display.

“Display Output” Window

Select the following Test Patterns, in the following order and adjust the display as necessary.

1. Vertical Lines

2. Grid

3. Color Bars

4. Grayscale Gradient

5. Frequency Adjust Test

6. Streak, Boost and Skew

7. Full Screen White

Update Panel

The Update Panel button permits the selection of the touchpanel program, a .vtz file. It is also used to upgrade firmware.

The Project tab of the “Project and Firmware” window is divided into two sections:

Current Loaded Project and Load New Project.

Current Loaded Project displays the name and creation time of the current project.

In the Load New Project section, touch Browse and select the compiled project (i.e. the .vtz file) to be loaded from a network drive, USB device or flash drive, then touch Open to show the source file in the “Project and Firmware” window. Touch

Load to uncompress the project file, place it in the destination selected in Target Location to Load the Project to and display it on the touchpanel.

In the Target Location to Load the Project to area of the Load New Project section, you can choose the location where your uncompressed project files will be stored. The default file location is the internal flash.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 23

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

NOTE: If there is a mapped network drive on the touchpanel, the first time you select Browse, it may take some time for the “Open” window to appear.

NOTE: When selecting Browse, the contents of the “Recent” folder will not be available.

NOTE: Projects can also be loaded via Crestron Toolbox.

NOTE: If External is checked, the display list cannot be viewed via Crestron

Toolbox.

NOTE: When loading a project to an external storage device (e.g. MMC card or flash drive), a subdirectory (not the root) must be used as the working path. Otherwise, the upload may fail.

“Project and Firmware” Window – Project Tab

The Firmware tab of the “Project and Firmware” window (refer to illustration below) displays the Current Loaded Firmware and also has a Load New Firmware section.

“Project and Firmware” Window – Firmware Tab

24 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Current Loaded Firmware displays the version of the current firmware.

In the Load New Firmware section, touch Browse and select the firmware file (i.e. the .csz or .zip file) to be loaded from a network drive, USB device or flash drive. Touch Load to load the new firmware.

Video

Each one of the video inputs is selected and adjusted from this window. Touch an input tab and adjust the settings for the selected input.

Video Setup

The setup screen for each video source contains the settings as displayed in the following illustration. Changes are made in real time.

“Video Setup” Window - Video (QM) Tab

Video is setup using the Overscan and Color controls. The following test patterns are recommended for adjustment.

Overscan

Overscan is the active image area in a video picture that is outside the edges of the display device. Overscan adjustment first came about because of noise and other artifacts at the beginning and end of the scan lines. To reliably eliminate the noise and fill the screen with a picture, the outside edge of the active picture area was pushed out past the edge of the display area. The average or targeted over-scan loss is about 5 to 10% of the image on each edge. Digital images have nearly eliminated the noise and other artifacts at the edge of the picture, so more of the video image can be safely shown. The Normal setting is usually the correct choice for most video inputs.

Presets

Up to 30 presets may be stored for future retrieval.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 25

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Input

The Input (QM) tab of the “Video Setup” window has controls for adjusting Peak, Boost, Skew and presets for each of the inputs as shown in the following illustration.

Changes are made in real time.

“Video Setup” Window - Input (QM) Tab

The Auto button can be used to auto detect video when a single video source (per input) is connected.

Adjust Peak and Boost to compensate for white or black streaking.

Up to 255 preset locations are available to store settings for peak and boost. In QM systems using auto compensation, the touchpanel can be set to automatically recall preset values upon receipt of a QM ID by selecting Auto Load on QM ID.

In order to manually load preset values, make sure Auto Load on QM ID is not selected.

For more information on peak and boost settings, refer to the latest revision of the Crestron MediaManager Applications Guide (Doc. 6244).

NOTE: The Input (CH) tab of the “Video Setup” window does not have adjustments for Peak, Boost and Preset.

26 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Manage Presets

Use the Manage Presets tab to copy presets for position, size and color for one source to other sources.

“Video Setup” Window – Manage Presets Tab

Audio

Touch Audio to open the “Audio Setup” window. The General tab of the “Audio Setup” window is shown in the illustration on the following page.

In addition to the overall Speakers volume and mute controls, volume, balance and mute controls are available for the Local Audio outputs. The key click sound has its own volume and mute controls. Microphone volume and mute controls are also provided. Defaults are 75 for volume on Speakers 25 for volume on Local Audio and Microphone and zero for Local Audio balance. Key Clicks default volume is 100.

NOTE: Microphone volume and mute controls are for IP Intercom control. These will not affect the analog output.

Touching Play Test Sound plays a short internal audio file.

Changes to audio settings are made in real time.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 27

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

“Audio Setup” Window - General Tab

The Inputs tab of the “Audio Setup” window is shown in the illustration below.

“Audio Setup” Window - Inputs Tab

28 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

The CH Input section of this window contains volume and mute controls for Program Audio. The QM Input section contains volume and mute controls for Program Audio, Mic 1 and Mic 2.

Annotation

The Annotation button displays the “MediaMarker Session Information” window.

“MediaMarker Session Information” Window

The “MediaMarker Session Information” window allows the date, time, author name, session title and session notes to be stored for the current frame. The Author dropdown list box contains all the authors available on the system. Authors can be added and removed from the Edit | Preferences | Authors menu within

MediaMarker, or by touching

The Session Folder browse button select a flash memory card, a network drive or a USB drive.

The Default Frame Template browse button templates. For Crestron provided templates, choose from the pulldown list.

Frames created during the annotation session will use a default annotation template file, frame prefix and frame output file type.

Each new frame title will contain the frame prefix followed by a sequential frame number.

The frame template serves as a starting point for each new frame. Crestron supplies some ready-made templates or you can use one of your own.

Screen captures can automatically save the contents of the current annotation frame to an image file. The file will be saved as the Default File Type (.html, .jpg, .bmp, .png or .tif) as specified in the session folder.

permits searching other folders. You may

permits you to search for

For additional information, refer to “MediaMarker” on page 57 and the help file included with the MediaMarker software.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 29

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Embed Apps (Embedded Applications)

Touch Embed Apps to open the “Embedded Apps” window, which permits you to set Internet security to different levels for different types of Internet sites.

“Embedded Apps” Window

For each of the three zones (Internet, Local Intranet, and Trusted Sites), one of three security levels (High, Medium or Low) can be selected. The security levels are defined as:

• High: The safest way to browse but also the least functional. Less secure features are disabled. Appropriate for sites that may have harmful content.

• Medium: Safe browsing and still functional. Prompts before downloading potentially unsafe content. Unsigned ActiveX controls will not be downloaded. Appropriate for most Internet sites.

• Low: Minimal safeguards and warning prompts are provided. Most content is downloaded and run without prompts. All active content can run. Appropriate for sites you absolutely trust.

Touch Default to restore the default security settings. By default, security is set to Medium for Internet and Local Intranet and Low for Trusted Sites.

The “Embedded Apps” window also permits you to enable the popup windows (child windows) that open when you are in Internet Explorer (not the popup windows of the embedded applications).

NOTE: Refer to the Crestron Web site (www.crestron.com 4190, for information on the latest versions of the software.

Touch Close after all changes have been made. The touchpanel must be rebooted for changes to take effect. Touch Save & Reboot, located in the shutdown section of the setup menu.

), online help Answer ID

30 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

A list of trusted sites can be created and edited by touching Add/Remove Trusted Sites. Touching this button will open the “Trusted Sites” window. From here, trusted

sites can be added and edited. Sites are listed by domain name or IP address. Once all sites have been entered, touch Close.

“Trusted Sites” Window

NOTE: Save & Reboot on the setup menu must be selected for Embedded Apps changes to take effect.

NOTE: While browsing the Internet with the TPMC-12L, clicking on a link may cause a message box titled “Restrictions” to appear that contains the text “This operation has been cancelled due to restrictions in effect on this computer. Please contact your system administrator.” If this message appears, checking Enable Pop-ups in the “Embedded Apps” window may correct this error. Other restrictions may also cause this error, so this may not prevent all occurrences.

NOTE: The TPMC-12L supports automatic connection to the VNC server when the VNC View application is opened. For automatic connection without having to enter the server location and password every time the VNC viewer is opened, launch the application and using a USB mouse, right-click on the VNC viewer window, then select Save configuration info as….

NOTE: Refer to the Crestron Web site, online help Answer ID 4627, for information on how to set up the VNC viewer. Refer to Answer ID 3345 for information on how to program the MJPEG viewer. Refer to Answer ID 4640 for information about the default paths for embedded applications and dynamic graphics.

NOTE: When using the embedded applications, only one document window can be open at a time. Opening a second document window will cause the first document window to close.

NOTE: For NetMeeting to work properly, the Enable full-duplex audio so I can speak while receiving audio option needs to be de-selected (i.e. unchecked) in the Audio tab of the “Options” dialog. The dialog can be accessed by selecting Tools |

Options. This will need to be done for NetMeeting each time the panel is rebooted.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 31

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

ETHERNET Details

The Ethernet portion of the setup menu allows configuration of the touchpanel settings for Ethernet communications.

The Crestron Swirl logo at the top of the Ethernet portion of the setup menu illuminates to indicate the status of your connection to the control system(s):

• Green Connected

• Yellow Network trouble

• Orange Connected to some but not all of the control systems (listed in IP

table)

• Red Not connected to any control system (listed in the IP table)

Adapters

Touch the Adapters button to access the “Ethernet Setup” window. Changes are made in real time and there is typically no need to reboot. The Ethernet address and mask are displayed on this screen.

“Ethernet Setup” Window

To configure the Ethernet adapter, touch its name once to select it in the Adapter Name list. Then, touch Configure to open the “Local Area Connection Properties”

window. This window displays the connection and related required items.

NOTE: When configuring an adapter, only one item can be modified at a time. For example, to modify an IP address and also change authentication, touch Configure and modify the IP address, then touch OK (you must return to the “Ethernet Setup” window). Touch Configure again, change authentication, then touch OK. The order in which modifications are performed does not matter.

32 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

“Local Area Connection” Window

To establish dynamic or static processing, select Internet Protocol (TCP/IP) and touch Properties.

“Internet Protocol (TCP/IP) Properties” Window

Transmission Control Protocol/Internet Protocol (TCP/IP) is a set of protocols that defines how to transfer data between two computers. TCP monitors and ensures correct transfer of data. IP receives the data from TCP, breaks it up into packets and ships it off to a network. The IP address is a unique number consisting of four parts (called “octets”) separated by dots, e.g., 165.113.245.2.

Dynamic Host Configuration Protocol (DHCP) is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the IP

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 33

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

address of the device can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses.

Dynamic addressing simplifies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. New computers can be added to a network without manually assigning each one a unique IP address.

NOTE: The TPMC-12L ships with DHCP enabled.

Static IP addresses on a dedicated AV/control system allow the integrator to have a fixed/controllable network. This helps maintain communication stability between Ethernet devices.

IP Table

Touch IP Table on the setup menu to open the “IP Table Setup” window.

Edit, remove or enter a control system’s IP address in the IP table to enable communication between the touchpanel and a control system. The touchpanel can communicate with multiple control systems.

For more information on IP tables, refer to the latest version of the Crestron 2-Series Control Systems Reference Guide (Doc. 6256).

“IP Table Setup” Window

The IP ID is the ID number that is used to identify the touchpanel in the control system’s IP table. The IP ID should match the IP ID set in the SIMPL Windows program.

34 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Identity

Touch Identity to open the “Network ID” window. The “Network ID” window displays the hostname and workgroup that identify the touchpanel on the network. The hostname may be used when transferring a program over Ethernet using Crestron Toolbox. This window permits editing of the hostname and workgroup.

“Network ID” Window

NOTE: The hostname is required for Ethernet communication.

Sharing

Touch Sharing to open the “Configure Shared Folders” window. This window is used to set up shared folders. Sharing enables remote computers to view and/or modify files stored on the touchpanel.

“Configure Shared Folders” Window

Touch Add New Share… to browse and add directories with permission to readonly or read/write. Touch Close after adding all folders to be shared.

NOTE: For security reasons, there is no persistence of the shared drive(s) after the panel is rebooted.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 35

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Standby Details

The Standby function turns off the backlight when the touchpanel is inactive for a specified time. Use the Up and Down buttons to set the Standby from 0 through 120 minutes, where 0 disables the timeout. Touch the screen to reactivate the touchpanel from standby mode. When the touchpanel is reactivated, the last screen to be displayed reappears.

NOTE: The hard buttons will still function when the touchpanel is in standby mode but will not cause it to awaken from standby. You must touch the screen to reactivate the touchpanel.

Hard Button Backlight Details

The Hard Button Backlight can be varied from 0 to 100. To increase the brightness, touch Up. To decrease the brightness, touch Down.

Misc. Controls Details

The Misc. Controls section of the setup menu contains the Diagnostics and Keyboard buttons.

Diagnostics

Touch Diagnostic to display the firmware version number, see Installed Packs and to reset the end user license from the “Diagnostics” window.

“Diagnostics” Window

Reset CTP Port resets the default value of the CTP port to 41795, for terminal connection using Crestron Toolbox.

To configure the appearance of popup messages, touch Configure Messages. The “Message Popup Configuration” window will open.

36 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

“Message Popup Configuration” Window

Show Keyboard

There are three types of Network popup messages. Following are definitions of each message type:

• Connected: A green popup message appears when the panel is connected to the control system.

• Checking Connection: A yellow popup message appears when the panel is experiencing network issues.

• Disconnected, Trying to Reconnect…: A red popup message appears when the panel loses connection with the control system.

A control for popup message Translucence is also provided. Translucence ranges from 25% to 100%, with a default value of 90%.

The Default button restores the original Screen Position and Translucence settings, as well as enabling display of Network messages. A Test Message button lets you see the changes to popup message position and translucence. Touch Close to close the popup window.

NOTE: The default value for Screen Position is Lower Left.

Touch the Keyboard button to display the on-screen keyboard.

The on-screen keyboard can be used in an identical manner to a physically connected keyboard. It can be used in any of the embedded applications, for example, to enter a web address or to enter data into a spreadsheet, etc.

The on-screen keyboard also has a few special keys:

Volume down

Volume up

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 37

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Right click: simulates right-click of mouse

Size: toggles on-screen keyboard size (small, medium, large)

Keyboard translucence down: decreases keyboard translucence

Keyboard translucence up: increases keyboard translucence

On-Screen Keyboard

The initial position of the on-screen keyboard is determined by the VT Pro-e program or SIMPL Windows settings. The on-screen keyboard will default to its largest size.

In use, when the on-screen keyboard is moved and/or resized and then closed, it will re-open in the same position it was in and at the same size it was when closed. This position and size will remain in memory until the touchpanel is re-booted or it is reset by the SIMPL Windows program. After reboot, the position of the on-screen keyboard will revert to the defaults set in the VT Pro-e or SIMPL Windows program. The size will revert to the largest as determined by the firmware installed in the touchpanel.

Exit the on-screen keyboard by selecting by touching the “X” close button in the upper right corner of the keyboard window. If the Keyboard button on the start menu is still visible, you can also touch it to exit the keyboard.

Screen Brightness Details

The Screen Brightness can be varied from 0 to 100. To increase the brightness, touch Up. To decrease the brightness, touch Down.

Hard Button Feedback Details

The Hard Button Feedback section of the setup menu provides visual feedback for all hard button presses. Pressing any of the hard buttons (except Reset) will result in its corresponding icon on the screen illuminating in bright green

Ethernet Status Details

The Ethernet Status section of the setup menu provides a Link Status light to indicate an Ethernet connection and displays the current IP and MAC addresses.

38 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Save & Reboot and Shutdown Details

To save any changes and reboot the touchpanel, touch Save & Reboot, located in the lower right section of the setup menu.

To turn off the touchpanel, touch Shut Down, located in lower right section of the setup menu. This is the recommended method for shutting down the touchpanel. After the touchpanel has shut down, the power supply can be safely removed from the touchpanel.

Exit Details

Touch Exit to leave the setup menu and return to the project. If no project has been loaded, the touchpanel will display an error message and return to the setup menu.

Mounting Options

The TPMC-12L touchpanel installs simply and cleanly into existing or newly constructed walls with an assortment of pre- and post-construction mounting options. All mounting options are provided separately from the actual touchpanel. Refer to the following table for a complete list of mounting options and respective Installation Guides for this touchpanel.

TPMC-12 Mounting Options

PRE-

CONSTRUCTION

OPTION

Back Box Kit - BB-12L 6357

Pre-Construction

Mount Kit

Mud Mount Kit

(Accessory)

Trim Mount Kit

(Accessory)

- Wall Mount Kit - Mud WMKM-12L 6359

- Wall Mount Kit - Trim WMKT-12L 6360

POST-

CONSTRUCTION

OPTION

- PMK-12L 6358

- MMK-12L 6359

- TMK-12L 6360

MODEL NUMBER

DOCUMENT

NUMBER

NOTE: Pre-construction refers to framed walls prior to hanging drywall. Post-construction refers to framed walls with drywall hung.

NOTE: There is also a rack mount kit (RMK-12) available for the TPMC-12L touchpanel. Refer to the latest version of the RMK-12L Installation Guide (Doc.

6361).

Touchpanel Mounting

Tools Required: #2 Phillips tip screwdriver

1. If the cover plate is attached, use a #2 Phillips screwdriver to loosen and remove the four screws and plate.

2. Connect all required cables to the touchpanel. Refer to “Hardware Hookup” which starts on page 41 for details.

3. Insert the touchpanel (without its bezel) into the mounting option and align the eight screw holes.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 39

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

4. Insert and tighten the eight supplied screws (finger tight and then using a #2 Phillips screwdriver, tighten an additional 1/8-turn).

5. Cover the mounted unit with the bezel. Refer to the illustration following this step.

Exploded View of Mounting the TPMC-12L in the Optional BB-12L Back Box

Touchpanel Removal

If it is necessary to remove the touchpanel after it has been installed into a mounting surface, complete the following steps in the order provided to remove the touchpanel. The only tool required is a #2 Phillips tip screwdriver.

1. Lift the bezel off the touchpanel. Do not apply excessive pressure to the touchscreen.

2. Loosen and remove the screws that secure touchpanel to the mounting option in use.

3. Using equal pressure, carefully remove the touchpanel from the opening.

4. If necessary, secure and label the attached cables before disconnecting them from the back of the touchpanel.

40 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Hardware Hookup

Ventilation

Connect the Device

Hardware Connections for the TPMC-12L

Ground

The TPMC-12L should be used in a well-ventilated area. The venting holes should not be obstructed under any circumstances. If the TPMC-12L is hot to the touch, consider used forced air ventilation.

To prevent overheating, do not operate this product in an area that exceeds the environmental temperature range listed in the table of specifications. Consideration must be given if installed in a closed or multi-unit rack assembly since the operating ambient temperature of the environment may be greater than the room ambient temperature. Contact with thermal insulating materials should be avoided on all sides of the unit.

Make the necessary connections as called out in the illustration that follows this paragraph. Refer to “Network Wiring”, “CAT5 Wiring” and “QuickMedia Wiring” on page 13 before applying power. If the TPMC-CH-IMC is to be used for connecting CAT5 audio and CAT5 video, refer to the latest revision of the TPMC-CH-IMC Operations Guide (Doc. 6345) for more information.

MEMORY

EXPANSION:

For MMC

Compatible Card

QM IN:

QuickMedia Audio,

Video & Mic

Input Over CAT5

AUD I/O:

Balanced Audio In

& Mic Out Over CAT5

NET: To Control System and Other Cresnet Devices

CAUTION: Do not apply excessive pressure to the touchscreen display during handling. Doing so can crack the screen and damage the touchpanel.

CAUTION: Use only the TPMC-CH-IMC Interface Module when connecting to the VID IN port. Use of the older “IMC” products, such as those with a 10-pin RJ-45 based interface, could damage the panel.

NOTE: Ensure the unit is properly grounded by connecting the chassis ground lug to an earth ground (building steel).

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 41

USB:

For 3rd Party

Peripherals

10/100/1000 Mbps

High Speed Ethernet

LAN:

VID IN:

Balanced Video

Input Over CAT5

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

NOTE: The TPMC-12L can only be powered by the 4-position terminal block connector labeled NET. Power cannot be supplied from network devices that are connected to the mini-terminal block connectors.

NOTE: The Y and Z Cresnet data lines from the network are connected to the NET connector, which is internally wired to the 4-position mini-terminal block connector at each QM connector. (Does not necessarily apply to all QM products.)

NOTE: The maximum continuous current from equipment under any external load conditions shall not exceed a current limit that is suitable for the minimum wire gauge used in interconnecting cables. The ratings on the connecting unit's supply input should be considered to prevent overloading the wiring.

NOTE: Be sure to set Cresnet to Disable when using Ethernet. Refer to “Cresnet” which starts on page 20 for details.

NOTE: For optimum performance, Crestron strongly recommends using CresCAT-QM cable, available from Crestron. Other high-quality/low skew CAT5e/CAT6 wiring may also be used with varying performance.

NOTE: For CAT5 and QuickMedia connections, use Crestron Certified Wire.

NOTE: A QuickMedia transmitter such as the QM-TX is required in order to

connect conventional video and audio sources to the QM IN port. The QM port is not connected through any “IMC” interface.

NOTE: TPMC-12L touchpanels include a TPMC-CH-IMC Interface Module for system connection. The TPMC-CH-IMC serves as an interface between the touchpanel, external A/V system, microphone output and the Cresnet system. Refer to the TPMC-CH-IMC Operations Guide (Doc. 6345) for hardware hookup using this interface.

NOTE: U3 type smart drives are not supported by the TPMC-12L.

NOTE: When booting the TPMC-12L, the only USB devices supported are a

keyboard or mouse. Having a USB drive or hub connected will interfere with proper booting of the touchpanel.

NOTE: After inserting a USB device or MMC card, a “Found New Hardware” window may appear. If this window appears, click “Yes” to close the window.

42 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

TPMC-CH-IMC Interface Module

For networks without CAT5 audio and video, the TPMC-CH-IMC Interface Module (as well as a 15 foot “triamese” interface cable) is included to convert unbalanced video sent over coax cable and balanced/unbalanced audio sent over shielded, twisted-pair wiring to Crestron Certified Wire for connection to the touchpanel.

NOTE: The TPMC-CH-IMC is not for use with QuickMedia.

NOTE: Audio and video wiring between the touchpanel and module may be as long

as 500 feet (152 meters) for component video or 750 feet (229 meters) for composite and S-video. However, the length of Cresnet cable must account for limits based upon the touchpanel power requirements. Refer to the latest version of the TPMC-CH-IMC Interface Module Operations Guide (Doc. 6345) and “Network Wiring” on page 13.

QM-TX QuickMedia Transmitter

The QM-TX QuickMedia Transmitter (sold separately) can be used to connect a video or audio source to a QuickMedia network without a locally available QM transmitter (such as the QM-WMC).

The QM-TX accepts composite video, S-video, component video and audio signals. These signals are converted to the QuickMedia standard and fed over a CAT5E or CAT6 cable to a QM receiver (such as the TPMC-12L). All signal routing occurs automatically under the command of the control system.

For more information, refer to the latest version of the QuickMedia Transmitter: QM-TX Operations Guide (Doc. 6334).

Recommended Cleaning

Keep the surface of the touchscreen free of dirt, dust or other materials that could degrade optical properties. Long-term contact with abrasive materials can scratch the surface, which may detrimentally affect image quality.

For best cleaning results use a clean, damp, non-abrasive cloth with any commercially available non-ammonia glass cleaner. Bezels may not provide a complete watertight seal. Therefore, apply cleaning solution to the cloth rather than the surface of the touchscreen. Wipe touchscreen clean and avoid getting moisture beneath the bezels.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 43

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Programming Software

Have a question or comment about Crestron software?

Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron Web site. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. First-time users will need to establish a user account.

Earliest Version Software Requirements for the PC

NOTE: Crestron recommends that you use the latest software to take advantage of the most recently released features. The latest software is available from the Crestron Web site (www.crestron.com/software

Crestron provides an assortment of Windows-based software tools to develop a customized system. Use Crestron SystemBuilder™ or SIMPL Windows to create a program to control the TPMC-12L. For the minimum recommended software versions, visit the Version Tracker page of the Crestron Web site (www.crestron.com/versiontracker).

Configuration Manager

Programming with Crestron SystemBuilder

Crestron SystemBuilder is the easiest method of programming but does not offer as much flexibility as SIMPL Windows. For additional details, download SystemBuilder from the Crestron Web site and examine the extensive help file.

Programming with SIMPL Windows

NOTE: While SIMPL Windows can be used to program the TPMC-12L, it is recommended to use SystemBuilder for configuring a system.

SIMPL Windows is Crestron’s premier software for programming Crestron control systems. It is organized into two separate but equally important “Managers”: Configuration and Program.

Configuration Manager is the view where programmers “build” a Crestron control system by selecting hardware from the Device Library.

1. The TPMC-12L must first be incorporated into the system.

a. To incorporate the TPMC-12L (Cresnet) into the system, drag the

TPMC-12 from the Touchpanels | Touchpanels (Cresnet) folder of the Device Library and drop it in the System Views.

44 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Locating the TPMC-12 (Cresnet) in the Device Library

b. To incorporate the TPMC-12L (Ethernet) into the system, drag the

TPMC-12 from the Touchpanels | Touchpanels (Ethernet) folder of the Device Library and drop it in the System Views.

Locating the TPMC-12 (Ethernet) in the Device Library

The system tree of the control system displays the device in the appropriate slot with a default Net ID or IP ID as shown in the following illustration.

NOTE: In the following illustration, there is both an Ethernet device in Slot 8 and a Cresnet device in Slot 9. It is possible to have both types of device attached to a control system as long as the control system has either a built-in or expansion Ethernet interface. If Cresnet operation is desired, the IP table for the TPMC-12L must be empty.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 45

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

C2ENET-2 and C2Net Devices, Slot 8 and 9

2. If additional TPMC-12L devices are to be added, repeat step 1 for each device. Each TPMC-12L device is assigned a different Net ID or IP ID number as it is added.

3. If necessary, double click a device to open the “Device Settings” window and change the Net ID or IP ID, as shown in the following figures.

“Device Settings: Crestron TPMC-12 (Cresnet)” Window

46 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

“Device Settings: Crestron TPMC-12 (Ethernet)” Window

Program Manager

Multi-mode objects offer high-

erformance programming!

NOTE: The ID code specified in the SIMPL Windows program must match the Net ID or IP ID of each unit. Refer to “Identity Code” on page 15.

Program Manager is the view where programmers “program” a Crestron control system by assigning signals to symbols.

The symbol can be viewed by double clicking on the icon or dragging it into Detail View. Each signal in the symbol is described in the SIMPL Windows help file (F1).

Programming with VisionTools

Touchpanel screens should be created in VT Pro-e to allow accessing the embedded applications, switching of source signals to desired outputs as well as selection of the system mode. There are no special programming requirements to use the functions of the TPMC-12L in a room control system.

Multi-Mode Objects

The single most advanced VT Pro-e high performance programming technique involving the TPMC-12L is the concept of multi-mode objects. A multi-mode object (i.e. button, legend, etc.) is an object drawn on a VT Pro-e page that can have one or more active and inactive visible settings (modes).

For examples, refer to www.crestron.com/exampleprograms mode object examples. This file contains the VT Pro-e touchpanel files and SIMPL Windows files that illustrate the high-performance capabilities of multi-mode objects.

and search for multi-

WAV File Audio Messages

The TPMC-12L touchpanels are capable of playing audio messages as system prompts and responses. These files are recorded as WAV files on a PC using an audio utility such as Sound Recorder that is packaged with Microsoft Windows 95/98/Me/XP/NT/2000/Vista/7™. Files from other sources may also be converted to an acceptable format by using this or a similar utility. Many other audio utilities are available commercially or as shareware. The TPMC-12L touchpanels only accept the

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 47

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

following WAV file format: PCM, 8 and 16 bit, 8 – 44.1kHz, mono and stereo. For more information about how to use Sound Recorder, refer to its User’s Guide and extensive help information provided with the software. Also refer to the help file in VT Pro-e to learn how to use its audio tool, Sound Manager, to attach WAV files to a touchpanel project.

Pre-recorded WAV files for voice prompts and responses are available from Crestron. These files can be stored into and programmed for use in the touchpanel directly or may be edited with the Sound Recorder. For example, the individual files can be combined to create custom messages.

NOTE: Touchpanel WAV files can be obtained from the Wave LC Library of the Crestron FTP site.

Bit Depth and File Size

A balance of performance and quality can be achieved by using VT Pro-e to configure the size of graphics in a project. Read this section to learn about bit depth and how to maximize the quality and performance of a TPMC-12L project.

Bit depth refers to the number of memory bits used to store color data for each pixel in a raster image. A touchpanel raster image consists of a rectangular grid of picture elements (pixels). Each pixel uses the same amount of memory to store its color data. The amount of memory is called the bit depth of the image.

Greater bit depths are required to represent finer gradations of color. Increasing bit depth necessarily increases file size. A black and white drawing requires only one bit per pixel to store all the available color information. Using a 32-bit per pixel bit depth for a black and white image increases the file size 32 times without adding anything to the black and white image quality.

In an 8-bit per pixel system, the associated 8-bits of video memory for every screen pixel contain a value referring to a location in an 8-bit color table. In this way any one of the specific 256 color table locations is assigned to a pixel.

A 16-bit highcolor system is considered sufficient to provide life-like colors. It is encoded using 5-bits to represent red, 5-bits to represent blue and (since the human eye is more sensitive to the color green) 6-bits to represent 64 levels of green. These can therefore be combined to provide 65,536 mixed colors (32 x 32 x 64 = 65,536).

In a 24-bit graphics display, the video memory allocates 24 bits for each pixel on the screen enabling each pixel to take on any one of a possible 16.7 million colors. Each 24-bit value is composed of 8-bits for red, 8-bits for green and 8-bits for blue. These triplets of 8-bit values are also referred to as the red, green and blue color planes. A 24-bit image is actually composed of three component images which combine to create the truecolor picture. The reason this is called truecolor is that this is near the maximum number of colors the human eye is able to detect.

Truecolor images are sometimes represented by a 32-bit value. The extra 8-bits do not enhance the precision of the color representation but act as an alpha channel that represents pixel translucence. 32-bit truecolor has become popular on the computer desktop to provide effects such as translucent windows, fading menus and shadows.

In graphics intensive applications such as touchpanels, raising or lowering the color depth of the displayed graphics can achieve a balance of performance and quality. Lower color depths do not require as much frame buffer memory or display bandwidth, allowing them to be generated and displayed more quickly. Increasing color depth results in higher color quality at the expense of display speed and responsiveness. By using mostly 8-bit or 16-bit graphics and holding 32-bit graphics to a minimum (e.g. for a family photo, etc.), you can create a sophisticated project

48 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

that will fit in the memory space provided and have the touchpanel remain very responsive.

Relationship of Bits to Colors

NUMBER OF BITS NUMBER OF COLORS

1 bit Black and White

2 bits 4 Colors

4 bits 16 Colors

8 bits 256 Colors

16 bits 65,536 Colors (Highcolor)

24 bits 16.7 million Colors (Truecolor)

32 bits 16.7 million Colors plus Transparency

When creating a VT Pro-e project you can elect to compress and reduce the image size in the “Page Properties” window for the entire page and/or perform the same function of reducing the image size using the “Image Properties” window. A reduction in image size will save a considerable amount of memory space for your project.

In VT Pro-e, the Compress checkbox permits the image to be compressed when compiling. The 16 Bits checkbox converts a 24-bit or 32-bit image to 16 bits. This conversion to a 16-bit image may cause the loss of some subtle shading. To compensate for this, use the dithering to simulate the original shading. Check your image with each of the available dithering types to determine which will deliver the best quality image.

Dithering type selection can be accessed from the “Page Properties” or “Image Properties” windows in VT-Pro-e. Refer to the following illustrations.

VT Pro-e “Page Properties” Window – Bit Depth Selection VT Pro-e “Image Properties” Window – Bit Depth Selection

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 49

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Push Button Programming

Four of the buttons can be programmed to access any frequently used command. Each button has a permanently fixed digital join number. The sequence of digital join numbers is (left to right) 1 through 4. Refer to the following illustration for their assigned join numbers. A description for each button signal is described in the SIMPL Windows help file (F1).

Push Button Layout and Join Number Assignment

Reset

Join 1 Join 2 Join 3 Join 4

MultiByte International Characters

Most languages use a single byte of eight bits to represent a character, e.g. English, French, German, Hebrew, Russian, Thai, etc.

Multibyte character fonts require more than the usual eight bits to specify a character. This occurs when a language has more than 256 characters (2 For example, Chinese fonts contain several thousand characters. Other multibyte languages include Japanese and Korean.

There are two separate applications with multibyte characters – static text on buttons and indirect text on buttons. No Isys touchpanel firmware changes are required in either case.

Indirect text on a button is entered in VT Pro-e and the actual string to be displayed is entered in SIMPL Windows. As of this publication date only completely single byte or completely multibyte strings may be entered or they will not be compiled correctly in SIMPL Windows. In other words, you cannot enter Chinese characters interspersed with numbers. You can enter Chinese characters or numbers in separate

50 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

) in a font.

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

strings or you can pad each number with “\x00” to make it multibyte and then combine it with Chinese characters in the same string.

Of course you can always use the workaround of showing a graphic that displays the string but it is not dynamic. To compile and use multibyte characters it is essential that the operating system understand the language. Windows XP, Vista and 7 are available in many international languages and add-on software is available for other versions of Windows.

Embedded Applications

NOTE: Installations and downloads from within embedded applications are not supported by the TPMC-12L.

A number of third-party or in-house applications are embedded in a VT Pro-e TPMC-12L project. (Refer to illustration on the following page.)

• Adobe Reader

• Microsoft Excel Viewer

• Microsoft Internet Explorer

• Microsoft Word Viewer

• MJPEG Viewer

• NetMeeting

• PowerPoint Viewer

• Real Player

• Remote Desktop

• VNC Viewer

• Windows Media Player

• WordPad

The embedded applications have the following features:

• All embedded applications listed in the VT Pro-e ProjectView workspace are created by default for a new TPMC-12L project.

• All applications are created at project-level – one instance per project.

• The static position and size of each application can be viewed from any

page.

• Four analog joins can be assigned to each application to dynamically change position and size.

• One digital feedback join or one analog join can be assigned to dynamically show/hide an application.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 51

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Embedded Applications in ProjectView

Right-click on any of the applications in the Project View and select Properties to open the “Embedded Application Property” window (refer to the illustration on the following page). This window permits a choice of positions on the screen, assignment of an analog touch join type and number and a show/hide join number.

Defaults for Embedded Windows Applications

Use the Default Path text box in the “Embedded Applications Properties” window to enter the default document for the application.

Edit the Default Position and Size in the “Embedded Application Properties” window to point to your new location.

52 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Sample of an “Embedded Application Properties” Window

TPMC-12 (Digitals)

Programming Embedded Windows Applications

The following diagram is an example of a basic SIMPL program that enables you to open/close an embedded application. The example program is discussed following the diagram.

The example has Join #10 assigned to a button that is used to toggle the state of Internet Explorer. Press10 is routed to the clock line of a Toggle symbol. The output of the toggle is routed to fb11. Join #11 is referred to as the "Open/Close State Digital Join.” The feedback signal of the Open/Close State Digital Join is used to Open/Close the application. In this example, when fb11 goes high, Internet Explorer opens, and when fb11 goes low, Internet Explorer closes. However, since the

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 53

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

application can also be closed by pressing the "X" in the upper right hand corner of Internet Explorer, we must keep the logic synchronized. If we do not, the toggle will get out of sync. Similarly, using the reserved join to launch the embedded application would result in the application being open, but the state of the toggle remaining low, so a one-shot is used to set the state of the toggle if the embedded application is opened in this way.

For example, the user presses button #10 and the output of the toggle (<Open/Close_IE_FB>) is high. If the user presses the "X" on IE, IE closes. The next time they touch button #10, <Open/Close_IE_FB> will go low, which tries to close the application. However, the application is already closed. We need to reset the state of the toggle to keep in sync with the actual state of the application.

The “Press” signal of the Open Close State Digital Join can be used to know the true state of the application. When Press11 goes high, in this example, IE is open. When Press11 goes low, IE is closed. Here, we use the falling edge of Press11 through a One-Shot to reset the state of the Toggle symbol. Now the toggle is properly synchronized if the user closes the application from the panel itself.

Example Program

An example program for the TPMC-12L is available from the Crestron Web site (www.crestron.com/exampleprograms

54 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Uploading and Upgrading

Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade it is necessary to establish communication. Once communication has been established, files (for example, programs, projects or firmware) can be transferred to the control system (and/or device). Finally, program checks can be performed (such as changing the device ID or creating an IP table) to ensure proper functioning.

Establishing Communication

Use Crestron Toolbox for communicating with the TPMC-12L; refer to the Crestron Toolbox help file for details. There is a single method of communication: TCP/IP communication.

Ethernet Communication

PC Running

Crestron Toolbox

The TPMC-12L connects to PC via Ethernet:

1. Establish serial communication between TPMC-12L and PC.

2. Enter the IP address, IP mask and default router of the TPMC-12L via the Crestron Toolbox (Functions | Ethernet Addressing); otherwise leave DHCP enabled. (The unit ships with DHCP enabled.)

3. Confirm Ethernet connections between TPMC-12L and PC. If connecting through a hub or router, use CAT5 straight through cables with 8-pin RJ-45 connectors. Alternatively, use a CAT5 crossover cable to connect the two LAN ports directly without using a hub or router.

4. Use the Address Book in Crestron Toolbox to create an entry for the TPMC-12L with the TPMC-12L’s TCP/IP communication parameters.

5. Display the “System Info” window (click the TPMC-12L entry.

LAN

TPMC-12L

icon) and select the

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 55

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Programs, Projects and Firmware

Program, project or firmware files may be distributed from programmers to installers or from Crestron to dealers. Firmware upgrades are available from the Crestron Web site as new features are developed after product releases. One has the option to upload programs and projects via the programming software or to upload and upgrade via the Crestron Toolbox. For details on uploading and upgrading, refer to the SIMPL Windows help file, VT Pro-e help file or the Crestron Toolbox help file.

SIMPL Windows

VT Pro-e

Firmware

If a SIMPL Windows program is provided, it can be uploaded to the control system using SIMPL Windows or Crestron Toolbox.

Upload the VT Pro-e file to the touchpanel using VT Pro-e or Crestron Toolbox.

Check the Crestron Web site to find the latest firmware. (New users may be required to register to obtain access to certain areas of the site, including the FTP site.)

Upgrade TPMC-12L firmware via Crestron Toolbox.

1. Establish communication with the TPMC-12L and display the “System Info” window.

2. Select Functions | Firmware… to upgrade the TPMC-12L firmware.

NOTE: Use an Ethernet connection for loading programs, projects or firmware.

Program Checks

Actions that can be performed on the TPMC-12L vary depending on whether it is connected via Cresnet or Ethernet.

Cresnet Connections

Ethernet Connections

For Cresnet connections, using Crestron Toolbox, display the network device tree (Tools | Network Device Tree) to show all network devices connected to the control system. Right-click on the TPMC-12L to display actions that can be performed on the TPMC-12L.

For Ethernet connections, display the “System Info window (click the select the Functions menu to display actions that can be performed on the

TPMC-12L.

icon) and

Be sure to use Crestron Toolbox to create the TPMC-12L IP table.

1. Select Functions | IP Table Setup.

2. Add, modify or delete entries in the IP table. The TPMC-12L can have only one IP table entry.

3. A defined IP table can be saved to a file or sent to the device.

Edit the control system’s IP table to include an entry for the TPMC-12L. The entry should list the TPMC-12L’s IP ID (specified on the TPMC-12L’s IP table) and the internal gateway IP address 127.0.0.1.

Restore

The restore console command will restore the TPMC-12L to its original factory default settings and will also restore the original version of the firmware.

NOTE: Use of the restore console command will require all service packs to be re-installed as well.

56 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Operation

MediaMarker

Crestron’s MediaMarker software is used to create, organize and save presentations. A presenter can devise an entire lecture or demonstration and save it to the notebook. At the presenter’s discretion, the audience may view the presentation complete with annotation in real-time.

MediaMarker can be used with the TPMC-12L or on a personal computer.

In addition to containing the tools required for object creation, MediaMarker can import graphics and text from many other applications. Importable objects include: html, jpg, bmp, png and tif.

MediaMarker projects can be saved to and retrieved from a disk or a “notebook” (Export and Import functions in the File menu).

File | Export Project – Archives the project into one file.

File | Import Project – Opens and extracts all files from a previously exported

project into an active folder.

NOTE: When saving a project, the background images are stored as external graphic files. The graphic file type (html, jpg, bmp, png and tif) can be set within Edit | Preferences | Application Settings.

Additional information is available in the MediaMarker help file.

Security Infrastructure

Since the TPMC-12L does not use a traditional hard drive but rather an image that is restored every time the touchpanel is rebooted, any virus infection is cleared immediately after a reboot. However, using the currently available tools and techniques, Crestron has provided an infrastructure that protects against possible virus infections.

1. Executables/Scripts brought in on external media The implementation of the TPMC-12L series has restrictions on starting any application or script. The only applications that can be started are those allowed by Crestron and these can only be started from the Crestron project.

2. Downloaded Program/Script The browser is customized in such a way that files cannot be downloaded. The only files the browser can open are the files it has plug-ins for, such as PDF, etc. The user cannot change the options, as this dialog box has been disabled.

3. Browser Hijack and Browser vulnerability Crestron has patched all currently known hijacks and vulnerabilities. Future updates can be downloaded from the Crestron Web site.

4. Email Viruses There is no e-mail client installed on the TPMC-12L, so email-based viruses cannot be executed.

5. Viruses that attack web/FTP servers The TPMC-12L does not run a web or FTP server and is therefore not listening

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 57

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

to port 21 or 80. The only ports the system listens to are the ports registered to Crestron.

6. Virus from other machines on the network Since drives on the TPMC-12L can be shared on the network, it is possible that a virus can write itself to files/folders on these shares. Our recommendation therefore is to share as “Read-Only”, so that viruses cannot attach themselves to files on the TPMC-12L.

7. ActiveX and Java The TPMC-12L has ActiveX disabled and has no Java Virtual Machine installed. These applets cannot run on the TPMC-12L.

NOTE: While browsing the Internet with the TPMC-12L, clicking on a link may cause a message box titled “Restrictions” to appear that contains the text “This operation has been cancelled due to restrictions in effect on this computer. Please contact your system administrator.” If this message appears, checking Enable Pop-ups in the “Embedded Apps” window (refer to “Embed Apps (Embedded Applications)” which starts on page 30) may correct this error. Other restrictions may also cause this error, so this may not prevent all occurrences.

58 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

TPMC-12L Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Touchpanel does not function.

Touchpanel is not responding.

Touchpanel display is dark.

Unexpected response from the touchpanel.

Touchpanel is not communicating with the network.

Touchpanel is incorrectly calibrated.

Incorrect network wiring.

Touchpanel Cresnet ID is not set to match the Net ID in the SIMPL program.

Touchpanel Cresnet ID is not unique; two or more units share the same ID.

Standby timeout has elapsed.

Screen brightness is improperly set.

Touchpanel is incorrectly calibrated.

Use Crestron Toolbox (via SIMPL Windows or VT Pro-e) to poll the network. Verify network connection to the touchpanel.

Enter the setup menu or use Crestron Toolbox to initiate the calibration sequence and recalibrate. (Refer to “Touch Screen” which starts on page

21.)

Touch the screen to remove any message and verify correct wiring to all connectors.

Use Crestron Toolbox to poll the network. Verify that the Cresnet ID for the touchpanel is properly set to match the Net ID in the SIMPL program.

Use Crestron Toolbox to poll the network and verify that each ID is used only once.

Touch the screen to reactivate.

Adjust screen brightness from the setup menu. (Refer to “Setup Menu Details” which starts on page 18.)

Enter the setup menu or use Crestron Toolbox to initiate the calibration sequence and recalibrate. (Refer to “Touch Screen” which starts on page

21.)

(Continued on following page)

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 59

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

TPMC-12L Troubleshooting (Continued)

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Video window touchpanel has no display.

Communications via the LAN port is not functioning.

Improper video connection.

Incorrect video cable used.

Incorrect video format selection.

Incorrect VT Pro-e project file loaded.

Improper Ethernet connection (IEC).

Incorrect touchpanel selected in SIMPL Windows.

Another device set to the same IP address.

Possible bad port on the hub.

Verify proper connections on the touchpanel.

Verify that the correct video cable is being used.

Select the proper video input configuration in the touchpanel configuration setup menu. (Refer to “Video” which starts on page 25.)

Make sure that video window object resides in project, recompile and reload.

Verify proper connection at touchpanel LAN port.

Select “Touchpanel (Ethernet)” instead of “Touchpanel (Cresnet)”.

Obtain new touchpanel static IP address.

Use crossover cable to connect directly to the Ethernet port on a PC and ping the IP address of the touchpanel to confirm communication. If it is good, confirm hub port by testing with another Ethernet device.

Use the Right Wire

Calculate Power

Check Network Wiring

In order to ensure optimum performance over the full range of your installation topology, use Crestron Certified Wire only. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (www.crestron.com/calculators).

When calculating the length of wire for a particular Cresnet run, the wire gauge and the Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisychained on the run, the Cresnet power usage of each network unit to be daisychained must be added together to determine the Cresnet power usage of the entire chain. If the unit is home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side.

60 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Cable Length Equation

Strip and Tin Wire

Add Hubs

L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 mm ))

or 1.6 Ohms (Cresnet HP: 12 AWG (4 mm ))

P = Cresnet power usage of entire run (or chain)

L <

40,000

Where:

R x P

Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet (101 meters). If Cresnet HP is used for the same run, its length could extend to 1250 feet (381 meters).

NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the Y conductor and the Z conductor.

When daisy-chaining Cresnet units, strip the ends of the wires carefully to avoid nicking the conductors. Twist together the ends of the wires that share a pin on the network connector and tin the twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle. Insert the tinned connection into the Cresnet connector and tighten the retaining screw. Repeat the procedure for the other three conductors.

Use of a Cresnet Hub/Repeater (CNXHUB) is advised whenever the number of Cresnet devices on a network exceeds 20 or when the combined total length of Cresnet cable exceeds 3000 feet (914 meters).

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from the Crestron Web site (www.crestron.com/manuals). This link will provide a list of product manuals arranged in alphabetical order by model number.

List of Related Reference Documents

DOCUMENT TITLE

2-Series Control Systems Reference Guide

BB-12L Back Box Kit

CAT5 Wiring Reference Guide

Crestron e-Control Reference Guide

MediaManager Applications Guide

MMK-12L and WMKM-12L Mud Ring Mount Kit

PMK-12L Pre-Construction Mount Kit

QM-TX QuickMedia Transmitter

RMK-12L Rack Mount Kit

TMK-12L and WMKT-12L Trim Ring Mount Kit

TPMC-CH-IMC Interface Module

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 61

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876].

You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp users will need to establish a user account to fully benefit from all available features.

) to ask questions about Crestron products. First-time

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of the TPMC-12L, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

62 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Software License Agreement

This License Agreement (“Agreement”) is a legal contract between you (either an individual or a single business entity) and Crestron Electronics, Inc. (“Crestron”) for software referenced in this guide, which includes computer software and as applicable, associated media, printed materials and “online” or electronic documentation (the “Software”).

BY INSTALLING, COPYING OR OTHERWISE USING THE SOFTWARE, YOU REPRESENT THAT YOU ARE AN AUTHORIZED DEALER OF CRESTRON PRODUCTS OR A CRESTRON AUTHORIZED INDEPENDENT PROGRAMMER AND YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, DO NOT INSTALL OR USE THE SOFTWARE.

IF YOU HAVE PAID A FEE FOR THIS LICENSE AND DO NOT ACCEPT THE TERMS OF THIS AGREEMENT, CRESTRON WILL REFUND THE FEE TO YOU PROVIDED YOU (1) CLICK THE DO NOT ACCEPT BUTTON, (2) DO NOT INSTALL THE SOFTWARE AND (3) RETURN ALL SOFTWARE, MEDIA AND OTHER DOCUMENTATION AND MATERIALS PROVIDED WITH THE SOFTWARE TO CRESTRON AT: CRESTRON ELECTRONICS, INC., 15 VOLVO DRIVE, ROCKLEIGH, NEW JERSEY 07647, WITHIN 30 DAYS OF PAYMENT.

LICENSE TERMS

Crestron hereby grants You and You accept a nonexclusive, nontransferable license to use the Software (a) in machine readable object code together with the related explanatory written materials provided by Crestron (b) on a central processing unit (“CPU”) owned or leased or otherwise controlled exclusively by You and (c) only as authorized in this Agreement and the related explanatory files and written materials provided by Crestron.

If this software requires payment for a license, you may make one backup copy of the Software, provided Your backup copy is not installed or used on any CPU. You may not transfer the rights of this Agreement to a backup copy unless the installed copy of the Software is destroyed or otherwise inoperable and You transfer all rights in the Software.

You may not transfer the license granted pursuant to this Agreement or assign this Agreement without the express written consent of Crestron.

If this software requires payment for a license, the total number of CPUs on which all versions of the Software are installed may not exceed one per license fee (1) and no concurrent, server or network use of the Software (including any permitted back-up copies) is permitted, including but not limited to using the Software (a) either directly or through commands, data or instructions from or to another computer (b) for local, campus or wide area network, Internet or Web hosting services or (c) pursuant to any rental, sharing or “service bureau” arrangement.

The Software is designed as a software development and customization tool. As such Crestron cannot and does not guarantee any results of use of the Software or that the Software will operate error free and You acknowledge that any development that You perform using the Software or Host Application is done entirely at Your own risk.

The Software is licensed and not sold. Crestron retains ownership of the Software and all copies of the Software and reserves all rights not expressly granted in writing.

OTHER LIMITATIONS

You must be an Authorized Dealer of Crestron products or a Crestron Authorized Independent Programmer to install or use the Software. If Your status as a Crestron Authorized Dealer or Crestron Authorized Independent Programmer is terminated, Your license is also terminated.

You may not rent, lease, lend, sublicense, distribute or otherwise transfer or assign any interest in or to the Software.

You may not reverse engineer, decompile or disassemble the Software.

You agree that the Software will not be shipped, transferred or exported into any country or used in any manner prohibited by the United States Export Administration Act or any other export laws, restrictions or regulations (“Export Laws”). By downloading or installing the Software You (a) are certifying that You are not a national of Cuba, Iran, Iraq, Libya, North Korea, Sudan, Syria or any country to which the United States embargoes goods (b) are certifying that You are not otherwise prohibited from receiving the Software and (c) You agree to comply with the Export Laws.

If any part of this Agreement is found void and unenforceable, it will not affect the validity of the balance of the Agreement, which shall remain valid and enforceable according to its terms. This Agreement may only be modified by a writing signed by an authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings, communications or advertising relating to the Software. The failure of either party to enforce any right or take any action in the event of a breach hereunder shall constitute a waiver unless expressly acknowledged and set forth in writing by the party alleged to have provided such waiver.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 63

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

If You are a business or organization, You agree that upon request from Crestron or its authorized agent, You will within thirty (30) days fully document and certify that use of any and all Software at the time of the request is in conformity with Your valid licenses from Crestron of its authorized agent.

Without prejudice to any other rights, Crestron may terminate this Agreement immediately upon notice if you fail to comply with the terms and conditions of this Agreement. In such event, you must destroy all copies of the Software and all of its component parts.

PROPRIETARY RIGHTS

Copyright. All title and copyrights in and to the Software (including, without limitation, any images, photographs, animations, video, audio, music, text and “applets” incorporated into the Software), the accompanying media and printed materials and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this Agreement.

Submissions. Should you decide to transmit to Crestron’s Web site by any means or by any media any materials or other information (including, without limitation, ideas, concepts or techniques for new or improved services and products), whether as information, feedback, data, questions, comments, suggestions or the like, you agree such submissions are unrestricted and shall be deemed non-confidential and you automatically grant Crestron and its assigns a non-exclusive, royalty-free, worldwide, perpetual, irrevocable license, with the right to sublicense, to use, copy, transmit, distribute, create derivative works of, display and perform the same.

Trademarks. CRESTRON and the Swirl Logo are registered trademarks of Crestron Electronics, Inc. You shall not remove or conceal any trademark or proprietary notice of Crestron from the Software including any back-up copy.

GOVERNING LAW

This Agreement shall be governed by the laws of the State of New Jersey, without regard to conflicts of laws principles. Any disputes between the parties to the Agreement shall be brought in the state courts in Bergen County, New Jersey or the federal courts located in the District of New Jersey. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement.

CRESTRON LIMITED WARRANTY

CRESTRON warrants that: (a) the Software will perform substantially in accordance with the published specifications for a period of ninety (90) days from the date of receipt and (b) that any hardware accompanying the Software will be subject to its own limited warranty as stated in its accompanying written material. Crestron shall, at its option, repair or replace or refund the license fee for any Software found defective by Crestron if notified by you within the warranty period. The foregoing remedy shall be your exclusive remedy for any claim or loss arising from the Software.

CRESTRON shall not be liable to honor warranty terms if the product has been used in any application other than that for which it was intended or if it as been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number or license code altered, defaced, improperly obtained or removed.

Notwithstanding any agreement to maintain or correct errors or defects, Crestron shall have no obligation to service or correct any error or defect that is not reproducible by Crestron or is deemed in Crestron’s reasonable discretion to have resulted from (1) accident; unusual stress; neglect; misuse; failure of electric power, operation of the Software with other media not meeting or not maintained in accordance with the manufacturer’s specifications or causes other than ordinary use; (2) improper installation by anyone other than Crestron or its authorized agents of the Software that deviates from any operating procedures established by Crestron in the material and files provided to You by Crestron or its authorized agent; (3) use of the Software on unauthorized hardware or (4) modification of, alteration of or additions to the Software undertaken by persons other than Crestron or Crestron’s authorized agents.

ANY LIABILITY OF CRESTRON FOR A DEFECTIVE COPY OF THE SOFTWARE WILL BE LIMITED EXCLUSIVELY TO REPAIR OR REPLACEMENT OF YOUR COPY OF THE SOFTWARE WITH ANOTHER COPY OR REFUND OF THE INITIAL LICENSE FEE CRESTRON RECEIVED FROM YOU FOR THE DEFECTIVE COPY OF THE PRODUCT. THIS WARRANTY SHALL BE THE SOLE AND EXCLUSIVE REMEDY TO YOU. IN NO EVENT SHALL CRESTRON BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND (PROPERTY OR ECONOMIC DAMAGES INCLUSIVE), EVEN IF A CRESTRON REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY THIRD PARTY. CRESTRON MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AS TO TITLE OR INFRINGEMENT OF THIRD-PARTY RIGHTS, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY OTHER WARRANTIES, NOR AUTHORIZES ANY OTHER PARTY TO OFFER ANY WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS WARRANTIES.

64 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.

2. Products may be returned for credit, exchange or service with a CRESTRON Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.

Trademark Information

All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista/7 and WindowsNT/2000 are trademarks of Microsoft Corporation.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 65

Isys™ 12” Wall Mount Touchpanel Crestron TPMC-12L

Microsoft® Windows XP® Embedded End User License Agreement

• You have acquired a device (“DEVICE”) that includes software licensed by Crestron Electronics from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”), are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.

• IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT CRESTRON ELECTRONICS FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT

NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).

• GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:

o You may use the SOFTWARE only on the DEVICE. o NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. CRESTRON ELECTRONICS HAS

INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON CRESTRON ELECTRONICS TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE.

o NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE IS PROVIDED “AS IS” AND WITH ALL

FAULTS. THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE

SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.

o No Liability for Certain Damages. EXCEPT AS PROBHIBITED BY LAW, MS SHALL HAVE NO LIABILITY

FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVEN SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY DOLLARS (U.S. $250.00).

o Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile,

or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation.

o SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights under

this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees to this EULA. If the SOFTWARE is an upgrade, any transfer must also include all prior versions of the SOFTWARE.

o EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to

comply with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments. For additional information, see www.microsoft.com/exporting

• Limited Use of Particular SOFTWARE Services. Provided that the DEVICE continues to comply with the terms of the “Restricted Functionality” paragraph below, without limiting the number of computers or other electronic devices that might connect to the DEVICE to access or utilize other software or SOFTWARE services on the DEVICE, you may permit a maximum of ten (10) computers or other electronic devices to connect to the DEVICE to utilize the services of the SOFTWARE for (a) file and print services, (b) Internet information services, and/or (c) remote access (including connection sharing). The ten (10) connections maximum includes any indirect connections made through “multiplexing” or other software or hardware which pools or aggregates connections.

• If you use the DEVICE to access or utilize the services or functionality of Microsoft Windows Server products (such as Microsoft Windows NT Server 4.0 (all editions) or Microsoft Windows 2000 Server (all editions)), or use the DEVICE to permit workstation or computing devices to access or utilize the services or functionality of Microsoft Windows Server products, you may be required to obtain a Client Access License for the DEVICE and/or each such workstation or computing device. Please refer to the End-User License Agreement for your Microsoft Windows Server product for additional information.

• Restricted Deployment. The SOFTWARE is not designed or intended for use or resale in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, or other devices or systems in which a malfunction of the SOFTWARE would result in foreseeable risk of injury or death to the operator of the device or system, or to others.

• Restricted Functionality. You are licensed to use the SOFTWARE to provide only the limited functionality (specific tasks or processes) for which the DEVICE has been designed and marketed by Crestron. This license specifically prohibits any other use of the SOFTWARE, or inclusion of additional software programs or functions, on the DEVICE. Subject to the terms of the “Limited Use of Particular Services” paragraph above, you may use the SOFTWARE on the DEVICE to interact with other computers or electronic devices.

• Maximum Number of Processors. The SOFTWARE may not be used by more than two (2) processors at any one time on the DEVICE.

66 • Isys™ 12” Wall Mount Touchpanel: TPMC-12L Operations Guide – DOC. 6686B

Crestron TPMC-12L Isys™ 12” Wall Mount Touchpanel

• Remote Boot Feature. Your DEVICE may be enabled with a Remote Boot feature which includes Remote Boot Installation Services tool. You may use the Remote Boot Installation Services tool only to deploy the SOFTWARE to one or more DEVICEs on which you are licensed to run the SOFTWARE (i.e. DEVICEs to which the appropriate Certificate of Authenticity is affixed). Please refer to the DEVICE documentation, if provided with your DEVICE, or contact Crestron for additional information.

• Security Updates. Content providers are using the digital rights management technology (“Microsoft DRM”) contained in this SOFTWARE to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated. Owners of such Secure Content (“Secure Content Owners”) may, from time to time, request MS, Microsoft Corporation, or their subsidiaries to provide security related updates to the Microsoft DRM components of the SOFTWARE (“Security Updates”) that may affect your ability to copy, display, and/or play Secure Content through Microsoft software or third-party applications that utilize Microsoft DRM. You therefore agree that, if you elect to download a license from the Internet, which enables our use of Secure Content, MS, Microsoft Corporation, or their subsidiaries may, in conjunction with such license, also download onto your DEVICE such Security Updates that a Secure Content Owner has requested that MS, Microsoft Corporation, or their subsidiaries distribute. MS, Microsoft Corporation, or their subsidiaries will not retrieve any personally identifiable information, or any other information, from your DEVICE by downloading such Security Updates.

• NetMeeting/Remote Assistance/Remote Desktop Features. The SOFTWARE may contain NetMeeting, Remote Assistance, and Remote Desktop technologies that enable the SOFTWARE or other applications installed on the Device to be used remotely between two or more computing devices, even if the SOFTWARE or application is installed on only one Device. You may use NetMeeting, Remote Assistance, and Remote Desktop with all Microsoft products; provided, however, use of these technologies with certain Microsoft products may require an additional license. For both Microsoft products and non-Microsoft products, you should consult the license agreement accompanying the applicable product or contact the applicable licensor to determine whether use of NetMeeting, Remote Assistance, or Remote Desktop is permitted without an additional license.

• Consent to Use of Data. You agree that MS, Microsoft Corporation, and their affiliates may collect and use technical information gathered in any manner as part of product support services related to the SOFTWARE. MS, Microsoft Corporation, and their affiliates may use this information solely to improve their products or to provide customized services or technologies to you. MS, Microsoft Corporation, and their affiliates may disclose this information to others, but not in a form that personally identifies you.

• Internet Gaming/Update Features. If the SOFTWARE provides, and you choose to utilize, the Internet gaming or update features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to implement the features. By using these features, you explicitly authorize MS, Microsoft Corporation, and/or their designated agent to use this information solely to improve their products or to provide customized services or technologies to you. MS or Microsoft Corporation may disclose this information to others, but not in a form that personally identifies you.

• Internet –Based Services Components. The SOFTWARE may contain components that enable and facilitate the use of certain Internet-based services. You acknowledge and agree that MS, Microsoft Corporation, or their affiliates may automatically check the version of the SOFTWARE and/or its components that you are utilizing and may provide upgrades or supplements to the SOFTWARE that may be automatically downloaded to your Device.

• Links to Third-Party Sites. The SOFTWARE may provide you with the ability to link to third-party sites through the use of the SOFTWARE. The third-party sites are not under the control of MS, Microsoft Corporation, or their affiliates. Neither MS nor Microsoft Corporation nor their affiliates are responsible for (i) the contents of any third-party sites, any links contained in third-party sites, or any changes or updates to third-party sites, or (ii) webcasting or any other form of transmission received from any third-party sites. If the SOFTWARE provides links to third-party sites, those links are provided to you only as a convenience, and the inclusion of any link does not imply an endorsement of the third-party site by MS, Microsoft Corporation, or their affiliates.

• Additional Software/Services. The SOFTWARE may permit Crestron, MS, Microsoft Corporation, or their affiliates to provide or make available to you SOFTWARE updates, supplements, add-on components, or Internet-based services components of the SOFTWARE after the date you obtain your initial copy of the SOFTWARE (“Supplemental Components”). o If Crestron provides or makes available to you Supplemental Components and no other EULA terms are provided

along with the Supplemental Components, then the terms of this EULA shall apply.

o If MS, Microsoft Corporation, or their affiliates make available Supplemental Components, and no other EULA terms

are provided, then the terms of this EULA shall apply, except that the MS, Microsoft Corporation, or affiliate entity providing the Supplemental Components(s) shall be the licensor of the Supplemental Component(s).

Crestron, MS, Microsoft Corporation, and their affiliates reserve the right to discontinue any Internet-based services provided to you or made available to you through the use of the SOFTWARE.

This EULA does not grant you any rights to use the Windows Media Format Software Development Kit (“WMFSDK”) components contained in the SOFTWARE to develop a software application that uses Windows Media technology. If you wish to use the WMFSDK to develop such an application, visit htt://msdn.Microsoft.com/workshop/imedia/windowsmedia/sdk/ wmsdk.asp, accept a separate license for the WMFSDK, download the appropriate WMFSDK, and install it on your system.

Operations Guide – DOC. 6686B Isys™ 12” Wall Mount Touchpanel: TPMC-12L • 67

Crestron Electronics, Inc. Operations Guide – DOC. 6686B

15 Volvo Drive Rockleigh, NJ 07647 (2020821) Tel: 888.CRESTRON 10.10 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.

Creston TPMC-12L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features and Functions

Specifications

Physical Description

Setup

Network Wiring

CAT5 Wiring

QuickMedia Wiring

Identity Code

Configuring the Touchpanel

Mounting Options

Hardware Hookup

Recommended Cleaning

Programming Software

Earliest Version Software Requirements for the PC

Programming with Crestron SystemBuilder

Programming with SIMPL Windows

Programming with VisionTools

Embedded Applications

Defaults for Embedded Windows Applications

Programming Embedded Windows Applications

Example Program

Uploading and Upgrading

Establishing Communication

Programs, Projects and Firmware

Program Checks

Restore

Operation

MediaMarker

Security Infrastructure

Problem Solving

Troubleshooting

Check Network Wiring

Reference Documents

Further Inquiries

Future Updates

Software License Agreement

Return and Warranty Policies

Merchandise Returns / Repair Service

CRESTRON Limited Warranty
