Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Important Safety Instructions

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance

with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Disconnect power prior to connecting or disconnecting equipment.

• Do not install in direct sunlight.

• The apparatus must be installed in a way that the power cord

can be removed either from the wall outlet or from the device itself in order to disconnect the mains power.

• Prevent foreign objects from entering the device.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING. OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE APPARATUS.

WARNING:

TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER. THERE ARE NO USER SERVICEABLE PARTS INSIDE. ONLY QUALIFIED SERVICE PERSONNEL SHOULD PERFORM SERVICE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

THIS IS AN APPARATUS WITH CLASS I CONSTRUCTION. IT SHALL BE CONNECTED TO AN ELECTRICAL OUTLET WITH AN EARTHING GROUND TERMINAL.

IMPORTANT:

The SWAMP-24X8 and SWAMPI-24X8 can be used with Class 2 output wiring.

Regulatory Compliance

As of the date of manufacture, the SWAMP-24X8 and SWAMPI-24X8 have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

All brand names, product names and trademarks are the property of their respective owners.

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Contents

Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................ 1

Applications.................................................................................................................6

Specifications ..............................................................................................................7

Physical Description.................................................................................................. 10

Setup ........................................................................................................................................ 16

Network Wiring......................................................................................................... 16

Sonnex Link Wiring ..................................................................................................16

Identity Code ............................................................................................................. 16

Installation................................................................................................................. 17

Hardware Hookup .....................................................................................................19

Configuration...........................................................................................................................25

Source Setup.............................................................................................................. 25

Zone Setup................................................................................................................. 26

Expander Status......................................................................................................... 37

Amplifier Status ........................................................................................................37

Network Setup...........................................................................................................37

Control Setup............................................................................................................. 40

About......................................................................................................................... 42

Programming Software............................................................................................................43

Earliest Version Software Requirements for the PC .................................................43

Programming with Crestron SystemBuilder.............................................................. 43

Programming with SIMPL Windows........................................................................ 43

Uploading and Upgrading........................................................................................................ 46

Establishing Communication.....................................................................................46

Programs and Firmware ............................................................................................47

Program Checks ........................................................................................................48

Operation .................................................................................................................................49

Problem Solving ......................................................................................................................50

Troubleshooting......................................................................................................... 50

Check Network Wiring..............................................................................................50

Reference Documents................................................................................................51

Further Inquiries........................................................................................................ 51

Future Updates ..........................................................................................................51

Return and Warranty Policies.................................................................................................. 53

Merchandise Returns / Repair Service ......................................................................53

CRESTRON Limited Warranty.................................................................................53

Operations Guide – DOC. 7049A Contents • i

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Sonnex™ Multiroom Audio System: SWAMP(I)-24X8

Introduction

The SWAMP-24X8 is the centerpiece of a fully-scalable audio distribution system

that delivers high-output audiophile sound quality to every room with significantly

reduced cabling, low power consumption, advanced DSP, and integrator-friendly

setup. The Sonnex™ Multiroom Audio System facilitates massive systems with up

to 74 zones and over 30,000 Watts of power.

The SWAMP-24X8 and SWAMPI-24X8 are functionally identical. For simplicity

within this guide, the term “SWAMP-24X8” is used except where noted.

Features and Functions

• Advanced Multiroom audio distribution for homes and offices

• High-efficiency audiophile grade amplification built in

• 140 Watts/Ch. @ 8 Ohms, 400 Watts/Ch. bridged

• Eight amplified stereo zone outputs and two S/PDIF zone outputs

• Output Bussing—Enables linked operation of multiple zones

• Bridgeable outputs—Extra power for pools and other large areas

• Sonnex Link—Provides one-wire, plug-and-play interface to eight

SWAMPE-8 expanders up to 200 feet (61 meters) away

• 12 unbalanced, four balanced/unbalanced, and eight S/PDIF inputs

• Supports direct audio connection of the Crestron Interface for iPod

(sold separately) and other “CH” CAT5 sources

• User adjustable volume, bass, treble, loudness, and selectable “tone

profiles”

• Installer adjustable 5-band graphic or parametric EQ per zone

• Dynamic Range Control—Maintains even listening levels in both quiet

and loud ambient environments

• Speaker Profiles—Allows upload of custom preset speaker settings

• Sonnex Speaker Protect™—Affords extra headroom while preventing

component damage

• Individual zone power control and global standby

• Setup and adjustment via front panel or Sonnex Tools software

(Continued on following page)

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 1

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Features and Functions

(Continued)

• Remote fault monitoring

• Seamless Crestron system integration

• Heavy duty detachable terminal blocks ease speaker wire termination

• Low power consumption, cool-running operation

• 4-space 19” rack-mountable

The Sonnex system topology minimizes speaker wiring distances by allowing

expansion units to be placed central to the rooms they serve, routing 24 stereo

channels of uncompressed digital audio and control to each expander over a single

inexpensive shielded CAT5e cable.* Gone is all the clutter of amplifier interconnects

and input loop-thru cables, meticulously integrating eight zones of high-performance

power amplification and signal processing, plus input switching for a generous 24

analog and digital sources, all in one compact 4-space rack-mountable package.

Integrated Audiophile Amplifier

The amplifiers in the SWAMP-24X8 use a custom hybrid design that achieves the

warmth and neutrality of a fine Class AB amplifier with all the efficiency benefits of

modern Class D.

Each of the SWAMP-24X8’s 16 channels (configured as eight zones) delivers 140

Watts into 8 Ohms, or 240 Watts into 4 Ohms. For large, noisy areas, any two

adjacent zones can be bridged (Zone 1 + Zone 2, Zone 3 + Zone 4, Zone 5 + Zone 6,

Zone 7 + Zone 8) to produce 400 Watts per channel at 8 Ohms. Sonnex uses only

four rack spaces while maintaining effective cooling with no need for extra clearance

above or below. Each zone is individually controllable, saving further energy by

turning off any unused channels.

24x8 Matrix Switcher

Designed with flexibility and expansion in mind, the Sonnex Multiroom Audio

System provides numerous inputs to manage all your stereo audio sources, both

analog and digital. Sonnex handles the multi-zone outputs from a Crestron ADMS

Intermedia Delivery System™ or CEN-TRACK multi-tuner (both sold separately),

plus all your digital television receivers and other devices. Sonnex even accepts a

direct input from the CEN-IDOCV Interface for iPod® (sold separately) and other

Crestron Home

A total of 24 discrete inputs are spread across an array of connectors, including

unbalanced RCA, balanced terminal blocks, and S/PDIF coaxial. For ease of use,

descriptive names can be entered for display on the front panel LCD and push

buttons for every source input and zone output. Via the front panel controls or from a

Crestron touchpanel or remote, any input can be selected for listening in any zone or

group. Additional features include mono summing for distribution to non-stereo

zones, scaling factor settings for defining minimum and maximum volume levels,

source signal detection, and source gain compensation to assure a consistent level

when switching between disparate sources.

CAT5 Balanced sources without requiring a separate converter.

* For connection of the Sonnex Link between the SWAMP-24X8 and each SWAMPE-8, use Crestron

DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable with DM-8G-CONN connectors. The maximum cable length is 200 feet (61 meters) per run.

2 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Bonus Zones

Sonnex leaves no zone behind, providing two additional S/PDIF digital outputs for

sharing stereo sources with centralized audio processors and AV receivers.

Sonnex Digital Audio Transport

Among the many features that set Sonnex apart from all other multiroom systems is

the Sonnex Audio Transport. On the rear of the SWAMP-24X8 are eight Sonnex

Link ports, enabling the connection of up to eight SWAMPE-8 expanders

transports professional-quality 24-bit, 48 kHz digital audio from all 24 inputs

simultaneously to each expander, supporting wiring distances up to 200 feet (61

meters) over a single CAT5e shielded twisted-pair (STP) cable.2

While the expanders can be installed centrally with the SWAMP-24X8, the ease of

running just one tiny wire instead of 16 heavy speaker cables clearly affords a much

better decentralized system approach. Installing each expander local to the rooms it

serves, whether on a different floor, another wing, or a completely separate building,

significantly reduces the amount of speaker wiring you will need to install. The

benefits of reducing speaker wiring include faster, easier and less expensive

installation, as well as overall higher performance and efficiency by minimizing the

signal loss inherent in long speaker runs.

. Each link

Plug and Play Expansion

Control for each expander is also embedded in the Sonnex Link, dramatically

simplifying installation and setup through a true one-wire interface. There is no need

to set addresses or write any special programming. Simply connect each expander to

the SWAMP-24X8 and instantly control the complete system from the

SWAMP-24X8’s front panel or Sonnex Tools software.1

Advanced DSP

To truly deliver an ultimate listening experience in every room, Sonnex includes

built-in digital signal processing, providing a virtual arsenal of controls and

adjustments, intelligently deployed to streamline both the installer setup procedure

and day-to-day user operation. Key setup functions are accessible via the front panel,

while more advanced settings are provided via Sonnex Tools software. Naturally, the

essential user controls can be made available on any Crestron touchpanel, keypad,

handheld remote, or mobile device as part of a complete Crestron system.

Sonnex DSP features include:

• User Controls — From a Crestron touchpanel or other user interface,

Sonnex provides the essential controls for day-to-day listening. Controls include room volume, bass, treble, balance, loudness, mute, zone on/off, and five selectable tone profiles. Through the control system program, many advanced user functions are possible including priority modes (who can control which sources), zone grouping (source sharing), paging, do-not-disturb, alarm clock, sleep timer, and much more.

• Tone Profiles — With one touch, users can select from five preset EQ

curves including Classical, Jazz, Pop, Rock, or Spoken Word, each tailored for a different type of material or listening preference.

1. If using Cresnet® as the control system interface, system expansion is limited to one SWAMPE-8

expander. Support for more than one expander requires Ethernet as the control system interface.

2. For connection of the Sonnex Link between the SWAMP-24X8 and each SWAMPE-8, use Crestron

DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable with DM-8G-CONN connectors. The maximum cable length is 200 feet (61 meters) per run.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 3

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

• Dynamic Range Control — When you listen to music or watch TV, you

want to enjoy it at a volume level that lets you hear everything clearly — which can be difficult to do if there are competing background noises or someone resting in the next room. Not only that, but the level from one song to the next, and between TV programs and commercials, can fluctuate wildly. Sonnex provides user-selectable DRC to help keep everything at a consistent level, whether in a quiet bedroom, a loud swimming pool, or an outdoor patio, facilitating a more cohesive listening experience without disturbing the neighbors.

• Sonnex Speaker Protect™ (SSP) — When the occasion calls for cranking

the volume*, SSP output limiting assures maximum headroom while preventing damage to the amplifier or speakers. SSP lets the installer set the protection to match the speakers’ power handling capability, achieving a transparent effect right up to the limits of the speaker device.

NOTE: As speaker ratings vary greatly across manufacturers, there is no guarantee that Sonnex Speaker Protect will protect against speaker damage in all situations.

• 5-Band Equalizer — To tailor the sound of your speakers to the unique

acoustical environment of each room or space, Sonnex provides the choice of graphic or parametric 5-band EQ. Using Sonnex Tools software and a wireless laptop, the installer can easily move from room to room, sculpting the sound for optimal audio clarity and impact.

Speaker Profiles

AV system integrators typically rely on just a few select speaker models for the

majority of installs, and subsequently find themselves repeating many of the same

adjustments at each project. The Speaker Profiles feature in Sonnex Tools alleviates

the repetition, allowing installers to save a complete set of EQ and SSP settings for

every type of speaker, room, and customer listening preference. So, tuning the next

room or project can be as simple as loading the appropriate Speaker Profile for each

zone. Using Speaker Profiles, a complete Sonnex system can be effectively

“pre-tuned” before a single note of music or test signal is even played.

Output Bussing

The spacious, open floor plans typical of today’s homes and offices commonly

present multiple adjacent listening zones with no sonic boundary between them —

e.g., a kitchen and dinette, a living room and dining room, or an outdoor pool and

terrace. One click in Sonnex Tools instantly groups adjacent zones to function as one

while preserving the individual speaker profile settings for each.

* Excessive audio volume may damage your hearing. Crestron advocates enjoying your music at a

safe listening level.

4 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Intelligent Monitoring and Protection

To help ensure the most seamless user experience and long-lived operation, Sonnex

includes several ways to keep tabs on its operating status and health. On its own,

Sonnex possesses the intelligence to protect itself from many types of faults

including over temperature, over current, over voltage, under voltage, and DC offset

on any channel. In the event of a fault, the front panel LCD provides clear fault

indication to speed the troubleshooting of incorrect wiring, poor rack ventilation, and

other unforeseen issues. Fault alerts may also be broadcast to a system touchpanel or

mobile device, and integrators can even monitor and track the data remotely through

Crestron RoomView

Ultimate Integration

software to ensure a rapid service response.

Without question, Sonnex delivers unprecedented intelligence from source to

speaker. Via Cresnet

* or high-speed Ethernet, Sonnex affords incredible integration potential as part of a complete Crestron system, enabling seamless control of every room and source through a wide selection of touchpanels, keypads, wireless remotes, computers and mobile devices. Complete setup is afforded via USB or Ethernet using Sonnex Tools software, part of the Crestron Toolbox™ installer toolkit.

* If using Cresnet as the control system interface, system expansion is limited to one SWAMPE-8

expander. Support for more than one expander requires Ethernet as the control system interface.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 5

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Applications

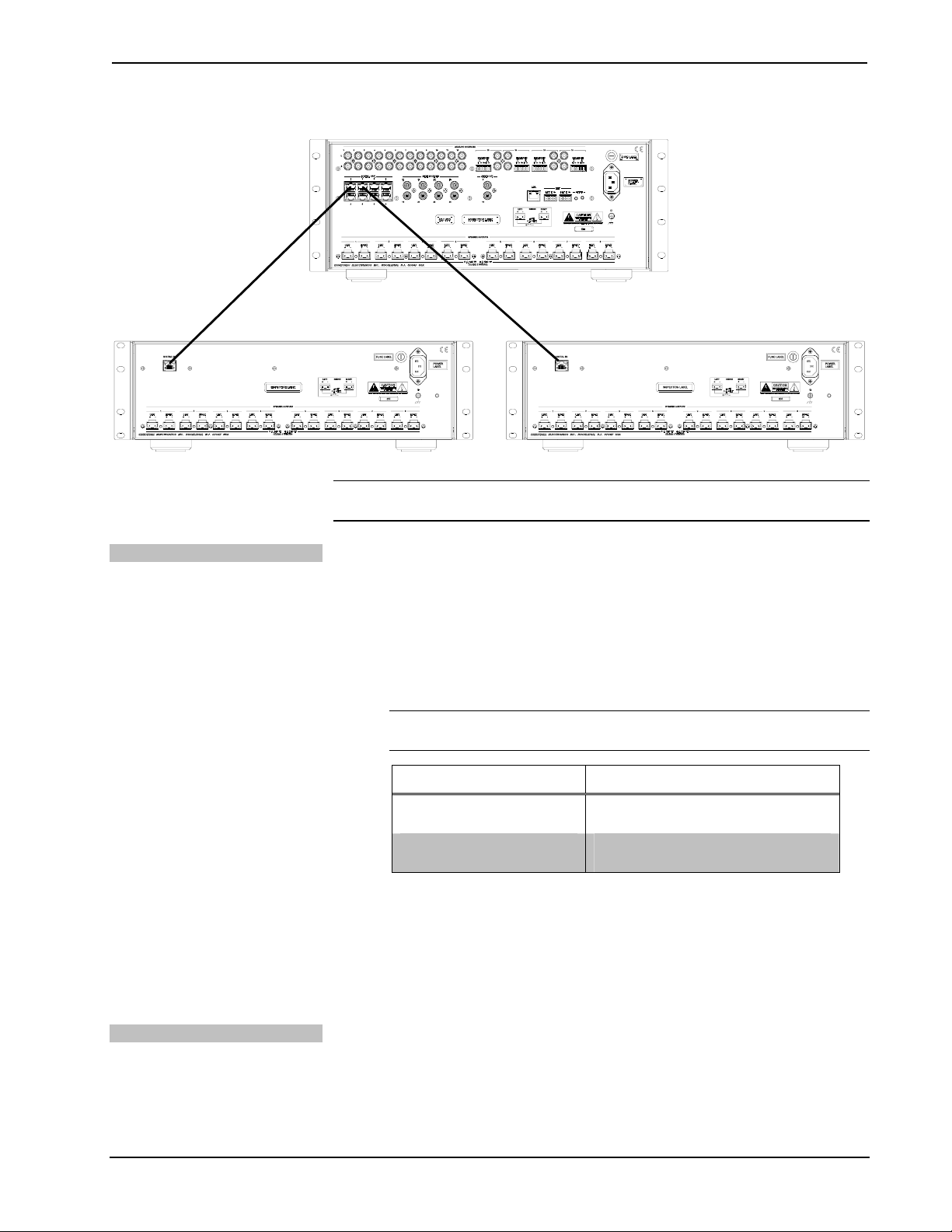

The following diagram shows a SWAMP-24X8 in a multi-zone application.

SWAMP-24X8 in a Multi-Zone Application

6 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Specifications

Specifications for the SWAMP(I)-24X8 are listed in the following table.

SWAMP(I)-24X8 Specifications

SPECIFICATION DETAILS

Audio Features

Input Signal Types

Output Signal Types

Typical of 24 Stereo Inputs Analog-to-Digital Conversion

Source Compensation

Input Monitoring

Typical of Eight Amplified Stereo Outputs

Digital-to-Analog Conversion

Output Power

Damping Factor

Amplifier Monitoring

Frequency Response

Total Harmonic Distortion (THD)

S/N Ratio

Stereo Separation

Zone Separation

Zone Volume Level Control

Bass Control

Treble Control

Loudness Compensation

Dynamic Range Control

24x10 stereo matrix switcher, 8 stereo zone DSP, 8 stereo zone power amplifier, Sonnex Digital Audio Transport, speaker profiles, Sonnex Speaker Protect, 5-band graphic or parametric EQ, Dynamic Range Control (DRC), tone profiles, source gain compensation, amp bridging, output bussing, individual zone power control, global standby, source signal detection, amplifier temperature and fault monitoring, priority modes alarm clock and sleep timer

Stereo analog line (unbalanced and balanced), S/PDIF coaxial (2-channel PCM only)

Stereo speaker level, S/PDIF coaxial (2-channel PCM only), Sonnex Link

24-bit 48 kHz

±10.0 dB per input

Source Signal Detect

24-bit 48 kHz

140 Watts per channel at 8 Ohms 240 Watts per channel at 4 Ohms 400 Watts per channel at 8 Ohms bridged

> 200 @ 20 Hz

Over Current, Over/Under Voltage, Over Temperature, DC Offset, Clipping

20 Hz to 20 kHz, ±0.5 dB

0.02%

>105dB S/PDIF in, >100dB balanced or unbalanced analog in, A-weighted

> 90 dB

> 95 dB

-80.0 to +20.0 dB, adjustable from 0% to 100% plus mute

±12.0 dB

On/Off

, paging1, do-not-disturb1,

(Continued on following page)

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 7

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

SWAMP(I)-24X8 Specifications (Continued)

SPECIFICATION DETAILS

Audio (continued) Balance Control

Mono Summing

Power Limiting

Tone Profiles

EQ Modes

GEQ Center Frequencies

GEQ Gain

PEQ Center Frequency

PEQ Gain

PEQ Bandwidth

Speaker Profiles

Bus Volume Offset

Typical of 2 digital stereo zone outputs

Resolution/Bitrate

Communications Ethernet

Cresnet

Sonnex

Power Requirements

Main Power

SWAMP-24X8

SWAMPI-24X8

Cresnet Power Usage

Environmental

Temperature 41º to 104º F (5º to 40º C)

Humidity 10% to 90% RH (non-condensing)

Heat Dissipation

Left/right adjustable

Selectable

Sonnex Speaker Protect (SSP) output limiting; Configurable 40 to 140 Watts @ 8 Ohms 40 to 240 Watts @ 4 Ohms 40 to 400 Watts @ 8 Ohms bridged

None, Classical, Jazz, Pop, Rock, Spoken Word

5-band graphic or 5-band parametric EQ

63, 250, 1k, 4k, 16 kHz

±12.0 dB per band

10 to 20,000 Hz per band

±12.0 dB per band

to 3.5 octaves per band

Comprises 5-band GEQ and SSP settings

±12.0 dB per zone for output bussing

24-bit 48 kHz

For control and console, 10BASE-T / 100BASE-TX, auto-switching, autonegotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP

For control and console Cresnet slave2

64-channel (48 utilized) digital audio w/embedded control, auto-discovery, autonegotiating

12 Amps @ 120 Volts AC, 50/60 Hz

6 Amps @ 220-240 Volts AC, 50/60 Hz

None

475 BTU/Hr (140W@8Ω) 819 BTU/Hr (240W@4Ω)

(Continued on following page)

8 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

SWAMP(I)-24X8 Specifications (Continued)

SPECIFICATION DETAILS

Enclosure

Chassis

Front Panel

Mounting

Dimensions

Height

Width

Depth 18.47 in (470 mm)

Weight 62.0 lbs (28.2 kg)

Available Accessories

AIR-SR

CBL-RCA

CBL-RCA2

DM-CBL-8G

EXCITE-IC

EXCITE-IW

SWAMPE-8

1. Feature enabled via control system program.

2. If using Cresnet as the control system interface, system expansion is limited to one SWAMPE-8

expander. Support for more than one expander requires Ethernet as the control system interface

Metal with black finish, vented sides, variable-speed fan-cooled

Extruded aluminum, black finish with polycarbonate label overlay

Freestanding or 4U 19-inch rack-mountable (feet and rack ears included)

7.51 in (191 mm) with feet

6.97 in (178 mm) without feet

19.00 in (483 mm) with ears

17.29 in (439 mm) without ears

AIR™ Outdoor Surface Mount Speakers

Crestron Certified RCA S/PDIF Audio Interface Cable

Crestron Certified RCA Stereo Audio Interface Cable

High Performance Shielded Twisted Pair Cable

Excite™ In-Ceiling Speakers

Excite In-Wall Speakers

Sonnex Multiroom Audio Expander

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 9

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Physical Description

This section provides information on the connections, controls and indicators available on your SWAMP-24X8.

SWAMP-24X8 Physical View (Front)

SWAMP-24X8 Physical View (Rear)

10 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

SWAMP-24X8 Overall Dimensions (Top)

18.47 in

(470 mm)

17.29 in

(439 mm)

19.00 in

(483 mm)

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 11

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

SWAMP-24X8 Overall Dimensions (Front & Back)

2 5 6

3 4

7 98 10

(178 mm)

11 13

1219

6.97 in

7.51 in

(191 mm)

Connectors, Controls & Indicators

(Continued on following page)

CONNECTORS

CONTROLS &

INDICATORS

LCD Display and

SOFTKEYS

DESCRIPTION

Green LCD alphanumeric, adjustable backlight, 2 lines x 20 characters per line; Displays source & zone setup, amplifier and expander status, network & control configuration, volume levels, and other parameters; (4) Push buttons for execution of LCD driven functions

12 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Connectors, Controls & Indicators (Continued)

CONNECTORS

CONTROLS &

INDICATORS

DESCRIPTION

7 COMPUTER

K, J (Up, Down)

ENTER

On/Off

SOURCE (1-24)

Buttons and LEDs

Pin 2 Pin 1

Pin 3 Pin 4

VOLUME

(1) push button, steps menu back one level

(2) push buttons, scroll up or down through menu and adjust menu parameters

(1) push button, executes highlighted menu item or value

(1) Rocker switch, turns power amplifier on and off and resets the unit

(24) Push buttons and green LEDs, select input source for routing and adjustment

USB Type B female, USB 1.1 computer console port (6 ft cable included)

PIN DESCRIPTION

1 +5 VDC

2 Data -

3 Data +

4 Ground

(1) Continuous turn rotary encoder, adjusts audio volume

(Continued on following page)

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 13

ZONE (1-10)

Buttons and LEDs

ANALOG SOURCES

L/R (1–16)

(10) Push buttons and green LEDs, select output zone for routing and adjustment

16 Stereo Analog Inputs, (32) RCA female comprising (16) unbalanced stereo line-level audio inputs; Input Impedance: 10k Ohms; Maximum Input Level: 2 V

rms

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Connectors, Controls & Indicators (Continued)

CONNECTORS

CONTROLS &

INDICATORS

DESCRIPTION

ANALOG SOURCES

BALANCED (13-16)

FUSE

120V~50/60Hz MAX

12A

DIGITAL OUT (1-8)

S/PDIF SOURCES

(17-24)

(4) 5-pin 3.5mm detachable terminal blocks Balanced stereo line-level audio inputs (mutually exclusive of corresponding unbalanced inputs); Input Impedance: 20k Ohms; Maximum Input Level: 4 V

rms

The SWAMP-24X8 requires a T15AH (1/4” x 1-1/4”, 250V, 15A, time-lag, high-rupture rated) fuse2; The SWAMPI-24X8 requires a T8AH (1/4” x 1-1/4”, 250V, 8A, time-lag, high-rupture rated) fuse2

(1) IEC C14 male chassis plug, main power input; Mates with removable power cord (included)

(8) 8-wire RJ-45 female (8P8C modular jack); Green LED indicates link status; Amber LED indicates data communication on the corresponding output; Sonnex expansion link outputs; Connect to SWAMPE-8 Multiroom Audio Expander

4,5

(sold separately)

(8) RCA female; S/PDIF coaxial digital audio inputs; Input Impedance: 75 Ohms

S/PDIF OUT (9-10)

LAN

NET

SETUP

(LED and button)

(Continued on following page)

(2) RCA female; S/PDIF coaxial digital audio outputs; Output Impedance: 75 Ohms

(1) 8-wire RJ-45 female (8P8C modular jack); 10BASE-T/100BASE-TX Ethernet port; Green LED indicates link status; Yellow LED indicates Ethernet activity

(2) 4-pin 3.5mm detachable terminal blocks Cresnet slave ports, paralleled

24: Power (24 Volts DC) Y: Data Z: Data G: Ground

NOTE: The NET port does not supply or

consume power.

(1) recessed miniature push button and (1) red LED, used for touch-settable ID (TSID) in conjunction with Crestron Toolbox software

14 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Connectors, Controls & Indicators (Continued)

CONNECTORS

CONTROLS &

INDICATORS

DESCRIPTION

GROUND

(1) 6-32 screw, chassis ground lug

SPEAKER OUTPUTS

(1-8)

(16) 2-pin 7.62mm 15A detachable terminal blocks; Power amplifier outputs; Wire Size: Terminals accept up to 14 AWG; The following outputs can be bridged together: 1 and 2 (L+R), 3 and 4 (L+R), 5 and 6 (L+R), 7 and 8 (L+R); Red LED indicates bridged operation

NOTE: Outputs can only be bridged into an 8

ohm load.

1. Interface connectors for NET, ANALOG SOURCES (BALANCED), and SPEAKER OUTPUTS

ports are provided with the unit.

2. Refer to “Fuse Replacement” on page 24 for additional details.

3. Port on SWAMPI-24X8 is labeled 220-240V~50/60Hz MAX 6A.

4. Supports up to eight SWAMPE-8 expanders. For connection of the Sonnex Link between the

SWAMP-24X8 and each SWAMPE-8, use Crestron DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable. The maximum cable length is 200 ft (61 m) per run.

5. If using Cresnet for communications between the SWAMP-24x8 and a control system, only one

SWAMPE-8 can be connected.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 15

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Setup

Network Wiring

When wiring the Cresnet network, consider the following:

• Use Crestron Certified Wire.

• Use Crestron power supplies for Crestron equipment.

• Provide sufficient power to the system.

CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (

www.crestron.com/calculators).

For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality.

NOTE: If using Cresnet for communications between the SWAMP-24x8 and a control system, only one SWAMPE-8 can be connected.

For more details, refer to “Check Network Wiring” on page 50.

The SWAMP-24X8 can also use high-speed Ethernet for communications between the device and a control system, computer, digital media server and other IP-based devices.

For information on connecting Ethernet devices in a Crestron system, refer to the latest version of the Crestron e-Control available from the Crestron Web site (www.crestron.com/manuals).

Reference Guide (Doc. 6052), which is

Sonnex Link Wiring

Crestron recommends using Crestron DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable for Sonnex Link connections between the SWAMP-24X8 and SWAMPE-8.

NOTE: Shielded connectors such as the DM-8G-CONN must be used.

DM-CBL-8G wire can carry Sonnex Link signals up to 200 feet (61 meters).

Identity Code

Net ID

16 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

The Net ID of the SWAMP-24X8 has been factory set to A1. The Net IDs of multiple SWAMP-24X8 devices in the same system must be unique. Net IDs are changed from the front panel or from a personal computer (PC) via Crestron Toolbox (refer to “Establishing Communication” on page 46).

When setting the Net ID, consider the following:

• The Net ID of each unit must match an ID code specified in the SIMPL™

Windows program.

• Each network device must have a unique Net ID.

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

The Net ID can be set from the SWAMP-24X8’s front panel or with Crestron Toolbox. For more details, refer to “Set the Cresnet ID” on page 41 or the Crestron Toolbox help file.

IP ID

Ventilation

Rack Mounting

The IP ID is set from the SWAMP-24X8’s front panel or within the SWAMP-24X8’s IP table using Crestron Toolbox. For more details, refer to “Set the IP ID” which starts on page 41 or the Crestron Toolbox help file. The IP IDs of multiple SWAMP-24X8 devices in the same system must be unique.

When setting the IP ID, consider the following:

• The IP ID of each unit must match an IP ID specified in the SIMPL

Windows program.

• Each device using IP to communicate with a control system must have a

unique IP ID.

Installation

The SWAMP-24X8 should be used in a well-ventilated area. The venting holes should not be obstructed under any circumstances.

To prevent overheating, do not operate this product in an area that exceeds the environmental temperature range listed in the table of specifications. Consider using forced air ventilation and/or incrementing the spacing between units to reduce overheating. Consideration must be given if installed in a closed or multi-unit rack assembly since the operating ambient temperature of the environment may be greater than the room ambient temperature. Contact with thermal insulating materials should be avoided on all sides of the unit.

The SWAMP-24X8 can be mounted in a rack or stacked with other equipment. Two “ears” are provided with the SWAMP-24X8 so that the unit can be rack mounted. These ears must be installed prior to mounting. Complete the following procedure to attach the ears to the unit. The only tool required is a #1 or #2 Phillips screwdriver.

WARNING: To prevent bodily injury when mounting or servicing this unit in a rack, take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• When mounting this unit in a partially filled rack, load the rack from the

bottom to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

NOTE: Feet are preinstalled for tabletop mounting or stacking. If the unit is to be rack mounted, the feet are not required and can be removed to provide more space in the rack.

NOTE: Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

To install the ears:

1. Using a #1 or #2 Phillips screwdriver, remove the feet installed on the

bottom of the SWAMP-24X8.

2. There are screws that secure each side of the SWAMP-24X8 top cover.

Using a #1 or #2 Phillips screwdriver, remove the four screws closest to the

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 17

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

front panel from one side of the unit. Refer to the diagram following step 4 for a detailed view.

3. Position a rack ear so that its mounting holes align with the holes vacated

by the screws in step 2.

4. Secure the ear to the unit with the four screws from step 2 and the additional

screw that is shipped with the SWAMP-24X8, as shown in the following diagram.

Ear Attachment for Rack Mounting

Stacking

5. Repeat procedure (steps 2 through 4) to attach the remaining ear to the

opposite side.

Four “feet” are preinstalled with the SWAMP-24X8 so that if the unit is not rack mounted, the feet can provide stability when the unit is placed on a flat surface or stacked.

NOTE: No more than two SWAMP-24X8 units should be stacked.

18 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Hardware Hookup

Connect the Device

Make the necessary connections as called out in the illustration that follows this paragraph. Refer to “Network Wiring” on page 16 for additional information. Apply power after all connections have been made.

Hardware Connections for the SWAMP-24X8

DIGITAL OUT: To SWAMPE-8

Expander

SPDIF SOURCES: From Digital Audio

Sources

SPDIF OUT:

To Digital Audio

Receiver

CAUTION: Keep the device unplugged until all the input, network, and speaker wiring is complete.

ANALOG SOURCES:

From Analog Audio Sources

SPEAKER

OUTPUTS:

To Speakers

POWER:

From Line Voltage

NET:

To Cresnet Devices

GROUND:

Tie All Sources to

Ground

LAN:

10BASE-T/100BASE-TX

Ethernet to LAN

CAUTION: Check the speaker wires for shorts and frayed wiring around the SPEAKER OUTPUTS connectors.

NOTE: Ensure the unit is properly grounded by connecting the chassis ground lug

to an earth ground (building steel).

NOTE: To prevent overheating, do not operate this product in an area that exceeds the environmental temperature range listed in the table of specifications.

Four balanced/unbalanced audio inputs are provided, utilizing five-pin terminal block connectors. For connection details, refer to the following table and diagrams.

Audio Connections

SIGNAL

NAME

L + Source L + Source L +

L - Source L - Source L -

G Shield/Ground Ground

R + Source R + SourceR +

R - Source R - Source -

BALANCED

AUDIO INPUT

UNBALANCED

AUDIO INPUT

jumper to GND

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 19

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Typical Balanced/Unbalanced Inputs

CH Device Connections

Balanced

Input

Shield

Source L

Source R

L R

+ - G + -

Unbalanced

Input

Source L

Source R

L R

+ - G + -

Shield

Jumpers

Devices with a RJ-45 CH output such as the CEN-IDOCV can be connected to the balanced inputs on the SWAMP-24X8 as shown in the following table.

CH Output to SWAMP-24X8 Balanced Input

PIN WIRE COLORS (568B) AUDIO I/O

1 WHITE/ORANGE + Audio Left Out L +

2 ORANGE - Audio Left Out L -

3 WHITE/GREEN + Audio Right Out R +

4 BLUE N/A

5 WHITE/BLUE N/A

6 GREEN - Audio Right Out R -

7 WHITE/BROWN N/A

8 BROWN N/A

BALANCED INPUT

CONNECTION

Speaker Connections

Make speaker connections to the SWAMP-24X8 as shown in the following diagram.

Speaker Connections

20 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Bridge Speaker Outputs (Optional)

The speaker outputs on the SWAMP-24X8 can be bridged to deliver higher power to a speaker. The left channel on an individual output can be bridged with the right channel on the same output. Refer to the following diagram when bridging outputs.

Bridging Outputs

The possible bridging combinations are: Zone 1 + Zone 2, Zone 3 + Zone 4, Zone 5 + Zone 6, Zone 7 + Zone 8. LEDs on the back of the SWAMP-24X8 indicate bridged outputs.

After the zones are wired for bridged operation, the SWAMP-24X8 must be

configured with Installer Mode or with the Sonnex Tools application. Refer to

“Bridge Outputs” which starts on page 33 or the Sonnex Tools help file for more information.

Subwoofer Applications (Optional)

WARNING: This amplifier is capable of delivering immense amounts of undistorted power to your loudspeakers. Please use caution and adequate ear protection if listening to content at high volume levels as continued exposure to high sound pressure levels can cause permanent hearing impairment or loss.

Using a sound level (SPL) meter and Sonnex Tools, the SWAMP-24X8 can be used to deliver sound to a left-right stereo pair/subwoofer speaker layout. There are two different wiring configurations that can be used.

Wiring Diagram: Passive Subwoofer Using an Additional Output Pair

BUSSED

SUB STEREO PAIR

ROOM

LEFT RIGHT

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 21

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Wiring Diagram: Passive Subwoofer Using Bridged Output

BUSSED

BRIDGED

SUB

ROOM

Connect the speakers and subwoofer as shown in one of the previous

STEREO PAIR

RIGHTLEFT

diagrams.

The SWAMP-24X8 can use a 2

2. audio signals between the subwoofer and the left-right stereo pair speakers.

order crossover filter offers better performance while the 2nd order

A 4 crossover filer uses fewer resources (one eq for each zone instead of two).

order filters have a 40 dB/decade (or 12 dB/octave) slope, while 4th

The 2

or 4th order crossover filter to separate the

order filters have an 80 dB/decade (or 24 dB/octave) slope.

Use Sonnex Tools’ parametric equalizer to configure a 2

crossover filter. For more information, refer to the Sonnex Tools help file.

•

To use a 2

⇒

Create a low pass filter on the subwoofer zone.

order crossover filter:

Set the filter frequency to the desired crossover frequency.

Set the filter bandwidth to 1.9.

or 4th order

⇒ Create a high pass filter on the left-right stereo pair zone.

Set the filter frequency to the desired crossover frequency.

Set the filter bandwidth to 1.9.

•

To use a 4

order crossover filter:

⇒ Create two low pass filters on the subwoofer zone.

Set both filters frequency to the desired crossover frequency.

Set both filters bandwidth to 1.9.

⇒ Create two high pass filters on the left-right stereo pair zone.

Set both filters frequency to the desired crossover frequency.

Set both filters bandwidth to 1.9.

Use Sonnex Tools or the SWAMP-24X8’s Installer Mode to bus the outputs

3. together. If using a bridged subwoofer, use Sonnex Tools or the

SWAMP-24X8’s Installer Mode to bridge the subwoofer outputs.

22 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

For more information, refer to “Set Bus Assignment” which starts on page 32, “Bridge Outputs” which starts on page 33, or the Sonnex Tools help file.

Use Sonnex Tools or the SWAMP-24X8’s Installer Mode to set the

subwoofer output to Mono.

For more information, refer to “Set Mono/Stereo” which starts on page 30 or the Sonnex Tools help file.

Trim the subwoofer using an SPL meter, the pink noise files (satellite pink

noise.wav and subwoofer pink noise.wav ) found in the Sonnex Tools help

file, and Sonnex tools.

NOTE: The audio output of the PC used to configure the system should be connected to an input on the SWAMP-24X8. The input should be routed to the connected outputs. For information on routing signals, refer to “Operation” on page 49.

a. Set the SPL meter to C-Weighted, Slow Response.

Place the SPL meter at the listening position with the meter pointing

straight up.

Connect to SWAMPE-8

Play satellite pink noise .wav on the left speaker.

Turn the volume up until the SPL meter reads 85 dB.

Play satellite pink noise .wav on the right speaker. The SPL meter

should read very close to 85 dB.

Play subwoofer pink noise.wav on the left speaker.

Use Sonnex Tools or Installer Mode to adjust the bus volume offset of

the subwoofer zone until the SPL meter reads 85 dB. For more information, refer to the Sonnex Tools help file or “Set Bus Volume Offset” which starts on page 32.

The SWAMP-24X8 can be connected to a SWAMPE-8 via shielded CAT5e cable to increase the number of output zones. Up to eight SWAMPE-8s can be connected to one SWAMP-24X8.

NOTE: When connecting a SWAMP-24X8 to a SWAMPE-8, Crestron recommends using Crestron DM-CBL-8G or high-quality CAT5e shielded twistedpair cable. Shielded connectors such as the DM-8G-CONN must be used.

NOTE: When the SWAMP-24X8 is connected to a control system by Cresnet, only one SWAMPE-8 can be connected.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 23

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

SWAMP-24X8 to SWAMPE-8 Connection

NOTE: The maximum cable length between a SWAMP-24X8 and SWAMPE-8 is 200 feet (61 meters).

Fuse Replacement

If the SWAMP-24X8 does not power up when it is plugged into an AC outlet, the fuse may need to be replaced. The fuse holder is located on the rear panel, above the IEC socket assembly. To replace the fuse:

Use a flat head screwdriver to push in the fuse holder.

While pushing in the fuse holder, turn screwdriver counterclockwise until

2. the fuse holder pops out.

Remove the fuse from the fuse holder and insert a new fuse.

CAUTION: Only use the specified type of fuse when replacing a blown fuse. Failure to do so may cause damage to the device.

SWAMP-24X8 MODEL REQUIRED FUSE TYPE

SWAMP-24X8 (US & Canada)

SWAMPI-24X8 (International/220-240VAC)

T15AH (1/4” x 1-1/4”, 250V, 15A, time-lag, high-rupture rated)

T8AH (1/4” x 1-1/4”, 250V, 8A, timelag, high-rupture rated)

4. Insert the fuse holder into the device.

Push in the fuse holder with a flat head screwdriver. While pushing in the

5. fuse holder, turn the screwdriver clockwise until the fuse holder sinks in.

Push in the fuse holder a little further and turn the screwdriver clockwise

6. until the fuse holder locks in place.

Connect power to the device.

Label the Buttons

Use Crestron Engraver software to print custom labels for the SWAMP-24X8’s front panel buttons and LEDs. Crestron recommends printing on 100-pound paper. Paper weighing less than 100 pounds will tend to crumple while sliding in, while paper weighing more than 100 pounds may not fit.

24 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Configuration

After making all hardware connections, the SWAMP-24X8 must be configured for operation. The SWAMP-24X8 can be configured from the SWAMP-24X8’s front

panel using Installer Mode or from a PC using the Sonnex Tools application in Crestron Toolbox. This document contains instructions for using the Installer Mode.

For information on using Sonnex Tools to configure the SWAMP-24X8, refer to the Sonnex Tools help file.

Enter Installer Mode

To enter Installer Mode, press and hold the T and ▲ buttons for approximately five seconds. The Installer Mode menu is displayed.

Installer Mode

Installer Mode is separated into seven sections:

•

Source Setup: Select this option to adjust the compensation level for each

of the input sources.

•

Zone Setup: Select this option to configure each output zone’s settings for

audio, Sonnex links (busses), bridging (with other outputs) and power output.

• Expander Status: Select this option to see the status of each connected SWAMPE-8.

•

Amplifier Status: Select this option to view the settings and operating

status of each of the SWAMP-24X8’s amplifiers as well as the amplifiers of connected SWAMPE-8 devices.

• Network Setup: Select this option to configure and view the Ethernet settings of the SWAMP-24X8.

• Control Setup: Select this option to configure the SWAMP-24X8 for use with a Crestron control system and lock/unlock the front panel controls.

•

About: Select this option to view information about the firmware.

NOTE: Changes made to any setting will only be saved upon exiting Installer Mode. For instructions on exiting Installer Mode, refer below.

Exit Installer Mode

To exit Installer Mode, press the MENU button until Installer Mode is displayed

(refer to illustration above), release and press MENU again.

Source Setup

Select this option to adjust the compensation level of each input source. To set the compensation level:

Enter Installer Mode as described above.

Press ENTER to select Source Setup.

Press ENTER to select Compensation and display the list of sources.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 25

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

4. Press the T or ▲ buttons to scroll through the sources until the input source to be adjusted is displayed.

Press ENTER to select the input source and display the Gain controls.

Gain

Press the T or ▲ buttons to display the amount of gain to be applied and

press ENTER. The display will return to the list of input sources.

Repeat steps 4 through 6 for each input source.

Press MENU twice to return to Installer Mode.

Zone Setup

Select this option to adjust the following parameters for each zone:

•

EQ (Equalization): Choose from six preset equalization settings.

• Bass: Adjust the bass level to the desired preference.

•

Treble: Adjust the treble level to the desired preference.

• Loudness: Apply loudness compensation to any signal routed to a zone.

•

Balance: Adjust the balance to the desired preference.

• Mono: Set the zone for mono or stereo sound.

•

Minimum Volume: Set the lowest volume setting to which the zone can be

set.

•

Maximum Volume: Set the highest volume setting to which the zone can

be set.

• Startup Volume: Set the volume level that will be used when a zone is turned on.

•

Bussing: Assigns the selected zone to a group of zones (bus). Zones in a

bus will track each others’ volume and source. (i.e. when the source or volume for one zone in the bus is adjusted, the other zones in that bus will follow).

• Bus Volume Offset: Specifies a volume offset between -12 to +12 dB that will be applied on top of the volume setting for the selected zone when it is a member of a bus. Since zone volumes track in a bus this ensures the selected zone will always be the specified level above/below the other zones in the bus.

•

Bussing Lists: View the zones that are currently members of a bus.

•

Bridging: Selects output zones to be bridged.

•

Wattage: Specify the wattage rating for a speaker that is connected to a

selected zone. This value is used by the Speaker Protect algorithm. When enabled, the Speaker Protect function will prevent the delivered power from exceeding the speaker’s power rating.

26 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

• Impedance: Specifies the impedance of a speaker connected to a selected zone.

•

Speaker Protect: Enables or disables the Speaker Protect function.

NOTE: As speaker ratings vary greatly across manufacturers, there is no guarantee that Sonnex Speaker Protect will protect against speaker damage in all situations.

• Crestron DRC: Enables or disables the Crestron Dynamic Range Control function

• Global EQ: Sets the same EQ preset for all zones in the system. Setting this option will override any EQ selection that was previously set for an individual zone.

Enter/Exit Zone Setup Menu

Set EQ (Equalization)

To enter the Zone Setup menu:

Enter Installer Mode as described in “Enter Installer Mode” on page 25.

Press the T or ▲ buttons to display Zone Setup and press ENTER.

To exit the Zone Setup menu and return to Installer Mode, press MENU.

To set a zone’s EQ setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. above.

Press the T or ▲ buttons to display EQ and press ENTER. The EQ

2. controls will be displayed.

EQ Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The EQ setting will be displayed.

EQ Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the EQ controls.

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

Set Bass

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 27

To set a zone’s bass setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. above.

Press the T or ▲ buttons to display Bass and press ENTER. The Bass

2. controls will be displayed.

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Bass Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Bass setting will be displayed.

Bass Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Bass controls.

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

Set Treble

To set a zone’s treble setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Treble and press ENTER. The Treble

2. controls will be displayed.

Treble Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Treble setting will be displayed.

Treble Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Treble controls.

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

Set Loudness

To set a zone’s loudness setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

28 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

2. Press the T or ▲ buttons to display Loudness and press ENTER. The Loudness controls will be displayed.

Loudness Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Loudness setting will be displayed.

Loudness Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Loudness controls.

Set Balance

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

To set a zone’s balance setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Balance and press ENTER. The

Balance controls will be displayed.

Balance Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Balance setting will be displayed.

Balance Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Balance controls.

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 29

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Set Mono/Stereo

To set a zone’s mono/stereo setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Mono and press ENTER. The Mono

controls will be displayed.

Mono Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Mono/Stereo setting will be displayed.

Mono/Stereo Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Mono controls.

Set Minimum Volume

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

To set a zone’s minimum volume setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Minimum Volume and press ENTER.

The Minimum Volume controls will be displayed.

Minimum Volume Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Minimum Volume setting will be displayed.

Minimum Volume Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Minimum Volume controls.

30 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

5. Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

Set Maximum Volume

To set a zone’s maximum volume setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

on page 27.

Press the T or ▲ buttons to display Maximum Volume and press ENTER.

The Maximum Volume controls will be displayed.

Maximum Volume Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Maximum Volume setting will be displayed.

Maximum Volume Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Maximum Volume controls.

Set Startup Volume

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

To set a zone’s startup volume setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Startup Volume and press ENTER.

The Startup Volume controls will be displayed.

Startup Volume Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Startup Volume setting will be displayed.

Startup Volume Setting

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 31

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

4. Press the T or ▲ buttons to display the setting to be applied and press ENTER. The display will return to the Startup Volume controls.

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

Set Bus Assignment

To assign a zone to a bus of zones:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

on page 27.

Press the T or ▲ buttons to display Bussing and press ENTER. The

Bussing controls will be displayed.

Bussing Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Bus setting will be displayed.

Bus Setting

Press the T or ▲ buttons to display the bus to which the zone will be

assigned and press ENTER. The display will return to the Bussing controls.

Set Bus Volume Offset

Repeat for every zone to be assigned. Press MENU to return to the Zone Setup menu.

To set a zone’s bus volume offset setting:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Bus Volume Offset and press ENTER.

The Bus Volume Offset controls will be displayed.

Bus Volume Offset Controls – Select Zone

Press the T or ▲ buttons to display the zone to be controlled and press

ENTER. The Offset setting will be displayed.

32 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Offset Setting

Press the T or ▲ buttons to display the setting to be applied and press

ENTER. The display will return to the Bus Volume Offset controls.

Repeat for every zone to be adjusted.

Press MENU to return to the Zone Setup menu.

View Bussing Lists

To view the zones in a bus:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

on page 27.

Press the T or ▲ buttons to display Bussing Lists and press ENTER. The

Bussing Lists controls will be displayed.

Bussing Lists Controls – Select Bus

Press the T or ▲ buttons to display the bus to view and press ENTER. The

first zone in the bus will be displayed.

Bus Display

Press the T or ▲ buttons to display the zones contained in the bus. Press ENTER to return to the Bussing Lists controls.

Repeat for every bus to be viewed.

Press MENU to return to the Zone Setup menu.

Bridge Outputs

To bridge outputs together:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Bridging and press ENTER. The

Bridging controls will be displayed.

Bridging Controls – Select Zone

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 33

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

3. Press the T or ▲ buttons to display the zone to be configured and press ENTER. The Bridging setting will be displayed.

NOTE: Since only odd-numbered zones can be bridged with their

respective, adjacent, even-numbered zones, only odd-numbered zones are listed.

Bridging Setting

Press the T or ▲ buttons to display the desired bridging setting and press

ENTER. The display will return to the Bridging controls.

NOTE: Bridged outputs are indicated with LEDs near the speaker

terminals on the rear of the SWAMP-24X8 and SWAMPE-8.

5. Repeat for every zone to be bridged/unbridged.

Set Speaker Wattage Rating

Press MENU to return to the Zone Setup menu.

To specify the wattage of speakers connected to a zone output:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

on page 27.

Press the T or ▲ buttons to display Wattage and press ENTER. The

Wattage controls will be displayed.

Wattage Controls – Select Zone

Press the T or ▲ buttons to display the zone to be configured and press

ENTER. The Wattage setting will be displayed.

Wattage Setting

Press the T or ▲ buttons to display the speaker’s wattage rating and press

ENTER. The display will return to the Wattage controls.

NOTE: If your speaker rating is not displayed, select the next-lowest rating

to avoid damage to the connected speakers.

5. Repeat for every zone to be configured.

Press MENU to return to the Zone Setup menu.

34 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Set Speaker Impedance

To specify the impedance of speakers connected to a zone output:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Impedance and press ENTER. The

Impedance controls will be displayed.

Impedance Controls – Select Zone

Press the T or ▲ buttons to display the zone to be configured and press

ENTER. The Impedance setting will be displayed.

Impedance Setting

Press the T or ▲ buttons to display the speaker’s impedance rating and

press ENTER. The display will return to the Impedance controls.

Set Speaker Protection

Repeat for every zone to be configured.

Press MENU to return to the Zone Setup menu.

To enable/disable speaker protection for a zone output:

NOTE: As speaker ratings vary greatly across manufacturers, there is no guarantee that Sonnex Speaker Protect will protect against speaker damage in all situations.

1. Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

on page 27.

Press the T or ▲ buttons to display Speaker Protect and press ENTER.

The Speaker Protect controls will be displayed.

Speaker Protect Controls – Select Zone

Press the T or ▲ buttons to display the zone to be configured and press

ENTER. The Protect setting will be displayed.

Speaker Protect Setting

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 35

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

4. Press the T or ▲ buttons to display the desired setting and press ENTER. The display will return to the Speaker Protect controls.

Repeat for every zone to be configured.

Press MENU to return to the Zone Setup menu.

Set Crestron Dynamic Range Control (DRC)

To enable/disable DRC for a zone output:

Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

1. on page 27.

Press the T or ▲ buttons to display Crestron DRC and press ENTER. The

Crestron DRC controls will be displayed.

Crestron DRC Controls – Select Zone

Press the T or ▲ buttons to display the zone to be configured and press

ENTER. The Crestron DRC setting will be displayed.

Crestron DRC Setting

Press the T or ▲ buttons to display the desired setting and press ENTER.

The display will return to the Crestron DRC controls.

Set Global EQ

Repeat for every zone to be configured.

Press MENU to return to the Zone Setup menu.

To set a global EQ setting:

NOTE: Setting a global EQ setting will override the individual EQ settings for all zones.

1. Enter the Zone Setup menu as described in “Enter/Exit Zone Setup Menu”

on page 27.

Press the T or ▲ buttons to display Global EQ and press ENTER. The

Global EQ controls will be displayed.

Global EQ Controls – Select EQ Setting

Press the T or ▲ buttons to display the desired setting and press ENTER.

36 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Confirm Global EQ Setting

Press the T or ▲ buttons to display Yes or No and press ENTER. The

display will return to the Zone Setup menu.

Expander Status

Select this option to view the status and information about SWAMPE-8 Expanders that are connected to the SWAMP-24X8. To view information:

Enter Installer Mode as described in “Enter Installer Mode” on page 25.

Press the T or ▲ buttons to display Expander Status and press ENTER.

Press the T or ▲ buttons to display the expander to view and press

3. ENTER.

Press the T or ▲ buttons to view available information.

View Faults

View Zones

Press ENTER to return to the list of expanders.

To exit and return to Installer Mode, press MENU.

Amplifier Status

Select this option to view the settings and operating status of each of the SWAMP-24X8’s amplifiers as well as the amplifiers of connected SWAMPE-8 devices. To view information about the amplifier:

Enter Installer Mode as described in “Enter Installer Mode” on page 25.

Press the T or ▲ buttons to display Amplifier Status and press ENTER.

You can view a list of all faults or view information about a specific zone.

To view a list of faults in all of the zones:

Press the T or ▲ buttons to display Faults and press ENTER.

Press the T or ▲ buttons to scroll through the list of faults.

Press MENU to return to the Amplifier Status menu.

Press MENU to return to Installer Mode.

To view information for a specific zone:

Press the T or ▲ buttons to display the desired zone and press ENTER.

Press the T or ▲ buttons to scroll through the available information.

Press MENU to return to the Amplifier Status menu.

Press MENU to return to Installer Mode.

Network Setup

Select this option to configure and view the SWAMP-24X8’s network settings.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 37

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Enter Network Setup

Set the IP Address

To enter Network Setup:

Enter Installer Mode as described in “Enter Installer Mode” on page 25.

Press the T or ▲ buttons to display Network Setup and press ENTER. Press MENU to return to Installer Mode.

The SWAMP-24X8 can use TCP/IP for communication between a control system and a SWAMP-24X8. The IP address can be manually set or obtained from a DHCP server. For information on enabling DHCP to obtain an IP address, refer to “Enable/Disable DHCP” on page 39. To view or manually set an IP address:

Enter Network Setup as described above.

Press the T or ▲ buttons to display IP Address and press ENTER. The IP

address will be displayed.

IP Address

Press the T or ▲ buttons to set the first octet of the IP address.

Press the soft key under the next octet (or press ENTER to move to the next

4. octet) to select it for editing.

Set the Subnet Mask

Repeat steps 3 and 4 for each octet.

To save the IP address and return to Network Setup, move the cursor to the

6. right-most octet and press ENTER. To cancel the operation and return to the previous screen, press MENU.

The subnet mask can be manually set or obtained from a DHCP server. For information on enabling DHCP to obtain a subnet mask, refer to “Enable/Disable DHCP” which starts on page 39. To manually set the subnet mask:

Enter Network Setup as described above.

Press the T or ▲ buttons to display Subnet Mask and press ENTER. The

subnet mask will be displayed.

Subnet Mask

Press the T or ▲ buttons to set the first octet of the subnet mask.

Press the soft key under the next octet (or press ENTER to move to the next

4. octet) to select it for editing.

Repeat steps 3 and 4 for each octet.

To save the subnet mask and return to Network Setup, move the cursor to

6. the right-most octet and press ENTER. To cancel the operation and return to the previous screen, press MENU.

38 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Set the Default Router

Enable/Disable DHCP

The default router can be manually set or obtained from a DHCP server. For information on enabling DHCP to obtain a default router, refer to “Enable/Disable DHCP” which starts below. To manually set the default router:

Enter Network Setup as described on page 38. Press the T or ▲ buttons to display Default Router and press ENTER. The

2. default router will be displayed.

Default Router

3. Press the T or ▲ buttons to set the first octet of the default router.

Press the soft key under the next octet (or press ENTER to move to the next

4. octet) to select it for editing.

Repeat steps 3 and 4 for each octet.

To save the default router and return to Network Setup, move the cursor to

the right-most octet and press ENTER. To cancel the operation and return to the previous screen, press MENU.

The SWAMP-24X8 can obtain an IP address, subnet mask, and default router information from a DHCP server. To enable or disable DHCP:

Enable/Disable WINS

Enter Network Setup as described on page 38.

Press the T or ▲ buttons to display DHCP and press ENTER. The DHCP

2. controls will be displayed.

DHCP Controls

3. Press the T or ▲ buttons to display the desired setting and press ENTER. The display will return to the previous screen.

The SWAMP-24X8 can be configured to use a WINS server for communication. To enable or disable WINS:

Enter Network Setup as described on page 38.

Press the T or ▲ buttons to display WINS and press ENTER. The WINS

2. controls will be displayed.

WINS Controls

Press the T or ▲ buttons to display the desired setting and press ENTER.

The display will return to the previous screen.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 39

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Display MAC Address

Display Hostname

Display Domain Name

To display the MAC address:

Enter Network Setup as described on page 38.

Press the T or ▲ buttons to display MAC Address and press ENTER. The

MAC address will be displayed.

Press ENTER to return to the previous screen.

To display the hostname:

Enter Network Setup as described on page 38.

Press the T or ▲ buttons to display Hostname and press ENTER. The

hostname will be displayed.

Press ENTER to return to the previous screen.

NOTE: The hostname can be changed with Crestron Toolbox.

To display the domain name:

Enter Network Setup as described on page 38.

Press the T or ▲ buttons to display Domain Name and press ENTER. The

domain name will be displayed.

Press ENTER to return to the previous screen.

NOTE: The domain name can be changed with Crestron Toolbox.

Enter Control Setup

Lock Front Panel

Control Setup

Select this option to configure and view the SWAMP-24X8’s control system settings.

To enter Control Setup:

Enter Installer Mode as described in “Enter Installer Mode” on page 25.

Press the T or ▲ buttons to display Control Setup and press ENTER.

Press MENU to return to Installer Mode.

The front panel controls of the SWAMP-24X8 can be locked to prevent unauthorized access. To lock or unlock the front panel:

Enter Control Setup as described above.

Press the T or ▲ buttons to display Front Panel Lock and press ENTER.

The Front Panel Lock controls will be displayed.

Front Panel Lock Controls

Press the T or ▲ buttons to display the desired setting and press ENTER.

The display will return to the previous screen.

40 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Set the Cresnet ID

Set the IP ID

If the SWAMP-24X8 is to talk to a control system over Cresnet, the Net ID must be set. To set the Net ID using the front panel controls:

Enter Control Setup as described on page 40.

Press the T or ▲ buttons to display Cresnet ID and press ENTER. The

Cresnet ID controls will be displayed.

Cresnet ID Controls

Press the T or ▲ buttons to display the desired setting and press ENTER.

The display will return to the previous screen.

If the SWAMP-24X8 is to talk to a control system over TCP/IP, the IP ID must be set. To set the IP ID using the front panel controls:

Enter Control Setup as described on page 40.

Press the T or ▲ buttons to display IP ID and press ENTER. The IP ID

controls will be displayed.

IP ID Controls

Set the Control System IP Address

Press the T or ▲ buttons to display the desired setting and press ENTER.

The display will return to the previous screen.

If the SWAMP-24X8 is to talk to a control system over TCP/IP, the control system’s IP address must be set. To set the control system’s IP address using the front panel controls:

Enter Control Setup as described on page 40.

Press the T or ▲ buttons to display Ctrl Sys IP Addr and press ENTER.

The Ctrl Sys IP Addr controls will be displayed.

Ctrl Sys IP Addr Controls

Press the T or ▲ buttons to set the first octet of the IP address.

Press the soft key under the next octet (or press ENTER to move to the next

4. octet) to select it for editing.

Repeat steps 3 and 4 for each octet.

To save the IP address and return to Control Set u p, move the cursor to the

6. right-most octet and press ENTER. To cancel the operation and return to the previous screen, press MENU.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 41

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

About

Select this option to view information about the SWAMP-24X8. To view information about the SWAMP-24X8:

Enter Installer Mode as described in “Enter Installer Mode” on page 25.

Press the T or ▲ buttons to display About and press ENTER.

Press the T or ▲ buttons to display information about the SWAMP-24X8.

Press ENTER to return to Installer Mode.

42 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Programming Software

Have a question or comment about Crestron software?

Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron Web site. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at www.crestron.com/support. First-time users will need to establish a user account.

Earliest Version Software Requirements for the PC

NOTE: Crestron recommends that you use the latest software to take advantage of the most recently released features. The latest software is available from the Crestron Web site.

Crestron has developed an assortment of Windows®-based software tools to develop a customized system. Use Crestron SystemBuilder™ or SIMPL Windows to create a program to control the SWAMP-24X8.

Configuration Manager

Programming with Crestron SystemBuilder

Crestron SystemBuilder is the easiest method of programming but does not offer as much flexibility as SIMPL Windows. For additional details, download SystemBuilder from the Crestron Web site and examine the extensive help file.

Programming with SIMPL Windows

NOTE: While SIMPL Windows can be used to program the SWAMP-24X8, it is recommended to use SystemBuilder for configuring a system.

SIMPL Windows is Crestron’s premier software for programming Crestron control systems. It is organized into two separate but equally important “Managers”: Configuration and Program.

Configuration Manager is the view where programmers “build” a Crestron control

system by selecting hardware from the Device Library.

The SWAMP-24X8 must first be incorporated into the system.

To incorporate the SWAMP-24X8 (Cresnet) into the system, drag the

SWAMP-24X8 from the Cresnet Control Modules | Cresnet Audio

Modules folder of the Device Library and drop it in the System Views.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 43

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Locating the SWAMP-24X8 (Cresnet) in the Device Library

To incorporate the SWAMP-24X8 (Ethernet) into the system, drag the

drag the SWAMP-24X8 from the Ethernet Control Modules | Ethernet

Audio Modules folder of the Device Library and drop it in the System Views.

Locating the SWAMP-24X8 (Ethernet) in the Device Library

The system tree of the control system displays the device in the appropriate slot(s) with a default Net ID or IP ID as shown in the following illustration.

NOTE: In the following illustration, there is both an Ethernet device in Slot 8 and a Cresnet device in Slot 9. It is possible to have both types of device attached to a control system as long as the control system has either a built-in or expansion Ethernet interface. If Cresnet operation is desired, the IP table for the SWAMP-24X8 must be empty.

SWAMP-24X8 Device, Slots 8 and 9

44 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

NOTE: If using Cresnet for communications between the SWAMP-24x8 and a control system, only one SWAMPE-8 can be connected.

2. If additional SWAMP-24X8 devices are to be added, repeat step 1 for each device. Each SWAMP-24X8 is assigned a different Net ID number as it is added.

If necessary, double click a device to open the “Device Settings” window

3. and change the Net ID, as shown in the following illustrations.

“Device Settings: Crestron SWAMP-24X8 (Cresnet)” Window

Program Manager

“Device Settings: Crestron SWAMP-24X8 (Ethernet)” Window

NOTE: The ID code specified in the SIMPL Windows program must match the Net ID or IP ID of each unit. Refer to “Identity Code” on page

16.

Program Manager is the view where programmers “program” a Crestron control system by assigning signals to symbols.

The symbol can be viewed by double clicking on the icon or dragging it into Detail View. Each signal in the symbol is described in the SIMPL Windows help file (F1).

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 45

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Uploading and Upgrading

Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade it is necessary to establish communication. Once communication has been established, files (for example, programs or firmware) can be transferred to the control system (and/or device). Finally, program checks can be performed (such as changing the device ID or creating an IP table) to ensure proper functioning.

Establishing Communication

Use Crestron Toolbox for communicating with the SWAMP-24X8; refer to the Crestron Toolbox help file for details. There are three methods of communication: indirect, USB, and TCP/IP.

Indirect

USB

Indirect Communication

Serial,

PC Running

Crestron Toolbox

SWAMP-24X8 connects to control system via Cresnet:

Establish communication between the PC and the control system as

1. described in the latest version of the 2-Series Control Systems Reference Guide (Doc. 6256).

Use the Address Book in Crestron Toolbox to create an entry for the

2. SWAMP-24X8 using the expected communication protocol (indirect). Select the Cresnet ID of the SWAMP-24X8 and the address book entry of the control system that is connected to the SWAMP-24X8.

3. Display the SWAMP-24X8’s “System Info” window (click the icon); communications are confirmed when the device information is displayed.

NOTE: Required for initial setup of Ethernet parameters.

USB Communication

LAN

or USB

Control System

SWAMP-24X8

Cresnet

PC Running

Crestron Toolbox

The COMPUTER port on the SWAMP-24X8 connects to the USB port on the PC via the included Type A to Type B USB cable:

Use the Address Book in Crestron Toolbox to create an entry using the

1. expected communication protocol (USB). When multiple USB devices are connected, identify the SWAMP-24X8 by entering “SWAMP-24X8” in the

Model textbox, the unit’s serial number in the Serial textbox or the unit’s hostname in the Hostname textbox. The hostname can be found in the

46 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

USB

SWAMP-24X8

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

“System Info” window in the section marked Ethernet however,

communications must be established in order to see this information in the “System Info” window.

2. Display the SWAMP-24X8’s “System Info” window (click the icon); communications are confirmed when the device information is displayed.

TCP/IP

Ethernet Communication

PC Running

Crestron Toolbox

The SWAMP-24X8 connects to PC via Ethernet:

Establish indirect / USB communication between SWAMP-24X8 and PC.

Enter the IP address, IP mask and default router of the SWAMP-24X8 via

2. Crestron Toolbox (Functions | Ethernet Addressing); otherwise enable DHCP.

NOTE: Use the Device Discovery Tool in Crestron Toolbox to detect all Ethernet devices on the network and their IP configuration. The tool is available in Toolbox version 1.15.143 or later.

3. Confirm Ethernet connection between SWAMP-24X8 and PC. If connecting through a hub or router, use CAT5 straight through cables with 8-pin RJ-45 connectors. Alternatively, use a CAT5 crossover cable to connect the two LAN ports directly without using a hub or router.

Use the Address Book in Crestron Toolbox to create an entry for the

4. SWAMP-24X8 with the SWAMP-24X8’s TCP/IP communication parameters.

LAN

SWAMP-24X8

5. Display the “System Info” window (click the icon) and select the SWAMP-24X8 entry.

Programs and Firmware

Program or firmware files may be distributed from programmers to installers or from Crestron to dealers. Firmware upgrades are available from the Crestron Web site as new features are developed after product releases. One has the option to upload programs via the programming software or to upload and upgrade via the Crestron Toolbox. For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file.

SIMPL Windows

Firmware

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 47

If a SIMPL Windows program is provided, it can be uploaded to the control system using SIMPL Windows or Crestron Toolbox.

Check the Crestron Web site to find the latest firmware. (New users may be required to register to obtain access to certain areas of the site, including the FTP site.)

Upgrade SWAMP-24X8 firmware via Crestron Toolbox.

Establish communication with the SWAMP-24X8 and display the “System

Info” window.

Select Functions | Firmware… to upgrade the SWAMP-24X8 firmware.

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Program Checks

Actions that can be performed on the SWAMP-24X8 vary depending on whether it is connected via Cresnet or Ethernet.

Cresnet Connections

Ethernet Connections

For Cresnet connections, using Crestron Toolbox, display the network device tree (Tools | Network Device Tree View) to show all network devices connected to the control system. Right-click on the SWAMP-24X8 to display actions that can be performed on the SWAMP-24X8.

For Ethernet connections, using Crestron Toolbox, display the “System Info window (click the performed on the SWAMP-24X8.

Be sure to use Crestron Toolbox to create the SWAMP-24X8 IP table.

Select Functions | IP Table Setup.

Add, modify or delete entries in the IP table. The SWAMP-24X8 can have

A defined IP table can be saved to a file or sent to the device.

Edit the control system’s IP table to include an entry for the SWAMP-24X8. The entry should list the SWAMP-24X8’s IP ID (specified on the SWAMP-24X8’s IP table) and the internal gateway IP address 127.0.0.1.

icon) and select the Functions menu to display actions that can be

only one IP table entry.

48 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Operation

The SWAMP-24X8 can be controlled from the front panel controls or the Sonnex Tool in Crestron Toolbox.

NOTE: For more information, refer to the Crestron Toolbox help file.

When operated from the front panel, the SWAMP-24X8 operates in either the Zone Mode or the Source Mode.

Use the Main Menu to select Zone Mode or Source Mode. To enter the Main Menu, press MENU until Main Menu is displayed.

Main Menu

Power

Zone Mode

Source Mode

Turn on the SWAMP-24X8 by moving the POWER switch to SWAMP-24X8, move the POWER switch to

Zone Mode uses the front panel controls to route a source signal to a selected zone. To enter Zone Mode:

From the Main Menu, press the T or ▲ buttons to display Zone Mode and

press ENTER.

Press the ZONE button of the zone to be controlled.

Press the SOURCE button of the source to be routed. The associated

3. SOURCE and ZONE LEDs will light.

Alternatively, press the ZONE button twice to turn on the zone and connect the last-selected source.

4. Press MENU to return to the Main Menu.

Source Mode uses the front panel controls to select a source signal and route it to multiple zones. To enter Source Mode:

From the Main Menu, press the T or ▲ buttons to display Source Mode

1. and press ENTER.

Press the SOURCE button of the source to be routed. The associated

2. SOURCE LED will light.

Press the ZONE button(s) of the zone(s) to be selected. The associated

3. ZONE LED(s) will be lit.

To remove a zone from a source, press the desired ZONE button. The associated ZONE LED will turn off.

. To turn off the

Press MENU to return to the Main Menu.

Volume Control

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 49

To raise the volume in the selected zone(s), turn the VOLUME knob clockwise.To lower the volume in the selected zone(s), turn the VOLUME knob counterclockwise.

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

SWAMP-24X8 Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Use the Right Wire

Calculate Power

Device does not function.

Incorrect Audio signal.

Loss of functionality due to electrostatic discharge.

Device is not communicating with the network.

Signal is incorrectly routed.

Zone is incorrectly bussed with other zone(s).

Improper grounding.

Use Crestron Toolbox to poll the network. Verify network connection to the device.

Reroute the signal.

Remove zone from bus.

Check that all ground connections have been made properly.

Check Network Wiring

To ensure optimum performance over the full range of your installation topology, use Crestron Certified Wire only. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Use the Crestron Power Calculator to help calculate how much power is needed for the system (www.crestron.com/calculators).

When calculating the length of wire for a particular Cresnet run, the wire gauge and the Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisy chained on the run, the Cresnet power usage of each network unit to be daisy chained must be added together to determine the Cresnet power usage of the entire chain. If the unit is run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side.

50 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Cable Length Equation

Strip and Tin Wire

Add Hubs

L <

40,000

Where:

R x P

L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 mm ))

or 1.6 Ohms (Cresnet HP: 12 AWG (4 mm ))

P = Cresnet power usage of entire run (or chain)

Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet (101 meters). If Cresnet HP is used for the same run, its length could extend to 1250 feet (381 meters).

NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the Y conductor and the Z conductor.

When daisy chaining Cresnet units, strip the ends of the wires carefully to avoid nicking the conductors. Twist together the ends of the wires that share a pin on the network connector and tin the twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle. Insert the tinned connection into the Cresnet connector and tighten the retaining screw. Repeat the procedure for the other three conductors.

Use of a Cresnet Hub/Repeater (CNXHUB) is advised whenever the number of Cresnet devices on a network exceeds 20 or when the combined total length of Cresnet cable exceeds 3000 feet (914 meters).

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from the Crestron Web site (www.crestron.com/manuals). This link will provide a list of product manuals arranged in alphabetical order by model number.

List of Related Reference Documents

DOCUMENT TITLE

2-Series Control Systems Reference Guide

Crestron e-Control Reference Guide

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876].

You can also log onto the online help section of the Crestron Web site

www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time

( users will need to establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of the SWAMP-24X8, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 51

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8

Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

52 • Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations & Installation Guide – DOC. 7049A

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization

from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.

2. Products may be returned for credit, exchange or service with a CRESTRON Return

Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.

Return freight charges following repair of items under warranty shall be paid by CRESTRON,

shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.

Operations Guide – DOC. 7049A Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 • 53

Crestron Electronics, Inc. Operations Guide – DOC. 7049A

15 Volvo Drive Rockleigh, NJ 07647 (2028550) Tel: 888.CRESTRON 11.10 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.

Creston SWAMP-24X8 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features and Functions

Applications

Specifications

Physical Description

Setup

Network Wiring

Sonnex Link Wiring

Identity Code

Installation

Hardware Hookup

Configuration

Source Setup

Zone Setup

Expander Status

Amplifier Status

Network Setup

Control Setup

About

Programming Software

Earliest Version Software Requirements for the PC

Programming with Crestron SystemBuilder

Programming with SIMPL Windows

Uploading and Upgrading

Establishing Communication

Programs and Firmware

Program Checks

Operation

Problem Solving

Troubleshooting

Check Network Wiring

Reference Documents

Further Inquiries

Future Updates

Return and Warranty Policies
