Creston CHV-TSTAT, CHV-THSTAT User Manual

Download

Crestron CHV-TSTAT & CHV-THSTAT Thermostats Operations and Installation Guide

Firmware Version v2.061.0018 and Later

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Regulatory Compliance

As of the date of manufacture, the CHV-TSTAT and CHV-THSTAT has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance

could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

All brand names, product names and trademarks are the property of their respective owners.

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Contents

Quick Installation Reference ....................................................................................................iii

Thermostats: CHV-TSTAT and CHV-THSTAT 1

Introduction ...............................................................................................................................1

Functions and Features................................................................................................ 1

Specifications ..............................................................................................................4

Physical Description.................................................................................................... 5

Setup .......................................................................................................................................... 9

Network Wiring...........................................................................................................9

Identity Code ............................................................................................................... 9

System Connections ..................................................................................................10

Wiring Diagrams .....................................................................................................................11

Separately Powered Two Wire Heat Systems (Powered by an Independent Transformer)

Single Stage Heat Only Systems ............................................................................... 12

Single Stage Heat with Fan Control Systems............................................................ 13

Single Stage Cool Only Systems ............................................................................... 13

Single Stage Heat/Cool with Integrated Control Unit Systems .................................14

Single Stage Heat/Cool with Separate Systems......................................................... 15

Single Stage Heat Pump Systems.............................................................................. 16

Two Stage Heat Pump Systems................................................................................. 17

Slab 1, Slab 2, and Slab 3 (Floor Warming and/or Space Heating) Systems ............18

Slab 4A Two Stage Heat/Single Stage Cool Systems and Slab 5A Floor Warming with Single Stage Space Heat/Cool Systems Slab 4B Two Stage Heat/Single Stage Cool System and Slab 5B Single Stage Heat/Cool with Floor Warming Systems

General Humidifier Connections...............................................................................21

Installation ...............................................................................................................................22

Thermostat Setup..................................................................................................................... 24

Setup Procedure......................................................................................................... 24

Setup Notes................................................................................................................ 24

System Types and Definitions................................................................................... 25

Heat/Cool, 1 or 2 Stages, Forced Air or Radiant .......................................................27

Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel .................................................... 31

Slab 1 – Floor Warming Only ...................................................................................35

Slab 2 – Single Stage Space Heat with Slab Maximum ............................................ 39

Slab 3 – Single Stage Heat with Slab Minimum/Maximum...................................... 43

Slab 4A – Two Stage Heat/One Stage Cool with Slab Maximum.............................47

Slab 4B – 2 Stage Heat/1 Stage Cool with Slab Maximum (Heat Pump) .................51

Slab 5A – 1 Stage Heat/Cool with Floor Warming ................................................... 55

Slab 5B – 1 Stage Heat/Cool with Floor Warming (Heat Pump) .............................. 59

Thermostat Operation ..............................................................................................................63

View Button Menus...................................................................................................64

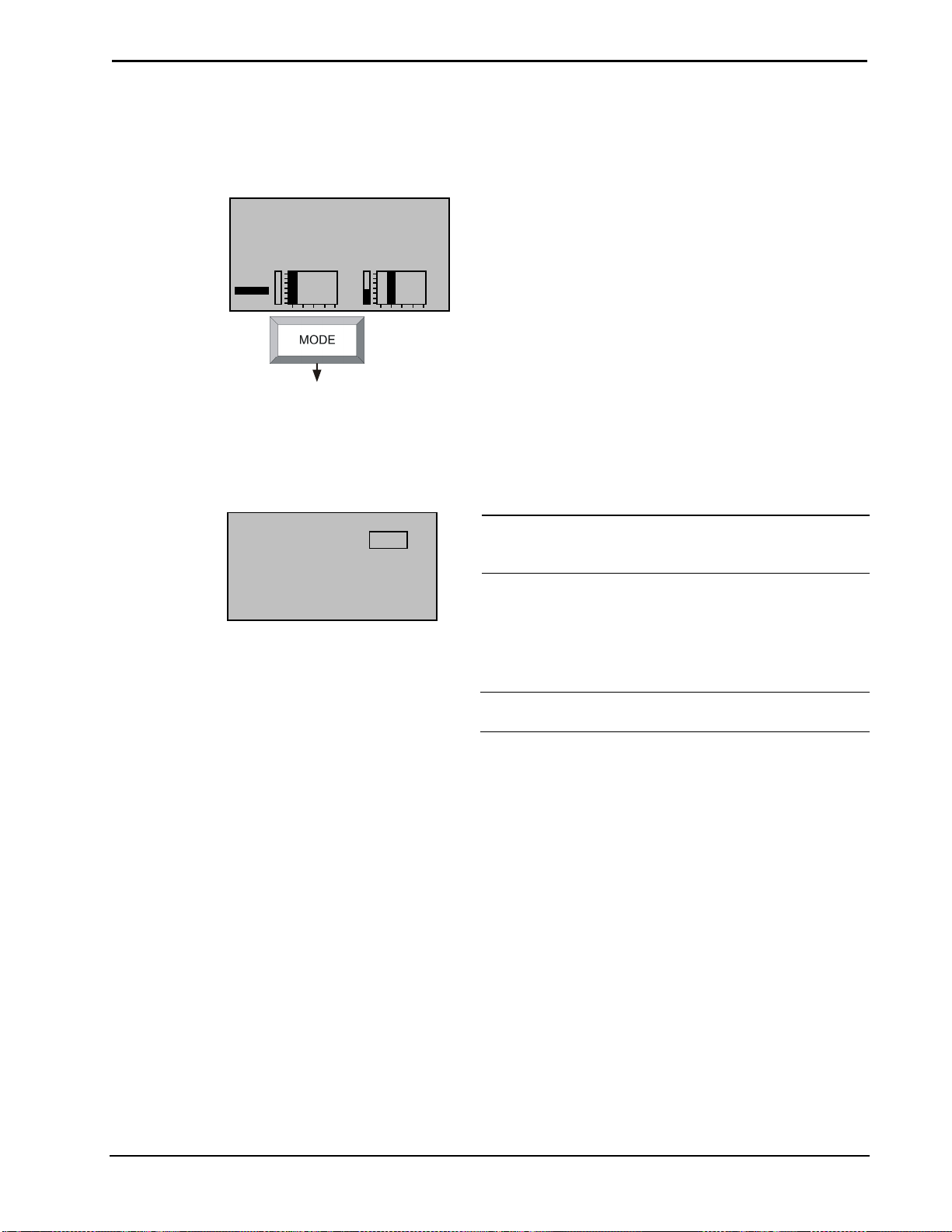

Mode Button Menus.................................................................................................. 65

Programming Software............................................................................................................72

Earliest Version Software Requirements for the PC .................................................72

..............................................................................................................12

.............................................................19

...................................................................20

Operations and Installation Guide – DOC. 8163D Contents • i

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Programming with Crestron SystemBuilder.............................................................. 72

Programming with D3 Pro......................................................................................... 72

Programming with SIMPL Windows ........................................................................73

Example Program ...................................................................................................... 74

Uploading and Upgrading........................................................................................................75

Establishing Communication..................................................................................... 75

Programs and Firmware ............................................................................................76

Program Checks ........................................................................................................76

Problem Solving ...................................................................................................................... 77

Control System Error Log Message Formats ............................................................77

Local Error Messages ................................................................................................78

Troubleshooting......................................................................................................... 79

Check Network Wiring.............................................................................................. 81

Reference Documents................................................................................................ 82

Further Inquiries........................................................................................................ 82

Future Updates ..........................................................................................................82

Appendix A: Glossary ............................................................................................................. 83

Appendix B: About Heat Pumps..............................................................................................85

Return and Warranty Policies.................................................................................................. 86

Merchandise Returns / Repair Service ......................................................................86

CRESTRON Limited Warranty................................................................................. 86

ii • Contents Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Quick Installation Reference

1. Select a suitable location and run the connecting wires from the heating/cooling system and the Cresnet system. Refer to page 7 for a description of the thermostat connectors.

Refer to page 9 for Network wiring details.

Use the appropriate wiring diagram:

• Separately Powered Two Wire Heat Systems (Powered by an Independent Transformer) (Refer to page 12)

• Single Stage Heat Only (Refer to page 12)

• Single Stage Heat with Fan Control (Refer to page 13)

• Single Stage Cool Only (Refer to page 13)

• Single Stage Heat/Cool with Integrated Control Unit (Refer to page 14)

• Single Stage Heat/Cool with Separate Systems (Refer to page 15)

• Single Stage Heat Pump (Refer to page 16)

• Two Stage Heat Pump (Refer to page 17)

• Slab 1, Slab 2, and Slab 3 (Floor Warming and/or Space Heating) (Refer to page 18)

• Slab 4A Two Stage Heat/Single Stage Cool Systems and Slab 5A Floor Warming with Single Stage

Space Heat/Cool (Refer to page 19)

• Slab 4B Two Stage Heat/Single Stage Cool System and Slab 5B Single Stage Heat/Cool with Floor Warming (Refer to page 20)

• General Humidifier Connections (Refer to page 21)

2. Separate the thermostat from the backplate to expose the connections and mounting holes.

3. Mount the thermostat backplate (60 inches (1.5 meters) above the finished floor) directly to the wall with wall anchors (not provided) and screws (not provided) or to a single-gang box (not provided) mounted horizontally, and connect the wiring. Refer to page 22 for detailed mounting instructions and page 9 for detailed connector information. If using a five-sided box, fill with insulation material to minimize wall air ingress.

4. Install the thermostat on the backplate (Refer to page 22).

5. Setup the thermostat (Refer to page 24).

Heat/Cool Radiant and Forced Air Systems Setup on page 27.

Heat Pump Systems on page 31.

Slab Systems begin on page 35.

6. Configure the thermostat (Refer to “Thermostat Operation” on page 63).

Operations and Installation Guide – DOC. 8163D Contents • iii

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Thermostats:

Thermostats: CHV-TSTAT and CHV-THSTAT

CHV-THSTAT

Introduction Introduction

Functions and Features

The CHV-TSTAT and CHV-THSTAT are versatile heating and cooling thermostats designed for one and two stage control of forced air, radiant, and heat pump HVAC systems. The CHV-TSTAT provides temperature control, while the CHV-THSTAT provides temperature control with an integrated humidistat. Relative humidity capability can be added to the CHV-TSTAT through an external remote humidity sensor (sold separately).

Although functional as standalone thermostats, the CHV-TSTAT and CHV-THSTAT deliver greatly enhanced functionality as part of a complete Crestron

automation system. The thermostats are available in six different models:

Home

Models

DESCRIPTION MODEL NUMBER COLOR

Heating/Cooling Thermostat

Heating/Cooling and Humidity Thermostat

• User adjustable temperature and/or humidity control of one and two-stage heating and cooling systems

• Supports seven slab system configurations

• 128 x 64 Transflective 2.75 inch (70 mm) LCD display

• Fahrenheit or Celsius indication

• Four-front panel buttons for setup, configuring and temperature/humidity

adjustments

• Back light (with each button press) for night viewing

• Supports up to four remote temperature and/or temperature/humidity sensors.

• Operates as a stand-alone device or in a Cresnet

• Extended functionality as a Cresnet device for lighting control, alarms, etc.

CHV-TSTATA Almond

CHV-TSTATB Black

CHV-TSTATW White

CHV-THSTATA Almond

CHV-THSTATB Black

CHV-THSTATW White

system

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 1

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Featuring a large backlit LCD display, the CHV-TSTAT and CHV-THSTAT thermostats are navigable using four simple pushbuttons which provides easy access to indoor and outdoor temperature and humidity readings, setpoint adjustments, system mode and fan status indicators, and setup menus. Climate control features include separate heating, cooling, and humidity setpoints with optional automatic changeover between heating and cooling modes. Adjustable anticipators prevent overshooting the set temperature, and continuous fan operation can be selected when needed for increased circulation.

Multiple Crestron thermostats may be networked via Cresnet to a PAC2, PAC2M, or other 2-Series control system, enabling global temperature and humidity adjustment from any thermostat. Automation functions such as lighting, motorized blinds, or lawn sprinklers can be accessed through two custom remote function pages, and customized text messages can be sent to the LCD display to provide maintenance reminders and other alerts.

Its connection to the control system also enables full control and scheduling of the CHV-TSTAT/CHV-THSTAT from touchpanels and computers throughout the home, and supports extensive flexibility for integration with other devices and systems. In the event that communication with the control system is disrupted for any reason, the CHV-TSTAT/CHV-THSTAT will remain operable to control the HVAC system.

Optional remote temperature and humidity sensors can be connected to the CHV-TSTAT/CHV-THSTAT for enhanced flexibility and optimized performance. Climate can be regulated according to an average of multiple sensors, or the built-in sensors can be disabled entirely to allow the CHV-TSTAT/CHV-THSTAT to be installed out of view. Outdoor climate can also be monitored, enabling outdoor lowtemperature compensation to prevent condensation on windows during cold weather. The CHV-TSTAT/CHV-THSTAT accepts up to four remote temperature sensors, two remote temp/humidity sensors, or a combination of one temp/humidity and two temperature sensors.

Firmware Versions

The new features, and consequent changes to the SIMPL Windows symbol programming, for firmware version 2.0 and later make it incompatible for use with X-generation control processors. In addition, upgrading to release 2.0 and later from a previous release will require a complete re-programming of the thermostat.

Remote Sensors

Firmware version 2.0 and later supports up to four optional remote sensors, two for each input channel: temperature only (CHV-RTS), temperature/humidity (CHV-RTHS), and slab sensor (CHV-RSS) for both thermostats. Information from two sensors that share an input channel is averaged together in the temperature/humidity calculations.

Outdoor conditions, -40º to 170º F (-40º to 77º C), can be imported from the CHV-RSS slab sensor.

For additional information about the sensors, refer to the latest revision of the CHV-RTS & CHV-RTHS Installation Guide (Doc. 8189), and the CHV-RSS Installation Guide (Doc.6229) which are available from the Crestron

www.crestron.com).

(

2 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

website

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Heating and Cooling Systems

The CHV-TSTAT and CHV-THSTAT can control the following heating and cooling systems:

• One stage heat

• One stage heat, one stage cool

• One stage heat, one stage cool (heat pump with auxiliary heat)

• Two stage heat

• Two stage heat, one stage cool

• One stage heat, two stage cool

• Two stage heat, two stage cool

• Two stage heat, two stage cool (heat pump with auxiliary heat)

• Wide range cool option suitable for wine cellars or other chilling processes*

• Slab settings for heating and floor warming systems*

NOTE: Two Stage Heating – Unlike traditional furnaces that turn on and run at full

capacity with each demand for heating, two-stage heat operates like two separate furnaces to maintain more consistent comfort in your home. The unit starts out running in its first stage, and operates at a fraction of its heating capacity. This reduced capacity is sufficient to warm your home on mild winter days. But when the temperature outside goes very low, the furnace adjusts to full capacity (second stage) to meet the demand for heat within the home.

Two Stage Cooling – In warm weather, the first stage of the cooling equipment

operates at a fraction of the total cooling capacity. On very hot days, the second stage of the cooling equipment energizes, and the cooling system operates at full capacity.

*Firmware version 2.0 or higher.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 3

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Specifications

The following table provides a summary of specifications for the CHV-TSTAT and CHV-THSTAT.

CHV-TSTAT and CHV-THSTAT Specifications

SPECIFICATION DETAILS

Measurement Range

Indoor Temperature 0° to 110°F (-18° to 43°C)

Outdoor Temperature -40º to 170º F (-40º to 77º C)

Humidity 0% to 100% RH

1,2

Setpoint Range

Auto Setpoint (union of

38° to 99°F (3° to 37°C) heat and cool setpoint ranges)

Heat only Setpoint 38° to 89°F (3° to 32°C)

Cool only Setpoint 59° to 99°F (15° to 37°C)

Humidity Setpoint 5% to 90 % RH

1,2

Relay Rating 1 Amp @ 40 Volts DC or 24 Volts AC (nominal)

Power Requirements

24V

2 Watts (0.083 Amps) @ 24 Volts AC, supplied

by heating or cooling system

Cresnet Power Usage

<1 Watts (<0.05 Amps @ 24 Volts DC),

required for Cresnet communication only

Display

Type Transflective LCD, backlit

Size 2.75 in (70 mm)

Resolution 128 x 64

Viewing Angle

±50° horizontal (@0° vertical), ±50° vertical

(@0° horizontal)

Default Net ID 2A

Minimum 2-Series Control System Update File

3, 4

Version 3.080.CUZ or later

Environmental

Temperature 41º to 104º F (5º to 40º C)

Humidity 10% to 90% RH (non-condensing)

Enclosure Plastic

Dimensions

Height 3.75 in (96 mm)

Width 5.00 in (127 mm)

Depth 1.04 in (27 mm)

Weight 5.80 oz (165 g)

1. Outdoor temperature/humidity sensing requires additional remote sensors, sold separately.

2. CHV-TSTAT requires additional remote humidity sensor for indoor humidity sensing, sold separately.

3. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes.

4. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.

4 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

NOTE: Crestron software and any files on the website are for authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site).

Physical Description

This section provides information on the connections, controls and indicators available on your CHV-TSTAT and CHV-THSTAT.

CHV-TSTAT and CHV-THSTAT Physical View

HEATING HEAT ONLY ON LINE

H1 H2 AX

CHV-TSTAT and CHV-THSTAT Overall Dimensions (Front View)

5.00 in

(127 mm)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 5

MODE

VIEW

3.75 in

(96 mm)

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

CHV-TSTAT and CHV-THSTAT Overall Dimensions (Side and Rear Views)

1.04 in

(27 mm)

3.27 in

(84 mm)

CHV-TSTAT and CHV-THSTAT Backplate (Front Cover Removed)

TOP

HUM

RHRCG

RS1

RS2

RSR

RHU

Y/Y1

24(C)

24(R)

W/W1

24V

NETWORK

6 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Connectors, Controls & Indicators

# CONNECTORS,

DESCRIPTION

CONTROLS &

INDICATORS

1 MODE BUTTON

2 VIEW BUTTON

(DOWN BUTTON)

5 LCD DISPLAY

1. Outdoor temperature/humidity sensing requires additional remote sensors, sold separately.

2. CHV-TSTAT requires additional remote humidity sensor for indoor humidity sensing, sold separately.

▲

(UP BUTTON)

▼

CONTROL

CONNECTIONS

(SYSTEM

DEPENDENT)

Access to the user controls (system mode, fan mode, humidifier, Crestron system, and global update)

Access to humidity reading temperature reading messages

Selects user modes and increments selection in setup modes

Selects user modes and decrements selection in setup modes

Displays ambient temperature, humidity, current setpoint, current activity, current function, system information, internal relay status, control system communication errors, firmware download progress, setup parameter/function and values

Terminal blocks

HUM: Energized to RHU during humidity

call

RHU: Reference for humidifier RH: Reference Heat, used for calls to

heating system

RC: Reference Cool, used for calls to

cooling system

G: Fan, energized to RC during call for

fan

Y/Y1: Compressor (stage one), energized

to RC when compressor (or first stage) is run

Y2: Compressor (stage two), energized

to RC on two-stage systems on call for second stage

O: Changeover control, energized to

RC during cooling modes

B: Energized to RC during non-cooling

modes

W/W1: Heat (single stage)/heat (stage one)

energized to RH during a call for heat in heat/cool systems or aux heat in heat pump systems

W2: Heat (stage two), energized to RH

during a call for second stage heat in heat/cool systems

1,2

, outdoor

, and system

(Continued on following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 7

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Connectors, Controls & Indicators (Continued)

# CONNECTORS,

CONTROLS &

INDICATORS

9 NETWORK

REMOTE SENSING

CONNECTIONS

(OPTIONAL)

POWER

CONNECTIONS

(REQUIRED)

(OPTIONAL)

DESCRIPTION

Terminal block RSR: Remote Sensor Returns – Common

sensor terminal

RS1: Remote Sensor terminal – Connect

the sensor from RS1 to RSR

RS2: Remote Sensor terminal – Connect

the sensor from RS2 to RSR

Terminal block 24 (C): 24 VAC common terminal supplies

remote 24 VAC power to thermostat

24 (R): 24 VAC reference terminal. Can be

connected to RH or RC by P4 jumper setting, or tied directly to power source (refer to “System Connections” on page 10)

Terminal block, connects to Cresnet control network

24: Power (24 Volts DC) Y: Data Z: Data G: Ground

8 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Setup

Network Wiring

When wiring the Cresnet® network, consider the following:

• Use Crestron Certified Wire.

• Use Crestron power supplies for Crestron equipment.

• Provide sufficient power to the system.

• For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB)

to maintain signal quality.

CAUTION: Insufficient power can lead to unpredictable results or damage to the

equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (

For more details, refer to “Check Network Wiring” on page 81.

Identity Code

www.crestron.com/calculators).

The Net ID of the CHV-TSTAT/CHV-THSTAT has been factory set to 2A. The Net

IDs of multiple CHV-TSTAT/CHV-THSTAT devices in the same system must be unique. Net IDs are changed from a personal computer (PC) via Crestron Toolbox™ (refer to “Establishing Communication” on page 75).

When setting the Net ID, consider the following:

• The Net ID of each unit must match an ID code specified in the SIMPL™ Windows program.

• Each network device must have a unique Net ID.

For more details, refer to the Crestron Toolbox help file.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 9

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

System Connections

NOTE: Installers should have a strong working knowledge of HVAC systems.

CHV-TSTAT and CHV-THSTAT Backplate – Front View With Cover Removed

HUM - Energized (connected) to RHU during humidity call RHU - Reference for humidifier

RSR - Remote Sensor Returns - Common sensor terminal RS1 - Remote Sensor terminal - Connect the sensor from RS1 to RSR

RS2 - Remote Sensor terminal - Connect the sensor from RS2 to RSR 24(C) - 24 VAC common terminal supplies remote 24 VAC power

to thermostat

24(R) - 24 VAC reference terminal. Can be connected to RH or RC

by P4 jumper setting (refer to following page), or tied directly to power source

Network Connection

TOP

RS1

RS2

HUM

RSR

RHU

24(C)

24(R)

24V

NETWORK

for Crestron

Installer Only

Y/Y1

W/W1

Backplate

W2 - Heat (stage two), energized (connected) to RH during a call for

second stage heat in heat/cool systems

W/W1 - Heat (single stage)/heat (stage one) energized

to RH during a call for heat in heat/cool systems or aux heat in heat pump systems or Slab Heat in Slab Systems.

B - Energized to RC during non-cooling modes O - Changeover control, energized to RC during cooling modes

Y2 - Compressor (stage two), energized to RC on two-stage

systems on call for second stage

Y/Y1 - Compressor (stage one), energized to RC when

compressor (or first stage) is run

G - Fan, energized to RC during call for fan RC - Reference Cool, used for calls to cooling system RH - Reference Heat, used for calls to heating system

10 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Wiring Diagrams

The wiring diagrams that follow show connections for the CHV-TSTAT and CHV-THSTAT. The heating or cooling system can supply power to the thermostat, or a separate transformer can supply it. In many installations, spare conductors are

available to supply 24 VAC to the thermostat, using the C (24 VAC common)

connection on the HVAC equipment.

The P4 jumper internally connects either the RH (Reference Heat system) or RC (Reference Cooling system), relieving the installer from connecting a jumper from the 24(R) terminal to the RH or RC terminal.

If power is available from the HVAC system, follow the diagrams for the proper P4 jumper connection.

When power is not available from the HVAC system, a separate transformer, connected between 24(R) and 24(C) terminals, can provide power to the thermostat. When powered by a separate transformer, ensure that the P4 jumper is connected across pins 2 and 3 (No Connection) to prevent damage to the thermostat and the HVAC system.

CAUTION: The P4 Jumper Position on the Circuit Board is critical to proper

operation. Improper P4 jumper position can cause equipment damage. The P4 jumper connects the 24(R) terminal to the RH, or RC connector. Refer to the following illustration.

P4 Jumper Position

Connects 24(R) to RH

No Connection

3 4

NOTE: Ensure that the power circuits are shut off at the source before connecting

the thermostat. Provide disconnect means and overload protection as required for the power supply.

NOTE: Ensure that the transformer has sufficient power for all the thermostats in

the system, or use multiple transformers. Refer to the power requirements in “Specifications” on page 3.

The following diagrams are examples of connections for heat, heat/cool and onestage and two-stage heat pump systems, and various slab systems.

NOTE: Use either connector O or B as required, for changeover control.

Connects 24(R) to RC

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 11

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Separately Powered Two Wire Heat Systems

(Powered by an Independent Transformer)

Independent Transformer Connection – P4 Jumper Connects Pins 2 and 3

Single Stage Heat Only Systems

Single Stage Heat Only System Powered – P4 Jumper Connects Pins 1 and 2

12 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Single Stage Heat with Fan Control Systems

Single Stage Heat with Fan Control – P4 Connects Pins 1 and 2 – Additional Jumper Connects RH to RC

Single Stage Cool Only Systems

Single Stage Cool Only – P4 Jumper Connects Pins 3 and 4

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 13

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Single Stage Heat/Cool with Integrated Control Unit Systems

Single Stage Heat/Cool with Integrated Control Unit – P4 Jumper Connects Pins 1 and 2 – Additional Jumper RH to RC

14 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Single Stage Heat/Cool with Separate Systems

Single Stage Heat/Cool with Separate Systems – Heating System Powered – P4 Jumper Connects Pins 1 and 2

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 15

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Single Stage Heat Pump Systems

Single Stage Heat Pump – P4 Jumper Connects Pins 3 and 4– Additional Jumper RH to RC

16 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Two Stage Heat Pump Systems

Two Stage Heat Pump System – P4 Jumper Connects Pins 3 and 4 – Additional Jumper RH to RC

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 17

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 1, Slab 2, and Slab 3 (Floor Warming and/or Space Heating) Systems

Slab 1, Slab 2, and Slab 3 Systems (Floor Warming and/or Space Heating) – P4 Jumper Connects Pins 1 and 2

18 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 4A Two Stage Heat/Single Stage Cool Systems and Slab 5A Floor Warming with Single Stage Space Heat/Cool Systems

Heat/Cool Style Connections

Slab 4A – P4 Jumper Connects Pins 1 and 2 – Jumper Connects RH to RC

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 19

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 4B Two Stage Heat/Single Stage Cool System and Slab 5B Single Stage Heat/Cool with Floor Warming Systems

Heat Pump Style Connections

Slab 4B – P4 Jumper Connects Pins 3 and 4 – Additional Jumper Connects RH to RC

20 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

General Humidifier Connections

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 21

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Installation

The location of the thermostat can affect its performance and efficiency. Install the thermostat away from direct sunlight, drafts, doorways, skylights, and windows. Also make sure the thermostat is conveniently located for programming, and do not mount on an exterior wall. The thermostats may be mounted directly to drywall or to a single-gang box.

Thermostats and sensors are mounted 60 inches (1.5 meters) above the finished floor (HVAC industry standard).

Refer to the following illustrations. Do the following to install the CHV-TSTAT or the CHV-THSTAT.

NOTE: When installing directly on drywall, use anchoring screws and hardware.

Make sure the back of the thermostat is flush with drywall and the unit is level.

Required Hardware

• Thermostat

• Phillips screwdriver (not supplied)

• Two 6/32 x 1 inch panhead screws (supplied) for mounting to a

single-gang box

• Single-gang box (not supplied)

• Wall anchors (not supplied) and screws (not supplied) for

mounting directly to drywall

1. Separate thermostat front plate from back plate (you may need to exert force

when removing the faceplate).

2. Turn off the circuit breaker when connecting power to the thermostat, and

connect wiring as required (wiring goes through center hole on back plate).

NOTE: Ensure the correct position of the P4 jumper; refer to pages 11 through 20.

3. Attach back plate to drywall with screws and anchors (anchor hardware not

provided) 60 inches above the finished floor. Thermostat may also be mounted to a single-gang box mounted horizontally, using the two 6/32 x 1 inch panhead screws provided. If using a five-sided single-gang box, fill with insulation material to minimize wall air ingress. Ensure that the thermostat is level and the ventilation holes in the backplate are not blocked.

4. Note orientation of front plate connection leads and reattach the front plate

on the back plate (make sure front plate snaps in place and no wires are pinched).

NOTE: If replacing an existing thermostat, make note of the wire colors and

positions before removing the old thermostat.

22 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Installing the CHV-TSTAT and CHV-THSTAT in a Horizontal-Mount Single Gang Box

NOTE: Install insulation (not supplied) in the single gang box to prevent inaccurate readings.

Stud

Panhead 6/32 x 1 in

Installing the CHV-TSTAT and CHV-THSTAT directly to the wall

Mounting Screws (not provided)

Single-gang electrical box (not provided)

Wall Anchors (not provided)

Backplate

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 23

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Thermostat Setup

Setup Procedure

After the thermostat is installed, it is necessary to set it up for a particular heating/cooling system. There are nine types of heating and cooling systems. The available choices displayed on the setup screens depend on the type of system selected. Follow these directions to access the setup screens.

1. Press and hold the MODE and VIEW buttons simultaneously for five

seconds to access the setup menus.

2. Press VIEW to select the parameter. A box appears around the selected

parameter.

3. Press the Arrow keys (▲▼) to choose the value of the selected parameter.

4. Use the MODE button to advance to the next setup screen.

CHV-TSTAT and CHV-THSTAT Setup

Advance to next

Setup Screen

Advance to next

selection on current

Setup Screen

Change value of selected parameter

MODE

VIEW

CRESTRON

Setup Notes

The following are general setup notes.

NOTE: Refer to “System Connections” on page 10 for remote sensor connections to

the thermostat.

NOTE: The Offset option permits recalibration of the room temperature sensor.

There are various reasons why users may want to adjust the temperature. The selection number is the number of degrees added or subtracted to the actual temperature. The range is -6° to +6°F. Factory default is 0°F. This adjustment changes the actual regulated temperature, not just the display.

NOTE: The sensors are used for temperature and humidity averaging. Choose USE

to include each sensor, or OMIT to exclude each sensor in the averaging equation. Sensors that have the same designation (for example, outdoor) are averaged together.

NOTE: The thermostat will not leave the setup mode unless a valid sensor selection

is made.

24 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

NOTE: When the Reverse SMODE Dir (reverse system mode direction) selection is set to Yes on the Screen Options page, the arrow keys (▲ ▼) can be used to select

system mode functions in both directions.

NOTE: If an out-of-range setpoint is entered, it will be ignored. NOTE: The Screen Options selected in Setup are seen when the View key is pressed

in normal operation.

System Types and Definitions

The first setup choice is the heat system type. There are three main types of heating/cooling systems:

1. Heat/Cool, Radiant Heat or Forced Air Heating/Cooling, 1 or 2 Stages

2. Heat Pump, 1 or 2 Stages, Auxiliary Heat or Dual Fuel

3. Slab System (Slab1 through Slab 5B)

1. Heat/Cool Systems Definitions

Radiant Heat: Radiant heat is a form of hydronic (hot water) heat that

circulates hot water through pipes (baseboard radiation systems) or special tubing and installs on the perimeter of the house or underneath floors.

Forced Air: In a ducted heating/cooling system, a large fan (blower) forces

heated air from the furnace into the ducts and enters the rooms through a register or grill in the floor or wall.

One or Two Stages:1 Unlike traditional furnaces that turn on and run at

full capacity with each demand for heating, two-stage furnaces operate like two separate furnaces. The unit begins to run in its first stage, and operates at a fraction of its heating capacity. This reduced capacity is sufficient on mild winter days. On very cold days, the furnace adjusts to full capacity (second stage) to meet the demand for heat.

Heat/Cool system setup begins on page 27.

2. Heat Pump Systems Definitions

A heat pump extracts available heat from one area and transfers it to another. Even cold air contains some heat, and heat pumps can extract heat from the outside air on a cold day and transfer it indoors to maintain a comfortable temperature. A heat pump also works in reverse during the summer, extracting heat from indoors and transferring it outdoors.

Dual Fuel: A dual fuel system combines an energy-efficient air-source heat

pump with a new or existing oil, gas or propane furnace. The furnace runs in place of the heat pump in cold weather.

Aux (Auxiliary) Heat: When the a heat pump can no longer efficiently

transfer heat from the outside air, the thermostat automatically turns on a secondary heat source, such as electric resistive heat.

Heat pump system setup begins on page 31.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 25

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

3. Slab Systems Definitions

Slab heating works from the ground up. The heating components are installed below the floor or are embedded in a concrete slab. Heat radiates from the floor to warm the space above. The CHV-TSTAT and CHV-THSTAT support seven variations of slab heat systems.

SLAB 1: Floor warming only. Operates the slab heat to maintain a

particular slab temperature. System mode is enabled/disabled with Floor Warming Heat and OFF inputs. Slab is maintained at the slab setpoint temperature value. Connection to the slab output relay is terminal W1. Refer to setup on page 35.

SLAB 2: One stage space heat with slab maximum. Maintains a particular

air temperature using the slab to heat the space. Will not heat over the slab

maximum temperature even if this results in the space being under-heated.

Connection to the slab output relay is terminal W1. Refer to setup on page

39.

SLAB 3: One stage space heat with slab maximum and slab minimum.

Performs the same operation as SLAB 2, and also keeps the slab at least as

warm as slab setpoint. This may result in the space being overheated to

maintain the slab minimum temperature. Connection to the slab output relay is terminal W1. Refer to setup on page 43.

SLAB 4A: Two-stage space heat with slab maximum and one stage cool.

Maintains the air temperature using the slab for heat, up to the slab maximum. Augments the air heating by using a second stage of heat (generally a forced air system). Allows the second stage to operate by itself should the slab reach is maximum temperature and shut off. Cools the space with cooling call. Intended for heat-cool type forced air systems, with relay output connections to terminal W1 for slab, terminal W2 for 2 heat, and terminal Y1 for cooling. Refer to setup on page 47.

SLAB 4B: Same operation as SLAB4A, but intended for a heat pump type

second stage. Relay output connections are terminal W1 for slab heat, with heat pump-type connections on terminals Y1/O/G for cooling and heating calls. Aux heat is on terminal W2. Refer to setup on page 51.

SLAB 5A: One stage space heat and cool with floor warming. Combines

the operation of a space heating/cooling thermostat with a floor-warming thermostat. Maintains the slab at slab setpoint, and maintains the space at

the heat, cool, or auto setpoints. Systems effectively operate independently.

Heat/Cool/Auto/Off sets the space control modes, and Floor Warming HEAT/OFF sets the slab mode. Intended for heat-cool style systems, with slab connection on terminal W1, space heat on terminal W2, and space cool on terminal Y1. Refer to setup on page 55.

SLAB 5B: Same as SLAB5A, but for heat pump space systems, with slab

heat on terminal W1, and space heat/cool on terminals Y1/O/G. Aux heat is on terminal W2. Refer to setup on page 59.

stage

26 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Heat/Cool, 1 or 2 Stages, Forced Air or Radiant

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter setup.

SETUP: SYSTEM

Heat Sys Type: # Heat Stages: # Cool Stages: Radiant / F. Air:

SEPARATE HEAT AND COOL

H/C 2 2 F.Air

Heat System Type: H/C (Heat/Cool) # Heat Stages: One or two heat stages. # Cool Stages: One or two cool stages. Radiat /F. Air: Radiant or Forced Air Heat.

Press To Continue

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

Heat Anticipator: Cool Anticipator: Intrstg Differential:

ADJUSTS HEAT SHUTOFF DYNAMICS

5 2

2.0

SETUP: SYSTEM PERF

ACCUMULATED ERROR THRESHOLD TO TRIGGER 2ND/AUX STAGE 1=SMALL TIME,5=LARGE TIME 6=DEFEAT ACCUMULATED STAGING

Staging Accum Thresh 4

Heat & Cool Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

NOTE: A setting of 3 is recommended for most

installations.

Interstage Differential: (0.5º – 8.0ºF).

The proportional temperature error to trigger the second stage.

Staging Accumulated Threshold (1 – 6)

The feature will optimize triggering of the second stage to meet demand in instances where the first stage cannot reach the interstage differential or achieve the desired setpoint.

Press To Continue

Low number = more aggressive trigger for second stage. High number = less aggressive trigger for second stage (6 will disable this feature altogether).

NOTE: A setting of 3 is recommended for most

installations.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 27

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Heat/Cool, 1 or 2 Stages, Forced Air or Radiant (Continued)

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

Y Y N

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier

output to prevent condensation on windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

CHV-THSTAT [v2.0, #D8000000]

This screen displays Model number, Firmware version and TSID.

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

(Continued on the following page)

28 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Y Y Y Y N

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Heat/Cool, 1 or 2 Stages, Forced Air or Radiant (Continued)

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

0 Y HM Y

SETUP: OTHER SETTINGS

Wide Range Cool: Run Fan in Ht Calls: Auto DdBand Deg: Disable Auto Mode:

EXTENDED COOL SETPOINT RANGE 38-99F (3-37C)

Press To Continue

N N

2 N

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

Wide Range Cool: Extends cool setpoint to full auto range

of 38º – 99ºF (3º – 37ºC).

Run Fan in Heat Calls:

Options available if # Heat Stages = 1:

Y: Select if your heating system requires fan control. N: Disables fan call operation for heat calls.

Options available if # of Heat Stages = 2:

--: Disables fan call operation for heat calls. 1/2: Fan called for first and second stage.

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

2: Fan called for second stage only.

NOTE: Most heating systems run the fan automatically. Auto Mode Dead Band: (2 – 6) The minimum differential

between heating and cooling setpoints (Dual Setpoint Auto set to Yes in Display Options).

Disable Auto Mode: Will not display Auto on System Mode

screen and will not permit entering the auto mode even from Cresnet commands.

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 29

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Heat/Cool, 1 or 2 Stages, Forced Air or Radiant (Continued)

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

INTERNAL, REMOTE 1 and REMOTE 2 humidity sensors to match % RH values obtained by other equipment. The values here are based on a logarithmic index and are not to be interpreted as units of measurement.

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Press To Continue

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

62 62 62

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

SETUP: SERVICE/TEST

SETUP: SERVICE/TEST Heat Call:

Cool Call:

Humidifier Call: Fan Run Call:

OFF OFF

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet

system requirements.

30 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter the setup mode.

SETUP: SYSTEM

Heat Sys Type: # of Stages:

HP/AUX or DF:

HEATPUMP SYSTEM

Press To Continue

HPump 2 HP/Aux

Heat System Type: Heat Pump # of Stages: (1 – 2) Select one or two stages. HP/Aux or Dual Fuel: Dual fuel runs either the heat pump

or the aux output, depending on outdoor temperature. The heat pump with aux can stage the heat when required to improve performance.

• Dual Fuel: A dual fuel system combines an energy-

efficient air-source heat pump with a new or existing oil, gas or propane furnace. The furnace runs in place of the heat pump in cold weather.

• Aux (Aux iliary) Heat: When the a heat pump can no

longer efficiently transfer heat from the outside air, the thermostat automatically turns on a secondary heat source, such as electric resistive heat.

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

0 90

5 2

2.0

Heat Anticipator: Cool Anticipator: Intrstg Differential:

ADJUSTS HEAT SHUTOFF DYNAMICS

SETUP: SYSTEM PERF

LOCKS OUT HP IN COLD WEATHER

HP Balance Pt: AUX Balance Pt: Staging Accum Thresh:4

Heat & Cool Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

Interstage Differential: (0.5º – 8.0ºF)

The proportional temperature error to trigger the second stage.

HP Balance Point: (0º – 90ºF or N/A) Minimum outdoor

temperature at which the heat pump runs (requires an outdoor temperature source).

AUX Balance Point: (0º – 90ºF or N/A) Maximum outdoor

temperature at which Aux heat system supplements the heat pump (requires an outdoor temperature sensor).

Press To Continue

Staging Accumulated Threshold: (1 – 6)

The feature will optimize triggering of the second stage to meet demand in instances where the first stage cannot reach the interstage differential or achieve the desired setpoint.

Low number = more aggressive trigger for second stage. High number = less aggressive trigger for second stage (6 will disable this feature altogether).

NOTE: A setting of 3 is recommended for most

installations.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 31

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel (Continued)

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

Y Y N

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier

output to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

CHV-THSTAT [v2.0, #D8000000]

Press To Continue

This screen displays Model number, Firmware version and TSID.

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

(Continued on the following page)

32 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Y Y Y Y N

Select options to be displayed when the VIEW button is pressed

in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel (Continued)

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

0 Y HM Y

SETUP: OTHER SETTINGS

Wide Range Cool: Run Fan in Ht Calls: Auto DdBand Deg: Disable Auto Mode:

EXTENDED COOL SETPOINT RANGE 38-99F (3-37C)

Press To Continue

N N

2 N

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

Wide Range Cool: Extends cool setpoint to full auto range

of 38º – 99ºF (3º – 37ºC).

Run Fan in Heat Calls:

Options available if # Heat Stages = 1:

Y: Select if your heating system requires fan control. N: Disables fan call operation for heat calls.

Options available if # of Heat Stages = 2:

--: Disables fan call operation for heat calls. 1/2: Fan called for first and second stage.

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

2: Fan called for second stage only.

NOTE: Most heating systems run the fan automatically. Auto Mode Dead Band: (2 – 6) The minimum differential

between heating and cooling setpoints (Dual Setpoint Auto set to Yes in Display Options).

Disable Auto Mode: Will not display Auto on System Mode

screen and will not permit entering the auto mode even from Cresnet commands.

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 33

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel (Continued)

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Press To Continue

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

62 62 62

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

SETUP: SERVICE/TEST

SETUP: SERVICE/TEST Heat Call:

Cool Call:

Humidifier Call: Fan Run Call:

OFF OFF

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet

system requirements.

34 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 1 – Floor Warming Only

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter the setup mode.

SETUP: SYSTEM

SETUP: SYSTEM Heat Sys Type: Slab Reg:

SLAB 1 6

Heat System Type: SLAB 1 Slab Regulation: (1 – 6)

1 = Narrow temperature regulation 6 = Wide temperature regulation

FLOOR WARMING ONLY (W1)

NOTE: Slab mode 1 requires a slab remote sensor

(CHV-RSS).

Press To Continue

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

NO APPLICABLE SETTINGS

Press To Continue

No applicable settings.

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

(Continued on the following page)

Y Y N

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 35

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 1 – Floor Warming Only (Continued)

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

CHV-THSTAT [v2.0, #D8000000]

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

Y Y Y Y N

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

This screen displays Model number, Firmware version and TSID.

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

(Continued on the following page)

0 Y HM Y

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

36 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 1 – Floor Warming Only (Continued)

SETUP: OTHER SETTINGS

NO APPLICABLE SETTINGS

Press To Continue

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

No applicable settings.

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

Press To Continue

(Continued on the following page)

% RH 45 50 30

NOTE: Thermostat auto-detects connected remote sensors.

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 37

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 1 – Floor Warming Only (Continued)

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

SETUP: SERVICE/TEST

SETUP: SERVICE/TEST Slab Heat Call:

Humidifier Call: Fan Call:

OFF

OFF OFF

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

62 62 62

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

38 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 2 – Single Stage Space Heat with Slab Maximum

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter the setup mode.

SETUP: SYSTEM

Heat Sys Type: Slab MAX T:

SLAB 2

122

Heat System Type: SLAB 2 Slab Maximum Temperature:

(39° – 122°F / 39° – 50°C) Used to prevent the floor from becoming too hot on long heat calls.

1 STG SPACE HEAT BY SLAB WITH SLAB MAX (W1)

NOTE: Slab mode 2 requires an air temperature source and a

slab remote sensor (CHV-RSS).

Press To Continue

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

Heat Anticipator:

ADJUSTS HEAT SHUTOFF DYNAMICS

Press To Continue

Heat Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

(Continued on the following page)

Y Y N

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 39

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 2 – Single Stage Space Heat with Slab Maximum (Continued)

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

CHV-THSTAT [v2.0, #D8000000]

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

Y Y Y Y N

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

This screen displays Model number, Firmware version and TSID.

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

(Continued on the following page)

0 Y HM Y

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

40 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 2 – Single Stage Space Heat with Slab Maximum (Continued)

SETUP: OTHER SETTINGS

NO APPLICABLE SETTINGS

Press To Continue

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

No applicable settings.

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

Press To Continue

(Continued on the following page)

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 41

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 2 – Single Stage Space Heat with Slab Maximum (Continued)

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

SETUP: SERVICE/TEST

SETUP: SERVICE/TEST Slab Heat Call:

Humidifier Call: Fan Call:

OFF

OFF OFF

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

62 62 62

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

42 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 3 – Single Stage Heat with Slab Minimum/Maximum

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter setup mode.

SETUP: SYSTEM

SETUP: SYSTEM Heat Sys Type:

Slab MAX T: Slab Reg:

1 STG SPACE HEAT BY SLAB WITH SLAB MIN/MAX (W1)

Press To Continue

SLAB 3

122 6

SETUP: SYSTEM PERFORMANCE

Heat System Type: SLAB 3 Slab Maximum Temperature:

(39° – 122°F / 39° – 50°C) Used to prevent the floor from becoming too hot on long heat calls.

Slab Regulation: (1 – 6)

1 = Narrow temperature regulation 6 = Wide temperature regulation

NOTE: Slab mode 3 requires an air temperature source and

a slab remote sensor (CHV-RSS).

SETUP: SYSTEM PERF

Heat Anticipator:

ADJUSTS HEAT SHUTOFF DYNAMICS

Press To Continue

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Y Y N

Heat Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger

Press To Continue

the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 43

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 3 – Single Stage Heat with Slab Minimum/Maximum (Continued)

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

CHV-THSTAT [v2.0, #D8000000]

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

Y Y Y Y N

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

This screen displays Model number, Firmware version and TSID.

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

(Continued on the following page)

0 Y HM Y

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

44 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 3 – Single Stage Heat with Slab Minimum/Maximum (Continued)

SETUP: OTHER SETTINGS

NO APPLICABLE SETTINGS

Press To Continue

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

No applicable settings.

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

Press To Continue

(Continued on the following page)

% RH 45 50 30

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 45

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 3 – Single Stage Heat with Slab Minimum/Maximum (Continued)

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

SETUP: SERVICE/TEST

SETUP: SERVICE/TEST Slab Heat Call:

Humidifier Call: Fan Call:

OFF

OFF OFF

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

62 62 62

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

46 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 4A – Two Stage Heat/One Stage Cool with Slab Maximum

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter setup mode.

SETUP: SYSTEM

Heat Sys Type: Slab MAX T:

2 STG SPACE HEAT - 1 STG COOL WITH SLAB MAX (H/C) SLAB = (W1), HT = W2, CL = Y1

Press To Continue

SLAB 4A

122

Heat System Type: SLAB 4A Slab Maximum Temperature:

(39° – 122°F / 39° – 50°C) Used to prevent the floor from becoming too hot on long heat calls.

NOTE: Slab mode 4A requires an air temperature source

and a slab remote sensor (CHV-RSS).

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

Heat Anticipator: Cool Anticipator: Intrstg Differential:

ADJUSTS HEAT SHUTOFF DYNAMICS

Press To Continue

5 2

2.0

Heat and Cool Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

Interstage Differential: (0.5º – 8.0ºF)

The proportional temperature error to trigger the second stage.

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 47

Y Y N

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 4A – Two Stage Heat/One Stage Cool with Slab Maximum (Continued)

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

CHV-THSTAT [v2.0, #D8000000]

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

Y Y Y Y N

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

This screen displays Model number, Firmware version and TSID.

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

(Continued on the following page)

0 Y HM Y

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

48 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 4A – Two Stage Heat/One Stage Cool with Slab Maximum (Continued)

SETUP: OTHER SETTINGS

Wide Range Cool: Run Fan in Ht Calls: Auto DdBand Deg: Disable Auto Mode:

EXTENDED COOL SETPOINT RANGE 38-99F (3-37C)

Press To Continue

N N

2 N

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

Wide Range Cool: Extends cool setpoint to full auto range

of 38º – 99ºF (3º – 37ºC).

Run Fan in Heat Calls: If your heating system requires fan

control, select Yes.

NOTE: Most heating systems run the fan automatically.

Auto Mode Dead Band: (2 – 6) The minimum differential

between heating and cooling setpoints (Dual Setpoint Auto set to Yes in Display Options).

Disable Auto Mode: Will not display Auto on System Mode

screen and will not permit entering the auto mode even from Cresnet commands.

INTERNAL: Choose USE or OMIT. Choose USE to permit

temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not appear

on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

Press To Continue

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 49

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 4A – Two Stage Heat/One Stage Cool with Slab Maximum (Continued)

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

SETUP: SERVICE/TEST

Slab Heat Call: Space Heat Call: Space Cool Call: Aux Heat Call Humidifier Call: Fan Call:

OFF OFF OFF OFF OFF OFF

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

62 62 62

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

50 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 4B – 2 Stage Heat/1 Stage Cool with Slab Maximum (Heat Pump)

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter setup mode.

SETUP: SYSTEM

SETUP: SYSTEM Heat Sys Type:

Slab MAX T: HP/AUX or DF:

2 STG SPACE HEAT - 1 STG COOL WITH SLAB MAX (HP) SLAB = W1, HT/CL = Y1/O/G

SLAB 4B 122 HP/Aux

Heat System Type: SLAB 4B Slab Maximum Temperature:

(39° – 122°F / 39° – 50°C) Used to prevent the floor from becoming too hot on long heat calls.

HP/Aux or Dual Fuel: Dual fuel runs either the heat pump

or the aux output, depending on outdoor temperature. The heat pump with aux can stage the heat when required to

Press To Continue

improve performance.

• Dual Fuel: A dual fuel system combines an energy-

efficient air-source heat pump with a new or existing oil, gas or propane furnace. The furnace runs in place of the

heat pump in cold weather.

• Aux (Aux iliary) Heat: When the heat pump can no

longer efficiently transfer heat from the outside air, the thermostat automatically turns on a secondary heat

source, such as electric resistive heat.

NOTE: Slab mode 4B requires an air temperature source

and a slab remote sensor (CHV-RSS).

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

Heat Anticipator: Cool Anticipator: Intrstg Differential: HP Balance Pt: AUX Balance Pt:

Press To Continue

5 6

0.5 Off 1

Heat & Cool Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

Interstage Differential: (0.5º – 8.0ºF)

The proportional temperature error to trigger the second stage.

HP Balance Point: (0º – 90ºF or N/A) Minimum outdoor

temperature at which the heat pump runs (requires an outdoor temperature sensor).

AUX Balance Point: (0º – 90ºF or N/A) Maximum outdoor

temperature at which Aux heat system supplements the heat pump (requires an outdoor temperature sensor).

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 51

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 4B – 2 Stage Heat/1 Stage Cool with Slab Maximum (Heat Pump) (Continued)

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

Y Y N

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

CHV-THSTAT [v2.0, #D8000000]

This screen displays Model number, Firmware version and TSID.

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

(Continued on the following page)

52 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Y Y Y Y N

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 4B – 2 Stage Heat/1 Stage Cool with Slab Maximum (Heat Pump) (Continued)

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

0 Y HM Y

SETUP: OTHER SETTINGS

Wide Range Cool: Run Fan in Ht Calls: Auto DdBand Deg: Disable Auto Mode:

EXTENDED COOL SETPOINT RANGE 38-99F (3-37C)

Press To Continue

N N

2 N

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

Wide Range Cool: Extends cool setpoint to full auto range

of 38º – 99ºF (3º – 37ºC).

Run Fan in Heat Calls: If your heating system requires fan

control, select Yes.

NOTE: Most heating systems run the fan automatically.

Auto Mode Dead Band: (2 – 6) The minimum differential

between heating and cooling setpoints (Dual Setpoint Auto set to Yes in Display Options).

Disable Auto Mode: Will not display Auto on System Mode

screen and will not permit entering the auto mode even from Cresnet commands.

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

(Continued on the following page)

>TEMP HUM USE OMIT SLAB

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 53

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 4B – 2 Stage Heat/1 Stage Cool with Slab Maximum (Heat Pump) (Continued)

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Press To Continue

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

62 62 62

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

SETUP: SERVICE/TEST

Slab Heat Call: Space Heat Call: Space Cool Call: Aux Heat Call Humidifier Call: Fan Call:

OFF OFF OFF OFF OFF OFF

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

54 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 5A – 1 Stage Heat/Cool with Floor Warming

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter setup mode.

SETUP: SYSTEM

Heat Sys Type: Slab Reg:

1 STG SPACE HEAT-COOL WITH FLOOR WARMING SLAB (W1) HT=W2 CL=Y1/G

Press To Continue

SLAB 5A 2

Heat System Type: SLAB 5A Slab Regulation: (1 – 6)

1 = Narrow temperature regulation

6 = Wide temperature regulation NOTE: Slab mode 5A requires an air temperature source

and a slab remote sensor (CHV-RSS).

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

Heat Anticipator: Cool Anticipator:

ADJUSTS HEAT SHUTOFF DYNAMICS

Press To Continue

5 2

Heat and Cool Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

(Continued on the following page)

Y Y N

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 55

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 5A – 1 Stage Heat/Cool with Floor Warming (Continued)

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

CHV-THSTAT [v2.0, #D8000000]

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

Y Y Y Y N

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

This screen displays Model number, Firmware version and TSID.

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

(Continued on the following page)

0 Y HM Y

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

56 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 5A – 1 Stage Heat/Cool with Floor Warming (Continued)

SETUP: OTHER SETTINGS

Wide Range Cool: Run Fan in Ht Calls: Auto DdBand Deg: Disable Auto Mode:

EXTENDED COOL SETPOINT RANGE 38-99F (3-37C)

Press To Continue

N N

2 N

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

>TEMP HUM USE OMIT SLAB

Wide Range Cool: Extends cool setpoint to full auto range

of 38º – 99ºF (3º – 37ºC).

Run Fan in Heat Calls: If your heating system requires fan

control, select Yes.

NOTE: Most heating systems run the fan automatically.

Auto Mode Dead Band: (2 – 6) The minimum differential

between heating and cooling setpoints (Dual Setpoint Auto set to Yes in Display Options).

Disable Auto Mode: Will not display Auto on System Mode

screen and will not permit entering the auto mode even from Cresnet commands.

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

Press To Continue

Continued on the following page

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 57

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 5A – 1 Stage Heat/Cool with Floor Warming (Continued)

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

SETUP: SERVICE/TEST

SETUP: SERVICE/TEST Slab Heat Call:

Space Heat Call: Space Cool Call: Humidifier Call: Fan Call:

OFF OFF OFF OFF OFF

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

62 62 62

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

58 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 5B – 1 Stage Heat/Cool with Floor Warming (Heat Pump)

Press and hold the MODE and VIEW buttons simultaneously for five seconds to enter setup mode.

SETUP: SYSTEM

Heat Sys Type: Slab Reg: HP/AUX or DF:

1 STG SPACE HEAT - COOL W/ FLOOR WARMING (HEATPUMP) SLAB=W1 HT/CL=Y1/O/G

SLAB 5B 6 HP/Aux

Heat System Type: SLAB 5B Slab Regulation: (1 – 6)

1 = Narrow temperature regulation 6 = Wide temperature regulation

HP/Aux or Dual Fuel: Dual fuel runs either the heat pump

or the aux output, depending on outdoor temperature. The heat pump with aux can stage the heat when required to

Press To Continue

improve performance.

• Dual Fuel: A dual fuel system combines an energy-

efficient air-source heat pump with a new or existing oil, gas or propane furnace. The furnace runs in place of the heat pump in cold weather.

• Aux (Aux iliary) Heat: When the heat pump can no

longer efficiently transfer heat from the outside air, the thermostat automatically turns on a secondary heat source, such as electric resistive heat.

NOTE: Slab mode 5B requires an air temperature source

and a slab remote sensor (CHV-RSS).

SETUP: SYSTEM PERFORMANCE

SETUP: SYSTEM PERF

Heat Anticipator: Cool Anticipator: Intrstg Differential: HP Balance Pt: AUX Balance Pt:

Press To Continue

5 6

0.5 Off 1

Heat & Cool Anticipator: (1 – 6)

Low number = more frequent cycles, faster response. High number = less frequent cycles, slower response.

Interstage Differential: (0.5º – 8.0ºF)

The proportional temperature error to trigger the second stage.

HP Balance Point: (0º – 90ºF or N/A) Minimum outdoor

temperature at which the heat pump runs (requires an outdoor temperature sensor).

AUX Balance Point: (0º – 90ºF or N/A) Maximum outdoor

temperature at which Aux heat system supplements the heat pump (requires an outdoor temperature sensor).

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 59

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 5B – 1 Stage Heat/Cool with Floor Warming (Heat Pump) (Continued)

SETUP: HUMIDITY OPTIONS

SETUP: HUM OPTS

Show Hum Mode Pg: Show Hum View Pg: Cold Weather Comp:

SYSTEM ENABLE/DISABLE PAGE

SETUP: HUM OPTS

INVERTED HUM RELAY LOGIC HUM ABOVE SP = ENERGIZED

Invert Hum Output Y Call FAN in HUM: N

Press To Continue

Y Y N

SETUP: DEVICE OPTIONS

SETUP: DEVICE OPTS

Network ID: LCD Contrast

2A 5

Show Hum Mode Pg and Show Hum View Pg: Select Y to

show humidity page in normal operation.

Cold Weather Compensation: Modifies the humidifier output

to prevent condensation on the windows. Requires an outdoor temperature source (CHV-THSAT, or CHV-TSTAT with CHV-RTHS, CHV-RTS, or CHV-RSS).

Invert Hum Output: Reverses the logic controlling the

switching of the HUM relay (NO/NC). May be useful when using to control a dehumidifier.

NOTE: Most dehumidifier applications require the default

setting.

Call FAN in HUM: Makes a FAN call during HUM calls

instead of having to wait for a heating or cooling call to trigger the fan.

NOTE: Most dehumidifier applications will automatically

trigger fan operation.

NOTE: This setting is only useful for humidity calls with

normal (non-inverted) logic.

Network ID: Valid entries are 03 to FE in Hex to match the

network ID set for the thermostat in SIMPL Windows.

LCD Contrast: (1 – 10) Lighter to darker screen.

CHV-THSTAT [v2.0, #D8000000]

This screen displays Model number, Firmware version and TSID.

Press To Continue

SETUP: SCREEN OPTIONS

SETUP: SCRN OPTIONS

Disp Global Page: Disp Outdoor Page: Disp Rem Func Pg1: Disp Rem Func Pg2: Reverse SMODE Dir

Press To Continue

(Continued on the following page)

60 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Y Y Y Y N

Select options to be displayed when the VIEW button is

pressed in normal operation:

Global Page: Temperature and humidity selection for entire

house (if part of a Cresnet system).

Outdoor Page: Temperature and humidity selection for the

outside sensor.

Display Remote Function Pg1 and Pg2: Allows remote

control of other functions (e.g. lights, alarms, etc.)

Reverse SMODE Dir: Allows arrow keys to select mode

functions in both directions.

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 5B – 1 Stage Heat/Cool with Floor Warming (Heat Pump) (Continued)

SETUP: DISPLAY OPTIONS

SETUP: DISP OPTIONS

Temperature Units: Temp Disp Offset: Dual Setpoint Auto: Main Scn Lwr Obj: Use 0.5 Deg C Step:

Press To Continue

0 Y HM Y

SETUP: OTHER SETTINGS

Wide Range Cool: Run Fan in Ht Calls: Auto DdBand Deg: Disable Auto Mode:

EXTENDED COOL SETPOINT RANGE 38-99F (3-37C)

Press To Continue

N N

2 N

Temperature Units: Display temperature units in (F) Fahrenheit or (C) Celsius.

Temp Disp Offset: (-6° – +6°F) Allows the user to adjust

the displayed and regulated temperature.

Dual Setpoint Auto: Enables two-point auto mode. Main Screen Lower Object:

SB – Slab OD – Outdoor HM – Humidity NA – None

Use 0.5 DEG C Step: Display in 0.5°C-degree units.

Wide Range Cool: Extends cool setpoint to full auto range

of 38º – 99ºF (3º – 37ºC).

Run Fan in Heat Calls: If your heating system requires fan

control, select Yes.

NOTE: Most heating systems run the fan automatically.

Auto Mode Dead Band: (2 – 6) The minimum differential

between heating and cooling setpoints (Dual Setpoint Auto set to Yes in Display Options).

Disable Auto Mode: Will not display Auto on System Mode

screen and will not permit entering the auto mode even from Cresnet commands.

SETUP: SENSORS

SETUP: SENSORS SENSOR

INTERNAL: REMOTE 1:

DETECTED: 1 x T

REMOTE 2:

Press To Continue

(Continued on the following page)

>TEMP HUM USE OMIT SLAB

INTERNAL: Choose USE or OMIT. Choose USE to

permit temperature averaging.

NOTE: Sensor temperature and humidity can be output to network even if OMIT is chosen.

REMOTE 1 and 2: Choose USE, OMIT, OD (outdoors), or SLAB (Remote Sensors Only).

NOTE: REMOTE 1 and REMOTE 2 options do not

appear on this screen if these sensors are not connected.

NOTE: Thermostat auto-detects connected remote sensors.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 61

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 5B – 1 Stage Heat/Cool with Floor Warming (Heat Pump) (Continued)

SETUP: HUMIDITY SENSORS

SETUP: H-SENSORS

TRIM INTERNAL: -5 REMOTE 1: 0 REMOTE 2: 0

% RH 45 50 30

TRIM (-9 – +9) Allows the user to calibrate the

NOTE: For best results, calibration should be performed

when RH is 40% or higher.

Press To Continue

SETUP: SENSOR DEBUGGING

SETUP: SENSOR DBG

IST/ AVG F: 75 74 76 76 LOW/HI F: 74 75 75 76 COMM ERR: 1 1 0 0

RUN

100%

Press To Continue

45 45 45

62 62 62

Press VIEW to run or stop sensor debugging. A completion

progress bar indicates debugging status.

IST / AVG F: Displays the instantaneous and average

temperature (F) for RS1, followed by the instantaneous and average temperature (F) for RS2.

LOW/HI F: Displays the low and high temperature (F) for

RS1 followed by the low and high temperature (F) for RS2.

COMM ER: Displays the number of communication errors

present for RS1, followed by the number of communication errors present for RS2. Values should be close to 0. If values are higher than 20, check wiring.

SETUP: SERVICE/TEST

Slab Heat Call: Space Heat Call: Space Cool Call: Aux Heat Call Humidifier Call: Fan Call:

OFF OFF OFF OFF OFF OFF

Each histogram should display only a single column. Histogram values should not have much spread.

NOTE: This screen bypasses all system delays and is used

by the installer to manually operate the HVAC system. Only one system can be run at a time.

Press MODE button to return to the first screen

Press and hold the MODE and VIEW buttons

simultaneously for five seconds to exit Setup.

NOTE: You cannot exit if the sensor setup does not meet system requirements.

62 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Thermostat Operation

The Main Screen displays the current temperature, system mode, fan mode, relative humidity and set point temperatures. This screen also indicates the system type currently running:

H1 – Heat System or Stage 1 Heat System H2 – Stage 2 Heat System AX – Auxiliary Heating System C1 – Cooling System or Stage 1 Cooling System C2 – Stage 2 Cooling System SB – Slab heat system HM– Humidifier

Main Screen

Set Point

Temperature

Current

Te mp er at ur e

System

Mode

MODE

VIEW

Current

Humidity

System Type

HEATING HEAT ONLY ON LINE

Fan Indicator

Current Function Communication Status

Press the up ▲arrow button to increase the set point temperature. Press the down

▼arrow button to decrease the set point temperature.

NOTE: The first press of the up ▲ and down ▼arrow buttons will trigger

backlight.

NOTE: If you selected Yes in setup screen Display Options for “Dual Setpoint Auto”, pressing MODE toggles between the Heat and Cool setpoints while they are flashing. Pressing MODE will not change the screen until the setpoint has stopped

flashing.

NOTE: System indicators flash to indicate short cycle timer protection (timer

guards) engaged.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 63

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

View Button Menus

Pressing the VIEW button allows the user to access the following screens: NOTE: If enabled, the VIEW button also allows access to the remote button function screens. When

part of a Cresnet system, the up ▲ and down ▼ arrow buttons can be used to enable other functions (i.e., lighting control, alarm system, etc).

VIEW

Humidity Screen

Press the VIEW button to display the “Humidity” screen.

MODE

VIEW

Humidity

The setpoint adjustment range is 5 – 90%.

Use the up ▲and down ▼arrow buttons to adjust the Humidity Set Point level.

NOTE: This page only appears if enabled in the “HUM

OPTS” setup screen.

NOTE: CHV-TSTAT requires additional remote humidity

sensor (CHV-RTHS), sold separately.

NOTE: If a CHV-RTHS temperature/humidity sensor is

installed, a CHV-TSTAT can import and display the

humidity.

VIEW

Outdoor Screen

MODE

VIEW

Messages Screen

MODE

VIEW

Outdoor

<CLR

Messages

Emergency Gen in Use

Press the VIEW button again to display the “Outdoor”

screen. This allows the user to view the outdoor temperature (if an outdoor sensor has been installed) and outdoor humidity (if available). Outdoor temperature/humidity can come from an outdoor sensor wired directly to the thermostat or through the Cresnet system from another source. This page is only displayed if enabled in the “SCRN OPTIONS” setup screen.

NOTE: This is only a display and not for system activation.

This display can be shown on either the CHV-TSTAT or the CHV-THSTAT.

Press the VIEW button again to display the “Messages”

screen. This screen allows the user to view any text messages sent from the control system (only when part of a

Cresnet system). Text messages are limited to four lines, approximately 20 characters per line (including spaces). Allow for word wrap by staying within the 20 characters/spaces per line maximum. The thermostat autohyphenates when nearing the end of a line. You may use carriage returns to force a line change.

NOTE: This page is only seen when a message has been

sent to the thermostat.

Press the MODE button to clear (CLR) the message(s).

This acknowledges to the control system that the message has been read.

64 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Mode Button Menus

Heat/Cool, Heat Pump and Slab 4 Systems

Pressing the MODE button allows the user to access the following screens when the thermostat is

configured for Heat/Cool, Heat Pump and Slab 4 Systems.

MODE

SYSTEM MODE SCREEN

The “System Mode” screen appears when the MODE

button is initially pressed.

Use the up ▲and down ▼arrow buttons to select HEAT,

COOL, AUTO, OFF or AUX HEAT ONLY. NOTE: The AUTO selection allows the system to switch

between Heat and Cool automatically as needed to maintain the temperature.

NOTE: The AUX HEAT ONLY is for the backup

heating system on Heat Pump based systems only. It allows the backup system to operate without operating the heat pump.

MODE

VIEW

System Mode

HEAT COOL AUTO OFF

AUX HEAT ONLY

MODE

FAN MODE SCREEN

MODE

VIEW

MODE

HUMIDIFIER SCREEN

MODE

VIEW

Fan Mode

AUTO ON

Humidifier

ENABLED DISABLED

(Continued on the following page)

Pressing the MODE button again displays the “Fan Mode”

screen.

Use the up ▲and down▼arrow buttons to select AUTO or ON.

NOTE: In AUTO, the fan runs only when the system calls

for heat or cool. In ON, the fan runs continuously.

Pressing the MODE button again displays the “Humidifier”

screen.

NOTE: This page only appears if enabled in the “HUM

OPTS” setup screen.

NOTE: CHV-TSTAT requires additional remote humidity sensor (CHV-RTHS), sold separately.

Use the up ▲and down ▼arrow buttons to select ENABLED or DISABLED.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 65

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Heat/Cool, Heat Pump and Slab 4 System Thermostat Operation (Continued)

MODE

CRESTRON SYSTEM SCREEN

Pressing the MODE button again displays the “Crestron

MODE

VIEW

MODE

Crestron Sys

ONLINE HOLD

GLOBAL UPDATE SCREEN

Global Update

Sys” screen.

Use the up ▲and down▼arrow buttons to select ONLINE or HOLD.

• ONLINE: Data flows both ways, to and from the

thermostat, enabling adjustment from a remote location.

• HOLD: Data flows one way, from the thermostat,

blocking system commands to change the temperature and humidity when you do not want the current settings reset. Restores to the last command sent when online is reengaged.

Pressing the MODE button again displays the “Global

Update” screen.

VIEW

SEND

This feature allows a single thermostat location to update the current temperature settings to all other thermostats on the system, provided that this function has been defined in the Crestron program.

Press the down▼ button to send the update. Pressing the MODE button again returns you to the Main

Screen.

66 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 5 Systems

Pressing the MODE button allows the user to access the following screens when the thermostat is

configured for Slab 5 Systems.

MODE

FLOOR WARMING SCREEN

MODE

VIEW

MODE

VIEW

MODE

VIEW

Floor Warming

AIR SYSTEM MODE SCREEN

Air System Mode

HEAT COOL AUTO OFF

SLAB SYSTEM MODE SCREEN

Slab System Mode

HEAT OFF

The “Floor Warming” screen appears when the MODE

button is initially pressed.

This screen displays current floor warming temperature and setpoint.

Pressing the MODE button again displays the “Air

System Mode” screen.

Use the up ▲and down ▼arrow buttons to select HEAT,

COOL, AUTO, OFF. NOTE: The AUTO selection allows the system to switch

between HEAT and COOL automatically as needed to

maintain the temperature.

Pressing the MODE button again displays the “Slab

System Mode” screen.

Use the up ▲and down ▼arrow buttons to select HEAT or OFF.

MODE

FAN MODE SCREEN

Pressing the MODE button again displays the “Fan Mode”

MODE

VIEW

Fan Mode

AUTO ON

screen.

Use the up ▲and down ▼arrow buttons to select AUTO or ON.

NOTE: In AUTO, the fan runs only when the system calls for heat or cool. In ON, the fan runs continuously.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 67

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 5 System Thermostat Operation (Continued)

MODE

HUMIDIFIER SCREEN

Pressing the MODE button again displays the “Humidifier”

MODE

Humidifier

screen.

VIEW

MODE

VIEW

MODE

ENABLED DISABLED

CRESTRON SYSTEM SCREEN

Crestron Sys

ONLINE HOLD

GLOBAL UPDATE SCREEN

NOTE: This page only appears if enabled in the “HUM

OPTS” setup screen.

NOTE: CHV-TSTAT requires additional remote humidity sensor (CHV-RTHS), sold separately.

Use the up ▲and down ▼arrow buttons to select

ENABLED or DISABLED.

Pressing the MODE button again displays the “Crestron

Sys” screen.

Use the up ▲and down ▼arrow buttons to select ONLINE or HOLD.

• ONLINE: Data flows both ways, to and from the

thermostat, enabling adjustment from a remote location.

• HOLD: Data flows one way, from the thermostat,

blocking system commands to change the temperature and humidity when you do not want the current settings reset. Restores to the last command sent when online is reengaged.

Pressing the MODE button again displays the “Global

MODE

VIEW

Global Update

SEND

Update” screen.

Allows a single thermostat location to update the current temperature settings to all other thermostats on the system, provided that this function has been defined in the Crestron program.

Press the down▼ button to send the update. Pressing the MODE button again returns you to the Main

Screen.

68 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 1 and Slab 2 Systems

Pressing the MODE button allows the user to access the following screens when the thermostat is

configured for Slab 1 and Slab 2 systems.

MODE

SLAB SYSTEM MODE SCREEN

The “Slab System Mode” screen appears when the MODE

MODE

Slab System Mode

button is initially pressed.

VIEW

MODE

FAN MODE SCREEN

MODE

VIEW

MODE

HUMIDIFIER SCREEN

MODE

VIEW

HEAT OFF

Fan Mode

AUTO ON

Humidifier

ENABLED DISABLED

Use the up ▲and down▼arrow buttons to select HEAT or OFF.

Pressing the MODE button again displays the “Fan Mode”

screen.

Use the up ▲and down ▼arrow buttons to select AUTO or ON.

NOTE: In AUTO, the fan runs only when the system calls for heat or cool. In ON, the fan runs continuously.

Pressing the MODE button again displays the “Humidifier”

screen.

NOTE: This page only appears if enabled in the “HUM

OPTS” setup screen.

NOTE: CHV-TSTAT requires additional remote humidity sensor (CHV-RTHS), sold separately.

Use the up ▲and down ▼arrow buttons to select ENABLED or DISABLED.

MODE

CRESTRON SYSTEM SCREEN

Pressing the MODE button again displays the “Crestron

MODE

VIEW

Crestron Sys

ONLINE HOLD

Sys” screen.

Use the up ▲and down ▼arrow buttons to select ONLINE or HOLD.

• ONLINE: Data flows both ways, to and from the

thermostat, enabling adjustment from a remote location.

• HOLD: Data flows one way, from the thermostat,

blocking system commands to change the temperature and humidity when you do not want the current settings reset. Restores to the last command sent when online is reengaged.

(Continued on the following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 69

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Slab 1 and Slab 2 System Thermostat Operation (Continued)

MODE

GLOBAL UPDATE SCREEN

Pressing the MODE button again displays the “Global

MODE

Global Update

Update” screen.

VIEW

SEND

Press the down▼ button to send the update. Pressing the MODE button again returns you to the Main

Screen.

Slab 4 Systems

Pressing the MODE button allows the user to access the following screens when the thermostat is

configured for Slab 4 systems.

MODE

FLOOR WARMING SCREEN

MODE

VIEW

MODE

Floor Warming

SYSTEM MODE SCREEN

System Mode

The “Floor Warming” screen appears when the MODE

button is initially pressed.

This screen displays current floor warming temperature and setpoint.

Pressing the MODE button again displays the “System

Mode” screen.

VIEW

HEAT OFF

Use the up ▲and down ▼arrow buttons to select HEAT or OFF.

MODE

FAN MODE SCREEN

Pressing the MODE button again displays the “Fan Mode”

MODE

VIEW

Fan Mode

AUTO ON

screen.

Use the up ▲and down ▼arrow buttons to select AUTO or ON.

NOTE: In AUTO, the fan runs only when the system calls for heat or cool. In ON, the fan runs continuously.

(Continued on the following page)

70 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Slab 3 System Thermostat Operation (Continued)

MODE

HUMIDIFIER SCREEN

Pressing the MODE button again displays the “Humidifier”

MODE

Humidifier

screen.

VIEW

MODE

VIEW

MODE

ENABLED DISABLED

CRESTRON SYSTEM SCREEN

Crestron Sys

ONLINE HOLD

GLOBAL UPDATE SCREEN

NOTE: This page only appears if enabled in the “HUM

OPTS” setup screen.

NOTE: CHV-TSTAT requires additional remote humidity sensor (CHV-RTHS), sold separately.

Use the up ▲and down ▼arrow buttons to select ENABLED or DISABLED.

Pressing the MODE button again displays the “Crestron

Sys” screen.

Use the up ▲and down ▼arrow buttons to select ONLINE or HOLD.

• ONLINE: Data flows both ways, to and from the

thermostat, enabling adjustment from a remote location.

• HOLD: Data flows one way, from the thermostat,

blocking system commands to change the temperature and humidity when you do not want the current settings reset. Restores to the last command sent when online is reengaged.

Pressing the MODE button again displays the “Global

MODE

VIEW

Global Update

SEND

Update” screen.

Allows a single thermostat location to update the current temperature settings to all other thermostats on the system, provided that this function has been defined in the Crestron program.

Press the down▼ button to send the update. Pressing the MODE button again returns you to the Main

Screen.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 71

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Programming Software

Have a question or comment about Crestron software?

Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at First-time users will need to establish a user account.

Earliest Version Software Requirements for the PC

NOTE: Crestron recommends that you use the latest software to take advantage of

the most recently released features. The latest software is available from the Crestron website.

Crestron has developed an assortment of Windows®-based software tools to develop a Cresnet system. For the minimum recommended software versions, visit the Version Tracker page of the Crestron website (

www.crestron.com/support.

www.crestron.com/versiontracker).

Programming with Crestron SystemBuilder

Crestron SystemBuilder™ is the easiest method of programming but does not offer as much flexibility as SIMPL Windows. For additional details, download SystemBuilder from the Crestron website and examine the extensive help file.

Any program created for a CHV-TSTAT/CHV-THSTAT with SystemBuilder will include the out-of-the-box functionality in addition to any additional programming created with SystemBuilder.

Programming with D3 Pro

Crestron’s D3 Pro® lighting software provides all the tools necessary to create a complete Crestron lighting system for residential applications. The lighting system includes the control system logic program, touchpanel projects and keypad programming, documentation and real-time lighting adjustment capabilities.

As with all Crestron software, D3 Pro provides extensive right-click and drag-anddrop functionality in addition to convenient keyboard shortcuts for frequently used functions and commands.

Programming is organized into six system Views of the lighting system, each

providing a moveable toolbox of devices such as interfaces, fixtures and control modules. You can add a device to your system simply by selecting it from one of the toolboxes and dragging it to a room. The available toolboxes differ depending on the View but all Views include a "General" toolbox that allows you to add areas and rooms at any time.

72 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Programming with SIMPL Windows

NOTE: While SIMPL Windows can be used to program the CHV-TSTAT and

CHV-THSTAT, it is recommended to use SystemBuilder for configuring a system.

SIMPL Windows is Crestron’s premier software for programming Crestron control systems. It is organized into two separate but equally important “Managers”.

NOTE: When programming a CHV-TSTAT/CHV-THSTAT in SIMPL Windows,

always begin with the example program and modify as required. To find example programs, refer to “Example Program” on page 74. Also visit Crestron’s True Blue Support on the web for more programming tips.

Configuration Manager

Configuration Manager is the view where programmers “build” a Crestron control

system by selecting hardware from the Device Library.

In the example shown below, a CHV-TSTAT/CHV-THSTAT is being used with a PRO2 control system.

1. To incorporate the CHV-TSTAT/CHV-THSTAT into the system, drag the CHV-TSTAT/CHV-THSTAT from the Cresnet Control Modules | Crestron

Sensing Modules folder of the Device Library and drop it in the System Views.

NOTE: It is not recommended to add the CHV-TSTAT/CHV-THSTAT

directly. Instead, add one of the available “modules” listed underneath it as

shown below.

Locating the CHV-TSTAT/CHV-THSTAT in the Device Library

2. The system tree of the control system displays the device in the appropriate slot with a default Net ID of 2A as shown in the following illustration.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 73

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

C2Net Device, Slot 8

3. Additional CHV-TSTAT/CHV-THSTAT devices are assigned different Net ID numbers as they are added.

4. If necessary, double click a device to open the “Device Settings” window and change the Net ID, as shown in the following figure.

Program Manager

“Device Settings: Crestron CHV-TSTAT/CHV-THSTAT” Window

5. The ID code specified in the SIMPL Windows program must match the Net ID of each unit. Refer to “Identity Code” on page 9.

Program Manager is the view where programmers “program” a Crestron control system by assigning signals to symbols.

The symbol can be viewed by double clicking on the icon or dragging it into Detail View. Each signal in the symbol is described in the SIMPL Windows help file (

F1).

Example Program

An example program for the CHV-TSTAT/CHV-THSTAT is available from the Crestron website (

www.crestron.com/exampleprograms).

74 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Uploading and Upgrading

Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade it is necessary to establish communication. Once communication has been established, files (for example, programs or firmware) can be transferred to the control system (and/or device). Finally, program checks can be performed (such as changing the device ID or creating an IP table) to ensure proper functioning.

Establishing Communication

Use Crestron Toolbox for communicating with the CHV-TSTAT/CHV-THSTAT; refer to the Crestron Toolbox help file for details. There is a single method of communication: indirect serial communication..

Indirect Communication

PC Running

Crestron Toolbox

CHV-TSTAT/CHV-THSTAT connects to control system via Cresnet:

1. Establish communication between the PC and the control system as described in the latest version of the 2-Series Control Systems Reference Guide (Doc. 6256).

2. Use the Address Book in Crestron Toolbox to create an entry for the CHV-TSTAT/CHV-THSTAT using the expected communication protocol (indirect). Select the Cresnet ID of the CHV-TSTAT/CHV-THSTAT and the address book entry of the control system that is connected to the CHV-TSTAT/CHV-THSTAT.

3. Display the CHV-TSTAT/CHV-THSTAT’s “System Info” window (click

the is displayed.

Serial,

Ethernet

or USB

icon); communications are confirmed when the device information

Control System

Cresnet

CHV-TSTAT/

CHV-THSTAT

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 75

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Programs and Firmware

Program or firmware files may be distributed from programmers to installers or from Crestron to dealers. Firmware upgrades are available from the Crestron website as new features are developed after product releases. One has the option to upload programs via the programming software or to upload and upgrade via the Crestron Toolbox. For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file.

SIMPL Windows

Firmware

If a SIMPL Windows program is provided, it can be uploaded to the control system using SIMPL Windows or Crestron Toolbox.

Check the Crestron website to find the latest firmware. (New users may be required to register to obtain access to certain areas of the site, including the FTP site.)

Upgrade CHV-TSTAT/CHV-THSTAT firmware via Crestron Toolbox.

1. Establish communication with the CHV-TSTAT/CHV-THSTAT and display the “System Info” window.

2. Select Functions | Firmware… to upgrade the CHV-TSTAT/

CHV-THSTAT firmware.

NOTE: Firmware version 2.40 is not compatible with SIMPL Windows programs that have used firmware version 1.1 and earlier.

Program Checks

Using Crestron Toolbox, display the network device tree (Tools | Network Device Tree) to show all network devices connected to the control system. Right-click on

the CHV-TSTAT/CHV-THSTAT to display actions that can be performed on the CHV-TSTAT/CHV-THSTAT.

76 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Problem Solving

Control System Error Log Message Formats

When a remote sensor that has been designated as USE, SLAB, or OD in the Setup Sensors screen (refer to “Thermostat Setup”, which begins on page 24) generates an error, a message is sent to the error log. Retrieve this message using the System Info tool in Crestron Toolbox:

1. Using Crestron Toolbox, select Tools|System Info.

2. Select the control system from the address bar and examine the Error Log.

Error Message Format

Sensor <channel> type <designator> <CHA errors>, <CHB errors> Errors @ <cycle count>

Where:

channel is the sensor channel string designator is the sensor setup designation CHA errors/CHB errors are the number of errors on each sub-channel cycle count is the number of read cycles that have occurred.

NOTE: Both sub-channels have their error count reported, regardless of the sensors

connected.

This message is sent upon the first error detected on the channel, as well as every 100 errors detected thereafter. When only one sensor is connected to a remote interface, its values assume the <CHA> position. The values for the <CHB> position are not used. When two sensors are connected to a remote interface, the <CHA> position indicates the errors for the first sensor, and the <CHB> position indicates the errors for the second sensor.

The following is an example output, as seen in Crestron Toolbox, when a single outdoor sensor connected to RS1 accumulates 101 read failures:

Error: Message from device Slot-09.ID-2A: Sensor R1T type OD: 101,3922 Errors @ 3922 (0056:0000:0056)

The following is an example output, as seen in Crestron Toolbox, when two air space sensors are connected to RS1 and the first sensor encountered a read failure:

Error: Message from device Slot-09.ID-2A: Sensor R1T type USE: 1,0 Errors

@ 5943 (0056:0000:0056)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 77

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Local Error Messages

When a critical sensor fails and prevents the safe or intended operation of the HVAC equipment, an error message flashes on the main screen.

This error message appears as a text message under the line that normally reads ON LINE and VIEW MSG. The thermostat messages are shown as follows in descending priority.

ERROR DESCRIPTION

ERR! NO AT SRC

ERR! NO SB SRC

ERR! NO HM SRC

ERR! NO OD SRC

Indicates that no air temperature source is present, because all available sensors designated USE have generated errors during the current read cycle. HVAC operation is suspended and relays are cleared, except on SLAB1 type. SLAB1 type cannot generate this error because it does not have an air temperature USE type.

Indicates that no slab temperature source is present, because all available sensors designated SLAB have generated errors during the current read cycle. HVAC operation is suspended on all slab modes (1, 2, 3, 4A, 4B, 5A, 5B).

Indicates that no humidity sources are present, because all available sensors designated USE have generated errors during the current read cycle. Humidifier operation is suspended and HUM relay is cleared.

Indicates that no outdoor source is present and the setup says at least one remote is supposed to be providing OD data (designated OD). This error does not disable HVAC operation because it is not absolutely essential. All heatpump modes that use outdoor temperature for balance point operation will eventually stage or switch to auxiliary heat and thus prevent the space from freezing.

NOTE: All of these conditions are self-healing if the sensor begins sending valid

data.

78 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Troubleshooting

The table below provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

CHV-TSTAT/CHV-THSTAT Troubleshooting

TROUBLE POSSIBLE

CAUSE(S)

No display

Heating/Cooling system not operating

Cannot change temperature setting

System cycles too quickly

High temperature variance

No power from system

Incorrect mounting to backplate

No power to thermostat

Flashing system indicator - Short cycle timer not satisfied

The upper or lower temperature limits were reached

Anticipator/Regulation setting too low

Anticipator/Regulation setting too high

CORRECTIVE ACTION

Check for +24V on pins 24(C) and 24(R)

Check circuit breaker powering furnace or boiler

Check P4 jumper on thermostat board

Check thermostat wiring

Check thermostat mounting

Check circuit breaker

Check 24V connection at thermostat and at furnace/air conditioner

Check circuit breaker powering furnace or boiler

Recheck wiring connections

Timer Guards are a safety feature that prevents rapid switching between different cycles H1, H2, C1, C2, SB, HM, and AX flash when the threeminute timer guards have not been satisfied Wait five minutes and/or consult HVAC contractor

Setpoint heat range is 38 – 90º F (3-38º C)

Setpoint cool range is 59-100º F (15 – 38º C)

Reprogram anticipator/regulator setting Refer to “Thermostat Setup”, on page 24

(Continued on following page)

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 79

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

CHV-TSTAT/CHV-THSTAT Troubleshooting (Continued)

TROUBLE POSSIBLE

CAUSE(S)

Wide temperature variance in singlesetpoint auto mode

Heating/Cooling not operating in singlesetpoint auto mode

Displays Error Message and equipment not operating

Wrong temperature displayed

Displays “NetDown”

Cannot leave setup

Cannot enter Auto mode

Cresnet Balance Point values out of range

Temperature offset value not affecting Cresnet outputs

Cannot change screens or setpoints

Auto deadband setting too high

20-minute system toggling lockout

Temperature sensors are disabled or have failed

Bad communications

Wrong units Select F or C as necessary

Incorrect sensor setup

Temperature Offset

Bad location

No Crestron program or the program does not have a device at this net address included in this system

Sensor configuration not valid

Auto mode disabled in setup

Values of -1°, 91°F represent "Off" settings

Offset is only added to "RegulationTemp"

Local operation locked out

CORRECTIVE ACTION

Adjust auto deadband setting in setup

Adjust auto deadband and anticipator settings for smoother operation

Refer to “Local Error Messages” on page 77

Check wiring – Use low capacitance twisted-pair wiring

Check sensor setup

Reset Temperature Offset

Ensure that thermostat is located out of direct sunlight, drafts, doorways, skylights, and windows

Check ID in program

Fix program, if one is needed

Ensure sensor setup meets system requirements. Refer to Sensor Setup screen

Select “N” for the Disable Auto Mode item on the “Other Settings” setup page

Verify intended balance point settings

Add offset in SIMPL program

Remove lockout from network

80 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Check Network Wiring

Use the Right Wire

Calculate Power

In order to ensure optimum performance over the full range of your installation topology, Crestron Certified Wire and only Crestron Certified Wire may be used. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.

CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to

do so could cause equipment damage or void the Crestron warranty.

CAUTION: Provide sufficient power to the system. Insufficient power can lead to

unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (

www.crestron.com/calculators).

When calculating the length of wire for a particular Cresnet run, the wire gauge and the Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisychained on the run, the Cresnet power usage of each network unit to be daisychained must be added together to determine the Cresnet power usage of the entire chain. If the unit is home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side.

Cable Length Equation

Strip and Tin Wire

Add Hubs

L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 MM ))

or 1.6 Ohms (Cresnet HP: 12 AWG (4 MM ))

P = Cresnet power usage of entire run (or chain)

L <

40,000

Where:

R x P

Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet (101 meters). If Cresnet HP is used for the same run, its length could extend to 1250 feet (381 meters).

NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One

twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the Y conductor and the Z conductor.

When daisy-chaining Cresnet units, strip the ends of the wires carefully to avoid nicking the conductors. Twist together the ends of the wires that share a pin on the network connector and tin the twisted connection. Apply solder only to the ends of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle. Insert the tinned connection into the Cresnet connector and tighten the retaining screw. Repeat the procedure for the other three conductors.

Use of a Cresnet Hub/Repeater (CNXHUB) is advised whenever the number of Cresnet devices on a network exceeds 20 or when the combined total length of Cresnet cable exceeds 3000 feet (914 meters).

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 81

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from the Crestron website ( product manuals arranged in alphabetical order by model number.

List of Related Reference Documents

2-Series Control Systems Reference Guide

www.crestron.com/manuals). This link will provide a list of

DOCUMENT TITLE

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876].

You can also log onto the online help section of the Crestron website

www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time

( users will need to establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of the CHV-TSTAT/CHV-THSTAT, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

82 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Appendix A: Glossary

Anticipators – Used to anticipate the drop or rise in temperature and energize the

appropriate system before reaching the set point.

Auto Dead Band Degree (Auto DdBand Deg) – Sets the minimum separation in

auto mode between the heat and cool setpoints, or the changeover band in 1-point auto mode.

Balance Point – The lowest outdoor temperature at which the refrigeration cycle of

a heat pump will supply the heating requirements without the aid of a supplementary heat source.

Blower (Fan) – An air-handling device for moving air in a distribution system. BTU - British Thermal Unit – In scientific terms, it represents the amount of

energy required to raise one pound of water one degree Fahrenheit. One BTU is the equivalent of the heat given off by a single wooden kitchen match.

Call – A call is when the thermostat requests the heating or cooling system to turn

on.

Damper – Found in ductwork, this movable plate opens and closes to control

airflow. Dampers are used effectively in zoning to regulate airflow to certain rooms.

Dead Band – The minimal differential between Heating and Cooling. Dual Fuel – A heat pump used in conjunction with an existing furnace. Dual Setpoint Auto – Enables the two-point auto mode. Emergency Heat (Supplementary Electric Heat) – The auxiliary (AUX) or

emergency heat provided at temperatures below a heat pump's balance point. It is usually electrical resistance heat.

Forced Air – A type of heating system that uses a blower motor to move air through

the furnace and into the ductwork.

Furnace – Equipment used to convert heating energy, such as fuel, oil, gas or

electricity, to usable heat. It usually contains a heat exchanger, a blower and the controls to operate the system.

Heat Exchanger – A device for the transfer of heat energy from the source to the

conveying medium of air or water. Most common combinations are: Refrigerant to air or Refrigerant to water (DX), Water to air (hydronic), Steam to air, Steam to water.

Heat Pump – A unit that both cools and heats. A heat pump system can be either a

split system or a packaged system. A heat pump can be used in conjunction with a gas/oil/LP furnace (using the furnace instead of electric resistance heat when temperatures fall below about 35º F).

Humidity – The total amount of moisture in air. Relative humidity (RH) is the

amount of moisture in air, relative to its total capability based upon its temperature (dewpoint). Moisture will condense on surfaces that are below this dewpoint.

HVAC – Heating, ventilation and air conditioning. Interstage Differential – The proportional temperature error (0.5 to 3.0º) to trigger

the second stage (2-stage only).

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 83

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Main Screen Lower Object (Main Screen Lwr Obj) – Selects the data item

displayed at the bottom of the main screen. Choice of: none, slab temperature, outdoor temperature, or indoor humidity.

Run Fan in Heat Calls (Run Fan in Ht Calls) –A device setting that activates the

fan output with W1/W2 heat calls. Does not enable operation on slab systems on the slab (W1) call.

Setpoint – The thermostat temperature or humidity adjustment setting. Time Delay (Timer Guards) – Refers to a safety device or circuit that will not allow

restart for three minutes.

Two Stage Heating –The heating unit starts out running in its first stage, and

operates at a fraction of its capacity. When the temperature outside goes very low, the system adjusts to full capacity (second stage) to meet the demand.

Wide Range Cool – Extends the cool setpoint range to the full auto range of 38° to

99°F.

84 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

Appendix B: About Heat Pumps

In the heating mode, the efficiency of a heat pump decreases as the outdoor air temperature decreases.

Heat Pump Operation

Heat flows naturally from a warm area to a cooler area, and the heat pump takes advantage of this principle. The heat pump essentially consists of a compressor, an inside coil and fan, and an outside coil and fan. A refrigerant flows inside the coils, under pressure applied by the compressor.

The refrigerant boils at a very low temperature (as low as -15° F) and becomes a vapor, just as water becomes a vapor (steam) when boiled. This vapor is sucked into the compressor where it becomes a high pressure, high temperature vapor.

When heating, the refrigerant is then forced through a coil within part of the heat pump located indoors. A fan blows cool air over the coil, the vapor cools, turns back to a liquid, releasing heat that is blown through a duct system to heat the house.

The cycle begins again as the cooled liquid refrigerant is pumped back outside after releasing it’s heat. On the way, it passes through an expansion valve, lowering the refrigerant's pressure and temperature again so it can boil more easily in the outdoor coil.

In its cooling mode the heat pump system works in reverse, extracting available heat from indoors and transferring it outside.

Heat pumps are most economical when they can be used year-round for both winter heating and summer cooling.

The efficiency of a heat pump varies significantly with the outdoor temperature. While a heat pump may be twice as efficient as a conventional heating system at 50°F. When the outdoor temperature drops to less than 30°F, the heat pump must be supplemented with an auxiliary heating system such as electric resistance. At temperatures of 15°F or less the heat pump may shut off and the backup heating system takes over. This is the heat pump balance point. In a dual-fuel system, the heat pump is supplemented with a standard furnace, which takes over when it becomes more efficient than the heat pump at very low temperatures.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 85

Thermostats Crestron CHV-TSTAT and CHV-THSTAT

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.

2. Products may be returned for credit, exchange or service with a CRESTRON Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.

Trademark Information

All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows 95/98/Me/XP/Vista/7 and Windows NT/2000 are trademarks of Microsoft Corporation.

86 • Thermostats: CHV-TSTAT and CHV-THSTAT Operations and Installation Guide – DOC. 8163D

Crestron CHV-TSTAT and CHV-THSTAT Thermostats

This page is intentionally left blank.

Operations and Installation Guide – DOC. 8163D Thermostats: CHV-TSTAT and CHV-THSTAT • 87

Crestron Electronics, Inc. Operations and Installation Guide – DOC. 8163D

15 Volvo Drive Rockleigh, NJ 07647 (2002184) Tel: 888.CRESTRON 05.10

Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.

Creston CHV-TSTAT, CHV-THSTAT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Quick Installation Reference

Thermostats: CHV-TSTAT and CHV-THSTAT

Introduction Introduction

Functions and Features

Specifications

Physical Description

Setup

Network Wiring

Identity Code

System Connections

Wiring Diagrams

Single Stage Heat Only Systems

Single Stage Heat with Fan Control Systems

Single Stage Cool Only Systems

Single Stage Heat/Cool with Integrated Control Unit Systems

Single Stage Heat/Cool with Separate Systems

Single Stage Heat Pump Systems

Two Stage Heat Pump Systems

General Humidifier Connections

Installation

Thermostat Setup

Setup Procedure

Setup Notes

System Types and Definitions

Heat/Cool, 1 or 2 Stages, Forced Air or Radiant

Heat Pump, 1 or 2 Stages, Aux Heat or Dual Fuel

Slab 1 – Floor Warming Only

Slab 2 – Single Stage Space Heat with Slab Maximum

Slab 3 – Single Stage Heat with Slab Minimum/Maximum

Slab 4A – Two Stage Heat/One Stage Cool with Slab Maximum

Slab 5A – 1 Stage Heat/Cool with Floor Warming

Slab 5B – 1 Stage Heat/Cool with Floor Warming (Heat Pump)

Thermostat Operation

View Button Menus

Mode Button Menus

Programming Software

Earliest Version Software Requirements for the PC

Programming with Crestron SystemBuilder

Programming with D3 Pro

Programming with SIMPL Windows

Example Program

Uploading and Upgrading

Establishing Communication

Programs and Firmware

Program Checks

Problem Solving

Control System Error Log Message Formats

Local Error Messages

Troubleshooting

Check Network Wiring

Reference Documents

Further Inquiries

Future Updates

Appendix A: Glossary

Appendix B: About Heat Pumps

Return and Warranty Policies
