Crest MFP1T Installation Guide
SAFETY FIRST
MFP1T
TV Wall Mount
Tilt Movement
This TV Wall Mount allows you to
tilt your TV up and down
Compatible TV Size
This TV Wall Mount fits 37-80”
37-80”
600x400mm
HOLDS
50
(94-203cm) TV Screens

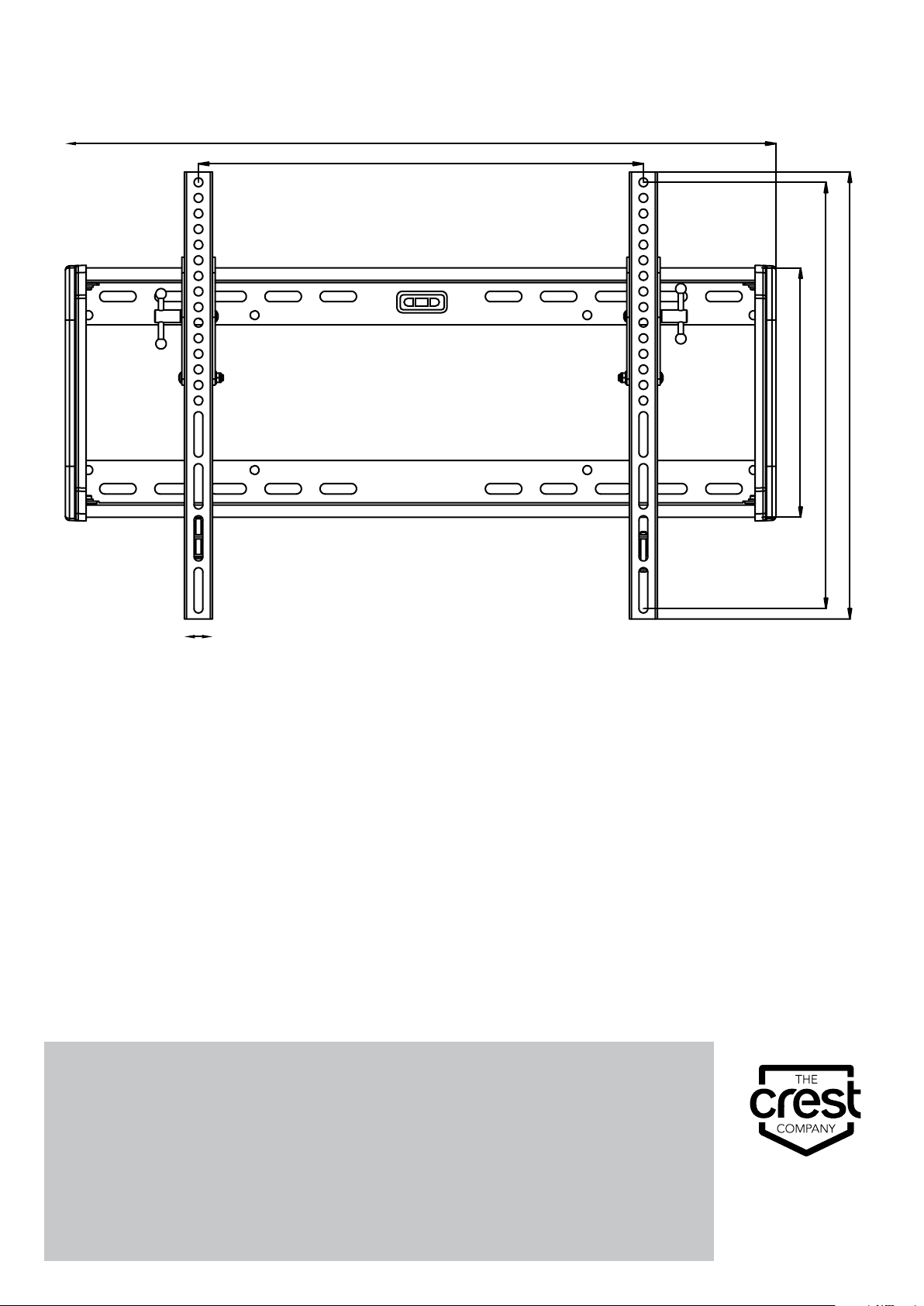

Maximum Mounting Pattern
This TV Wall Mount has a mounting
hole pattern up to 600x400mm (WxH)
Maximum TV Weight
This TV Wall Mount supports TVs
kg
weighing up to 50kg
1. Installation of this TV Wall Mount will be easier with two people.
2. Some images in this guide may vary slightly from the actual
components supplied.
3. Ensure this instruction manual is completely read and
understood before attempting installation.
4. This TV Wall Mount MUST NOT be installed solely in
plasterboard, fibre cement and similar surfaces.
5. This TV Wall Mount MUST be installed in sound supporting
structures such as those made of timber, steel or masonry
using appropriate fasteners.
6. The supporting structure must be capable of sustaining
the combined weight of the TV Wall Mount and the display
otherwise the structure must be reinforced.
7. The fasteners supplied in this hardware pack allow for fixing
into timber and masonry only. If installing into a supporting
structure made of steel, appropriate fasteners must be used
and sourced from an appropriate supplier.
8. Use appropriate tools and safety equipment and ensure
adequate ventilation during installation.
9. If uncertain about any aspect of installation, contact
The Crest Company or an installation professional.
Please retain these instructions for future reference.
10.
Hardware Kit Contents
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
A Lag Bolt 6
B Concrete Anchor 6
C Multi-sized Washer 4
D Spacer 4
E D8 Washer 6
F M5 x 30m Bolt 4
G M5 x 15mm Bolt 4
H M6 x 30mm Bolt 4
I M6 x 15mm Bolt
J M8 x 30mm Bolt 4
K M8 x 15mm Bolt 4
L Wall Plate 1
M Left Mounting Arm 1
N Right Mounting Arm 1
O Wall Mount End Caps 2
P 1
Spirit Level (included)
4
Tools Required
DRYWALL INSTALLATION (TIMBER SUPPORTS):
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill
• High speed 6mm drill bit
• Spirit level (included) and pencil
MASONRY INSTALLATION:
• Adjustable spanner/socket set
• Philips head screwdriver
• Power drill with hammer function
• 10mm Masonry drill bit
• Spirit level (included) and pencil
• Hammer
Using Spirit Level
Use the supplied spirit level to level your TV Wall mount before installation.

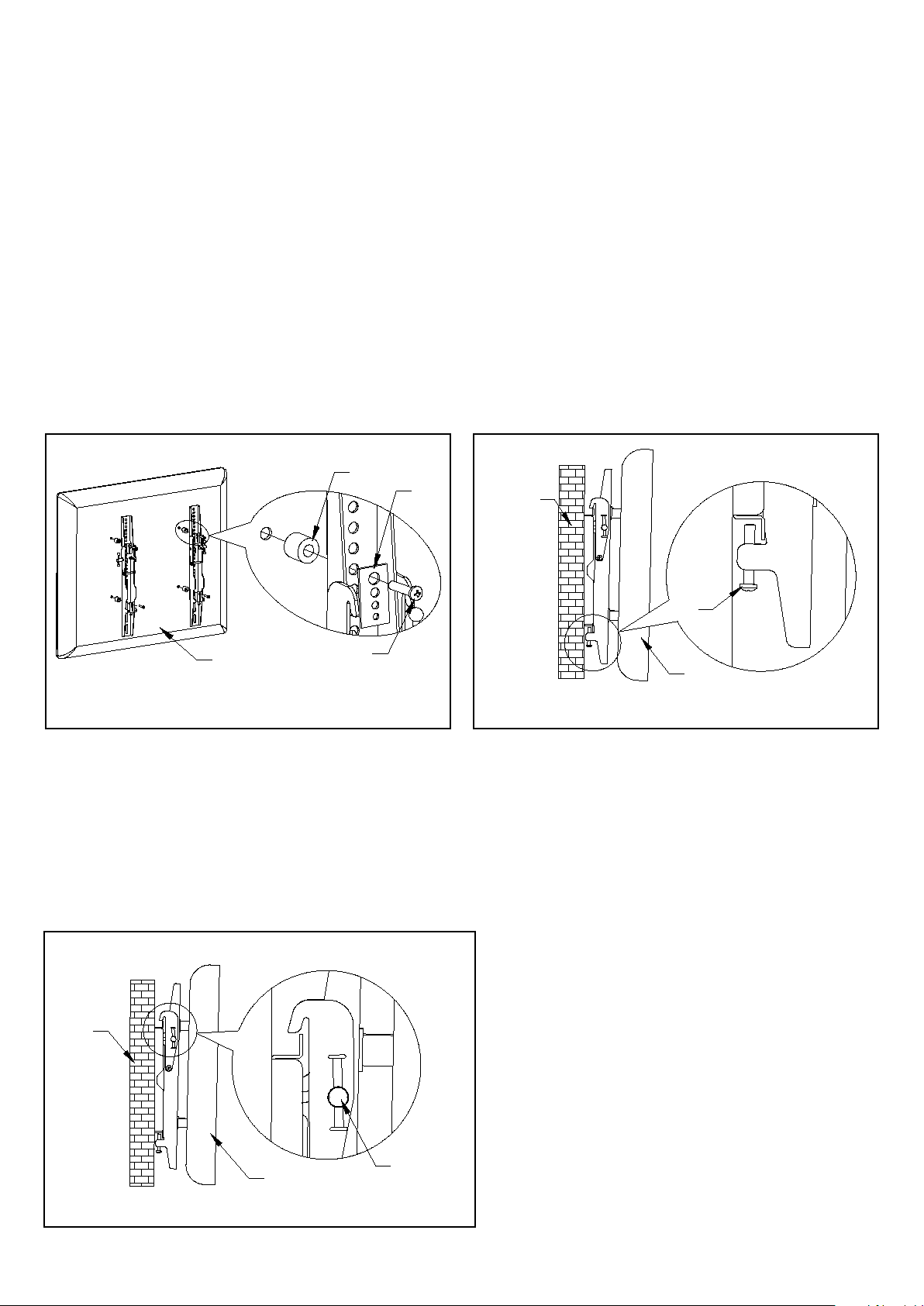

Step 1: Attach Wall Plate to Wall
A. INSTALLING IN DRYWALL (TIMBER FRAME) – SEE FIGURE 1
WARNING: If attaching this TV Wall Mount using this method, you MUST spread the wall plate across 2 wall studs.
Wall studs can be 450mm or 600mm apart depending upon the position of the wall and the geographical state
you live in. The Crest Company will not accept any damages that may occur if only 1 stud is used.
The Crest Company holds no responsibility for incorrectly installed TV Wall Mounts.
1. Locate the centre of two adjacent timber studs. Crest recommends the use of a stud nder (not included).
(NOTE: You must use the centre of the stud to avoid cracking or splitting the timber during installation).
2. Mark a minimum of 4 fixing holes over stud centres using the wall plate as a guide (2 at either end of the wall plate).
Ensure wall plate is level.
3. Pre-drill holes to a minimum depth of 50mm using a high speed 6mm drill bit. If installing in hardwood, larger diameter and
deeper holes may be required.
4. Attach the wall plate using the lag bolts (A) through the washers (E). Do not over tighten.
5. Clip end caps (O) over both ends of the wall plate.
B. INSTALLING IN MASONRY – SEE FIGURE 2
WARNING: Ensure you have a minimum of 35mm of actual concrete/brick thickness in the hole for the anchors.
Do not drill into mortar joints. Installer must verify that the supporting surface will safely support the combined weight
of the TV Wall Mount and TV. The Crest Company holds no responsibility for incorrectly installed TV Wall Mounts.
1. Mark a minimum of four fixing holes (preferably 6) using wall plate as a guide (two at either end of the wall plate).
Ensure wall plate is level.
2. Pre-drill holes to a minimum depth of 60mm using a 10mm masonry drill bit. Clean out holes.
3. Fully insert the concrete anchors (B). Tap in with hammer if required.
4. Attach the wall plate by inserting the lag bolts (A) through the washers (E) into each concrete anchor (B).
Do not over tighten.
5. Clip end caps (O) over both ends of the wall plate.
stud
E
A
Figure 1
B
E
A
Figure 2
