Cres Cor ROR-201-SBS-1332-D User Manual

INSULATED STAINLESS STEEL

TM

C US

®

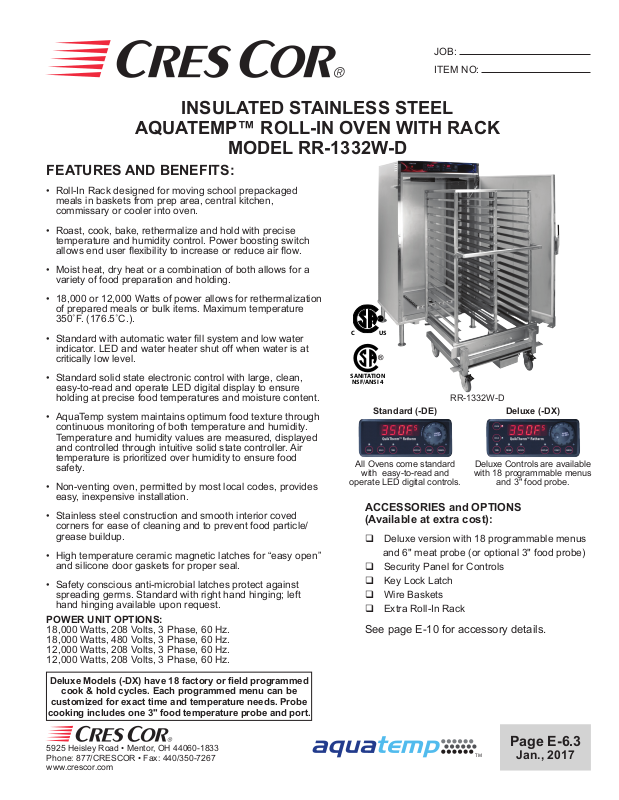

AQUATEMP™ ROLL-IN OVEN WITH RACK

MODEL RR-1332W-D

FEATURES AND BENEFITS:

• Roll-In Rack designed for moving school prepackaged
meals in baskets from prep area, central kitchen,
commissary or cooler into oven.

• Roast, cook, bake, rethermalize and hold with precise
temperature and humidity control. Power boosting switch

allows end user exibility to increase or reduce air ow.

• Moist heat, dry heat or a combination of both allows for a
variety of food preparation and holding.

• 18,000 or 12,000 Watts of power allows for rethermalization
of prepared meals or bulk items. Maximum temperature

350˚F. (176.5˚C.).

• Standard with automatic water ll system and low water
indicator. LED and water heater shut off when water is at
critically low level.

• Standard solid state electronic control with large, clean,
easy-to-read and operate LED digital display to ensure
holding at precise food temperatures and moisture content.

• AquaTemp system maintains optimum food texture through
continuous monitoring of both temperature and humidity.
Temperature and humidity values are measured, displayed
and controlled through intuitive solid state controller. Air
temperature is prioritized over humidity to ensure food
safety.

• Non-venting oven, permitted by most local codes, provides
easy, inexpensive installation.

• Stainless steel construction and smooth interior coved
corners for ease of cleaning and to prevent food particle/
grease buildup.

• High temperature ceramic magnetic latches for “easy open”
and silicone door gaskets for proper seal.

• Safety conscious anti-microbial latches protect against
spreading germs. Standard with right hand hinging; left
hand hinging available upon request.

POWER UNIT OPTIONS:

18,000 Watts, 208 Volts, 3 Phase, 60 Hz.
18,000 Watts, 480 Volts, 3 Phase, 60 Hz.
12,000 Watts, 208 Volts, 3 Phase, 60 Hz.
12,000 Watts, 208 Volts, 3 Phase, 60 Hz.

JOB:

ITEM NO:

®

SANITATION

NSF/ANSI 4

RR-1332W-D

Standard (-DE) Deluxe (-DX)

All Ovens come standard

with easy-to-read and

operate LED digital controls.

Deluxe Controls are available
with 18 programmable menus

and 3" food probe.

ACCESSORIES and OPTIONS
(Available at extra cost):

q Deluxe version with 18 programmable menus

and 6" meat probe (or optional 3" food probe)

q Security Panel for Controls
q Key Lock Latch
q Wire Baskets
q Extra Roll-In Rack

See page E-10 for accessory details.

Deluxe Models (-DX) have 18 factory or eld programmed

cook & hold cycles. Each programmed menu can be

customized for exact time and temperature needs. Probe

cooking includes one 3" food temperature probe and port.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page E-6.3

Jan., 2017

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram or
to call Cres Cor

®

Customer Service.

If you need a QR reader, visit your
App Store on your Smartphone or
Tablet.

Model
RR-1332-WD Series

8400-101

A

B

C

REMOVABLE

HANDLE

A

B

3.00

A

RR-1332W-D

3"

DETAIL OF
PAN SLIDE

B

REMOVABLE

HANDLE

C

G

Z

X

Y

15-50P

X

Y

G

Z

L15-30P

L16-30P (480V)

C

10.190

CRES COR

MODEL NO.

RR-1332W-DE
RR-1332W-DX

ROR-201-SBS-1332-D

CAPACITY / SIZE

1 RACK

32

BASKETS

13 X 26 IN 35-5/8 30-1/4 65-1/2 13-5/8 26 49-1/2 LBS 131

330 X 660 MM 905 768 1663 346 660 1257 KG 59

DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

IN 39 33-7/8 77-5/8 32-1/8

28-3/8

56-1/4 LBS 412

WEIGHT

ACT.

MM 991 859 197 816 721 1429 KG 187

INSIDE RACK WIDTH DIMENSION IS FOR ONE SIDE.

CABINET:

• Body: 22 ga. stainless steel.

• Inner liner: Formed 22 ga. stainless steel.

• Reinforcement: Internal framework of 14 ga. stainless steel channels, welded.

• Insulation: Fiberglass, thermal conductivity (K factor) is .23 at 75˚F. 1-1/2" in

back wall, door, base; 2" in side walls.

• Air tunnel: 20 ga. stainless steel, lift-out type, mounted on inner sides.

• Water Pan: 4 gallons, 16 ga. stainless steel with 1850 Amps., heater for
humidity.

BASE:

• One piece construction, .190 aluminum.

• Legs: Heavy duty polished stainless steel 2" O.D. adjustable for leveling oven.

DOOR:

• Field reversible.

• Formed 22 ga. stainless steel.

• Latch: Chrome plated high pressure die cast zinc, composite handle,
ceramic magnetic.

• Hinges: Heavy duty chrome plated die cast zinc, mounted inboard.

• Door Gaskets: Perimeter type, silicone.

POWER REQUIREMENTS AVAILABLE:

• 18,000 Watts, 208 Volts, 3 Phase, 60 Hz., 50 Amp. Service

• 18,000 Watts, 480 Volts, 3 Phase, 60 Hz., 50 Amp. Service

• 12,000 Watts, 208 Volts, 3 Phase, 60 Hz., 50 Amp. Service

• 12,000 Watts, 480 Volts, 3 Phase, 60 Hz., 30 Amp. Service

ELECTRICAL COMPONENTS:

• Thermostat (retherm/hold): Solid state digital control, 140°F to 350˚F (176.5˚C).

• Switch: ON-OFF push button type.

• Power cord: Permanent, 8 ft., with: Right angle straight blade plug for 50A.,
3Ph., Twist-lock plug for 30A., 3Ph.

• Heaters (6): 2000 Watts each for 12KW; 3000 Watts each for 18KW.

• Switch: (1) Air volume.

• Blower motors: (6).

• Vent fans: (3).

• Fuses: (2) 6 Amp.

ROLL-IN RACK (ROR-201-SBS-1332-D):

BASKETS NOT INCLUDED

• Angles (16 sets): Formed, permanently attached, spaced on 3" centers.

• 5" dia. swivel, modulus tires, 1-1/4" wide, load cap. 250 lbs. each, temp.

range -45˚/+180˚F. Delrin bearings. Two casters equipped with brakes.

• Capacity: 2 baskets side-by-side, 16 baskets high, 32 baskets total, 320
meals total.

• Total weight capacity for retherm: Maximum unit loading equals 150 lbs.
equally distributed among 32 baskets at 4.66 lbs./basket, per Annex B

in NSF Standard 4 "Performance Test Methods for Rethermalization

Equipment".

SHORT FORM SPECIFICATIONS

Cres Cor QuikTherm™ Roll-In Retherm Oven Model
RR-1332W-D. 18 ga. stainless steel, recessed control panel.
Cabinet and Dutch doors 22 ga. stainless steel; stainless steel

internal frame; coved corner interior. Fiberglass insulation in

sides 2”; back, doors and base 1-1/2”. High temperature anti-

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram
or to call Customer Service.

If you need a QR reader visit your App
Store on your Smartphone or Tablet.

microbial magnetic latches. One piece base .190 aluminum.
2" dia. stainless steel legs. Includes Cres Cor Roll-In Rack
Model ROR-201-SBS-1332-D: 16 angles on 3" centers; holds
32 baskets. 5" swivel modulus casters, Delrin bearings. Load

capacity 250 lbs. each, temperature -45 to +180°F. 120 Volts,

60 Hz., 1 Phase. 2 year parts warranty. Provide the following
accessories: ____ ____ ____ . CSA-US, CSA-C, CSA to

NSF4 listed.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2017 All rights reserved. Made in America Since 1936

In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and

specications without notice.
