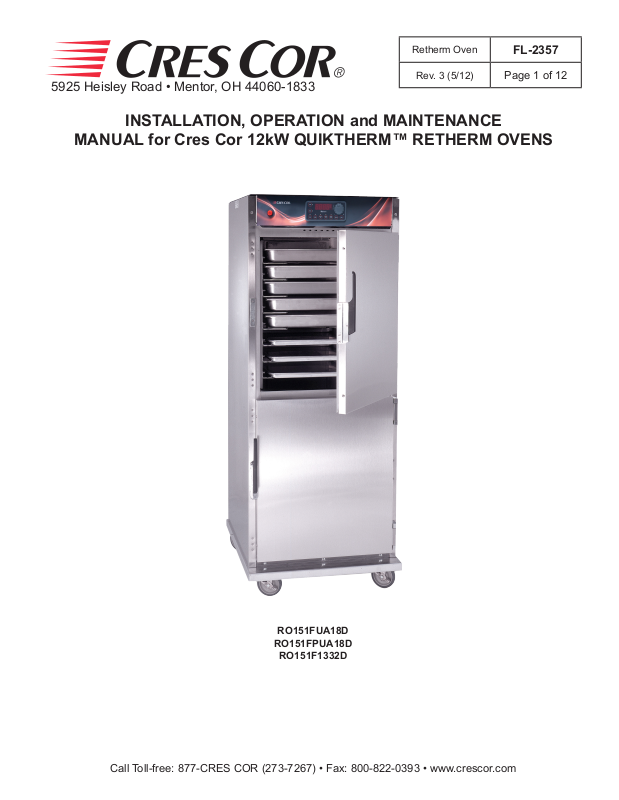

Cres cor RO151FUA18D User Manual

Retherm Oven

FL-2357

Rev. 3 (5/12)

5925 Heisley Road • Mentor, OH 44060-1833

INSTALLATION, OPERATION and MAINTENANCE

MANUAL for Cres Cor 12kW QUIKTHERM™ RETHERM OVENS

Page 1 of 12

RO151FUA18D

RO151FPUA18D

RO151F1332D

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

Rev. 3 (5/12)

Page 2 of 12

5925 Heisley Road • Mentor, OH 44060-1833

TABLE OF CONTENTS

SUBJECT PAGE

INSTALLATION INSTRUCTIONS .............................................3

OPERATING INSTRUCTIONS

First Time Operation ....................................................3

How to Use Control for Cooking & Holding .................................4

How to Save and Use Recipes ............................................5

“Quick Recipe” and Other Menu settings ....................................5

MAINTENANCE INSTRUCTIONS

How to Clean the Unit ..................................................6

Trouble Shooting Guide ...............................................7, 8

Cabinet Replacement Parts ...............................................9

Hot Unit Replacement Parts .............................................10

Wiring Diagram For 208/240 Volt, 3 Phase .................................11

Wiring Diagram for 480 Volt, 3 Phase ....................................12

SERVICE POLICY and AGENCY LIST ....................................FL-1400

WARNING

RISK OF FIRE OR ELECTRIC SHOCK

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

DO NOT OPEN

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

PERSONNEL ONLY

Retherm Oven

FL-2357

5925 Heisley Road • Mentor, OH 44060-1833

INSTALLATION INSTRUCTIONS

VENTING YOUR OVEN:

1. The purpose of ventilating hoods is to direct and
capture smoke, grease-laden vapors, heat, odors, or
fumes.

2. Low temperature equipment (maximum temperature
250°F/121°C) does not produce heat, odors, fumes,
grease-laden vapors or smoke and is not required to be
vented.

UNIT SPECIFICATIONS: All units use six (6) elements (2000 watts each).
All units are rated 12000 watts.

MODEL NOS.

RO151FUA18D2083
RO151FPUA18D2083
RO151F1332D2083
RO151FUA18D2403
RO151FPUA18D2403
RO151F1332D2403

ELECTRICAL SPECS

(AC SERVICE)

VOLTS PHASES HZ AMPS VOLTS AMPS PHASES VOLTS RECEPTACLE

208 3 60 34 208 50 3 208 15-50R

240 3 60 29 240 50 3 240 15-50R

3. Most jurisdictions consider our low-temperature ovens
(maximum temperature is 350°F/177°C) as low-heat
appliances not requiring vent hoods.

4. Installation must conform with local codes. The
authority having jurisdiction of enforcement of
the codes will have the responsibility for making
interpretations of the rules.

ELEC. LOAD

Rev. 3 (5/12)

POWER SUPPLY REQUIREMENT

ALL 3 PHASE IS 3 WIRE + GROUND

Page 3 of 12

RO151F1332D4803 480 3 60 15 480 30 3 480 L16-30R

HOW TO INSTALL CABINETS:

1. Remove all packing material from inside and outside
of cabinet.

2. Position cabinet on level oor; install the cabinet
interior (pan slides) if not already installed.

3. Plug power cord into proper wall receptacle.

FIRST-TIME OPERATION

NOTE: A new oven needs to “burn off” manufacturing

oils and excessive adhesive before its rst use.

Do NOT load food into oven until this has been
done!

1. Push the switch to on; the light will come on.

HOW TO CHANGE FROM °C TO °F (if needed)

1. Push the switch on; the light will come on.

2. Push and hold the “SET” button and the button in the
lower left hand corner together for 5 seconds.
You are now entered into the menu.

3. Scroll over the”Unit” and change it to “C” , then scroll
to the “END”.

NOTE: The letters “LOTPR” (low temperature) will show

on the control panel until it reaches 140°F (60°C).

2. Press the “COOK” button.

3. Push down and turn the control knob to show 200°F.
Push the knob again to set the temperature. Run the
unit for one (1) hour.

4. Turn the unit off and let cool.

5. Wipe the inside clean with detergent and hot water.

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

Rev. 3 (5/12)

Page 4 of 12

5925 Heisley Road • Mentor, OH 44060-1833

OPERATING INSTRUCTIONS

AIR RETHERM SWITCH

This switch MUST be pushed to “HIGH” (ON) for Retherming food.

FOR RETHERM

FOR COOKING

HOW TO USE THE RETHERM CONTROL:

*Push the lighted switch on the control panel; the light

will come on and the cabinet will start heating.

*The display will read “LOTPR” (low temperature)

below 140°F. (60°C.).

NOTE: Wait one (1) hour after start up before loading the

food for best results.

The display will read “PREHT” until the cabinet

reaches the set temperature.

Cooking:

1. Press the COOK button.

2. Turn the control knob to the desired cooking
temperature between 200°F (93°C) and 350°F (176°C).

3. Push the knob to set the temperature.

4. The control automatically goes to the HOLD mode.
(Continue to step 1 below).

Holding:

(Press the HOLD button only if you are just holding food),

1. Turn the control knob to the desired holding
temperature between 140°F (60°C) and 220°F (104°C).

2. Push the knob to set the temperature.

3. The control automatically goes to the TIME mode.

Setting the time or Food Probe:

1. If NOT using the Food Probe:
a) Turn the control knob to the desired hours/minutes.
b) Push the knob to set the time.

2. Using the Food Probe:
Plug in the food probe BEFORE you enter the TIME
mode. Otherwise, you have to press the PROBE
button to set the probe temperature.
a) Turn the knob to the desired temperature.
b) The timer will stop when the probe reaches the set
temperature.

3. Press the START button. The display will show
“READY” when preheated.

4. Press the START again to use this recipe (see Recipes”).

Note: Press the knob for 4 seconds to cancel the recipe.

The DISPLAY button shows (cycles through) all the
values when in each mode:

• “PREHEAT” OR “READY”: momentarily shows the
actual cabinet temperature.

• “COOK” (Timed): shows Home screen, set point,
count down time, actual cabinet temperature.

• “COOK” (Probe): shows Home screen, set point,
count up time, actual cabinet temperature.

• “HOLD”: shows Home screen, set point, count up
time, actual cabinet temperature.

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

5925 Heisley Road • Mentor, OH 44060-1833

OPERATING INSTRUCTIONS (continued)

RECIPES:

The control can hold up to 18 saved recipes.

To save a recipe:

1. Press and hold both the TIME button and the knob

for 5 seconds. The screen will be ashing. This is the

setup menu.

2. Turn the knob through the menu until you get to
“Edit”.

3. Press the knob and turn to the recipe you want to edit.
There are 18 blank recipes to customize and save.

4. Press the knob and enter the cook, hold and time
values.

5. After the entering the nal value, “Edit” will show
again.

6. Press the knob to edit more recipes or turn to “End” to
exit the menu.

To use one of the recipes:

1. Push one of the three RECIPE group buttons for the
recipe number you want.

2. Turn the knob to the recipe you want and press the
knob to select.

3. Press the START button to preheat.

4. After it shows “READY”, press the START button
again to begin the recipe.

Note: The display button will cycle through all the values

as before, but will include the recipe number, if
using a saved recipe.

Rev. 3 (5/12)

Page 5 of 12

Quick Recipe Note:

You can set “Quick Recipes” for recipes that you use
often. This way, when you press a recipe group button and
press start, that recipe will start cooking without searching
for the recipe number. Recipe numbers can be set up as
“quick recipes” as follows:

1. Press and hold both the TIME button and the knob for
5 seconds to get into the menu.

2. Turn the knob to “RBTN” and press the knob. The

word “PUSH” will ash.

3. Press one of the recipe group buttons to assign a
recipe.

Note: Recipe numbers 1-6 can be set up as Group button 1.

Recipe numbers 7-12 can be set up as Group button 2.
Recipe numbers 13-18 can be set up as Group button 3.

4. Turn the knob to the recipe number you want to assign
to that button and press the knob.

Repeat the process to assign recipes to the other two recipe

group buttons; or,
turn the knob to “END” the submenu; turn to “END” the

menu.

Additional Menu Settings:

Press and hold both the TIME button and the knob for 5
seconds to get into the menu.

Here you can set the recipes, quick recipes, temperature
units (°C or °F) and the datalog
settings (USB connection required):

”RECE” allows you to enable or disable the data record
feature.

“RECF” allows you set how often (in minutes) a
datapoint will be recorded.

“RECD” allows you to set how long (in days) you
would like the data to be stored in memory.

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

5925 Heisley Road • Mentor, OH 44060-1833

MAINTENANCE INSTRUCTIONS

HOW TO CLEAN THE UNIT

WARNING

BEFORE cleaning the cabinet:

1. Unplug cord from wall. Allow cabinet to
cool.

2. Do NOT hose cabinet with water.

3. Do NOT get water on controls.

4. Do NOT use abrasives or harsh
chemicals.

5. Do NOT use “Cres Clean” (or any citrus
cleaner) on labels or plastic parts.

Rev. 3 (5/12)

Page 6 of 12

Cleaning Hints:

1. Use the mildest cleaning procedure that will do the
job.

2. Always rub in the direction of the polish lines to avoid
scratching the surface.

HOW TO CLEAN THE UNIT:

SOIL CLEANER METHOD

Soap, ammonia or mild
detergent* and water.

Mild abrasive made for
Stainless Steel.

Chemical oven cleaner
made for Stainless Steel.

Vinegar

CABINET

Inside and Outside

(Stainless Steel)

ROUTINE CLEANING

STUBBORN SPOTS,
STAINS

BURNT ON FOODS OR
GREASE

HARD WATER SPOTS &
SCALE

* Mild detergents include soaps and non-abrasive cleaners

3. Use only a soft cloth, sponge, brous brushes, plastic
or stainless steel pad for cleaning and scouring.

4. Rinse thoroughly with fresh water after every cleaning
operation.

5. Always wipe dry to avoid water marks.

1. Sponge on with cloth

2. Rinse

1. Apply with damp sponge or cloth.

2. Rub lightly.

Follow oven cleaner manufacturer’s
directions.

1. Swab or wipe with cloth.

2. Rinse and dry.

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

Rev. 3 (5/12)

Page 7 of 12

5925 Heisley Road • Mentor, OH 44060-1833

MAINTENANCE INSTRUCTIONS

TROUBLE-SHOOTING GUIDE, continued

HOW TO ADJUST THE DOOR LATCH:

1. For vertical (up and down movement) adjustment:

a. Loosen (2) screws located in magnetic strike.

b. Move strike up or down for alignment to magnet on latch.

c. Tighten screws to secure

2. For horizontal (greater or lesser magnetic draw) adjustment:

a. Loosen (4) screws in door latch.

b. Move latch forward or backward to adjust magnetism.

c. Tighten screws to secure.

TROUBLE-SHOOTING GUIDE

WARNING

IF OVEN GETS TOO HOT OR WON’T SHUT OFF, DISCONNECT

POWER AT BRANCH PANEL. DO NOT UNPLUG CORD!

If unit is NOT working, rst check the following causes:

1. Cord is unplugged from wall outlet.

2. Circuit breaker/fuse to wall outlet is blown.

PROBLEM POSSIBLE CAUSE SOLUTION

Oven does not turn on

1. Power switch is bad

2. Retherm control is bad.

3. Switch is turned off.

4. Fuse on back of unit is blown.

1. Replace

2. Replace

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

5925 Heisley Road • Mentor, OH 44060-1833

MAINTENANCE INSTRUCTIONS

TROUBLE-SHOOTING GUIDE (continued)

IF THE OVEN TURNS ON:

PROBLEM POSSIBLE CAUSE SOLUTION

Oven does not heat, or doesn’t heat
properly

Blowers do not operate

Heater will not shut off

Vent fans do not shut off

Vent fans do not operate (See Note)

Control will not switch from “COOK” to
“HOLD” (timed mode)

Control will not switch from “COOK” to
“HOLD” (probe mode)

Control will not switch to “COOK” (probe
mode)

1. Sensor

2. Heater contactor

3. Loose wiring at heater contactor

4. Retherm control

5. High Limit

1. Air retherm switch

2. Blower

3. Retherm control

1. Control defective

2. Heater contactor

1. Vent fan switch defective

2. Control compartment is still hot.

1. Vent fan switch defective

2. Vent fan defective

1. Oven is in “PROBE” mode.

2. Retherm control defective

1. Oven is in the “TIMED” mode

2. Probe not plugged in

3. Probe defective

4. Retherm control defective

1. Oven in “TIMED” mode

2. Probe temperature setting lower
than probe temperature

3. Probe not plugged in

4. Retherm control defective

1. Replace

2. Replace

3. Replace

4. Replace

5. Replace

1. Replace

2. Replace

3. Replace

1. Replace

2. Replace

1. Replace

2. Wait until it cools
Check “Heater will not shut off”

1. Replace

2. Replace

1. Cancel recipe and switch to “TIMED” mode

2. Replace

1. Cancel recipe and switch to “PROBE” mode

2. Plug in probe

3. Replace

4. Replace

1. Switch to “PROBE” mode

2. Set probe temperature to desired tempera­ture

3. Plug in probe

4. Replace

Rev. 3 (5/12)

Page 8 of 12

ERROR CODES:

CODE DISPLAYED CAUSE SOLUTION

no p No meat probe Plug in probe

Err0 Temp probe bad Replace

NOTE: Vent fans will not operate until the control compartment requires ventilation to limit temperatures. Replacement

of electrical components must be done by a qualied electrician.

Refer to our Service Agency list, FL-1400 (found in the back of this manual), of authorized service centers.
Instructions for replacing parts are included in replacement parts list.

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

Rev. 3 (5/12)

Page 9 of 12

5925 Heisley Road • Mentor, OH 44060-1833

REPLACEMENT PARTS

Include all information on nameplate when ordering parts

28

27

26

23

21

20

21

20

Replacement Parts:

ITEM DESCRIPTION PART NUMBER

19. Door Assembly (1332D) 1221-579-K
Door Assembly (UA18D) 1221-580-K

20. Door Latch Kit 1006-122-01-K

21. Door Strike Kit 1006-122-02-K

22. Door Hinge Kit 0519-109-K

23. Door Gasket (1332D) 0861-185-K
Door Gasket (UA18D) 0861-235-K

24. Casters 0569-306-R

25. Casters w/brake 0569-306-B

26. Posts 0696-250

27. Air Tunnel 0546-146-C

28. Wire Angles (2 per kit) 0621-281-SS-K
Drip Pan (clear) 1017-058

19

25

22

24

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

FL-2357

5925 Heisley Road • Mentor, OH 44060-1833

11

1

7

2

13

7

17

10

Rev. 3 (5/12)

8

9

4

12

Page 10 of 12

14

16

4

5

5

3

17

TOP VIEW

WITHOUT COVER

4

5

6

Electrical Replacement Parts:

ITEM DESCRIPTION Part No. ITEM DESCRIPTION Part No.

1. Switch (On/Off) 0808-125 10. Hi Limit Switch 0848-077

2. Retherm Thermostat 11. Transformer 0769-197
Digital Control
Sensor

0848-092-03
0848-091

3. Blower Switch 0808-114 14. Power Cord Kit 0810-178-K

4. Vent Fan 0769-174 16. Strain Relief Kit 0818-103-K

5. Fan Guard 0769-167 17. Heater Kit (208V) 0811-0300-K

6. Fuse
Fuse Holder
Fuse (480V)
Fuse Holder (480V)

0807-155
0807-150
0807-058
0807-048

7. Blower Kit 0769-186-K Food Probe 6” Long 0848-100

8. Contactor 0857-026

9. Terminal Block, rear 0852-093

12. Relay 0857-102

13. Fan Switch 0848-034

Heater Kit (240V) 0811-0301-K

Heater Kit (480V) 0811-0302-K
Connector, Probe (not shown) 0848-094
Food Probe 1.5” Long 0848-098

REAR VIEWFRONT VIEW

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

closes @130F

FL-2357

Rev. 3 (5/12)

Page 11 of 12

for NON-PASS THRU OVENS RO151F SERIES 208/240V 3 Ph

Include all information

on nameplate when

ordering parts

RED

BLACK

BROWN

TRANSFORMER

RED

GRAY

ORANGE

BROWN

7 WIRE RENAU TRANSFORMER WIRING

AIR

PROBE

t°

MEAT

PROBE

t°

23

22

2

7

TRANSFORMER

WIRE COLORS: TRIAD/HAMMOND

25

5925 Heisley Road • Mentor, OH 44060-1833

REPLACEMENT PARTS

FUSES

6A

6A

3

500F

HIGH LIMIT

32

35

41 42

GROUND*

POWER CORD

8 AWG, 4 COND

CABINET BODY

TERMINAL

LOCK WASHER

NUT

41

42

L3

HEATER

CONTACTOR

26

27

31

12

L1

L2

13

32

37

36

*A lockwasher & nut (or

double nuts) are required on

ground bolt on top of cord's

ground terminal.

1

L

N

N

L

POWER

SWITCH

(rear view)

8

9

6

WHITE/WHITE

BLACK/BLACK

BROWN/BROWN

BLUE/ORANGE

27

GREY/RED

RED/YELLOW

YELLOW/GREY

PURPLE/BLUE

24

26

30

28

500F

HIGH LIMIT

29

2

1

4

31

33

34

30

BLOWER

MOTOR

BLOWER

HOLD BLOWERS

21

20

19

MOTOR

240V PWR SW

10

8

9

34

35

18

21

L1

brwn

19

L2

blue

20

13

TERMINAL BLOCK

3

HIGH TEMP

FAN

VENT

5

4

FAN

VENT

FAN

VENT

IMPORTANT: VENT FANS

BLOW AIR INTO APPLIANCE

MOTOR

BLOWER

12

1011

K3 K1 K2

AIR TEMP

LOOKING AT REAR

RENAU CONTROL

23

8

7

6
5

4
3
2
1

BLOWER AIR SWITCH

14

15

22

16

BLOWER

MOTOR

15

14

13

12
11

25

10

9

24

15

16

2

3

1

ON UNITS WITHOUT

SWITCH, WIRES 15

BLOWER CUTOUT

AND 16 ARE

WIRE 17

REPLACED WITH

COOK BLOWERS

16

40

37

MOTOR

BLOWER

RETHERM BLOWERS

18

14

MOTOR

BLOWER

500F

HIGH LIMIT

40

39

38

36

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com

Retherm Oven

closes @130F

FL-2357

5925 Heisley Road • Mentor, OH 44060-1833

REPLACEMENT PARTS

for OVENS RO151F SERIES 480V, 3 Ph

Include all information

on nameplate when

ordering parts

LV

8

6

4

3

2

jumper

1

5

7

43

500F

HIGH LIMIT

44

45

HEATERS

MOTOR

BLOWER

COOK BLOWERS

LINE VOLTAGE.

41

40

MOTOR

MOTOR

BLOWER

55

54

52

500F

HIGH LIMIT

TRANSFORMER

7 WIRE RENAU TRANSFORMER WIRING

19

19

AIR

t°

t°

MEAT

8

7

6
5

4
3
2
1

BLACK

ORANGE

RED

BROWN

RED

GRAY

PROBE

PROBE

K3 K1 K2

16

15

14

13

12
11

10
9

BROWN

16

14

15

22

23

21

20

18

18

5

6

L

N

N

L

13

11

10

BROWN/BROWN

BLUE/ORANGE

TRANSFORMER

WIRE COLORS: TRIAD/HAMMOND

RED/YELLOW

YELLOW/GREY

21

POWER

SWITCH

(rear view)

12

WHITE/WHITE

BLACK/BLACK

GREY/RED

PURPLE/BLUE

20

42

46

AND PAIRS ARE WIRED IN

SERIES ACROSS THE 480V

BLOWER MOTORS ARE 240V

BLOWER

56

53

HV

1

2

3

4

TRANSFORMER

ARE

RATED

MOTOR

BLOWER

jumper

46

ARE

WIRED IN

480V AND

RETHERM BLOWERS

56

47

49

PARALLEL.

BLOWER

Rev. 3 (5/12)

GROUND*

FUSES

4

3

2

6A

6A

1

30

31

1

2

L2

L3

HEATER

CONTACTOR

42

43

47

48

52

POWER CORD

8 AWG, 4 COND

16

L1

17

53

Page 12 of 12

CABINET BODY

TERMINAL

LOCK WASHER

NUT

*A lockwasher & nut (or

double nuts) are required on

ground bolt on top of cord's

ground terminal.

500F

HIGH LIMIT

48

50

39

MOTOR

50

51

30

32

31

33

4

3

1

MOTOR

BLOWER

HOLD BLOWERS

37

36

38

51

RELAY1

7

37

33

35

4

3

1

RELAY2

7

39

35

4

3

1

RELAY3

7

41

29

6

B

A

9

36

34

9

38

34

9

40

HOLD BLOWERS

26

28

32

6

B

A

COOK BLOWERS

22

27

6

B

A

RETHERM BLOWERS

24

7

HIGH TEMP

23

24

2

3

1

BLOWER AIR SWITCH

ON UNITS WITHOUT

SWITCH, WIRES 23

BLOWER CUTOUT

AND 24 ARE

25

REPLACED WITH WIRE

12

14

13

240V PWR SW

26

L1

brwn

27

28

L2

blue

29

17

TERMINAL BLOCK

FAN

VENT

FAN

VENT

FAN

VENT

9

8

IMPORTANT: VENT FANS

BLOW AIR INTO APPLIANCE

Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
