AQUATEMP™/RETHERM HEAT-N-HOLD
®®®
PASS-THRU CONVECTION OVEN
MODEL RO-151-FPW-UA-18B-Q1
FEATURES AND BENEFITS:
• Fully insulated Retherm Heat-N-Hold oven designed for both
reconstituting precooked foods and slow roasting with precise
temperature and humidity control.
• Low volume convected air system and lower temperatures help to
retain nutrition, flavor and moisture.
• Moist heat, dry heat or a combination of both allows for a
• variety of food preparation and holding.
• Full 8200 Watts of power allows for rethermalization of prepared
• meals or bulk items. Maximum temperature 350˚F. (176.5˚C.).
• 1850 Watt water heater with separate control and low water indicator.
• Energy Management Logic system electronically directs power to
where it’s needed most during different operating cycles.
• Pre-setting automatic controls for rethermalizing and holding
• cycles allows for unattended operation 24 hours a day.
• Non-venting oven, permitted by most local codes, provides
• easy, inexpensive installation.
• 304 stainless steel construction throughout for ease of cleaning.
• Smooth interior coved corners prevent food particle/grease buildup.
• Pass-Thru design allows easy access from preparation and serving areas.
• Field reversible insulated Dutch doors prevent temperature •
• loss. Silicone door gaskets for proper seal. High temperature
ceramic magnetic latches for “easy open” and security during
• transport. Latches and hinges mounted inboard.
• Standard with right hand hinging; left hand hingingavailable upon request.
• Recessed push/pull handles on both sides prevent damage
• to walls; allows easy maneuvering.
• Non-corrosive stainless steel wire universal angles accommodate a
large variety of pan sizes on adjustable 1-1/2” spacing. Supplied
with 18 sets of angles.
• Heavy duty 5" swivel casters, two with brakes. Provides
• mobility when fully loaded.
POWER UNIT OPTIONS:
• 8200 Watts, 208 Volts, 1 Phase, 60 Hz.
• 8200 Watts, 240 Volts, 1 Phase, 60 Hz.
• 8200 Watts, 208 Volts, 3 Phase, 60 Hz.
• 8200 Watts, 240 Volts, 3 Phase, 60 Hz.
Probe Power Unit Available at Extra Cost (see page E-6)
JOB:
ITEM NO:
RO-151-FPW-UA-18B-Q1
SANITATION
CLASSIFIED
CLASSIFIED TO
NSF4-96
C
ACCESSORIES and OPTIONS
(Available at extra cost):
Security Panel for Controls
Tempered Glass Door Windows
Key Lock Latches
Wire Grids
Extra Universal Angles
Side Bumpers
Set of 5 preset menu item switches
(up to 10 presets allowed)
50 Cycle Service
See page E-10 for accessory details.
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
Page E-4.7
Sept., 2004
®
RO-151-FPW-UA-18B-Q1

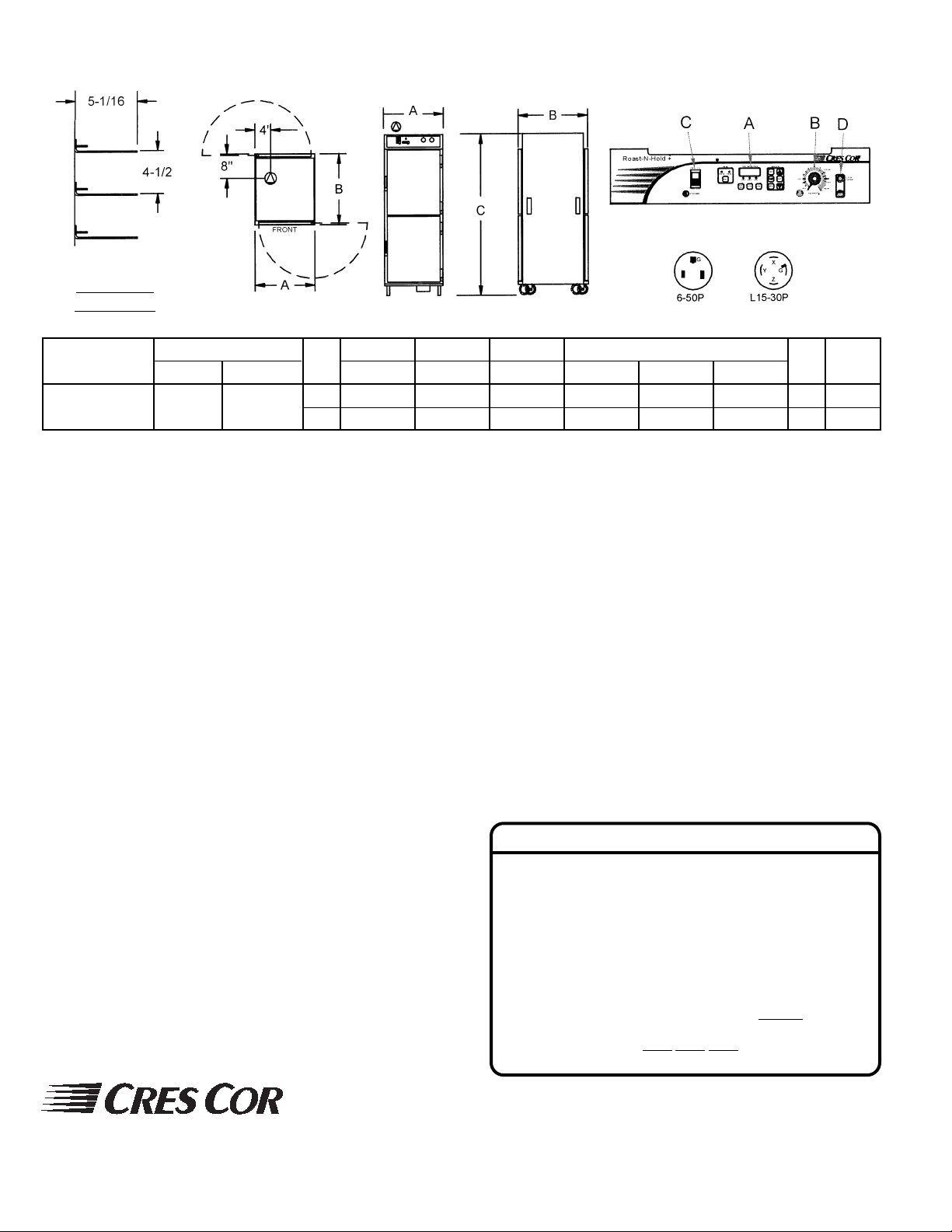

DETAIL OF
PAN SLIDE
CRES COR PAN DIM “A” DIM “B” DIM “C” INSIDE DIMENSIONS WEIGHT
MODEL NO.
RO-151-FPW-UA-18B-Q1
NOTE: Pan sizes 22” x 20” (560 x 510) Roast & Bake Pans, 10” x 20” (255 x 510) Roast & Bake Pans, 18” x 26” (460 x 660) Bun Pans,
14” x 18” (355 x 460) Service Trays, 12” x 20” (305 x 510) Steam Table Pans.
ALL CONSTRUCTION IS RIVETED, WELDED AND FINISHED.
CAP/ANGLES
18 SEE N O T E IN 29 36-3/4 75-7/8 21-3/4 26-15/16 57-3/4 LBS 425
SETS BELOW MM 740 935 1930 555 685 1470 KG 193
SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT ACT.
CABINET:
• Body: 22 ga. 304 stainless steel.
• Reinforcement: Internal framework of 16 ga. stainless steel.
• Insulation: Fiberglass, thermal conductivity (K factor) is .23
• at 75˚F. 1-1/2" in back wall, doors, base; 2" in side walls.
• Water pan: 4 Gallons; 16 ga. 304 stainless steel with 1850 Watt
• heater and with petcock drain; mounted to base.
• Drip trough: Formed 18 ga. stainless steel; mounted to lower
front of cabinet, removable drip pan.
• Tunnels (2): 20 ga. stainless steel, lift-out type, mounted
• on side walls.
• Push/pull handles (4): 7" vertical; recessed.
BASE:
• One piece construction, .125 aluminum.
• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.
• 250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front
casters equipped with brakes.
DUTCH DOORS:
• Field reversible.
• Formed 22 ga. 304 stainless steel.
• Latches: Chrome plated zinc with composite handle, ceramic
magnetic type; mounted inboard.
•
• Hinges: Heavy duty chrome plated zinc, mounted inboard.
• Gaskets: Perimeter type, silicone.
• Pan stops: Embossed.
PAN SLIDES:
• Stainless steel wire universal angles (.306 dia.) mounted on
• lift-out posts.
• 18 sets of angles adjustable on 1-1/2" centers.
POWER REQUIREMENTS AVAILABLE:
• 8200 Watts, 208 Volts, 60 Hz., 1 phase, 39 Amps.,
• 50 Amp. service.
• 8200 Watts, 240 Volts, 60 Hz., 1 phase, 34 Amps.,
• 50 Amp. service.
• 8200 Watts, 208 Volts, 60 Hz., 3 phase, 23 Amps.,
• 30 Amp. service.
• 8200 Watts, 240 Volts, 60 Hz., 3 phase, 20 Amps.,
• 30 Amp. service.
POWER UNIT COMPONENTS: (refer to above drawing)
• Body: Formed 304 stainless steel with black control panel, recessed
and tilted 7˚.
A) Thermostat (microprocessor):
• Holding up to 250˚F (121˚C)
• Cook/Retherm up to 350˚F ( 176.5˚C)
• Thermometer
B) Thermostat (humidity): Solid state
C) Switch: Lighted ON-OFF rocker type.
D) Pilot light for low water level.
• Power cord: Permanent, 8 ft., 6/3 ga. with right angle plug.
• Air heaters (3): 2670 Watts each.
• Water heater: 1850 Watts.
• Blower motors (3).
• Vent fans (2).
INSTALLATION REQUIREMENTS:
• Check local vent hood codes for mobile Roast-N-Hold ovens.
SHORT FORM SPECIFICA
Cres Cor Pass Thru AquaTemp Retherm Heat-N-Hold Oven
RO-151-FPW-UA-18B-Q1. Cabinet 22 ga. 304
Model
stainless steel. Stainless steel internal frame; coved corner
interior. 16 ga. stainless steel water reservoir, 4 gallon
capacity. Fiberglass insulation in sides 2”; back,doors and
base 1-1/2”. 22 ga. 304 stainless steel doors, ceramic
magnetic latch, heavy duty hinges. (18) sets universal
angles for multiple pan sizes and spacing. One piece base
.125 aluminum. 5" swivel modulus casters, Delrin bearings.
Load capacity 250 lbs. each. 8200 Watts,
60 Hz., __Phase.2 year parts warranty. Provide the
following accessories:
Sanitation listed.
TIONS
Volts,
. UL, CUL, UL
