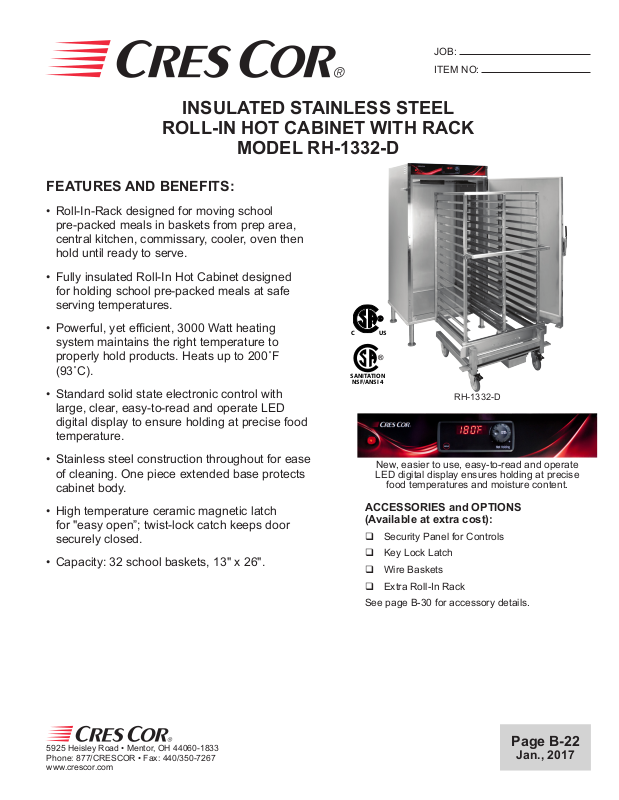

Cres Cor RH-1332-D User Manual

INSULATED STAINLESS STEEL

C US

®

ROLL-IN HOT CABINET WITH RACK

MODEL RH-1332-D

FEATURES AND BENEFITS:

• Roll-In-Rack designed for moving school
pre-packed meals in baskets from prep area,
central kitchen, commissary, cooler, oven then
hold until ready to serve.

• Fully insulated Roll-In Hot Cabinet designed
for holding school pre-packed meals at safe
serving temperatures.

• Powerful, yet efcient, 3000 Watt heating
system maintains the right temperature to

properly hold products. Heats up to 200˚F
(93˚C).

• Standard solid state electronic control with
large, clear, easy-to-read and operate LED
digital display to ensure holding at precise food
temperature.

SANITATION

NSF/ANSI 4

JOB:

ITEM NO:

®

RH-1332-D

• Stainless steel construction throughout for ease
of cleaning. One piece extended base protects
cabinet body.

• High temperature ceramic magnetic latch
for "easy open”; twist-lock catch keeps door
securely closed.

• Capacity: 32 school baskets, 13" x 26".

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

New, easier to use, easy-to-read and operate

LED digital display ensures holding at precise

food temperatures and moisture content.

ACCESSORIES and OPTIONS
(Available at extra cost):

q Security Panel for Controls

q Key Lock Latch

q Wire Baskets

q Extra Roll-In Rack

See page B-30 for accessory details.

Page B-22

Jan., 2017

3.00

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram or
to call Cres Cor

®

Customer Service.

If you need a QR reader, visit your
App Store on your Smartphone or
Tablet.

8400-108

Model
RH-1332-D

A

RH-1332-D

B

C

DETAIL OF

3"

PAN SLIDE

10.190

CRES COR

MODEL NO.

CAPACITY / SIZE

RH-1332-D 1 RACK

ROR-201-SBS-1332-D

INSIDE RACK WIDTH DIMENSION IS FOR ONE SIDE.

32

BASKETS

13 X 26 IN 35-5/8 30-1/4 65-1/2 13-5/8 26 49-1/2 LBS 131

330 X 660 MM 905 768 1663 346 660 1257 KG 59

DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

IN 39 33-7/8 77-5/8 32-1/8

MM 991 860 1972 816 721 1429 KG 166

CABINET:

• Body: 22 ga. stainless steel.

• Inner liner: Formed 22 ga. stainless steel.

• Reinforcement: Internal framework of 14 ga. stainless steel
channels, welded.

• Insulation: Fiberglass, thermal conductivity (K factor) is .23 at

75˚F. 1-1/2" in back wall, door, base; 2" in side walls.

• Air tunnels: 20 ga. stainless steel, lift-out type, mounted on inner
sides.

BASE:

• One piece construction, .190 aluminum.

• Legs: Heavy duty polished stainless steel 2" O.D. adjustable for
leveling oven.

DOOR:

• Field reversible.

• Formed 22 ga. stainless steel.

• Latch: Chrome plated high pressure die cast zinc, composite
handle, ceramic magnetic.

• Hinges: Heavy duty chrome plated die cast zinc, mounted
inboard.

• Door Gaskets: Perimeter type, silicone.

POWER REQUIREMENTS AVAILABLE:

• 3000 Watts, 208 Volts, 1 Phase, 60 Hz., 20 Amp.Service

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram
or to call Customer Service.

If you need a QR reader visit your App
Store on your Smartphone or Tablet.

A

B

G

REMOVABLE

HANDLE

C

6-20P

WEIGHT

ACT.

28-3/8

56-1/4 LBS 367

HOT UNIT COMPONENTS:

• Thermostat (holding): Solid state digital display control, room
ambient to 200˚F (93˚C).

• Switch: ON-OFF push button type.

• Power cord: Permanent, 10 ft., 12/3 ga.

• Heater: 3000 Watts for holding.

• Blower motor.

• Vent fan.

• Thermometer: Digital.

ROLL-IN RACK (ROR-201-SBS-1332-D):

• Angles (16 sets): Formed, permanently attached, spaced on 3"
centers.

• 5" dia. swivel, modulus tires, 1-1/4" wide, load cap. 250 lbs.

each, temp. range -45˚/+180˚F. Delrin bearings. Two casters

equipped with brakes.

• Capacity: 2 baskets side-by-side, 16 baskets high, 32 baskets
total, 320 meals total.

SHORT FORM SPECIFICATIONS

Cres Cor Roll-In Hot Cabinet Model RH-1332-D. 18
ga. stainless steel, recessed control panel. Cabinet
and Dutch doors 22 ga. stainless steel; stainless
steel internal frame; coved corner interior. Fiberglass
insulation in sides 2”; back, doors and base 1-1/2”.
High temperature anti-microbial magnetic latches. One
piece base .190 aluminum. 2" dia. stainless steel legs.
Includes Cres Cor Roll-In Rack Model ROR-201-SBS­1332-D: 16 angles on 3" centers; holds 32 baskets. 5"
swivel modulus casters, Delrin bearings. Load capacity
250 lbs. each, temperature -45 to +180°F. 120 Volts,
60 Hz., 1 Phase. 2 year parts warranty. Provide the
following accessories: ____ ____ ____ . CSA-US,
CSA-C, CSA to NSF4 listed.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2017 All rights reserved. Made in America Since 1936

In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and

specications without notice.
