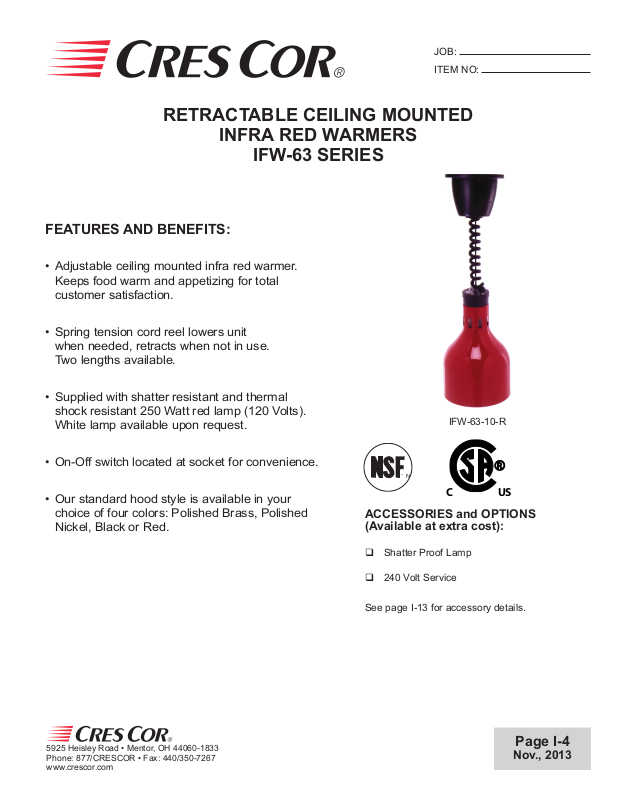

Cres Cor IFW-63-10 User Manual

RETRACTABLE CEILING MOUNTED

INFRA RED WARMERS

IFW-63 SERIES

FEATURES AND BENEFITS:

• Adjustable ceiling mounted infra red warmer.
Keeps food warm and appetizing for total
customer satisfaction.

• Spring tension cord reel lowers unit
when needed, retracts when not in use.
Two lengths available.

JOB:

ITEM NO:

• Supplied with shatter resistant and thermal
shock resistant 250 Watt red lamp (120 Volts).
White lamp available upon request.

• On-Off switch located at socket for convenience.

• Our standard hood style is available in your
choice of four colors: Polished Brass, Polished
Nickel, Black or Red.

IFW-63-10-R

¨ N

C US

®

ACCESSORIES and OPTIONS
(Available at extra cost):

q Shatter Proof Lamp

q 240 Volt Service

See page I-13 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page I-4

Nov., 2013

3-1/2"

5 1/16"

IFW-63 Series

9-3/4

6-1/2

CRES COR

MODEL NO. &

HOOD STYLE

PULL DOWN EXTENSIONS:

O.A. ADJUSTABLE LENGTHS

INCHES MM LBS. KG.

IFW-63-10* 23 - 60-1/2 585 - 1555 4 2

IFW-63-L-10* 31 - 68-1/2 790 - 1755 5 2

*Add color sufx:

PN = Polished Nickel
PB = Polished Brass
BL = Black
R = Red

WARMER:

• Canopy: Spun from .051 aluminum, black anodized.

• Hanger: 16 ga. steel, 1 x 4-15/16 with slots for #10 screws;
mounts canopy to customer ceiling box.

• Switch housing: 20 ga. steel, black anodized.

• Hood: Spun from .051 aluminum; powder coat nish.

PULL DOWN ASSEMBLY:

• Koil kord: 18/3 ga., type SJT conductor, black, 1” dia.;
grounded to cable.

• Unit has positive stop in any position.

• Units are completely wired and assembled.

• Install on 4" standard ceiling box.

• Do not mount closer than 16" above non-metallic
surface for 250 Watts.

ELECTRICAL COMPONENTS:

• Toggle switch.

• Socket: Porcelain.

• Lamp: 250 Watts, red.

POWER REQUIREMENTS:

• 250 Watts, 120 Volts, 60 Hz., single phase, 2 Amps., 15 Amp.
service.

WEIGHT ACT.

SHORT FORM SPECIFICATIONS

Cres Cor Retractable Ceiling Mounted Infra Red Warmer

Model IFW-63-______. Hood .051 spun aluminum;

powder coat nish (color: ________). O.A. length: ____.

Canopy holds cord reel. 250 Watts, 120 Volts, 60 Hz.,

1 Phase, 15 Amp. service. 2-Year Parts / 1-Year Labor

warranty. Provide the following accessories: ____

______ ______. NSF, CSA-US, CSA-C Listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2013 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
