INSULATED HALF SIZE

PASS-THRU STAINLESS STEEL HOT CABINET

MODEL H-138-NPS-CC1MC5Q

FEATURES AND BENEFITS:

• Fully insulated 1/2 size hot cabinet keeps prepared
foods at serving temperatures. Ideal for pizza and
side items. Includes lighted cavity.

• Pass-thru design allows for access from preparation
and serving areas.

• Powerful, yet efcient, 1400 Watt heating system
maintains the right temperature to properly hold

products. Heats up to 200˚F (93˚C).

• Control panel has easy-to-read thermometer.

JOB:

ITEM NO:

• Internal frame in body maintains structural rigidity.

• Stainless steel construction throughout for ease of
cleaning. One piece extended base protects cabinet
body.

• Smooth interior coved corners prevent food
particles/grease buildup.

• Insulated door on front has pull handle, self-closing
hinges and tempered glass window.

• Rear door has high temperature magnetic latch for
"easy open”; twist-lock catch secures door during
transport. Door has tempered glass window.

• Standard with right hand hinging; left hand hinging
available upon request. Field reversible for

exibility.

• Safety-conscious anti-microbial latch protects
against spreading germs.

• Four (4) adjustable gravity-fed wire shelves.

• 4" high nickel plated legs; adjustable to 5-1/2".

H-138-NPS-CC1MC5Q

®

C US

ACCESSORIES and OPTIONS
(Available at extra cost):

q Magnetic Door Latch

q Extra Wire Shelves

q Lock Hasp

q Extra Stainless Steel Angles

q Gravity-fed Wire Shelf for side items

q 1500 Watt, 150 Amp Power Unit

q Custom graphics for control panel and door

See page B-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

Page B-4.7
June, 2016

C

B

4"

34-7/8"

W

G

5-15P

A

W

G

5-15P

H-138-NPS-CC1MC5Q

CRES COR

MODEL NO.

H-138-NPS-CC1MC5Q

When ordering bumpers, add 2" to overall dimensions.

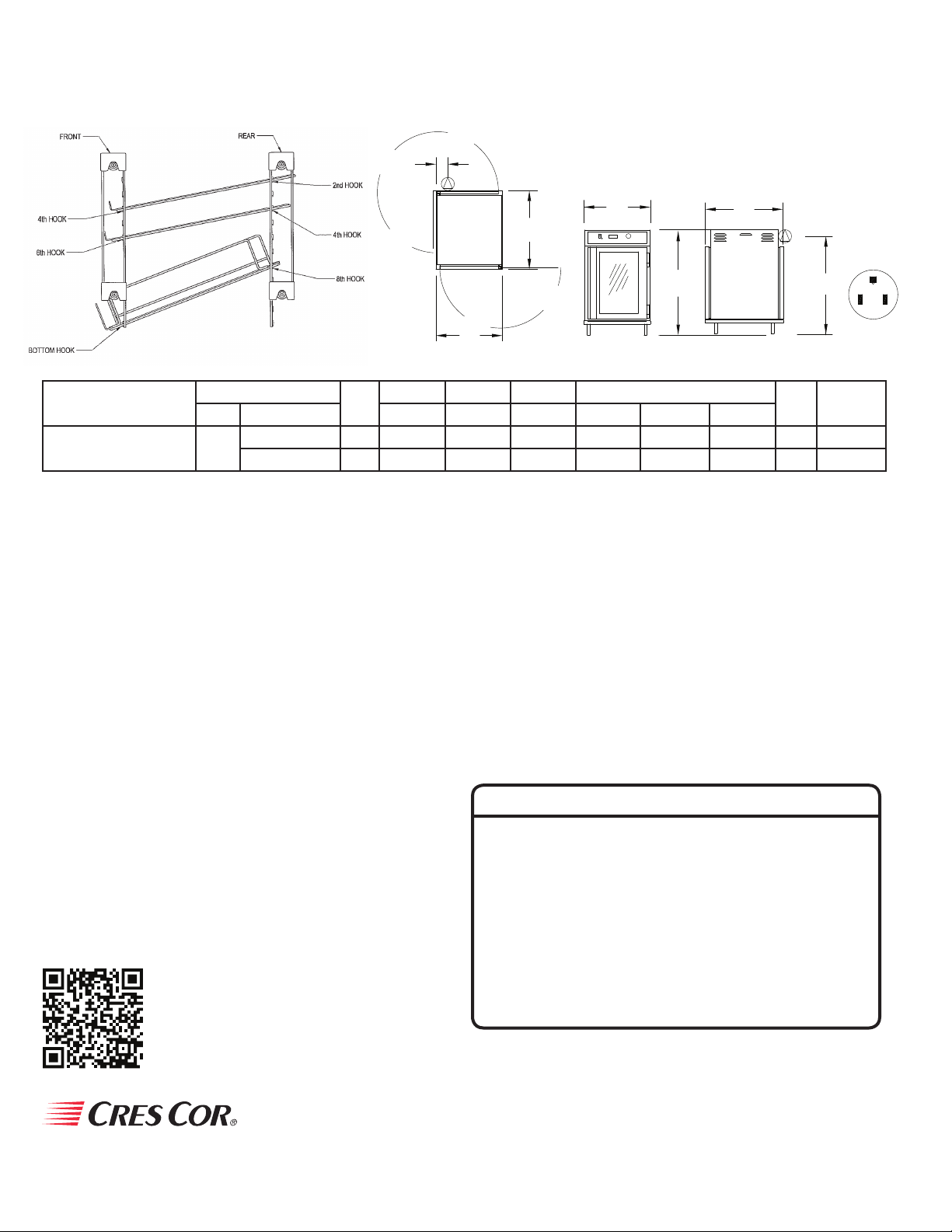

SHELVES DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

17-3/4" x 26-1/4

4

450 x 667 MM 635 838 1609 505 718 1475 KG 137

IN 25 33 40-7/8 19-7/8 28 28 LBS 302

CABINET:

• Body: Heavy duty stainless steel, 22 ga.

• Reinforcement: Heavy-duty internal framework of 18ga.

stainless steel

• Insulation: Fiberglass, R-value = 6.82 at 75°F, 1-1/2” in door, 2”

in sidewalls.

• Inner Top: (5) 40 Watt halogen lights.

• Interior coved corners.

• Air tunnels: Stainless steel, 22 ga.; lift out type, mounted on sides.

• Cord keeper on body side.

BASE:

• One-piece construction, .125 aluminum.

• Legs (4): Nickel plated zinc; height adjustable 4" to 5-1/2".

DOORS:

• Field reversible: Formed 22 ga. stainless steel.

• Door gaskets: Perimeter type, Santoprene with magnetic gasket.

• Hinges: Self-closing type.

• Full length pull handle on customer side.

• Magnetic latch: High pressure die cast zinc with anti-microbial

handle on serving side.

• Doors have tempered glass windows.

RACK INSERT:

• Cavity has (4) adjustable gravity-fed merchandising rack inserts:
(.243 dia) nickel chrome plated steel; mounted on removable

posts.

Scan QR code to view Spec Sheet,

Operating Manual, Wiring Diagram
or to call Customer Service.

If you need a QR reader visit your App

Store on your Smartphone or Tablet.

A

B

B

C

34-7/8"

WEIGHT

ACT.

POWER UNIT:

• Top mounted; removable with tools.

• Heater: 1370 Watts.

• Blowers (2) with intake guard.

• Thermostat: Electronic temperature control with digital

temperature display. Display accurate to ±2°F.

• Power cord: permanent 10 ft.

• Switch: On/Off rocker type

• Internal vent fans.

• High limits.

POWER REQUIREMENTS:

• 1400 Watts, 120 Volts, 60 Hz., single phase, 12 Amp. 15 Amp

service.

SHORT FORM SPECIFICATIONS

Cres Cor Half-Size Insulated Pass-Thru Stainless Steel

Hot Cabinet Model H138NPSCC1MC5Q. Cabinet 22 ga.

stainless steel; stainless steel internal frame. Inner top

has (5) 40 Watt halogen lights. Tempered glass doors

on front and back, 22 ga. stainless steel. Fiberglass
insulation in sides 2"; doors, top, base 1-1/2". Interior

coved corners. 1400 Watt, 120 Volt power unit. (4)
adjustable gravity-fed wire shelves. One piece insulated
base, .125 aluminum. Adjustable legs: 4" to 5-1/2" high.
2 year parts warranty. Provide the following accessories:
____ ____ ____. CSA-US, CSA-C, CSA to NSF4 listed.

G

W

5-15P

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

© Crescent Metal Products, Inc. 2016 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
