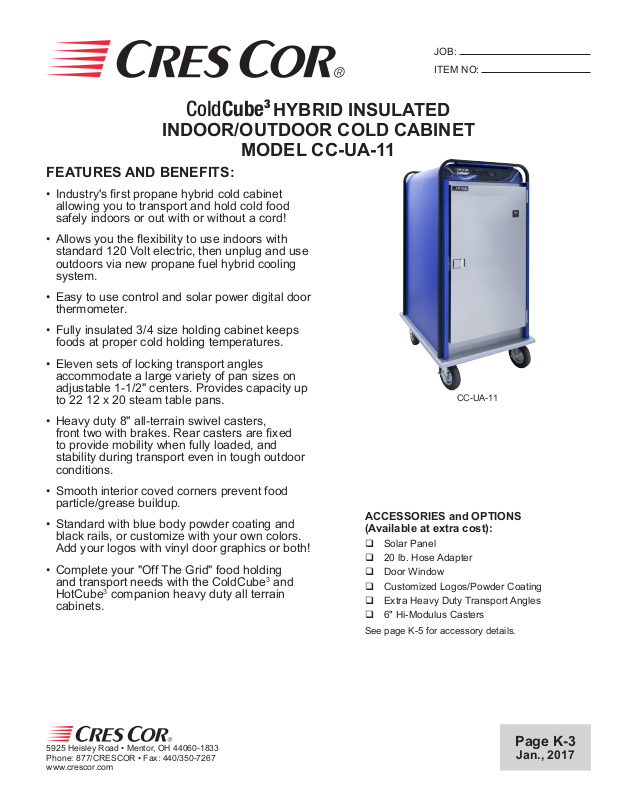

Cres Cor CC-UA-11 User Manual

JOB:

ITEM NO:

ColdCube

3

HYBRID INSULATED

INDOOR/OUTDOOR COLD CABINET

MODEL CC-UA-11

FEATURES AND BENEFITS:

• Industry's rst propane hybrid cold cabinet
allowing you to transport and hold cold food
safely indoors or out with or without a cord!

• Allows you the exibility to use indoors with
standard 120 Volt electric, then unplug and use
outdoors via new propane fuel hybrid cooling
system.

• Easy to use control and solar power digital door
thermometer.

• Fully insulated 3/4 size holding cabinet keeps
foods at proper cold holding temperatures.

• Eleven sets of locking transport angles
accommodate a large variety of pan sizes on
adjustable 1-1/2" centers. Provides capacity up
to 22 12 x 20 steam table pans.

CC-UA-11

• Heavy duty 8" all-terrain swivel casters,
front two with brakes. Rear casters are xed
to provide mobility when fully loaded, and
stability during transport even in tough outdoor
conditions.

• Smooth interior coved corners prevent food
particle/grease buildup.

• Standard with blue body powder coating and
black rails, or customize with your own colors.
Add your logos with vinyl door graphics or both!

• Complete your "Off The Grid" food holding
and transport needs with the ColdCube3 and
HotCube3 companion heavy duty all terrain
cabinets.

ACCESSORIES and OPTIONS
(Available at extra cost):

q Solar Panel
q 20 lb. Hose Adapter
q Door Window
q Customized Logos/Powder Coating
q Extra Heavy Duty Transport Angles
q 6" Hi-Modulus Casters

See page K-5 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page K-3

Jan., 2017

CC-UA-11

HOLDS 18 X 26 PAN

PAN SLIDE

2.213

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram or
to call Cres Cor

®

Customer Service.

If you need a QR reader, visit your
App Store on your Smartphone or
Tablet.

Model
CC-UA-11

8400-123

B

HOLDS 12 X 20 PAN

DETAIL OF

CRES COR

MODEL NO.

CAP/ANGLES

CC-UA-11

NOTE: Pan sizes 18" x 26" (460 x 660) Bun Pans, 12" x 20" (305 x 510) Steam Table Pans.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

11

SETS

SEE NOTE

BELOW

IN 31-7/8 38-1/2 65 22 27 42 LBS 468

MM 810 980 1650 560 690 1070 KG 212

C

G

W

A

5-15P

WEIGHT

ACT.

CABINET:

• Inner body: 22 ga. stainless steel.

• Outer body: .063 aluminum, powder coated blue.

• Reinforcement: Internal framework of 20 ga. stainless steel.

• Insulation: Foam in place in back, top, sidewalls and door.

• Push/pull handles (2) powder coated black.

• Interior coved corners.

BASE:

• One piece construction, .060 stainless steel.

• Casters: 8" dia., (2) swivel (2) xed, all-terrain, load cap. 310 lbs.

each. Front wheels equipped with brakes.

DOOR:

• Formed 22 ga. stainless steel.

• Latches: Polished stainless steel, slam type; mounted inboard.

• Gasket: Perimeter type.

TRANSPORT PAN SLIDES:

• Extruded aluminum; mounted on locking lift-off posts.

• Spaced on 3" centers; adjustable on 1-1/2" centers.

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram
or to call Customer Service.

If you need a QR reader visit your App
Store on your Smartphone or Tablet.

ELECTRICAL COMPONENTS:

• Propane powered heating system.

• Burner: 1600 BTU's

• Switch: Selector Gas / Off / Electric.

• Audible and visual alarm.

• Battery indicator.

• Power cord: Permanent, 10 ft., 14/3 ga.

• Heaters: 450 Watts.

• Thermostat: Digital, 30°F to 45°F.

POWER REQUIREMENTS:

• 450 Watts, 120 Volts, 60 Hz., single phase, 15 Amps., 15 Amp.
service.

• Battery system 12 Volt rechargeable.

SHORT FORM SPECIFICATIONS

Cres Cor Insulated ColdCube3 Cabinet Model CC-UA-11
outer of .063 aluminum, stainless steel internal frame.
(11) sets of locking transport angles for multiple pan sizes,
adjust able spacing every 1-1/2". Inner body stainless steel.
Foam insulation in sides; doors, back, top, and sidewalls.
Interior coved corners. Hose out cleaning capability. 450
Watt, 120 Volt power unit. One piece base, stainless
steel. 8" all-terrain wheels, front swivel with brake, rear
wheels are xed. Load capacity 310 lbs. each. 2 year parts
warranty. 2-Year Parts / 1-Year Labor warranty. Provide
the following accessories: _____ _____ _____. CSA-US,
CSA-C listed, CSA Sanitation, CSA Gas Canada, CSA
design certied US and Energy Star Qualied.
