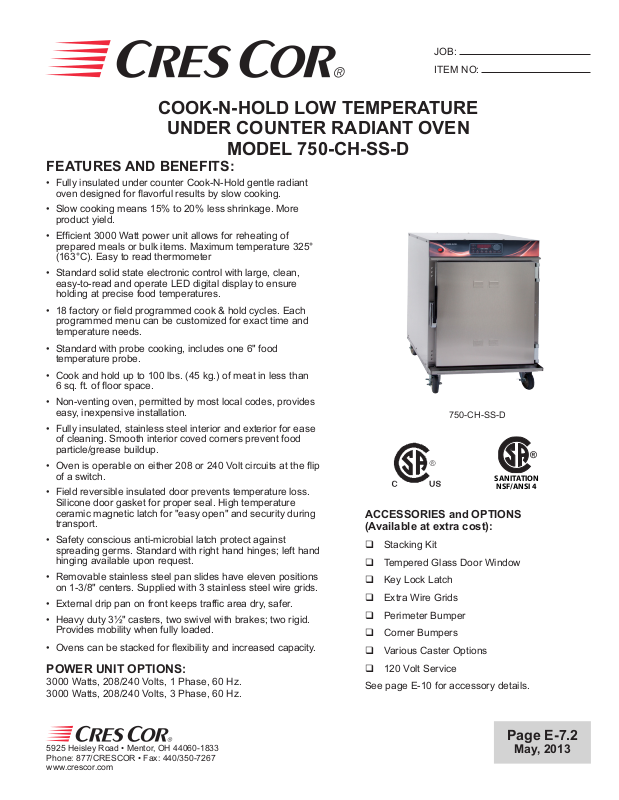

Cres Cor 750-CH-SS-D User Manual
COOK-N-HOLD LOW TEMPERATURE
UNDER COUNTER RADIANT OVEN
MODEL 750-CH-SS-D
FEATURES AND BENEFITS:
• Fully insulated under counter Cook-N-Hold gentle radiant
oven designed for avorful results by slow cooking.
• Slow cooking means 15% to 20% less shrinkage. More
product yield.
• Efcient 3000 Watt power unit allows for reheating of
prepared meals or bulk items. Maximum temperature 325°
(163°C). Easy to read thermometer
• Standard solid state electronic control with large, clean,
easy-to-read and operate LED digital display to ensure
holding at precise food temperatures.
• 18 factory or eld programmed cook & hold cycles. Each
programmed menu can be customized for exact time and
temperature needs.
• Standard with probe cooking, includes one 6" food
temperature probe.
• Cook and hold up to 100 lbs. (45 kg.) of meat in less than
6 sq. ft. of oor space.
• Non-venting oven, permitted by most local codes, provides
easy, inexpensive installation.
• Fully insulated, stainless steel interior and exterior for ease
of cleaning. Smooth interior coved corners prevent food
particle/grease buildup.
• Oven is operable on either 208 or 240 Volt circuits at the ip
of a switch.
• Field reversible insulated door prevents temperature loss.
Silicone door gasket for proper seal. High temperature
ceramic magnetic latch for "easy open" and security during
transport.
• Safety conscious anti-microbial latch protect against
spreading germs. Standard with right hand hinges; left hand
hinging available upon request.
• Removable stainless steel pan slides have eleven positions
on 1-3/8" centers. Supplied with 3 stainless steel wire grids.
• External drip pan on front keeps trafc area dry, safer.
• Heavy duty 3½" casters, two swivel with brakes; two rigid.
Provides mobility when fully loaded.
• Ovens can be stacked for exibility and increased capacity.
JOB:
ITEM NO:
750-CH-SS-D
SANITATION
NSF/ANSI 4
ACCESSORIES and OPTIONS
(Available at extra cost):
q Stacking Kit
q Tempered Glass Door Window
q Key Lock Latch
q Extra Wire Grids
q Perimeter Bumper
q Corner Bumpers
q Various Caster Options
®
POWER UNIT OPTIONS:
3000 Watts, 208/240 Volts, 1 Phase, 60 Hz.
3000 Watts, 208/240 Volts, 3 Phase, 60 Hz.
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
q 120 Volt Service
See page E-10 for accessory details.
Page E-7.2
May, 2013
1-3/8
L15-20P
YXG
Z
G
6-20P
A
14-1/2
750-CH-SS-D
3"
3"
DETAIL OF
PAN SLIDE
CRES COR
MODEL NO.
750-CH-SS-D
B
PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS WEIGHT
CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT
12 X 20 X 2-1/2 IN 25-5/8 32-3/4 32-1/4 21-3/16 27 17-1/2 LBS 205
10
305 X 510 X 65 MM 655 835 820 540 690 444 KG 113
6
4
5*
12 x 20 x 4 IN
305 x 510 x 105 MM
12 x 20 x 6 IN
305 x 510 x 155 MM
18 x 26 x 1 IN
460 x 660 x 255 MM
*Additional shelves required.
CABINET:
• Body: 22 ga. stainless steel outer body.
• Inner body & top: 18 ga. stainless steel.
• Reinforcement: Internal framework of 18 ga. stainless steel.
• Insulation: Fiberglass, thermal conductivity (K factor) is .23 at
75˚F, 1-1/2" in walls, 1" in doors.
• Drip pan: 18 ga. stainless steel with drain; removable.
• Casters: 3-1/2" dia., modulus tires, 1-1/4 wide, load cap. 225
lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front swivel
casters equipped with brakes; rigid casters on rear.
DOOR:
• Field reversible.
• Formed 20 ga. stainless steel.
• Latch: Anti-microbial chrome plated zinc with composite handle,
ceramic magnetic type; mounted inboard.
• Hinges (2): Heavy duty chrome plated zinc; mounted inboard
• Gaskets: Perimeter type, silicone.
• Adjustable vents.
PAN SLIDES (removable):
• 18 ga. stainless steel angles, 5/8 x 1; riveted on 1-3/8" centers.
• Grids: Stainless steel, 21 x 26; supplied with (3) grids.
CLEARANCE REQUIREMENTS:
• 3" (76mm) at the back, 2" (51mm) at the top, 1" (25mm) at both
sides.
POWER REQUIREMENTS:
• 3000 Watts, 208/240 Volts, 60 Hz., 1 phase, 20 Amp. Service
14 Amps at 208 Volts, 13 Amps at 240 Volts.
• 3000 Watts, 208/240 Volts, 60 Hz., 3 phase, 20 Amp. Service
8 Amps at 208 Volts, 7 Amps at 240 Volts.
"C"
G
W
"A"
"B"
6-20P L15-20P
ELECTRICAL COMPARTMENT:
• Control panel: Formed stainless steel; black front.
• Thermostat (cook/hold): Solid state digital display control, 140°F
(60°C) to 325˚F (163˚C).
• Switch: ON-OFF push button type.
• Power Cord: Permanent, 6 ft. with right angle plug.
• Probe: (1) 6", stainless steel.
• Three (3) heater circuits.
• Thermometer: Digital display.
• Voltage selector switch: Change to 208 or 240 Volt; on back of oven.
INSTALLATION REQUIREMENTS:
• Check local vent hood codes for mobile Cook-N-Hold ovens.
SHORT FORM SPECIFICATIONS
Cres Cor Insulated Under Counter Radiant Oven Model
750-CH-SS-D; Solid state electronic controlled times
and temperatures. Outer body of 22 ga. stainless steel;
inner body, top and frame of 18 ga. stainless steel.
Fiberglass insulation 1-1/2" in walls; 1" in door. Stainless
steel internal frame; coved corners. Anti-microbial
chrome plated latch. Thermometer. Three (3) heated
inner walls. Removable pan supports for (10) 12" x 20"
x 2-1/2" pans spaced on 1-3/8" centers. Casters 3-1/2"
modulus casters (2) swivel, (2) rigid, Delrin bearings.
Load capacity 225 lbs. each. 2-Year Parts / 1-Year Labor
warranty. Lifetime on heating elements (excluding labor).
Provide the following accessories: _____ _____ _____.
