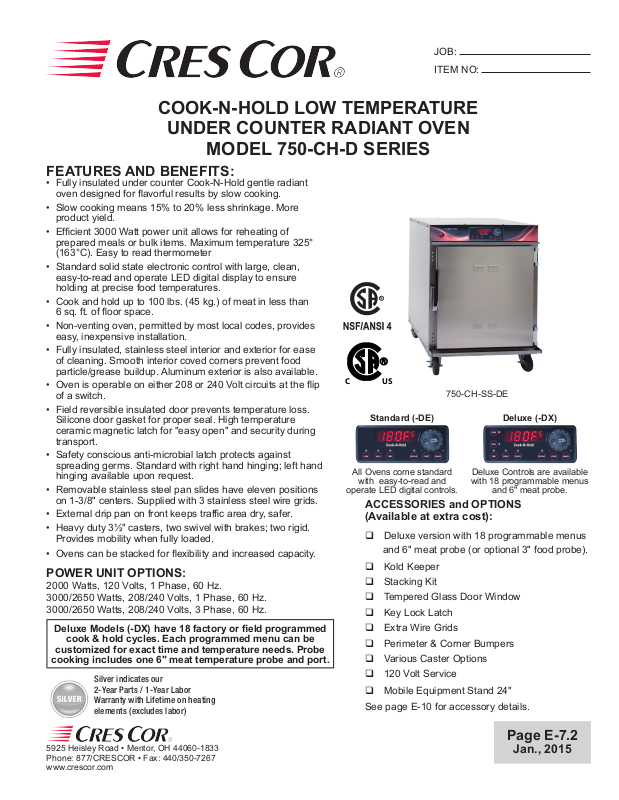

Cres Cor 750-CH-AL-DE User Manual

COOK-N-HOLD LOW TEMPERATURE

UNDER COUNTER RADIANT OVEN

MODEL 750-CH-D SERIES

FEATURES AND BENEFITS:

• Fully insulated under counter Cook-N-Hold gentle radiant

oven designed for avorful results by slow cooking.

• Slow cooking means 15% to 20% less shrinkage. More
product yield.

• Efcient 3000 Watt power unit allows for reheating of
prepared meals or bulk items. Maximum temperature 325°
(163°C). Easy to read thermometer

• Standard solid state electronic control with large, clean,
easy-to-read and operate LED digital display to ensure

holding at precise food temperatures.

• Cook and hold up to 100 lbs. (45 kg.) of meat in less than
6 sq. ft. of oor space.

• Non-venting oven, permitted by most local codes, provides
easy, inexpensive installation.

• Fully insulated, stainless steel interior and exterior for ease
of cleaning. Smooth interior coved corners prevent food
particle/grease buildup. Aluminum exterior is also available.

• Oven is operable on either 208 or 240 Volt circuits at the ip
of a switch.

• Field reversible insulated door prevents temperature loss.
Silicone door gasket for proper seal. High temperature
ceramic magnetic latch for "easy open" and security during
transport.

• Safety conscious anti-microbial latch protects against
spreading germs. Standard with right hand hinging; left hand
hinging available upon request.

• Removable stainless steel pan slides have eleven positions
on 1-3/8" centers. Supplied with 3 stainless steel wire grids.

• External drip pan on front keeps trafc area dry, safer.

• Heavy duty 3½" casters, two swivel with brakes; two rigid.

Provides mobility when fully loaded.

• Ovens can be stacked for exibility and increased capacity.

POWER UNIT OPTIONS:

2000 Watts, 120 Volts, 1 Phase, 60 Hz.
3000/2650 Watts, 208/240 Volts, 1 Phase, 60 Hz.
3000/2650 Watts, 208/240 Volts, 3 Phase, 60 Hz.

Deluxe Models (-DX) have 18 factory or eld programmed

cook & hold cycles. Each programmed menu can be

customized for exact time and temperature needs. Probe

cooking includes one 6" meat temperature probe and port.

Silver indicates our
2-Year Parts / 1-Year Labor
Warranty with Lifetime on heating
elements (excludes labor)

JOB:

ITEM NO:

®

C US

750-CH-SS-DE

Standard (-DE) Deluxe (-DX)

All Ovens come standard

with easy-to-read and

operate LED digital controls.

Deluxe Controls are available
with 18 programmable menus

and 6" meat probe.

ACCESSORIES and OPTIONS
(Available at extra cost):

q Deluxe version with 18 programmable menus

and 6" meat probe (or optional 3" food probe).

q Kold Keeper

q Stacking Kit

q Tempered Glass Door Window

q Key Lock Latch

q Extra Wire Grids

q Perimeter & Corner Bumpers

q Various Caster Options

q 120 Volt Service

q Mobile Equipment Stand 24"

See page E-10 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

Page E-7.2

Jan., 2015

5/8

L15-20P

YXG

Z

G

6-20P

A

14-1/2

750-CH-D SERIES

3"

G

W

1-3/8"

DETAIL OF

PAN SLIDE

CRES COR

MODEL NO.

750-CH-AL-DE
750-CH-AL-DX

750-CH-SS-DE

750-CH-SS-DX

B

"A"

"C"

"B"

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS WEIGHT

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

12 X 20 X 2-1/2 IN 25-5/8 32-3/4 32-1/4 21-3/16 27 17-1/2 LBS 205

10

305 X 510 X 65 MM 655 835 820 540 690 444 KG 113

6

4

5*

12 x 20 x 4 IN

305 x 510 x 105 MM

12 x 20 x 6 IN

305 x 510 x 155 MM

18 x 26 x 1 IN

460 x 660 x 255 MM

6-20P

X

Y

Z

L15-20P

ACT.

G

*Additional shelves required.
(-DE) models are standard models, (-DX) are upgraded deluxe models. See accessory sheet E-10 for more information.

CABINET:

• 750-CH-AL-D Body: .063 Aluminum outer body.

• 750-CH-SS-D Body: 22 ga. stainless steel outer body.

• Inner body & top: 18 ga. stainless steel.

• Reinforcement: Internal framework of 18 ga. stainless steel.

• Insulation: Fiberglass, thermal conductivity (K factor) is .23 at

75˚F, 1-1/2" in walls, 1" in doors.

• Drip pan: 18 ga. stainless steel with drain; removable.

• Casters: 3-1/2" dia., modulus tires, 1-1/4 wide, load cap. 225

lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front swivel
casters equipped with brakes; rigid casters on rear.

DOOR:

• Field reversible.

• Formed 20 ga. stainless steel.

ELECTRICAL COMPARTMENT:

• Control panel: Formed stainless steel; black front.

• Thermostat (cook/hold): Solid state digital display control, 140°F

(60°C) to 325˚F (163˚C).

• Switch: ON-OFF push button type.

• Power Cord: Permanent, 6 ft. with right angle plug.

• Three (3) heater circuits.

• Thermometer: Digital display.

• Voltage selector switch: Change to 208 or 240 Volt; on back of oven.

INSTALLATION REQUIREMENTS:

• This model complies with section 59 of UL710B for emissions
of grease laden air, and according to UL is not required to be
placed under a ventilation hood. Check local requirements
before installation.

• Latch: Anti-microbial chrome plated zinc with composite handle,
ceramic magnetic type; mounted inboard.

SHORT FORM SPECIFICATIONS

• Hinges (2): Heavy duty chrome plated zinc; mounted inboard

• Gaskets: Perimeter type, silicone.

• Adjustable vents.

PAN SLIDES (removable):

• 18 ga. stainless steel angles, 5/8 x 1; riveted on 1-3/8" centers.

• Grids: Stainless steel, 21 x 26; supplied with (3) grids.

CLEARANCE REQUIREMENTS:

• 3" (76mm) at the back, 2" (51mm) at the top, 1" (25mm) at both sides.

POWER REQUIREMENTS:

• 2000 Watts, 120 Volts, 60 Hz., 1 phase, 20 Amp. Service 16.6 Amps.

• 3000/2650 Watts, 208/240 Volts, 60 Hz., 1 phase, 20 Amp.

Service 14 Amps at 208 Volts, 13 Amps at 240 Volts.

• 3000/2650 Watts, 208/240 Volts, 60 Hz., 3 phase, 20 Amp.
Service 8 Amps at 208 Volts, 7 Amps at 240 Volts.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

© Crescent Metal Products, Inc. 2015 All rights reserved. Litho in U.S.A.

Cres Cor Insulated Under Counter Radiant Oven Model
750-CH-___-D__; Solid state electronic controlled times
and temperatures. Outer body of 22 ga. stainless steel for
750-CH-SS-D__ and .063 aluminum for 750-CH-AL-D__;
inner body, top and frame of 18 ga. stainless steel.
Fiberglass insulation 1-1/2" in walls; 1" in door. Stainless
steel internal frame; coved corners. Anti-microbial chrome
plated latch. Thermometer. Three (3) heated inner walls.
Removable pan supports for (10) 12" x 20" x 2-1/2" pans
spaced on 1-3/8" centers. Casters 3-1/2" modulus casters
(2) swivel, (2) rigid, Delrin bearings. Load capacity 225
lbs. each. 2-Year Parts / 1-Year Labor warranty. Lifetime
on heating elements (excluding labor). Provide the
following accessories: _____ _____ _____. CSA-US,
CSA-C, CSA to NSF4 listed.

In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and

specications without notice.
