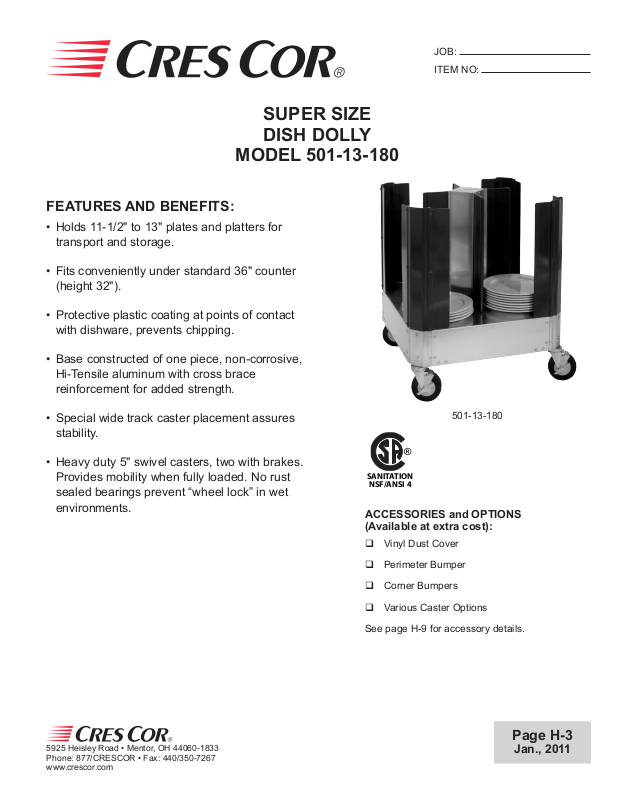

Cres Cor 501-13-180 User Manual

SUPER SIZE
DISH DOLLY

MODEL 501-13-180

FEATURES AND BENEFITS:

• Holds 11-1/2" to 13" plates and platters for
transport and storage.

• Fits conveniently under standard 36" counter
(height 32").

• Protective plastic coating at points of contact
with dishware, prevents chipping.

JOB:

ITEM NO:

• Base constructed of one piece, non-corrosive,
Hi-Tensile aluminum with cross brace
reinforcement for added strength.

• Special wide track caster placement assures
stability.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded. No rust
sealed bearings prevent “wheel lock” in wet

environments.

501-13-180

®

SANITATION

NSF/ANSI 4

ACCESSORIES and OPTIONS
(Available at extra cost):

q Vinyl Dust Cover

q Perimeter Bumper

q Corner Bumpers

q Various Caster Options

See page H-9 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page H-3

Jan., 2011

501-13-180

A

BA

B

12

CRES COR

MODEL NO.

501-13-180

*Capacity shown is approximate; each compartment holds 20" (510 mm) stack of dishes

ALL ALUMINUM CONSTRUCTION.

*PLATE

CAP.

180 11-1/2 - 13 295 - 330 27-1/8 690 27-1/8 690 32 815 60 27

DOLLY:

• Base and center partition: .100 aluminum.

• Center partition cover: .063 aluminum.

• Reinforcement: Formed .190 “X-frame” mounted to base.

• Corner posts and dividers: Plastic coated, extruded
channels.

DISH SIZE DIA. DIM "A" WIDTH DIM "B" DEPTH DIM "C" HEIGHT WEIGHT ACT.

INCHES MM INCHES MM INCHES MM INCHES MM LBS KG

C

• Caster posts: Reinforced tubular extrusions.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load
cap. 250 lbs. each, temp. range -45˚/+180˚F. Delrin
bearings. Two casters equipped with brakes.

SHORT FORM SPECIFICATIONS

Cres Cor Super Size Dish Dolly Model 501-13-180 with
base and center post of .100 aluminum. Base reinforced
with .190 aluminum “X” bracing. Plastic coated corner
posts and dividers. Capacity of 180 plates 11-1/2" to 13"
dia. Five inch swivel modulus casters have Delrin bearings.
Load capacity 250 lbs. each. 2-Year Parts / 1-Year Labor
warranty. Provide the following accessories:
. CSA Sanitation.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
