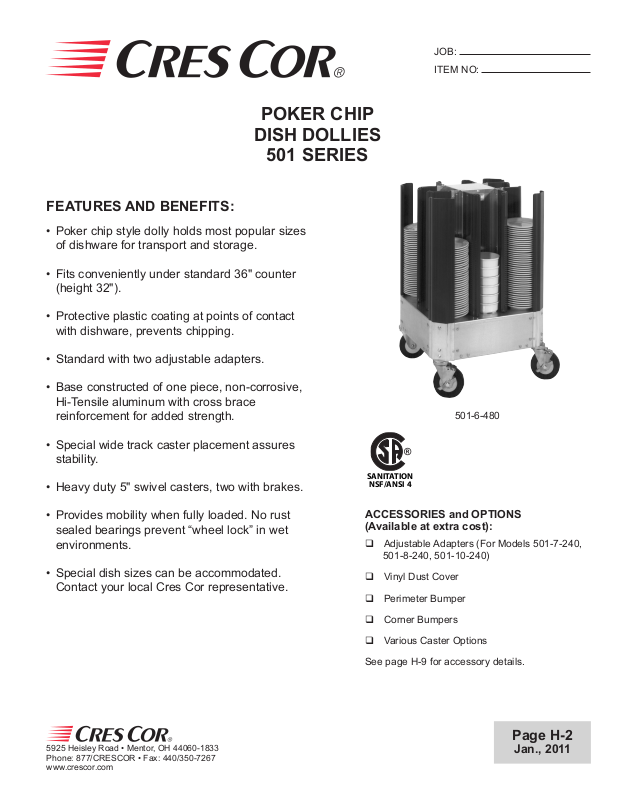

Cres Cor 501-10-240 User Manual

POKER CHIP

DISH DOLLIES

501 SERIES

FEATURES AND BENEFITS:

• Poker chip style dolly holds most popular sizes
of dishware for transport and storage.

• Fits conveniently under standard 36" counter
(height 32").

• Protective plastic coating at points of contact
with dishware, prevents chipping.

JOB:

ITEM NO:

• Standard with two adjustable adapters.

• Base constructed of one piece, non-corrosive,
Hi-Tensile aluminum with cross brace
reinforcement for added strength.

• Special wide track caster placement assures
stability.

• Heavy duty 5" swivel casters, two with brakes.

• Provides mobility when fully loaded. No rust
sealed bearings prevent “wheel lock” in wet
environments.

• Special dish sizes can be accommodated.
Contact your local Cres Cor representative.

501-6-480

®

SANITATION

NSF/ANSI 4

ACCESSORIES and OPTIONS
(Available at extra cost):

 Adjustable Adapters (For Models 501-7-240,

501-8-240, 501-10-240)

 Vinyl Dust Cover

 Perimeter Bumper

 Corner Bumpers

 Various Caster Options

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

See page H-9 for accessory details.

Page H-2

Jan., 2011

501 Series

A A

B

TOP VIEW
501 7, 8, 10

CRES COR

MODEL NO.

501-7-240

501-8-240

501-10-240

501-5-480 

501-6-480 

*Capacity shown is approximate; each compartment holds 20" (510 mm) stack of dishes

 Will hold up to 6-3/8" corner sections
 Will hold up to 7-1/8" corner sections

ALL ALUMINUM CONSTRUCTION.

*PLATE

CAP.

240 6-7/8 - 8-1/4 175 - 210 18-1/2 470 18-1/2 470 32 815 45 20

240 8-3/8 - 9-3/4 215 -250 20-3/4 530 20-3/4 530 32 815 50 23

240 9-7/8 - 11 255 - 280 23 585 23 585 32 815 60 27

480 4-7/8 - 5-3/4 125 - 150 20-3/4 530 20-3/4 530 32 815 65 29

480 5-7/8 - 6-3/4 150 - 175 23 585 23 585 32 815 65 29

B

TOP VIEW

501 5, 6

DISH SIZE DIA. DIM "A" WIDTH DIM "B" DEPTH DIM "C" HEIGHT WEIGHT ACT.

INCHES MM INCHES MM INCHES MM INCHES MM LBS KG

12

A B

C

DOLLY:

• Base and center partition: .100 aluminum.

• Center partition cover: .063 aluminum.

• Reinforcement: Formed .190 “X-frame” mounted to base.

• Corner posts and dividers: Plastic coated, extruded
channels.

• Caster posts: Reinforced tubular extrusions.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load
cap. 250 lbs. each, temp. range -45˚/+180˚F. Delrin
Bearings Two casters equipped with brakes.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

Cres Cor Dish Dolly Model 501- with base and
center post of .100 aluminum. Base reinforced with .190
aluminum “X” bracing. Plastic coated corner posts and
dividers. Approximate capacity of ____ for dish dia.
(minimum) to (maximum). Five inch swivel
modulus casters have Delrin bearings. Load capacity
250 lbs. each. 2-Year Parts / 1-Year Labor warranty.
Provide the following accessories: .
CSA Sanitation.

In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and

specications without notice.

SHORT FORM SPECIFICATIONS
