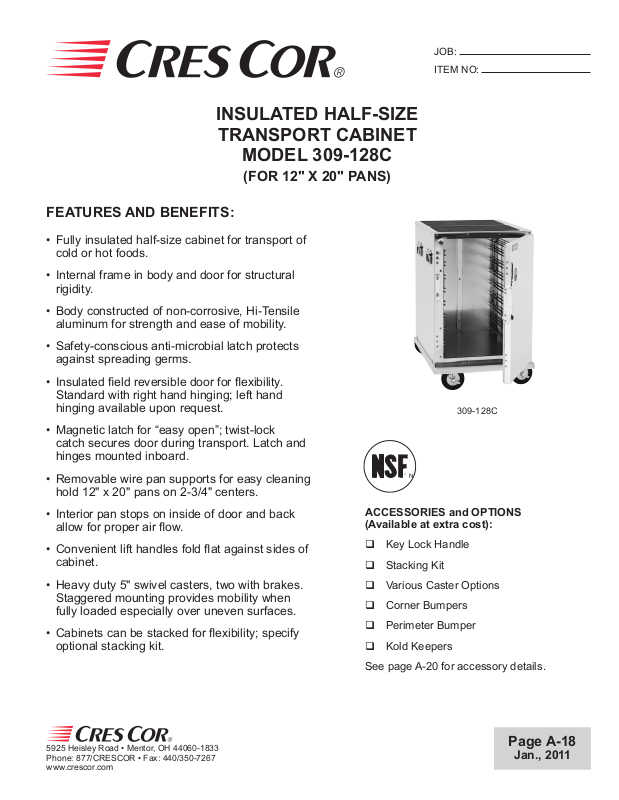

Cres Cor 309-128C User Manual

INSULATED HALF-SIZE

TRANSPORT CABINET

MODEL 309-128C

(FOR 12" X 20" PANS)

FEATURES AND BENEFITS:

• Fully insulated half-size cabinet for transport of
cold or hot foods.

• Internal frame in body and door for structural
rigidity.

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

JOB:

ITEM NO:

• Safety-conscious anti-microbial latch protects
against spreading germs.

• Insulated eld reversible door for exibility.
Standard with right hand hinging; left hand
hinging available upon request.

• Magnetic latch for “easy open”; twist-lock
catch secures door during transport. Latch and
hinges mounted inboard.

• Removable wire pan supports for easy cleaning
hold 12" x 20" pans on 2-3/4" centers.

• Interior pan stops on inside of door and back
allow for proper air ow.

• Convenient lift handles fold at against sides of
cabinet.

• Heavy duty 5" swivel casters, two with brakes.
Staggered mounting provides mobility when
fully loaded especially over uneven surfaces.

• Cabinets can be stacked for exibility; specify
optional stacking kit.

309-128C

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Key Lock Handle

q Stacking Kit

q Various Caster Options

q Corner Bumpers

q Perimeter Bumper

q Kold Keepers

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

See page A-20 for accessory details.

Page A-18

Jan., 2011

3/4

A

309-128C

B

2-3/4

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

309-128C

NOTES: 1. When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

2. When stacking two cabinets, width will increase to 24-5/8".

CABINET:

• Body: .063 aluminum.

• Reinforcement: Internal framework of channels, 1 x 3/4 x .125.

• Insulation: Fiberglass, thermal conductivity (K factor) is .23 at
75˚F. 1-1/2” in walls and door; 1" in top and bottom.

• Pan stop channels: Mounted to inside rear of cabinet and door.

• Bail handles: Two mounted to each side.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

8

12 x 20 IN 18-7/8 27-1/4 33-7/8 13-3/16 21-1/4 24-7/8 LBS 92

305 x 510 MM 480 695 860 335 540 635 KG 42

PAN SLIDES:

• Flat wire racks, .104 x 5/8 nickel chrome plated steel, spaced on
2-3/4” centers.

A

C

B

WEIGHT

ACT.

BASE:

• One piece construction, .190 aluminum.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.
250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front
casters equipped with brakes.

DOOR:

• Field reversible.

• Formed .063 aluminum.

• Latch: Anti-microbial chrome plated zinc with composite handle,
magnetic type; mounted inboard.

• Hinges: Heavy duty chrome plated zinc; mounted inboard.

• Gasket: Perimeter type, silicone.

• Transport latch.

• Vent: Adjustable.

Cres Cor Insulated Half-Size Cabinet Model 309-128C.
Inner, outer and top liners of .063 aluminum, reinforced
with channels. Formed .063 aluminum door. Field
reversible door. Fiberglass insulation in walls and door
1-1/2"; top and bottom 1”. Welded and nished .190
aluminum base. Removable pan supports for (8) 12" x

SHORT FORM SPECIFICATIONS

20" pans on 2-3/4" centers. Two bail handles on each
side. 5" swivel modulus casters, Delrin bearings. Load
capacity 250 lbs. each. 2-Year Parts / 1-Year Labor
warranty. Provide the following accessories: _____
_____ _____. NSF listed.
