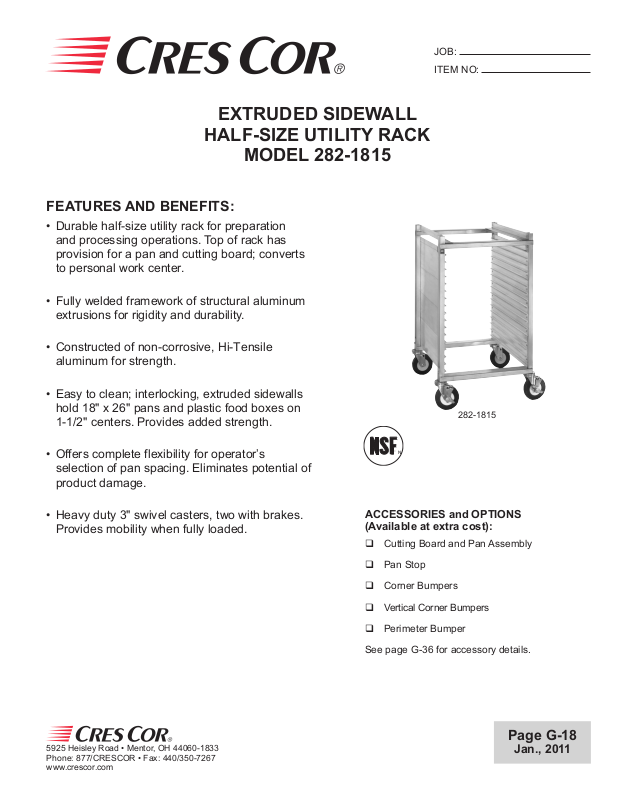

Cres Cor 282-1815 User Manual

EXTRUDED SIDEWALL

HALF-SIZE UTILITY RACK

MODEL 282-1815

FEATURES AND BENEFITS:

• Durable half-size utility rack for preparation
and processing operations. Top of rack has
provision for a pan and cutting board; converts
to personal work center.

• Fully welded framework of structural aluminum
extrusions for rigidity and durability.

JOB:

ITEM NO:

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

• Easy to clean; interlocking, extruded sidewalls
hold 18" x 26" pans and plastic food boxes on
1-1/2" centers. Provides added strength.

• Offers complete flexibility for operator’s
selection of pan spacing. Eliminates potential of
product damage.

• Heavy duty 3" swivel casters, two with brakes.
Provides mobility when fully loaded.

282-1815

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

 Cutting Board and Pan Assembly

 Pan Stop

 Corner Bumpers

 Vertical Corner Bumpers

 Perimeter Bumper

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

See page G-36 for accessory details.

Page G-18

Jan., 2011

282-1815

1-1/2

B

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

282-1815

When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH* DEPTH HEIGHT WIDTH DEPTH HEIGHT

15

18 X 26 IN 21-15/16 26-5/8 30 18-1/8 25-1/2 22-5/16 LBS 37

460 X 660 MM 560 680 765 460 650 570 KG 17

AA B

C

WEIGHT

ACT.

RACK:

• Posts: Extruded channels, 1 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Sides: Interlocking extruded 6" panels, smooth outer sides;
riveted to posts.

• Casters: 3" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 240 lbs. each, temp. range -45˚/+180˚F.
Bearings are sealed and permanently lubricated. Two
casters equipped with brakes.

PAN SLIDES:

• Extruded interlocking side walls act as pan slides on 1-1/2"
centers.

SHORT FORM SPECIFICATIONS

Cres Cor Half-Size Utility Rack Model 282-1815. Extruded
aluminum welded construction. Interlocking extruded
sides for (15) 18" x 26" pans on 1-1/2" centers. 3" swivel
modulus casters, permanently lubricated sealed ball
bearings. Load capacity 240 lbs. each, temperature

-45˚ to +180˚F. 2-Year Parts / 1-Year Labor warranty.
Provide the following accessories: _____ _____ _____.
NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
