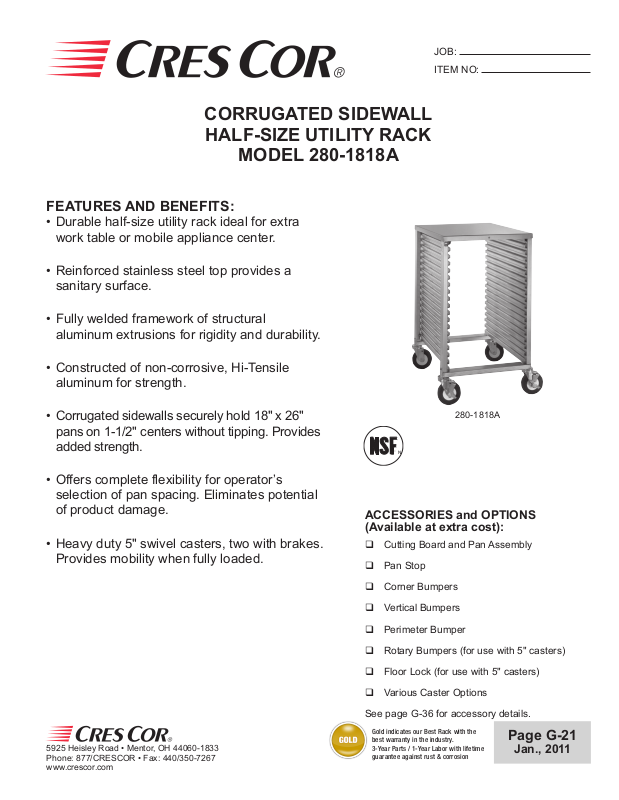

CORRUGATED SIDEWALL
HALF-SIZE UTILITY RACK
MODEL 280-1818A
FEATURES AND BENEFITS:
• Durable half-size utility rack ideal for extra
work table or mobile appliance center.
• Reinforced stainless steel top provides a
sanitary surface.
• Fully welded framework of structural
aluminum extrusions for rigidity and durability.
JOB:
ITEM NO:
• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.
• Corrugated sidewalls securely hold 18" x 26"
pans on 1-1/2" centers without tipping. Provides
added strength.
• Offers complete flexibility for operator’s
selection of pan spacing. Eliminates potential
of product damage.
• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.
280-1818A
¨ N
ACCESSORIES and OPTIONS
(Available at extra cost):
Cutting Board and Pan Assembly
Pan Stop
Corner Bumpers
Vertical Bumpers
Perimeter Bumper
Rotary Bumpers (for use with 5" casters)
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
Floor Lock (for use with 5" casters)
Various Caster Options
See page G-36 for accessory details.
Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion
Page G-21
Jan., 2011
280-1818
9/16
1-1/2
B
A
C
DETAIL OF
PAN SLIDE
CRES COR
MODEL NO.
280-1818A
NOTES: 1. Send sample pan or tray with order when using any that are not 18" x 26" pans with heavy beaded edges.
2. When ordering bumpers, add 2" to overall dimensions.
ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.
PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS
CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT
18
18 X 26 IN 21-13/16 26-15/16 36-1/16 18-1/16 26 27-13/16 LBS 62
460 X 660 MM 555 685 920 460 660 710 KG 28
BA
WEIGHT
ACT.
RACK:
• Top: Formed 16 ga. 304 stainless steel.
• Top, bottom and reinforcement channels: Extruded aluminum,
1-1/16 x 2-3/8 x .188; welded to posts.
• Posts: Extruded aluminum channels, 1-1/16 x 2 x .125.
• Sides: .063 aluminum corrugations riveted to posts.
• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap. 250
lbs. each, temp. range -45°/+180°F. Delrin bearings. Two casters
equipped with brakes.
PAN SLIDES:
• Corrugations act as pan slides on 1-1/2" centers.
Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion
SHORT FORM SPECIFICATIONS
Cres Cor Half-Size Utility Rack Model 280-1818A.
Extruded aluminum welded construction with 16 ga.
304 stainless steel top. No-tip corrugated sides for (18)
18" x 26" pans on 1-1/2" centers. 5" swivel modulus
casters, Delrin bearings. Load capacity 250 lbs. each,
temperature -45° to +180°F. 3-Year Parts / 1-Year Labor
warranty. Lifetime guarantee against rust & corrosion.
Provide the following accessories: _____ _____ _____.
NSF listed.
In line with its policy to continually improve its products,
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.
CRES COR reserves the right to change materials and
specications without notice.
