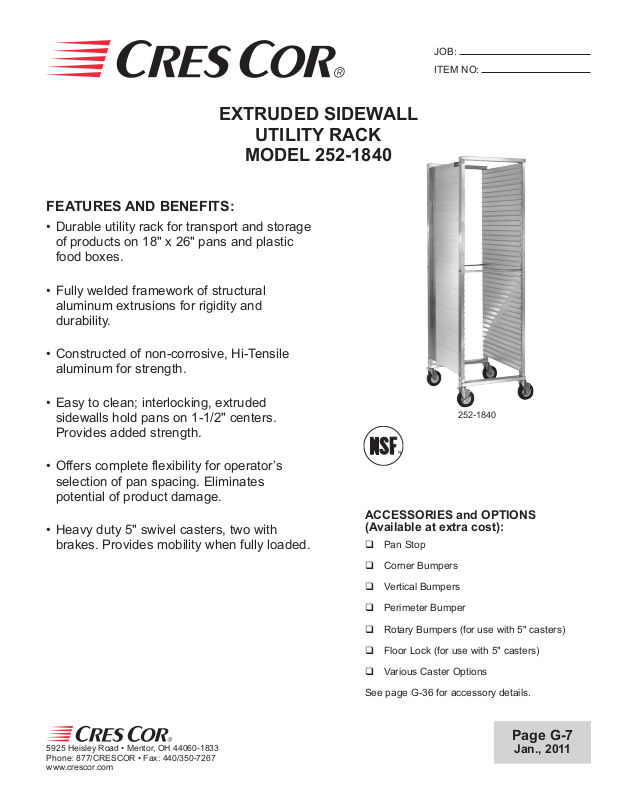

Cres Cor 252-1840 User Manual

EXTRUDED SIDEWALL

UTILITY RACK

MODEL 252-1840

FEATURES AND BENEFITS:

• Durable utility rack for transport and storage
of products on 18" x 26" pans and plastic
food boxes.

• Fully welded framework of structural
aluminum extrusions for rigidity and
durability.

JOB:

ITEM NO:

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

• Easy to clean; interlocking, extruded
sidewalls hold pans on 1-1/2" centers.
Provides added strength.

• Offers complete flexibility for operator’s
selection of pan spacing. Eliminates
potential of product damage.

• Heavy duty 5" swivel casters, two with
brakes. Provides mobility when fully loaded.

252-1840

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Pan Stop

q Corner Bumpers

q Vertical Bumpers

q Perimeter Bumper

q Rotary Bumpers (for use with 5" casters)

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

q Floor Lock (for use with 5" casters)

q Various Caster Options

See page G-36 for accessory details.

Page G-7

Jan., 2011

252-1840

BA A

1-1/2

B

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

252-1840

When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

39

18 X 26 IN 21-5/16 26-5/8 69-11/16 18-1/8 25-1/2 61-1/2 LBS 70

460 X 660 MM 560 680 1770 460 650 160 KG 32

C

WEIGHT

ACT.

RACK:

• Posts: Extruded channels, 1 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Tie rods (2): 5/16 dia. steel rods enclosed in aluminum tubing;
fastened to posts.

• Sides: Interlocking extruded 6" panels, smooth outer sides;
riveted to posts.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 250 lbs. each, temp. range -45°/+180°F.
Delrin bearings. Two casters equipped with brakes.

PAN SLIDES:

• Extruded interlocking side wall panels act as pan slides
on 1-1/2" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Rack Model 252-1840. Extruded
aluminum welded construction. Tie rods (2) applied
at front and rear. Interlocking extruded sides for (39)
18" x 26" pans on 1-1/2" centers. 5" swivel modulus
casters, Delrin bearings. Load capacity 250 lbs. each,
temperature -45° to +180°F. 2-Year Parts / 1-Year Labor

warranty. Provide the following accessories: _____

_____ _____. NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
