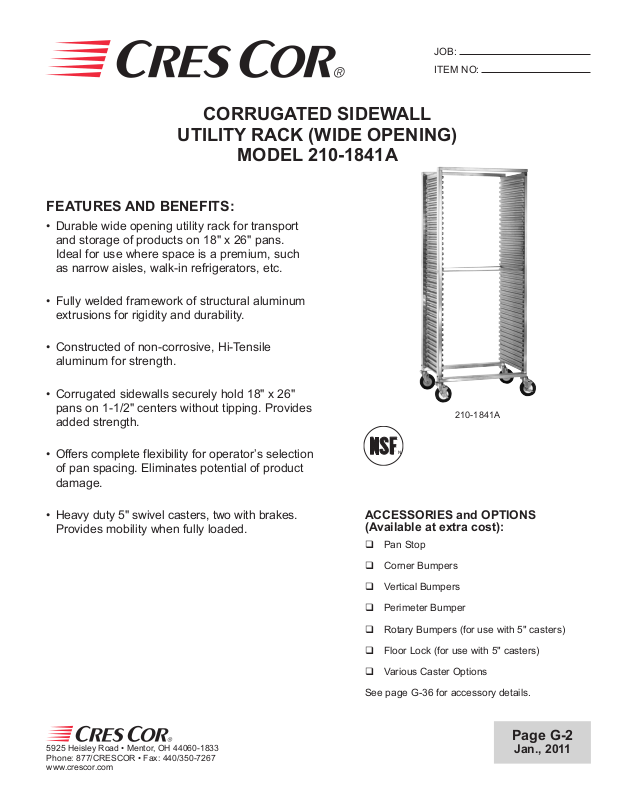

Cres Cor 210-1841A User Manual

CORRUGATED SIDEWALL

UTILITY RACK (WIDE OPENING)

MODEL 210-1841A

FEATURES AND BENEFITS:

• Durable wide opening utility rack for transport
and storage of products on 18" x 26" pans.
Ideal for use where space is a premium, such
as narrow aisles, walk-in refrigerators, etc.

• Fully welded framework of structural aluminum
extrusions for rigidity and durability.

JOB:

ITEM NO:

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

• Corrugated sidewalls securely hold 18" x 26"
pans on 1-1/2" centers without tipping. Provides
added strength.

• Offers complete flexibility for operator’s selection
of pan spacing. Eliminates potential of product
damage.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

210-1841A

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Pan Stop

q Corner Bumpers

q Vertical Bumpers

q Perimeter Bumper

q Rotary Bumpers (for use with 5" casters)

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

q Floor Lock (for use with 5" casters)

q Various Caster Options

See page G-36 for accessory details.

Page G-2

Jan., 2011

210-1841A

9/16

A

A

B

1-1/2

C

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

210-1841A

NOTES: 1. Send sample pan or tray with order when using any that are not 18" x 26" pans with heavy beaded edges.

2. When ordering bumpers, add 2" to overall dimensions.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

39

18 X 26 IN 29-13/16 18-3/4 69-9/16 26-1/16 18 61-3/8 LBS 60

460 X 660 MM 760 480 1770 665 460 1560 KG 30

B

WEIGHT

ACT.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

RACK:

• Posts: Extruded channels, 1-1/16 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Tie rods (2): 3/8 dia. rods; welded to posts.

• Sides: .063 aluminum corrugations riveted to posts.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 250 lbs. each, temp. range -45˚/+180˚F.
Delrin bearings. Two casters equipped with brakes.

PAN SLIDES:

• Corrugations act as pan slides on 1-1/2" centers.

Cres Cor Wide Opening Utility Rack Model 210-1841A.
Extruded aluminum welded construction. Tie rods (2)
applied at front and rear. No-tip corrugated sides for
(39) 18" x 26" pans on 1-1/2" centers. 5" swivel modulus
casters, Delrin bearings. Load capacity 250 lbs. each,
temperature -45˚ to +180˚F. 2-Year Parts / 1-Year Labor
warranty. Provide the following accessories: _____
_____ _____. NSF listed.

SHORT FORM SPECIFICATIONS

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
