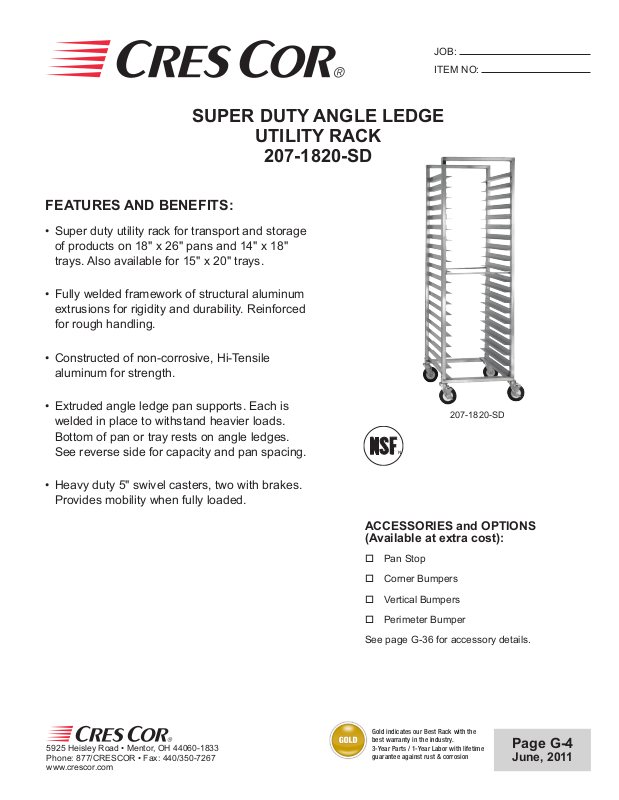

Cres Cor 207-1820-SD User Manual

SUPER DUTY ANGLE LEDGE

UTILITY RACK

207-1820-SD

FEATURES AND BENEFITS:

• Super duty utility rack for transport and storage
of products on 18" x 26" pans and 14" x 18"
trays. Also available for 15" x 20" trays.

• Fully welded framework of structural aluminum
extrusions for rigidity and durability. Reinforced
for rough handling.

JOB:

ITEM NO:

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

• Extruded angle ledge pan supports. Each is
welded in place to withstand heavier loads.
Bottom of pan or tray rests on angle ledges.
See reverse side for capacity and pan spacing.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

207-1820-SD

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

o Pan Stop

o Corner Bumpers

o Vertical Bumpers

o Perimeter Bumper

See page G-36 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

Page G-4

June, 2011

207-1820-SD Series

1-7/8”

B

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

207-1820-SD

When ordering bumpers, add 2" to overall dimensions.

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

20

ALL CONSTRUCTION IS WELDED AND FINISHED.

3" SPACING

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

18 x 26 IN 22 29-5/8 69-3/4 18-3/8 28-7/8 61-1/2 LBS 75

460 x 660 MM 560 755 1775 470 735 1565 KG 34

BAA

C

WEIGHT

ACT.

RACK:

• Posts: Extruded channels, 1-1/16 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Super Duty Tie Rods (2): Welded to front and back.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 250 lbs. each, temp. range -45˚/+180˚F.
Sealed bearings. Two casters equipped with brakes.

PAN SLIDES:

• Extruded angles, 1-7/16 x 1-7/8 x .102; welded to posts on 3"
centers.

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

SHORT FORM SPECIFICATIONS

Cres Cor Utility Rack Model 207-1820-SD. Extruded
aluminum welded construction with angles and (2)
tie rods welded. Capacity (20) 18" x 26" pans on 3"
centers. 5" swivel modulus casters, sealed bearings.
Load capacity 250 lbs. each, temperature -45˚ to
+180˚F. 3-Year Parts / 1-Year Labor warranty. Lifetime
guarantee against rust & corrosion. Provide the following
accessories: _____ _____ _____. NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
