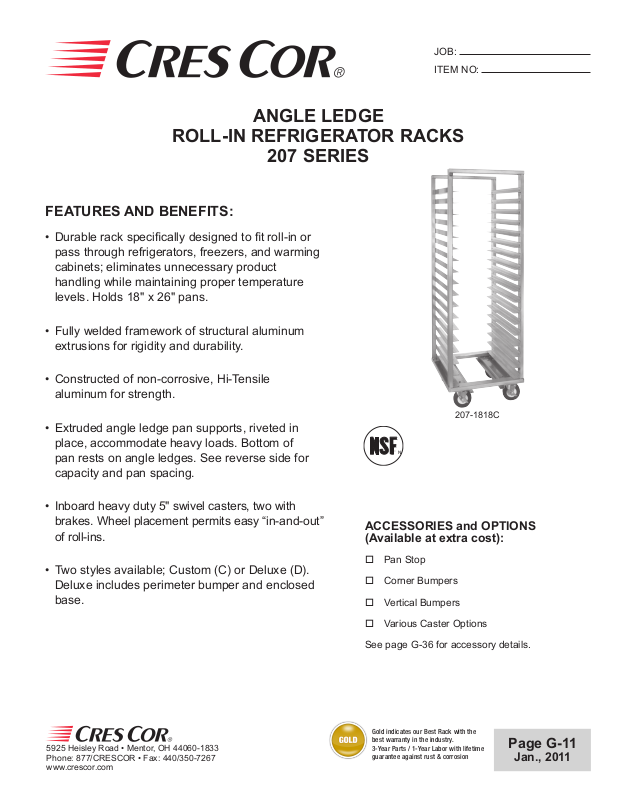

ANGLE LEDGE
ROLL-IN REFRIGERATOR RACKS
207 SERIES
FEATURES AND BENEFITS:
• Durable rack specically designed to t roll-in or
pass through refrigerators, freezers, and warming
cabinets; eliminates unnecessary product
handling while maintaining proper temperature
levels. Holds 18" x 26" pans.
• Fully welded framework of structural aluminum
extrusions for rigidity and durability.
JOB:
ITEM NO:
• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.
• Extruded angle ledge pan supports, riveted in
place, accommodate heavy loads. Bottom of
pan rests on angle ledges. See reverse side for
capacity and pan spacing.
• Inboard heavy duty 5" swivel casters, two with
brakes. Wheel placement permits easy “in-and-out”
of roll-ins.
• Two styles available; Custom (C) or Deluxe (D).
Deluxe includes perimeter bumper and enclosed
base.
207-1818C
¨ N
ACCESSORIES and OPTIONS
(Available at extra cost):
o Pan Stop
o Corner Bumpers
o Vertical Bumpers
o Various Caster Options
See page G-36 for accessory details.
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion
Page G-11
Jan., 2011
207 Roll-In Series
1-7/8
B
C
3 OR
5-1/8
DETAIL OF
PAN SLIDE
SPACING
CUSTOM ("C")
CRES COR
MODEL NO.
207-1818-C
207-1811-C
CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT
18
11
PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS
18 x 26 IN 21 25-1/8 64-1/2 18-3/8 24-3/8 55-15/16 LBS 65
460 x 660 MM 535 640 1640 470 620 1425 KG 29
18 x 26 IN 21 25-1/8 64-1/2 18-3/8 24-3/8 55-15/16 LBS 60
460 x 660 MM 535 640 1640 470 620 1425 KG 27
DELUXE ("D")
CRES COR
MODEL NO.
207-1818-D
207-1811-D
ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.
CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT
18
11
RACK:
• Posts: Extruded aluminum channels, 1-1/16 x 2 x .125.
• Top and bottom: Extruded aluminum
channels, 1-1/16 x 2-3/8 x .188; welded
to posts.
• Bolsters: Formed .190 aluminum; welded to posts, casters
attached.
• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 250 lbs. each, temp. range -45˚/+180˚F.
Delrin bearings. Two casters equipped with brakes.
DELUXE (“D”) MODELS:
• Base plate: One piece .063 aluminum.
• Bumper: 1" wide gray rubber, perimeter type.
PAN SLIDES:
• Extruded angles, 1-7/16 x 1-7/8 x .102; riveted to posts.
• Pan spacing:
Model 207-1818: 3" centers.
Model 207-1811: 5-1/8" centers.
PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS
18 x 26 IN 22-7/8 27 64-1/2 18-3/8 24-3/8 55-15/16 LBS 70
460 x 660 MM 585 690 1640 470 620 1425 KG 32
18 x 26 IN 22-7/8 27 64-1/2 18-3/8 24-3/8 55-15/16 LBS 65
460 x 660 MM 585 690 1640 470 620 1425 KG 29
Cres Cor Roll-In Refrigerator Rack Model 207-18____- (C)
or (D). Extruded aluminum welded construction with angles
riveted. Capacity (___) 18" x 26" pans on (___) centers.
Formed .190 bolsters. Inboard 5" swivel modulus casters,
Delrin bearings. Load capacity 250 lbs. each, temperature
-45˚ to +180˚F.
q Custom Model (C)
q Deluxe Model (D) has .063 aluminum base plate;
3-Year Parts / 1-Year Labor warranty. Lifetime guarantee
against rust & corrosion. Provide the following accessories:
_____ _____ _____. NSF listed.
BAA
3-7/8 SWIVEL
RADIUS
INBOARD CASTER PLACEMENT
WEIGHT
ACT.
WEIGHT
ACT.
Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion
SHORT FORM SPECIFICATIONS
perimeter bumper.
In line with its policy to continually improve its products,
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.
CRES COR reserves the right to change materials and
specications without notice.
