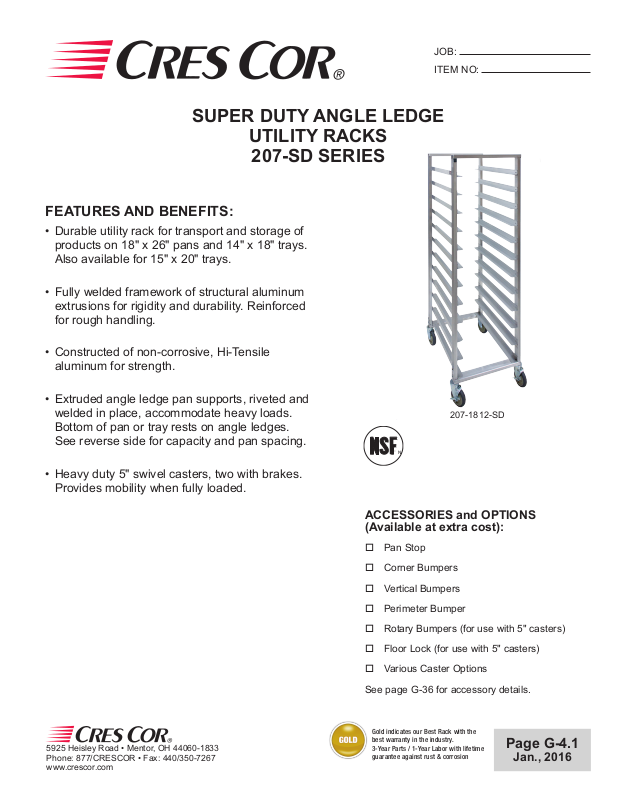

SUPER DUTY ANGLE LEDGE

UTILITY RACKS

207-SD SERIES

FEATURES AND BENEFITS:

• Durable utility rack for transport and storage of
products on 18" x 26" pans and 14" x 18" trays.
Also available for 15" x 20" trays.

• Fully welded framework of structural aluminum
extrusions for rigidity and durability. Reinforced
for rough handling.

JOB:

ITEM NO:

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

• Extruded angle ledge pan supports, riveted and
welded in place, accommodate heavy loads.
Bottom of pan or tray rests on angle ledges.
See reverse side for capacity and pan spacing.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

207-1812-SD

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

o Pan Stop

o Corner Bumpers

o Vertical Bumpers

o Perimeter Bumper

o Rotary Bumpers (for use with 5" casters)

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

o Floor Lock (for use with 5" casters)

o Various Caster Options

See page G-36 for accessory details.

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

Page G-4.1

Jan., 2016

207-SD Series

1-7/8”

B

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

207-1812-SD

207-1524-SD

When ordering bumpers, add 2" to overall dimensions.

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

12

24

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

5-1/8" SPACING

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

18 x 26 IN 22-7/16 29-5/8 69-3/4 18-5/8 28-7/8 61-1/2 LBS 60

460 x 660 MM 570 755 1775 475 735 1565 KG 27

15 x 20 IN 24-5/8 31 69-3/4 20-7/8 30-1/4 61-1/2 LBS 60

385 x 510 MM 625 790 1775 530 770 1565 KG 27

TEXT

BAA

C

WEIGHT

ACT.

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

RACK:

• Posts: Extruded channels, 1-1/16 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Super duty extruded channels (2) welded
at top.

• Super duty tie bars (2) welded at front
and back.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,

load cap. 250 lbs. each, temp. range -45˚/+180˚F.

Delrin bearings. Two casters equipped with brakes.

PAN SLIDES:

• Extruded angles, 1-7/16 x 1-7/8 x .102; riveted and
welded to posts on 5-1/8" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Rack Model 207-_____-SD. Extruded

aluminum welded construction with angles riveted and

welded. Additional bracing and tie bars. Capacity (___)

___ x ___ pans on 5-1/8" centers. 5" swivel modulus

casters, Delrin bearings. Load capacity 250 lbs. each,

temperature -45˚ to +180˚F. 3-Year Parts / 1-Year Labor
warranty. Lifetime guarantee against rust & corrosion.
Provide the following accessories: _____ _____ _____.
NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

© Crescent Metal Products, Inc. 2016 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
