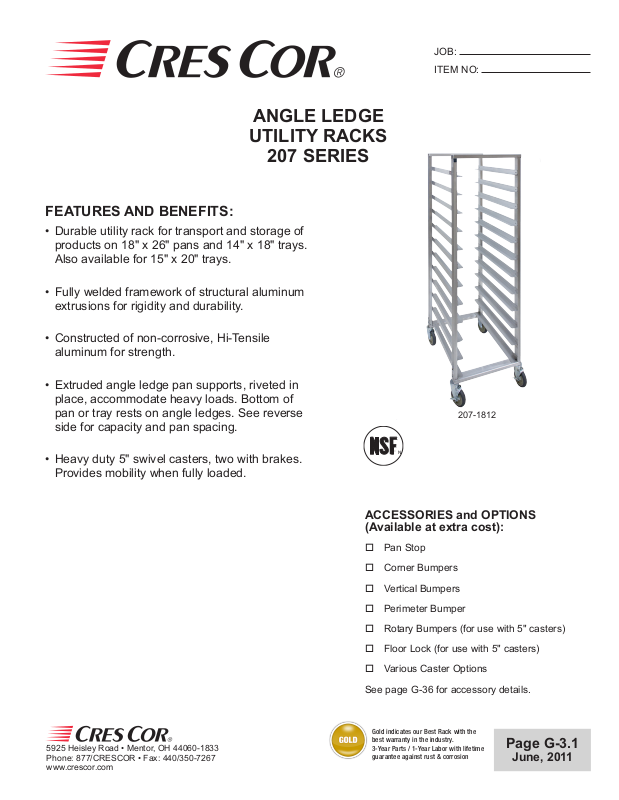

Cres Cor 207-1524 User Manual

ANGLE LEDGE

UTILITY RACKS

207 SERIES

FEATURES AND BENEFITS:

• Durable utility rack for transport and storage of
products on 18" x 26" pans and 14" x 18" trays.
Also available for 15" x 20" trays.

• Fully welded framework of structural aluminum
extrusions for rigidity and durability.

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

JOB:

ITEM NO:

• Extruded angle ledge pan supports, riveted in
place, accommodate heavy loads. Bottom of
pan or tray rests on angle ledges. See reverse
side for capacity and pan spacing.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

207-1812

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

o Pan Stop

o Corner Bumpers

o Vertical Bumpers

o Perimeter Bumper

o Rotary Bumpers (for use with 5" casters)

o Floor Lock (for use with 5" casters)

o Various Caster Options

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

See page G-36 for accessory details.

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

Page G-3.1

June, 2011

207 Series

1-7/8”

B

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

207-1812

207-1524

When ordering bumpers, add 2" to overall dimensions.

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

12

24

ALL CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

5-1/8" SPACING

TEXT

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

18 x 26 IN 22-7/16 29-5/8 69-3/4 18-5/8 28-7/8 61-1/2 LBS 60

460 x 660 MM 570 755 1775 475 735 1565 KG 27

15 x 20 IN 24-5/8 31 69-3/4 20-7/8 30-1/4 61-1/2 LBS 60

385 x 510 MM 625 790 1775 530 770 1565 KG 27

BAA

C

WEIGHT

ACT.

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

RACK:

• Posts: Extruded channels, 1-1/16 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 250 lbs. each, temp. range -45˚/+180˚F.
Delrin bearings. Two casters equipped with brakes.

PAN SLIDES:

• Extruded angles, 1-7/16 x 1-7/8 x .102; riveted to posts
on 5-1/8" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Rack Model 207-____. Extruded aluminum

welded construction with angles riveted. Capacity (___)

___ x ___ pans on 5-1/8" centers. 5" swivel modulus

casters, Delrin bearings. Load capacity 250 lbs. each,

temperature -45˚ to +180˚F. 3-Year Parts / 1-Year Labor
warranty. Lifetime guarantee against rust & corrosion.
Provide the following accessories: _____ _____ _____.
NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
