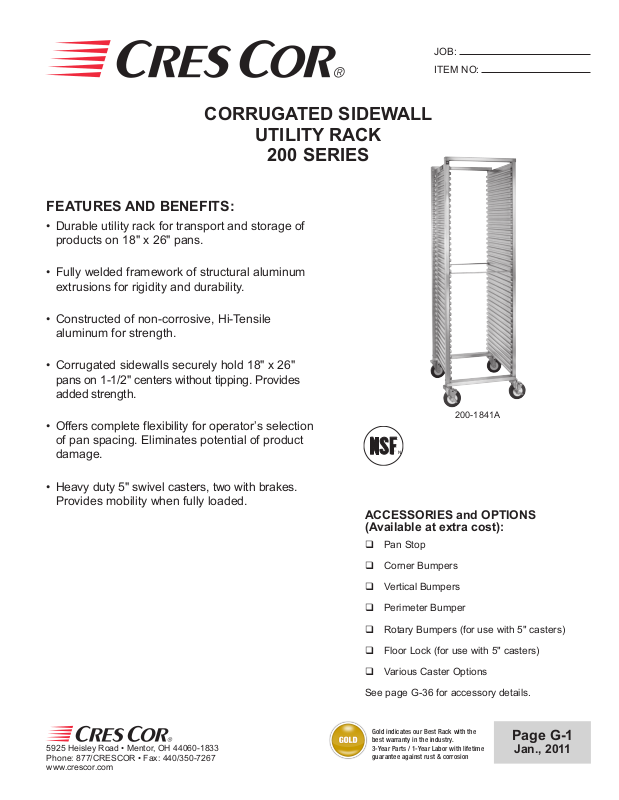

Cres Cor 200-1833A User Manual

CORRUGATED SIDEWALL

UTILITY RACK

200 SERIES

FEATURES AND BENEFITS:

• Durable utility rack for transport and storage of
products on 18" x 26" pans.

• Fully welded framework of structural aluminum
extrusions for rigidity and durability.

• Constructed of non-corrosive, Hi-Tensile
aluminum for strength.

JOB:

ITEM NO:

• Corrugated sidewalls securely hold 18" x 26"
pans on 1-1/2" centers without tipping. Provides
added strength.

• Offers complete flexibility for operator’s selection
of pan spacing. Eliminates potential of product
damage.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

200-1841A

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Pan Stop

q Corner Bumpers

q Vertical Bumpers

q Perimeter Bumper

q Rotary Bumpers (for use with 5" casters)

q Floor Lock (for use with 5" casters)

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

q Various Caster Options

See page G-36 for accessory details.

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

Page G-1

Jan., 2011

200 Series

9/16

1-1/2

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

200-1841A

200-1833A

NOTES: 1. Send sample pan or tray with order when using any that are not 18" x 26" pans with heavy beaded edges.

2. When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

39

31

18 X 26 IN 21-13/16 26-3/4 69-9/16 18-1/16 26 61-3/8 LBS 66

460 X 660 MM 555 680 1770 460 660 1555 KG 30

18 x 26 IN 21-13/16 26-3/4 57-9/16 18-1/16 26 49-3/8 LBS 55

460 x 660 MM 555 680 1465 460 660 1250 KG 25

B

A

A B

C

Gold indicates our Best Rack with the
best warranty in the industry.
3-Year Parts / 1-Year Labor with lifetime
guarantee against rust & corrosion

WEIGHT

ACT.

RACK:

• Posts: Extruded channels, 1-1/16 x 2 x .125.

• Top and bottom: Extruded channels,
1-1/16 x 2-3/8 x .188; welded to posts.

• Tie rods (2): 3/8 dia. rods; welded to posts.

• Sides: .063 aluminum corrugations riveted to posts.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide,
load cap. 250 lbs. each, temp. range -45˚/+180˚F.
Delrin bearings. Two casters equipped with brakes.

PAN SLIDES:

• Corrugations act as pan slides on 1-1/2" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Rack Model 200-_____. Extruded
aluminum welded construction. Tie rods (2) applied at
front and rear. No-tip corrugated sides for ( __ ) 18" x 26"
pans on 1-1/2" centers. 5" swivel modulus casters, Delrin
bearings. Load capacity 250 lbs. each, temperature -45˚
to +180˚F. 3-Year Parts / 1-Year Labor warranty. Lifetime
guarantee against rust & corrosion. Provide the following
accessories: _____ _____ _____. NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
