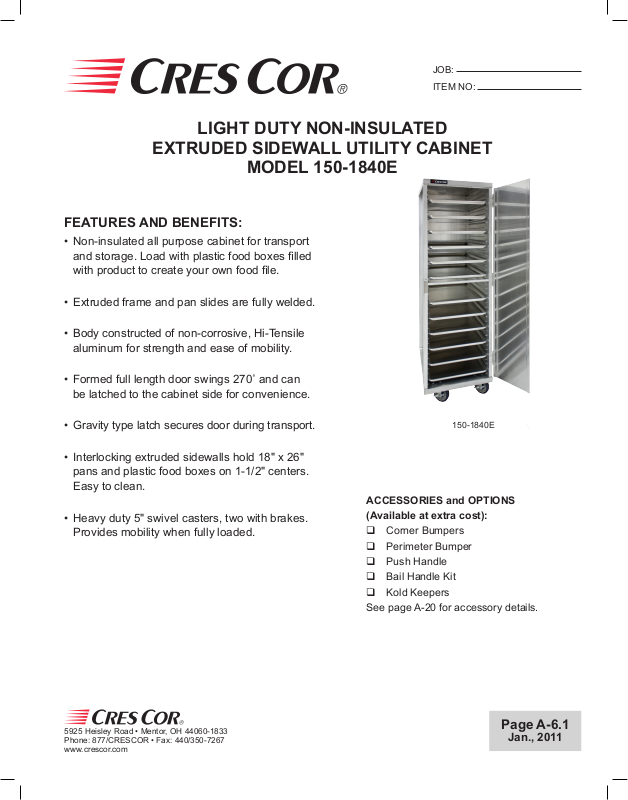

Cres Cor 150-1840E User Manual

LIGHT DUTY NON-INSULATED

EXTRUDED SIDEWALL UTILITY CABINET

MODEL 150-1840E

FEATURES AND BENEFITS:

• Non-insulated all purpose cabinet for transport
and storage. Load with plastic food boxes lled
with product to create your own food le.

• Extruded frame and pan slides are fully welded.

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

JOB:

ITEM NO:

• Formed full length door swings 270˚ and can
be latched to the cabinet side for convenience.

• Gravity type latch secures door during transport.

• Interlocking extruded sidewalls hold 18" x 26"
pans and plastic food boxes on 1-1/2" centers.
Easy to clean.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

150-1840E

ACCESSORIES and OPTIONS
(Available at extra cost):

q Corner Bumpers
q Perimeter Bumper
q Push Handle
q Bail Handle Kit
q Kold Keepers

See page A-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page A-6.1

Jan., 2011

1-1/2

DETAIL OF
PAN SLIDE

150-1840E

A B

A

B

C

CRES COR

MODEL NO.

150-1840E

When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

38

18 x 26 IN 21 27-1/4 66-1/4 18-1/4 26 58-1/4 LBS 105

460 x 660 MM 535 695 170 465 660 1480 KG 48

CABINET:

• Posts: Extruded channels, 1 x 2-1/2 x .160, welded to top and
base, form a solid frame.

• Sides: Interlocking extruded 6" panels, smooth outer sides.

• Back panel: Fitted into posts, riveted to top and reinforced.

• Tie rod: Applied at front.

• Top: One piece .100 aluminum.

BASE:

• One piece construction, .100 aluminum.

• Casters: 5" dia., swivel, polyurethane tires, 1-1/4 wide. Front
casters equipped with brakes.

DOOR:

• Panel: Formed .100 aluminum.

• Latch: Gravity type, stainless steel.

• Swings 270˚ on 3 butt hinges, riveted to posts and door.

WEIGHT

ACT.

PAN SLIDES:

• Extruded interlocking side walls act as pan slides on 1-1/2"
centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Cabinet Model 150-1840E. Formed
and welded .100 aluminum top, .100 aluminum base.
Interlocking extruded aluminum sidewalls for (38)
18" x 26" pans and plastic food boxes on 1-1/2"
centers. Formed .100 aluminum door. 5" swivel
polyurethane casters. 1-Year Parts / 90-Day Labor
warranty. Provide the following accessories:______
______ ______.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
