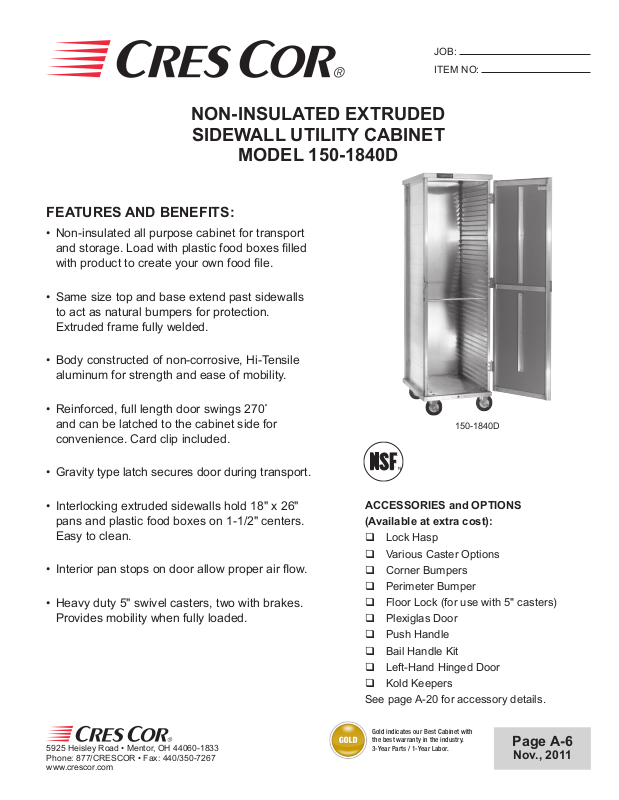

Cres Cor 150-1840D User Manual

NON-INSULATED EXTRUDED
SIDEWALL UTILITY CABINET

MODEL 150-1840D

FEATURES AND BENEFITS:

• Non-insulated all purpose cabinet for transport
and storage. Load with plastic food boxes lled
with product to create your own food le.

• Same size top and base extend past sidewalls
to act as natural bumpers for protection.
Extruded frame fully welded.

JOB:

ITEM NO:

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

• Reinforced, full length door swings 270˚
and can be latched to the cabinet side for
convenience. Card clip included.

• Gravity type latch secures door during transport.

• Interlocking extruded sidewalls hold 18" x 26"
pans and plastic food boxes on 1-1/2" centers.
Easy to clean.

• Interior pan stops on door allow proper air ow.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

150-1840D

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Lock Hasp
q Various Caster Options
q Corner Bumpers
q Perimeter Bumper
q Floor Lock (for use with 5" casters)
q Plexiglas Door
q Push Handle
q Bail Handle Kit
q Left-Hand Hinged Door
q Kold Keepers

See page A-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Gold indicates our Best Cabinet with
the best warranty in the industry.
3-Year Parts / 1-Year Labor.

Page A-6

Nov., 2011

1-1/2

DETAIL OF
PAN SLIDE

150 Series

A B

A

B

C

CRES COR

MODEL NO.

150-1840D

When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

40

18 x 26 IN 20-7/8 27-1/2 69-3/4 18-1/16 26 61-1/2 LBS 125

460 x 660 MM 530 700 1775 460 660 1565 KG 48

CABINET:

• Posts: Extruded channels, 7/8 x 2-1/4 x .102, welded to top

and base, form a solid frame.

• Sides: Interlocking extruded 6" panels, smooth outer sides.

• Back panel: Fitted into posts, riveted to top and reinforced.

• Tie rod: Applied at front.

• Top: One piece .100 aluminum.

BASE:

• One piece construction, .190 aluminum.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.

250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings.
Front casters equipped with brakes.

DOOR:

• Panel: Formed .100 aluminum.

• Reinforcement: 1/4 x 1-1/2 extruded bars riveted horizontally

to top, center and bottom.

• Latch: Gravity type, nickel plated steel.

• Swings 270˚ on 3 butt hinges, riveted to posts and door.

• Pan stop channel.

WEIGHT

ACT.

Gold indicates our Best Cabinet with
the best warranty in the industry.
3-Year Parts / 1-Year Labor.

PAN SLIDES:

• Extruded interlocking side walls act as pan slides on 1-1/2"
centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Cabinet Model 150-1840D. Formed
and welded .100 aluminum top, .190 aluminum base.
Interlocking extruded aluminum sidewalls for (40)
18" x 26" pans and plastic food boxes on 1-1/2"
centers. Formed .100 aluminum reinforced door.
5" swivel modulus casters, Delrin bearings. Load
capacity 250 lbs. each. 3-Year Parts / 1-Year Labor
warranty. Provide the following accessories: ______
______ ______. NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
