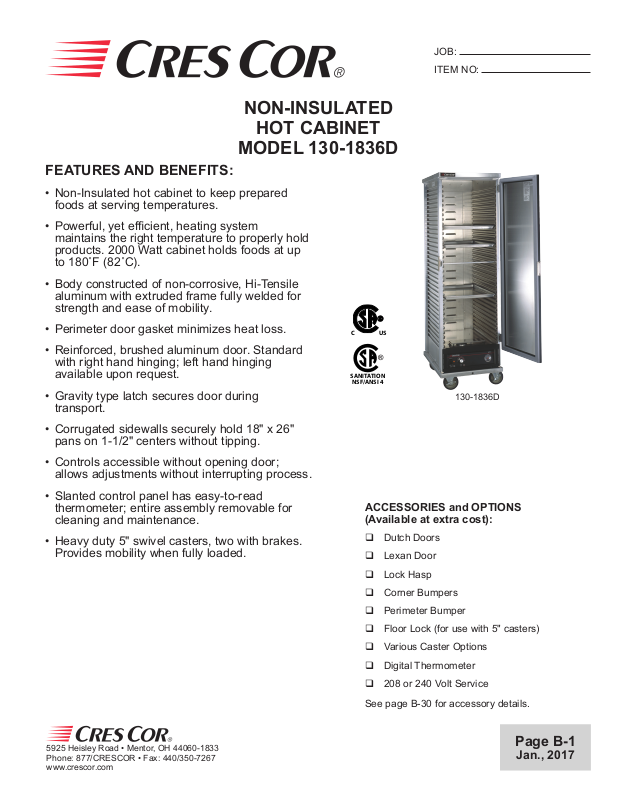

Cres Cor 130-1836D User Manual

NON-INSULATED

C US

®

HOT CABINET

MODEL 130-1836D

FEATURES AND BENEFITS:

• Non-Insulated hot cabinet to keep prepared
foods at serving temperatures.

• Powerful, yet efcient, heating system
maintains the right temperature to properly hold
products. 2000 Watt cabinet holds foods at up

to 180˚F (82˚C).

• Body constructed of non-corrosive, Hi-Tensile
aluminum with extruded frame fully welded for
strength and ease of mobility.

• Perimeter door gasket minimizes heat loss.

JOB:

ITEM NO:

• Reinforced, brushed aluminum door. Standard
with right hand hinging; left hand hinging
available upon request.

• Gravity type latch secures door during
transport.

• Corrugated sidewalls securely hold 18" x 26"

pans on 1-1/2" centers without tipping.

• Controls accessible without opening door;
allows adjustments without interrupting process.

• Slanted control panel has easy-to-read
thermometer; entire assembly removable for
cleaning and maintenance.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

®

SANITATION

NSF/ANSI 4

130-1836D

ACCESSORIES and OPTIONS
(Available at extra cost):

q Dutch Doors

q Lexan Door

q Lock Hasp

q Corner Bumpers

q Perimeter Bumper

q Floor Lock (for use with 5" casters)

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

q Various Caster Options

q Digital Thermometer

q 208 or 240 Volt Service

See page B-30 for accessory details.

Page B-1

Jan., 2017

130-1836D

Scan QR code to view Spec Sheet,
Operating Manual, Wiring Diagram or
to call Cres Cor

®

Customer Service.

If you need a QR reader, visit your
App Store on your Smartphone or
Tablet.

Model
130-1836D

8400-006

9/16

A

10-1/2

A B

1-1/2

B

C

DETAIL OF
PAN SLIDE

9

CRES COR

MODEL NO.

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

130-1836D 34

NOTES: 1. Send sample pan or tray with order when using any that are not 18" x 26" pans with heavy beaded edges.

2. When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

18 X 26 IN 20-7/8 29-3/16 69-3/4 18-1/16 26-1/4 53-1/2 LBS 148

460 X 660 MM 530 745 1775 460 670 1360 KG 67

G

W

5-20P

WEIGHT

ACT.

CABINET:

• Top: One piece .100 aluminum.

• Posts: Extruded channels, 1 x 2 x .125, welded to top and base,
form a solid frame.

• Sides: .063 corrugations riveted to posts.

• Back: .063 panel tted into posts, riveted to top and reinforced.

• Tie rod: Applied at front of cabinet.

• Air tunnel: .063 aluminum; lift-out type, mounted on back

panel.

BASE:

• One piece construction, .190 aluminum.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.

250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front

casters equipped with brakes.

DOOR:

• Panel: .063 brushed aluminum, tted into door frame extrusions,
13/16 x 1-11/16 x .154; Black powder coated.

• Latch: Gravity type, nickel plated steel.

• Hinges (2): 11 ga (.120) stainless steel; swings 270˚.

• Gasket: Perimeter type, Santoprene rubber.

PAN SLIDES:

• Corrugations act as pan slides on 1-1/2" centers.

Scan QR code to view Spec Sheet,

Operating Manual, Wiring Diagram
or to call Customer Service.

If you need a QR reader visit your App

Store on your Smartphone or Tablet.

HOT UNIT COMPONENTS:

• Removable bottom mount hot unit.

• Body: Formed .063 aluminum with black control panel.

• Thermostat: Mechanical, room ambient to 180˚F (82˚C).

• Switch: ON-OFF rocker type.

• Power light.

• Power cord: Permanent, 6 ft., 12/3 ga. with molded plug.

• Heater: 1850 Watts.

• Blower motor.

• Thermometer.

POWER REQUIREMENTS:

• 2000 Watts, 120 Volts, 60 Hz., single phase, 16.7 Amps.,
20 Amp. service.

SHORT FORM SPECIFICATIONS

Cres Cor Hot Cabinet Model 130-1836D. Formed and

welded .100 aluminum top, .190 aluminum base. No-tip

.063 corrugated aluminum sides for (34) 18" x 26" pans on
1-1/2" centers. Brushed .063 aluminum door. Removable
2000 Watt, 120 Volt power unit. Controls accessible
without opening door. 5" swivel modulus casters,

Delrin bearings. Load capacity 250 lbs. each. 1-Year
Parts / 90-Day Labor warranty. Provide the following

accessories: ____ _____ _____ CSA-US, CSA-C,
CSA to NSF4 listed.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2017 All rights reserved. Made in America Since 1936

In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and

specications without notice.
