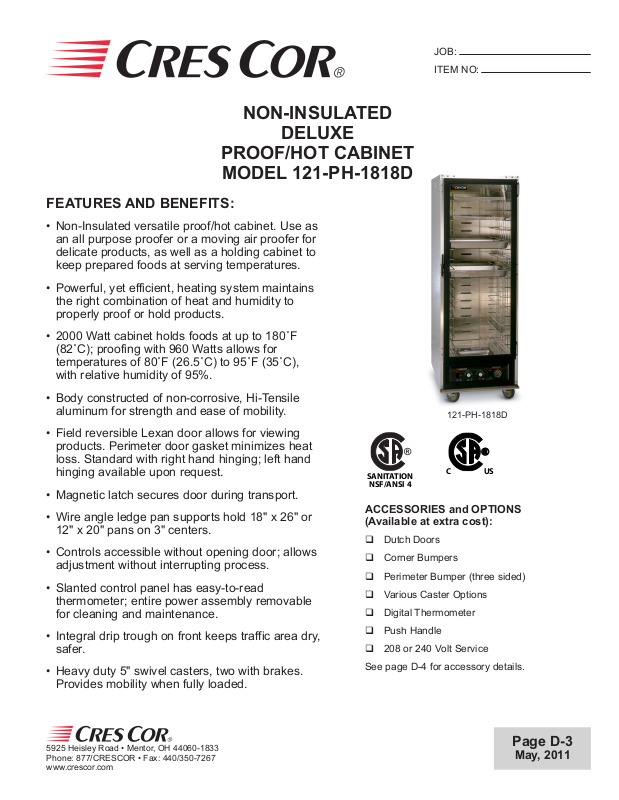

NON-INSULATED
DELUXE
PROOF/HOT CABINET
MODEL 121-PH-1818D
FEATURES AND BENEFITS:
• Non-Insulated versatile proof/hot cabinet. Use as
an all purpose proofer or a moving air proofer for
delicate products, as well as a holding cabinet to
keep prepared foods at serving temperatures.
• Powerful, yet efficient, heating system maintains
the right combination of heat and humidity to
properly proof or hold products.
• 2000 Watt cabinet holds foods at up to 180˚F
(82˚C); proofing with 960 Watts allows for
temperatures of 80˚F (26.5˚C) to 95˚F (35˚C),
with relative humidity of 95%.
JOB:
ITEM NO:
• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.
• Field reversible Lexan door allows for viewing
products. Perimeter door gasket minimizes heat
loss. Standard with right hand hinging; left hand
hinging available upon request.
• Magnetic latch secures door during transport.
• Wire angle ledge pan supports hold 18" x 26" or
12" x 20" pans on 3" centers.
• Controls accessible without opening door; allows
adjustment without interrupting process.
• Slanted control panel has easy-to-read
thermometer; entire power assembly removable
for cleaning and maintenance.
• Integral drip trough on front keeps traffic area dry,
safer.
• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.
121-PH-1818D
®
SANITATION
NSF/ANSI 4
ACCESSORIES and OPTIONS
(Available at extra cost):
q Dutch Doors
q Corner Bumpers
q Perimeter Bumper (three sided)
q Various Caster Options
q Digital Thermometer
q Push Handle
q 208 or 240 Volt Service
See page D-4 for accessory details.
C US
®
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
Page D-3
May, 2011
3-3/8
A
A
12-1/8
B
121-PH-1818D
3"
B
DETAIL OF
PAN SLIDE
CRES COR
MODEL NO.
121-PH-1818D
When ordering bumpers, add 2" to overall dimensions.
ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.
CABINET:
• Top: One piece .063 aluminum; riveted to sides and back.
• Side panels: Formed .063 aluminum; fastened to base and top.
• Back panel: .063 aluminum; fastened to base and top.
• Air tunnel: .063 aluminum; lift-out type, mounted on back panel.
BASE:
• One piece construction, .125 aluminum.
• Drip trough: Formed 18 ga. 304 stainless steel mounted to front
of base; removable drip pan.
• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.
250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front
casters equipped with brakes.
PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS
CAP
18
36
SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT
18 x 26
460 x 660
12 x 20 IN
305 x 510 MM
IN 24-1/4 32 69-3/4 21-1/4 28-1/4 54-3/8 LBS 160
MM 620 815 1775 540 718 1385 KG 73
PROOF/HOT UNIT COMPONENTS (CONT.):
• Pilot lights.
• Switches (2): Rocker type.
• Power cord: Permanent, 6 ft., 12/3 ga. with molded plug.
• Heaters (2): 960 Watts for holding.
• Blower motor.
• Thermometer.
• Water pan: 3-1/2 quart; 22 ga. 304 stainless steel with 960 Watt
heater for humidity.
POWER REQUIREMENTS:
• 2000 Watts, 120 Volts, 60 Hz., single phase, 16.7 Amps., 20
Amp. service.
DOOR:
• Field reversible.
• Frame: Black powder coated extruded aluminum, 13/16 x
1-11/16; fastened together.
• Panel: 3/16 clear Lexan, fitted into door frame.
• Latch: Magnetic type with pull handle.
• Hinges (2): Chrome plated steel.
• Gasket: Perimeter type, Santoprene rubber.
PAN SLIDES:
• Rack inserts (lift-out): Nickel chrome plated wire (.250 dia.);
(18) angles on 3" centers
PROOF/HOT UNIT COMPONENTS:
• Removable bottom mount proof/hot unit.
• Body: Formed .063 aluminum with black control panel.
• Thermostat (holding): Mechanical, room ambient to 180˚F. (82˚C.).
• Thermostat (humidity): Mechanical, room ambient to 95%.
G
C
W
5-20P
8-1/2
WEIGHT
ACT.
SHORT FORM SPECIFICATIONS
Cres Cor Proof/Hot Cabinet Model 121-PH-1818D.
Formed and welded .063 aluminum top, .125
aluminum base. Wire angles for (18) 18" x 26" or
(36) 12" x 20" pans on 3" centers. Field reversible
Lexan door with magnetic pull latch. Removable
2000 Watt, 120 Volt power unit; adjustable heat and
humidity. Controls accessible without opening door.
5" swivel modulus casters, Delrin bearings. Load
capacity 250 lbs. each. 1-Year Parts / 90-Day Labor
warranty. Provide the following accessories: ____
_____ _____ CSA-US, CSA-C, CSA to NSF4 listed.
In line with its policy to continually improve its products,
5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: 440/350-7267
www.crescor.com
© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.
CRES COR reserves the right to change materials and
specications without notice.
