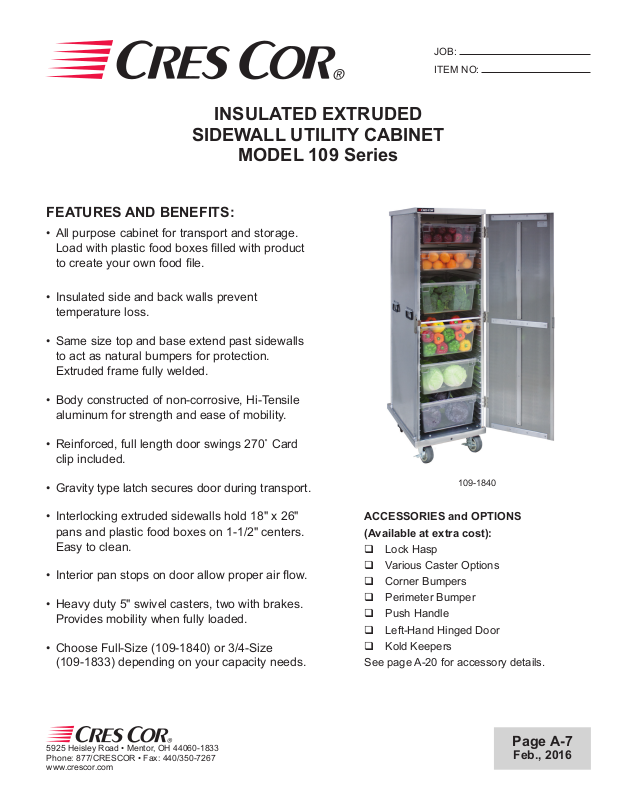

Cres Cor 109-1833 User Manual

INSULATED EXTRUDED

SIDEWALL UTILITY CABINET

MODEL 109 Series

FEATURES AND BENEFITS:

• All purpose cabinet for transport and storage.

Load with plastic food boxes lled with product
to create your own food le.

• Insulated side and back walls prevent
temperature loss.

• Same size top and base extend past sidewalls
to act as natural bumpers for protection.
Extruded frame fully welded.

JOB:

ITEM NO:

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

• Reinforced, full length door swings 270˚ Card
clip included.

• Gravity type latch secures door during transport.

• Interlocking extruded sidewalls hold 18" x 26"
pans and plastic food boxes on 1-1/2" centers.
Easy to clean.

• Interior pan stops on door allow proper air ow.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

• Choose Full-Size (109-1840) or 3/4-Size

(109-1833) depending on your capacity needs.

109-1840

ACCESSORIES and OPTIONS
(Available at extra cost):

q Lock Hasp
q Various Caster Options
q Corner Bumpers
q Perimeter Bumper
q Push Handle
q Left-Hand Hinged Door
q Kold Keepers

See page A-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

Page A-7

Feb., 2016

1-1/2

B

C

A

A B

109 Series

A

B

DETAIL OF
PAN SLIDE

CRES COR

MODEL NO.

109-1840

109-1833

When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

40

33

18 x 26 IN 22 30-1/16 69-3/4 18-5/16 26 61-1/2 LBS 150

460 x 660 MM 560 765 1772 465 660 1565 KG 68

18 x 26 IN 22 30-1/16 58 18-5/16 26 49-1/2 LBS 11 3

460 x 660 MM 560 765 1473 465 660 1257 KG 51

CABINET:

• Posts: Extruded channels, 7/8 x 2-1/4 x .102, welded to top and

base, form a solid frame.

• Sides: Interlocking extruded 6" panels, smooth outer sides.
Double wall with 1" insulation.

• Back panel: Fitted into posts, riveted to top and reinforced.

Double wall with 1" insulation.

• Tie rod: Applied at front.

• Top: One piece .100 aluminum.

• Bail Handles (2): Mounted on each side.

BASE:

• One piece construction, .190 aluminum.

• Casters: 5" dia., swivel, modulus tires, 2" wide, load cap.
375 lbs. each, temp. range -45˚/+180˚F. Delrin bearings.
Front casters equipped with brakes.

DOOR:

• Panel: Formed .100 aluminum.

• Reinforcement: 1/4 x 1-1/2 extruded bars riveted horizontally

to top, center and bottom.

• Latch: Gravity type, nickel plated steel.

• Swings 270˚ on 3 butt hinges, riveted to posts and door.

• Pan stop channel.

C

A

B

WEIGHT

ACT.

PAN SLIDES:

• Extruded interlocking side walls act as pan slides on 1-1/2"
centers.

SHORT FORM SPECIFICATIONS

Cres Cor Insulated Utility Cabinet Model 109-____.
Formed and welded .100 aluminum top, .190

aluminum base. Interlocking extruded aluminum

sidewalls for (40) or (33) 18" x 26" pans and plastic

food boxes on 1-1/2" centers. Insulated side and

back walls. Formed .100 aluminum reinforced door.

5" swivel modulus casters, Delrin bearings. Load
capacity 375 lbs. each. 2-Year Parts / 1-Year Labor
warranty. Provide the following accessories: ______

______ ______.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

© Crescent Metal Products, Inc. 2016 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
