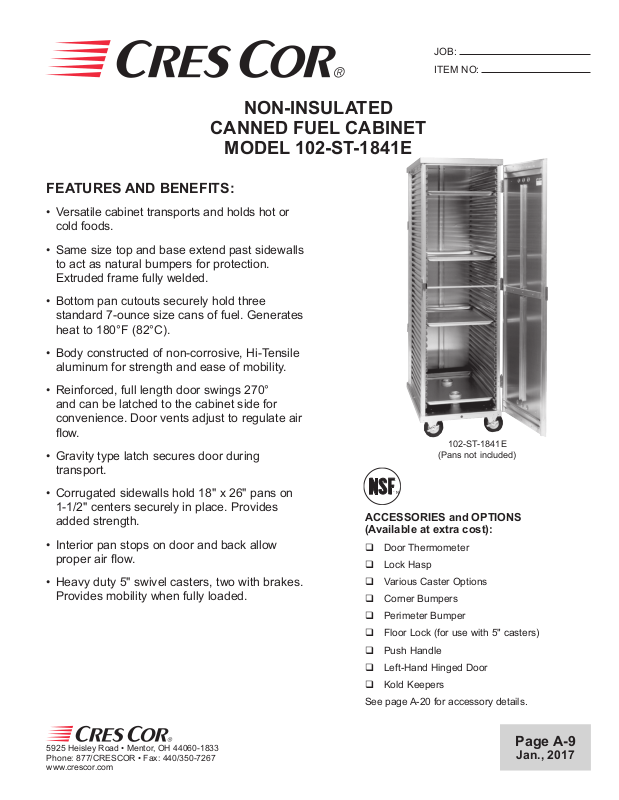

NON-INSULATED

CANNED FUEL CABINET

MODEL 102-ST-1841E

FEATURES AND BENEFITS:

• Versatile cabinet transports and holds hot or
cold foods.

• Same size top and base extend past sidewalls
to act as natural bumpers for protection.
Extruded frame fully welded.

• Bottom pan cutouts securely hold three
standard 7-ounce size cans of fuel. Generates
heat to 180°F (82°C).

JOB:

ITEM NO:

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

• Reinforced, full length door swings 270°
and can be latched to the cabinet side for
convenience. Door vents adjust to regulate air

ow.

• Gravity type latch secures door during
transport.

• Corrugated sidewalls hold 18" x 26" pans on
1-1/2" centers securely in place. Provides
added strength.

• Interior pan stops on door and back allow

proper air ow.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

102-ST-1841E

(Pans not included)

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Door Thermometer

q Lock Hasp

q Various Caster Options

q Corner Bumpers

q Perimeter Bumper

q Floor Lock (for use with 5" casters)

q Push Handle

q Left-Hand Hinged Door

q Kold Keepers

See page A-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page A-9

Jan., 2017

102-ST-1841E

DETAIL OF
PAN SLIDE

9/16

A A

1-1/2

B

C

CRES COR

MODEL NO.

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

102-ST-1841E 38

NOTE: Send sample pan or tray with order when using any that are not an 18" x 26" pan with heavy beaded edge.
When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

18 X 26 IN 20-7/8 28-1/2 69-3/4 18-1/16 26-5/8 61-1/2 LBS 125

460 X 660 MM 530 724 1775 460 676 1565 KG 57

B

WEIGHT

ACT.

CABINET:

Posts: Extruded channels, 7/8 x 2-1/4 x .102, welded to top and

base, form a solid frame.
Sides: .063 corrugations riveted to posts.
SUPER DUTY back panel: Fitted into posts, riveted to top and

reinforced with additional bracing.
Tie rod: Applied at front.
Top: One piece .100 aluminum.
Pan stop channels: Mounted to inside rear of cabinet and door.
Removable canned fuel holding tray holds three standard 7 oz.

cans of fuel.

BASE:

One piece construction, .190 aluminum.
Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.

250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front

casters equipped with brakes.

DOOR:

Panel: .063 aluminum with adjustable vents tted into door stile

extrusions, 3/4 x 1-7/16 x .187.
Reinforcement: 1/4 x 1-1/2 extruded bars riveted and welded

horizontally.
Latch: Gravity type, nickel plated steel.

Swings 270˚ on 3 butt hinges, riveted to posts and stiles.

PAN SLIDES:

• Corrugations act as pan slides on 1-1/2" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Canned Fuel Cabinet Model 102-ST-1841E.
Formed and welded .100 aluminum top, .190 aluminum
base. No-tip .063 corrugated aluminum sides for
(38) 18" x 26" pans on 1-1/2" centers. Vented .063
aluminum door, full frame welded construction.
Removable canned fuel holding tray holds (3) 7 oz.
cans. 5" swivel modulus casters, Delrin bearings. Load
capacity 250 lbs. each. 1-Year Parts / 90-Day Labor
warranty. Provide the following accessories: ______
______ ______. NSF listed.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2017 All rights reserved. Made in America Since 1936

In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and

specications without notice.
