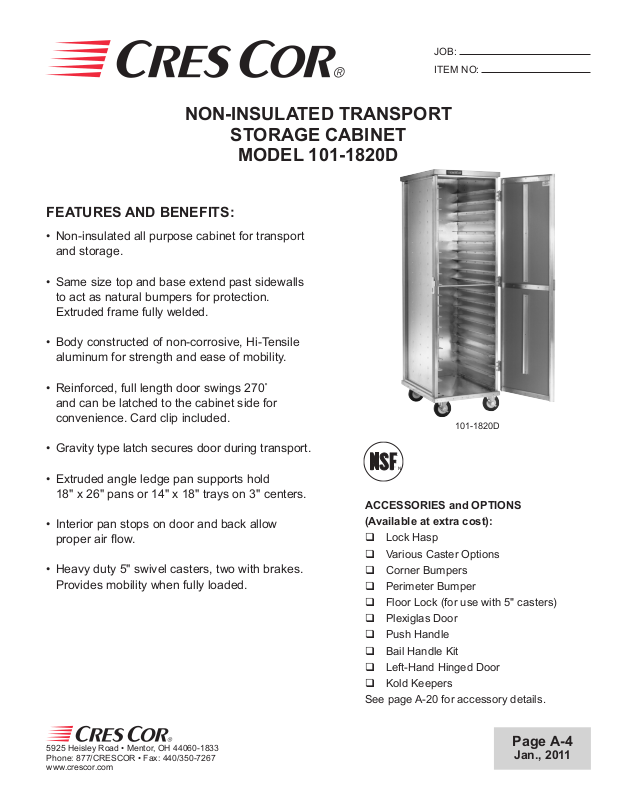

Cres Cor 101-1820D User Manual

NON-INSULATED TRANSPORT

STORAGE CABINET

MODEL 101-1820D

FEATURES AND BENEFITS:

• Non-insulated all purpose cabinet for transport
and storage.

• Same size top and base extend past sidewalls
to act as natural bumpers for protection.
Extruded frame fully welded.

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

JOB:

ITEM NO:

• Reinforced, full length door swings 270˚
and can be latched to the cabinet side for
convenience. Card clip included.

• Gravity type latch secures door during transport.

• Extruded angle ledge pan supports hold
18" x 26" pans or 14" x 18" trays on 3" centers.

• Interior pan stops on door and back allow
proper air ow.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

101-1820D

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Lock Hasp
q Various Caster Options
q Corner Bumpers
q Perimeter Bumper
q Floor Lock (for use with 5" casters)
q Plexiglas Door
q Push Handle
q Bail Handle Kit
q Left-Hand Hinged Door
q Kold Keepers

See page A-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

Page A-4

Jan., 2011

2

DETAIL OF
PAN SLIDE

101-1820D

A A B

3

B

C

CRES COR

MODEL NO.

101-1820D

When ordering bumpers, add 2" to overall dimensions.

ALL ALUMINUM CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

20

40

18 x 26 IN 21 31 69-3/4 18-3/16 28-1/2 61-1/2 LBS 155

460 x 660 MM 535 790 1775 465 725 1565 KG 70

14 x 18 IN

360 x 460 MM

CABINET:

• Posts: Extruded channels, 7/8 x 2-1/4 x .102, welded to top
and base, form a solid frame.

• Sides and back: .063 panels riveted to posts.

• Back panel: Fitted into posts, riveted to top and reinforced.

• Tie rod: Applied at front.

• Top: One piece .100 aluminum.

• Pan stop channels: Mounted to inside rear of cabinet and door.

BASE:

• One piece construction, .190 aluminum.

• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.
250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front
casters equipped with brakes.

DOOR:

• Panel: Formed .100 aluminum.

• Reinforcement: 1/4 x 1-1/2 extruded bars riveted horizontally to
top, center and bottom.

• Latch: Gravity type, nickel plated steel.

• Swings 270˚ on 3 butt hinges, riveted to posts and door.

WEIGHT

ACT.

PAN SLIDES:

• Extruded angle supports 1 x 2 x .125 riveted to sides on
3" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Cabinet Model 101-1820D. Formed
and welded .100 aluminum top, .190 aluminum base.
Extruded aluminum angles riveted on 3" centers.
Formed .100 aluminum reinforced door. 5" swivel
modulus casters, Delrin bearings. Load capacity 250
lbs. each. 2-Year Parts / 1-Year Labor warranty. Provide
the following accessories: ______ ______ ______.
NSF listed.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2011 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
