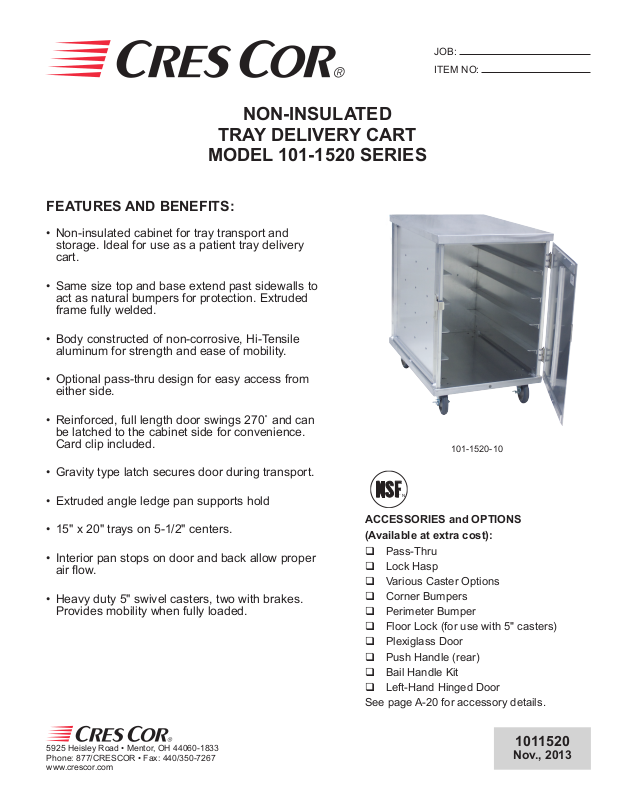

NON-INSULATED

TRAY DELIVERY CART

MODEL 101-1520 SERIES

FEATURES AND BENEFITS:

• Non-insulated cabinet for tray transport and
storage. Ideal for use as a patient tray delivery
cart.

• Same size top and base extend past sidewalls to
act as natural bumpers for protection. Extruded
frame fully welded.

• Body constructed of non-corrosive, Hi-Tensile
aluminum for strength and ease of mobility.

JOB:

ITEM NO:

• Optional pass-thru design for easy access from
either side.

• Reinforced, full length door swings 270˚ and can
be latched to the cabinet side for convenience.
Card clip included.

• Gravity type latch secures door during transport.

• Extruded angle ledge pan supports hold

• 15" x 20" trays on 5-1/2" centers.

• Interior pan stops on door and back allow proper

air ow.

• Heavy duty 5" swivel casters, two with brakes.
Provides mobility when fully loaded.

101-1520-10

¨ N

ACCESSORIES and OPTIONS
(Available at extra cost):

q Pass-Thru
q Lock Hasp
q Various Caster Options
q Corner Bumpers
q Perimeter Bumper
q Floor Lock (for use with 5" casters)
q Plexiglass Door
q Push Handle (rear)
q Bail Handle Kit
q Left-Hand Hinged Door

See page A-20 for accessory details.

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

1011520

Nov., 2013

101-1520 SERIES

CRES COR

MODEL NO.

101-1520-10

101-1520-12

101-1520-20

When ordering bumpers, add 2" to overall dimensions.

ALL CONSTRUCTION IS RIVETED, WELDED AND FINISHED.

PAN DIM "A" DIM "B" DIM "C" INSIDE DIMENSIONS

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

15 x 20 IN 23-3/4 33-1/2 35-3/4 20-15/16 31 27-1/2 LBS 96

10

385 x 510 MM 605 855 910 535 790 700 KG 44

15 x 20 IN 23-3/4 33-1/2 42 20-15/16 31 33-3/4 LBS 11 6

12

385 x 510 MM 605 855 1070 535 790 860 KG 53

15 x 20 IN 23-3/4 33-1/2 63-3/4 20-15/16 31 55-1/2 LBS 126

20

385 X 510 MM 605 855 1620 535 31 1410 KG 57

CABINET:

• Top: One piece .063 aluminum.

• Posts: Extruded aluminum channels, 7/8 x 2-1/4 x .102, welded
to top and base, form a solid frame.

• Sides and back: .063 panels riveted to posts.

• Back panel: Fitted into posts, riveted to top and reinforced.

• Tie rod: Applied at front of 101-1520-20.

• Pan stop channels: Riveted to inside rear of cabinet and door.

BASE:

• One piece construction, .125 aluminum.

• Casters: 5" dia., swivel, modulus tires, 1-1/4" wide, load cap.

250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front

casters equipped with brakes.

DOOR:

• Panel: Formed .063 aluminum.

• Reinforcement: 3/8 x 1-1/2 extruded bars riveted and welded
horizontally to top, center and bottom.

• Latch: Gravity type, nickel plated steel.

• Swings 270˚ on butt hinges, riveted to posts and door panel.

• Slide latch holds door open.

WEIGHT

ACT.

PAN SLIDES:

• Angles: Extruded angle supports 1 x 2 x .125 riveted to sides on
5-1/2" centers.

SHORT FORM SPECIFICATIONS

Cres Cor Utility Tray Delivery Cart Model 101-1520-_____.
Formed and welded .063 aluminum top, .125 aluminum
base. Extruded aluminum angles riveted on 5-1/2" centers.
Holds (____) 15" x 20" trays. Formed .063 aluminum door.
5" swivel modulus casters, Delrin bearings. Load capacity
250 lbs. each. Provide the following accessories: ______
______ ______ . NSF listed. 2 year parts warranty.

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]

www.crescor.com

© Crescent Metal Products, Inc. 2013 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
