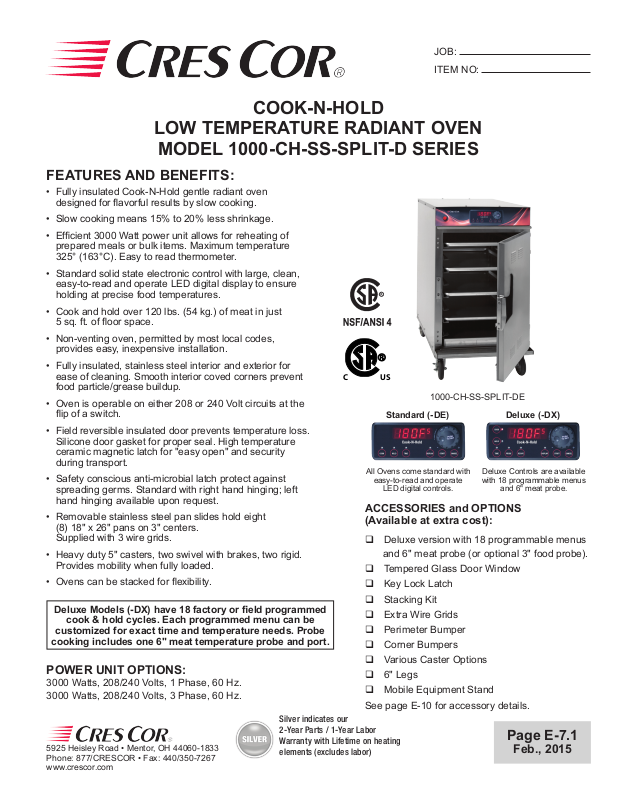

Cres Cor 1000-CH-SS-SPLIT-DE User Manual

COOK-N-HOLD

LOW TEMPERATURE RADIANT OVEN

MODEL 1000-CH-SS-SPLIT-D SERIES

FEATURES AND BENEFITS:

• Fully insulated Cook-N-Hold gentle radiant oven

designed for avorful results by slow cooking.

• Slow cooking means 15% to 20% less shrinkage.

• Efcient 3000 Watt power unit allows for reheating of

prepared meals or bulk items. Maximum temperature
325° (163°C). Easy to read thermometer.

• Standard solid state electronic control with large, clean,
easy-to-read and operate LED digital display to ensure
holding at precise food temperatures.

• Cook and hold over 120 lbs. (54 kg.) of meat in just

5 sq. ft. of oor space.

• Non-venting oven, permitted by most local codes,
provides easy, inexpensive installation.

• Fully insulated, stainless steel interior and exterior for
ease of cleaning. Smooth interior coved corners prevent
food particle/grease buildup.

• Oven is operable on either 208 or 240 Volt circuits at the

ip of a switch.

• Field reversible insulated door prevents temperature loss.
Silicone door gasket for proper seal. High temperature
ceramic magnetic latch for "easy open" and security
during transport.

• Safety conscious anti-microbial latch protect against
spreading germs. Standard with right hand hinging; left
hand hinging available upon request.

• Removable stainless steel pan slides hold eight
(8) 18" x 26" pans on 3" centers.
Supplied with 3 wire grids.

• Heavy duty 5" casters, two swivel with brakes, two rigid.
Provides mobility when fully loaded.

• Ovens can be stacked for exibility.

Deluxe Models (-DX) have 18 factory or eld programmed

cook & hold cycles. Each programmed menu can be

customized for exact time and temperature needs. Probe

cooking includes one 6" meat temperature probe and port.

POWER UNIT OPTIONS:

3000 Watts, 208/240 Volts, 1 Phase, 60 Hz.
3000 Watts, 208/240 Volts, 3 Phase, 60 Hz.

Silver indicates our
2-Year Parts / 1-Year Labor

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

Warranty with Lifetime on heating
elements (excludes labor)

JOB:

ITEM NO:

®

C US

1000-CH-SS-SPLIT-DE

Standard (-DE) Deluxe (-DX)

All Ovens come standard with

easy-to-read and operate

LED digital controls.

Deluxe Controls are available
with 18 programmable menus

and 6" meat probe.

ACCESSORIES and OPTIONS
(Available at extra cost):

q Deluxe version with 18 programmable menus

and 6" meat probe (or optional 3" food probe).

q Tempered Glass Door Window

q Key Lock Latch

q Stacking Kit

q Extra Wire Grids

q Perimeter Bumper

q Corner Bumpers

q Various Caster Options

q 6" Legs

q Mobile Equipment Stand

See page E-10 for accessory details.

Page E-7.1

Feb., 2015

1-3/8

L15-20P

YXG

Z

G

6-20P

A

14-1/2

1000-CH-SS-SPLIT-D SERIES

3"

3"

DETAIL OF

PAN SLIDE

CRES COR

MODEL NO.

1000-CH-SS-SPLIT-DE
1000-CH-SS-SPLIT-DX

1000-CH-SS-SPLIT-STK-DE
1000-CH-SS-SPLIT-STK-DX

B

PAN DIM "A" DIM "B" DIM "C" INSIDE CLEAR DIMENSIONS* WEIGHT

CAP SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT

8

18 X 26 IN 22-5/8 32-3/4 42 18-3/16 27 25 LBS 215

460 X 660 MM 575 835 1070 465 690 635 KG 98

18 X 26 IN 22-5/8 32-3/4 77 18-3/16 27 25 LBS 430

16

460 X 660 MM 575 835 1960 465 690 635 KG 195

*Inside dimensions for each compartment.

CABINET:

• Body: 22 ga. stainless steel outer body.

• Inner body & top: 18 ga. stainless steel.

• Reinforcement: Internal framework of 18 ga. stainless steel.

• Insulation: Fiberglass, thermal conductivity (K factor) is .23 at

75˚F, 1-1/2" in walls, 1" in doors.

• Drip pan: 18 ga. stainless steel with drain; removable.

• Casters: 5" dia., modulus tires, 1-1/4 wide, load cap. 250 lbs.

each, temp. range -45˚/+180˚F. Delrin bearings. Front swivel

casters equipped with brakes; rigid casters on rear.

DOOR:

• Field reversible.

• Formed 20 ga. stainless steel.

• Latch: Anti-microbial chrome plated zinc with composite handle,
ceramic magnetic type; mounted inboard.

• Hinges (2): Heavy duty chrome plated zinc; mounted inboard

• Gaskets: Perimeter type, silicone.

• Adjustable vents.

PAN SLIDES (removable):

• 18 ga. stainless steel angles, 1 x 1-3/8; riveted on 3" centers.

• Grids: Stainless steel, 18 x 26; supplied with (3) grids.

CLEARANCE REQUIREMENTS:

• 3" (76mm) at the back, 2" (51mm) at the top, 1" (25mm) at both
sides.

POWER REQUIREMENTS:

• 3000/2650 Watts, 208/240 Volts, 60 Hz., 1 phase, 20 Amp.
Service 14 Amps at 208 Volts, 13 Amps at 240 Volts.

• 3000/2650 Watts, 208/240 Volts, 60 Hz., 3 phase, 20 Amp.
Service 8 Amps at 208 Volts, 7 Amps at 240 Volts.

"C"

G

W

"A"

"B"

6-20P L15-20P

ELECTRICAL COMPARTMENT:

• Control panel: Formed stainless steel; black front.

• Thermostats (cook/hold): Solid state digital display control, 140°F

(60°C) to 325˚F (163˚C).

• Switch: ON-OFF push button type.

• Power Cord: Permanent, 6 ft. 12/3 ga. with right angle plug.

• Three (3) heater circuits.

• Thermometer: Digital display.

• Voltage selector switch: Change to 208 or 240 Volt; on back of oven.

INSTALLATION REQUIREMENTS:

• This model complies with section 59 of UL710B for emissions
of grease laden air, and according to UL is not required to be
placed under a ventilation hood. Check local requirements
before installation.

SHORT FORM SPECIFICATIONS

Cres Cor Insulated Radiant Oven Model 1000-CH-SS­SPLIT-D_; Solid state electronic controlled times and
temperatures. Outer body of 22 ga. stainless steel for
1000-CH-SS-D_ and .063 aluminum for 1000-CH-AL-D_;
inner body, top and frame of 18 ga. stainless steel. Fiberglass
insulation 1-1/2" in walls; 1" in door. Stainless steel internal
frame; coved corners. Anti-microbial chrome plated latch.
Thermometer. Three (3) heated inner walls. Removable pan
supports for (8) 18" x 26" pans spaced on 3" centers. Casters
5" modulus casters (2) swivel, (2) rigid, Delrin bearings. Load
capacity 250 lbs. each. 2-Year Parts / 1-Year Labor warranty.
Lifetime on heating elements (excluding labor). Provide
the following accessories: _____ _____ _____. CSA-US,
CSA-C, CSA to NSF4 listed.

X

Y

Z

ACT.

G

In line with its policy to continually improve its products,

5925 Heisley Road • Mentor, OH 44060-1833
Phone: 877/CRESCOR • Fax: [phone]
www.crescor.com

© Crescent Metal Products, Inc. 2015 All rights reserved. Litho in U.S.A.

CRES COR reserves the right to change materials and

specications without notice.
