INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 1
01/2015
revised 07/2017
TABLE OF CONTENTS
INTRODUCTION ..............................................................................................................................................................2
MANUAL PURPOSE AND CONTENTS .......................................................................................................................................... 2
TARGET ........................................................................................................................................................................................... 2
HOW TO KEEP THIS MANUAL ....................................................................................................................................................... 2
DECLARATION OF CONFORMITY ................................................................................................................................................ 2
IDENTIFICATION DATA ................................................................................................................................................................... 2
OTHER REFERENCE MANUALS ................................................................................................................................................... 2
SPARE PARTS AND MAINTENANCE ............................................................................................................................................. 2
CHANGES AND IMPROVEMENTS ................................................................................................................................................ 2
OPERATION CAPABILITIES ........................................................................................................................................................... 3
CONVENTIONS .............................................................................................................................................................................. 3
UNPACKING/DELIVERY ................................................................................................................................................. 3
SAFETY ........................................................................................................................................................................... 3
VISIBLE SYMBOLS ON THE MACHINE ......................................................................................................................................... 3
SYMBOLS THAT APPEAR ON THIS MANUAL ............................................................................................................................... 4
GENERAL INSTRUCTIONS ............................................................................................................................................................ 4
MACHINE DESCRIPTION ............................................................................................................................................... 6
MACHINE STRUCTURE ................................................................................................................................................................. 6
CONTROL PANEL ........................................................................................................................................................................... 8
ACCESSORIES/OPTIONS .............................................................................................................................................................. 9
TECHNICAL DATA ........................................................................................................................................................................... 9
WIRING DIAGRAM ........................................................................................................................................................................ 10
USE/OPERATION .......................................................................................................................................................... 11
MAGNETIC SMART KEY ...............................................................................................................................................................11
BATTERY CHECK/SETTING ON A NEW MACHINE .....................................................................................................................11
BATTERY INSTALLATION ..............................................................................................................................................................11
BEFORE MACHINE START-UP .................................................................................................................................................... 12
MACHINE START AND STOP ....................................................................................................................................................... 14
MACHINE OPERATION (SCRUBBING/DRYING) ......................................................................................................................... 15
TANK EMPTYING .......................................................................................................................................................................... 17
AFTER USING THE MACHINE ..................................................................................................................................................... 17
PUSHING/TOWING THE MACHINE ............................................................................................................................................. 17
MACHINE LONG INACTIVITY ...................................................................................................................................................... 17
MAINTENANCE ............................................................................................................................................................. 18
SCHEDULED MAINTENANCE TABLE ......................................................................................................................................... 18
BATTE
RY CHARGING .................................................................................................................................................................. 19
SUPERVISOR KEY (yellow) .......................................................................................................................................................... 20
SQUEEGEE CLEANING ............................................................................................................................................................... 22
SQUEEGEE BLADE CHECK AND REPLACEMENT .................................................................................................................... 22
CLEANING THE BRUSH ............................................................................................................................................................... 23
RECOVERY TANK CLEANING ..................................................................................................................................................... 23
SOLUTION FILTER CLEANING .................................................................................................................................................... 24
DETERGENT TANK CLEANING ................................................................................................................................................... 24
DRAINING THE ECOFLEX SYSTEM............................................................................................................................................ 25
FUSE CHECK/REPLACEMENT .................................................................................................................................................... 25
SAFETY FUNCTIONS ................................................................................................................................................... 25
EMERGENCY PUSH-BUTTON ..................................................................................................................................................... 25
ANTI-SKID SAFETY SYSTEM ...................................................................................................................................................... 25
DRIVER’S SEAT MICROSWITCH ................................................................................................................................................. 25
ELECTROMAGNETIC BRAKE ...................................................................................................................................................... 25
TROUBLESHOOTING ................................................................................................................................................... 26
SCRAPPING .................................................................................................................................................................. 27
Page 3
ENGLISH INSTRUCTIONS FOR USE
2 SC2000 - 9100000383
01/2015
revised 07/2017
INTRODUCTION
NOTE
The numbers in brackets refer to the components shown in Machine Description chapter.
MANUAL PURPOSE AND CONTENTS
The purpose of this Manual is to provide the operator with all necessary information to use the machine properly, in a safe and
autonomous way. It contains information about technical data, safety, operation, storage, maintenance, spare parts and disposal.
. Contact
TARGET
from the non-observance of this prohibition.
HOW TO KEEP THIS MANUAL
The Instructions for Use Manual must be kept near the machine, inside an adequate case, away from liquids and other substances
that can cause damage to it.
DECLARATION OF CONFORMITY
NOTE
Two copies of the original declaration of conformity are provided together with the machine documentation.
IDENTIFICATION DATA
The machine serial number and model name are marked on the plate (23).
Year of production (Date code: A17 means January 2017) and product code are marked on the same plate.
Model .................................................................................................
Model Number ...................................................................................
Serial Number ....................................................................................
OTHER REFERENCE MANUALS
– Electronic battery charger Manual, to be considered as integral part of this Manual
– Spare Parts List (supplied with the machine)
–
SPARE PARTS AND MAINTENANCE
Centers. Only original spare parts and accessories must be used.
.
CHANGES AND IMPROVEMENTS
Page 4
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 3
01/2015
revised 07/2017
OPERATION CAPABILITIES
.
CONVENTIONS
Forward, backward, front, rear, left or right are intended with reference to the operator on the driver’s seat, in the driving position
(12).
UNPACKING/DELIVERY
To unpack the machine, carefully follow the instructions on the packing.
To move the machine manually, see the Pushing/Towing The Machine paragraph.
When the machine is delivered, check that the packing and the machine were not damaged during transportation.
in a damage claim.
Please check that the following items have been supplied with the machine:
– Technical documents:
• Scrubber-dryer Instructions for Use Manual
• Electronic battery charger manual (if installed)
• Scrubber-dryer Spare Parts List
– No. 2 lamellar fuses
– No. 1 battery connector (only for machines without on-board battery charger)
– No. 2 shims for 6 V battery compartment (only for machines without on-board batteries)
SAFETY
The following symbols indicate potentially dangerous situations. Always read this information carefully and take all necessary
precautions to safeguard people and property.
The operator’s cooperation is essential in order to prevent injury. No accident prevention program is effective without the total
cooperation of the person responsible for the machine operation. Most of the accidents that may occur in a factory, while working
or moving around, are caused by failure to comply with the simplest rules for exercising prudence. A careful and prudent operator is
the best guarantee against accidents and is essential for successful completion of any prevention program.
VISIBLE SYMBOLS ON THE MACHINE
WARNING!
Carefully read all the instructions before performing any operation on the machine.
WARNING!
Do not wash the machine with direct or pressurized water jets.
max.2%
WARNING!
Page 5
ENGLISH INSTRUCTIONS FOR USE
4 SC2000 - 9100000383
01/2015
revised 07/2017
SYMBOLS THAT APPEAR ON THIS MANUAL
DANGER!
It indicates a dangerous situation with risk of death for the operator.
WARNING!
It indicates a potential risk of injury for people.
CAUTION!
It indicates a caution or a remark related to important or useful functions.
Pay careful attention to the paragraphs marked by this symbol.
NOTE
It indicates a remark related to important or useful functions.
CONSULTATION
It indicates the necessity to refer to the Instructions for Use Manual before performing any procedure.
GENERAL INSTRUCTIONS
.
DANGER!
– Before performing any maintenance, repair, cleaning or replacement procedure, remove the magnetic smart
key (or ignition key) and disconnect the battery connector.
– This machine must be used by properly trained operators only.
– Do not wear jewels when working near electrical components.
– Do not work under the lifted machine without supporting it with safety stands.
–
This machine is not suitable for collecting dangerous powders.
–
the normal operation explosive gases are released.
– When using lead (WET) batteries, battery charging produces highly explosive hydrogen gas. During battery
charging, lift the recovery tank and perform this procedure in well-ventilated areas and away from naked
WARNING!
– Carefully read all the instructions before performing any maintenance/repair procedure.
– The magnetic smart key has a built-in magnet. Do not place objects having magnetic bands (such as credit
cards, electronic keys, phone cards) near the key. The built-in magnet can damage or erase the data stored
on the magnetic bands.
– Before using the battery charger, ensure that frequency and voltage values, indicated on the machine serial
number plate, match the electrical mains voltage.
– Do not pull or carry the machine by the battery charger cable and never use the battery charger cable as
a handle. Do not close a door on the battery charger cable, or pull the battery charger cable around sharp
edges or corners. Do not run the machine on the battery charger cable.
– Keep the battery charger cable away from heated surfaces.
– Do not charge the batteries if the battery charger cable or the plug are damaged.
–
in. Before performing any maintenance procedure, disconnect the battery charger cable from the electrical
mains.
– Do not smoke while charging the batteries.
– To avoid any unauthorized use of the machine, remove the magnetic smart key (or ignition key).
– Do not leave the machine unattended without being sure that it cannot move independently.
Page 6
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 5
01/2015
revised 07/2017
WARNING!
– Always protect the machine against the sun, rain and bad weather, both under operation and inactivity
condition. This machine must be used in dry conditions, it must not be used or kept outdoors in wet
conditions.
– Before using the machine, close all doors and/or covers as shown in the Instructions for Use Manual.
– This machine is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the machine by a person responsible for they safety.
Children should be supervised to ensure that they do not play with the machine.
– Close attention is necessary when used near children.
–
– Check the machine carefully before each use, always check that all the components have been properly
assembled before use. If the machine is not perfectly assembled it can cause damages to people and
properties.
– Take all necessary precautions to prevent hair, jewels and loose clothes from being caught by the machine
moving parts.
– Do not use the machine on slopes.
– Do not tilt the machine more than the angle indicated on the machine itself, in order to prevent instability.
– Do not use the machine in particularly dusty areas.
– Use the machine only where a proper lighting is provided.
– If the machine is to be used where there are other people besides the operator, it is necessary to install the
beacon light (optional).
– While using this machine, take care not to cause damage to people or objects.
– Do not bump into shelves or scaffoldings, especially where there is a risk of falling objects.
– Do not lean liquid containers on the machine, use the relevant can holder.
– The machine working temperature must be between 0 °C and +40 °C.
– The machine storage temperature must be between 0 °C and +40 °C.
– The humidity must be between 30 % and 95 %.
–
–
– Do not use the machine as a means of transport.
–
.
–
– Do not tamper with the machine safety guards and follow the ordinary maintenance instructions
scrupulously.
– Do not allow any object to enter into the openings. Do not use the machine if the openings are clogged.
Always keep the openings free from dust, hairs and any other foreign material which could reduce the air
–
– To manually move the machine, the electromagnetic brake must be disengaged. After moving the machine
manually, engage the electromagnetic brake again. Do not use the machine when the electromagnetic brake
handwheel is screwed down.
– When the machine is to be pushed for service reasons (missing or discharged batteries, etc.), the speed
must not exceed 4 km/h.
– This machine cannot be used on roads or public streets.
– Pay attention during machine transportation when temperature is below freezing point. The water in the
recovery tank or in the hoses could freeze and seriously damage the machine.
–
Using other brushes or pads could reduce safety.
– In case of machine malfunctions, ensure that these are not due to lack of maintenance. If necessary, request
assistance from the authorised personnel or from an authorised Service Center.
– If parts must be replaced, require ORIGINAL spare parts from an Authorised Dealer or Retailer.
– To ensure machine proper and safe operation, the scheduled maintenance shown in the relevant chapter of
this Manual, must be performed by the authorised personnel or by an authorised Service Center.
– Do not wash the machine with direct or pressurised water jets, or with corrosive substances.
– The machine must be disposed of properly, because of the presence of toxic-harmful materials (batteries,
etc.), which are subject to standards that require disposal in special centres (see Scrapping chapter).
Page 7
ENGLISH INSTRUCTIONS FOR USE
6 SC2000 - 9100000383
01/2015
revised 07/2017
MACHINE DESCRIPTION

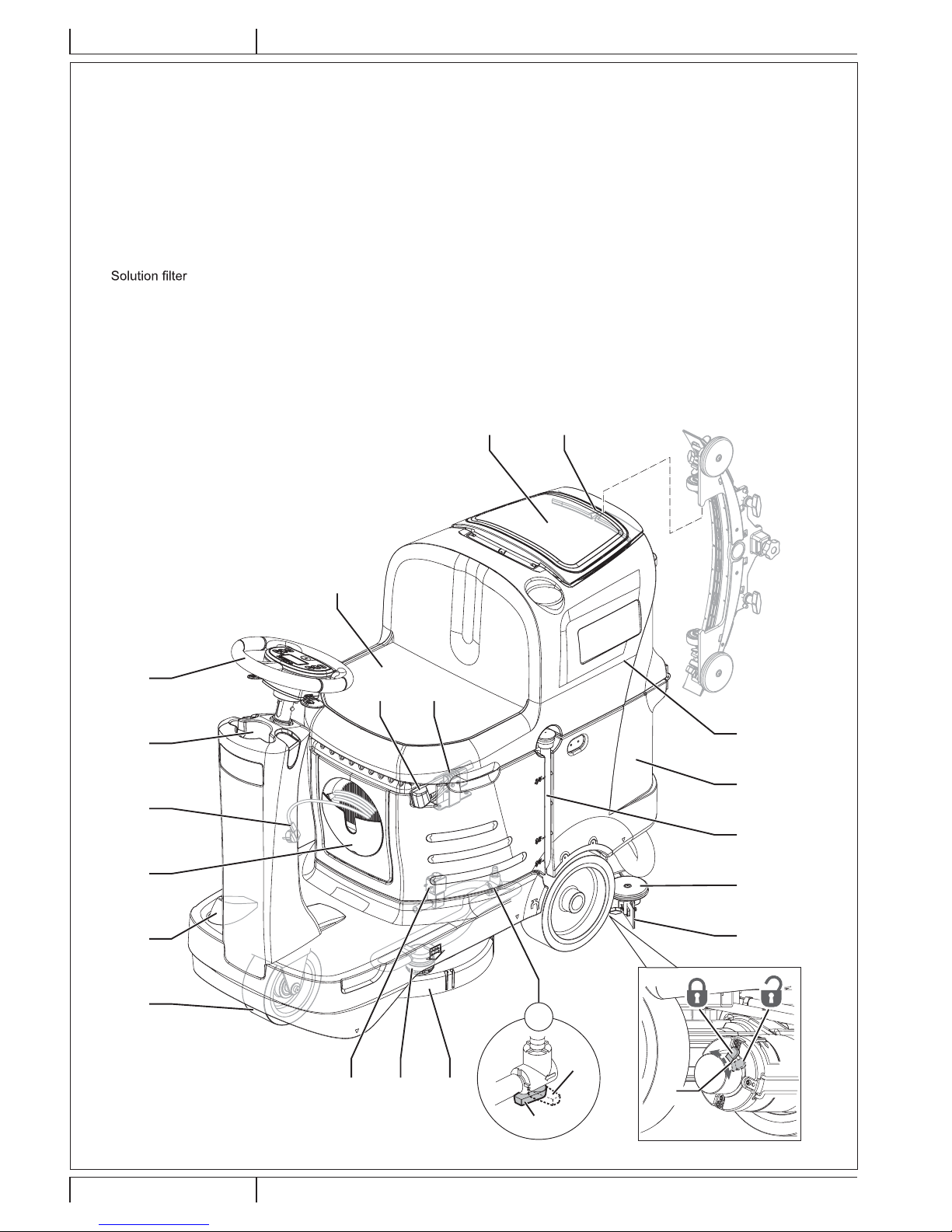

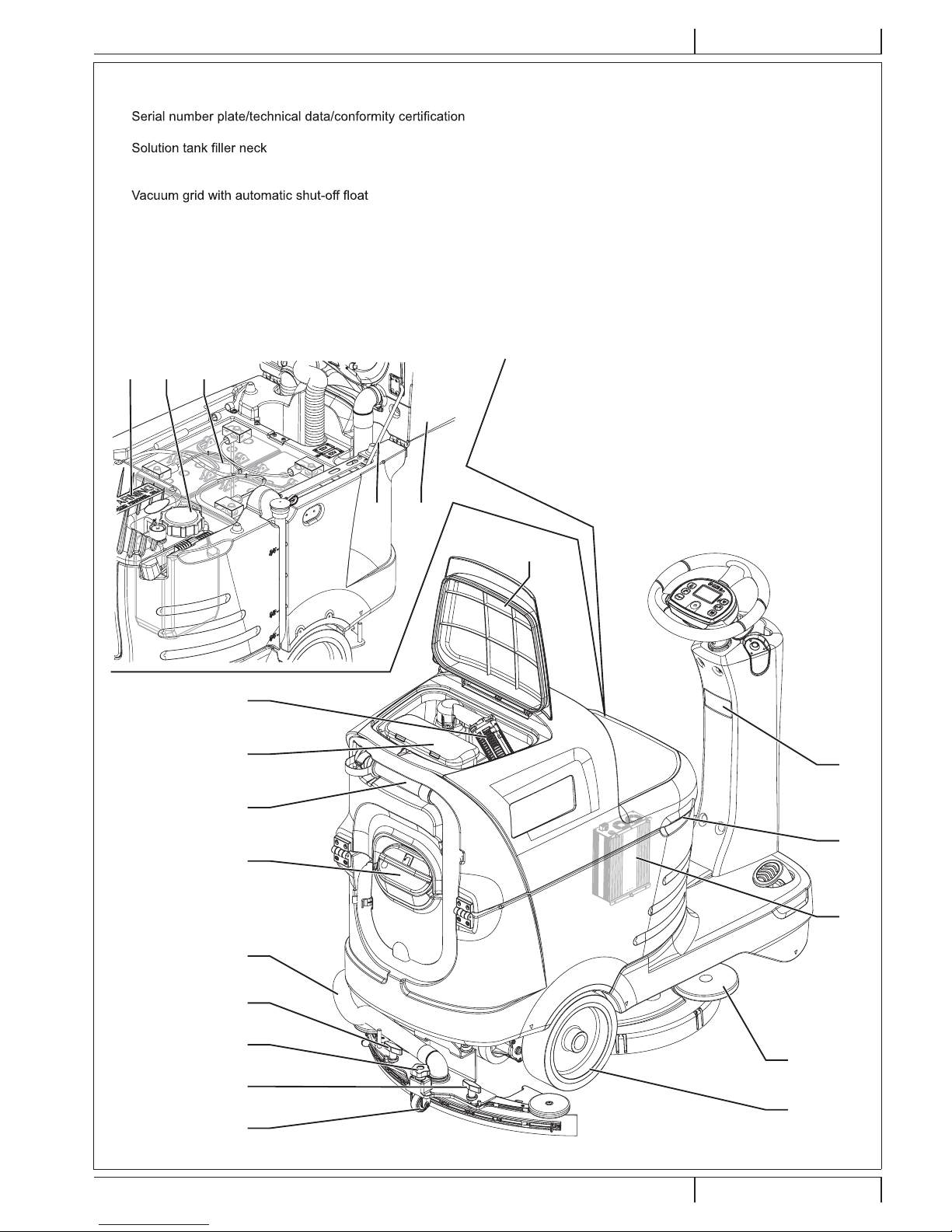

MACHINE STRUCTURE
1. Steering wheel with control panel (see the following
paragraph)
2. Drive pedal
3. Front steering wheel
4. Electromagnetic brake locking/unlocking lever
5. EMERGENCY push-button, to stop immediately all
functions
6. Battery connector
7. Brush deck
8.
9. Solution valve
A) Open valve
B) Closed valve
10. Solenoid valve
11. Squeegee hook
12. Seat
13. Squeegee
14. Squeegee bumper wheels
15. Solution tank
16. Solution drain and level check hose
17. Dumping recovery tank assembly
18. Recovery tank cover
19. Can holder
20. Battery charger cable housing and document holder
21. Battery charger cable (*)
(*) Optional for BASIC version
B
A
17
15
16
14
13
5 6
12
18 11
1
19
21
20
2
3
10 8 7
4
9
P100859
Page 8
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 7
01/2015
revised 07/2017
MACHINE STRUCTURE (Continues)
22. Battery charger (*)
23.
24. Rear driving wheels
25.
26. Recovery water drain hose
27. Container with debris collection grid
28.
29. Recovery water tank cover (open)
30. Squeegee vacuum hose
31. Squeegee support wheel
32. Squeegee mounting handwheels
33. Squeegee adjusting knob
34. Brush deck bumper wheel
35. Tank assembly and seat lifting handle
36. Tank assembly and seat support rod
37. Batteries (*)
38. EcoFlex detergent canister (*)
39. Electronic component compartment cover
40. Lifted recovery tank assembly and driver’s seat
(*) Optional for BASIC version
23
35
22
34
24
29
373839
4036
28
27
26
25
30
32
33
32
31
P100860
Page 9
ENGLISH INSTRUCTIONS FOR USE
8 SC2000 - 9100000383
01/2015
revised 07/2017

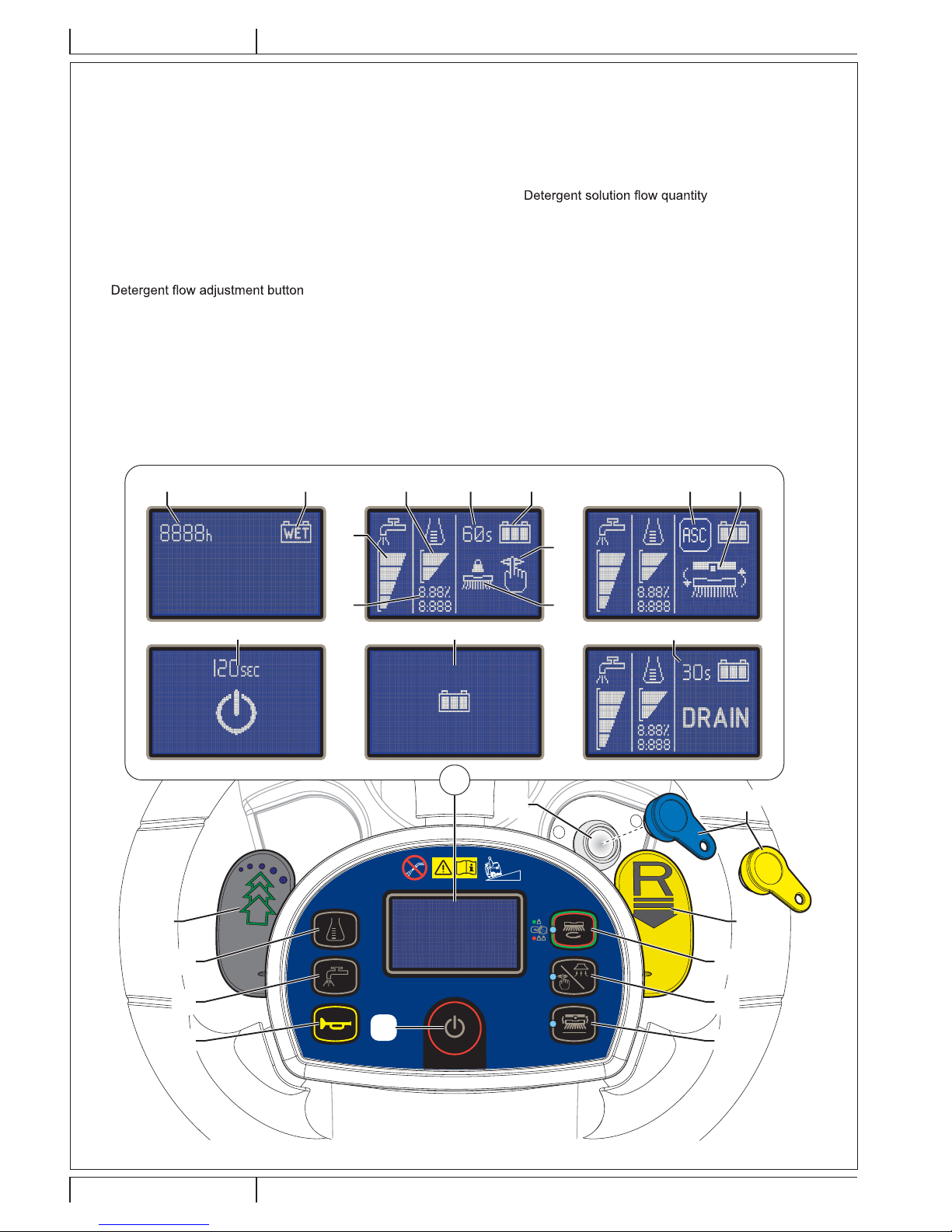

CONTROL PANEL
41. Smart key reader
42. Start/stop switch
43. One-Touch™ Scrub ON/OFF push-button
• Flashing green LED: Brush deck moving up/down
• Steady green LED: Ready for work
• Steady red LED: - Extra pressure active (hold for one
second)
44. Vacuum system adjustment/deactivation push-button:
• LED on - vacuum system activated
45. Brush engage/disengage push-button:
• Flashing LED - system activated
46. Detergent percentage adjustment push-button (*)
47.
48. Horn switch
49. Reverse gear activation/deactivation lever
50. EcoFlex activation/deactivation lever (*)
51. Display:
A) Hours worked
B) Battery type
C) Battery charge level
D) Vacuum mode
E) Brush work mode
F)
G) Detergent quantity (*)
H) Percentages of detergent in the washing water (*)
I) EcoFlex system override timer (*)
J) Anti-skid control
K) Maximum machine speed setting
L) Auto shut-off timer
M) Battery charging with on-board battery charger (*)
N) EcoFlex system drain activation (*)
52. Magnetic smart key
• Blue = User key
• Yellow = supervisor key
(*) Optional for BASIC version
max.2%
C KI J
M
N
L
G
A B
F
H
D
E
42
41
49
43
44
45
50
46
47
48
52
51
P100861
Page 10
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 9
01/2015
revised 07/2017
ACCESSORIES/OPTIONS
In addition to the standard components, the machine can be equipped with the following accessories/options, according to the
– GEL/AGM batteries
– Electronic battery charger
– Brushes of different materials
– Pads of different materials
– Splash guard
– Squeegee blades of different materials
– Filling hose
– EcoFlex
– Pivoting light
– Broom holder
– Waste basket
– Enhanced vacuum system motor
– USB port
For further information concerning the optional accessories, contact an authorised Retailer.
TECHNICAL DATA
Model SC2000 53 B SC2000 53 B FULL PKG
Solution tank capacity 70 litres
Recovery tank capacity 70 litres
Machine length 1,270 mm
Machine width with squeegee 720 mm
Machine width without squeegee 550 mm
Machine height 1,020 mm
Turning space for U-turns 1,800 mm
Cleaning width 530 mm
Rear driving wheel diameter 254 mm
1.0 N/mm
2
Front steering wheel diameter 200 mm
1.3 N/mm
2
Brush/pad diameter 530/508 mm
Brush pressure with extra pressure function turned off 15 kg
Brush pressure with extra pressure function turned on 30 kg
0.75 cl/m / 1.5 cl/m / 3.0 cl/m / (2.8 l/min, if enabled)
EcoFlex system detergent percentage - 0.25 % - 3 %
Sound pressure level at workstation (ISO 11201, ISO 4871, EN 60335-2-72) (LpA) 68 ± 3 dB(A)
Sound pressure level at workstation in silent mode (LpA) 62 ± 3 dB(A)
Machine sound power level (ISO 3744, ISO 4871, EN 60335-2-72) (LwA) 84 dB(A)
Vibration level at the operator’s arms (ISO 5349-1, EN 60335-2-72) 3.3 m/s
2
Vibration level at the operator’s body (ISO 5349-1, EN 60335-2-72) 0.9 m/s
2
Maximum gradient when working 2 %
Drive system motor power 400 W
Drive speed (variable) 0 - 6 km/h
Vacuum system motor power 310 W
Vacuum system circuit capacity 1,000 mm H
2
O
Brush motor power 450 W
Brush rotation speed 155 rpm
Total absorbed power (*) 620 W
IP protection class X4
Protection class (electric) III (I for the battery charger)
Battery compartment size 350x360x280 mm
System voltage 24V
Standard batteries (2) - Discover 12V-105Ah
Battery charger -
100-240Vac 50-60Hz,
24Vdc 13A
Operating time (standard batteries) (*) 2.5 hour
Weight without batteries and with empty tanks 119 kg 121 kg
Gross vehicle weight (GVW) 342 kg
Shipping weight 152 kg 228 kg
(*)
Page 11
ENGLISH INSTRUCTIONS FOR USE
10 SC2000 - 9100000383
01/2015
revised 07/2017

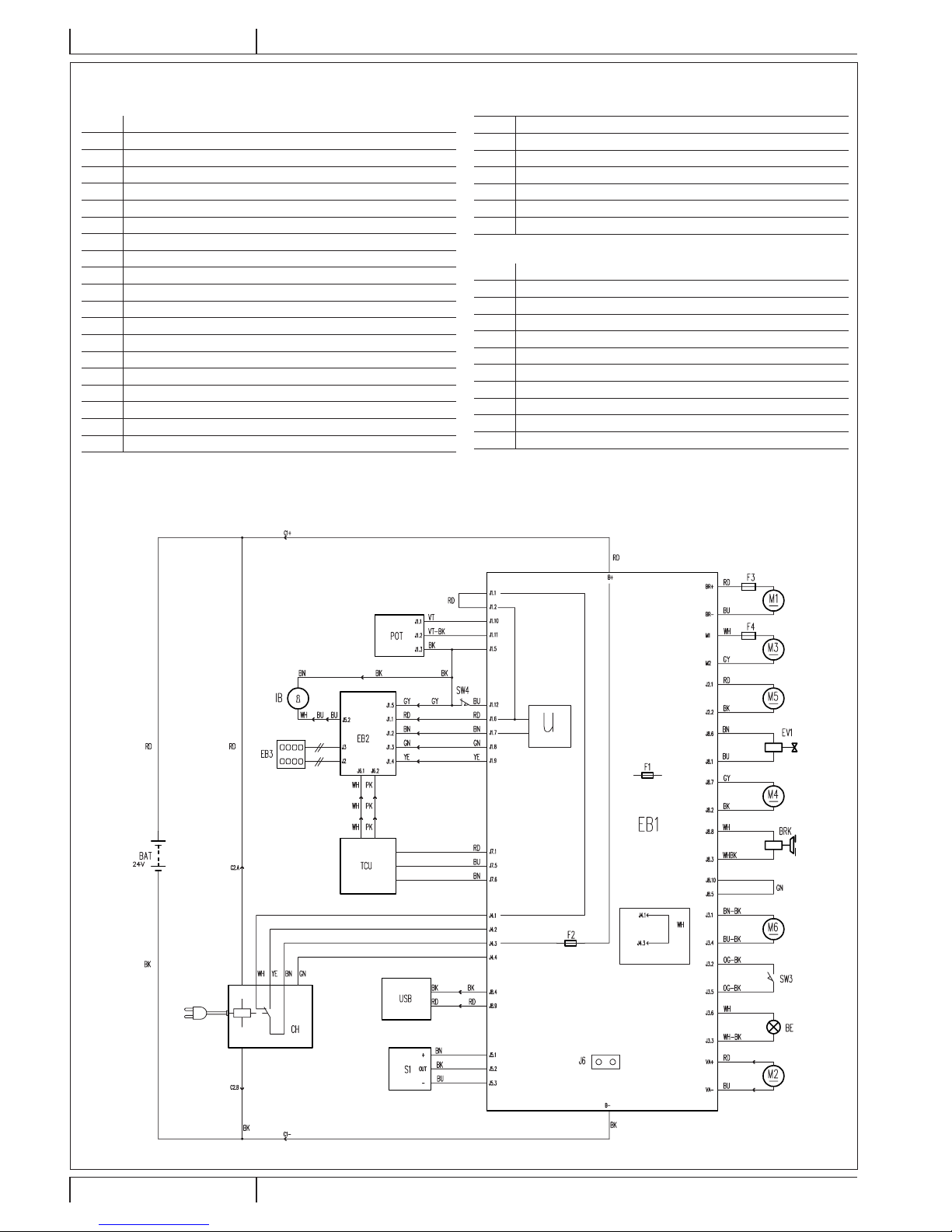

WIRING DIAGRAM
Key
BAT 24 V batteries
BE Pivoting light (optional)
BRK Electromagnetic brake
C1 Battery connector
C2 Battery charger connector (optional)
CH Battery charger (optional)
EB1 Function electronic board
EB2 Display electronic board
EB3 Dashboard instrument board
EV1 Solenoid valve
F1 Function electronic board fuse
F2 Signal circuit fuse
F3 Brush motor fuse
F4 Drive system motor fuse
IB Smart key
M1 Brush motor
M2 Vacuum system motor
M3 Drive system motor
M4 EcoFlex pump (optional)
M5 Brush deck actuator motor
M6 Squeegee actuator motor
POT Drive pedal potentiometer
S1 Solution level sensor
SW3 Seat microswitch
SW4 Anti-skid control sensor
TCU TrackClean (optional)
USB USB port (optional)
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
NO ON BOARD
BATTERY CHARGER
P100862
Page 12
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 11
01/2015
revised 07/2017
USE/OPERATION
WARNING!
On some points of the machine there are some adhesive plates indicating:
– DANGER
– WARNING
– CAUTION
– CONSULTATION
While reading this Manual, the operator must pay particular attention to the symbols shown on the plates (see Visible Symbols On
The Machine paragraph).
Do not cover these plates for any reason and immediately replace them if damaged.
MAGNETIC SMART KEY
A magnetic smart key (52) is required to start the machine. If the start switch (42) is pressed and the key is not in the key reader
(41), the display will turn on temporarily and it will show a key insertion request, then it will turn off.
There are two different magnetic smart keys:
1. “User” key (blue) for scrubbing/drying operations and basic information.
2. “Supervisor” key (yellow) for accessing additional features (see the Supervisor key paragraph in Maintenance chapter).
BATTERY CHECK/SETTING ON A NEW MACHINE
WARNING!
The electric components of the machine can be seriously damaged if the batteries are either improperly installed
or connected.
Check the batteries for damage before installation.
Handle the batteries with great care.
The machine requires 2 12 V batteries, connected according to the diagram shown in Figure 1.
The machine can be supplied in one of the following modes:
Batteries already installed on the machine
1. Ensure that the battery connector (6) is connected.
2.
Without batteries
1.
Retailers.
2. Set the machine according to the type of batteries installed as shown in the Super User key section of the Maintenance
chapter.
BATTERY INSTALLATION
Battery Installation
1. Remove the user key (52).
2. Disconnect the battery connector by pressing the
emergency push-button (5).
3. Lift the cover (18) and check that the recovery tank (17) is
empty, otherwise empty it with the drain hose (26).
4. Close the cover (18).
5. Grasp the handle (35) and carefully lift the recovery tank
assembly (17).
6. The machine is supplied with cables suitable to install 2 12
V batteries.
7. Carefully lift the batteries until the relevant compartment,
then place them properly.

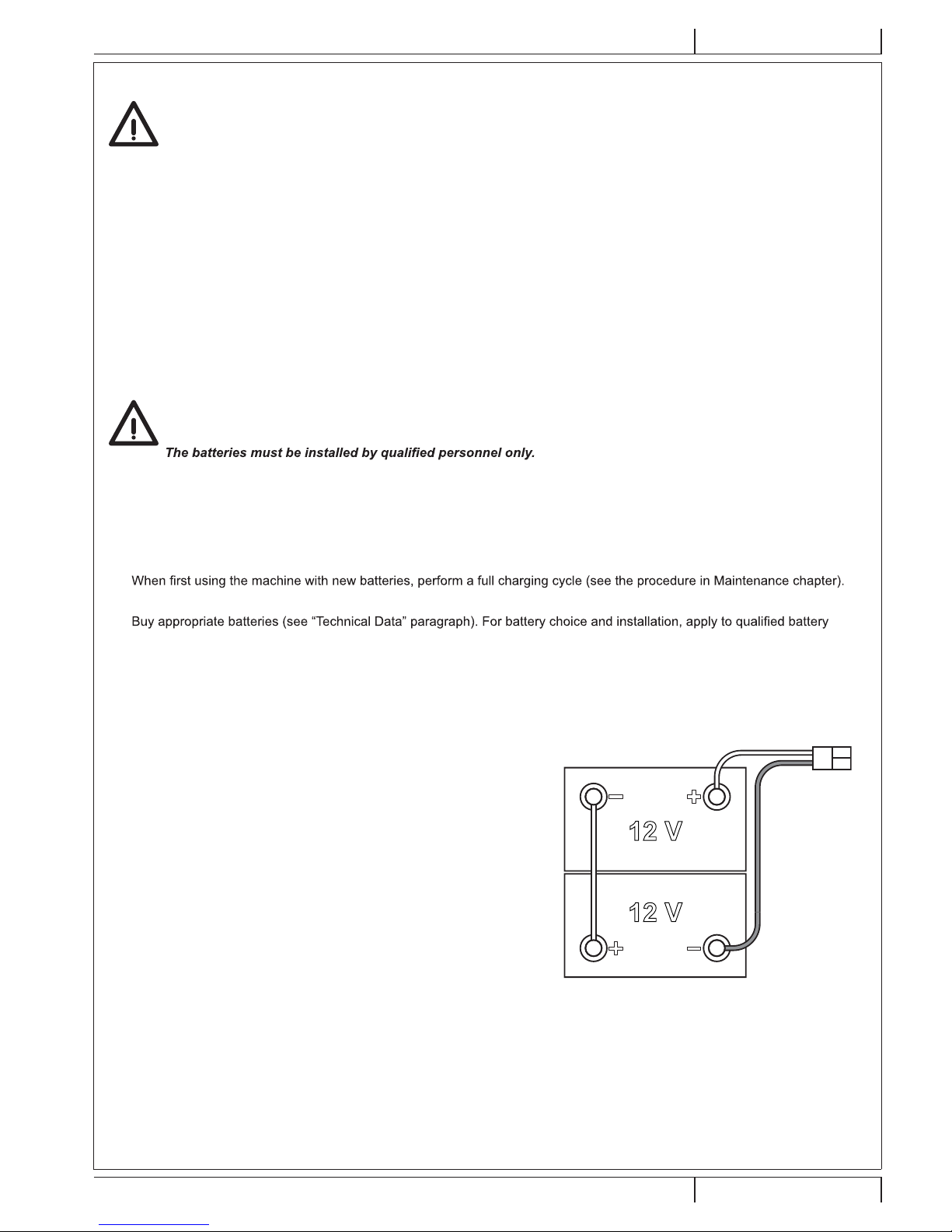

8. Route and install the battery cable as shown in Figure 1,
then carefully tighten the nut on each battery terminal.
9. Place the protection cap on each terminal, then connect
the battery connector (6).
10. Disengage the support rod (36), then grasp the handle (35)
and carefully lower the recovery tank assembly (17).
BACK
FRONT
Figure 1
P100863
Battery Charging
11. Fully charge the batteries (see the procedure in
Maintenance chapter).
Page 13
ENGLISH INSTRUCTIONS FOR USE
12 SC2000 - 9100000383
01/2015
revised 07/2017
BEFORE MACHINE START-UP
WARNING!
When starting the machine, or before operating the One Touch button (43), make sure that there is no foreign
material between the deck and the tank assembly which could obstruct the deck movement. If the machine has
been turned off without lifting the deck, the deck would lift automatically at next machine start-up.

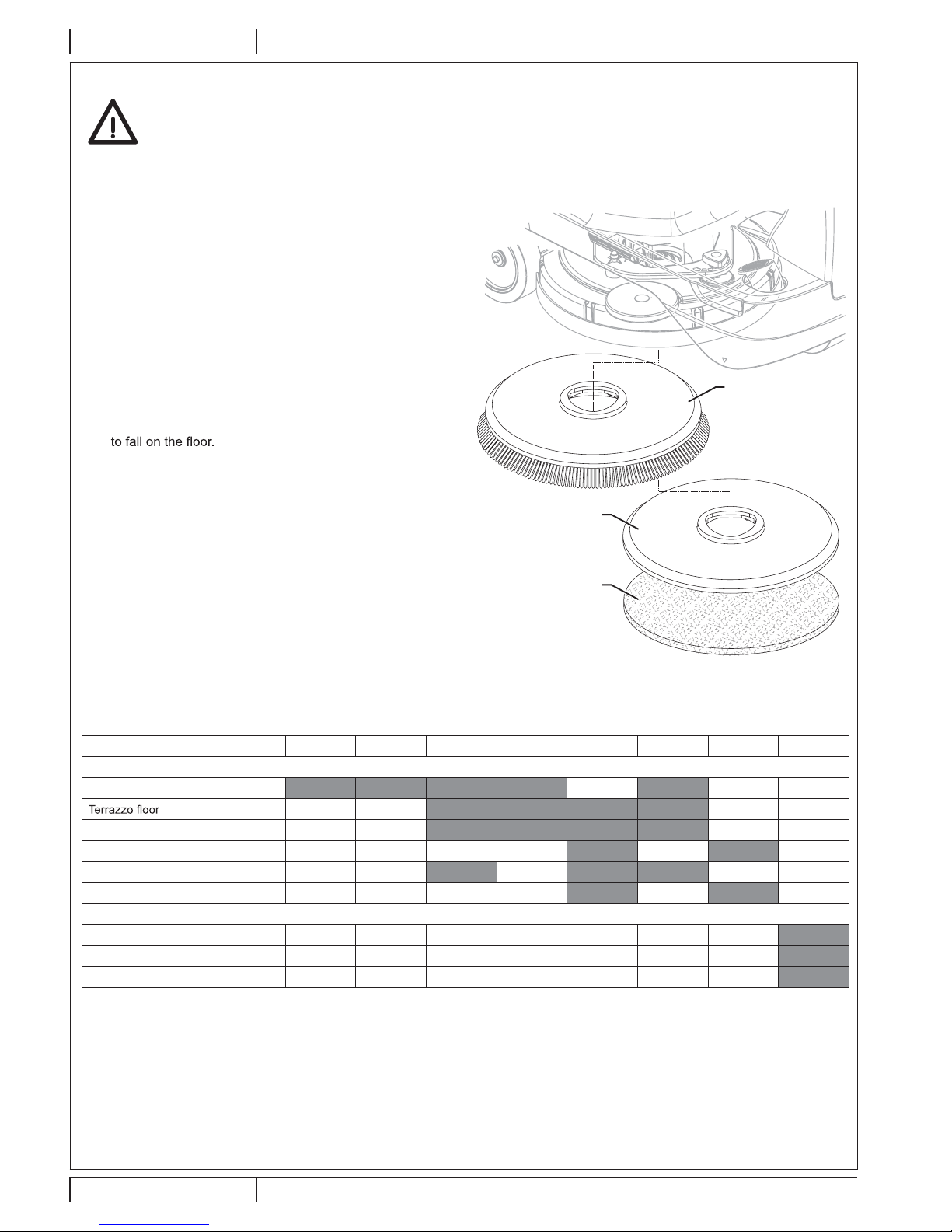

Brush or pad-holder removal/installation
According to the kind of cleaning to be performed, the machine
can be equipped either with the brush (A, Fig. 2) or the padholder (B) with pad (C) together with the appropriate deck.
1. Place the brush (A) or the pad-holder (B) under the deck
(7).
2. Place the user key (52) in the key reader (41), then press
the push-button (42) to start the machine.
3. Press the One-Touch button (43) to lower the deck onto the
brush.
4. Press the switch (45) to engage the brush.
5. To remove the brush, the deck must be lifted by pressing
the One-Touch push-button (43), then press the release
push-button (45).
When the display shows the icon (51-K), wait for the brush
B
A
C
Figure 2
P100864
Available brushes and their relevant application guides (suggestions only)
Models 46 GRIT 80 GRIT 180 GRIT 240 GRIT 500 GRIT PROLENE PROLITE UNION MIX
General cleaning:
Concrete
Ceramic tiles/quarrystones
Marble
Vinyl tiles
Rubber tiles
Polishing:
Rubber tiles
Marble
Vinyl tiles
Page 14
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 13
01/2015
revised 07/2017
Squeegee installation
1. Install the squeegee (A, Fig. 3) and fasten it to the bracket
(C) with the handwheels (B).
2. If necessary, adjust the squeegee with the knob (D) so that
CAUTION!
detergents, intended for automatic scrubber
applications.
WARNING!
the instructions on the labels of the detergent
bottles.
suitable gloves and protections.
NOTE
If the machine is equipped with EcoFlex system

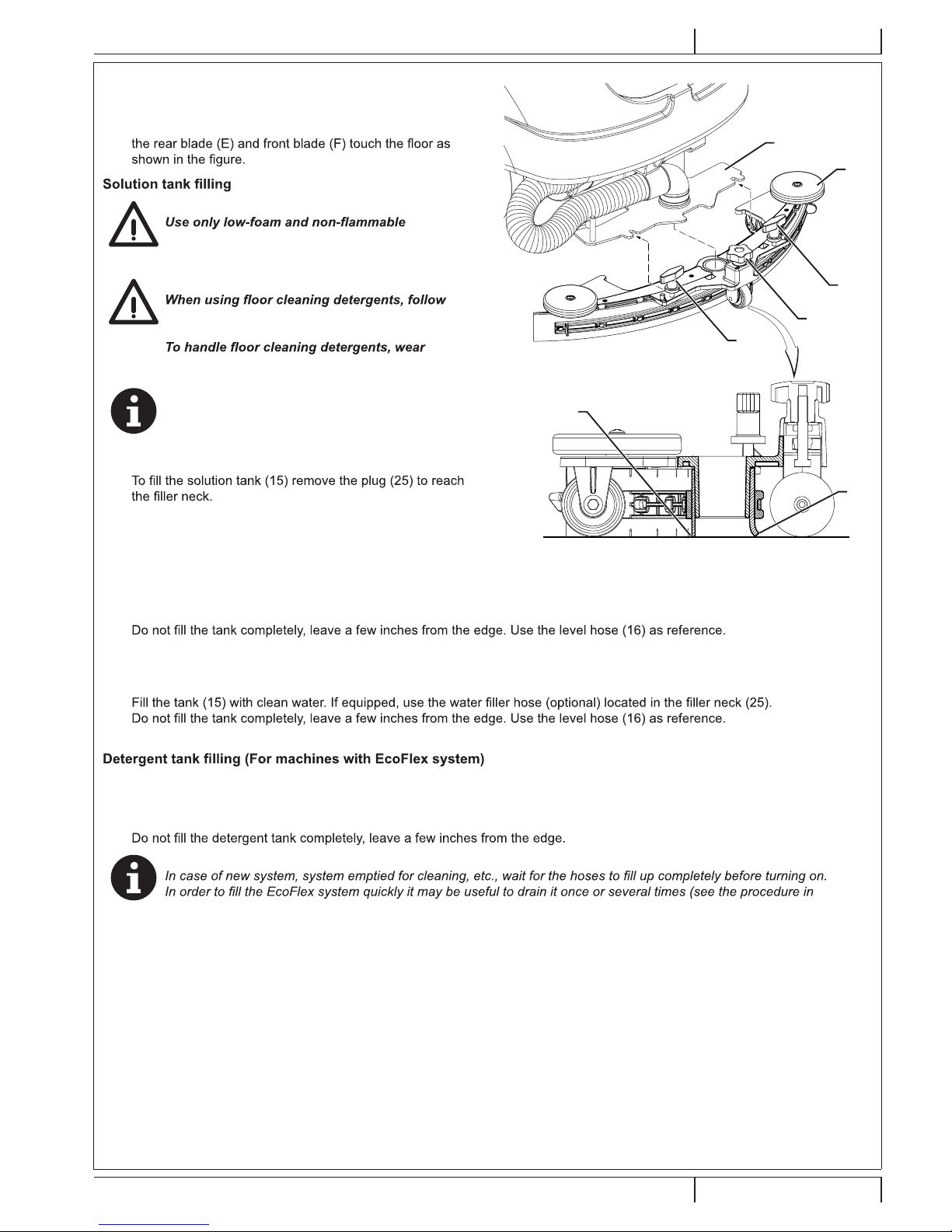

(optional) pour clean water in the tank, otherwise
pour solution.
1. Ensure that the solution valve (9) is open (9-A).
2.
A
E
B
D
F
B
C
Figure 3
P100865
(For machines without EcoFlex system)
3. Fill the tank (15) with a solution suitable for the work to be performed.
Always follow the dilution instructions on the label of the chemical product used to prepare the solution.
The solution temperature must not exceed 40 °C.
(For machines with EcoFlex system)
4.
The water temperature must not exceed 40 °C.
5. Lift the cover (18) and check that the recovery tank (17) is empty, otherwise empty it with the drain hose (26).
6. Close the cover (18).
7. Grasp the handle (35) and carefully lift the recovery tank assembly (17).
8. Fill the tank (38) with a detergent suitable for the work to be performed (highly concentrated detergent).
NOTE
Maintenance chapter).
Page 15
ENGLISH INSTRUCTIONS FOR USE
14 SC2000 - 9100000383
01/2015
revised 07/2017
MACHINE START AND STOP
Starting the machine
1. Prepare the machine as shown in the previous paragraph.
2. Place the user key (52) in the key reader (41), then press the push-button (42) to start the machine.
3.
batteries installed (51-B).
NOTE
Check the battery charge level.
ready for use.
Maintenance chapter).
4. Drive the machine to the working place, by starting it with both hands on the steering wheel (1) and by pressing the drive pedal
(2).
The drive speed can be adjusted from zero to maximum speed according to the pressure on the drive pedal (2).
5. The forward/reverse gear is selected with the relevant lever (49) which is at the right of the steering wheel.
NOTE
The driver’s seat (12) is equipped with a safety sensor, which allows the machine to be driven by pressing the pedal (2)
only when the operator is on the driver’s seat.
NOTE
The machine is equipped with an anti-skid safety system (display icon (51-J)) that reduces the speed when turning and
when the machine tilts laterally, irrespectively of the pressure on the pedal.
In this case, the reduction of speed is not a malfunction but a characteristic that improves the machine stability and
safety in every condition.
Stopping the machine
6. Stop the machine by releasing the drive paddle (2). It is not necessary to lock the machine during stopping or parking, because
the electromagnetic brake on the wheels turn on automatically when the drive pedal is not pressed.
7. Turn off the machine by pressing the push-button (42) and remove the user key (52).
NOTE
The machine is running without the user key (52) in the key reader (41), it automatically switches off after 10 seconds of
complete idle.
NOTE
If the machine is on but not working, it automatically turns off after 5 minutes.
CAUTION!
To reset the machine operation, lift the recovery tank assembly (17) and reconnect the battery connector (6).
Page 16
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 15
01/2015
revised 07/2017
MACHINE OPERATION (SCRUBBING/DRYING)
1. Start the machine as shown in the previous paragraph.

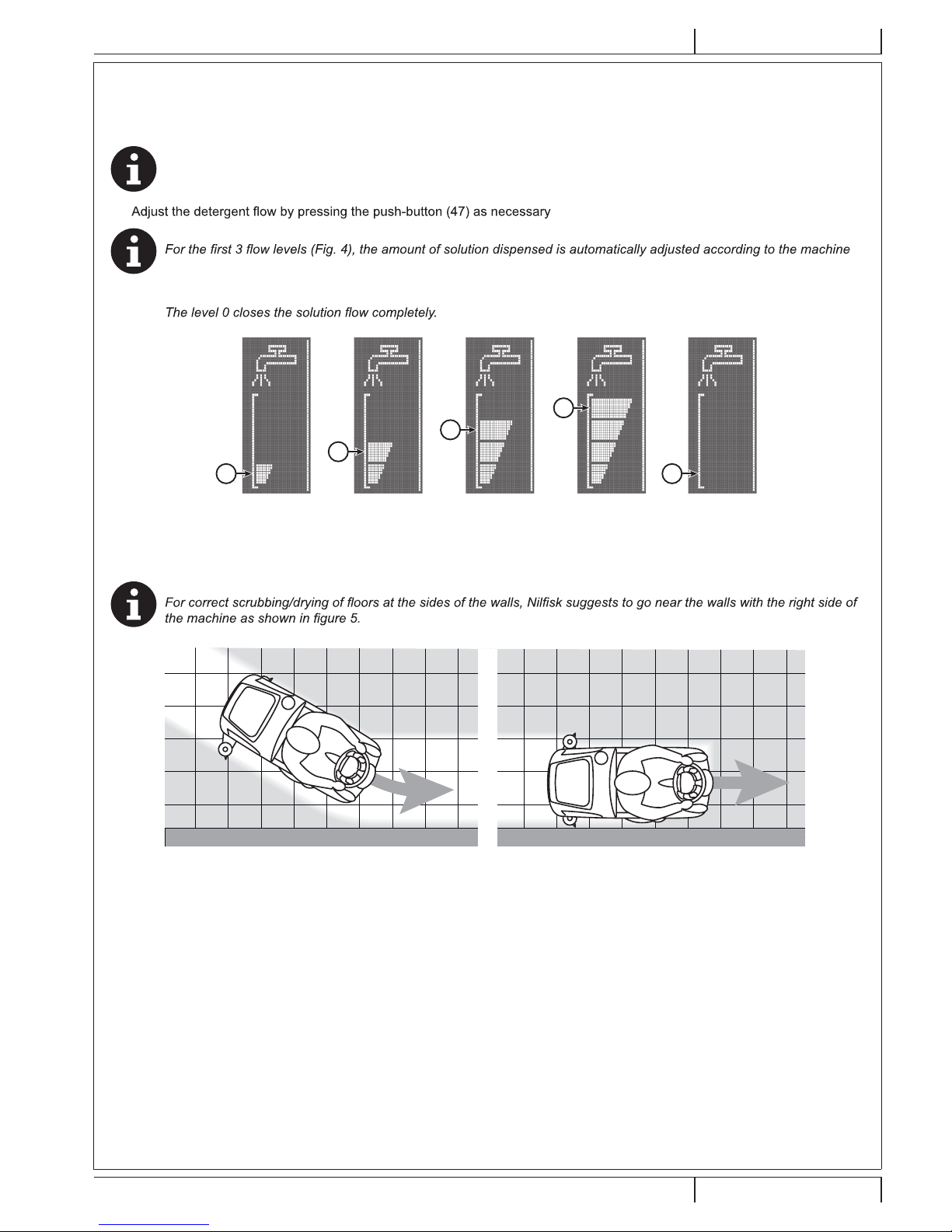

2. Press the One Touch button (43) to lower the brush deck (7) and the squeegee (13) and start scrubbing and drying.
3. Start scrubbing, by starting it with both hands on the steering wheel (1) and by pressing the drive pedal (2) as necessary.
NOTE
The machine is equipped with a safety system that turns on the brush and vacuum system only when the machine is
moving.
4.
, depending on the type of cleaning to be performed.
NOTE
speed, in order to obtain a constant amount of solution per linear meter of cleaning.
Level 4 (when enabled) supplies the maximum possible quantity of detergent solution, regardless of the machine speed
(to enable or disable this feature, see the Supervisor key paragraph in Maintenance chapter).
0,75 cl/m OFF1,5 cl/m 3,0 cl/m 2,8 l/min
4
3
2
1 0
Lev.
L
ev.
Lev.
Lev.
Lev.
Figure 4
P100866
5. If necessary, to reduce the noise, turn on the vacuum system mute function by pressing the push-button (44).
NOTE
B
A
Figure 5
P100867
6. To stop scrubbing/drying, press the One-Touch push-button (43) and wait for the brush deck (7) to lift. After 10 seconds, the
vacuum system turns off too and the squeegee (13) lifts.
Page 17
ENGLISH INSTRUCTIONS FOR USE
16 SC2000 - 9100000383
01/2015
revised 07/2017

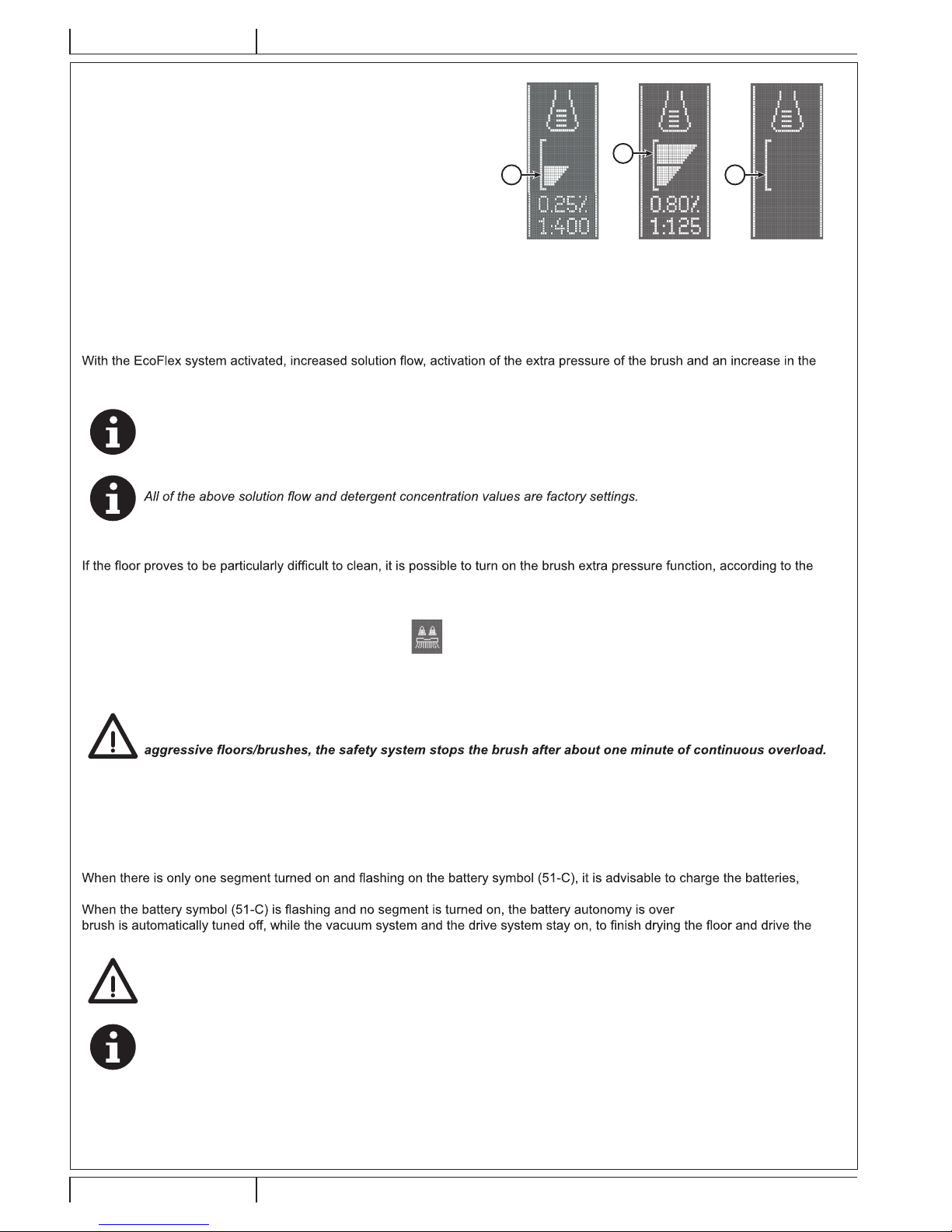

Adjusting of detergent concentration in the washing
water
(For machines with EcoFlex system)
The system for mixing the detergent in the washing water is
automatically activated when the brush is running.
The percentage of detergent added to the washing water is set
to level 1 (Fig. 6).
By pressing the push-button (46), it is possible to set the
percentage level to 2, or reset it to level 0.
The set percentages are shown on the display (51-G).
OFF
1
2
0
Lev.
L
ev.
Lev.
Figure 6
P100868
EcoFlex System
Use the EcoFlex lever (50) when a temporary stronger washing power is needed.
solution detergent concentration (level 2 if the level was set to 1 - level 1 if the level was set to 0) is obtained.
By using the EcoFlex lever (50) again, the original settings are restored.
NOTE
If the lever (D) is not used once again, the original settings are restored automatically after 60 seconds.
NOTE
To change these settings, see the Supervisor key paragraph in Maintenance chapter.
Working with brush extra pressure function turned on
following procedure:
1. Press the One-Touch push-button (43) to lower the brush deck as shown in “Starting The Machine” paragraph.
2. Press and hold the One-Touch push-button (43) for more than 1 second. The extra pressure function activation is shown by
LED which turns from green to red, and by the icon
on the display (51).
3. To return to normal pressure, press and hold the One-Touch push-button (43) for more than 1 second.
4. To lift the brush deck without returning to the normal pressure, press the One-Touch push-button (43) and release it
immediately.
CAUTION!
In case of brush motor overload, due to foreign bodies which prevent them from turning, or to excessively
If the overload takes place when the extra pressure function is on, the system automatically turns the extra
pressure function off.
If the overload persists, the brush stops.
To start scrubbing again after a brush stop due to overload, turn off and then on the machine with the pushbutton (42).
Battery discharge during operation
because the residual autonomy will last for a few minutes (depending on battery characteristics and work to be performed).
. After a few seconds, the
machine to the appointed recharging area.
CAUTION!
Do not use the machine with discharged batteries, to avoid damaging the batteries and reducing the battery life.
NOTE
In case the machine drive system cannot be used in order to move the machine, see Pushing/Towing The Machine
paragraph.
Page 18
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 17
01/2015
revised 07/2017
TANK EMPTYING
CAUTION!
machine movement), to resume the operation: turn off the vacuum system by pressing the push-button (44),
and turn on the vacuum system by pressing the push-button (44).
When the recovery tank (17) is full, empty it according to the following procedure.
Recovery tank emptying
1. Lift the brush deck and the squeegee by pressing the One-Touch push-button (43).
2. Drive the machine to the appointed disposal area.
3. Turn off the machine with the push-button (42) and remove the user key (52).
4. Empty the recovery tank (17) with the drain hose (26). Then, rinse the tank with clean water.
Solution tank emptying
5. Perform steps 1 to 3.
6. Empty the detergent solution tank (15) using the level hose (16). Then, rinse the tank with clean water.
AFTER USING THE MACHINE
After working, before leaving the machine:
1. Remove the brush as shown in the relevant paragraph.
2. Remove the user key (52).
3. Empty the tanks (17 and 15) as shown in the previous paragraph.
4. Remove the squeegee (13) and clean it with hot water. Open the recovery tank cover (18) and hang the squeegee on the tank
hook (11).
5. Perform the daily maintenance procedures (see the Maintenance chapter).
6. Store the machine in a clean and dry place, with the brush and the squeegee lifted or removed.
PUSHING/TOWING THE MACHINE
To push/tow the machine easily when the drive system cannot be used (for example in case of missing batteries, discharged
batteries, etc.), disengage the electromagnetic brake with the lever (4).
When pushing/towing procedure is over, turn the lever (4) to the original position, to engage the electromagnetic brake again.
WARNING!
If the lever (4) is not repositioned after pushing/towing the machine, the electromagnetic brake is disengaged.
WARNING!
Do not start the machine when the electromagnetic brake is disengaged.
For safety reasons, it is recommended to disengage the electromagnetic brake only for the time necessary to
manually move the machine.
MACHINE LONG INACTIVITY
If the machine is not going to be used for more than 30 days, proceed as follows:
1. Perform the procedures shown in After using the machine paragraph.
2. For versions with EcoFlex system, empty the detergent tank (38) and clean the system with a draining cycle (see the
procedure in Maintenance chapter).
3. Close the solution tank valve (9-B).
4. Press the emergency push-button (5) to disconnect the battery connector (6).
Page 19
ENGLISH INSTRUCTIONS FOR USE
18 SC2000 - 9100000383
01/2015
revised 07/2017
MAINTENANCE
The lifespan of the machine and its maximum operating safety are ensured by correct and regular maintenance.
The following table provides the scheduled maintenance. The intervals shown may vary according to particular working conditions,
WARNING!
The procedures must be performed with the machine off and the battery disconnected.
Moreover, read carefully the instructions in the Safety chapter before performing any maintenance procedure.
Center.
CAUTION!
When the Service icon
scheduled maintenance.
This Manual describes only the simplest and most common maintenance procedures.
For other maintenance procedures shown in the Scheduled Maintenance Table, refer to the Service Manual that can be consulted
at any Service Center.

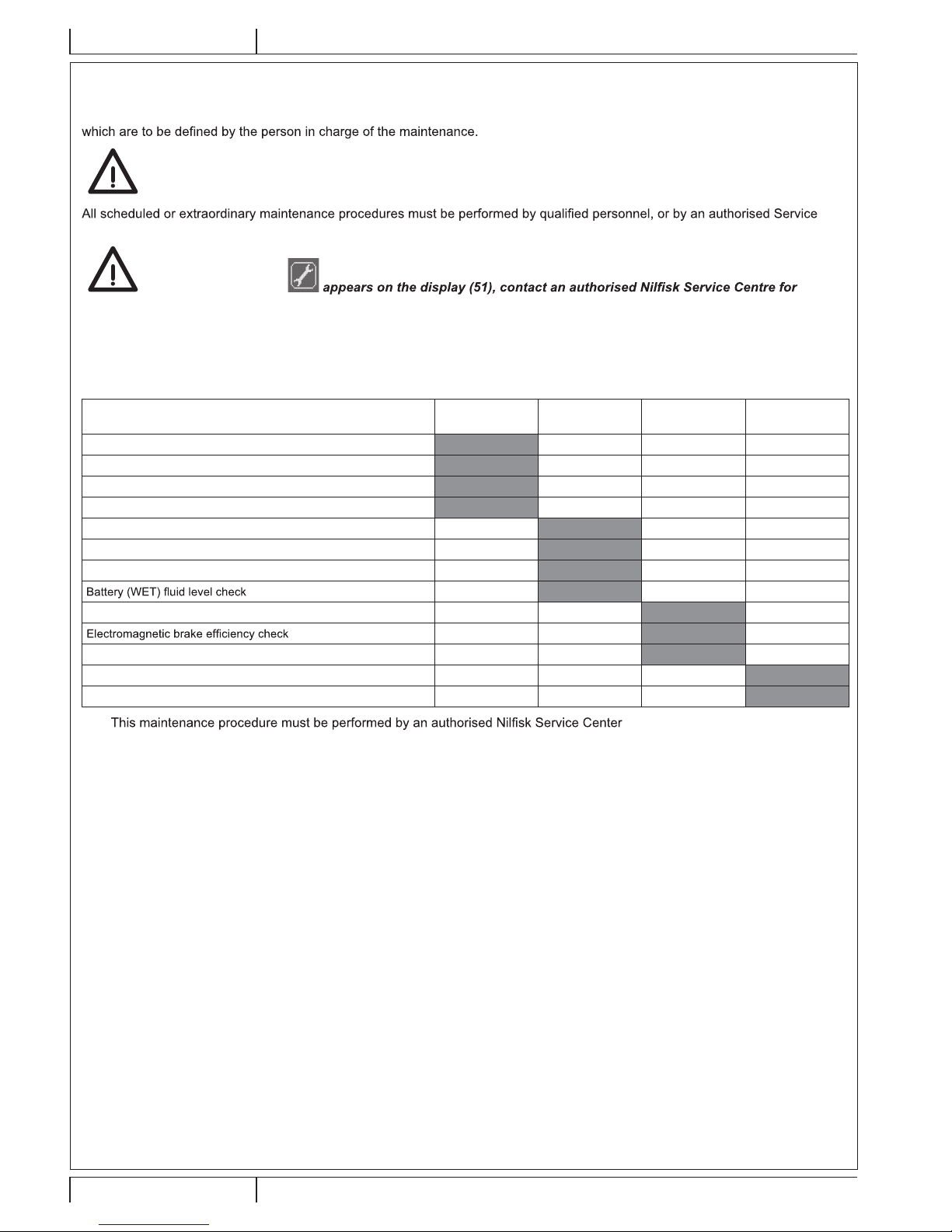

SCHEDULED MAINTENANCE TABLE
Procedure
Daily, after using
the machine
Weekly
Every six
months
Yearly
Battery Charging
Squeegee Cleaning
Brush/pad cleaning
Recovery tank and debris tray cleaning, and cover gasket check
EcoFlex system (optional) cleaning and draining
Squeegee blade check
Solution Filter Cleaning
Squeegee blade replacement
(1)
Drive and brush motor vent check and cleaning (1)
Brush motor carbon brush check or replacement (1)
Drive system motor carbon brush check or replacement (1)
(1) .
Page 20
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 19
01/2015
revised 07/2017
BATTERY CHARGING
NOTE
shift.
Keeping the batteries charged make their life last longer.
CAUTION!
When the batteries are discharged, charge them as soon as possible, as that condition makes their life shorter.
Check for battery charge at least once a week.
CAUTION!
If the machine is not equipped with on-board battery charger, choose an external battery charger suitable for the
type of batteries installed.
WARNING!
When using lead (WET) batteries, battery charging produces highly explosive hydrogen gas. Charge the
Do not smoke while charging the batteries.
Keep the recovery tank lifted until the battery charging cycle is over.
WARNING!
1. Drive the machine to the appointed recharging area.
2. Ensure that the machine is off and the user key (52) has been removed.
3. Lift the cover (29) and check that the recovery tank (17) is empty; if not, empty it using the drain hose (26).
4. Close the cover (18).
5. Grasp the handle (35) and carefully lift the recovery tank assembly (17).
6. (For WET CELL batteries only) Check the level of electrolyte inside the batteries. If necessary, unscrew the caps and top up.
When the correct level is restored, close the caps and clean the tops of the batteries.
Charging the Batteries with an External Battery Charger
1. Check that the external battery charger is suitable by referring to the relevant Manual. The battery charger voltage rating must
be 24 V.
2. Disconnect the battery connector (6) and connect it to the external battery charger.
3. Connect the battery charger to the electrical mains.
4. After charging, disconnect the battery charger from the electrical mains and from the battery connector (6).
5. Connect the battery connector (9) to the machine.
6. Disengage the support rod (36), then grasp the handle (35) and carefully lower the recovery tank assembly (17).
WARNING!
electronic system could be irreparably damaged.
Battery charging with battery charger installed on the machine
1. Plug the battery charger cable (21) into the electrical mains (the mains voltage and frequency must be compatible with the
battery charger values shown on the machine serial number plate).
NOTE
When the battery charger is connected to the electrical mains, all machine functions are automatically cut off.
charging the batteries.
the battery charging cycle.
2. When all segments of the battery symbol (51-M) are steadily lit, the battery charging cycle is complete.
3. Disconnect the battery charger cable plug (21) from the mains and place it in its holder (20).
4. Disengage the support rod (36), then grasp the handle (35) and carefully lower the recovery tank assembly (17).
5. Now the machine is ready to be used.
NOTE
For further information about the operation of the battery charger (22), see the relevant Manual.
Page 21
ENGLISH INSTRUCTIONS FOR USE
20 SC2000 - 9100000383
01/2015
revised 07/2017
SUPERVISOR KEY (yellow)
The supervisor key (yellow) allows to check some additional information on some machine operating parameters and to adjust
Main Screen (E, Fig. 7)
1. Put the supervisor key (yellow) in the key reader (41)
instead of the user key (blue), then press the push-button
(42) to open the main screen on the display.
2. Press push-button (A) to change the machine settings (see
Machine Settings Screen section).
3. Press push-button (B) to check for any stored machine
alarms (see Alarms Log Screen section).
4. Press push-button (C) to check the machine’s hours of
operation (see Operating Time Counter Screen section).
5. Press the push-button (D) to enter the user key
management menu (see the User Key Management
Screen paragraph).

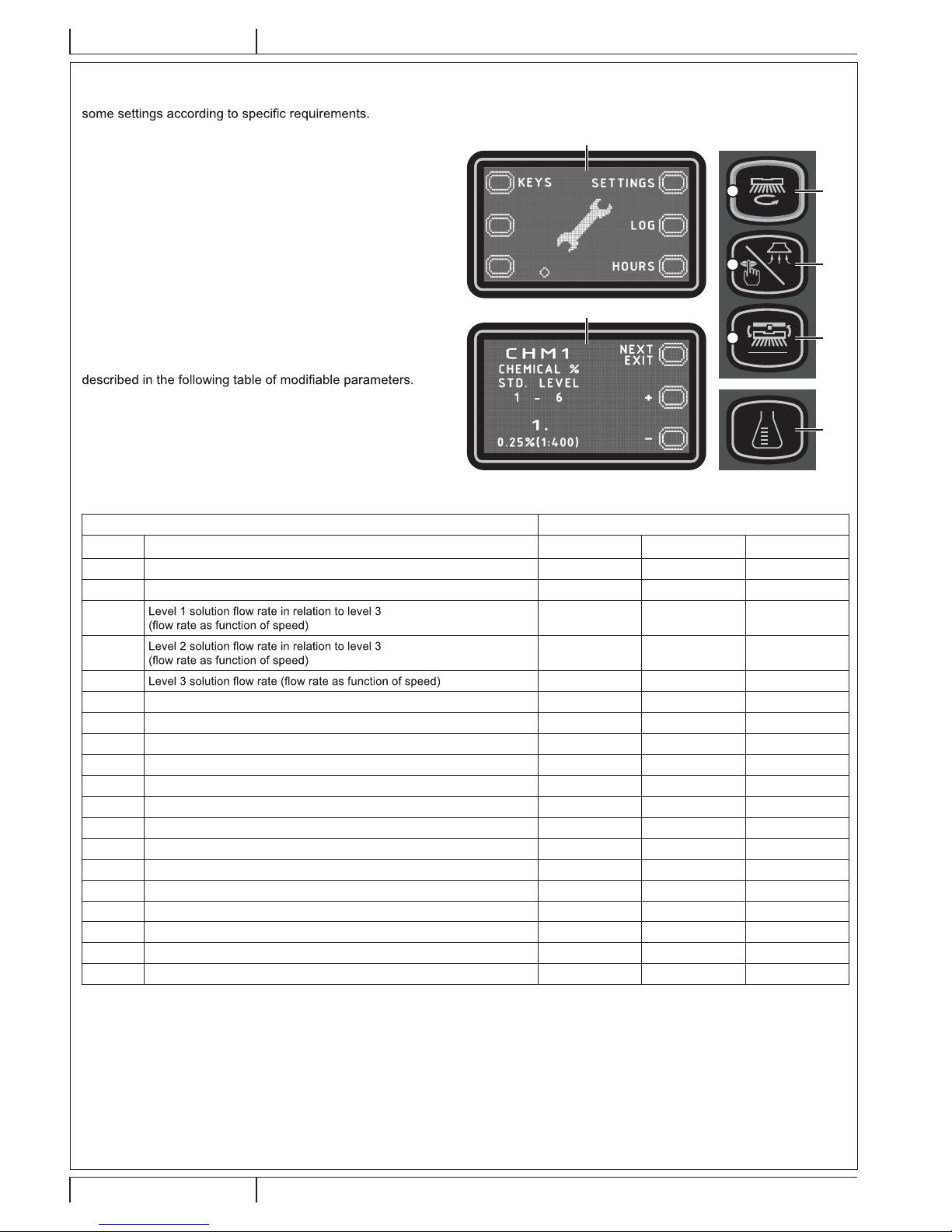

Machine Settings Screen (F, Fig. 7)
This function allows you to customise some parameters
1. Press push-button (B) to increase the value of the current
parameter.
Press push-button (C) to decrease the value of the current
parameter.
2. Press push-button (A) to move to the next parameter.
3. To return to the main screen, press and hold the pushbutton (A) for more than 1 second.
A
B
C
D
F
E
Figure 7
P100869
TABLE OF MODIFIABLE PARAMETERS Values
Code Description Minimum Factory Setting Maximum
CHM1 Detergent concentration level 1 0.25 % (1:400) 0.25 % (1:400) 3 % (1:33)
CHM2 Detergent concentration level 2 0.25 % (1:400) 0.80 % (1:125) 3 % (1:33)
P1/P3
0 % 25 % 100 %
P2/P3
0 % 50 % 100 %
P3
1.0 cl/m 3.0 cl/m 5.0 cl/m
P4 Level 4 enabling (2.8 l/min regardless of speed) OFF OFF ON
SPT EcoFlex function timer 0 (disabled) 60 sec. 300 sec.
XPRES Brush deck extra pressure enabling OFF ON ON
FVMAX Maximum forward speed 10 % 100 % 100 %
RVMAX Maximum reverse speed 10 % 40 % 50 %
WSMIN Minimum working speed 10 % 25 % 100 %
WSMAX Maximum working speed 10 % 100 % 100 %
BRK Electromagnetic brake activation delay 0 sec. 1 sec. 5 sec.
BAT (**) Installed battery type (see table) 0 1 5
TOFF Automatic shut-off time 0 (disabled) 300 sec. 600 sec.
BRGH Display contrast 5 15 50
VRID Silent mode setting 1 1 5
RPM (*) Reduced brush rpm activation threshold 5 9 20
RESET Restore factory settings for all parameters OFF OFF ON
(*) Increase the value of this parameter to reduce the brush motor speed in a wider range of applications and vice versa.
Page 22
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 21
01/2015
revised 07/2017
(**)
the type of battery to be installed by modifying the BAT parameter from the table below:
Installed battery type Value
WET Wet cell batteries 0
GEL / AGM Generic GEL or AGM batteries 1
GEL DISCOVER GEL batteries or DISCOVER
®
brand 2
GEL OPTIMA GEL batteries or OPTIMA™ brand 3
GEL EXIDE GEL batteries or EXIDE
®
/SONNENSHINE brand 4
GEL FULLRIVER GEL batteries or FULLRIVER
®
brand 5
Alarms log screen (G, Fig. 8)
This function allows you to check for any stored alarms on the machine.
operating problems.
To return to the main screen (E, Fig. 7), press push-button (A) repeatedly.
G
Figure 8
P100870
Operating Time Counter Screen (H, Fig. 9)
This function allows you to check the total accumulated hours of work for each
machine subsystem:
– TOTAL counter (machine running time)
– DRIVE counter (drive system usage time)
– BRUSH counter (brush rotation system usage time)
– VACUUM counter (vacuum system usage time)
To return to the main screen (E, Fig. 7), press push-button (A).
H
Figure 9
P100871
User Key Management Screen (I, Fig. 10)
This feature allows to determine whether the machine can be used with any
–
1. Remove the Supervisor key (if any) from the key reader.
2. Place the user key in the key reader and press the push-button (A).
–
machine:
1. Remove the Supervisor key (if any) from the key reader.
2. Place the user key in the key reader and press the push-button (B).
– Return to factory setting (any user key enabled for the machine):
1. Remove the Supervisor key (if any) from the key reader.
2. Press the push-button (B).
3.
To return to the user mode screen, press push-button (C).
To return to the main screen (E, Fig. 7), press push-button (A).
I
Figure 10
P100871
Page 23
ENGLISH INSTRUCTIONS FOR USE
22 SC2000 - 9100000383
01/2015
revised 07/2017
SQUEEGEE CLEANING
NOTE
The squeegee must be clean and its blades must be in good conditions in order to get a good drying.
CAUTION!
It is advisable to wear protective gloves when cleaning the squeegee because there may be sharp debris.
1.
2. Ensure that the machine is off and the user key (52) has been removed.
3. Loosen the handwheels (32) and remove the squeegee (13).
4. Wash and clean the squeegee. In particular, clean the compartments (A, Fig. 11) and the vacuum hole (B). Check the condition
of the front (C) and rear (D) blades, ensuring there are no cuts and tears; if necessary, replace them as shown below.
5. Install the squeegee in the reverse order of removal.
SQUEEGEE BLADE CHECK AND REPLACEMENT
1. Clean the squeegee as shown in the previous paragraph.

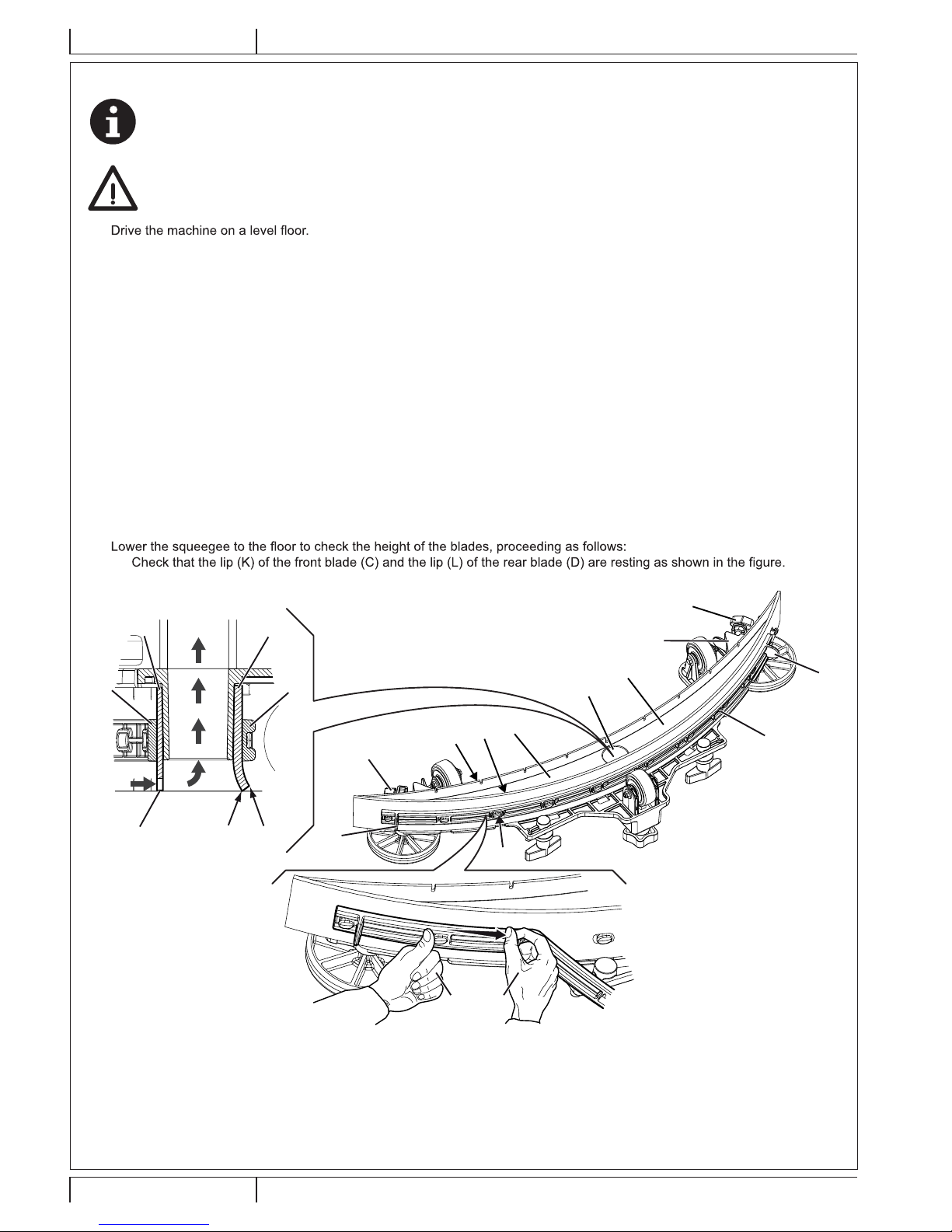

2. Check the condition of the front (C, Fig. 11) and rear (D) blades, ensuring there are no cuts and tears; if necessary, replace
them as shown below. Check that the front corner (E) of the rear blade is not worn; otherwise, turn the blade to replace the
worn corner with one of the three remaining intact corners. If the other corners are worn too, replace the blade according to the
following procedure:
• Using the tab (F), release and remove the elastic strap (G) from the fasteners (H), then turn or replace the rear blade (D).
• Install the blade in the reverse order of removal. Fasten the elastic strap (G) to the fasteners (H) starting from one side. To
make the fastening procedure easier, secure the fasteners one at a time, by locking the strap before the fastener with one
hand (M) and pulling it with the other hand (N).
• Unscrew the handwheels (I) and remove the strap (J), then turn or replace the front blade (C).
• Install the blade in the reverse order of removal.
3. Install the squeegee (13) and screw down the handwheels (32).
4.
•
• Use the knob (33) to make adjustments.
A
I
A
B
D
C
G
K E L
D
C
J
J
H
F
G
F
M N
I
Figure 11
P100850
Page 24
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 23
01/2015
revised 07/2017
CLEANING THE BRUSH
CAUTION!
It is advisable to wear protective gloves when cleaning the brush because there may be sharp debris.
1. Remove the brush as shown in Use/Operation chapter.
2. Clean the brush with water and detergent.
3. Check the condition of the brush bristles, ensuring they are not excessively worn; if necessary, replace the brush.
RECOVERY TANK CLEANING
1. Drive the machine to the appointed disposal area.
2. Ensure that the machine is off and the user key (52) has been removed.
3. Raise the cover (18).
4. Wash the inside of the tank (17) and the cover with clean water.
5. Drain the water in the tank through the hose (26).
6.
and reinstall it.
7. Remove the debris collection tank (D) and open its cover, then clean it carefully and reinstall it on the vacuum hose.
8. Check the condition of the tank cover gasket (E).
NOTE
The gasket (E) allows the creation of a vacuum in the tank, which is necessary to suck up the recovery water.
9. Check that the seating surface (H) of the gasket (E) is in good condition, clean and suitable to form a seal with the gasket
itself.
10. Close the cover (18).
H
E
F
E
A
C
B
A
D
G
Figure 12
P100873
Page 25
ENGLISH INSTRUCTIONS FOR USE
24 SC2000 - 9100000383
01/2015
revised 07/2017

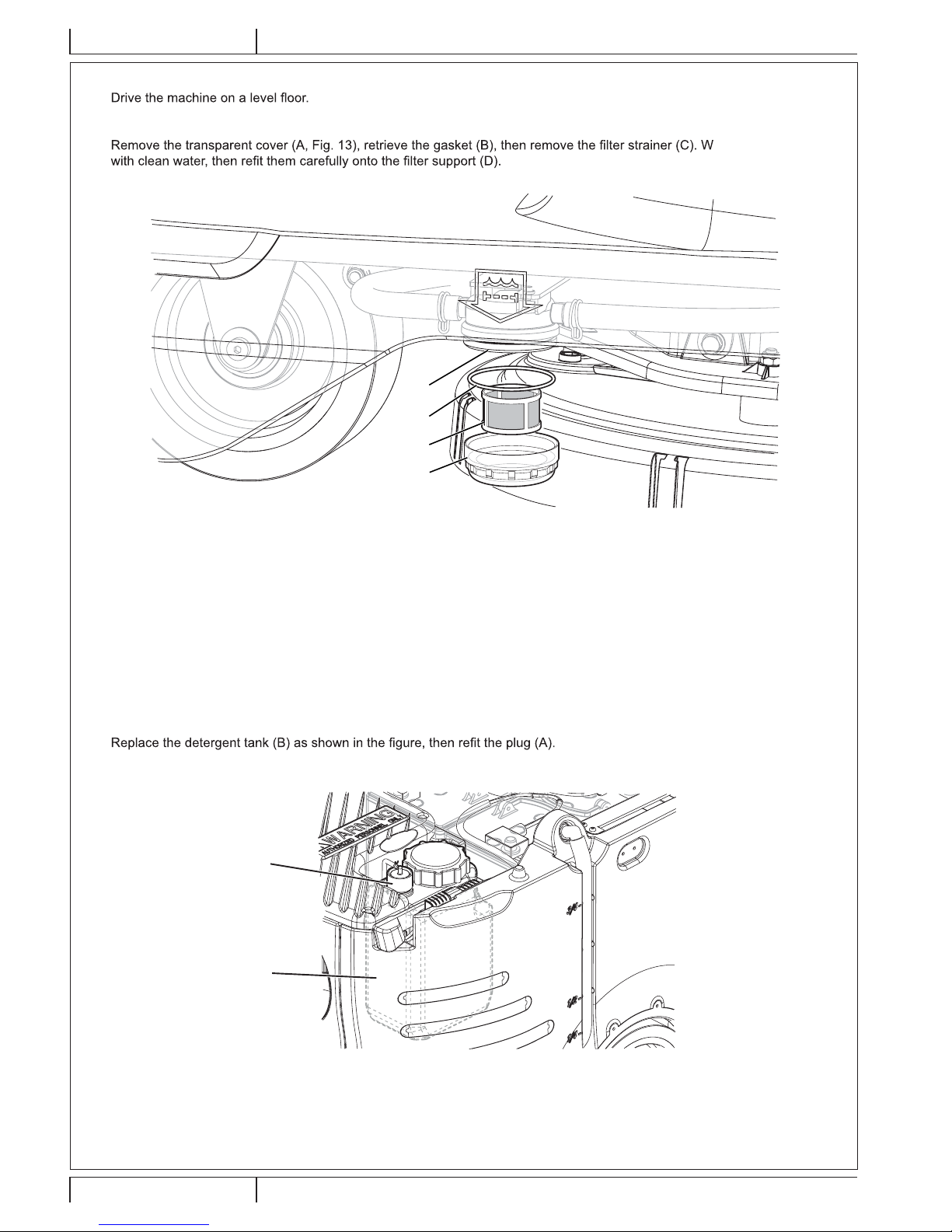

SOLUTION FILTER CLEANING
1.
2. Ensure that the machine is off and the user key (52) has been removed.
3. Close the solution tank valve (9). The valve is closed when it is in position (9-B) and it is open when it is in position (9-A).
4.
ash and rinse them
5. Open the valve (9-A).
A
C
B
D
Figure 13
P100874
DETERGENT TANK CLEANING
(For machines with EcoFlex system)
Clean the detergent tank (38) as follows.
1. Drive the machine to the appointed disposal area.
2. Ensure that the machine is off and the user key (52) has been removed.
3. Lift the cover (29) and check that the recovery tank (17) is empty; if not, empty it using the drain hose (26).
4. Close the cover (18).
5. Grasp the handle (35) and carefully lift the recovery tank assembly (17).
6. Unscrew the cap (A, Fig. 14) from the detergent tank (B).
7. Remove the tank.
8. Rinse and wash out the tank with clean water in the appointed disposal area.
9.
10. When the detergent tank has been drained, it may be necessary to drain the EcoFlex system too (see procedure in following
section).
B
A
Figure 14
P100875
Page 26
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 25
01/2015
revised 07/2017
DRAINING THE ECOFLEX SYSTEM
(For machines with EcoFlex system)
Clean the detergent tank as shown in the previous section.
To remove residual detergent from the detergent hoses and pump, proceed as follows.
1. Place the user key (52) in the key reader (41), then press the push-button (42) to start the machine.
2. Check that the detergent quantity indicator (50-G) on the display has at least one segment lit.
3. Press and hold buttons (46) and (47) at the same time until screen (50-N) appears on the display (after approximately 5
seconds).
4.
5.
6. Turn off the machine with the push-button (42) and remove the user key (52).
7. Lift the recovery tank assembly (17), then check that the detergent tank hose (38) is empty, otherwise perform steps 3 to 7
again.
NOTE
The draining cycle lasts about 30 seconds, then the vacuum function automatically turns on, which allows to remove the
detergent remained.
The draining cycle can also be performed with the detergent tank (38) full of water, thus cleaning the system thoroughly.
It is advisable to perform this type of draining to clean the EcoFlex system from dirt and deposits if the machine has not
been used/cleaned for a long time.
system is still empty.
If necessary, the draining cycle can be performed several times in succession.
FUSE CHECK/REPLACEMENT
NOTE
All machine electrical circuits are protected by auto-resettable electronic devices. The safety fuses activates only in case
of serious damage.
.
SAFETY FUNCTIONS
The machine is equipped with the following safety functions.
EMERGENCY PUSH-BUTTON
machine functions.
To reset the machine operation, lift the recovery tank assembly (17) and reconnect the battery connector (6).
ANTI-SKID SAFETY SYSTEM
This system reduces the speed when turning and when the machine tilts laterally to avoid sudden skids, this increasing the machine
stability in any condition. The system activation is shown by the icon (51-J) on the display.
DRIVER’S SEAT MICROSWITCH
It is located inside the driver’s seat (12) and it does not allow the machine drive system to operate if the operator is not seated on
the driver’s seat.
ELECTROMAGNETIC BRAKE
It is built-in the rear driving wheels (24) and keeps the machine braked when the machine is off or stopped.
Page 27
ENGLISH INSTRUCTIONS FOR USE
26 SC2000 - 9100000383
01/2015
revised 07/2017
TROUBLESHOOTING
TROUBLE POSSIBLE CAUSE REMEDY
The motors are not operating; the display (51) and
button LEDs do not turn on.
The battery connector is disconnected. Connect.
The batteries are completely discharged. Charge the batteries.
The machine does not move and the display (51)
shows the alarm:
WARNING ALARM T3
Machine turned on with pedal pressed. Release the drive pedal.
If the problem persists, contact an authorised
Service Center.
and the brushes do not work. brush deck.
Wait for the deck to raise before turning the
brushes on again by pressing the switch.
The brush does not operate; the battery symbol
alarm message:
WARNING ALARM G4
The batteries are discharged. Charge the batteries.
If the problem persists, replace the batteries.
When working, the display shows the alarm
message: WARNING ALARM F2
Brush motor overload. Use a different/less aggressive brush and/or
avoid working with extra pressure turned on.
There are foreign materials (tangled threads,
etc.) preventing the brush from rotating.
Clean the brush hub.
The display (51) shows the alarm message:
WARNING ALARM T2
Drive motor overload. Turn off the machine and then turn it on again.
Avoid using the machine on slopes greater
than those indicated or going over excessively
tall obstacles.
While recharging the batteries with the on-board
battery charger, the display (51) shows the alarm
message:
WARNING ALARM C4 or C5
Battery charger not able to correctly recharge
the batteries within the maximum time.
Run the battery charging cycle again.
If the problem persists, replace the batteries.
The display (51) shows an alarm message of the
following type:
WARNING ALARM XX
Where “XX” is a code other than those listed
above.
The machine electronic control system is in
alarm condition.
Turn off the machine and then turn it on again.
If the problem persists, contact an authorised
Service Center.
The display (51) shows the alarm message:
INVALID SMART KEY
The user key is not enabled.
user keys.
The recovery tank is full. Empty the tank.
stuck closed.
Clean the vacuum grid.
Clean.
The hose is disconnected from the squeegee. Connect.
The squeegee is dirty or the squeegee blades
are worn or damaged.
Clean the squeegee or overturn/replace the
blades.
The tank cover is not properly closed, or the
gasket is damaged.
Correctly close the cover or clean/replace the
gasket.
Empty detergent solution tank.
The EcoFlex system tank (optional) is dirty/
encrusted.
Clean with the drain cycle.
There is debris under the squeegee blades. Remove the debris.
The squeegee blades are worn, chipped or
torn.
Overturn or replace the blades.
The squeegee has not been balanced with the
handwheel.
Adjust the squeegee.
NOTE
If the machine has been purchased with an on-board battery charger, the machine cannot operate if this device is not on
board. In case of battery charger malfunction, contact an authorised Service Center.
Page 28
INSTRUCTIONS FOR USE ENGLISH
9100000383 - SC2000 27
01/2015
revised 07/2017
SCRAPPING
Before scrapping the machine, remove and separate the following materials, which must be disposed of properly according to the
Law in force:
– Batteries
– Brushes
– Plastic hoses and components
– Electrical and electronic components (*)
(*)
Machine material composition and recyclability
Type Recyclable
percentage
SC2000
weight percentage
Aluminium 100 % 3 %
Electric motors - various 29 % 32 %
Ferrous materials 100 % 23 %
Wiring harness 80 % 7 %
Liquids 100 % 0 %
Plastic - non-recyclable material 0 % 3 %
Plastic - recyclable material 100 % 3 %
Polyethylene 92 % 26 %
Rubber 20 % 2 %
Page 29
ENGLISH INSTRUCTIONS FOR USE
28 SC2000 - 9100000383
01/2015
revised 07/2017
Page 30
www.crescentindustrial.co.uk
We supply a full range of cleaning
equipment for rental or purchase.
For more information, or a cleaning
solution to suit your business,
please get in touch –
Berrington House,
Berrington Road,
Leamington Spa
CV31 1NB
t: 0845 33 77 695
f : 0845 33 78 695
e : info@c-ind.co.uk
For a more comprehensive product range, please visit our website.
Address Contact
Loading...
