Page 1
Visual Quick Reference
Trendsetter
English
®
NEWS SA
653-00979A-EN-A
Internal 732-00041A-EN-RevA
February 2005
Copyright © 2005 Creo Inc. All rights reserved.
www.creo.com
Page 2
Trendsetter NEWS SA

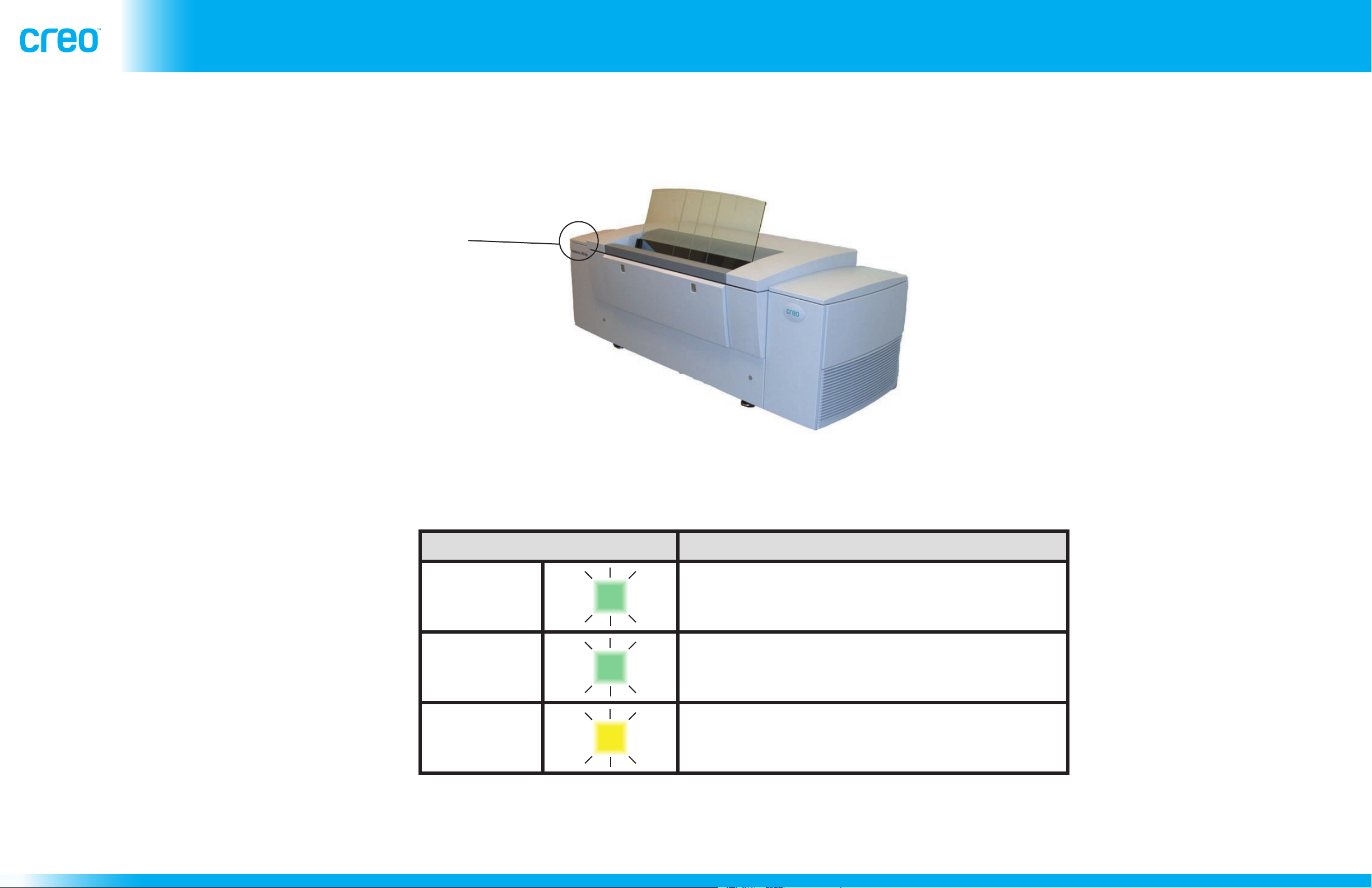

Operator interface lights
Operational Lights and What They Mean
Operator Interface Lights Operator Action
Imaging Light Flashing green Wait—the device is imaging a plate.
Semi-automatic mode—load one or two plates for imaging.
Load Light
Error Light Flashing yellow An error has occurred and the job is suspended.
Flashing green
OR
Semi-automatic mode—wait, the device is unloading a plate.
1
Page 3

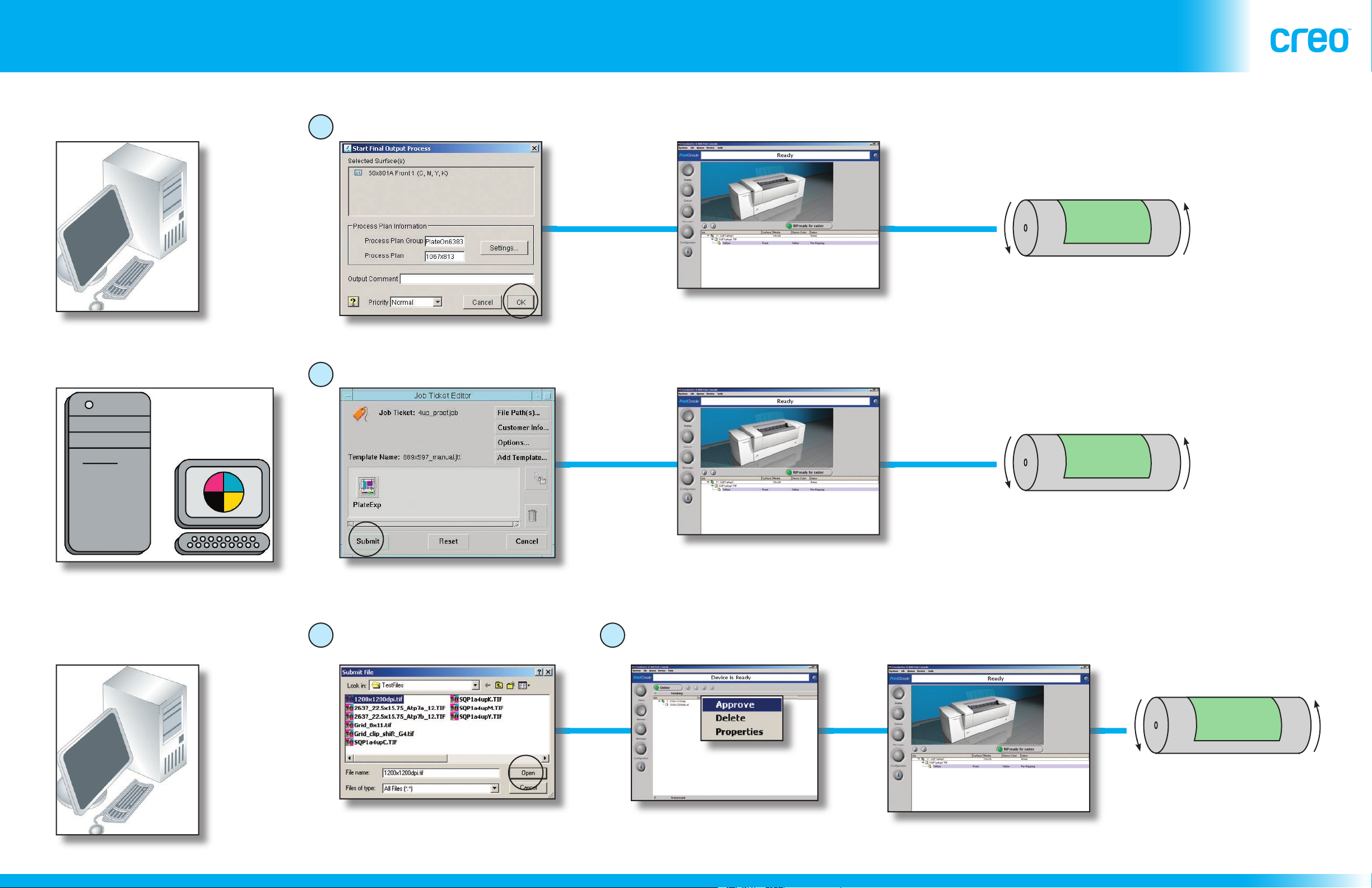

Imaging Plates Using Different Workfl ows
Trendsetter NEWS SA
Trendsetter NEWS SA
Prinergy
Brisque
In Prinergy, click OK to submit the fi le.
1
In Brisque, click Submit to submit the fi le.
1
The output device receives the job in Print Console.
TIFF Workfl ow
2
In Print Console, click Open to
1
submit the fi le.
The output device receives the job in Print Console.
Right-click the job and
2
select Approve.
The output device receives the job.
Page 4
Trendsetter NEWS SA

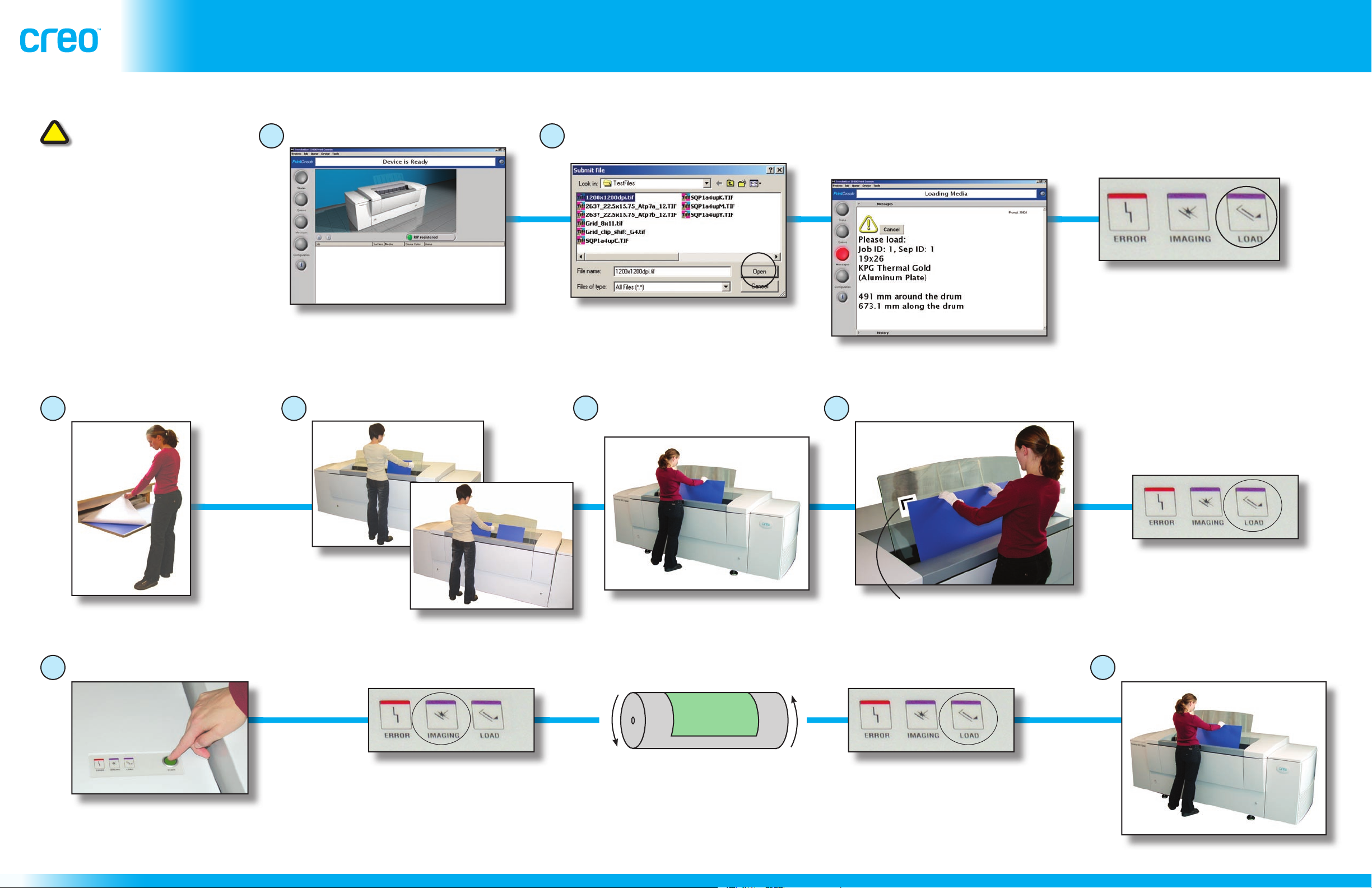

Imaging a Plate
!
CAUTION: Wear protective
gloves when handling plates.*
Remove all slip sheets.
3
Ensure the device is ready.
1
Position media on the load ramp.
4
In Print Console:
2
a. Click Open to submit the fi le.
5
Lower the media gently until it
touches the registration pins.
b. Ensure that the correct media
is available for loading.
Align the media on the load ramp.
6
The load light glows green.
Press the Start button.
7
* Refer to the Operator Guide for full details.
Double-wide
(panorama)
The imaging light fl ashes green.
Single-wide
(broadsheet)
Plate imaging
Media alignment label
The load light glows solid green.
The load light fl ashes green.
Unload the media.
8
3
Page 5

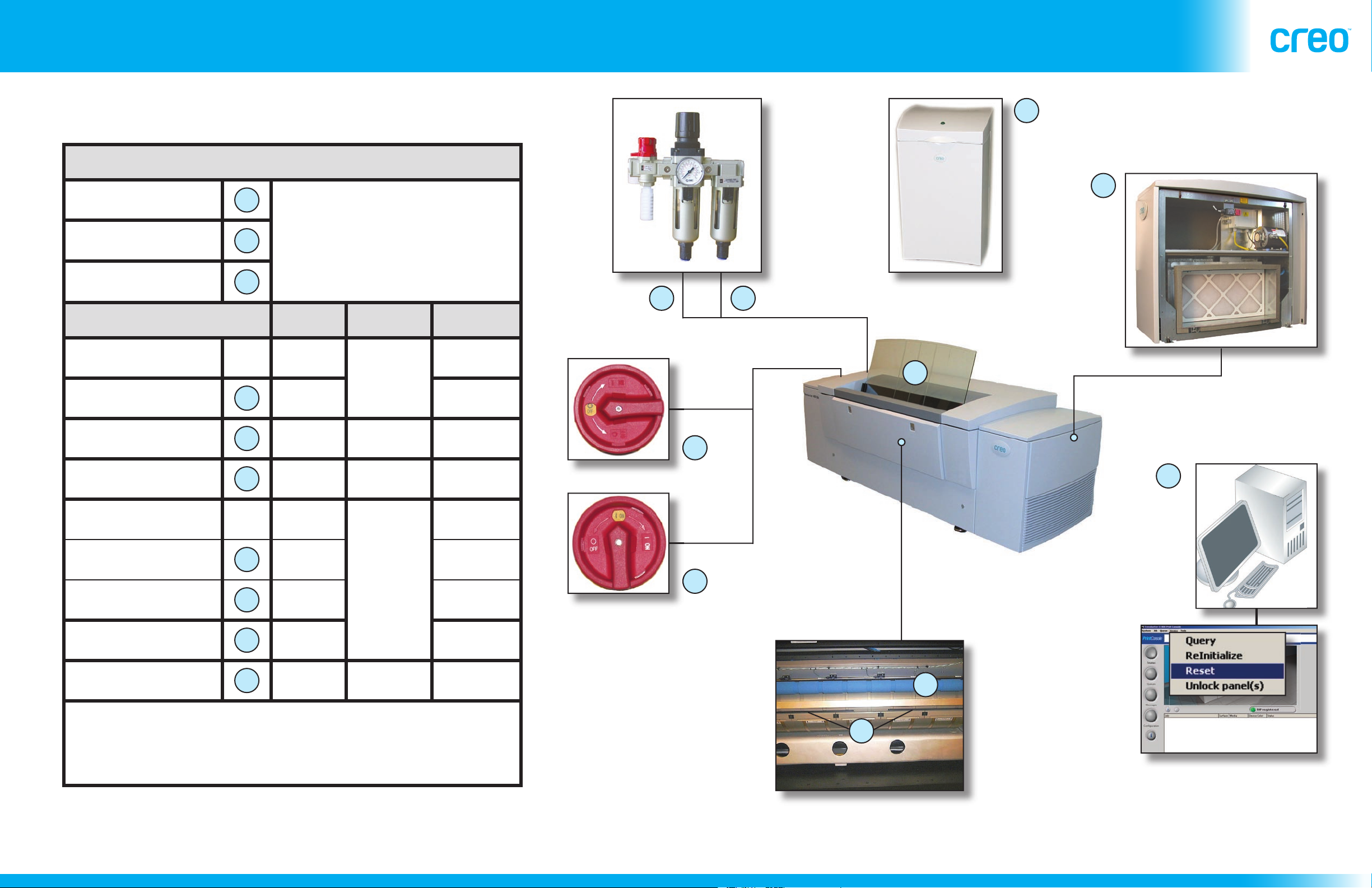

Operator Operations and Maintenance
Trendsetter NEWS SA
Operations
Trendsetter NEWS SA
6
Turn on the output device 2
Turn off the output device 3
Reset the output device 8
Maintenance
Exterior surfaces Clean
Load ramp 1 Clean
Plate roller * 9 Clean Monthly
Edge detection strips * 10 Clean
These operations are required for some of
the maintenance procedures listed below.
Work To
Be Done
How
Often
Weekly
Every three
months
Date Work
Completed
OFF
4 5
3
Optional
1
7
8
Compressed air supply
fi lters:
5 micron fi lter * 4 Replace
0.01 micron fi lter * 5 Replace
Intake air fi lter * 7 Replace
Universal Debris Removal
Cabinet (UDRC) fi lter **
* Procedures for these items are included in this visual quick reference guide.
** Optional equipment—media dependent.
Note: This document is not intended as a substitute for the Trendsetter NEWS SA
Operator Guide. Refer to the operator guide for detailed procedures.
Software may display differently depending on the version of Print Console in use.
6 Replace As needed N/A
Six months
or as
needed
2
ON
9
10
4
Page 6
Trendsetter NEWS SA
0.01 micron
fi lter

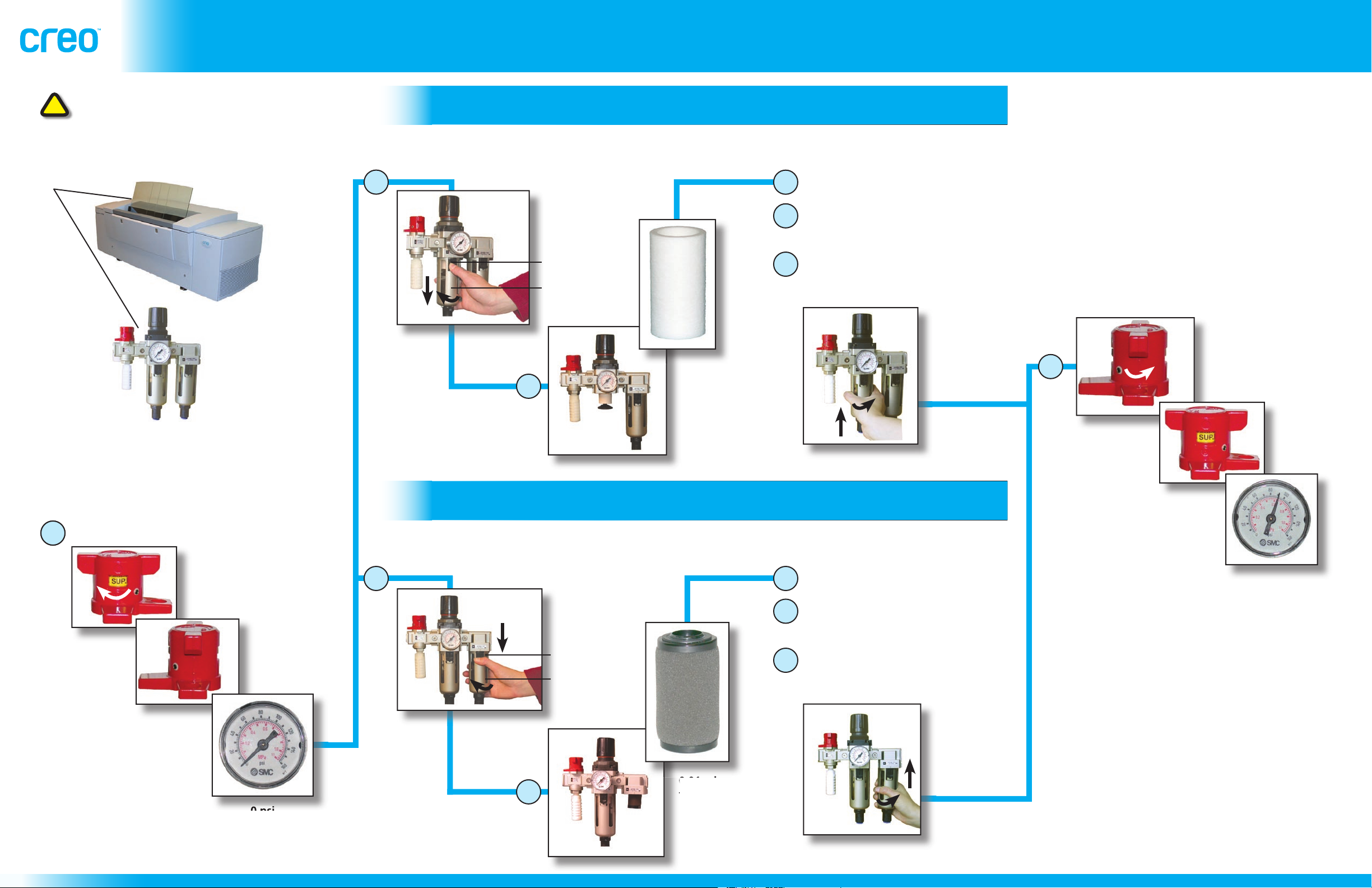

Replacing the Air Supply Filters
!
WARNING: Remove air pressure from the
device before replacing an air fi lter.*
5 micron fi lter
Air supply fi lter kit
Part number 332-00003
0.01 micron fi lter
Replacing the 5 Micron Filter
Unscrew the bowl by pulling the tab
down and turning the bowl to the left.
2
Tab
Bowl
3
Remove the old fi lter and
Install the new one.
5 micron
fi lter
4
Clean inside the bowl.
Replace the O-ring,
5
if necessary.
6
Reattach the bowl by pushing
it up and turning it to the
right until it clicks.
Turn on the compressed air.
7
2 Turn off the compressed air. 1
Turn off the compressed air.
0 psi
Replacing the 0.01 Micron Filter
Unscrew the bowl by pulling the tab
down and turning the bowl to the left.
2
Tab
Bowl
3
Remove the old fi lter and
Install the new one.
0.01 micron
fi lter
4
Clean inside the bowl.
Replace the O-ring,
5
if necessary.
6
Reattach the bowl by pushing
it up and turning it to the
right until it clicks.
90 psi
* Refer to the Operator Guide for full details.
5
Page 7

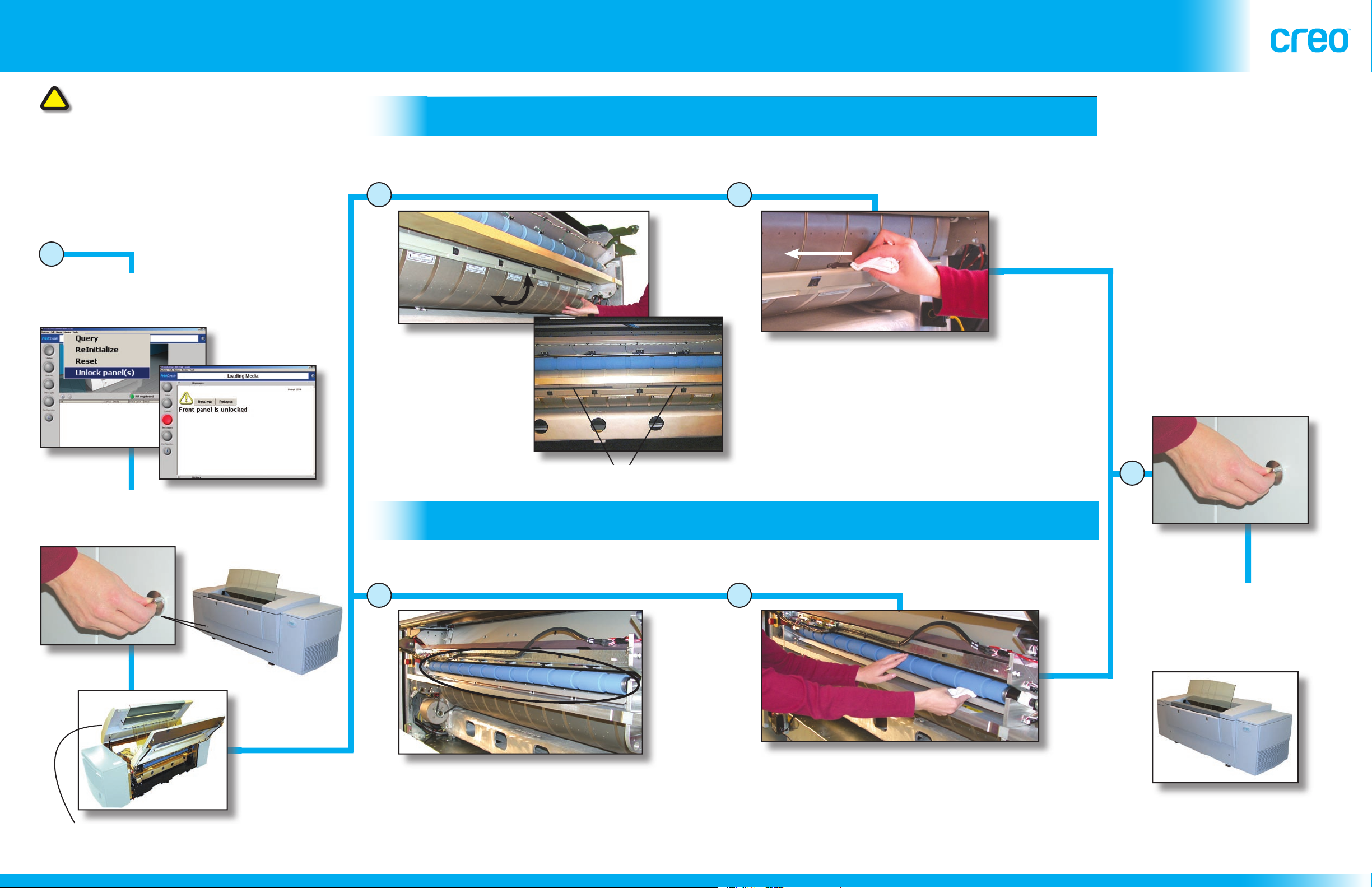

Cleaning Inside the Output Device
Trendsetter NEWS SA
!
Trendsetter NEWS SA
WARNING: Risk of electrical shock if liquids are
alowed to run freely into the output device.*
CAUTION: Be careful not to bump your head on
the raised panel.*
To open the front panel:
1
a. In Print Console software, unlock
the front panel.
Cleaning the Edge Detection Strip
Rotate the drum to expose the two edge
detection strips.
2
Dampen a cloth with isopropanol and swipe it along
each strip once, in one direction only.
3
To close the panels:
a. Pull down the front panel
and turn the locking latches.
b. Rotate the two latches
and lift the front panel.
Edge detection strips
Cleaning the Plate Roller
Locate the blue plate roller.
2 3
4
Dampen a cloth with water, and
slide the cloth over the plate roller.
b. Pull down the top panel
and then push on the two
corners to lock the internal
latches.
The top panel opens automatically.
6
* Refer to the Operator Guide for full details.
Page 8
Trendsetter NEWS SA

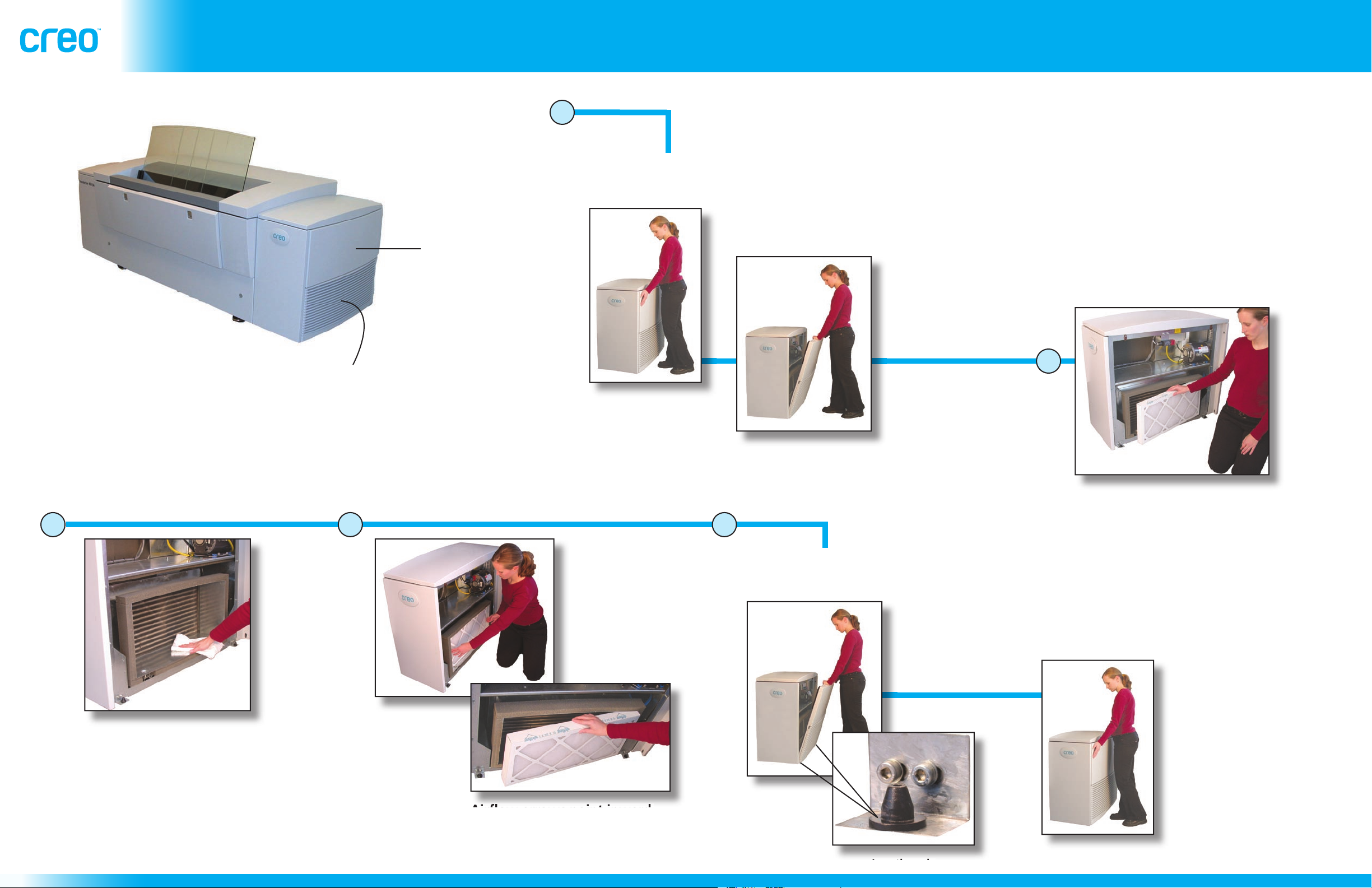

Replacing the Intake Air Filter
Remove the fan box panel:
1
a. Push the upper corners of the fan box panel
in until you hear both latches click.
Fan box panel
Intake air fi lter
Part number 55-0700
Clean the intake air fi lter frame. Install the new intake air fi lter.
3 4 5
b. Lift the fan box panel up and out.
Remove the old intake air fi lter
from inside the fan box panel.
2
Replace the fan box panel:
Airfl ow arrows point inward.
a. Lift the fan box panel and lower
it onto the locating pins.
Locating pin
b. Push the upper corners of
the fan box panel in until
you hear both latches click.
7
Page 9

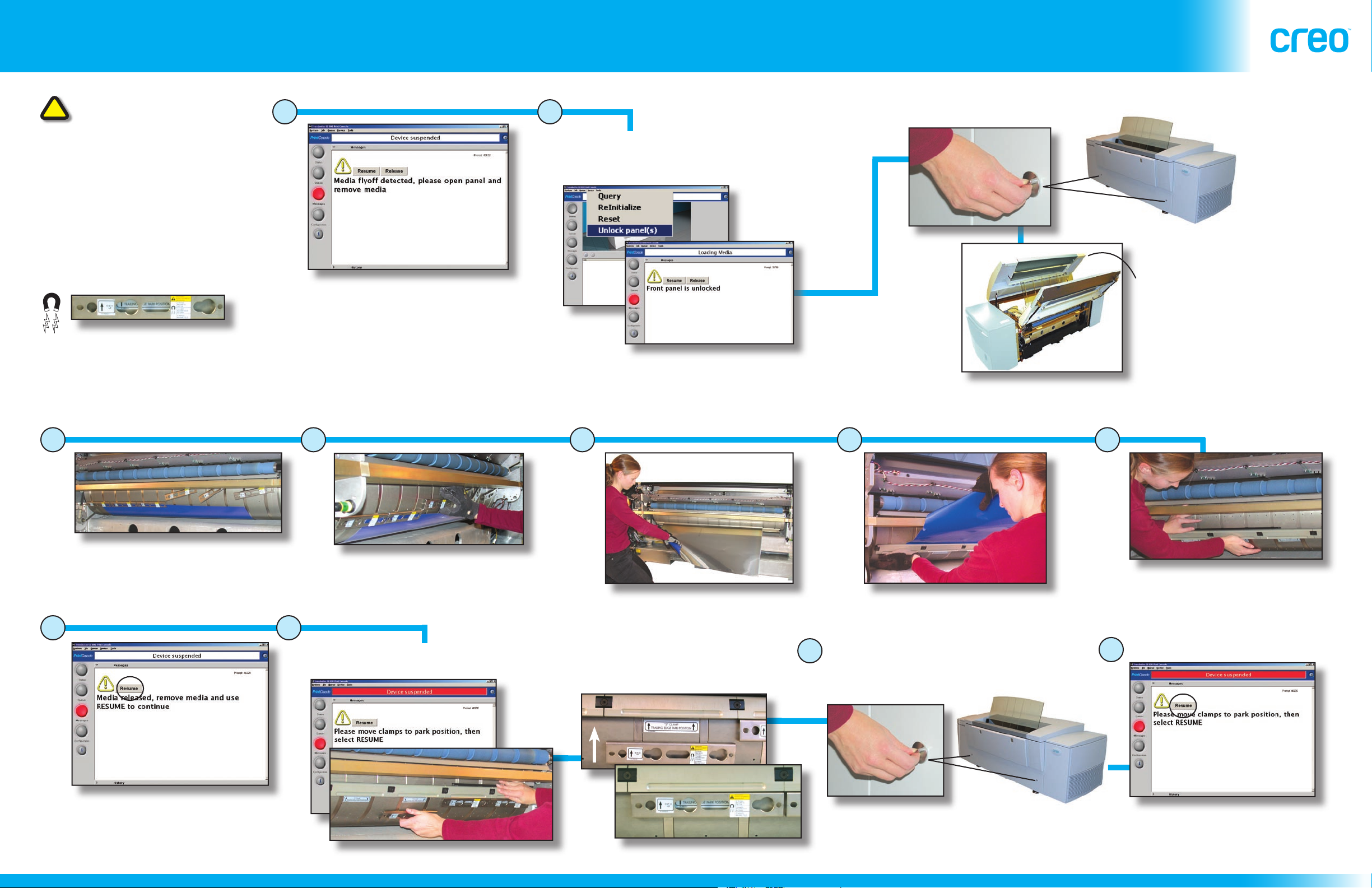

Removing a Flyoff
WARNING!
AVERTISSEMENT!
WARNUNG!
STRONG
MAGNETIC
FIELDS
CHAMPS
MAGNETIQUE
INTENSE
LABEL SIZE: 26.0mm x 31.0mm
2mm Rad. corners, typ.
Trendsetter NEWS SA
Trendsetter NEWS SA
The device suspends activity.
!
Open the front panel:
21
b. Rotate the two latches
and lift the front panel.
CAUTION: Wear protective
gloves when handling plates.*
a. In Print Console software, unlock
the front panel.
CAUTION: If you have an implanted
cardiac pacemaker, ensure that
magnetic clamps are kept more
than 7 cm (2.75 in.) away from the
pacemaker.*
Rotate the drum to expose
the trailing-edge clamps.
Slide the trailing-edge clamps
off the plate.
Fold over the corners
of the plate.
Press the leading-edge
clamps to free the plate.
3 4 5 6 7
The top panel opens
automatically.
Clean out any debris
left behind.
In Print Console, click Resume.
8 9
8
* Refer to the Operator Guide for full details.
Reposition the trailing-edge clamps:
a. Align the trailing-edge clamps.
b. Slide the trailing-edge
clamps into position.
10
Close the panels:
a. Pull down the front panel and rotate
the locking latches.
b. Pull down the top panel, and then push on
the two corners to lock the internal latches.
11
In Print Console, click Resume.
