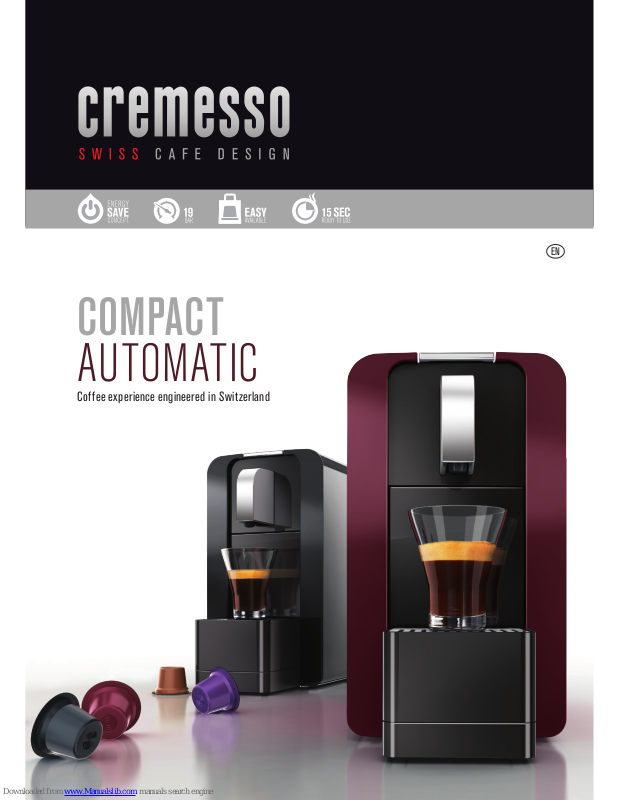

Page 1
EN
Coffee experience engineered in Switzerland
compact
AutomAtic
Page 2
2
3
Safety notes
For your safety
− Do not use the machine in case of:
– faulty operation
– damaged power cable
– after falling or other damage
– In such cases immediately have the
machine checked and repaired if necessary at the customer service centre
– Never place the machine:
– directly on marble surfaces, untreated
or oiled woodwork (risk of non-removable coffee or descaler stains; no claims
will be entertained in such cases)
– directly beneath a power socket
– on flammable or meltable objects or
surfaces
– on hot surfaces or nearer than 50 cm to
open flames (same applies to the pow-
er cable!)
– under any covering
– To prevent frost damage, do not store
the machine at temperatures below 5
°C (e.g. in caravans)
− Pull out the power plug and allow the
machine to cool down completely before
cleaning and/or maintenance
– Only use cleaning and descaling agents
recommended by the manufacturer
– Descaling fluid can be a health hazard.
Avoid contact with eyes, skin and other
surfaces
− To prevent damage, never use replacement parts or accessories not recommended by the manufacturer
– Persons, including children, who in
view of the level of their physical,
sensory or mental capacities, or their
lack of experience or knowledge, are
not in a position to use the equipment
with safety, may not use this machine
without supervision or instruction by a
responsible person
– Children more than 8 years old may
use this appliance but only under supervision or after instruction and fully
understanding the associated risks and
dangers
– Children must not play with this appli-
ance because they cannot know the
dangers involved
– Keep this appliance and power cable
away from children younger than 8.
– Cleaning and user maintenance must
not be done by children unless they are
aged 8 or more and under supervision.
– This appliance is intended for household
and for similar applications such as:
– kitchens for use by shop, office and
other employees;
– on farms
– for hotel, motel and apartment cus-
tomers
– in boarding houses
− First read this entire operating manual,
and keep it in a safe place for other users
− To avoid damage, only use genuine
cremesso capsules with this machine
− Intended use: This appliance may only
be used as described in this manual.
Using it for other purposes is abusive
and dangerous
− Danger of electric shock! Never immerse the machine in water or any
other liquid
− Connect only to a properly grounded
power point (220-240 V) protected by
at least a 10 A fuse. To make sure that
the machine is switched o, remove the
plug from the power point
− Always pull out the power plug before:
– relocating the machine
– cleaning or maintenance
– long periods of disuse
− Never clamp or run the power cable
over sharp corners or edges: Danger of
electric shock!
− Damaged power cables may only be replaced at the customer service centre:
Danger of electric shock!
− Never touch the power plug/socket/
cable or the machine with damp or
wet hands. Never unplug by pulling the
power cable; always pull out the plug
− If you need an extension cable, make
sure it is suitable for your machine (3pole grounded, and at least 1.5 mm²
conductor cross-section), and lay the
cable to avoid tripping
− We recommend connecting the machine via an Fl circuit breaker. Consult
a specialist if in doubt
− Danger of scalding! Never move the
machine during operation!
− Never operate the machine without water
− A permanent water supply connection is
not allowed
− Danger of burning! Never touch very
hot parts of the machine (e.g. brew unit
during operation)
− Danger of scalding! Do not touch the
coee or water jets
− Danger of scalding! Never start the machine when the operating lever is open
− Danger of scalding! Do not move the
operating lever when the machine is still
under pressure making tea or coee
− Do not insert fingers or hands under the
operating lever: Danger of crushing!
− Do not insert fingers in the capsule
holder. Danger of burning/cutting!
− The machine location must meet the
following requirements:
– Place on a dry, stable and level sur-
face that is waterproof and heatproof
– At least 60 cm (2 feet) away from sink
and taps
– Only use in dry rooms
Page 3
4
5
Congratulations on choosing the cremesso system! It will give you the greatest pleasure – capsule by capsule. In a few seconds your cremesso Compact Automatic will conjure up all kinds
of perfectly prepared beverages: the first-class cremesso coffee and tea selection meets even
your most discriminating demands.
We thank you for your confidence in cremesso, and wish you many years of enjoyment.
At www.cremesso.com you can download this manual in PDF format and get the latest infor
-
mation on the cremesso capsule system.
Welcome to the world of cremesso
Contents
– Safety notes 2
– Overview of machine parts and controls 6
– Key colours/displays 7
– Starting up 8
– Preparations I Setup I Water filling I Connecting I Venting 8
– Making Coee or Tea / After making coee or tea 10
– Special functions 12
– Programming the amount of coee 12
– Energy–saving mode 12
– Cleaning/maintenance/ descaling 14
– Daily: drain capsule container and drip tray 14
– Daily: drain water tank 14
– Rinse out and venting the machine and internal piping 16
– Cleaning the machine and parts 16
– At least every 2 months: descale (new version) 18
– At least every 2 months: descale (previous version) 20
– Always steam out prior to storage or transport 22
– Various 24
– Troubleshooting 24
– Disposal / Technical data 25
Page 4
6
7
Overview of machine parts and controls
Key colours ⁄ displays
White (flickering slowly): Energy-saving mode ➔ page 12
White (constant): Machine ready for coffee⁄tea output
➔ S. 10
Blue (constant): Water tank empty; fill with water ➔ page 9
Blue (flashing): Filling water circuit
Red (flashing during output): Descale the machine ➔ page
18/20
Red (constant): Electronics fault or temperature too high or too low (below
5 °C); switch off and try again after 30 minutes. If still red
➔
contact your
service agent (machine needs 30 minutes to warm up from <5°C to room
temperature)
Violet (flashing; new version only): Descaling in progress ➔ page 18
Violet
(constant; new version only): Descaling⁄Rinsing finished; Press key
➔ page 18
Violet/Red (flashing; new version only): Descaling has been interrupted.
The water circuit still contains descaler ➔ flush machine ➔ p. 16/18
White flashing (both keys): Steaming out in progress ➔ page 22
Operating keys
➔
Facing page
Output
for coffee, tea and
hot water
Drip grille⁄ tray
2-part removable
Coffee⁄tea output:
Keys flashing: heating up
Keys alight: ready
or coffee⁄tea output
Ristretto:
Small cup (30 ml)
Espresso:
Middle cup (50 ml)
Operating lever
for loading capsules
Cleaning key
Flushes⁄cleans piping (= white).
Prevents taste residues when
changing between tea and coffee.
Before changing press key
➔
page
10
Multifunction display changes
according to operating mode (details
➔
see below)
Capsule container
removable
Lower drip grille
with drip tray,
removable
Water tank lid
Remove to fill
Water tank:
pull up to remove
Power cable⁄plug
Keep dry!
Mainswitch
OFF⁄ OFF
Water tank valve
in tank
Lungo⁄Tea:
Big Cup (110 ml)
Page 5
8
9
Starting-up
Preparations ⁄ Setup ⁄ Water filling ⁄ Connecting ⁄ Venting
Stand on a dry, stable, water and
heat resistant surface. Never di-
rectly on marble or wood (risk of
coffee or descaling stains)
Remove protective foil from both
drip grilles
Clean water tank with lukewarm
water and household detergent, rinse
out and allow to dry
Fill water tank with cold water
(max. 1.1 l). Change water daily.
When tank is empty the cleaning
key
lights up in blue
Plug into a grounded power socket.
Turn on the power switch
Cleaning key
slowly lights
up in light⁄dark (= Energy saving
mode). Press any kei (all keys light
up in white)
Vent⁄flush piping: Do not load a
capsule. Place cup under nozzle and
press cleaning key
2 or
3 times
If cleaning key
lights up in
blue (= no water), press key again
(without capsule).
1.1 l
Page 6
10
11
Making coffee⁄tea ⁄ After making coffee⁄tea
The coffee⁄tea key flashes white after pressing if heating up is still in progress.
Output starts when it stays white. Output quantities can be individually adjusted (➔ page 12 «Coffee output programming»).
Tip: use thick preheated cups for Ristretto and Espresso to keep your coffee
warm. Preheat cup: fill Ristretto
(without capsule) in cup.
Vent piping: after long pauses (e.g. vacations) the piping will contain air
(➔ page 16 «Flush and vent machine and piping»).
Before changing between coffee and tea: Without capsule, press cleaning
key
to flush out piping (➔ page 16 «Flush and vent machine and pip-
ing»).
Your first coffee or tea!
1. 1.
2.
3. 2.
Capsule: The capsule may stick in the opening if it has been there a long time.
If so, open and close the operating lever. If the capsule is still blocked, push
down lightly with a finger (caution: hot sharp opening point inside!).
After opening the operating lever, water may drain into the tank. This is normal and not a fault.
Empty the used capsule container and drainage tank after about 10 beverages or at least once daily to prevent overflow.
Important:
– Beware of hot coee/tea: danger of scalding!
– Coee/tea output is only possible with closed operating lever
Good to know
Eject the capsule: 1. Push operat-
ing lever right back to eject empty
capsule. 2. Pull operating lever right
forward
Coffee⁄tea output: Choose small
,
medium or large
cup
. Output stops automatically (or press key again to stop
before).
Load capsule: 1. Push lever right
back. 2. Let capsule fall squarely
into chute. 3. Pull lever right forward (to puncture capsule)
Each cup requires one cremesso
capsule. Other capsules will not
work. Vent the piping after long
pauses
➔
page 16. Cup: place under the nozzle. For large cups remove upper drip tray with grille
Page 7
12
13
Special functions
1.
2.
3.
Programming: Place a cup under
the output
Load capsule: 1. Push the operating lever right back. 2. Drop capsule straight into the opening. 3.
Pull operating lever right forward
Programming the coffee quantity
Energy-saving mode
Energy-saving mode activated:
Cleaning key
slowly flickers
light⁄dark (white)
Stop energy-saving mode: Move
the operating lever or press any
key (keys ligth up in white)
3 sec.
Hold down the key to be pro-
grammed, e.g.
(min. 3 seconds) until it starts flashing rapidly. It
then flickers slowly (= heating up)
Coffee output starts. When your cup
is full enough press the key again
– output stops and all keys light up
again
Output quantity on first start-up (= factory setting):
Ristretto 30 ml (= «small» cup)
Espresso 50 ml (= «medium» cup)
Lungo/Tea 110 ml (= «large» cup)
Energy-saving mode is automatically activated if no key is pressed for 60 seconds
(key
slowly flickers light⁄dark).
To shut it off permanently (e.g. during vacations), pull out the power plug.
Good to know
Page 8
Clic
max.
55 °C
14
15
Hold the drip tray and lift it gently
forward
Remove the drip grille and the
upper drip tray
Cleaning ⁄ maintenance ⁄ descaling
Daily: Empty the capsule container and drip tray
Empty the water tank daily and fill
with cold water (max. 1.1 l)
Clean the water tank and lid with
lukewarm water and household
detergent. Never in the dish-
washer!
Daily: Empty the water tank
The capsule container holds about 10 capsules, and the drainage container about
500 ml (residual water from about 10 drinks). For hygienic reasons and to prevent
overflow, empty the water tank, capsule container and drip trays daily.
Important: Never clean any parts in the dishwasher (except the capsule container).
Pull the capsule container out of
the drainage tank. Dispose of used
capsules with household garbage.
Remove the lower drip grille
The drainage container can be removed, if necessary, from the lower
drip tray (snaplock). Reassemble in
reverse order after cleaning
Good to know
1.1 l
Page 9
16
17
Cleaning the machine and parts
Cleaning ⁄ maintenance ⁄ descaling
Rinse and vent the machine and piping
Prior to startup or after a long period
of disuse (e.g. vacations), rinse and
vent the machine and piping
Fill the water tank with cold
water (max. 1.1 Iitre)
Always pull out the power plug
first. Never immerse the machine or
wash under running water
Clean the machine and output with
a damp cloth. Never rub dry or
use abrasive detergents
Press cleaning key
to start
rinsing⁄venting. When the pump
stops after about 15 seconds, rinsing⁄venting is finished
Place a cup under the output.
Do not insert a capsule. If the cleaning key
starts flickering
slowly ligth⁄dark, press any key
Always keep the power cable and plug dry.
Good to know
1.1 l
Page 10
Essig
Vinaigre
Aceto
Vinegar
AntiCalc
18
19
Regular cleaning (at least every two months) means better coffee and
makes your appliance last longer.
Scaling is not covered by the guarantee..
Use special descaler (never use vinegar) following the mixing instructions
on the label.
Remove all capsules from the machine before descaling.
Power cuts or switching off interrupt the descaling programme. Then the
cleaning key flashes red⁄violet because the water circuit still contains descaler
which is a health hazard. Before making another drink in such case, al-
ways make sure the machine is flushed out with clean water.
Important!
Cleaning ⁄ maintenance ⁄ descaling
At least every 2 months: descale (new version)
Remove all capsules from the ma-
chine. Place a large bowl (min. 1.1 l)
under the nozzle. If
slowly
lights up in light⁄dark, press any key
Press for 10 seconds
. The
key
flashes violet. Descaling starts.
Descaler liquid is pumped through the
machine at intervals. The next step
comes in 22 minutes.
min. 1.1 l
10 sec.
◷ 22 min.
After 300 coffee or tea servings the
cleaning key flashes red during output
. Immediately descale the
machine!
Mix special descaler with water
and fill the tank (at least 0.5 l; follow the mixing instructions on the
label). Never use vinegar, which
will damage the machine!
(lights up): Rinse the water
tank, fill with water, and insert. Empty
the bowl and replace under the nozzle.
Press
to rinse. Key flashes violet
Next step in 4 minutes.
(lights up):
Fill and insert
water tank. Press
to suck in
water. The operating keys go white.
Now the machine is ready for use.
min.
0.5 l
➔ Descale!
◷ 4 Min.
1.1 l
1.1 l
Page 11
Essig
Vinaigre
Aceto
Vinegar
AntiCalc
20
21
Regular cleaning (at least every two months) means better coffee and
makes your appliance last longer.
Scaling is not covered by the guarantee..
Use special descaler (never use vinegar) following the mixing instructions
on the label.
Remove all capsules from the machine before descaling.
Important: The descaling programme may not be interrupted and lasts
about 30 minutes (if switched o, the process starts anew).
Important!
Cleaning ⁄ maintenance ⁄ descaling
At least every 2 months: descale (previous version)
Remove all capsules from the ma-
chine. Place a large bowl (min. 1.1 l)
under the nozzle. If
slowly
lights up in light⁄dark, press any key
Press for 6 seconds
. The
key
flashes blue. Descaling starts.
Descaler liquid is pumped through the
machine at intervals. The next step
comes in 22 minutes.
min. 1.1 l
6 sec.
◷ 22 min.
After 300 coffee or tea servings the
cleaning key flashes red during output
. Immediately descale the
machine!
Mix special descaler with water
and fill the tank (at least 0.5 l; follow the mixing instructions on the
label). Never use vinegar, which
will damage the machine!
(lights up): Rinse the water
tank, fill with water, and insert. Empty
the bowl and replace under the nozzle.
Press
to rinse. Key flashes blue.
Next step in 4 minutes.
(lights up):
Fill and insert
water tank. Press
to suck in
water. The operating keys go white.
Now the machine is ready for use.
min.
0.5 l
➔ Descale!
◷ 4 Min.
1.1 l
1.1 l
Page 12
+5 °C
+
22
23
Cleaning ⁄ maintenance ⁄ descaling
Always steam out prior to storage or transport
To avoid storage and transport
damage, steam out the machine
beforehand (water removal). This is
absolutely essential at temperatures
below 5 °C
Switch off the machine. Drain
the water tank and reinsert it.
Place a cup under the nozzle
Switch off the machine and let
it cool down. Pull out the power
plug. Keep the machine in a dry
dust-free place inaccessible to children
Tip: Use the original packaging
Prior to long periods of disuse or at storage⁄transport temperatures below 5 °C,
steaming out the machine is essential to remove all water from the system.
This prevents any frost damage inside the machine.
Before operating again, first flush out the machine and piping (
➔
page 16).
At temperatures below 5 °C, the machine cannot be started and the cleaning key
lights up red
.
Hold down the Lungo⁄tea key
and switch on the machine.
The steaming out programme starts;
now release the key
Caution: steam coming out of
the nozzle: danger of scalding!
After a few seconds you will hear
the pump. When it stops, the key
lights extinguish and steaming out
is finished
Good to know
Page 13
24
25
Repairs to this appliance may only be carried out by an authorized service agent.
No liability will be accepted for any damage due to unprofessional repairs and use
of non-original spare parts, which may endanger the user and will render the guarantee null and void.
If the troubleshooting guide below does not help you, please contact your nearest
authorized retailer.
Important:
Immediately disconnect the power supply to faulty or defective appliances or in case
of suspected defect after a fall.
Faulty coffee output
Cleaning key lights up
– ➔ page 7
No or inadequate coffee output – Fill and completely insert water tank
– Defective capsule ➔ load a new capsule
– Close operating lever as far as the stop
– Machine calcified ➔ decalcify ➔ page 18⁄ 20
– Pump defective
Pump very loud
– Water tank empty ➔ fill and⁄or fully insert
Nozzle: water drips continuously
– Machine calcified ➔ decalcify ➔ page 18⁄ 20
Nozzle: water drips sporadically
– Used capsule in machine ➔ eject capsule
Coffee⁄tea tastes sour – Inadequate flushing after descaling
– Coffee past «good until» date ➔ use new capsule
Output quantity not as
programmed
– Water tank empty ➔ fill and⁄or fully insert
– Programming changed ➔ Repeat programming
– Machine calcified ➔ decalcify ➔ page 18⁄ 20
No water sucked into
empty tank
– Used capsule in machine ➔ eject capsule ➔ Flush pip
-
ing ➔ page 16
– After 30 minutes try again without capsule, if water is
sucked in ➔ decalcify ➔ page 18⁄ 20
– After 30 minutes try again without capsule, if water is
NOT sucked in ➔ contact service agent
Troubleshooting
Various
– Rated voltage 220-240 V / 50 Hz
(Israel: 230 V / 50 Hz,
Korea: 220 V / 60 Hz)
– Rated power 1455 Watt
(Korea 1310 W)
– Energy-saving mode 0.3 W
– Dim. (wxhxd) approx. 140 x 360 x 255 mm
Tecnical data Type DC 262
Disposal
– Weight (without water) approx. 3.9 kg
− Water tank capacity max. 1.1 l
– Radio interference ACC to
suppression EU standards
– Compliance CE, RoHS, WEEE
(Korea also KC;
Russia also EAC)
–
Dispose of used cremesso coee and tea
capsules according to the regulations in your
country
– Worn-out machines should be returned to
your dealer for professional disposal free of
charge
–
Machines with dangerous defects must be
disposed of immediately to make sure that
they can no longer be used
–
For environment protection reasons, never
dispose of old or defective machines with
household garbage
Design or execution changes are reserved in the interest of technical progress.
Page 14
26
www.cremesso.com
V4 45/13
Loading...
