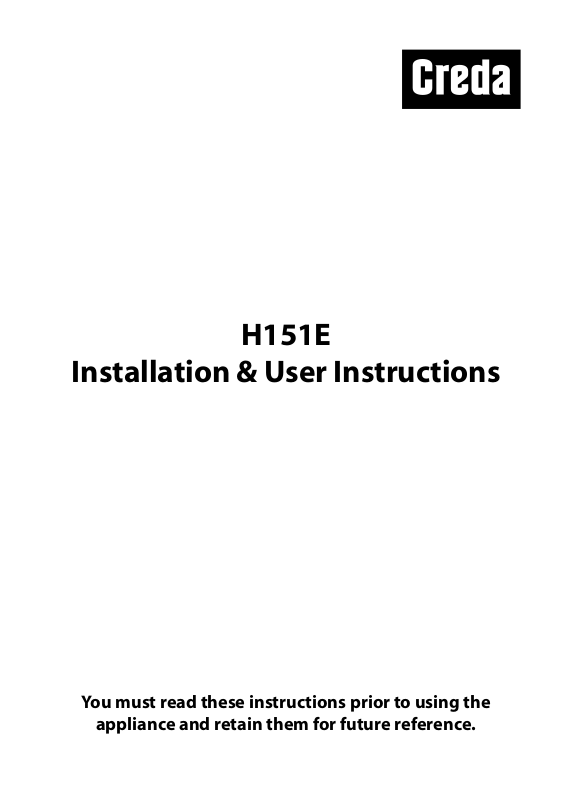

Creda H151E User Manual

H151E

Installation & User Instructions

You must read these instructions prior to using the

appliance and retain them for future reference.

For more information on our exciting product range ring

Creda Answer Centre 08701 54 64 74

OR

Visit us on the NET at

http://www.creda.co.uk

Our site invites you to make use of our interactive cookbook and product selector. Feel

free to

browse our product range to see what’s bubbling away at the moment or to ask

for help on our products and services

Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB

Creda Answer Centre 08701 54 64 74

Web http://www.creda.co.uk

It may be necessary from time to time to change the specification outlined in this booklet

without notice. Any change which is made will not affect your statutory rights.

Contents

Introduction 2
Installation 3

For your Safety – Always 4
For your Safety – Never 5

Features 6

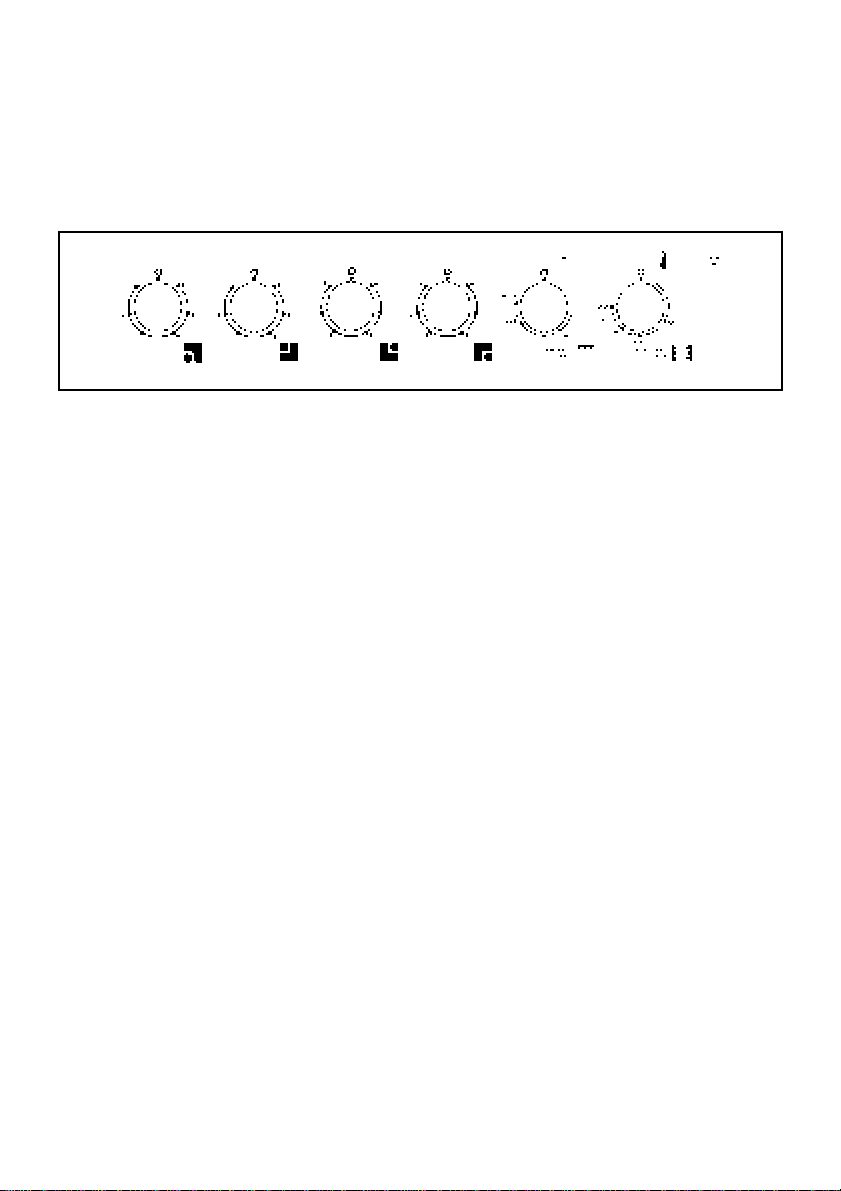

Control Panel 7
Hotplates General Information Notes 8-9
Temperature Conversion Chart 10
Grill 11
Grill Chart 12
Oven 13
Oven Cookery Notes 13-17

Care and Cleaning 18-19
Something Wrong with your Cooker 20
Key Contacts Back Cover

You must read these instructions prior to using the

appliance and retain them for future reference.

1

Introduction

Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable
if the appliance has been installed in accordance with the installation instructions detailed in this
booklet.

To help make best use of your cooking equipment, please read this booklet carefully.

The cooker is designed specifically for domestic use and responsibility will not be accepted for
use in any other installation.

When the cooker is first used an odour may be emitted,

When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an
extractor fan) and that persons who may be sensitive to the odour avoid any fumes. It is suggested
that any pets be removed from the room until the smell has ceased. This odour is due to temporary
finish on oven liners and elements and also any moisture absorbed by the insulation.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the

rating plate attached to this equipment.

(c) Has not been subjected to misuse or accident or been modified or repaired by

any person other than the authorised employee or agent.

(d) Has been correctly installed.

DISPOSAL OF YOUR PRODUCT

To minimise the risk of injury to children please dispose of your product carefully and safely.
Remove all doors and lids. Remove the mains cable (where fitted) by cutting off flush with the
appliance and always ensure that no plug is left in a condition where it could be connected to
the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of
you product.

this will cease after a period of use

This appliance conforms to the following EEC Directives:

Electromagnetic Compatibility Low Voltage Equipment
89/336/EEC 73/23/EEC
92/31/EEC 93/68/EEC
93/68/EEC

2

Installation

WARNING – THIS APPLIANCE MUST BE EARTHED.

Mains Connection

Your cooker should have been checked to ensure
volt

age,
connected by a competent person such as one who is NICEIC registered contractor to suitable
double-pole control unit with a minimum rating of 45A and a minimum contact clearance of
3mm, which should be fitted adjacent to the cooker, in accordance with IEE regulations.
The control unit must be within 2 metres of but not directly above the appliance and should be
easily accessible in the event of an emergency.
The power supply cable should conform to B.S.6004 with a conductor size of 6mm2, minimum.
Access to the mains terminals is gained by removing the rear access cover. The mains cable
must pass through the cable clamp adjacent to the terminal block. Sufficient cable should be
used to allow the cooker to be pulled out for servicing.

Ensure that the mains cable is routed away from any brackets affixed to the rear panel and
is not trapped to the rear wall when pushing the cooker into position between cabinets.
Note: If the cooker is to be placed on a base, precautions must be taken to prevent it from

slipping off the base.

Siting the Cooker

The cooker is designed to fit between kitchen cabinets spaced 500mm apart. The space either
side need only be sufficient to allow withdrawal of the cooker for servicing. It can be used with
cabinets one side or both as well as in an angled corner setting. It can also be used freestanding.
This cooker is a Type X appliance, as such adjacent side walls which project above hob level,
must not be nearer to the cooker than 150mm and should be
Any overhanging
The height of the cooker can be adjusted by means of adjustable feet in the plinth (900mm­915mm). Adjust the feet by tilting the cooker from the side. Then install the cooker into position.

Moving the Cooker

Before moving your cooker, switch off at the cooker control unit, ensure that it is cool.
Open the grill door sufficiently to allow a comfortable grip on the underside front edge of the
oven roof, avoiding any grill elements.

this is stated on the rating plate, which is situated

surface or cooker hood should not be nearer 650mm.

that the voltage corresponds with your supply

on the rear panel.The cooker must be

protected by heat resistant material.

Radio Interference

This appliance conforms to EN 55014 regarding suppression of radio and television interference.

Note: Take care in moving the cooker as it is heavy. Take care to ensure that any floor covering is
not damaged.

3

Safety Information

When used properly your appliance is completely safe but as with any electrical product

PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.

there are certain precautions that must be observed.

Always

● Remove all packing from the appliance before switching on for the first time.

● Understand the controls prior to using the appliance.

● Keep children away from the appliance when cooking as the surfaces will get extremely hot

during and after use.

● Turn controls off when not in use.

● Stand back when opening an oven door to allow any build up of steam or heat to disperse.

●

Always use dry good quality oven gloves when removing items from the oven/grill.

● Always place pans centrally over the hotplate making sure handles are kept away from the

edge of the hob and cannot become heated by other hotplates or pans.

●

Always take care to avoid heat or steam burns when operating the controls.

● Always turn off the electricity supply at the wall switch and allow the appliance to cool before

cleaning (or changing an oven lamp if fitted).

●

Always make sure the shelves are in the correct position before switching on the oven or grill.

● Always keep the oven/grill door closed when the appliance is not in use.

● Always keep the appliance clean as a build up of grease or fat from cooking can cause a fire.

●

Always follow the basic principles of food handling and hygiene to prevent the possibility of

bacterial growth.

● Always keep ventilation slots clear of obstructions.

● Always refer servicing to a qualified appliance service engineer.

● Always take care when removing items from the grill compartment when the lower oven is in

use as the contents will be hot

● Always turn off the electricity supply to the appliance at the wall switch should any glass

panel (if fitted) crack or shatter and then DO NOT USE THE APPLIANCE until repaired.

● During use, the oven becomes hot. Care should be taken to avoid touching heating elements

inside the oven.

4

Safety Information

Never

● Never stare at Halogen heating units

● Never leave children unsupervised where a cooking appliance is installed as all surfaces will

be hot during and after its use.

● Never allow anyone to sit or stand on any part of the appliance.

●

Never store items above the appliance that children may attempt to reach.

● Never leave anything on the hob surface when unattended and not in use.

● Never remove the oven shelves whilst the oven is hot.

● Never heat up unopened food containers as pressure can build up causing the container to

burst.

● Never store chemicals/food stuffs or pressurised containers in or on the appliance, or in

cabinets immediately above or next to the appliance.

● Never place flammable or plastic items on or near the hob.

● Never fill a deep fat frying pan more than 1/3 full of oil, or use a lid.

DO NOT LEAVE DEEP FAT FRYING PANS UNATTENDED WHILE COOKING.

● Never use the appliance as a room heater.

● Never use the grill to warm plates.

● Never dry any items on either the hob or oven doors.

● Never install the appliance next to curtains or other soft furnishings.

● Never operate the grill with the grill door closed as this will cause the appliance to over heat.

● Never use steam cleaners.

SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE

In the event of a chip pan fire or any other pan fire.

1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and
extinguish the fire.

3.

LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE
caused by picking up a hot pan and rushing outside with it.

MOVING IT. Injuries are often

NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force

of the extinguisher is likely to tip the pan over.

Never use water to extinguish oil or fat fires.

5

Features

Rating plate (on rear panel)

Control Panel

left rear

1000W

left front

2000W

red spot

Grill Pan

right rear
1500W

right front
1000W

Food Support

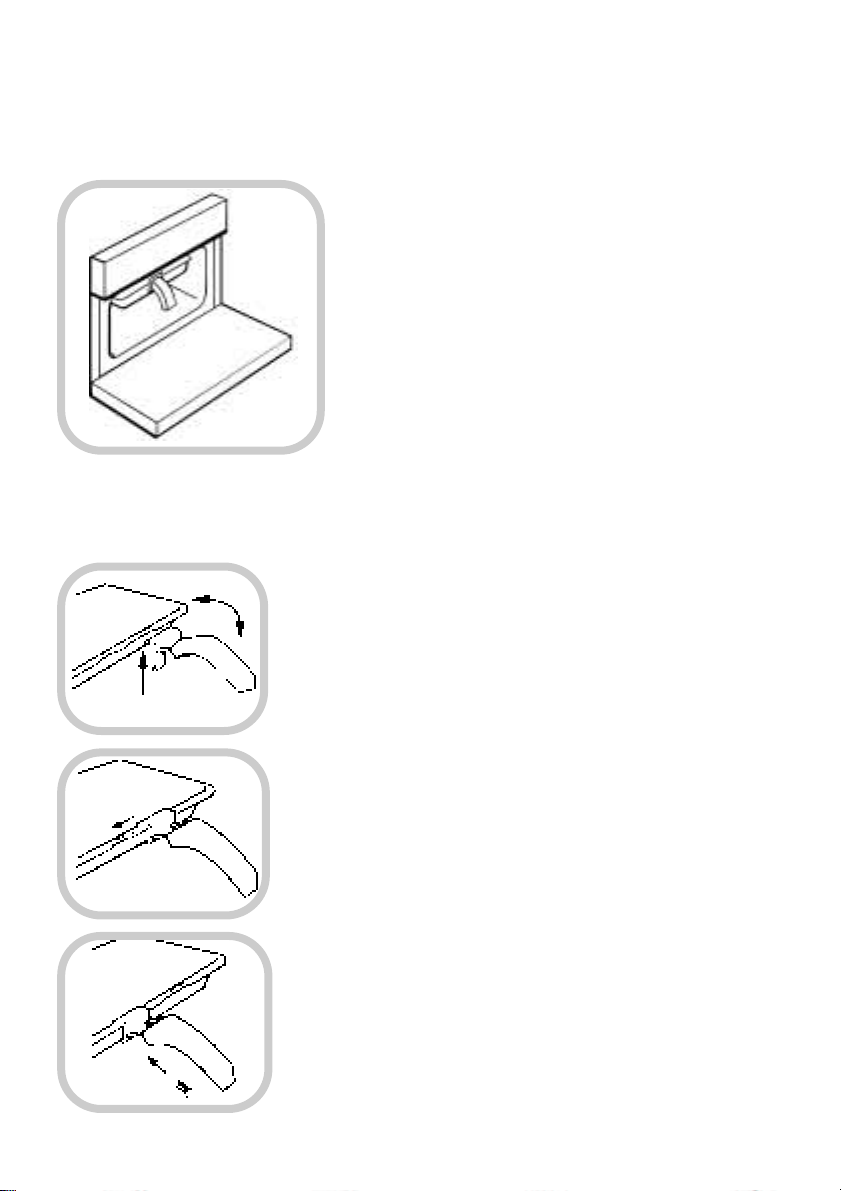

Fixed / Detached Grill
Pan Handle

Grill Door

Oven Rod Shelves

Oven Removable
Side Panels

Model/Serial

no.

Oven Door

6
