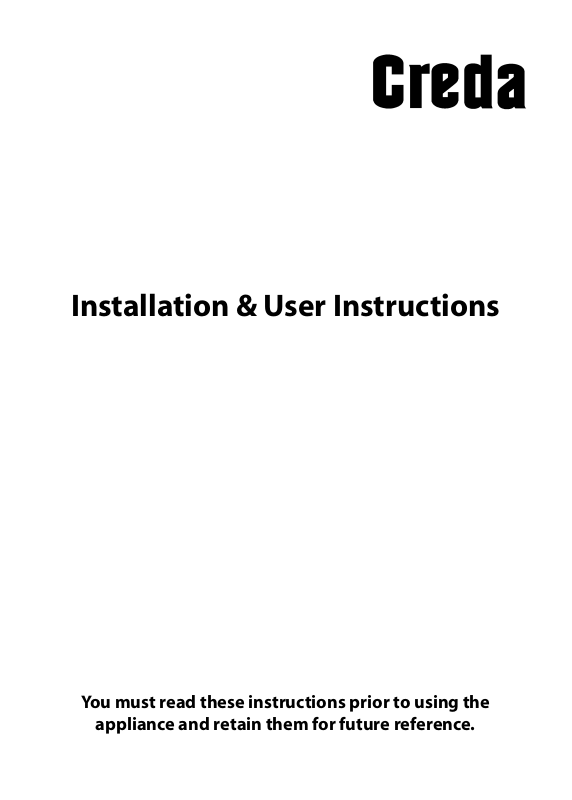

Cooker
Installation & User Instructions
You must read these instructions prior to using the
appliance and retain them for future reference.
For more information on our exciting product range ring
Creda Answer Centre 08701 54 64 74
OR
Visit us on the NET at
http://www.creda.co.uk
Our site invites you to make use of our interactive cookbook and product selector. Feel
free to
browse our product range to see what’s bubbling away at the moment or to ask
for help on our products and services
General Domestic Appliances Ltd. Morley Way Peterborough PE2 9JB
Creda Answer Centre 08701 54 64 74
Web http://www.creda.co.uk
It may be necessary from time to time to change the specification outlined in this booklet
without notice. Any change which is made will not affect your statutory rights.
Contents
Introduction 4
Installation 5
For your Safety – Always 7
For your Safety – Never 8
Features EDC51 9
Features ETCW51 10
Features ETW51 11
Control Panel 12
Hotplate General Information 13-15
Temperature Conversion Chart 16
Grilling / Grilling Chart 17-19
Top Oven / Grill Cookery notes 20
Oven Temperature Chart – Meat 21
Oven Temperature Chart – Baking 22
Main Oven Cookery Notes 23-24
Using the Main Oven for other Functions 25
Care and Cleaning 26-28
Cooking Results Not Satisfactory 29
Something Wrong with your Cooker 30
Key Contacts Back Cover
3
Introduction
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable
if the appliance has been installed in accordance with the installation instructions detailed in this
booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for
use in any other installation.
When the cooker is first used an odour may be emitted,
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an
extractor fan) and that persons who may be sensitive to the odour avoid any fumes. It is
suggested that any pets be removed from the room until the smell has ceased. This odour is due
to temporary finish on oven liners and elements and also any moisture absorbed by the
insulation.
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c) Has not been subjected to misuse or accident or been modified or repaired by
any person other than the authorised employee or agent.
(d) Has been correctly installed.
Disposal of your product
To minimise the risk of injury to children please dispose of your product carefully and safely.
Remove all doors and lids. Remove the mains cable (where fitted) by cutting off flush with the
appliance and always ensure that no plug is left in a condition where it could be connected to
the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of
your product.
this will cease after a period of use
This appliance conforms to the following EEC Directives:
Electromagnetic Compatibility Low Voltage Equipment
89/336/EEC 73/23/EEC
92/31/EEC 93/68/EEC
93/68/EEC
4
Installation
150 mm
150 mm
650 mm
WARNING – THIS APPLIANCE MUST BE EARTHED.
Your cooker should have been checked to ensure
voltage corresponds with your supply volt
on the rating plate, which is situated
age,
on the front of the
that the
this is stated
plinth. The cooker must be connected by a competent
person eg. (NICEIC registered contractor) to suitable
double-pole control unit with a minimum rating of 45A
and a minimum contact clearance of 3mm, which should
be fitted adjacent to the cooker, in accordance with IEE
regulations.
The power supply cable should conform to B.S.6004 with a
conductor size of 6mm2minimum.
The control unit should be easily accessible in the event of
an emergency, but must be within 2 metres
of and not directly above an appliance.
This appliance conforms to EN 55014 regarding
suppression of radio and television interference.
Access to the mains terminals is gained by removing the
rear access cover.
The mains cable must pass through the cable clamp
adjacent to the terminal block. Sufficient cable should be
used to allow the cooker to be pulled out for
servicing.
Ensure that the mains cable is routed away from any
brackets affixed to the rear panel and is not trapped to the
rear wall when pushing the cooker into
position between cabinets.
Siting the Cooker
The height of the cooker can be adjusted by means of
adjustable feet in the plinth (900mm - 915mm). Adjust the
feet by tilting the cooker from the side. Then install the
product into position.
The cooker is designed to fit between kitchen
cabinets spaced 500mm apart. The space either side need
only be sufficient to allow withdrawal of the
cooker for servicing. It can be used with cabinets one side
or both as well as in a corner setting. It can also be used
free-standing.
This cooker is a class X appliance, as such adjacent side
walls which project above hob level, must not be nearer to
the cooker than 150mm and should be
protected by heat resistant material. Any overhanging
surface or cooker hood should not be nearer 650mm.
Never mount the cooker onto a platform.
5
Installation
Moving the Cooker
Splash Panel
Kit (Wall Mounted)
Before moving your cooker check that it is cool, and switch
off at the cooker control unit.
Movement of your cooker is most easily achieved by lifting
the front as follows:
Open the grill door sufficiently to allow a comfortable grip
on the underside front edge of the oven roof, avoiding any
grill elements.
Note: Take care in moving the cooker as it is heavy.
Take care to ensure that any floor covering is not
damaged.
Splashplate optional, apply to Parts Department
(see Back Cover for contact number.)
6
For Your Safety
When used properly your appliance
is completely safe but as with any electrical
product there are certain precautions that
must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.
● Always make sure you remove all packing from inside the oven
and grill compartments before switching on for the first time.
Always
Safety Advice
● Always make sure you understand the controls prior to using
the appliance.
● Always keep children away from the appliance when grilling
as the surfaces will get extremely hot during and after use.
● Always make sure all controls are turned off when you have
finished cooking and when not in use.
● Always stand back when opening an oven door to allow any
build up of steam or heat to disperse.
●
Always use dry good quality oven gloves when removing items
from the oven/grill.
● Always place pans centrally over the hotplate making sure
handles are kept away from the edge of the hob and cannot
become heated by other hotplate/pans.
●
Always take care to avoid heat/steam burns when operating the
controls.
● Always turn off the electricity supply at the wall switch before
cleaning and allow the appliance to cool.
●
Always make sure the shelves are in the correct position before
switching on the oven.
● Always keep the oven and grill doors closed when the
appliance is not in use.
● Always take care when removing items from the grill when the
lower oven is on as the contents will be hot.
● Always keep the appliance clean, as a build up of grease or fat
from cooking can cause a fire.
●
Always follow the basic principles of food handling and hygiene
to prevent the possibility of bacterial growth.
●
Always turn off the appliance at the wall switch if any glass panel
should crack or shatter. Do not use the appliance until repaired.
● Always keep ventilation slots clear of obstructions.
● Always refer servicing to a qualified appliance service
engineer.
IN THE EVENT OF A CHIP PAN FIRE OR ANY OTHER PAN FIRE.
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will
smother the flames and extinguish the fire.
3.
LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE
MOVING IT. Injuries are often caused by picking up a hot pan and
rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force
of the extinguisher is likely to tip the pan over.
Never use water to extinguish oil or fat fires.
7
For Your Safety
Never
● Never leave children unsupervised where a cooking appliance
is installed as all surfaces will be hot during and after its use.
● Never allow anyone to sit or stand on any part of the appliance.
●
Never store items above the appliance that children may attempt
to reach.
● Never leave anything on the hob surface when unattended and
not in use.
● Never remove the oven shelves whilst the oven is hot.
● Never heat up unopened food containers as pressure can build
up causing the container to burst.
● Never store chemicals/food stuffs, pressurised container in or
on the appliance, or in cabinets immediately above or next to
the appliance.
● Never place flammable or plastic items on or near the hob.
● Never fill a deep fat frying pan more than 1/3 full of oil, nor use
a lid. DO NOT LEAVE UNATTENDED WHILE COOKING, for example; to
answer the telephone.
● Never operate the grill with the grill door closed as this will
cause the appliance to overheat.
● Never use the appliance as a room heater.
● Never use the grill to warm plates.
● Never dry any items on either the hob or oven doors.
● Never install the appliance next to curtains or other soft
furnishings.
● Never use steam cleaners.
8

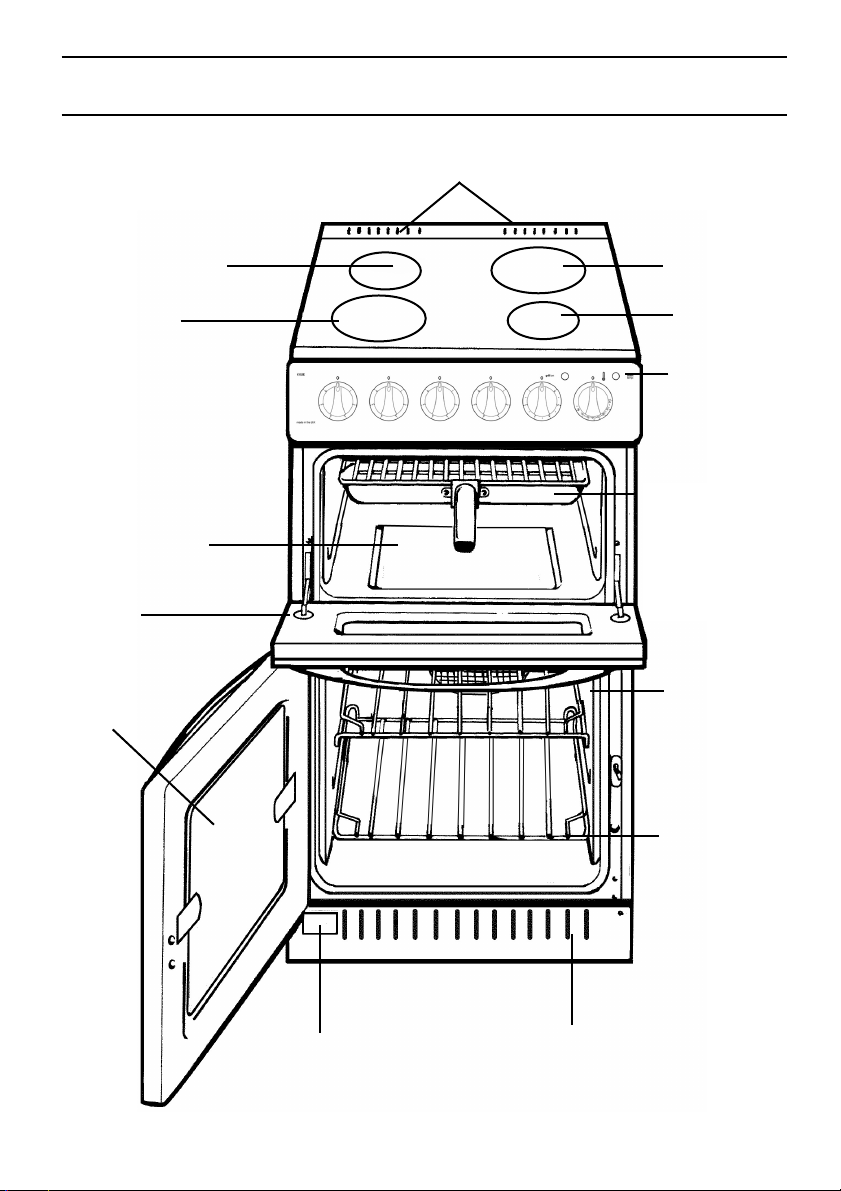

Features EDC51
HOB VENTILATION SLOTS
1800W
GRILL/TOP OVEN
GRILL/TOP OVEN
DOOR
REMOVABLE
INNER GLASS
DOOR
1200W
1800W
1200W
CONTROL
PANEL

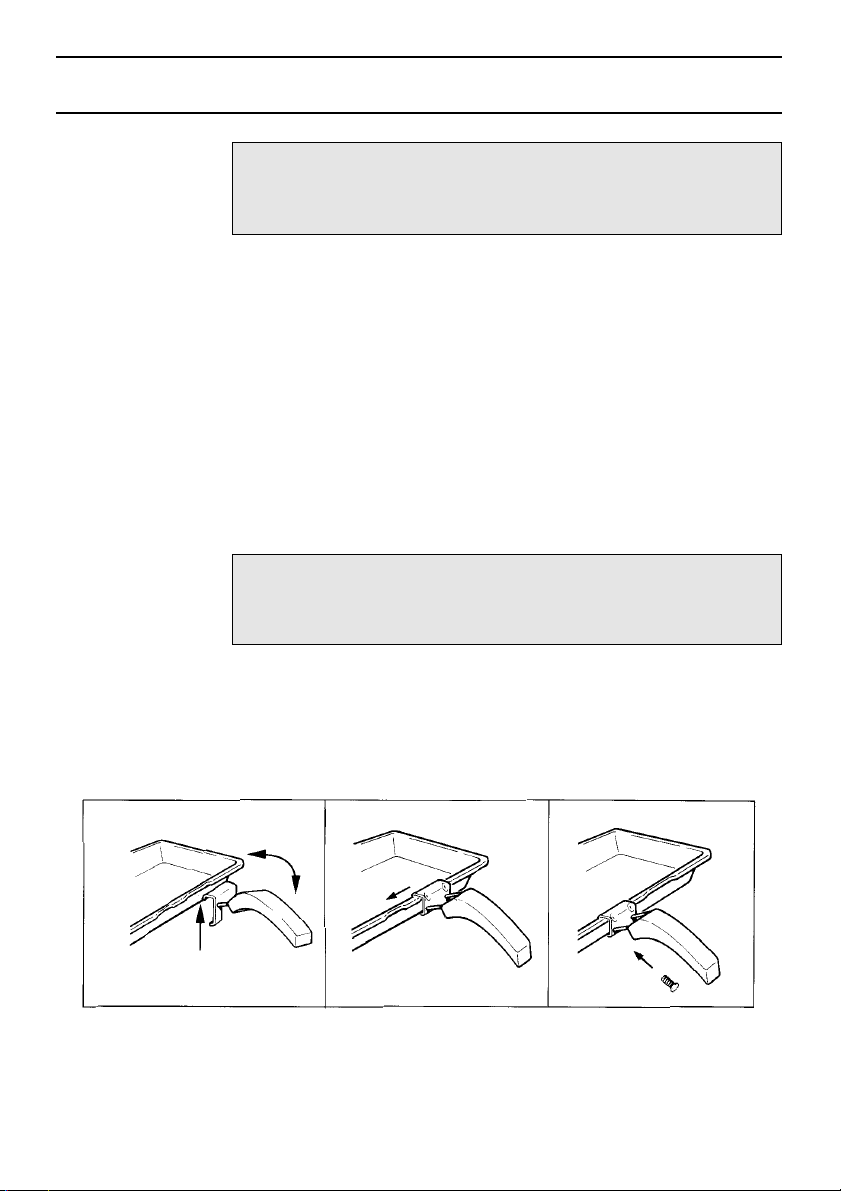

GRILL/MEAT PAN
WITH REMOVABLE
HANDLE AND WIRE
FOOD SUPPORT
CREDACLEAN
SIDE PANELS
OVEN ROD
SHELVES
RATING PLATE
PLINTH VENTILATION SLOTS
9
Features ETCW51
HOB VENTILATION SLOTS
1800W
GRILL DOOR
REMOVABLE
INNER GLASS
DOOR
1200W
GRILL
1800W
1200W
CONTROL
PANEL
GRILL/MEAT PAN
WITH REMOVABLE
HANDLE AND WIRE
FOOD SUPPORT
CREDACLEAN
SIDE PANELS
OVEN ROD
SHELVES
10
RATING PLATE
PLINTH VENTILATION SLOTS
