Page 1

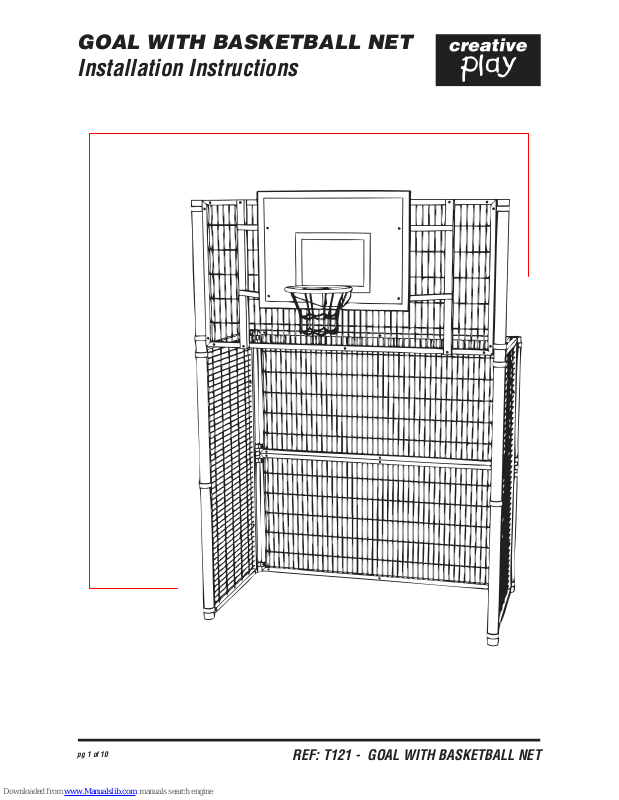

GOAL WITH BASKETBALL NET
Installation Instructions
REF: T121 - GOAL WITH BASKETBALL NET
pg 1 of 10
Page 2
pg 2 of 10
REF: T121 - GOAL WITH BASKETBALL NET
PARTS required
x5 STEEL MESH PANELS
x1 BASKETBALL FRAME (T121-M)
x1 BASKETBALL BACKBOARD
x2 LARGE POS
x2 MEDIUM POST
x8 COLLAR CLAMP CLA004 x12 COLLAR CLAMP CLA007
x1 BASKETBALL NET
Page 3
pg 3 of 10
REF: T121 - GOAL WITH BASKETBALL NET
TIMBERS required
TOOLS required
x8 (M12 ´NYLOC´)
x30 (M10 ´NYLOC´)
x38 (End Caps)
x60 (GRUB SCREWS M10x8mm
to be used on COLLAR CLAMPS
x4 (4B Torktainers)
x4 (N3 Torktainers)
x4 (M12 x 80 SOCKET BUTTON BOLTS)
x4 (M12 x 120 SOCKET BUTTON BOLTS)
x2 (M10 x 100 SOCKET BUTTON BOLTS)
x28 (M10 x 60 SOCKET BUTTON BOLTS)
Page 4
pg 4 of 10
REF: T121 - GOAL WITH BASKETBALL NET

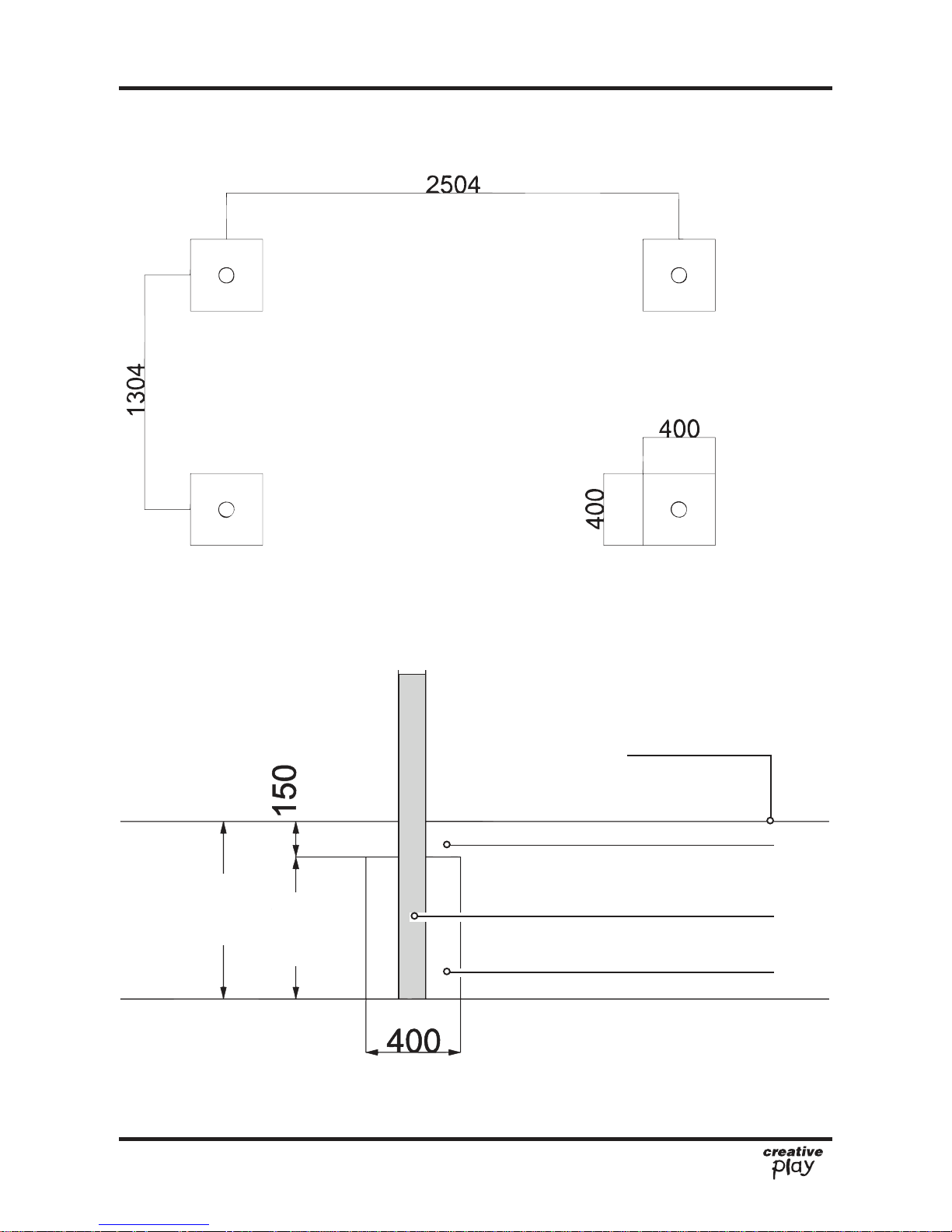

Foundation Details
MEDIUM POST
CONCRETE
SOIL
FINISHED GROUND LEVEL
450
750
600
FRONT
LRG POSTS
MED POSTS
BACK
Page 5
pg 5 of 10
REF: T121 - GOAL WITH BASKETBALL NET
Installation Instructions

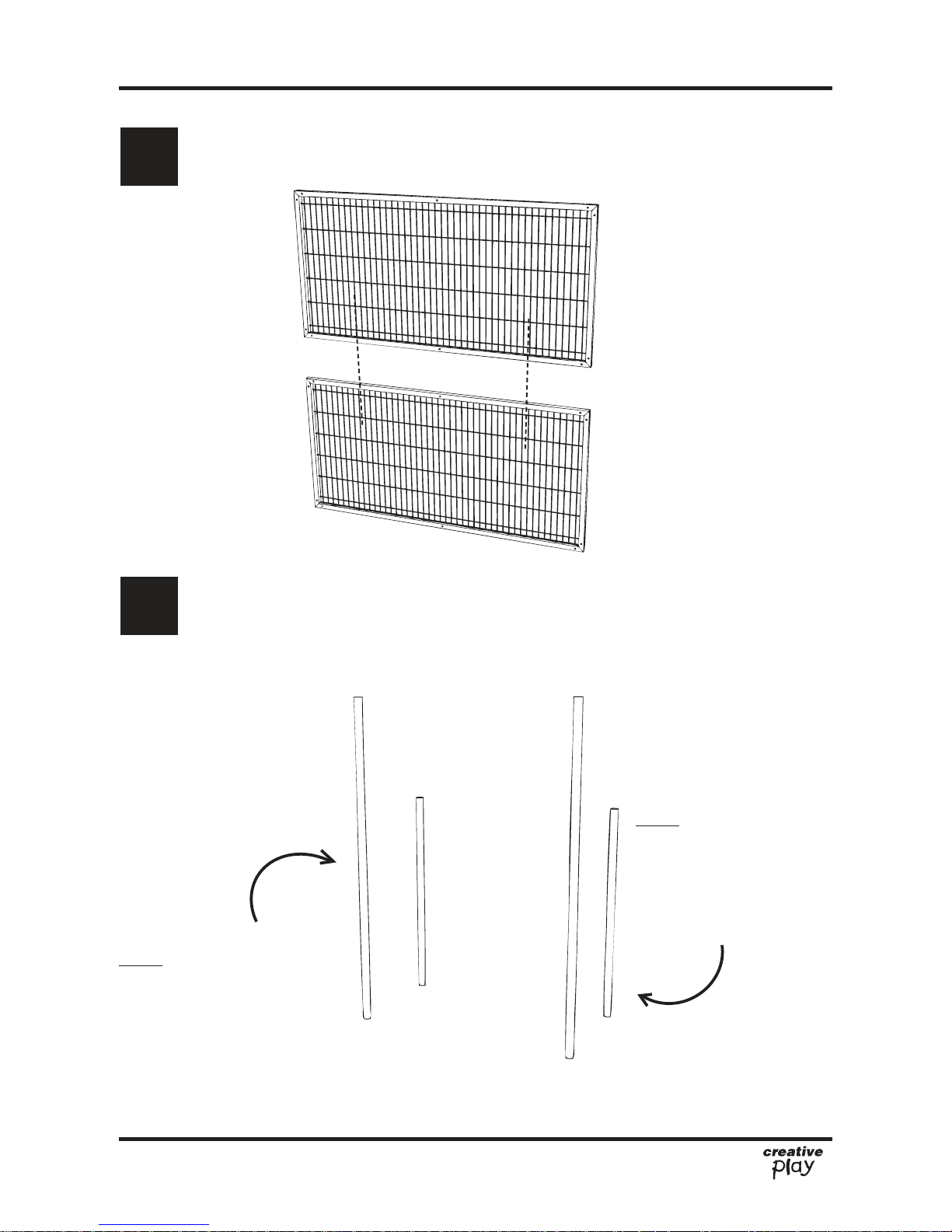

Attach the 2 x MESH FRAMES together
Using 2 X M10 X 100mm SOCKET BUTTON BOLTS / 2 X M10 NYLOCS / 2X COVERED ENDS
PLACE POSTS INTO GROUND AND SLIDE ON CORRECT COLLAR
CLAMPS - DO NOT TIGHTEN COLLAR CLAMPS INTO PLACE YET
1
2
EACH MED POSTS REQUIRES -
(SLIDE ON IN ORDER)
2 X CLA004
1 X CLA007
2 X CLA004
EACH LRG POSTS REQUIRES 5 X CLA007
Page 6
pg 6 of 10
REF: T121 - GOAL WITH BASKETBALL NET
Installation Instructions

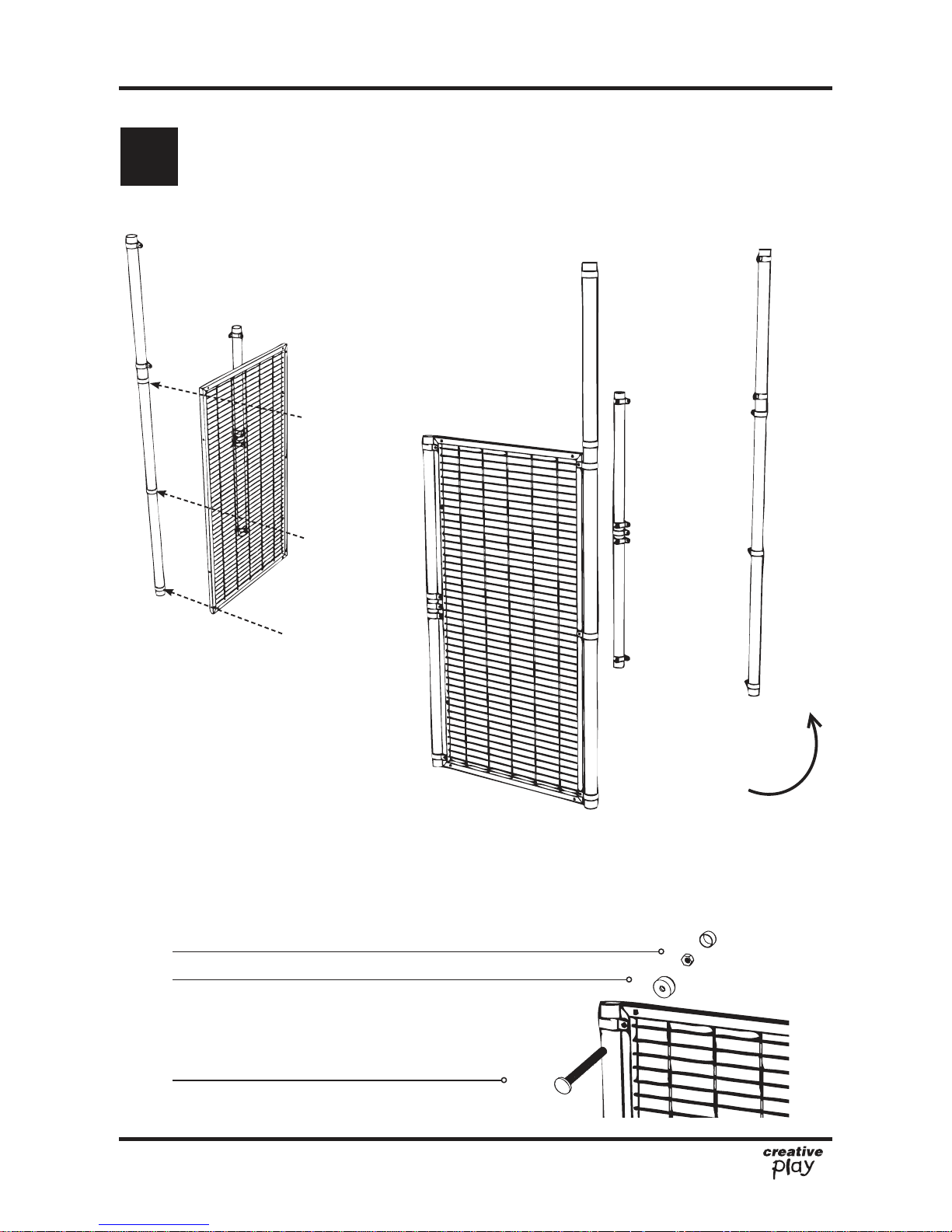

Attach the SIDE PANELS between1 X MED and 1 X LARGE POST
Using 8 X M10x60mm SOCKET BUTTON BOLTS / 8 X M10 NYLOCS / 8 X COVERED ENDS
3
REPEAT FOR
OPPOSITE SIDE
SOCKET BUTTON BOLT
NYLOC
COVERED END
Page 7
pg 7 of 10
REF: T121 - GOAL WITH BASKETBALL NET
Installation Instructions

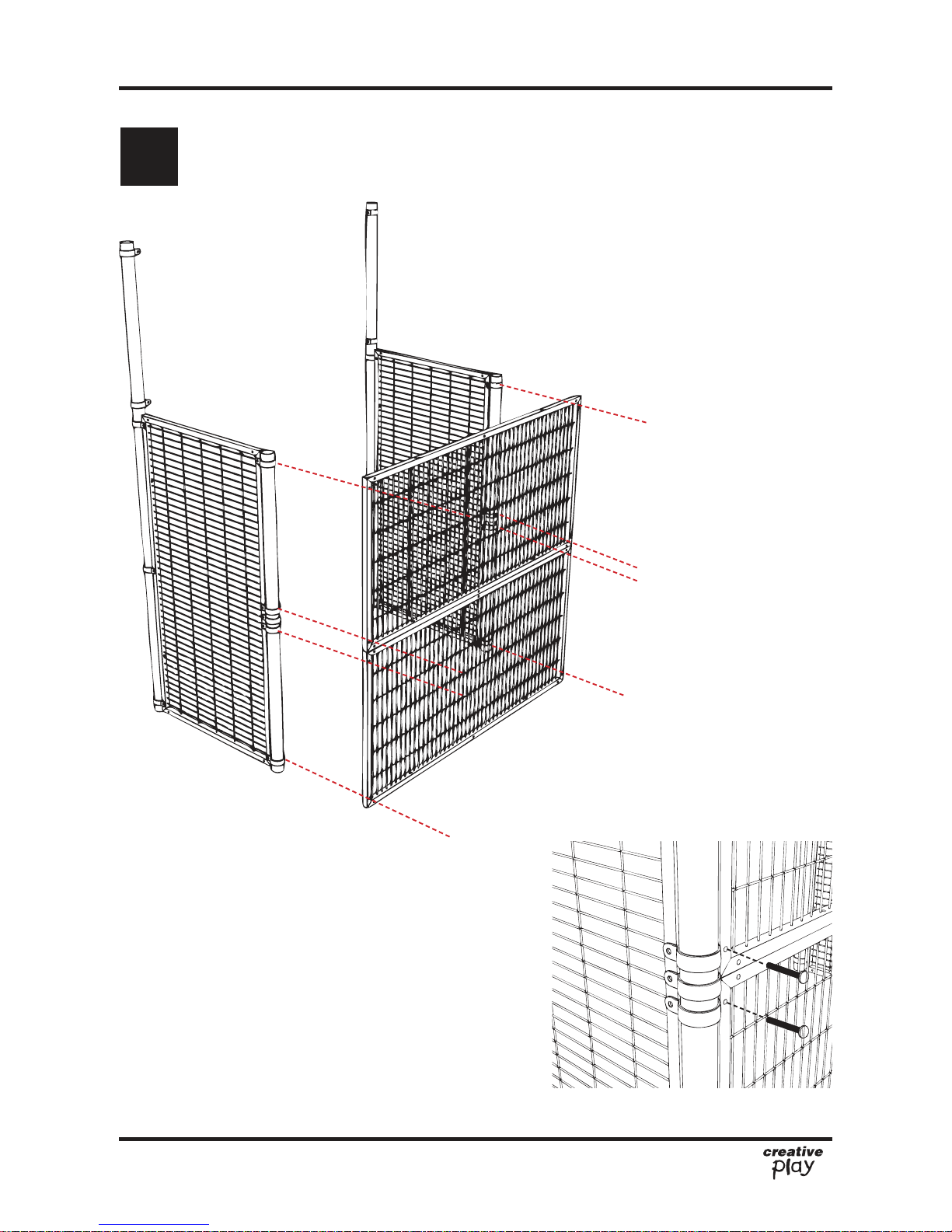

Attach the BACK PANELS between 2 MED POST
Using 8 X M10x60mm SOCKET BUTTON BOLTS / 8 X M10 NYLOCS / 8 X COVERED ENDS
4
Page 8
pg 8 of 10
REF: T121 - GOAL WITH BASKETBALL NET
Installation Instructions

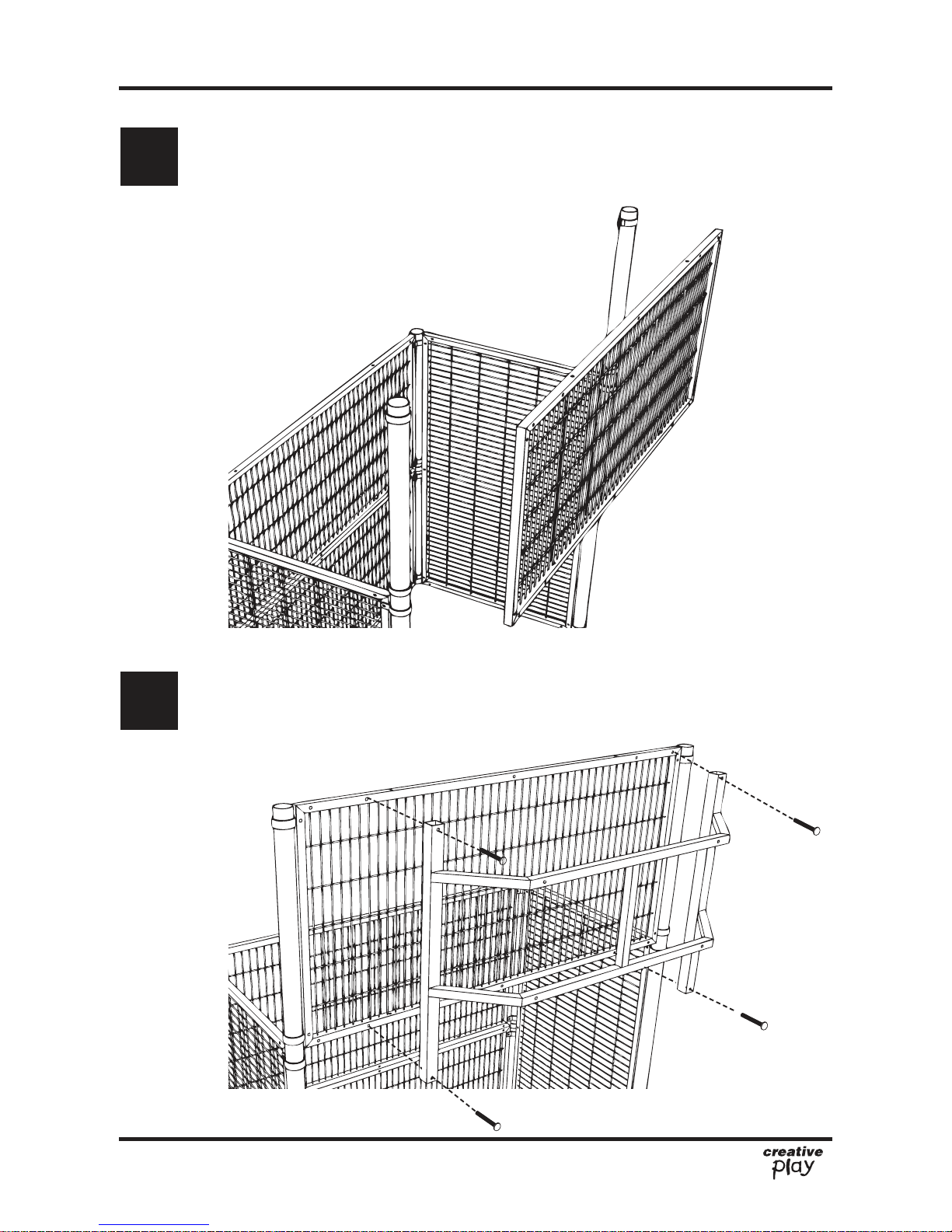

Attach TOP MESH PANEL between the TOP of 2 LRG POSTS
Using 4 X M10x60mm SOCKET BUTTON BOLTS / 4 X M10 NYLOCS / 4 X COVERED ENDS
5
FIX BASKETBALL FRAME ON TO TOP MESH
Using 4 X M12 x 120mm SOCKET BUTTON BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS
6
Page 9
pg 9 of 10
REF: T121 - GOAL WITH BASKETBALL NET
Installation Instructions

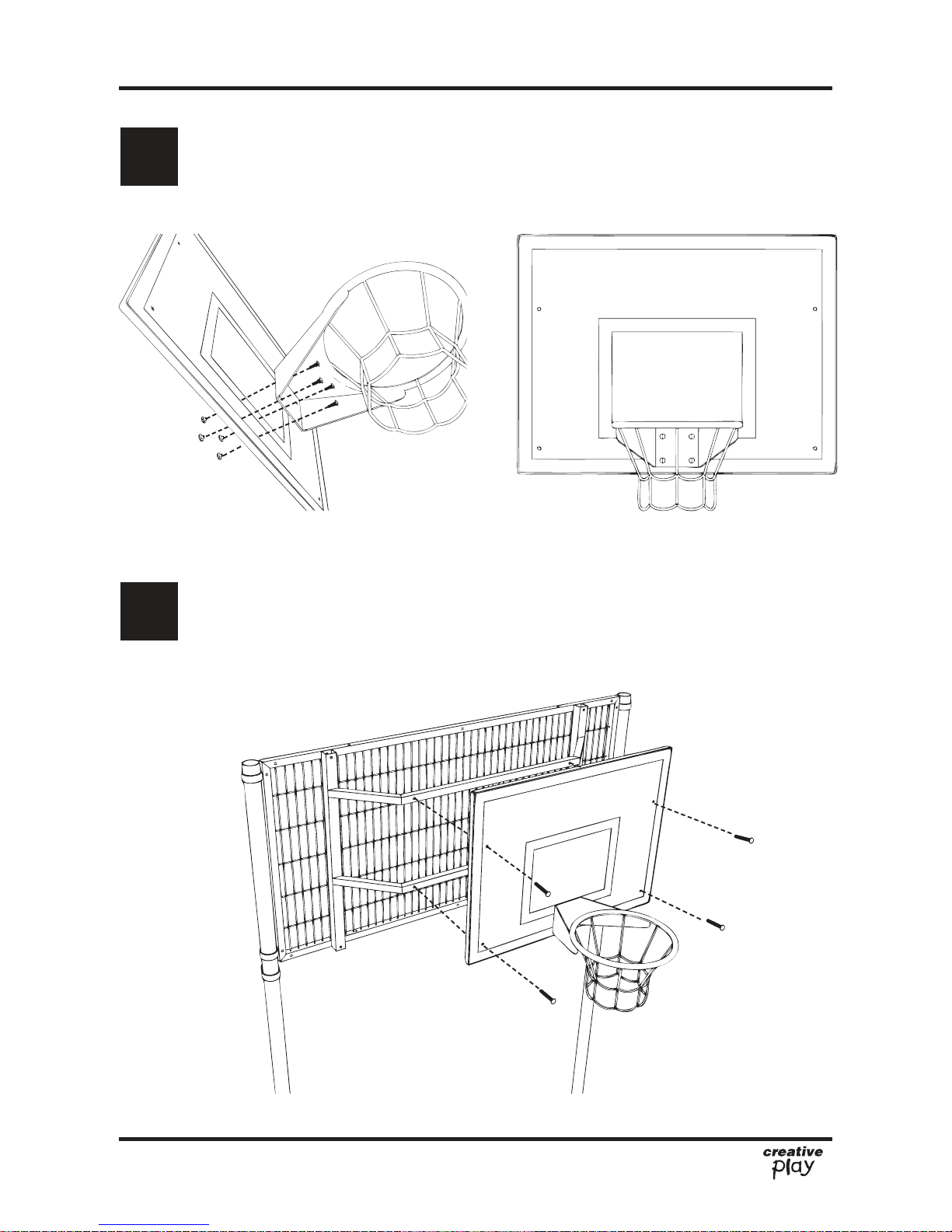

TORKTAINER BASKET ON TO BASKETBALL BACKBOARD
Using 4 X 4B/N3 TORKTAINERS
7
FIX BASKETBALL NET and BOARD TO BASKETBALL FRAME
Using 4 X M12 x 80mm SOCKET BUTTON BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS
8
Page 10
pg 10 of 10
REF: T121 - GOAL WITH BASKETBALL NET

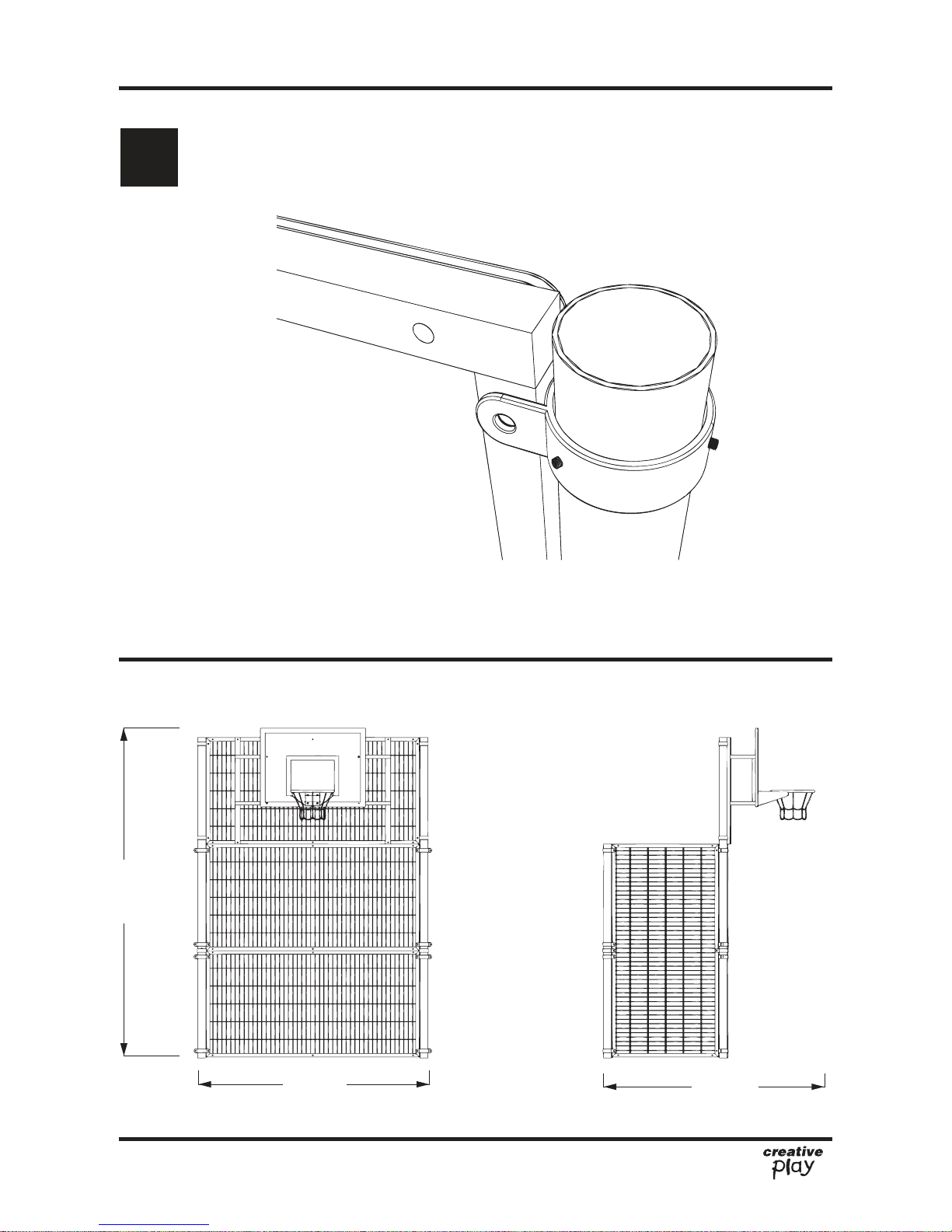

Tighten the GRUB screws on the COLLAR CLAMPS
There are 3 x GRUB screws per COLLAR CLAMP
9
Installation Instructions
Additional Dimensions
2.6m
3.7m
2.4m
