BATSMAN TARGET PANEL
Installation Instructions
pg 1 of 7
REF: T111 - BATSMAN TARGET PANEL
PARTS required
x2 MEDIUM POST x1 BATSMAN PLAYTEC PANEL
x1 STEEL FRAME
x 21 (M10 x 70 SOCKET BUTTON BOLTS)
x 5 (M10 x 80 SOCKET BUTTON BOLTS)
x26 (M10 ´NYLOC´)
TOOLS required
x6 COLLAR CLAMP CLA007
x18 (GRUB SCREWS M10x8mm
to be used on COLLAR CLAMPS
x26 (Covered Ends)
pg 2 of 7
REF: T111 - BATSMAN TARGET PANEL
Foundation Details
pg 3 of 7
750
675000
600
450
FINISHED GROUND LEVEL
SOIL
MEDIUM POST
CONCRETE
REF: T111 - BATSMAN TARGET PANEL
Installation Instructions
Installation Instructions

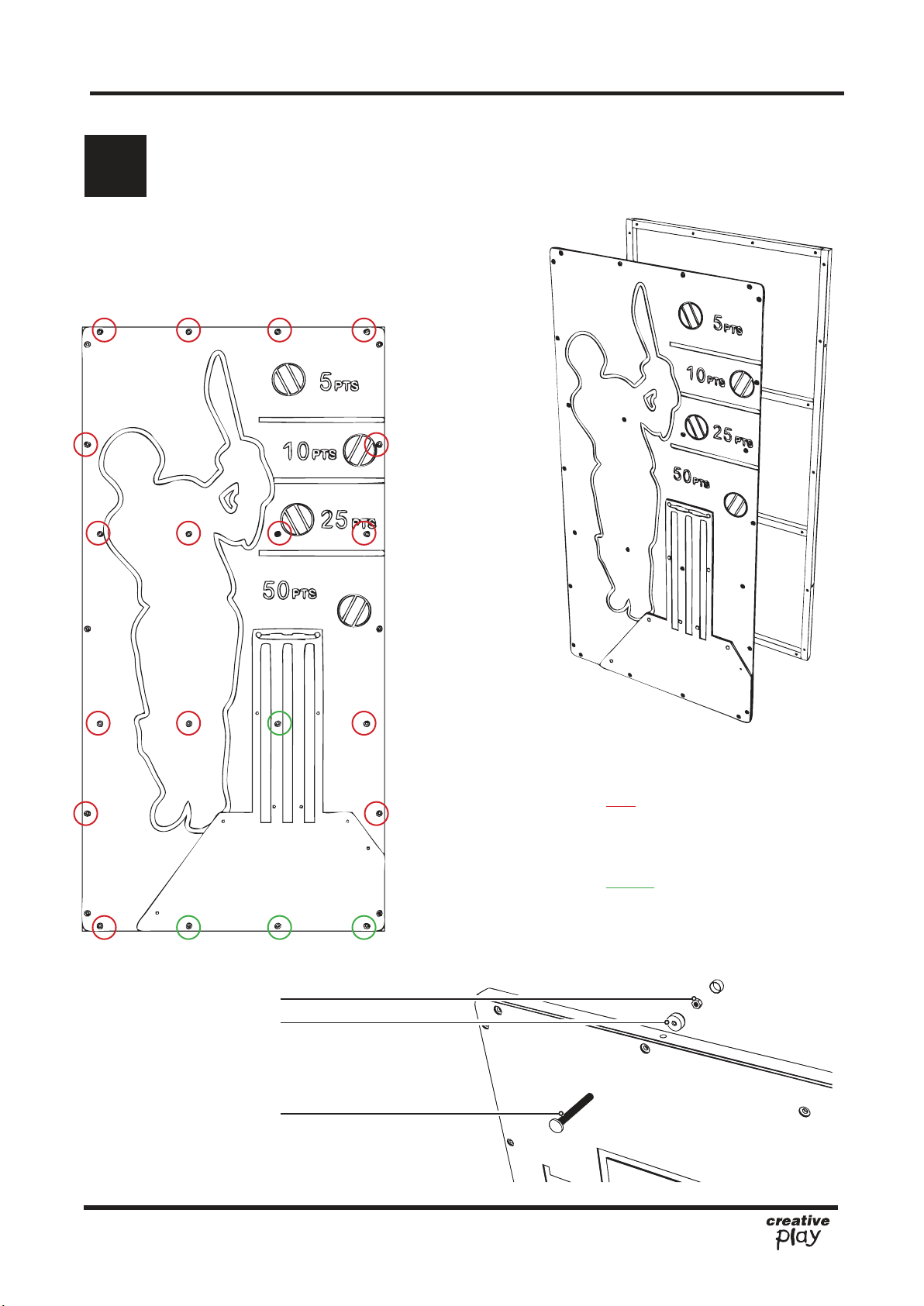

Attach the BATSMAN PANEL to STEEL FRAME
1
Using M10x70mm SOCKET BUTTON BOLTS / M10 NYLOCS / END CAPS
Notes:
SEE BELOW to ensure the correct holes are used
(Some will be left ‘EMPTY’ to bolt to the COLLARS)
pg 4 of 7
BOLT HOLES CIRCLED RED Using 16 X M10x70mm SOCKET BUTTON BOLTS /
16 X M10 NYLOCS / 16 X COVERED ENDS
BOLT HOLES CIRCLED GREEN Using 4 X M10x80mm SOCKET BUTTON BOLTS /
4 X M10 NYLOCS / 4 X COVERED ENDS
NYLOC
COVERED END
SOCKET BUTTON BOLT
REF: T111 - BATSMAN TARGET PANEL
Installation Instructions
Installation Instructions

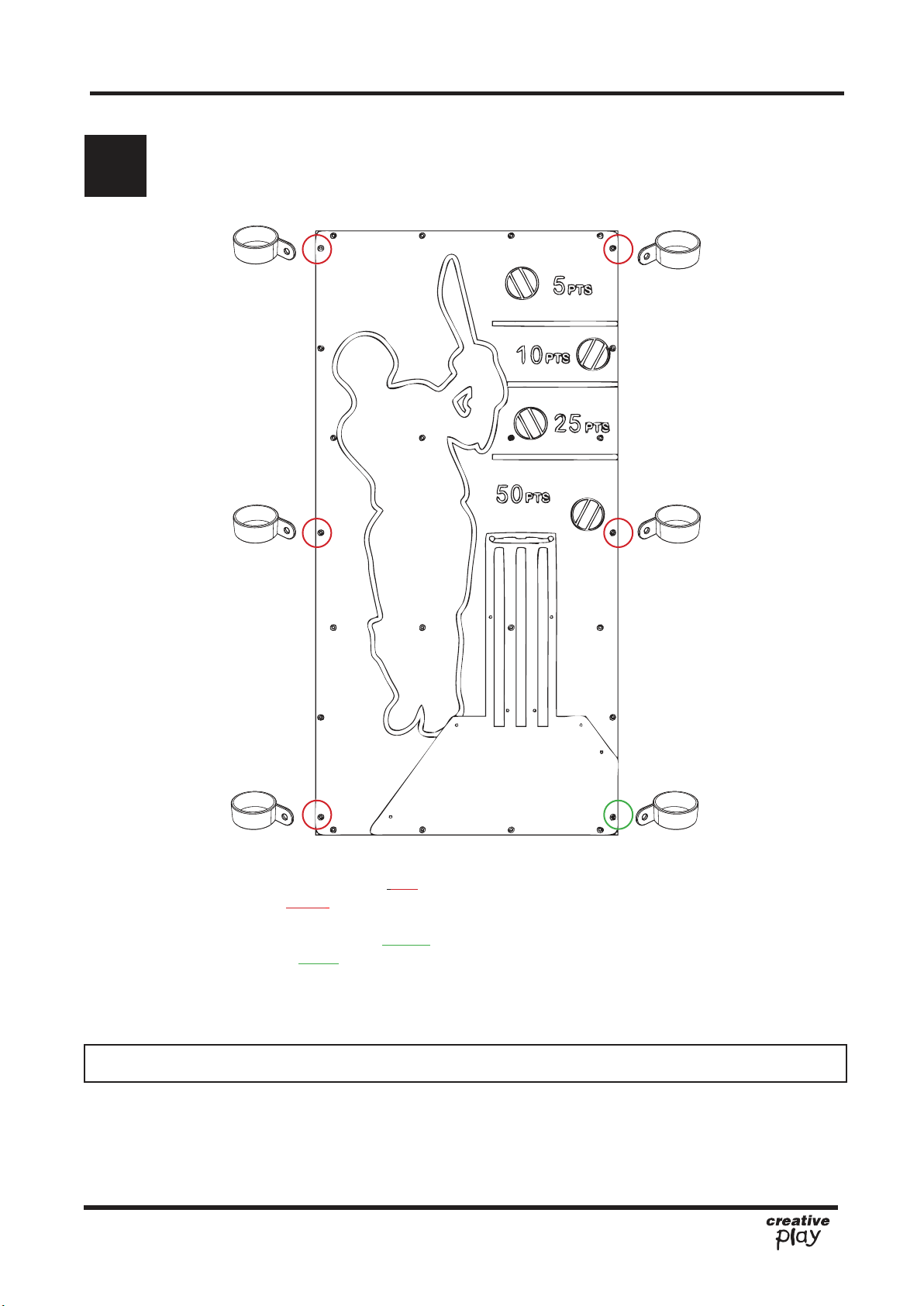

Attach the ‘PANEL ASSEMBLY’ to the COLLAR CLAMPS
2
ENSURE CORRECT FIXINGS ARE USED FOR HOLES
pg 5 of 7
HOLES CIRCLED RED will be used to attach 5 X COLLARS
Using 5 X M10x70mm SOCKET BUTTON BOLTS / 5 X M10 NYLOCS / 5 X COVERED ENDS
HOLE CIRCLED GREEN will be used to attach 1 X COLLAR
Using 1 X M10x80mm SOCKET BUTTON BOLT / 1 X M10 NYLOC / 1 X COVERED END
NOTE: COLLARS ARE TO BE SLID ONTO POLES BEFORE ATTACHING TO BOARD
REF: T111 - BATSMAN TARGET PANEL
Installation InstructionsInstallation Instructions

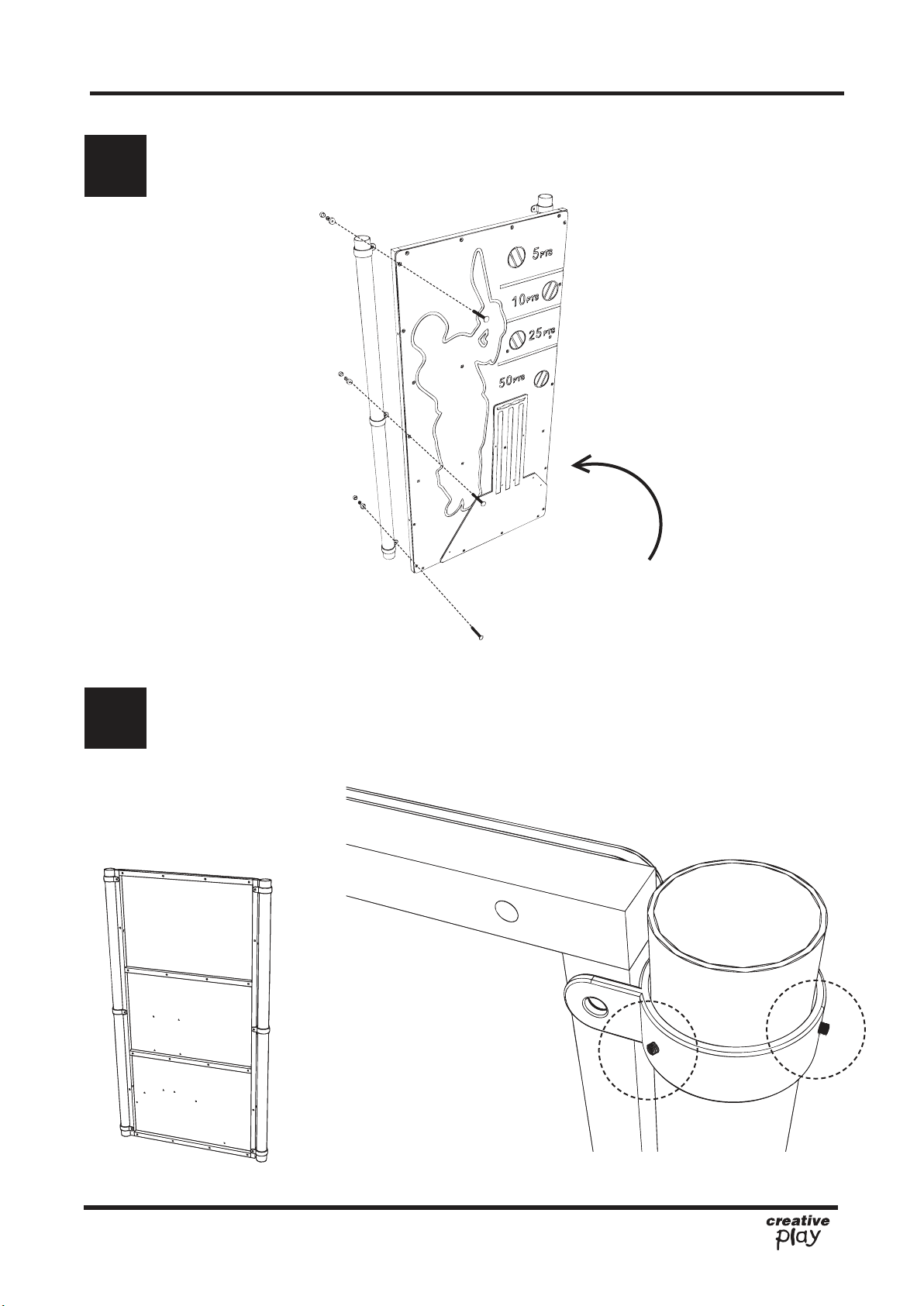

Ctnd....Attach the ‘PANEL ASSEMBLY’ to the COLLAR CLAMPS
2
Tighten the GRUB screws on the COLLAR CLAMPS
3
There are 3 x GRUB screws per COLLAR CLAMP
Notes:
Collar clamps are positioned as shown RIGHT
(the clamp sits ‘behind ‘ the frame)
REPEAT FOR OPPOSITE
SIDE
pg 6 of 7
REF: T111 - BATSMAN TARGET PANEL

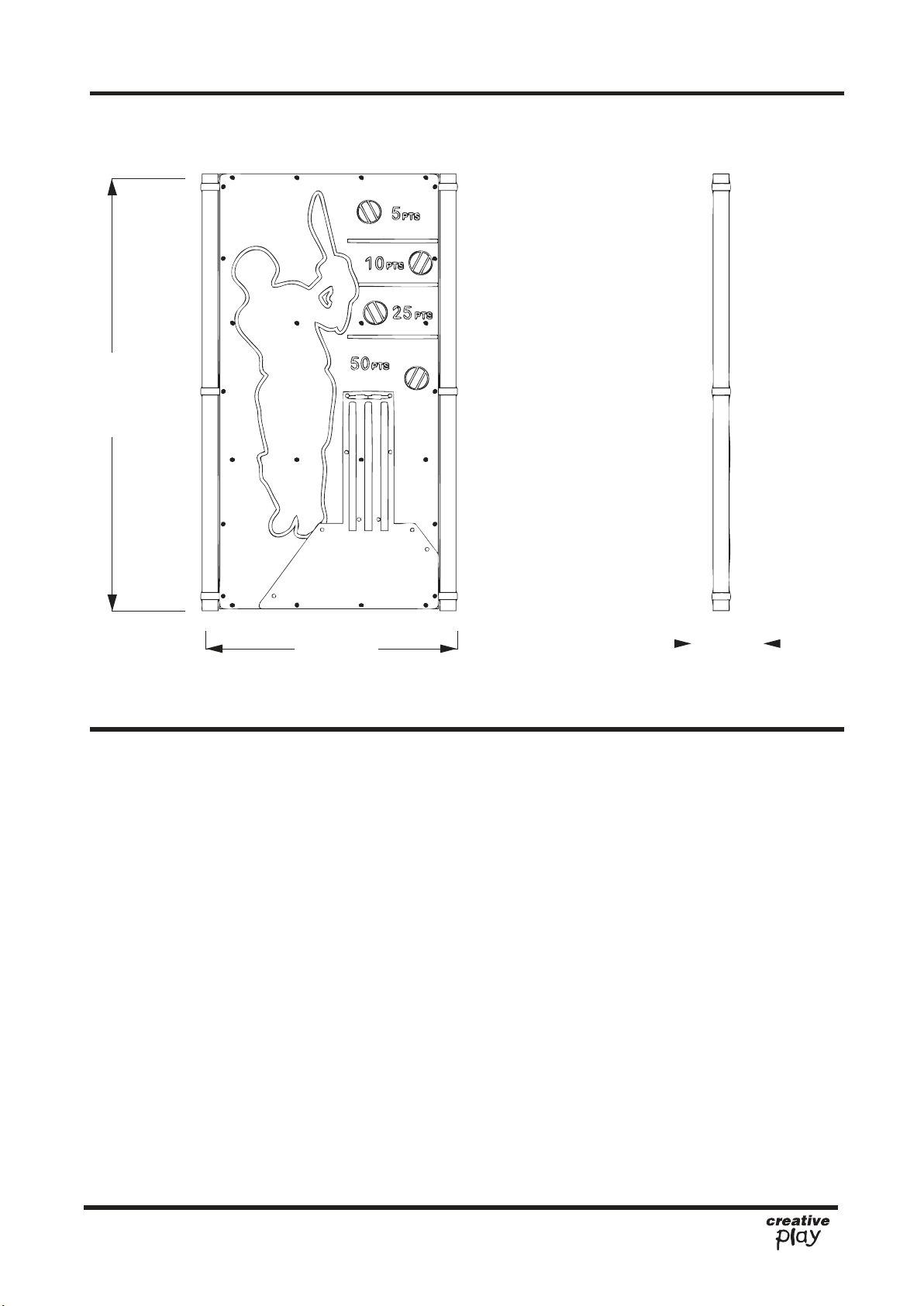

Additional Dimensions
2.41m
1.4m
0.10m
pg 7 of 7
REF: T111 - BATSMAN TARGET PANEL
