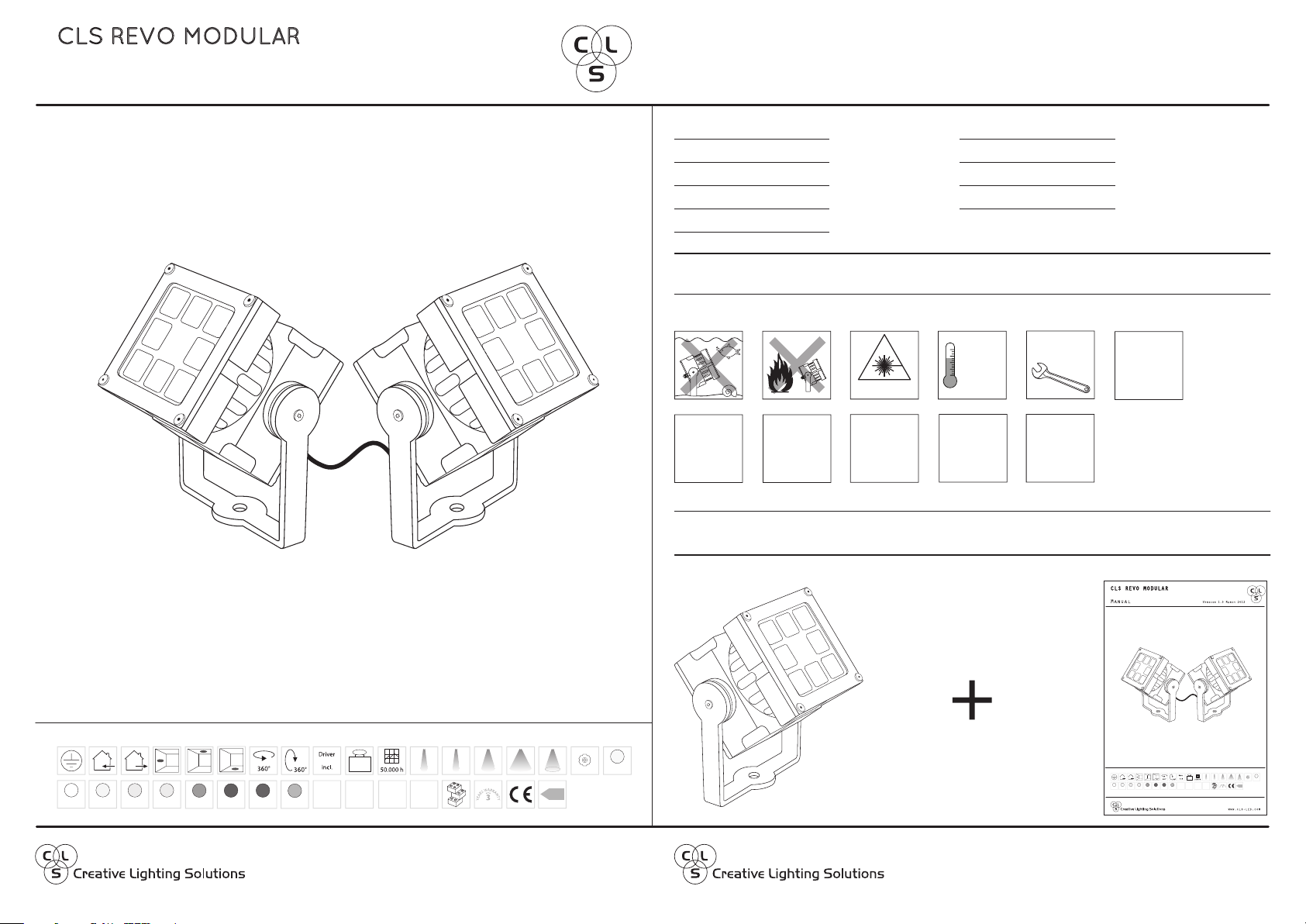

CLS REVO MODULAR
100~265
VAC
Max.
20 Watt
3000K
6300K
4000K
IP67
Anodised
Aluminum
Luxeon/Cree
8 x
A
54º8º 12º 30º
12 x 46º
1,90 kg
2700K 2440K Amber Blue Red Green
Ambiance
Max. 40º
Block access
below the work
area when
maintaining
the unit
Disconnect the
power supply
before
installing or
maintaining
Use a source
of AC power
that complies
local electrical
codes
Don’t install in
a ammable
or explosive
area
Do not stare
into the LED
Don’t modify
or install
genuine parts
on this product
Qualied
technician
Make sure all
connectors are
connected
properly
100~265
VAC
Max.
20 Watt
3000K
6300K
4000K
IP67
Anodised
Aluminum
Luxeon/Cree
8 x
A
54º8º 12º 30º
12 x 46º
1,90 kg
2700K 2440K Amber Blue Red Green

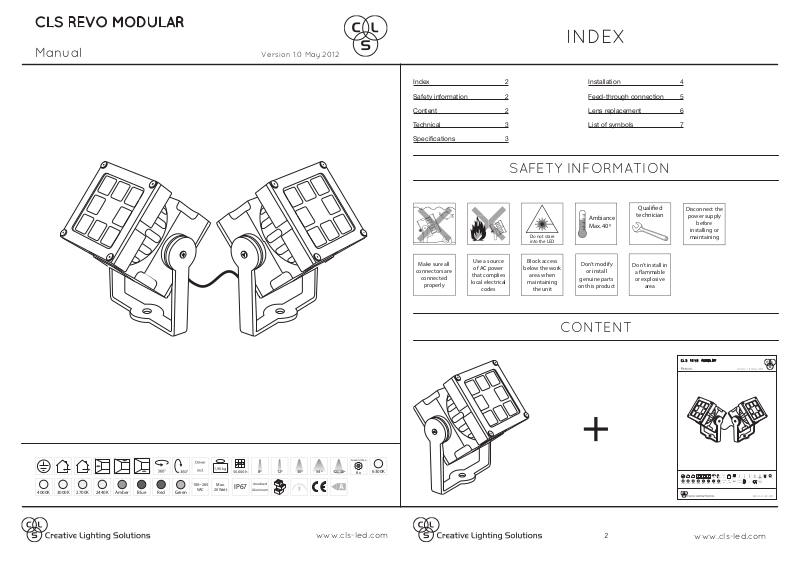

Manual
INDEX
Version 1.0 May 2012
Index 2
Safety information 2
Content 2
Technical 3
Specifications 3
Installation 4
Feed-through connection 5
Lens replacement 6
List of symbols 7
SAFETY INFORMATION
CONTENT
www.cls-led.com
2
www.cls-led.com
Page 2
100 mm
13 mm
40 mm
100 mm
130 mm
70 mm
130 mm
100 mm
100 mm
ø 10 mm
170 mm
Tools
M10
T15
TECHNICAL
4
2
3
* Y110715 REVO Modular connection cable
Secure
T15
Endplug
1
5
L = Brown
N = Blue
= Yellow/green
871995 CLS mold set Paguro
If the cable installation is outside, always
use a CLS mold set: 871992 or 871995
Secure
Follow
Paguro manual

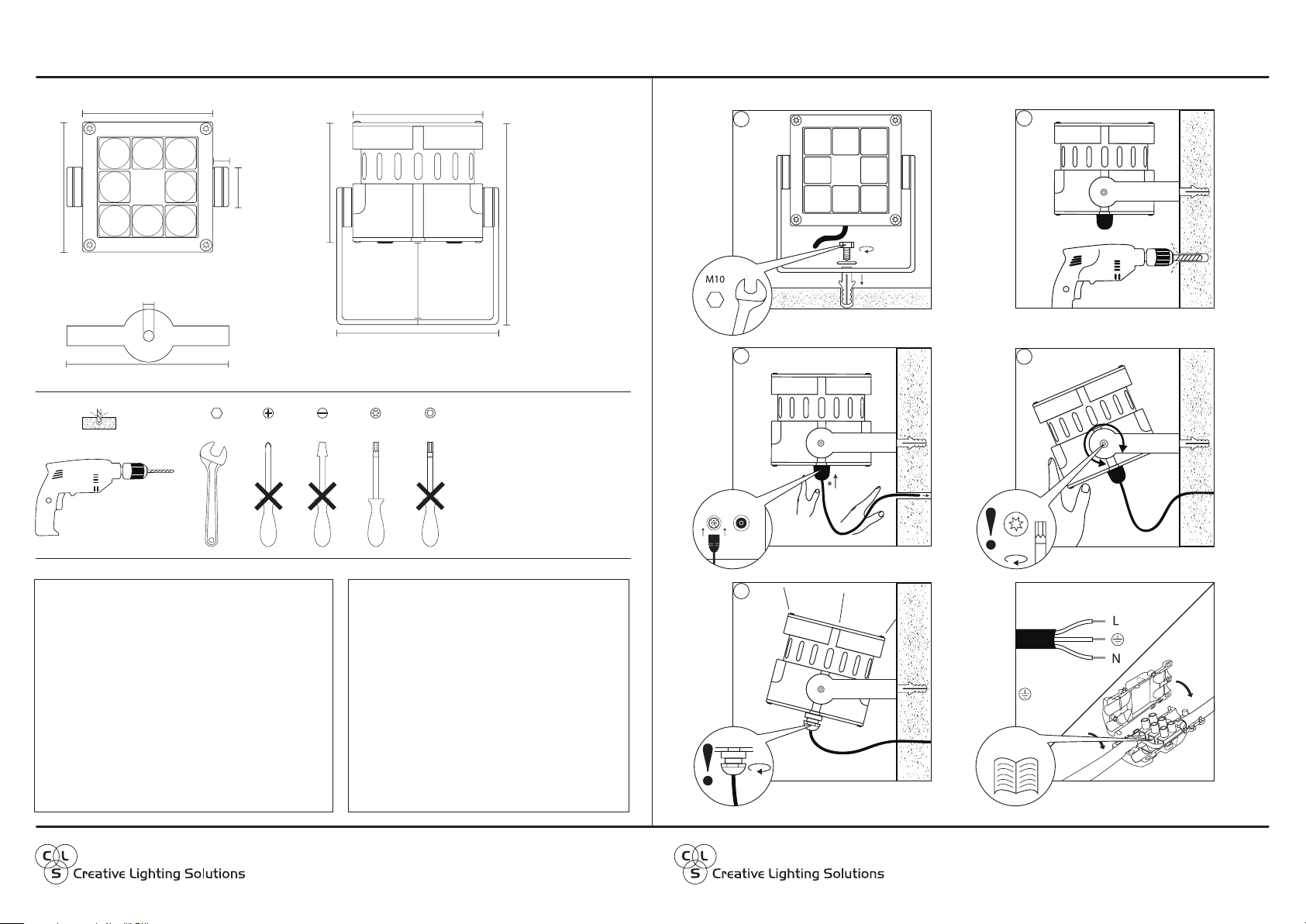

INSTALLATION
SPECIFICATIONS
LED: 8 x Cree or Luxeon Rebel
Available colours: Extra warm white 2700K, Warm white 3000K,
Fresh white 5000K, neutral white 4000K,
cold white 6300K, amber, royal blue and red
Lenses: Superspot, spot, medium flood,
wide flood and elliptical
Power supply: 110 ~ 265 VAC
Power factor: > 0,99 (115VAC), > 0,95 (230VAC)
Power consumption: Max. 20 Watt
Housing: Anodised aluminum
Weight: 1,9 kg
IP value: IP67
Measurements: 100 x 130 x 170 mm (hxwxd)
Ambient temperature: -30º C till +40º C
ACCESSORIES
110415 CLS REVO lens kit superspot 8° 8 pcs of lenses
110425 CLS REVO lens kit spot 12° 8 pcs of lenses
110435 CLS REVO lens kit medium flood 30° 8 pcs of lenses
110445 CLS REVO lens kit wide flood 54° 8 pcs of lenses
110455 CLS REVO lens kit elliptical 12x46° 8 pcs of lenses
Y110701 CLS REVO Modular 3-P male cable connector IP68
Y110702 CLS REVO Modular 3-P female connector IP68
Y110715 CLS REVO Modular connection cable length 1.5mtr
Y110725 CLS REVO Modular feed-through cable length 20cm
Y110735 CLS REVO Modular feed-through cable length 2 mtr
Y110745 CLS REVO Modular feed-through cable length 4 mtr
Y110750 CLS REVO Modular feed-through cable length 8 mtr
871992 CLS mold set, straight 8-26mm
871995 CLS mold set Paguro grey
3 4
www.cls-led.com
www.cls-led.com
Page 3

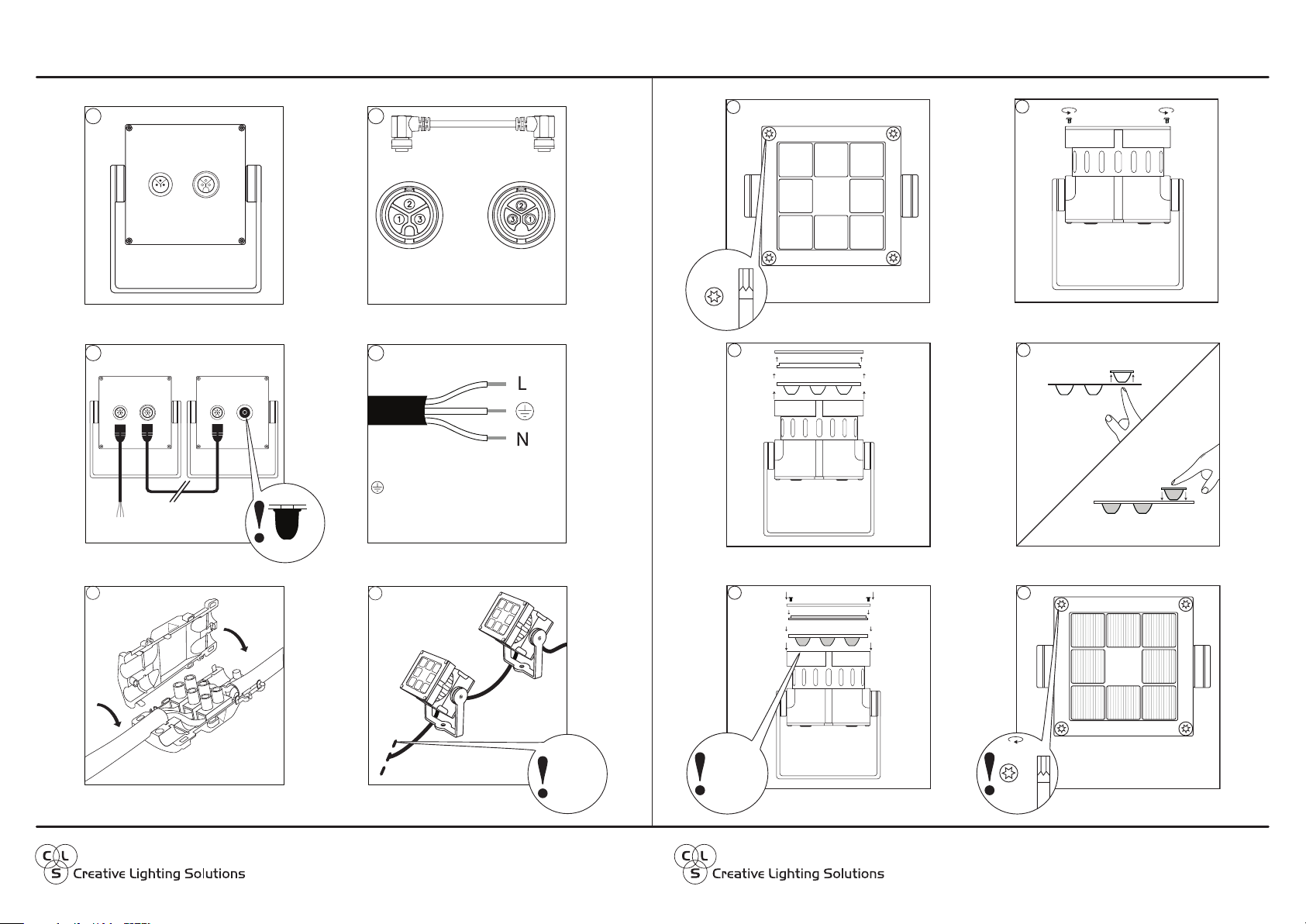

FEED-THROUGH CONNECTION
1
3 4
L = Brown
N = Blue
3 = Phase (brown)
2 = Earth (green/yellow)
1 = Neutral (blue)
= Yellow/green
871995 CLS mold set Paguro
Y110715 CLS REVO Modular connection cable length 1.5mtr
Male Female
5
6
2
*
Tighten
endplug
* Y110715
Only use max.
25 pieces of REVO
Modular in 1
power line!
Female Male
1
4
4 2
1 3
6
Glass
Cover plate
Lensholder
3
2
Glass
Cover plate
Lensholder
5
Make sure that
the items are clean
and the rubber
sealing is correctly
in place!
T15
4x
Secure in
order
T15
LENS REpLACEMENT
www.cls-led.com
65
www.cls-led.com
Page 4

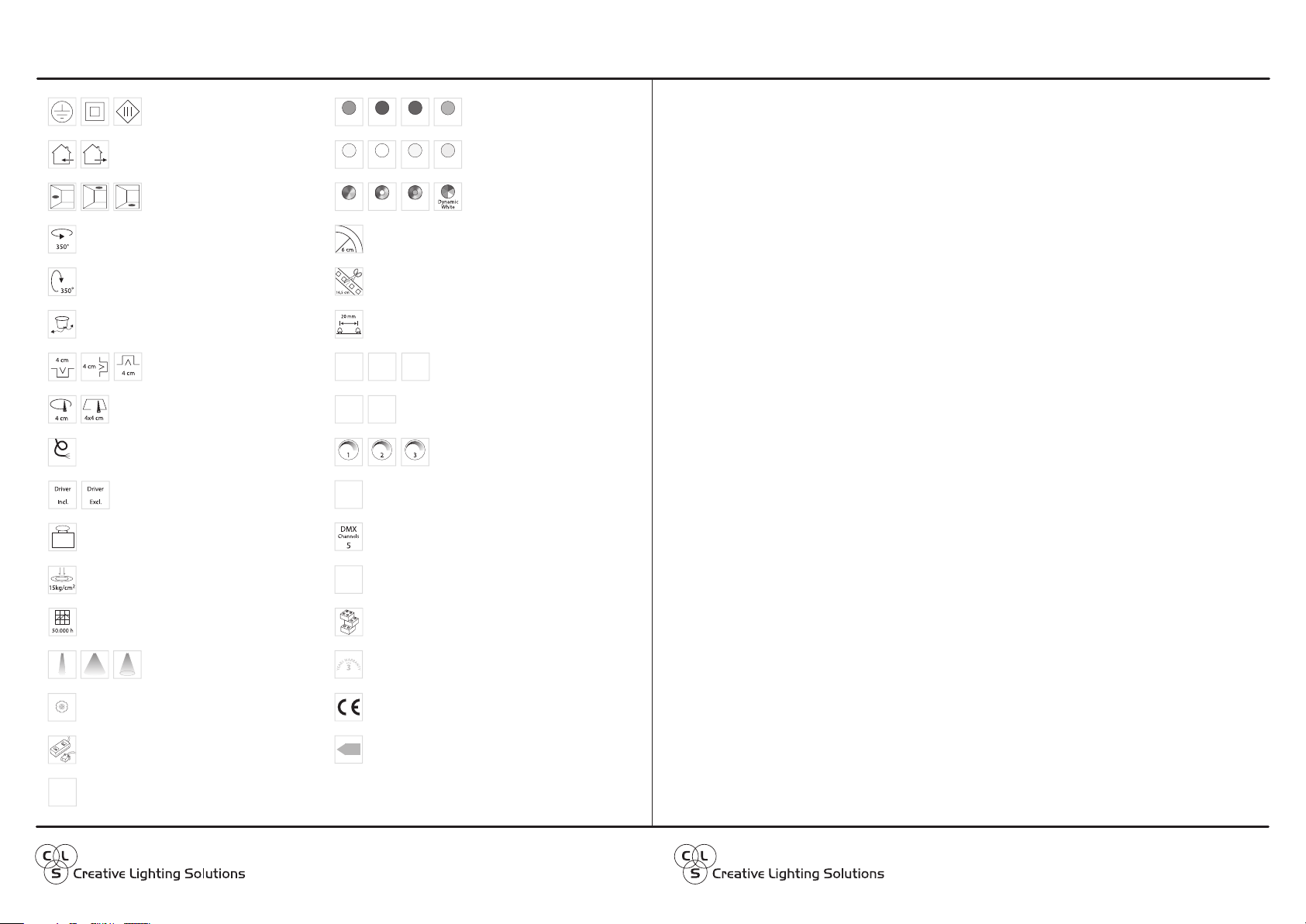

LIST OF SYMbOLS
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Mounting hole
In centimeters
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Protection class
One, two or three
Cable length
Maximum cable attached
to the fixture in centimeters
Lifespan
Of the light source in hours
Driver
Inclusive or exclusive
Pressure
Maximum pressure on
the fixture in kg/cm
2
Weight
In grams/kilograms
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the
LEDs in millimeters
Power supply
In VAC, VDC or milliAmpere
Power consumption
In VA or Watt
IP value
Ingress Protection classifies the
degrees of protection provided
against the intrusion of the product
Housing
Housing material
Cutting length
Indicated by the
cutting marks
DMX channels
Numbers of DMX channels
on a product
LEDs
Kind of LED used in the
fixture
50 cm
Lenses
Availble lenses,
indicated in degrees
Plug & play
Easy connection using the
SmartConnect system
Colour temperature
White in different Kelvin values
also; Cold white, neutral white,
warm white or extra warm white
Colour
Available colours;
Amber, blue, red or green
Colour changing
RGB, RGB-W, RGB-A
or Dynamic White
DMX input
Fixture works on DMX512
protocol
Combined product
Compose your own fixture
Warranty
3 years warranty on the product
Energy label
Conformité Européenne
CE marking for free marketability of
industrial goods within the EU
Dimmable
1. 1-10 Volt
2. Phase
3. Individual
54º8º
12 x 50º
Luxeon
1 x
3000K 2700K
6300K
Amber Blue Red Green
4000K
DMX
512
A
Max.
700 mA
Max.
3 Watt
100~240
VAC
100~240
VDC
Max.
20 VA
IP40
Aluminum
Brushed
RGB-W
RGB
RGB-A
Dimmable Dimmable Dimmable
7 8
www.cls-led.com
2012 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated
companies disclaim liability for injury, damage direct or indirect loss, consequential or economic loss or any other loss
occasioned by the use of, inability to use or reliance on the information contained in this manual. No part of this manual
may be reproduced, in any form or by any means, without permission in writing from CLS-LED BV. Other legal information
can be found in our General conditions,found on the back of your CLS-LED BV invoice, inside the CLS catalogue or on our
website www.cls-led.com/conditions.pdf
