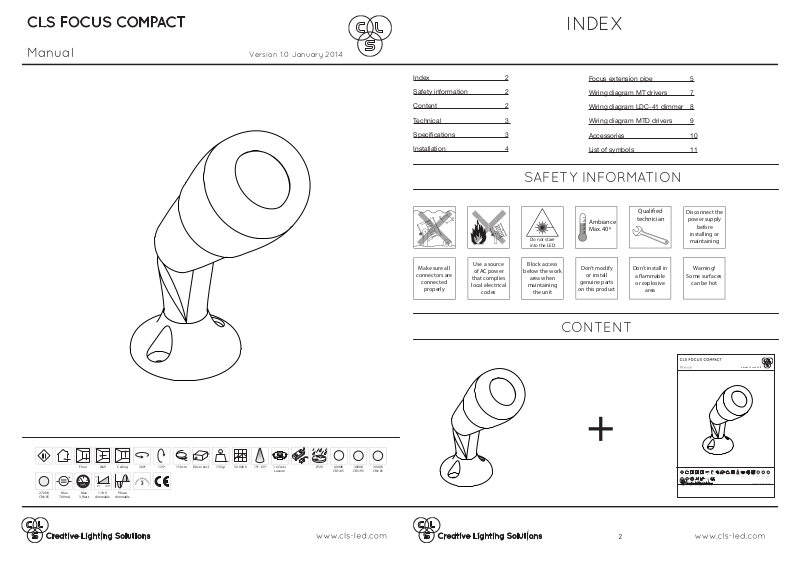

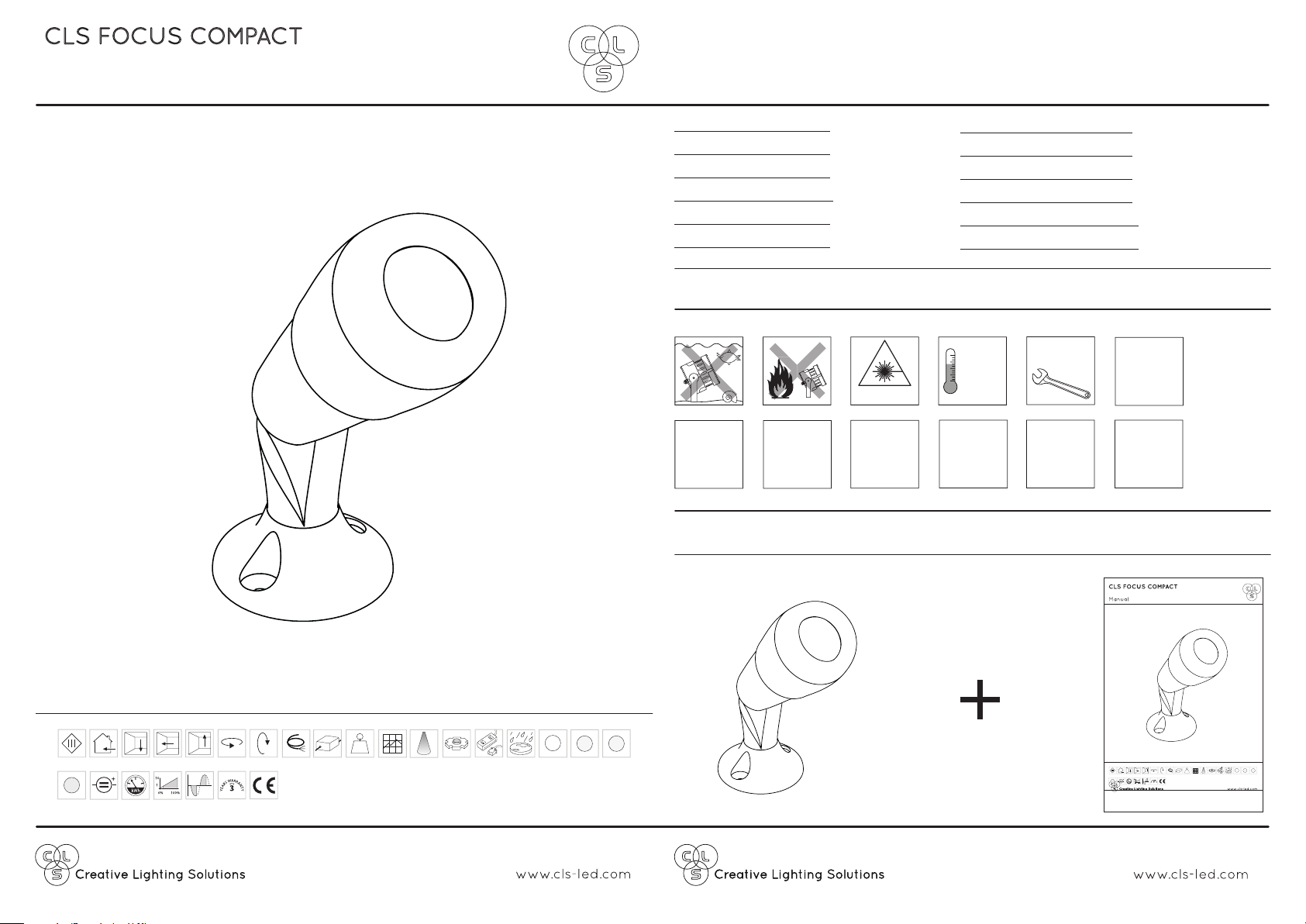

CLS FOCUS COMPACT
INDEX
Manual
Version 1.0 January 2014
Index 2
Safety information 2
Content 2
Technical 3
Specifications 3
Installation 4
SAFETY INFORMATION
Do not stare
into the LED
Make sure all
connectors are
connected
properly
Use a source
of AC power
that complies
local electrical
codes
Block access
below the work
area when
maintaining
the unit
CONTENT
Focus extension pipe 5
Wiring diagram MT drivers 7
Wiring diagram LDC-41 dimmer 8
Wiring diagram MTD drivers 9
Accessories 10
List of symbols 11
Qualied
Ambiance
technician
Max. 40º
Don’t modify
or install
genuine parts
on this product
Don’t install in
a ammable
or explosive
area
Disconnect the
power supply
before
installing or
maintaining
Warning!
Some surfaces
can be hot
2700K
CRI>85
Max.
700mA
Wall Ceiling 360ºFloor 135º150 cm Driver excl. 50.000 h135 gr
1-10 V
dimmable
Phase
dimmable
Max.
3 Watt
15º - 65º 1 x Cree/
Luxeon
Version 1.0 June 2013
IP20
4000K
CRI>85
3000K
CRI>95
3000K
CRI>85
2700K
Max.
CRI>85
700mA
Wall Ceiling 360ºFloor 135º150 cm Driver excl. 50.000 h135 gr
1-10 V
Phase
Max.
dimmable
dimmable
3 Watt
15º - 65º 1 x Cree/
IP20
3000K
3000K
4000K
CRI>85
CRI>95
CRI>85
Luxeon
2
Page 2

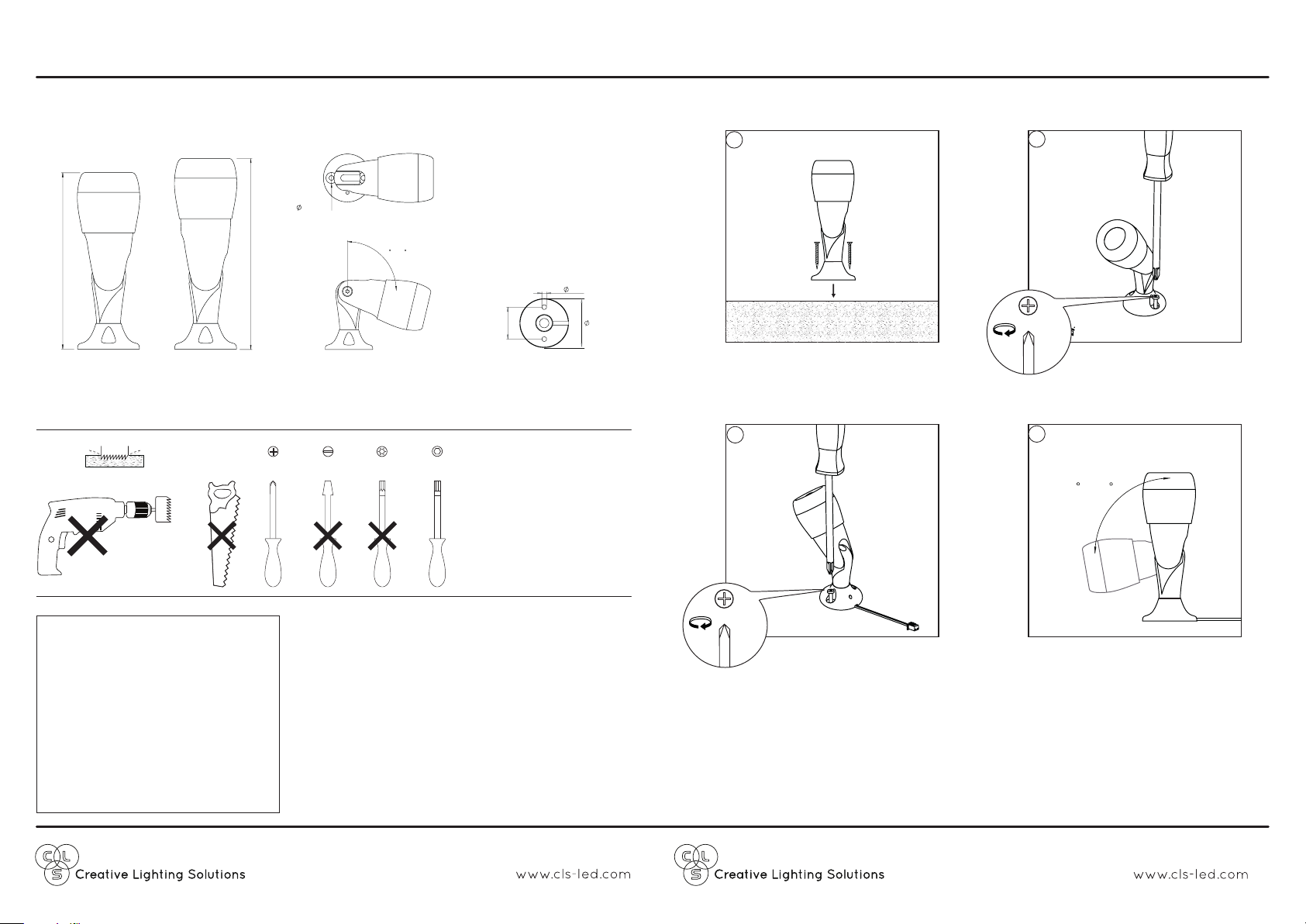

TECHNICAL
INSTALLATION
102 mm
Tools
Max. zoomMin. zoom
8,20 mm
111 mm
0
-135
Mounting base
3,50 mm
24 mm
36 mm
1
3
1,5
2
4
0
-135
SPECIFICATIONS
LED: 1 x Luxeon / Cree
Available colours: CRI 85: 2700K, 3000K & 4000K
CRI 95: 3000K
Beam angle: 15º to 65º
Power supply: Max. 700mA
Power consumption: Max. 3 Watt
Housing: Black Aluminum brushed
Weight: 135 gr
IP value: IP20
Cable length: 150 centimeter
Measurements: ø 36 x 132 mm (øxh)
Ambient temperature: -10º C till +40º C
3 4
Page 3

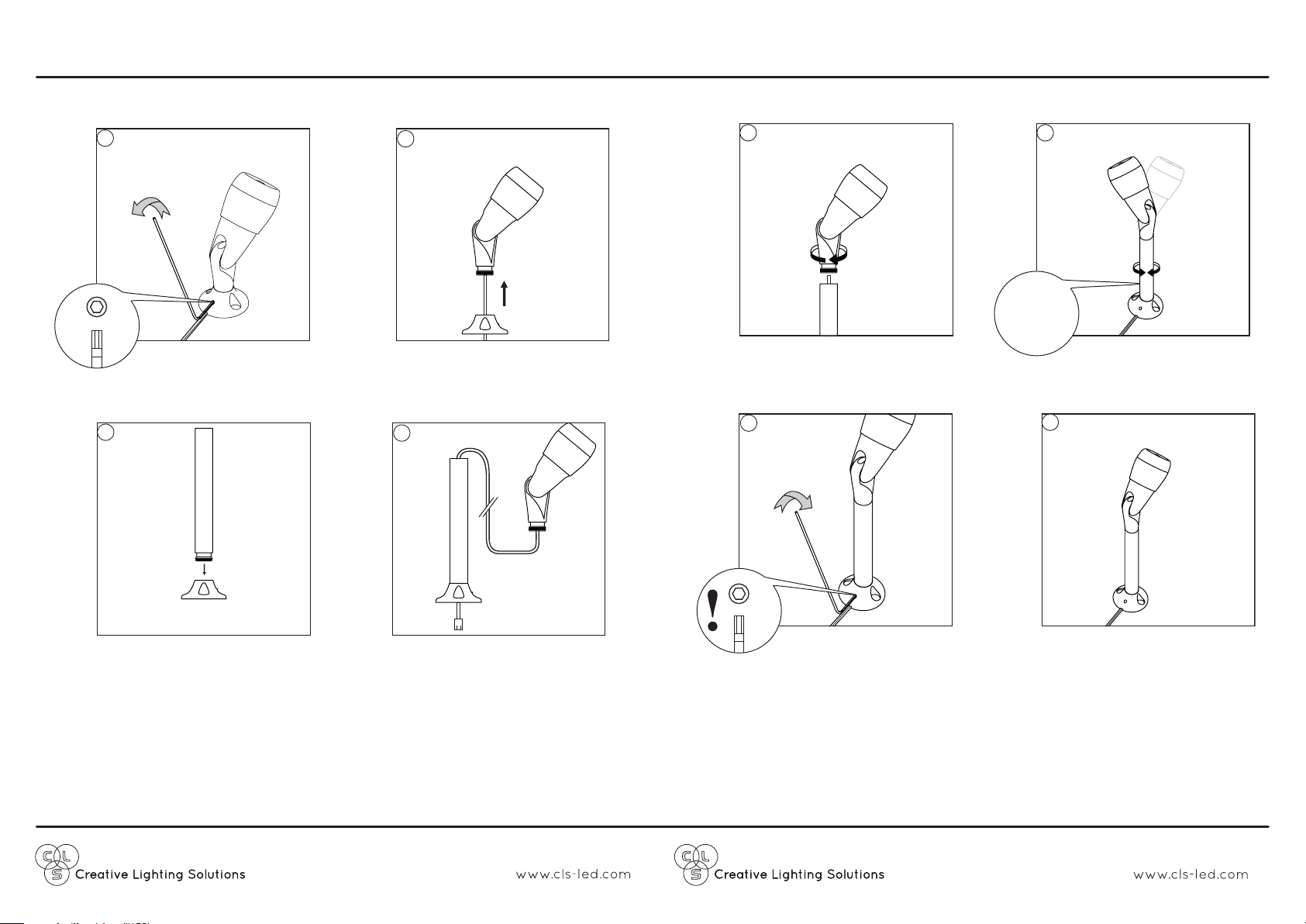

EXTENSION PIPE
3
4
Max. 10 x extension pipe 10 cm on 1 Focus!
Max. 4 x extension pipe 30 cm on 1 Focus!
1
Loosen
3
2
4
5 6
Set the Focus in
the desired
direction
7
8
Max. 10 x extension pipe 10 cm on 1 Focus!
Max. 4 x extension pipe 30 cm on 1 Focus!
Secure
65
Page 4

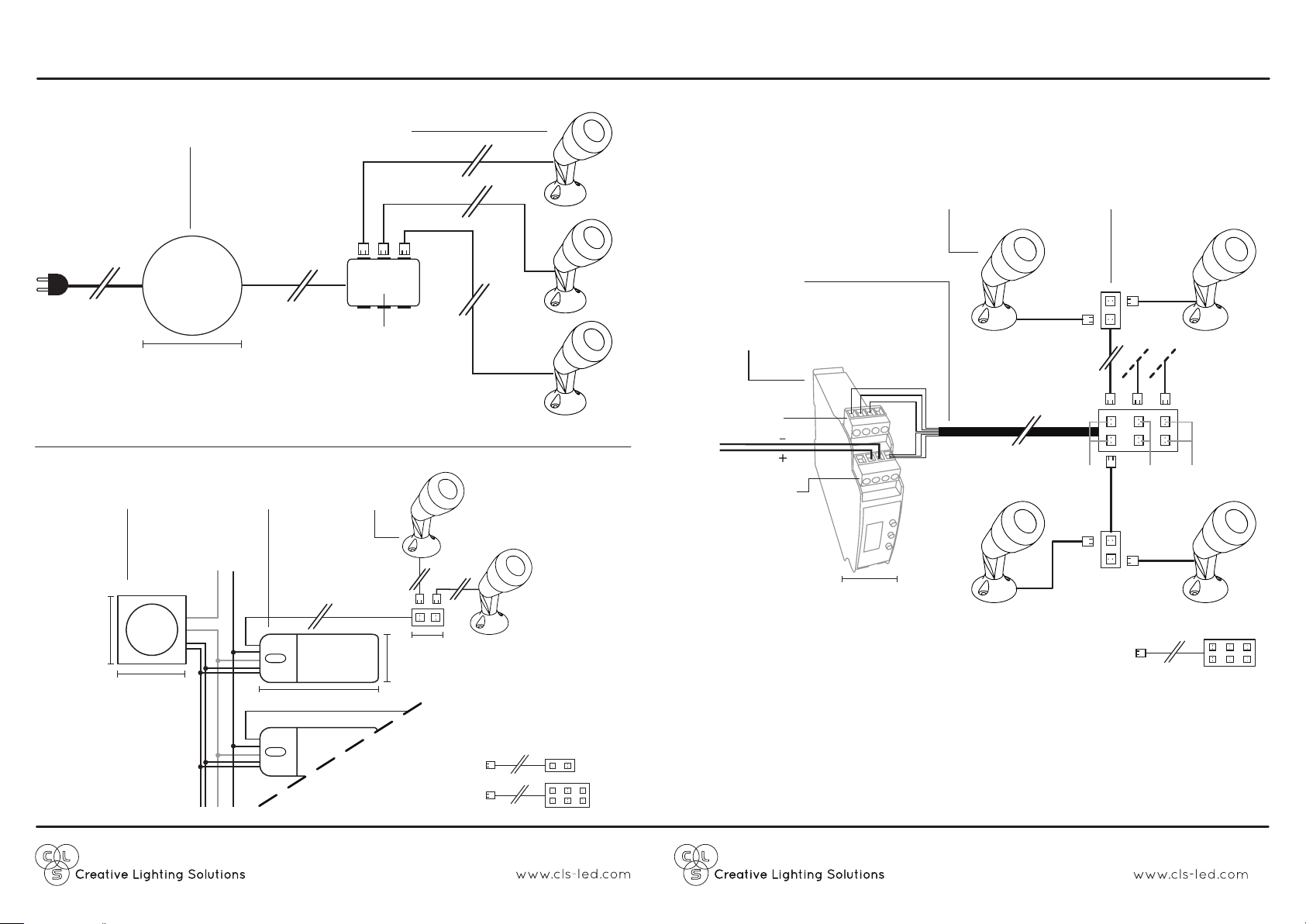

WIRING DIAGRAM MT DRIVERS
WIRING DIAGRAM LDC-41 DIMMER
CLS MT33 LED driver max. 3 x
700mA 12VA 230-240VAC
# 8720060
MT33 driver
175 cm cable
150 cm cable
ø 52 mm
Installation wire 2 x 0.5 mm
2
Driver till last Focus Compact total cable length is max. 10 m
CLS Dimmer electr. 1-10V voor
MT35/MTD44 LED driver
# 872010
80,5 mm (h)
80,5 mm (w)
Max. 50 pieces of MTD44 on
1 CLS Dimmer electr 1-10V
CLS MTD44 universal LED driver
350/700/1000mA
# 8712021
LN
CLS Focus Compact
# FC-1-2-XX-Z
100 cm cable
MTD44 driver
111 mm (d)
± 150 cm cable
52 x 31 x 17 mm
(w x h x d)
CLS Focus Compact
# FC-1-2-XX-Z
150 cm cable
53 mm (w)
34 mm (w)
Max. 8 pcs on each MTD44
Make sure the LDC-41 is set to 700mA!
CLS LDC adaptercable LDC
to SmartConnect System
# 911367
CLS LDC-41 DMX LED dimmer
4 channels
# 113000
Connector with the
red, green and blue cable
24 VDC
Connector with the
yellow, black and white cable
Installation wire 2 x 0.5 mm
Driver till last Focus Compact
total cable length is max. 10 m
Min. 7 and Max. 12 pcs on each channel. Depends on the
power consumption of the selected BT power supply.
2
25 mm (w)
CLS Focus Compact
# FC-1-2-XX-Z
CLS SmartConnect
2-fold junction box
# 87129900
Channel 1Channel 2
# 87129905
Channel 3
Installation wire 2 x 0.5 mm
Driver till last Focus total cable
length is max. 10 m
0-10 V
2
MTD44 driver
# 87129900
# 87129905
7 8
Page 5

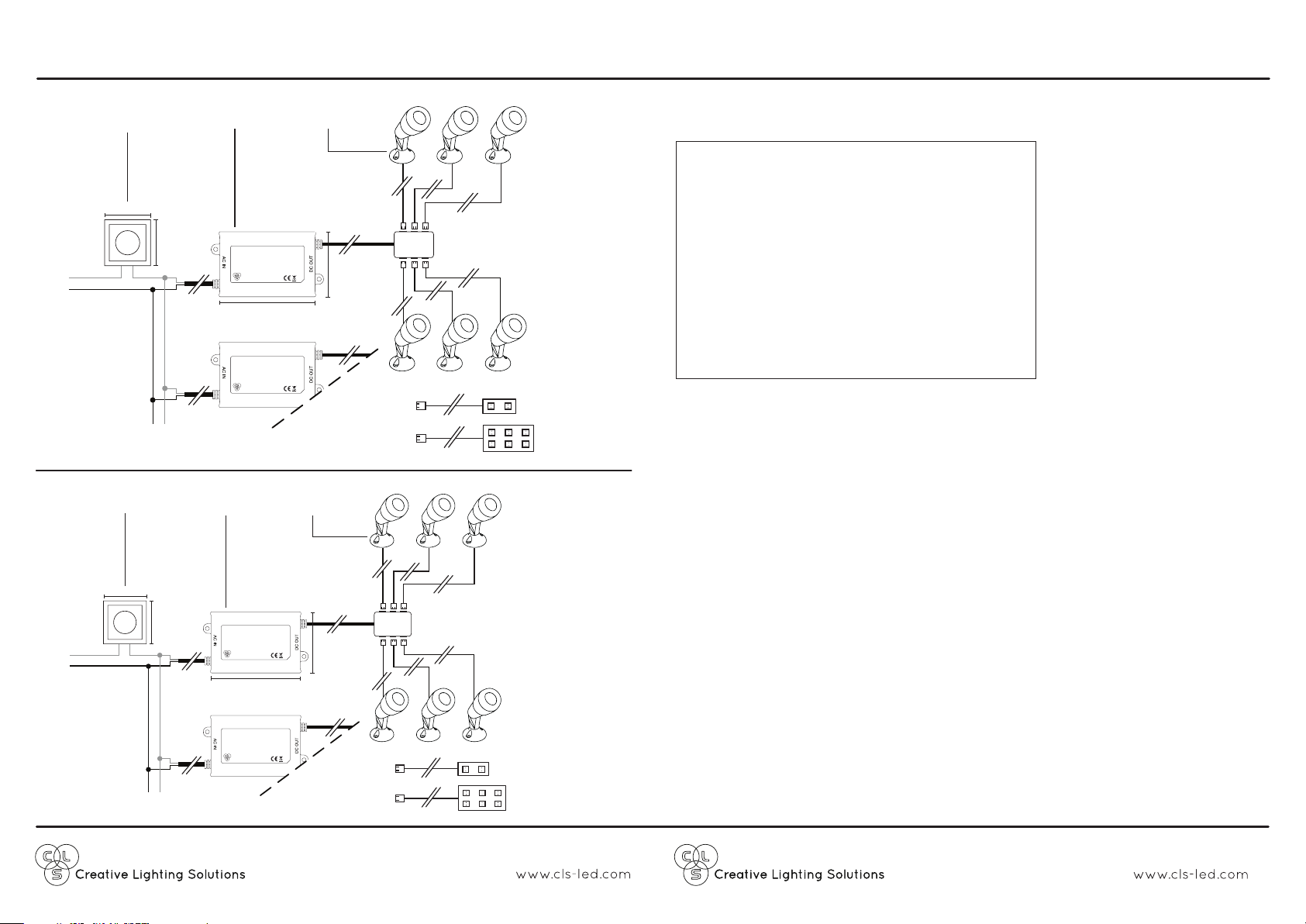

WIRING DIAGRAM MTD DRIVERS
ACCESSORIES
CLS Jung phase-cut dimmer
20W-270W 230/240V 50/60Hz
# 872019
80,5 mm (w)
Live (Brown wire)
Neutral (Blue wire)
Installation wire 2 x 0.5 mm
Driver till last Focus Compact
total cable length is max. 10 m
CLS Jung phase-cut dimmer
20W-270W 230/240V 50/60Hz
# 872019
80,5 mm (h)
2
CLS MTD16 LED driver 700mA,
mains dimmable 240 VAC
# 872024
84 mm (d)
CLS MTD25 LED driver 700mA,
mains dimmable 240 VAC
# 872022
Always use 6 - 8 pcs
MTD16
Always use 6 - 8 pcs
MTD16
CLS Focus Compact
# FC-1-2-XX-Z
57 mm (w)
± 140 cm cable
CLS Focus Compact
# FC-1-2-XX-Z
± 150 cm cable
± 140 cm cable
# 87129900
# 87129905
Always use 6 - 8 pcs
ACCESSORIES
113000 CLS LDC-41 DMX LED dimmer 4 channels 0.35-1A per channel
87129900 CLS SmartConnect 2-fold junction box & shortcircuit connect.
87129905 CLS SmartConnect 6-fold junctionbox & shortcircuit connect.
87129915 CLS SmartConnect short circuit plugs (10pcs)
87129959 CLS SmartConnect extensioncable betw. 2 junctionboxes 5mtr
872010 CLS Dimmer electr. 1-10V for MT35/MTD44 LED driver
872018 CLS MTD43 LED driver 4x700mA/8x350mA 12VA mains dimmable
872019 CLS Dimmer Jung phase cut max. 270VA 230-240VAC
872021 CLS MTD44 universal LED driver 350/700/1000mA
872022 CLS MTD25 LED driver 700mA 9-12 LEDsmains dim.
872024 CLS MTD16 LED driver 700mA 6-8 LEDs mains dim.
8720060 CLS MT33 LED driver for max 3pcs 700mA LEDs 220-240VAC
911367 CLS LDC adaptercable LDC to SmartConnect system
Y106000 CLS Focus extension pipe 10 cm
Y106002 CLS Focus extension pipe 30 cm
80,5 mm (w)
Live (Brown wire)
Neutral (Blue wire)
Installation wire 2 x 0.5 mm
Driver till last Focus Compact
total cable length is max. 10 m
2
80,5 mm (h)
Always use 9 - 12 pcs
MTD25
84 mm (d)
Always use 9 - 12 pcs
MTD25
± 150 cm cable
± 140 cm cable
Always use 9 - 12 pcs
57 mm (w)
± 140 cm cable
# 87129900
# 87129905
9 !0
Page 6

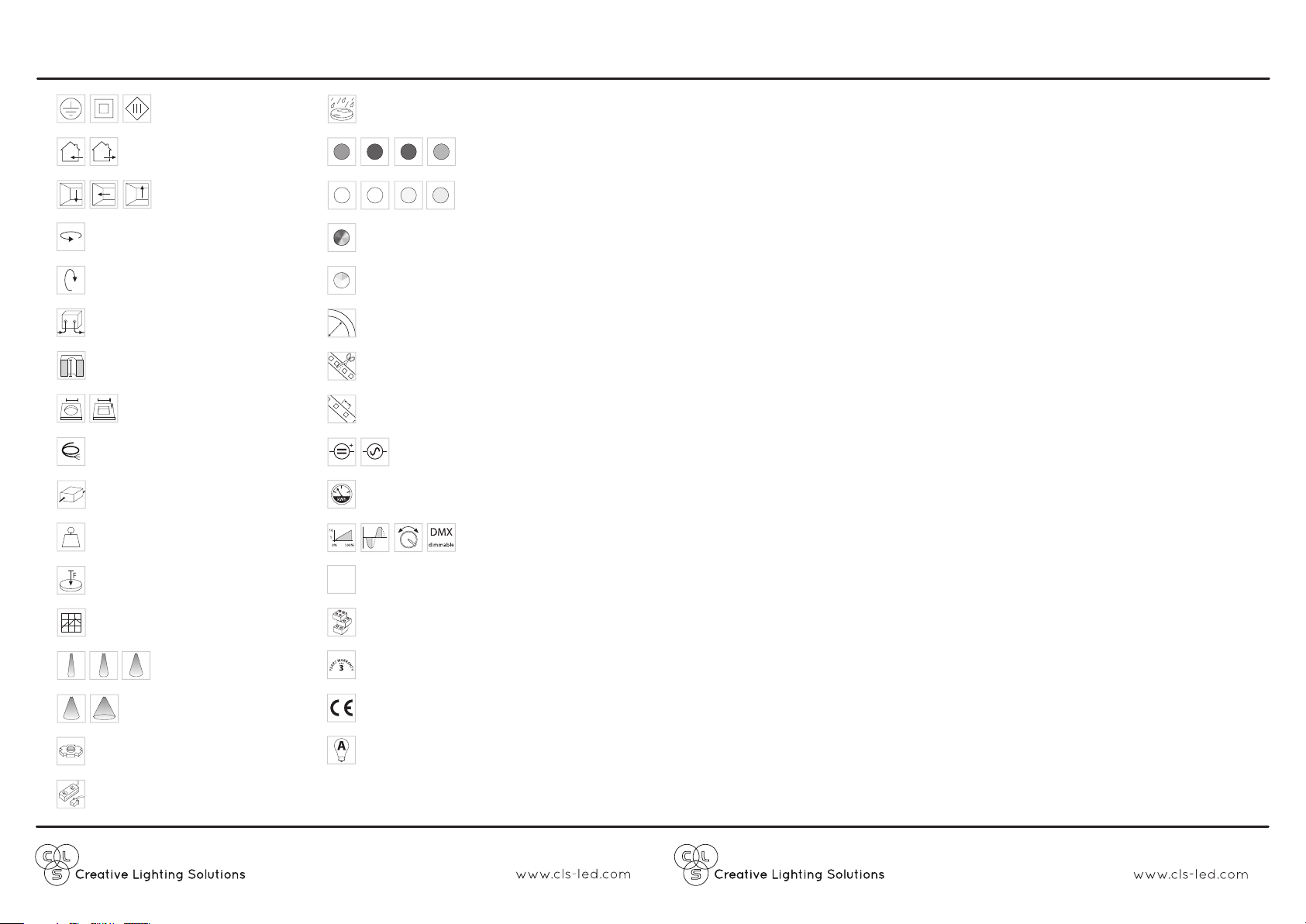

LIST OF SYMBOLS
h
ø w
Protection class
One, two or three
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
d
Installation size
In centimeters
Cable length
Maximum cable attached
to the fixture in centimeters
Driver
Inclusive or exclusive
Weight
In grams/kilograms
Pressure
Maximum pressure on
the fixture in kg/cm
Lifespan
Of the light source in hours
2
r
DMX
512
IP value
Ingress Protection classifies the
degrees of protection provided
against the intrusion of the product
Colour
Available colours;
Amber, blue, red or green
White colour temperature
In different Kelvin values;
Cold white, neutral white, warm
white or extra warm white
Colour changing
RGB, RGB-W or RGB-A
Dynamic White
Stepless control of white light
Curve
Minimal bending curve
in centimeters
Cutting length
Indicated by the
cutting marks
LED pitch
Pitch between the
LEDs in millimeters
Power supply
In VDC, VAC or milliAmpere
Power consumption
In VA or Watt
Dimmable
1-10 Volt, Phase, individual
or DMX dimmable
DMX input
Fixture works on DMX512
protocol
Combined product
Compose your own fixture
Lenses
Availble lenses,
indicated in degrees
LEDs
Kind of LED used in the
fixture
Plug & play
Easy connection using the
SmartConnect system
Warranty
3 years warranty on the product
Conformité Européenne
CE marking for free marketability of
industrial goods within the EU
Energy label
2014 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated
companies disclaim liability for injury, dam age direct or indirect loss, consequential or economic loss or any other loss
occasioned by the use of, inability to use or reliance on the information contained in this manual. No part of this manual may
be reproduced, in any form or by any means, without permission in writing from CLS-LED BV. Other legal information can
be found in our General conditions,found on the back of your CLS-LED BV invoice, inside the CLS catalogue or on our website
www.cls-led.com/voorwaarden.p df
