Introduction
INTRODUCTION
Thanks for your purchase of the E-MU 0202 USB 2.0 Audio/MIDI Interface. This
interface brings an unparalleled level of USB audio quality to the Mac or PC, with
pristine 24-bit/192kHz A/D and D/A converters, ultra-low jitter clock, and Class-A,
ultra-low noise mic/line/hi-Z preamps. The signal-to-noise specs of the
E-MU 0202 USB 2.0 are unmatched by any other USB interface on the market!
From its plug-and-play functionality and hands-on ergonomic design, to professional features like zero-latency direct monitoring and balanced outputs, the USB
will forever change your expectations of USB audio.
Some of the other key features are detailed below:
• Record and Playback support for a multitude of sample rates : 44.1k, 48k, 88.2k,
96k, 176.4k, 192k. (176.4k &192k available on PC version only)
• Independent ground lift switches for both analog inputs help to solve potential
ground loop problems
• Studio-Grade Headphone Amplifier with level control
NOTE
There are some limitations
when operating at higher
sample rates. See page 15
for details.
0202 USB 2.0 Owner’s Manual 5
Package Includes
PACKAGE INCLUDES
• E-MU 0202 USB 2.0 AudioPod
•USB Cable
• Quick Start Installation Guide
E-MU Software/Manual CD-ROM (OS X /Windows)
• Windows XP, Windows XP x64, Windows Vista, Windows Vista x64 Drivers
•Mac OS X Drivers
•Owner’s Manual
Acoustica Mixcraft LE 4 Install CD-ROM (Windows)
• Acoustica Mixcraft LE 4 (multitrack recording application)
6 E-MU Systems
Computer Requirements
COMPUTER REQUIREMENTS
The minimum computer system requirements for the E-MU 0202 USB 2.0 are
listed below.
Windows
• Intel® or AMD® processor — 1.2 GHz or faster
• Intel, AMD, or 100% compatible motherboard & chipset
• Microsoft® Windows® XP (SP 2 or greater), Windows XP x64, Windows Vista,
Windows Vista x64
• 1 available (Hi-Speed) USB 2.0 port *
• 500 MB System RAM
• 95 MB of free hard disk space for full installation
• CD-ROM/CD-RW or DVD-ROM drive required for software installation
• XVGA Video (1024 x 768)
OS X
• Apple® Macintosh® G4 —800 MHz or faster
NOTE: For more information on Intel Mac support see the included ReadMe file, and/
or www.emu.com for latest information.
• Apple Macintosh OS X (10.4.3 or greater)
• 1 Available (Hi-Speed) USB 2.0 port †
• 512 MB System RAM
• 500 MB of free hard disk space for full installation
• CD-ROM/CD-RW or DVD-ROM drive required for software installation
• XVGA Video (1024 X 768)
* When using a USB 1.1 port, performance is limited to16-bit and 44.1/48 kHz recording
and playback.
† USB 1.1 is not supported on the Macintosh
0202 USB 2.0 Owner’s Manual 7
Software Installation
SOFTWARE INSTALLATION
Windows XP or Windows Vista
Follow these instructions to install the 0202 USB 2.0 software on a Windows XP or
Windows Vista computer.
1. First connect the 0202 USB 2.0 to your computer using the supplied USB
cable, and turn it on.
2. If Windows prompts you with an Add New Hardware Wizard, click Cancel.
3. Insert the E-MU software Installation CD into your CD-ROM drive. If
Windows AutoPlay mode is enabled for your CD-ROM drive, the CD starts
running automatically. If not, from your Windows desktop, click Start->Run
and type d:\setup.exe (replace d:\ with the drive letter of your CD-ROM
drive). You can also simply open the CD and double-click Setup.exe.
4. The installation splash screen appears. Follow the instructions on the screen to
complete the installation. You will have the option to install 0202 USB 2.0,
and Adobe Acrobat Reader.
5. Choose “Continue Anyway” when you encounter the “Windows Logo
Testing” warning screen. See the note below.
6. When prompted, restart your computer.
7. Be sure to register your 0202 USB 2.0 so we can advise you of future software
updates and special offers. You can register online at: www.emu.com/register
8. Your 0202 USB 2.0 is now ready to use.
9. Insert the Acoustica Mixcraft LE 4 Install CD-ROM into your CD-ROM drive.
10. The installation splash screen appears. Follow the instructions on the screen to
complete the installation.
Note About Windows Logo Testing
When you install the 0202 USB 2.0 drivers, you will see a dialog box informing
you either that the driver has not been certified by Windows Hardware Quality
Labs (WHQL), or that the driver is signed by Creative Labs, Inc, and you will be
asked if you would like to continue with the installation.
The 0202 USB 2.0 audio drivers are not certified by WHQL because the product
does not support some of the features that the Microsoft Windows Logo Program
requires, most notably Universal Audio Architecture (UAA) and Digital Rights
Management (DRM).
Despite this, the 0202 USB 2.0 audio drivers have been rigorously tested using the
same test procedures that a WHQL qualified driver requires, and it passes in all of
the other important categories, including those that measure the relative stability
of the driver. So, it is perfectly safe to install these drivers on your computer.
Uninstalling all Audio Drivers and Applications
At times you may need to uninstall or reinstall the 0202 USB 2.0 application and
device drivers to correct problems, change configurations, or upgrade outdated
drivers or applications. Before you begin, close the E-MU USB 2.0 Audio control
application. Applications running during the uninstallation will not be removed.
1. Click Start -> Control Panel.
2. Double-click the Add/Remove Programs icon.
3. Click the Install/Uninstall tab (or Change or Remove Programs button).
4. Select the E-MU 0202 USB 2.0 entry and then click the Change/Remove
button.
8 E-MU Systems
Software Installation
5. In the InstallShield Wizard dialog box, select the Remove ALL option.
6. Click the Yes button.
7. Restart your computer when prompted.
You may now re-install existing or updated E-MU device drivers or applications.
Macintosh OS X
Follow these instructions to install the 0202 USB 2.0 drivers and software on a
Macintosh OS X computer. First, connect the 0202 USB 2.0 to your computer as
shown on page 12
Install the 0202 USB 2.0 Software
1. Insert the E-MU Software/Manual CD-ROM into your CD-ROM drive.
2. Double-click on the E-MU icon on the desktop.
3. Double-click on the Install icon to start the installation.
.
4. The installation Welcome screen appears. Follow the instructions on the
screen.
5. When the Authenticate dialog box appears, enter the administrator password
you chose when you installed OS X.
6. Continue to follow the instructions on the screen to continue the installation.
You will be given the option to install:
• Easy Install: Installs the following applications and drivers.
E-MU 0202 USB 2.0: USB Drivers and Control Application
• Custom Install: allows you to choose which components are installed.
7. Easy Install is recommended. The software will be quickly installed. When
prompted, restart your computer.
8. Be sure to register your 0202 USB 2.0 so we can advise you of future software
updates and special offers. You can register online at: www.emu.com/register
Set-up the 0202 USB 2.0 as your Default Audio Device
9. Click Go -> Utilities from the menu bar.
10. Double-click Audio MIDI Setup, then click the Audio Devices button if it’s
not already selected. The window shown on the following page appears.
11. Select the 0202 USB 2.0 for the following: Default Input, Default Output,
System Output, Properties For.
12. Play a song on iTunes to verify that the 0202 USB 2.0 is the default device for
audio playback.
13. Quit iTunes.
0202 USB 2.0 Owner’s Manual 9
Software Installation
Setup the MIDI Devices
If you plan to use a MIDI keyboard, now would be a good time to set up your MIDI
devices. Connecting a MIDI keyboard will allow you to use the virtual instruments
provided in the software bundle and get the most out of your purchase. You’ll also
need a MIDI interface such as the E-MU Xmidi 2x2 or Xmidi 1x1.

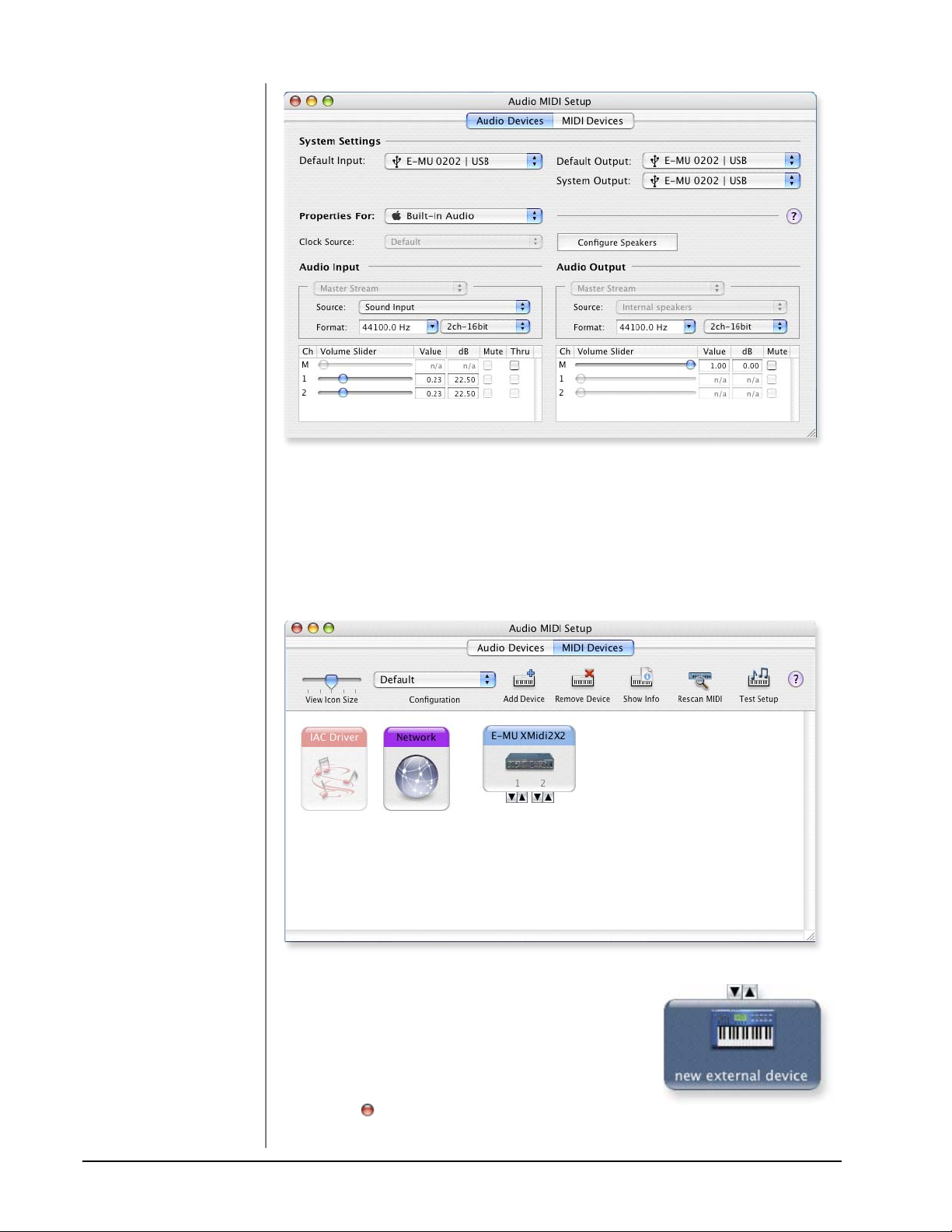

14. Click the MIDI Devices button. The window shown below appears.
15. Click the Add Device button. A new external
device icon like the one shown at left appears.
16. Double-click on the new external device if you
want to set the MIDI Keyboard Properties. You
have the option to name and change the icon
for the device. Click Apply, then click the Close
button to close the Properties window.
10 E-MU Systems
Software Installation
17. Connect the new external device to the E-MU 0202|USB by dragging between
the input and output connectors.
18. The window below shows a properly connected MIDI device.
19. Press the close button to close the Audio MIDI Setup window.
What audio software can I use with my 0202 USB?
The 0202 is compatible with most Macintosh audio applications. Garage Band is a
good way to get started if you don’t have a pro audio recording application.
Uninstalling the Audio Drivers and Applications
At times you may need to uninstall or reinstall the 0202 USB 2.0 application and
device drivers to correct problems, change configurations, or upgrade outdated
drivers or applications. Before you begin, close the E-MU USB 2.0 Audio control
panel application. Applications running during the uninstallation will not be
removed.
1. Open the Applications folder.
2. Open the Creative Professional folder.
3. Open the E-MU USB Audio folder.
4. Click the E-MU USB Audio Unistaller and follow the instructions.
0202 USB 2.0 Owner’s Manual 11
Connection Diagram
WARNING!
Use only a USB 2.0
certified Hi-Speed cable
(like the one supplied) for
the USB connection. Using
a USB 1.1 cable may cause
erractic behavior and
degraded performance.
CONNECTION DIAGRAM
Outputs
USB 2.0
R
L
Stereo
R -
Inputs
Hi Z / Line
L
- Mic
Microphone
or Line
Line
Mic
L -
Computer
1/4” male to 1/4” male
(unbalanced)
Powered Speakers
12 E-MU Systems
Controls & Headphone Output
CONTROLS & HEADPHONE OUTPUT
2 34 5 61
1. Signal Level & Clip Indicators
The LED signal level indicators show that you are inputing a proper signal
level. With a proper input level, the green signal LED should be flickering, but
the red clip indicator should NOT ever be lit.
The clip indicators light and show that the input level has exceeded0 dBFS.
2. Left/Right Gain Controls
These controls set the input gain from 0dB to +60dB for the two inputs.
3. Direct Monitor Level Control
This continuous encoder controls the amount of direct monitor signal mixed
into the outputs. The level is adjustable from -24dB to off.
4. Direct Monitor On/Off & Mono-Stereo Switch
Press the button to turn Direct Monitoring on and off and to switch modes.
The stereo LED illuminates. The left and right channels are passed through to
their respective outputs at the level set by the Direct Monitor Level control.
Press the button again to sum the left and right direct monitor channels to
mono. Mono mode is useful when the two inputs are being used for separate
instruments. See “Direct Monitoring” on page 16
5. Headphone Jack
Connect your stereo headphones here.
6. Headphone Level Control
This knob controls the volume of the headphone output. This switch also
turns the 0202 USB 2.0 on or off.
.
0202 USB 2.0 Owner’s Manual 13
Input/Output
INPUT/OUTPUT
NOTE to PC Users:
When using a USB 1.1 port,
performance is limited to
16-bit and 44.1/48 kHz
recording and playback.
System Volume Control
Mac
PC
Outputs
USB 2.0
R
7911
L
Stereo
R -
8
Inputs
Hi Z / Line
L
- Mic
10
L -
Line
7. USB
Connects the 0202 USB 2.0 to your computer via the supplied USB cable. The
USB connection provides two-way communication when connected to the
computer.
The 0202 USB 2.0 receives its power from the USB. Always connect to the USB
jack on the computer itself and NOT to a low-power USB connection that
may be present on your computer keyboard or other USB peripheral.
8. Main Outputs
The balanced outputs are normally connected to your monitoring system. The
signal is duplicated on a stereo 1/8¨ jack for easy connection to desktop
stereo speakers. The outputs have been designed using a special noisecancelling circuit which reduces problems relating to ground loops.
The main
output volume can be controlled using the System Volume Control on your
Mac or PC.
Mic
9. R - Hi Z / Line Input
This 1/4¨ input can be used as a Hi-Z instrument input (guitar/bass, etc.) or a
line level input. The input is balanced, but accepts either balanced or unbalanced signals.
10. L - 1/8¨ Mic Input
Connect microphones with 1/8¨ plugs to this jack.
11. L - Hi-Z / Line / Mic Input
Use the XLR connector for microphones or balanced line level signals. Use the
1/4¨ in the center of the XLR jack as a Hi-Z input for guitar/bass, or as a line
level input. The input is balanced, but accepts either balanced or unbalanced
signals.
Ground Lift Switches
There are “ground lift” switches for both analog inputs located on the bottom
of the unit. These switches can be used to safely stop the hum if a ground loop
occurs in your setup. See page 18
for more information.
Input Grounded
R-GND LIFT
L-GND LIFT
The input ground is lifted when the A or B slide switch is closest to the GND LIFT label.
Input Ground Lifted
14 E-MU Systems
E-MU USB Audio Control Panel
E-MU USB AUDIO CONTROL PANEL

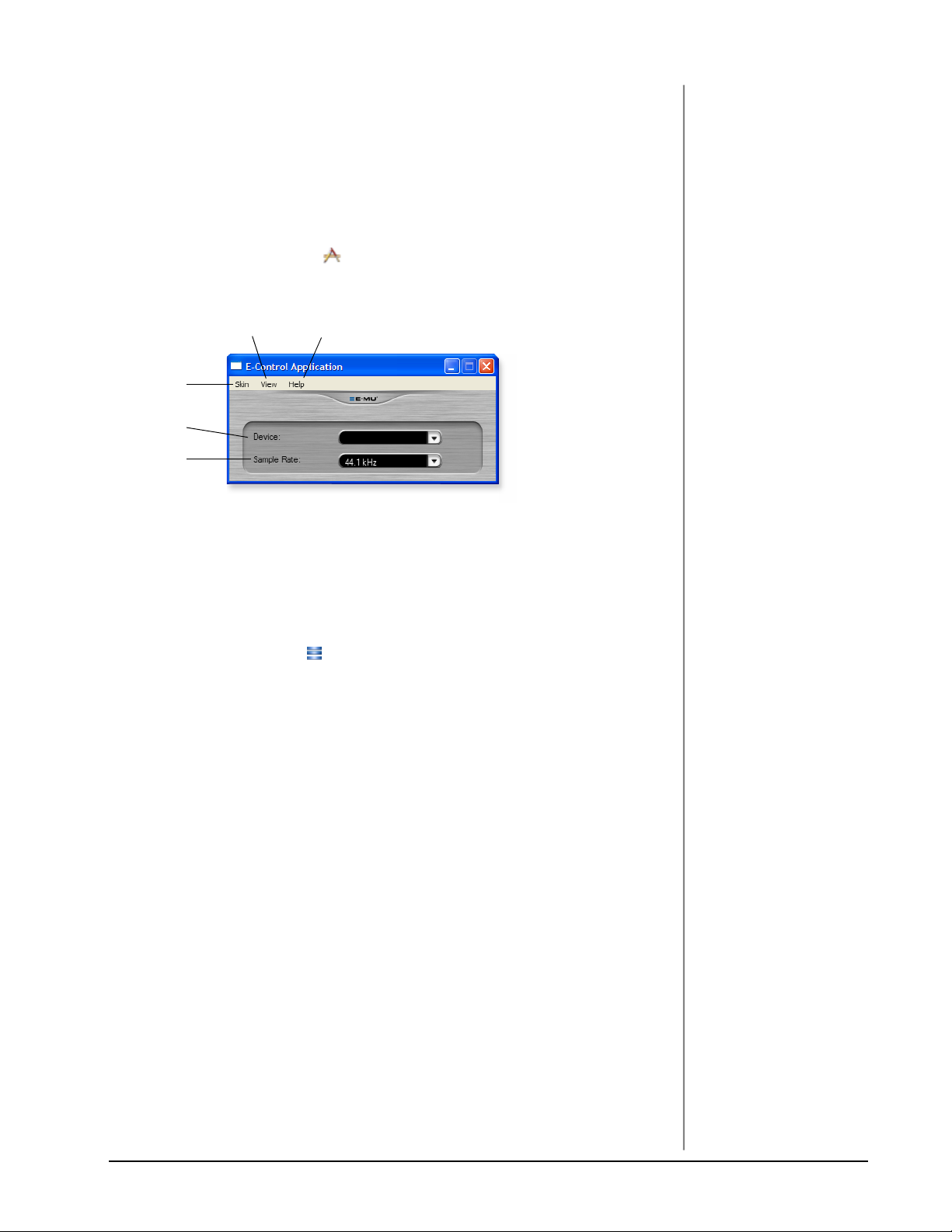

After you have successfully installed the audio drivers, launch the E-MU USB
Audio control panel. The E-MU USB Audio control panel is shown below.
• Windows: The E-MU USB Audio control icon will be visible in the Taskbar,
which is normally located in the bottom right of the screen. It can
also be launched from the Start Menu
(All Programs, Creative Professional, E-MU USB Audio Application).
• OS X The E-MU USB Audio control application is located in the Applications folder . You can also open the E-Control Application
using the icon on the desktop.
23
1
4
5
1. Skin
Choose between different appearances for the E-MU USB Audio control
panel.
2. View
Hide the application (Ctrl+H, Windows) You can restore the application by
clicking the E-MU icon in the System Tray (Windows), or by clicking the
E-MU icon in the Dock (OS X).
3. Help
About E-MU 0202 USB 2.0, Audio control, Launch Manual, Check Updates
4. Device
If you are using more than one E-MU USB Audio device, you can choose
which unit is currently being controlled.
5. Sample Rate
Allows you to set the system sample rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz or 192kHz.
NOTE
There are some limitations
when operating at 176.4/
192k sample rates.
PC - No Direct Monitor
Mac - Disabled
0202 USB 2.0 Owner’s Manual 15
Direct Monitoring
DIRECT MONITORING
Direct monitoring allows you to monitor inputs without having any software
open. It can also be used as an alternative to software monitoring if you desire the
lowest latency monitoring possible.
When using a computer for digital recording, an audible time delay occurs while
the audio signal is being input to the computer, processed by the software and then
returned to the output for monitoring. This time delay is called Latency.
Latency becomes a problem when you have to use high buffer settings to conserve
CPU resources. Because the 0202 USB 2.0 has hardware direct monitoring, you can
enjoy zero latency regardless of your buffer setting.
NOTE
Direct monitoring is not
available at 176.4 or
192 kHz.
The Direct Monitor feature connects the input signals to the output when recording
so that you can hear your performance without delay. The Direct Monitor level
control lets you adjust the volume of the input signal in relation to the recorded
tracks.
Direct monitoring is controlled manually from the Direct Monitor switch on the
0202 USB 2.0. It’s not necessary to turn it on in your recording application
Latency (delay)
USB
Software Monitoring
Direct Monitoring
Direct Monitoring allows you to listen to the direct sound of your instrument during
recording, without the delay incurred by going to the computer and back.
Direct Monitoring vs. Software Monitoring
Direct monitoring is lower latency and can also be used without software running
(or even without a computer!).
Software monitoring has the advantage of allowing audio effects or EQ added in
the host software to be heard on the output. Its roundtrip latency depends on what
latency is chosen in the ASIO configuration. If you choose to software monitor,
make sure to disable direct monitoring. If both are enabled, you will experience a
‘comb filter’ or doubling effect.
16 E-MU Systems
Audio Recording Software
AUDIO RECORDING SOFTWARE
Now that you’ve installed the 0202 USB 2.0, you probably want to start using it!
The 0202 USB 2.0 is only one half of the equation—the hardware interface that
translates audio signals into the digital language of your computer. The second half
of the equation is the software recording application, which records and allows
you to edit the audio on your computer.
Acoustica Mixcraft LE 4
™
We have included Acoustica Mixcraft LE 4 for PC users. Acoustica Mixcraft LE 4 is
a full-featured multitrack recording application with effects, virtual instruments,
™
VST
and DirectX™ support and much more.
Tutorials and Videos: http://www.acoustica.com/mixcraft/support.htm
Macintosh Users
Unfortunately we were not able to include a Macintosh recording application with
the 0202 USB 2.0, however you can use Garage Band, a very cool music application that probably came bundled with your Mac. This application works well
with the 0202 USB 2.0 and will get you started with audio recording.
NEED MORE HELP?
If you need additional help, please see:
• Windows: Program Files\Creative Professional\E-MU 0202
USB\Documents\3rdParty.htm.
• OS X: Applications Drive\Library\Documentation\E-MU 0202 USB\
3rdParty.htm
Before you Begin...
• You should have already installed the E-MU software on your computer
• You should hear the computer sounds coming out of the E-MU 0202 USB 2.0
and your speakers when you play a CD or an MP3 using Windows Media
Player or iTunes. If not, make sure your E-MU 0202 USB 2.0 is properly
connected according to the diagram on page 12
• A source of audio should be connected to the inputs (a microphone, musical
instrument, or CD/MP3 player).
.
WARNING!
Windows Users - After
checking your audio, be
sure to quit Windows Media
Player.
0202 USB 2.0 Owner’s Manual 17
Troubleshooting
TROUBL ESHOO TING
Can’t hear Windows Media Player in Windows
If you have, or ever have had, another audio device installed in your PC, you may
have to set the E-MU 0202 USB 2.0 as the “Default Audio Device”.
1. Open the Control Panel, then select Sounds and Audio Devices.
2. Click the Audio tab and select the E-MU 0202 USB 2.0 as the Default device
under Sound Playback.
3. Click the Volume button under Sound Playback and turn up Wave volume.
You cannot record or monitor ASIO and WAVE at the same time. The first audio
application you open controls the E-MU 0202 USB 2.0.
Lost Communication
Should you lose communication between your E-MU 0202 and an audio application (Ableton Live, Cubase, Sonar, etc.), the E-MU 0202 USB 2.0 drivers may
need to be re-selected in your application.
1. Go to your application's I/O settings, de-select the E-MU 0202 USB 2.0 for
both input and output.
2. Apply these changes and exit the dialog.
3. Re-enter the application's preference settings and re-select the E-MU 0202 USB
2.0 drivers. If this doesn’t work, the application may need to be restarted.
Ground Loops
In digital audio devices and computers, audio ground loops may appear as pitched
tones, digital hash in the background, as well as the familiar 60 cycle hum.
Ground loops are caused by a difference in ground potential between two pieces of
equipment. Computer audio devices are particularly susceptible to ground loops
because most computers were not designed with high quality audio in mind.
The E-MU 0202 USB 2.0 contains built-in “ground lift” switches for both analog
inputs in order to safely break the loop if a ground loop occurs in your setup.
Input Grounded
R-GND LIFT
L-GND LIFT
The ground-lift switches are located on the bottom of the unit, close to the rear
panel. The input ground is lifted when the A or B slide switch is closest to the GND
LIFT label.
Pops & Crackles
Pops and crackling noises in the audio are most often caused by having the ASIO
Buffer Size set too low. Adding audio tracks and VST plug-ins increases the load on
your computer’s CPU. If your computer cannot keep up with all the tasks you are
asking it to perform, pops and crackles may occur. In effect, increasing the ASIO
buffer gives your computer “more time” to complete its assigned tasks. The
hardware Direct Monitor feature of the 0202 USB 2.0 allows you to increase the
ASIO Buffer setting without the associated latency problems during recording and
overdubbing.
USB hubs can create problems with digital audio and should be avoided whenever
possible.
Input Ground Lifted
18 E-MU Systems
Internet References
Simultaneous WDM/ASIO Playback (PC only)
The 0202 USB 2.0 only supports playing back one stream format at a time on the
PC. Each of the three mentioned stream types has an associated priority. If a higher
priority stream type is opened while a lower priority stream is already playing, the
lower priority stream will stop playing. The stream priorities, from highest to
lowest, are ASIO, WDM.
USB 2.0 vs. USB 1.1 Operation (PC only)
The 0202 can operate in USB 2.0 or USB 1.1 mode on the PC. The 96 kHz and 192
kHz sample rates are only available while operating in USB 2.0. The included
E-MU USB Audio Control panel software includes an indicator to let you know
which mode the device is running in.
0202 USB comes up in USB 1.1 mode (PC only)
Always turn the 0202 USB power off before connecting or disconnecting the USB
cable. Hot-plugging the unit with the power on can cause the 0202 to power-up in
USB 1.1 mode. If you see the Windows message, “This device could perform
faster…”, simply turn power off, wait a few seconds, then turn power on again.
INTERNET REFERENCES
The internet contains vast resources for the computer musician. A few useful sites
are listed here, but there are plenty more. Check it out.
Software Updates, Tips & Tutorials.. http://www.emu.com/support
Setting up a PC for Digital Audio..... http://www.musicxp.net
MIDI Basics.......................................... Search for “MIDI Basics” (many sites)
MIDI & Audio Recording ................... http://www.midiworld.com
MIDI & Audio Recording ................... http://www.synthzone.com
Mixcraft................................................. http://www.acoustica.com/mixcraft/
index.htm
Forums
Unofficial E-MU Forum ..................... http://www.productionforums.com/emu
Sound-On-Sound Forum................... http://www.soundonsound.com
Computer Music Forum..................... http://www.computermusic.co.uk/main.asp
Home Recording Forum .................... http://homerecording.com/bbs
Studio Central Forum ........................ http://www.tweakheadz.com
KVR Forum........................................... http://www.kvr-vst.com/forum/search.php
MIDI Addict Forum ........................... http://forum.midiaddict.com/search.php
Sound Card Benchmarking............... http://audio.rightmark.org
Driver Heaven Forum......................... http://www.driverheaven.net
0202 USB 2.0 Owner’s Manual 19
Technical Specifications
TECHNICAL SPECIFICATIONS
General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz from internal crystal with no
sample rate conversion
(Note: 176.4k & 192k sample rates not supported on Macintosh)
Bit Depth: 24-bit I/O, 32-bit processing
USB 2.0 Hi-Speed
Full 24-bit resolution at all sample rates
2 in/2 out channels
Zero-latency direct hardware monitoring (disabled at 176.4/192kHz)
ASIO2, WDM MME, Apple Core Audio and Core MIDI drivers
Anti-Pop speaker protection minimizes noise during power on/off
Ultra-low jitter clock subsystem: <100ps RMS
Combo Microphone Preamplifier/Hi-Z/Line Input (1)
Type: Balanced E-MU combo mic preamplifier and Hi-Z/line input
A/D converter: AK5385A
Input Impedance: 1.5 Kohms
Max Level: +6.5dBV (+8.7dBu)
EIN: (20Hz-20kHz, 150ohm, unweighted) -127dBu
Signal-to-Noise Ratio: (A-weighted, min gain) 113dB
THD+N: (1kHz at -1dBFS, min gain) -103dB (.0007%)
Gain Range: +60dB
Frequency Response: (min gain, 20Hz-20kHz) +0.0/-0.16dB
Stereo Crosstalk: (1kHz min gain, -1dBFS) < -110dB
Hi-Z/Line Input (1)
Input Impedance: 1 Mohm
Max Level: +12dBV (14.2dBu)
Dynamic Range: (A-weighted, 1kHz, min gain) 113dB
Signal-to-Noise Ratio: (A-weighted, min gain) 113dB
THD+N: (1kHz at -1dBFS, min gain) -101dB (.0009%)
20 E-MU Systems
Technical Specifications
Analog Line Outputs (2)
Type: balanced, AC-coupled, 2-pole low-pass differential filter
D/A converter: CS4392
Max Level: Consumer: +6.7dBV max (unbalanced)
Frequency Response: (20Hz - 20kHz) 0.00/-.01dB
Dynamic Range: (1kHz, A-weighted) 111dB
Signal-to-Noise Ratio: (A-weighted) 112dB
THD+N: (1kHz at -1dBFS) -98dB (.0013%)
Stereo Crosstalk: (1kHz at -1dBFS) < -120 dB
Headphone Amplifier
Type: Class-A power amplifier
D/A converter: CS4392 (shared with Line Out)
Gain Range: 60dB
Maximum Output Power: 16mW
Output impedance: 22ohms
Frequency Response: (20Hz–20kHz) +0.02/-0.08dB
Dynamic Range: (A-weighted) 110dB
Signal-to-Noise Ratio: (A-weighted) 108dB
THD+N: (1kHz, max gain): 300ohm load -98dB (.0013%)
Stereo Crosstalk: (1kHz at -1dBFS, 300 ohm load) < -91dB
Dimensions / Weight
Weight: 0.94 lb / 0.43 kg
Dimensions:
W: 6.5” H: 2.0” L: 5.5”
W: 165 mm H: 50.8 mm L: 140 mm
0202 USB 2.0 Owner’s Manual 21
Declaration of Conformity
DECLARATION OF CONFORMITY
Trade Name: E-MU Systems
Model No.: EM8740
Responsible Party: E-MU Systems
Address: 1500 Green Hills Road
Scotts Valley, CA 95066 U.S.A.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The supplied interface cables must be used with the equipment in order to comply
with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
22 E-MU Systems
Declaration of Conformity
Compliance Information
United States Compliance Information
FCC Part 15 Subpart B Class B using:
CISPR 22 (1997) Class B
ANSI C63.4 (2003) method
FCC Site No. 958979
Canada Compliance Information
ICES-0003 Class B using:
CISPR 22 (1997) Class B
ANSI C63.4 (2003) method
Industry of Canada File No. IC 5933
European Union Compliance Information
EN55024 (1998 w/A1:01 & A2:03)
EN55022 (1998) Class B
Australia/New Zealand Compliance Information
AS/NZS CISPR 22 (2002) Class B using:
EN55022 (1998) Class B
Japan Compliance Information
VCCI (April 2005) Class B using:
CISPR 22 (1997) Class B
ANSI C63.4 (2003) method
VCCI Acceptance Nos. R-2160 & C-2332
Attention for the Customers in Europe
This product has been tested and found compliant with the limits set out in the
EMC Directive for using connection cables shorter than 3 meters (9.8 feet).
Notice
If static electricity or electromagnetism causes data transfer to discontinue midway
(fail), restart the application or disconnect and connect the USB cable again.
0202 USB 2.0 Owner’s Manual 23
Declaration of Conformity
24 E-MU Systems
Index
INDEX
A
ASIO Buffer Size
Audio Recording Software
C
Clip Indicators
Computer Requirements
Connection Diagram
D
Device Select, E-Control
Direct Monitor Controls
Direct Monitoring
Direct Monitoring vs Software Monitoring
E
E-Control Application
G
Gain Controls
Ground Lift Switches
Ground Loops
18
17
13
7
12, 14
15
13
16
15
13
14, 18
18
16
S
Signal Level Indicators
Simultaneous WDM/ASIO/AC-3 Playback
Skin, selecting
Software Installation
Mac OSX
Windows XP
T
Technical Specifications
Testing Your Interface
Troubleshooting
U
Uninstalling Drivers & App
USB 1.1 port
USB 1.1 Warning Message
USB 2.0 vs. USB 1.1 Operation
USB Jack
V
Volume Control, controlling with computer
W
WDM/ASIO/AC-3 Playback
Windows Logo Testing Note
Windows Media Player, no audio
15
9
14
14
13
19
8
20
17
18
8, 11
19
19
19
8
18
14
H
Headphone Level Control
Headphone Output
I
Inputs
Internet References
L
Latency
Lost Communication
M
Monitoring, direct vs software
P
Package Contents
Pops & Crackles
0202 USB 2.0 Owner’s Manual 25
14
19
16
8
18
13
14
18
16
Loading...
