Creative Labs AVPSB1530 User Manual
Getting Started
Thank you for choosing Creative Sound BlasterAxx, the next generation Sound Blaster®that
incorporates the powerful SB-Axx1 sound and voice processor. It is equipped with speaker and
microphone functions for both listening and conferencing capabilities. The SBX 100 (SB1532) model
design provides portability and low power consumption without compromising your audio pleasure.
The SBX 100 comprises both right and left drivers within a single tower structure. This system is
equipped with the following features:
l Portable form makes it ideal for travel, outdoor and automobile usages
l High quality audio
l Seamless support for various operating systems including Windows
Vista®and Mac®OS
l Specialized software for different speaker enhancements and configurations
l SBX Pro Studio audio enhancements
l Built-in stereo microphones with CrystalVoice technology
l Built-in Bluetooth
l Near field communication (NFC)
l Built-in rechargeable battery
®
Transceiver
®
8, Windows 7, Windows
Package Checklist
Your Sound BlasterAxx SBX 100 package comes with the following components
l The Sound BlasterAxx SBX 100 tower
l 1.0m MicroUSB cable
l 5V 2.1A USB Power Adapter with interchangeable plugs
l Travel carry case
System Requirements
l Intel Core™2 Duo processor 2.2 GHz, AMD Athlon 64x2 Dual Core or equivalent processor
l Microsoft
®
Windows 8 64-bit, Windows 8 32-bit, OR
Microsoft Windows 7 64-bit, Windows 7 32-bit, OR
Microsoft Windows Vista 64-bit, Windows Vista 32-bit, OR
Macintosh OS 10.5 and above
l Powered USB 2.0 port
Registering Your Product
Registering your product ensures you receive the most appropriate service and product support
available. You can register your product during installation or at www.creative.com/register. Please
note that your warranty rights are not dependent on registration.
More Help
For the latest news and products for the Sound Blaster, please visit www.soundblaster.com. The site
also includes information on making purchases, technical help and the latest software updates.
Using Creative Software AutoUpdate
Locating, downloading and installing updates for your Creative products is now simpler and faster with
the web-based Creative Software AutoUpdate system.
When you connect to Creative Software AutoUpdate via the Internet, the website will analyze your
computer system to determine your operating system, language and which Creative products are
connected to your system.
When this analysis is completed, you will then be given a list of only the most relevant software updates
for your connected products. The files can then be retrieved and installed.
To learn more about the Creative Software AutoUpdate, please visit www.soundblaster.com/support.
Note:
First-time users of Creative Software AutoUpdate may be prompted to authorize the download of a
browser component required for system analysis. Check to ensure that this content is signed by
Creative Labs, Inc., then click the Yes button.
Please ensure that all your Creative products are connected and installed on the same computer
running Creative Software AutoUpdate.
Understanding Your Sound BlasterAxx
The SBX 100 is equipped with a variety of input and output jacks to enable connection to various
devices. A touchscreen interface located at the top of the Sound BlasterAxx gives you basic control over
the system's functions. This chapter looks at these features in detail.
The Sound BlasterAxx Tower
Indicator Description
1 Bluetooth
Indicator
2 Power / Battery
Indicator
The blue LED indicates that the Sound BlasterAxx is
connected with a Bluetooth / NFC enabled device.
The three white LEDs at the bottom shows the power
status (ON or OFF) of the Sound BlasterAxx and its battery level.
TouchScreenControls
Button / Slider Description
1 Voice Focus Toggles the Voice Focus function ON/OFF. Voice Focus
2 Noise Reduction Toggles the Noise Reduction function ON/OFF. Noise
is ON when the LED is lighted and dimmed otherwise.
Reduction is ON when the LED is lighted and dimmed
otherwise.
3 Master Volume 8 segment slider indicates the speaker volume. Slide
upwards to increase the volume or slide downwards to
decrease the volume.
4 SBX Toggles SBX Pro Studio audio enhancements ON/OFF.
The SBX Pro Studio is ON when the LED is lighted and
dimmedotherwise.
5 Speaker Mute Indicates whether the speaker is muted. A red LED
indicates mute while a white LED indicates otherwise.
6 Microphone Mute Indicates whether the inbuilt microphone is muted. A
red LED indicates mute while a white LED indicates
otherwise.
7 Call Button Toggles the Call function ON/OFF. Call is ON when the
LEDis lighted and dimmedotherwise. Press to pick up
call or to activate voice command.
Note: LEDblinks for phone ringing when it is
connected via Bluetooth.
Connectivity - Input / Output Jacks
Button / Jack Description
1 Power /
Bluetooth
Connect
Button
When the SBX 100 is turned OFF, press the Power button
once to power it ON;
When the SBX 100 is turned ON,
l Press and hold the button for 2 seconds to turn on
the Bluetooth feature. You may choose to pair the
device using Bluetooth or NFC. Refer to Using the
Bluetooth and NFC Features.
l Press and hold the button for 4 seconds to enter
standby mode.
l Press and hold the button for 8 seconds to power it
off.
2 USB Port For charging your mobile devices, for eg. iPhone, iPad, etc.
3 Aux / Mic In Connects to line-level sources (such as MP3 players) or
microphones with a 3.50mm (1/8-inch) plug. You can
manually switch between AUX and MICinputs via the
Control Panel >Sound interface.
4 Headphone Connects to stereo headphones with a 3.50mm (1/8-
inch) plug.
5 MicroUSB Connects to USB ports of PC / laptop for audio output via a
MicroUSB connector. Alternatively, you may connect it to
the power socket via the USBPower Adapter.
Setting Up Your Sound BlasterAxx
The SBX 100 is a refined portable Sound BlasterAxx with built-in rechargeable battery, Bluetooth
connectivity and NFC feature. You can either connect the SBX 100 to a computer via the USBor by
connecting it to the power supply. Or simply operate it in standalone mode, powered by the built-in
battery.
Connecting to a Computer
Setting the default audio device (for Mac OS only)
(i) Go to System Preferences and click Sound.
(ii) Click the Output tab, then select Sound BlasterAxx SBX 100.
(iii) Click the Input tab, then select Sound BlasterAxx SBX 100.
OR
Connecting to a Power Supply
OR
Standalone Mode
Using Your Sound BlasterAxx
Whether you wish to listen to your favorite tracks from MP3 players, experience realistic audio while
playing games on your PC and game consoles or receive clear voice and audio outputs during video /
audio conferencing without the hassle of an additional microphone or headset, your SBX 100 provides
the ideal solution.
Various scenarios where the Sound BlasterAxx can be used include:
l Connecting the Sound BlasterAxx For Audio Entertainment
Connect your Sound BlasterAxx to your computer via USB or to other portable entertainment
devices including MP3 players, mobile phones etc. via the AUX IN jack and enjoy clear audio quality.
You may also connect the Sound BlasterAxx to various Bluetooth enabled devices via Bluetooth or
NFC for group conferencing or music playback.
l Video / Audio Conferencing, Karaoke and Recording
The built-in microphone along with CrystalVoice technology provides a truly hands-free solution to
video / audio conferencing via the web. The "What You Hear" application further allows you to mix
the microphone input and the currently playing track or video with instant playback, creating a
Karaoke-type system on your computer. You may even record your Voice over IP (VoIP) calls and
internet telephony conversations.

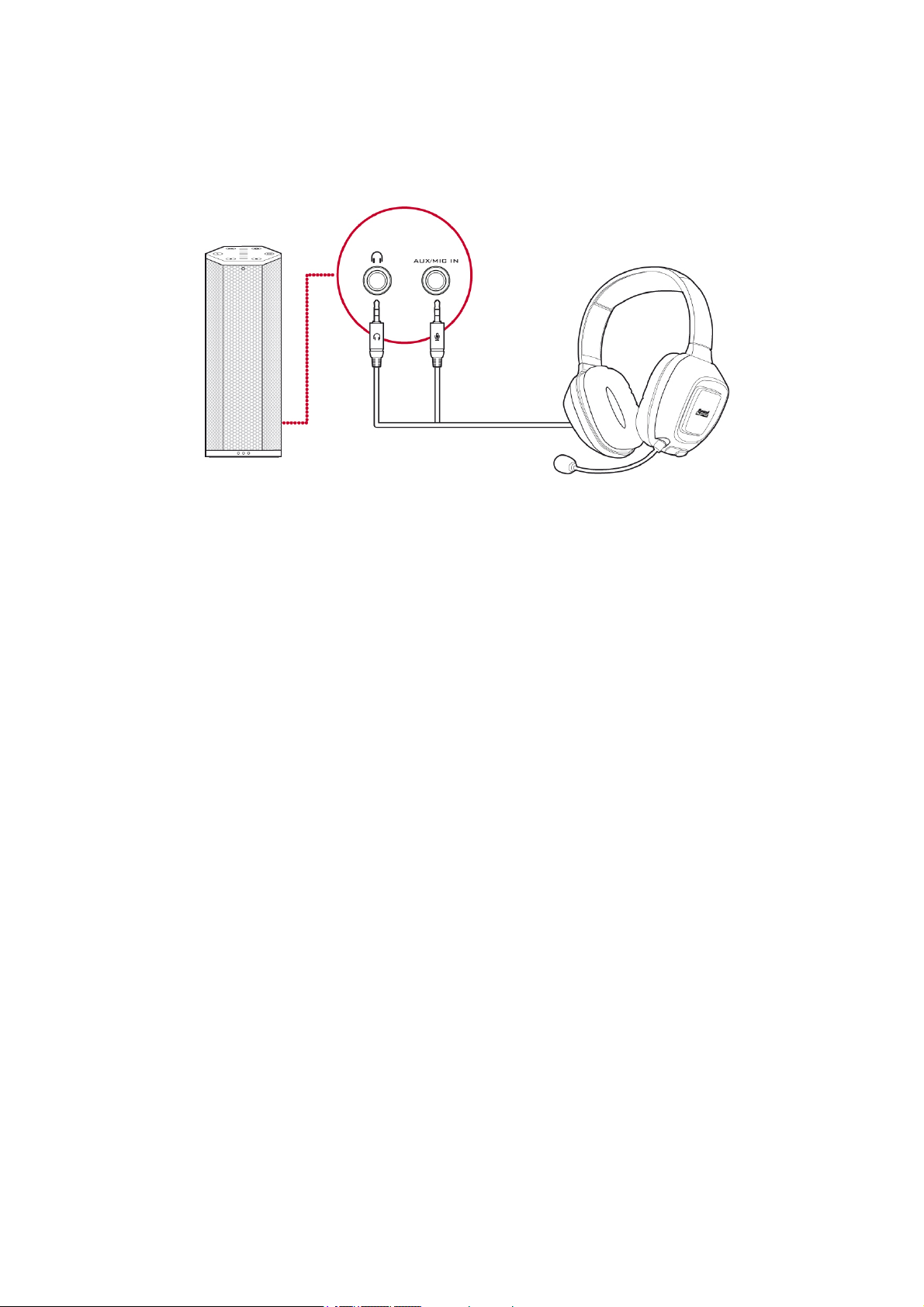

l Connecting Headphones / Headsets
If required, headphones and headsets can be connected to the Sound BlasterAxx's headphone jack.
Connecting the Sound BlasterAxx For Audio Entertainment
The SBX 100 is equipped with a MicroUSB jack, an Aux In jack, and a build-in Bluetooth transceiver for
connection to a wide array of devices. It can either be powered by its built-in battery, or by connecting
to a computer or to a wall socket using a USB Power Adapter. This section illustrates the connection.
PC / Mac
MP3 Players / CD Players and Other Portable Entertainment Devices
Bluetooth-Enabled Devices
NFC-Enabled Devices
Video/Audio Conferencing, Karaoke and Recording
Video / Audio conferencing via the various messaging applications available in the market is made
simpler with the SBX 100's built-in stereo microphones. Equipped with configurable CrystalVoice
technology, the Sound BlasterAxx, coupled with its microphone, delivers crystal clear voice and audio
reception during conferencing.
The Sound BlasterAxx is also equipped with a "What You Hear" feature, allowing you to turn your
computer into a Karaoke station. Simply speak / sing into the Sound BlasterAxx to mix your voice input
with music tracks, hearing the playback while recording.
You can also record voice conversations held over instant messaging tools such as Google Talk, Skype
etc. using the "Wave/Aux/Mic Mix" feature installed via the Creative driver.
Note:
This feature is only available in the Windows environment.
To use this feature, simply follow the steps below:
1. Install the Creative Driver included in the software bundle for your product. Please refer to Using
the Software for installation instructions.
2. From the Start menu, navigate to the Windows Control Panel and view Sound settings.
3. In the Sound dialog window, select the Recording tab. From the list of devices connected to your
PC, right-click the Wave/Aux/Mic Mix device and select Set as Default Device.
4. Activate your IM voice conversation.
5. Launch a third-party sound recording tool of your choice and start recording the conversation.
