Creative Labs AVPSB1122 User Manual
Wireless Receiver
User’s Guide
Congratulations!
Your Creative Wireless Receiver complements Creative transmitters like
Cambridge Soundworks MovieWorks™ HD and Creative Sound Blaster
X-Fi™ Notebook
enjoy the X-Fi difference, wherever you are in your home, wirelessly. Read
on to learn how to get started with your new Creative Wireless Receiver!
®
. Together, your receiver and transmitter enable you to
Contents
About Your Receiver .....................................................................2
About Your Remote Control ..........................................................3
Setting Up Your Receiver ..............................................................4
Setting Up Two or More Receivers .............................................10

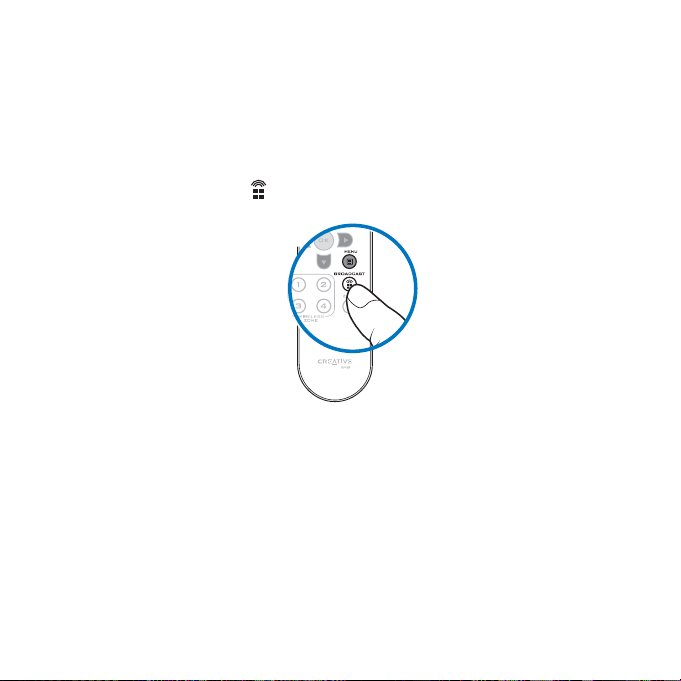

About Broadcasting and Zone Control ........................................11
Manual Pairing ............................................................................12
Using Your Receiver ....................................................................16
Using Your Wireless Features ....................................................18
Troubleshooting Wireless Features ...........................................21
FAQs ............................................................................................24
General Specifications ................................................................26
Safety Information .......................................................................27
Regulatory Information ...............................................................29
NOTE
The term “receiver” used throughout this User’s Guide refers to
the Creative Wireless Receiver. “Transmitter” refers to any of the
Creative transmitters mentioned above.
®
About Your Receiver
1
2
3
5
4
LINK /
CONNECT
About Your Receiver 2
1 Power/Standby and
Play/Pause button
Press to turn on.
Press and hold to enable Standby
mode.
2 Next/Fast forward button
Press and hold to Fast forward.
3 Previous/Rewind button
Press and hold to Rewind.
4 Infrared receiver
5 Power LED
See “Understanding the Power
LED” on page 17.
6 Line Out jack
7 RCA Audio Line Out jacks
8 Link LED/Connect button
See “Understanding the Link LED”
on page 17.
9 5V DC In jack
9
DC
5V
LINE
OUT
6
7
8
About Your Remote Control 3
About Your Remote Control
Your remote control has an operating distance of up to three meters
(approximately 9.8 feet).
1 Power/Standby
13
12
11
10
9
8
7
2 Mute on/off
1
3Volume
®
4iPod
2
5 Next/Fast forward
3
6 Menu Navigation buttons
4
7Previous/Rewind
8 Play/Pause
5
9iPod Display*
Back/Menu*
Press and hold to Fast forward.
Press OK to execute the selected menu option.
Press and hold to Rewind.
10 Shuffle
11 Repeat
6
12 X-Fi Crystalizer
13 X-Fi CMSS
* For use with transmitters that support iPod
players.
^ Pressing the X-Fi buttons on the receiver’s remote
control effectively controls the X-Fi enhancements
of the transmitter, and this in turn affects the output
of all paired receivers.
®
on/off^
®
-3D on/off^
Setting Up Your Receiver 4
Setting Up Your Receiver
Step 1: Position your receiver
Place your receiver near a power outlet, and up to 30 meters (approximately
98 feet) away from your transmitter. You may place the units in different
rooms but avoid placing them near large metal surfaces and objects, or
objects emitting radio frequencies, for example, a radio or cordless phone.
NOTE
Signal quality between the transmitter and receiver may be
affected by any object or structure (for example, multiple walls)
that is between the units. Experiment with different positions if
necessary.
Step 2: Insert batteries into your remote control
AAA
AAA
2 x
IMPORTANT
NOTE
The cover of your remote control can only be opened halfway. Do
not try to detach the cover when inserting the batteries.
To remove the batteries when they are depleted, use the same
method as shown above to open the cover.
Step 3: Connect your receiver
1b
OR
1c
1a
1a Powered stereo or 2.1 speakers
1b Stereo to RCA cable
1c Stereo cable
2a Power adapter
2b Power outlet
LINE
OUT
Connect your receiver 5
LINK/
5v DC
CONNECT
2a 2b
Step 4: Turn on your transmitter
CONNECT
P
O
W
E
R
POWER
Cry
CMS
S-3D
U
EN
M
D
r
e
-3
iz
S
l
S
a
t
M
s
C
y
POWER
r
C
Turn on your transmitter 6
R
E
T
W
C
O
E
P
N
N
O
C
MovieWorks HD
Sound Blaster
X-Fi Notebook
NOTE
• For Sound Blaster X-Fi Notebook, the device’s wireless features
are disabled by default. You must enable it in Entertainment
Mode and ensure that the device’s Connect LED lights up green.
See “Enabling Wireless Music Control” on the next page.
Enabling Wireless Music Control
CONNECT
P
O
W
E
R
The following steps are applicable only if you are using Sound Blaster X-Fi
Notebook as your transmitter.
R
E
OW
CT
P
NE
ON
C
Sound Blaster X-Fi Notebook
2 3
1
1 Launch Entertainment Mode. To do this, click Start -> Programs ->
Creative -> Sound Blaster X-Fi Notebook -> Creative Console Launcher.
2 Click the Wireless Music Control button.
3 Select the Enable Wireless Music Control check box.
The device’s Connect LED lights up green.
Turn on your transmitter 7
Turn on your receiver 8
5V
DC
LINK /
CONNECT
5V
DC
LINK /
CONNECT
Step 5: Turn on your receiver
Your transmitter and receiver pair (connect wirelessly) automatically when
turned on. The Link LED, at the back of the receiver, flashes and then lights
up green when pairing is successful.

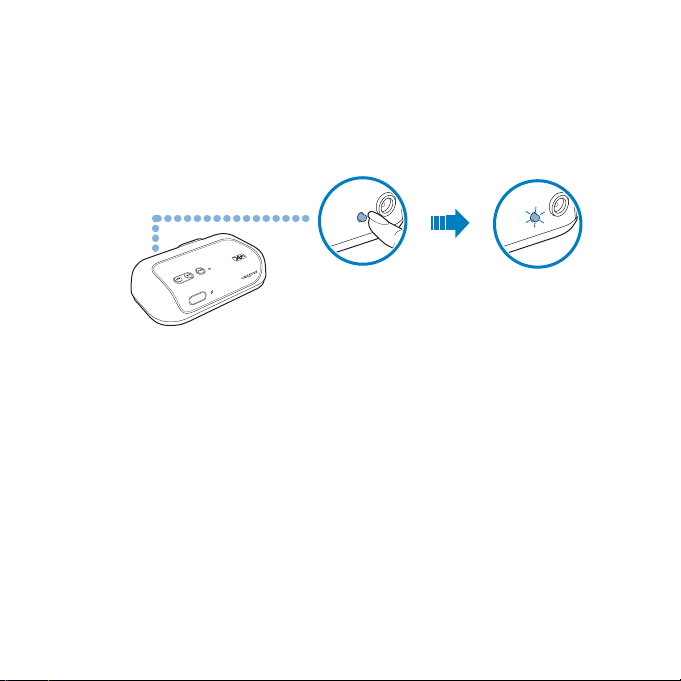

NOTE
If your transmitter and receiver do not pair, simply reset them. On
one unit at a time, press and hold the Connect button for five
seconds. For more troubleshooting information, see
“Troubleshooting Wireless Features” on page 21.
Play and stream music from transmitter 9
Step 6: Play and stream music from transmitter
Play music on your transmitter and broadcast music to your receiver.
U
N
E
M
D
r
3
e
z
i
S
l
S
a
t
M
s
C
y
POWER
r
C
OR
ER
T
C
E
POW
N
N
O
C
B
A
S
S
T
R
E
B
L
E
V
O
L
U
M
E
O
F
F
M
A
X
A
U
X
I
N
