Creative Design CLP5130-1, CLP5130-2, CLP5130-3, CLP5130-1X, CLP3100 Instructions with specs

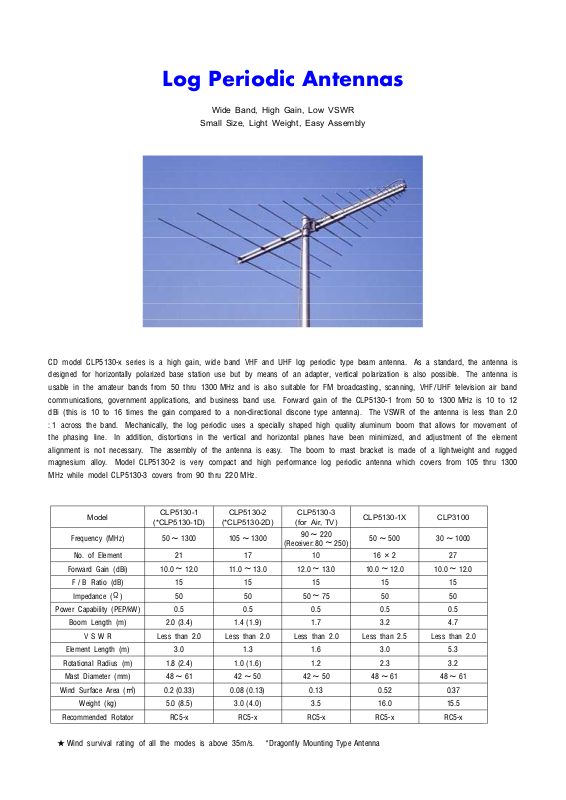

Log Periodic Antennas

Wide Band, High Gain, Low VSWR

Small Size, Light Weight, Easy Assembly

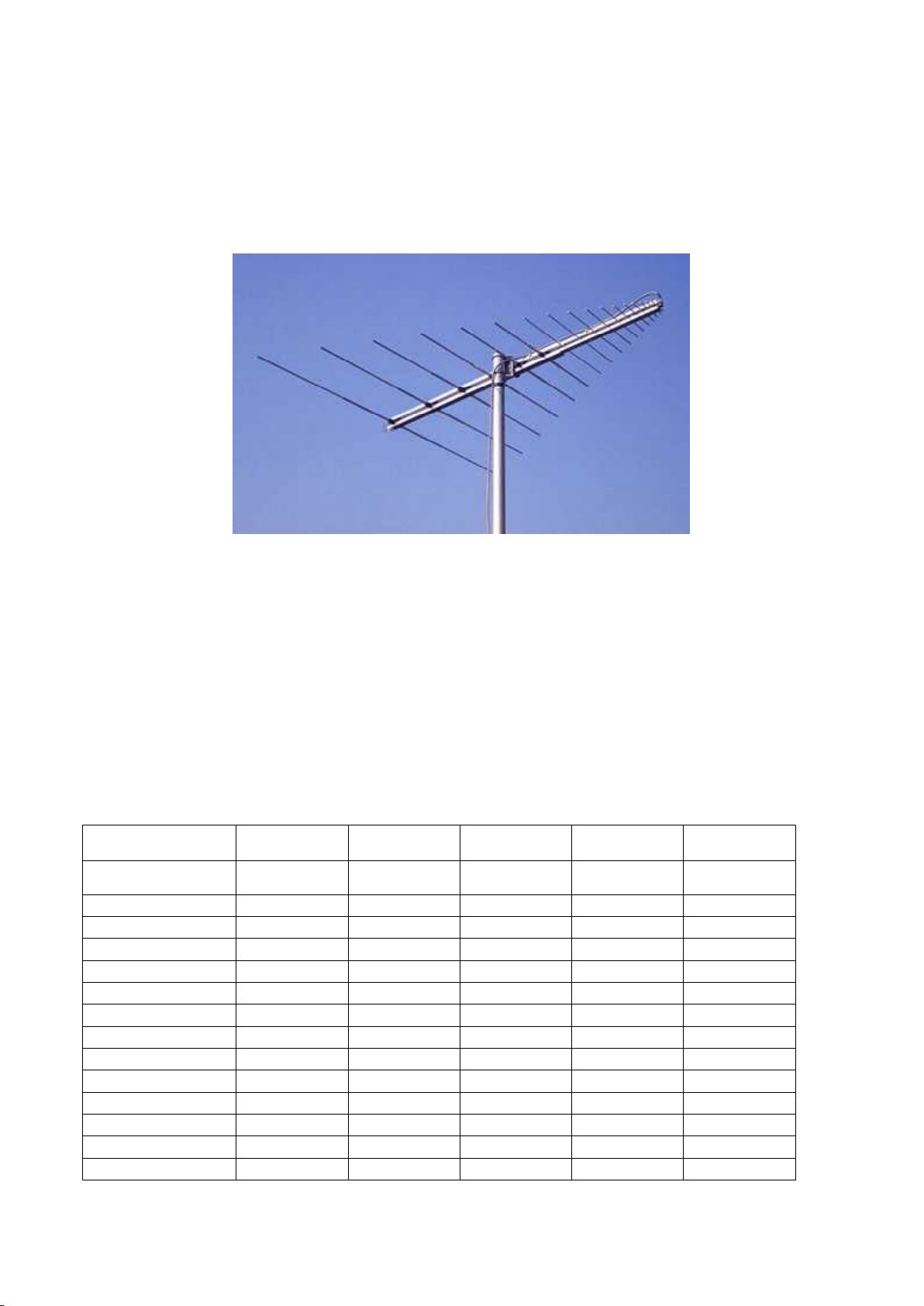

CD model CLP5130-x series is a high gain, wide band VHF and UHF log periodic type beam antenna. As a standard, the antenna is
designed for horizontally polarized base station use but by means of an adapter, vertical polarization is also possible. The antenna is
usable in the amateur bands from 50 thru 1300 MHz and is also suitable for FM broadcasting, scanning, VHF/ UHF television air band
communications, government applications, and business band use. Forward gain of the CLP5130-1 from 50 to 1300 MHz is 10 to 12
dBi (this is 10 to 16 times the gain compared to a non-directional discone type antenna). The VSWR of the antenna is less than 2.0
: 1 across the band. Mechanically, the log periodic uses a specially shaped high quality aluminum boom that allows for movement of
the phasing line. In addition, distortions in the vertical and horizontal planes have been minimized, and adjustment of the element
alignment is not necessary. The assembly of the antenna is easy. The boom to mast bracket is made of a lightweight and rugged
magnesium alloy. Model CLP5130-2 is very compact and high performance log periodic antenna which covers from 105 thru 1300
MHz while model CLP5130-3 covers from 90 thru 220 MHz.

Model CLP5130-1X CLP3100

Frequency (MHz) 50～1300 105～1300 50～500 30～1000

No. of Element 21 17 10 16×2 27

Forward Gain (dBi) 10.0～12.0 11.0～13.0 12.0～13.0 10.0～12.0 10.0～12.0

F / B Ratio (dB) 15 15 15 15 15

Impedance (Ω) 50 50 50～75 50 50

Power Capability (PEP/kW) 0.5 0.5 0.5 0.5 0.5

Boom Length (m) 2.0 (3.4) 1.4 (1.9) 1.7 3.2 4.7

V S W R Less than 2.0 Less than 2.0 Less than 2.0 Less than 2.5 Less than 2.0

Element Length (m) 3.0 1.3 1.6 3.0 5.3

Rotational Radius (m) 1.8 (2.4) 1.0 (1.6) 1.2 2.3 3.2

Mast Diameter (mm) 48～61 42～50 42～50 48～61 48～61

Wind Surface Area (㎡) 0.2 (0.33) 0.08 (0.13) 0.13 0.52 0.37

Weight (kg) 5.0 (8.5) 3.0 (4.0) 3.5 16.0 15.5

Recommended Rotator RC5-x RC5-x RC5-x RC5-x RC5-x

CLP5130-1 CLP5130-2 CLP5130-3

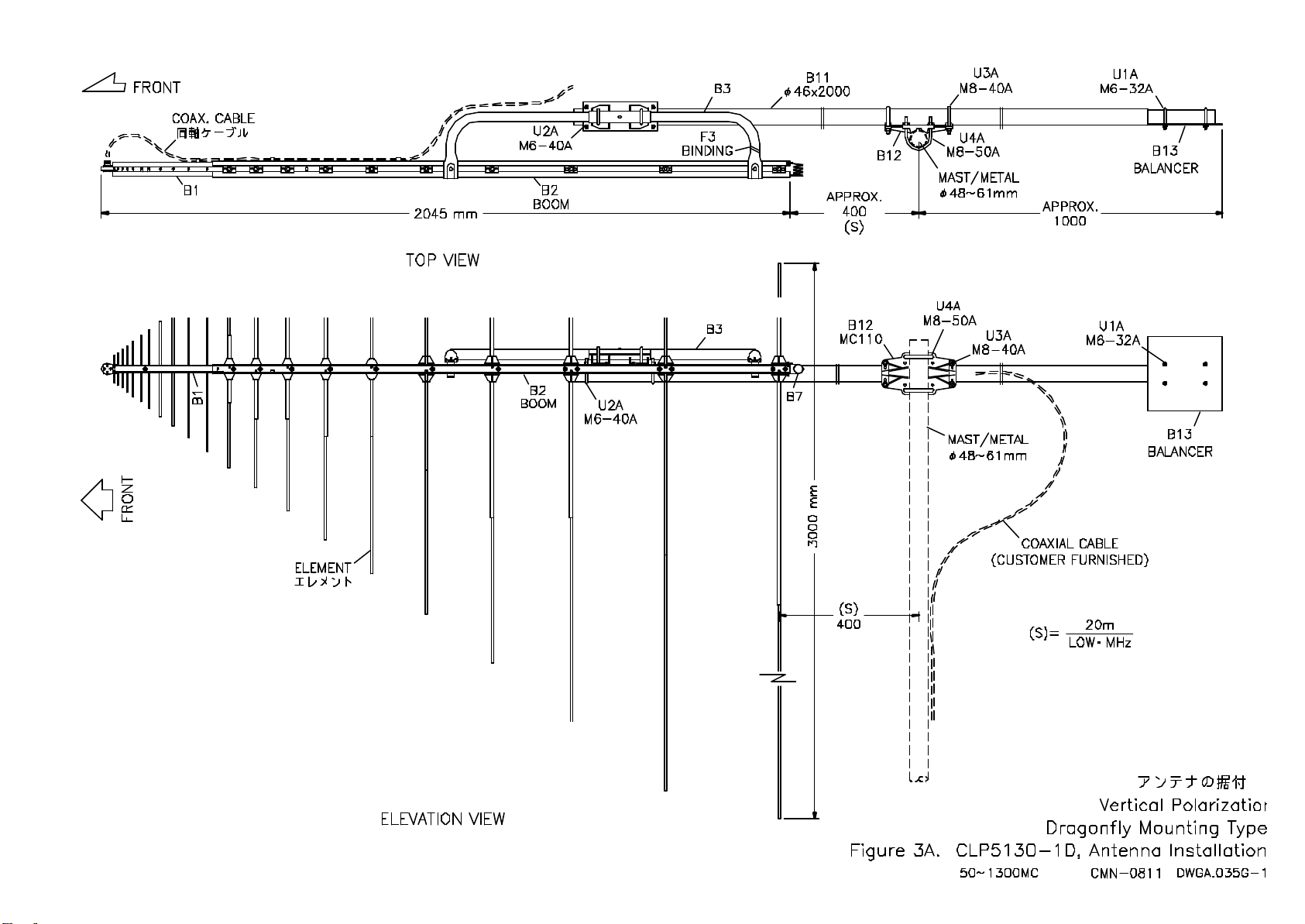

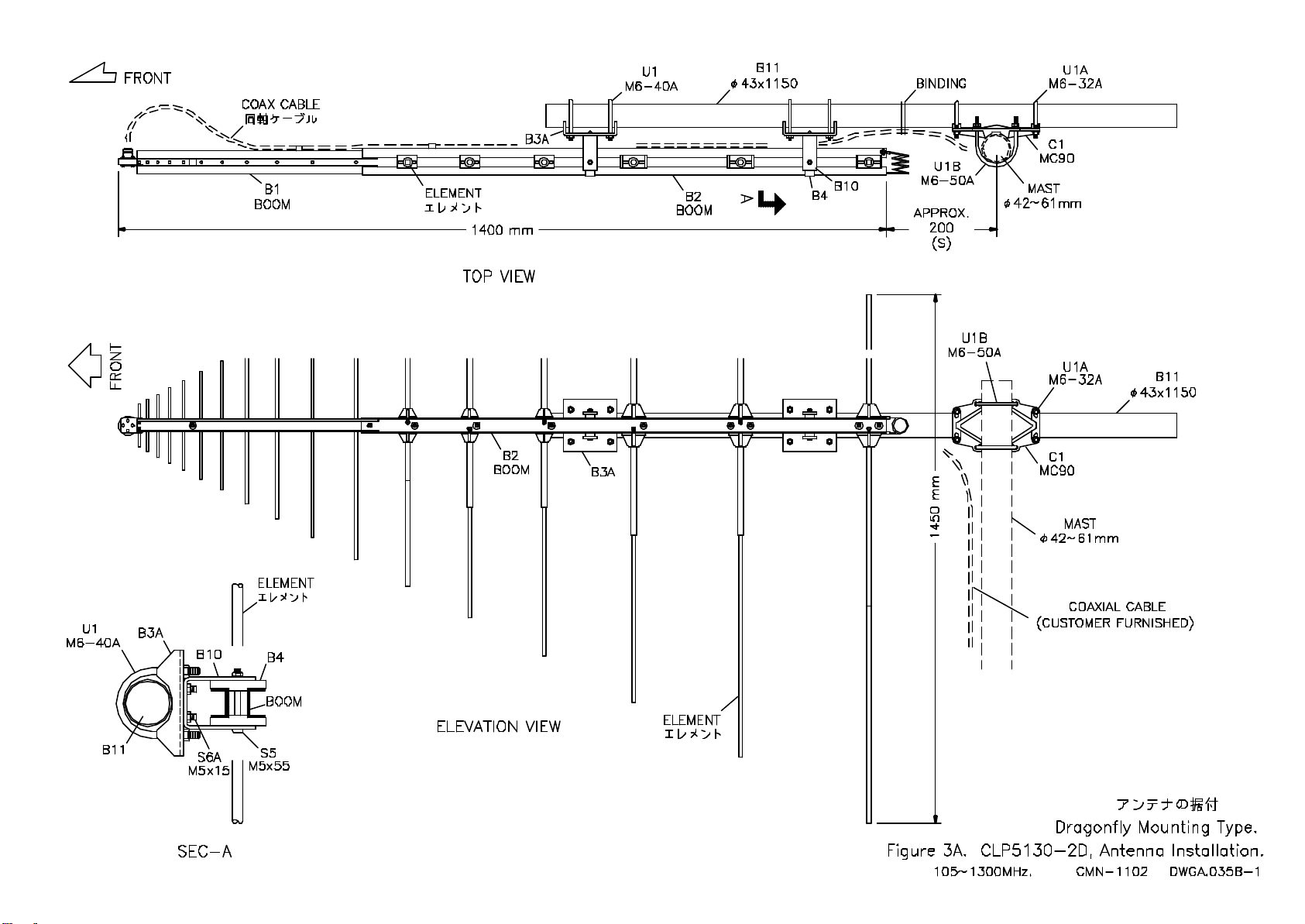

(*CLP5130-1D) (*CLP5130-2D) (for Air, TV)

90～220

(Receiver: 80～250)

★

Wind survival rating of all the modes is above 35m/s. *Dragonfly Mounting Type Antenna

ANTENNAMOUNTKITFORVERTICALPOLARIZATION,AM401-x

ForLog-PeriodicAntennaCLP5130-xSeries

ThisAM401-xisanantennamountkitthatmakesitpossibletomountahorizontallymountedantennaCLP5130-x
seriesverticallywhichconsistsofside-stickingboomandfittingfixtures.

＊

AM401A(forCLP5130-1)

＊

AM401B(forCLP5130-2/3)

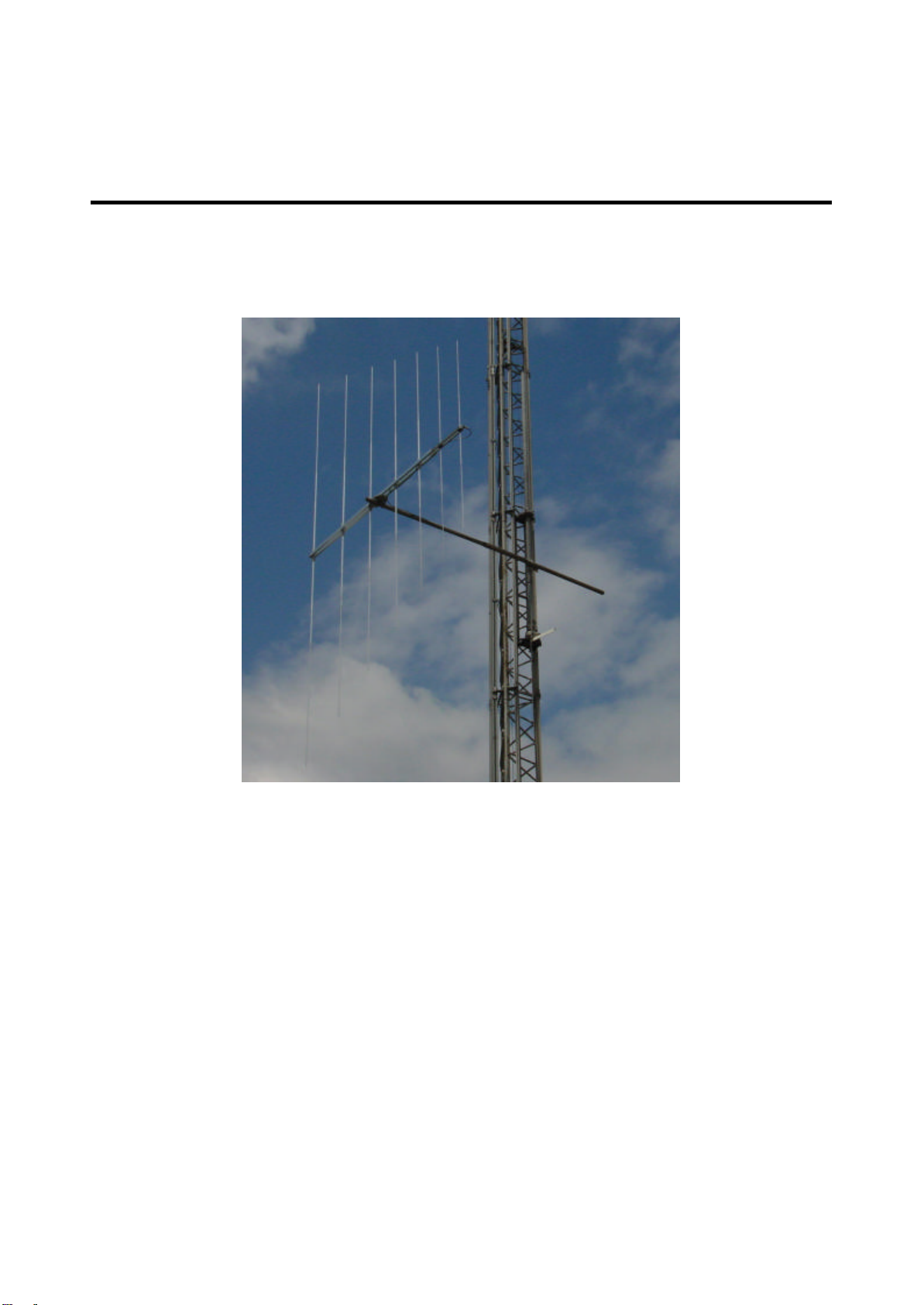

-Installationsample-
